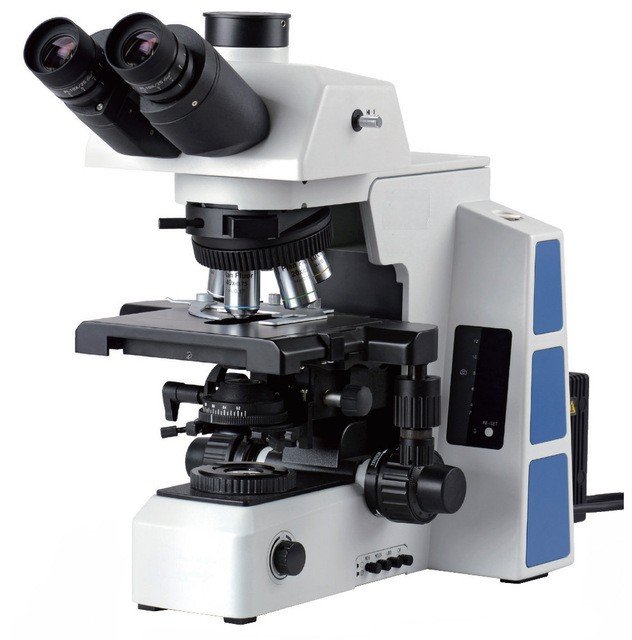

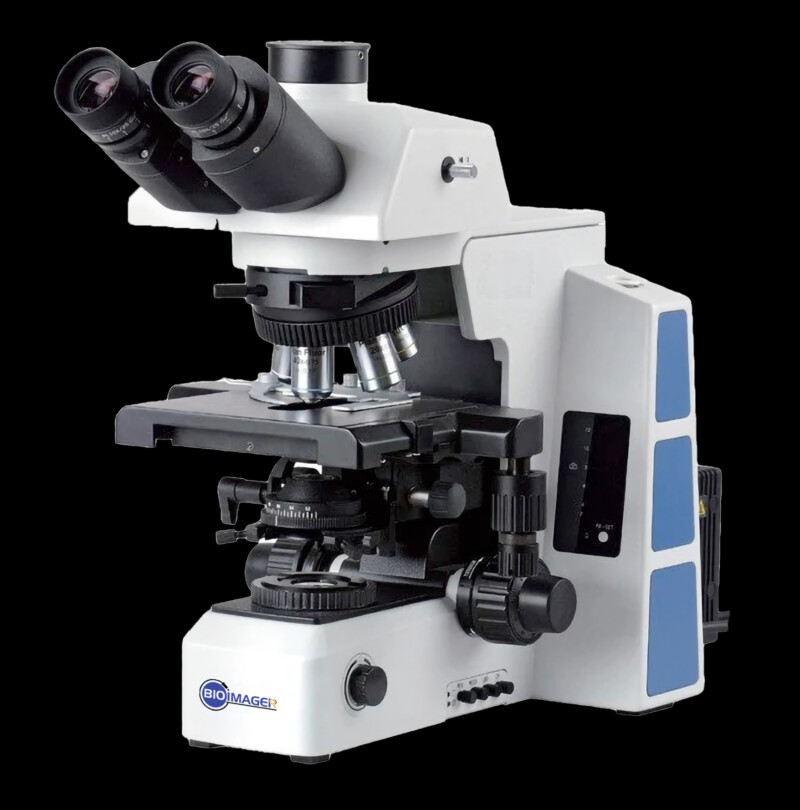

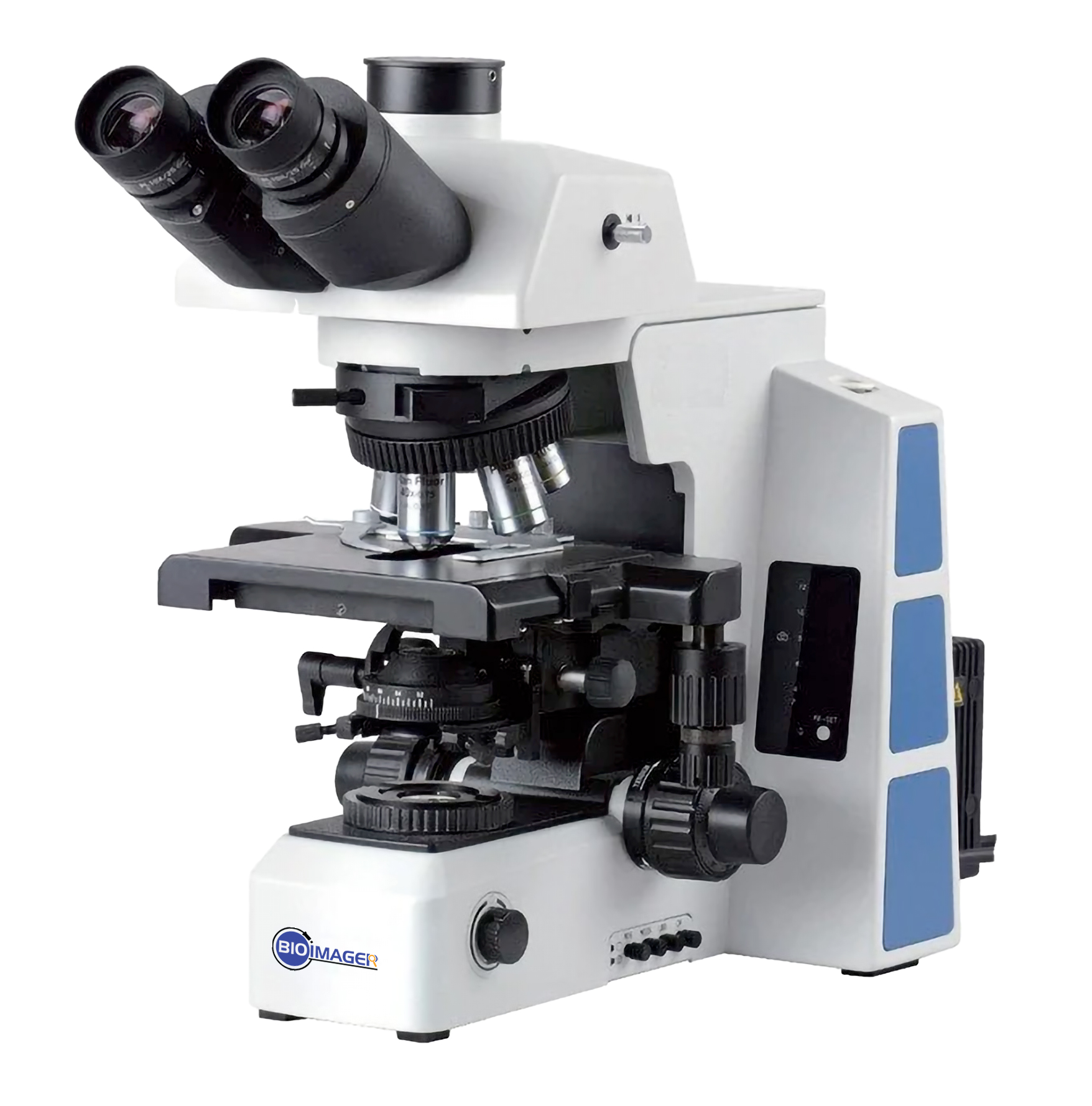

BUM800 Advanced Biological Upright Laboratory/Research Microscope

Availability:

In stock


  • Advanced Upright Biological Microscope
  • Brightfield imaging with optional Phase-Contrast, Darkfield, Polarizing, Epi-fluorescence and DIC Nomarski imaging
  • 4x, 10x, 20x, 40x and 100x Lenses included, optional 2.5x, 5x, 20x, 50x, 60x and LWD

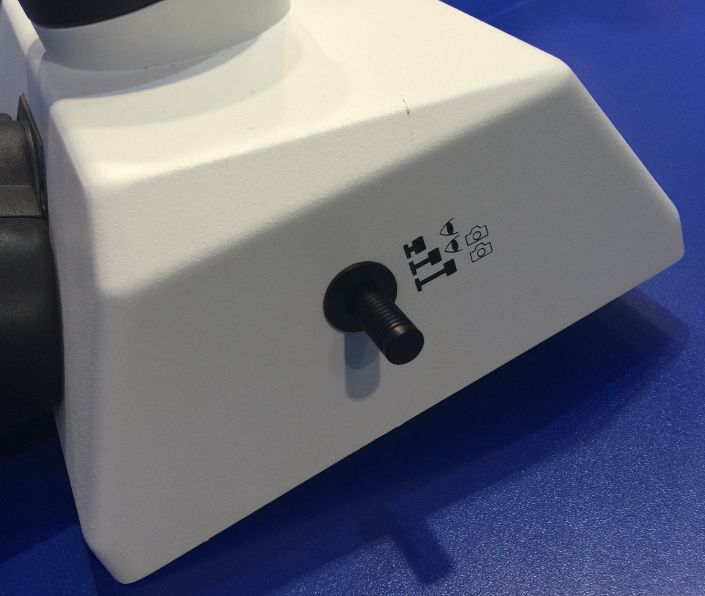

  • 3-Stop viewing head is available (100% Eyepieces, 20%E-80%C, 100% Camera)
  • Quintuple nosepiece with optional upgrade to sextuple and even more.
  • High level microscope, designed for laboratory study.

$6,200.00 $8,000.00

In stock

This microscope is a high level microscope which is specially designed for laboratory study. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this laboratory biological microscope makes your laboratory works enjoyable.

BUM800 Biological Upright Laboratory Microscope

Biological Microscope, APO, newly developed in 2014!
Infinity Optical System, Semi-Aprochromatic, Fluorescent Objectives
–BF Nosepiece, With Socket For DIC
–Large Double Layer Mechanical Stage, 187*166mm
–Swing-Out Achromatic Condenser, N.A.0.9
–12V100W Halogen Lamp, Center Adjusted,
–Digital Dimming System, With LED Indicator

BUM800FL Advanced Uprigh Fluorescence Microscope -10511

BUM800 Trinocular Compound Optical Microscope with Halogen Lamp Illumination

  • BUM800 Series biological Upright Microscope
  • Brightfield imaging with optional Phase-Contrast, Darkfield, Polarizing, Epi-fluor imaging
  • 4x, 10x, 20x, 40x and 100x Lenses included, optional 2.5x, 5x, 20x, 50x, 60x and LWD
  • 3-Stop viewing head is available (100% Eyepieces, 20%E-80%C, 100% Camera)
  • High level microscope, designed for laboratory study.

Biological Microscope, APO
Optical SystemInfinity Optical System, Semi-Aprochromatic
Head

Trinocular Head, 30°inclined, Inverted Image,Interpupillary Distance 50~76mm,Three Split Ratio 0:100; 20:80; 100:0

Eyepiece
High-Eyepoint Plan Eyepeiece PL10X/25mm,Diopter Adjustable
NosepieceBF Sextuple Nosepiece, With Socket For DIC
ObjectiveInfinity Plan Semi-Aprochromatic Fluorescent Objective:
4x/0.13, W.D.=16.43mm
10x/0.3, W.D.=8.13mm
20x/0.5, W.D.=2.03mm
40x/0.75, W.D.=0.74mm
100x/1.3, W.D.=0.18mm

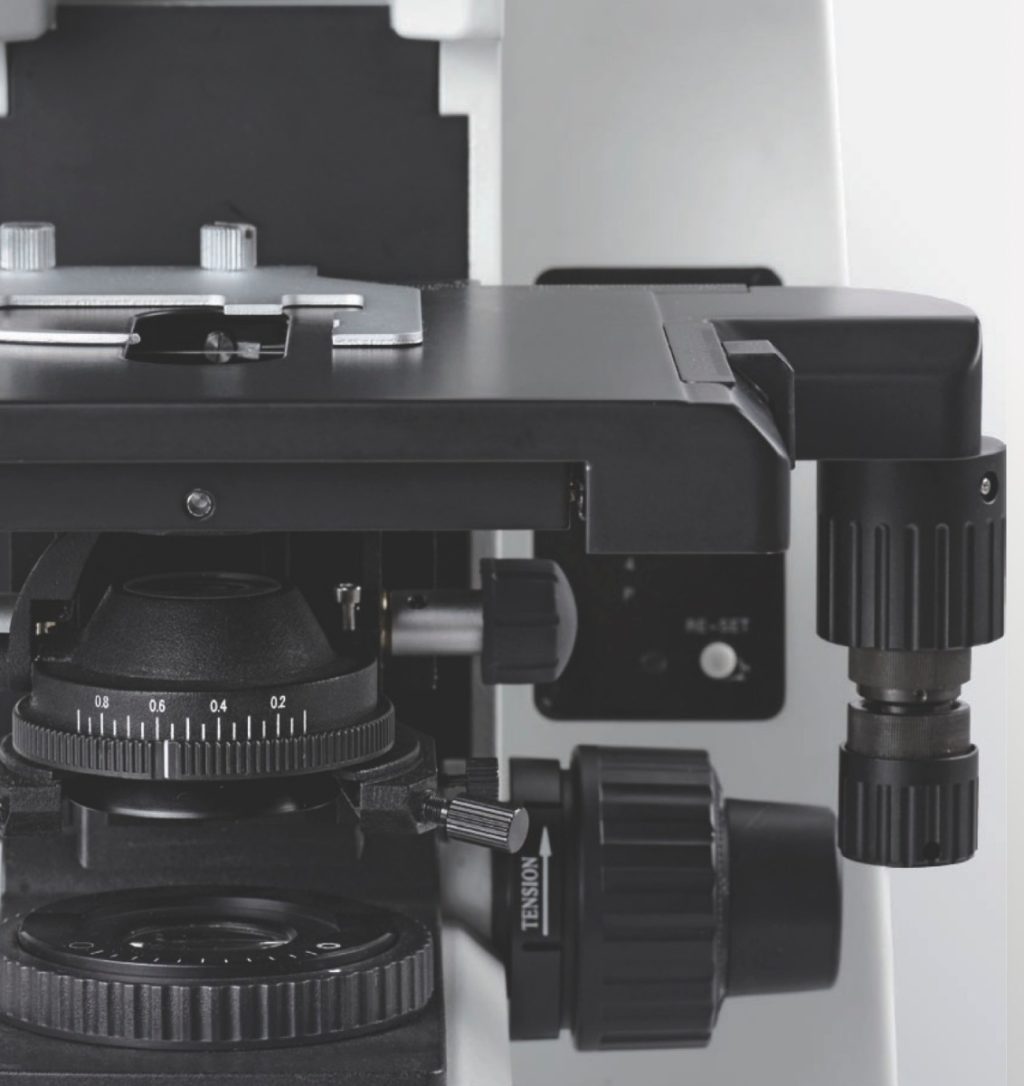

Working StageDouble Layer Mechanical Stage, 187*166mm, Moving Range 80*55mm,Precision 0.1mm,Double Direction Transmission, Left And Right Position Handle For Option. Tension Of The Torque Adjustable.
FocusingCoaxial Focus System With Upper Limited And Tension Adjustment, Coarse Adjustment Range:25mm, Fine Adjustment Precision: 0.001mm.
CondenserSwing-Out Achromatic Condenser, N.A.0.9
Light Source12V100W Halogen Lamp, Center Adjusted,
Adopt Digital Dimming System, With LED Indicator, With The Fnction Of Light Set And Reset
Power100-240V Built-in Wideband Voltage Transformer

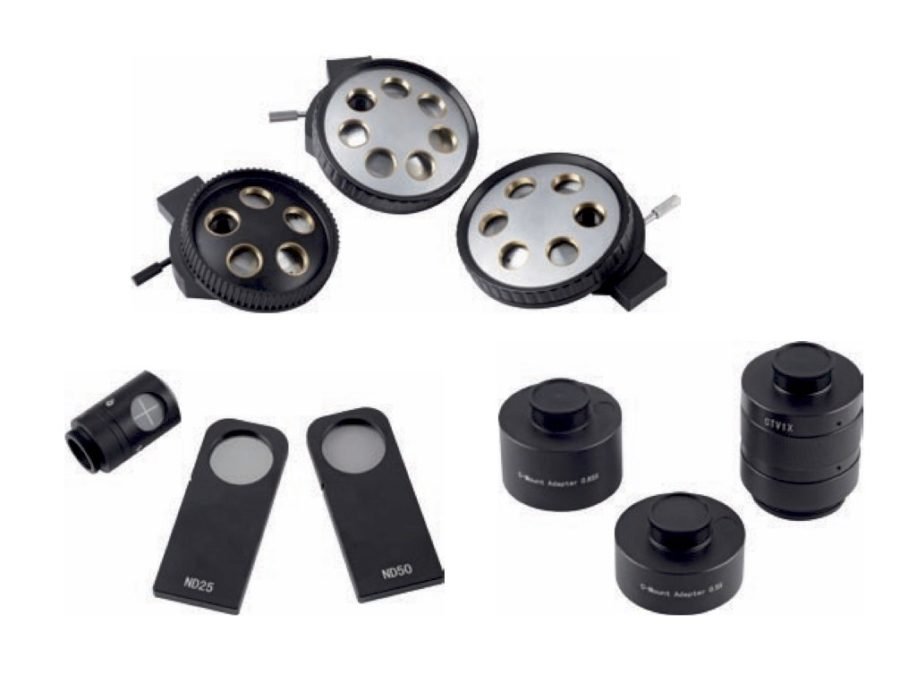

Biological Microscope Optional Accessories
EyepieceHigh-eyepoint Plan eyepeiece PL10X/26.5mm,diopter adjustableBUM8-10265T
High-eyepoint Plan eyepeiece PL10X/25mm,diopter adjustable, with micrometerBUM8-1025Tr
HeadTrinocular Head, 30°inclined, Erect Image,Interpupillary Distance 50~76mm,Three Split Ratio 0:100; 20:80; 100:0BUM8-E
NosepieceBF Septuple Nosepiece, With Socket For DICBUM8-R7
BF Quintuple Nosepiece, With Socket For DICBUM8-R5
AdapterC-Mount 0.5x, FocusableBUM8-05
C-Mount 0.65xBUM8-65
FluorescenceFluorescence Microscope, APOBUM800FL
MetallurgicalDIC Metallurgical Microscope, APOBMU800

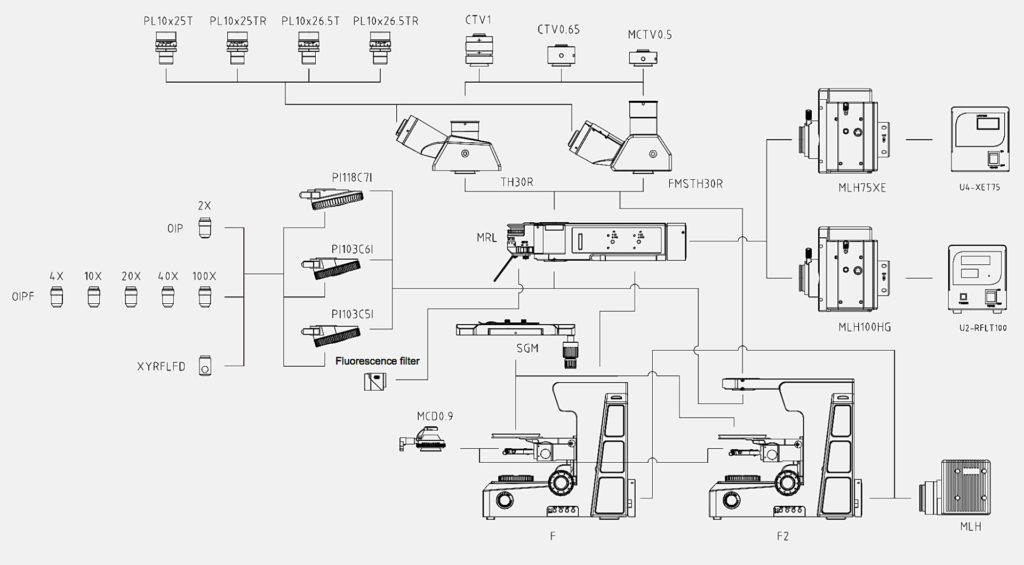

This system can be upgraded to the following models or to be customized to have extra imaging capabilities:

Epi-Fluor Upright Microscope, BUM800FL

Metallurgical Upright Microscope, BMU800

Polarizing Microscope, BPM800

BUM800FL Advanced Uprigh Fluorescence Microscope -10514



Weight20 kg
