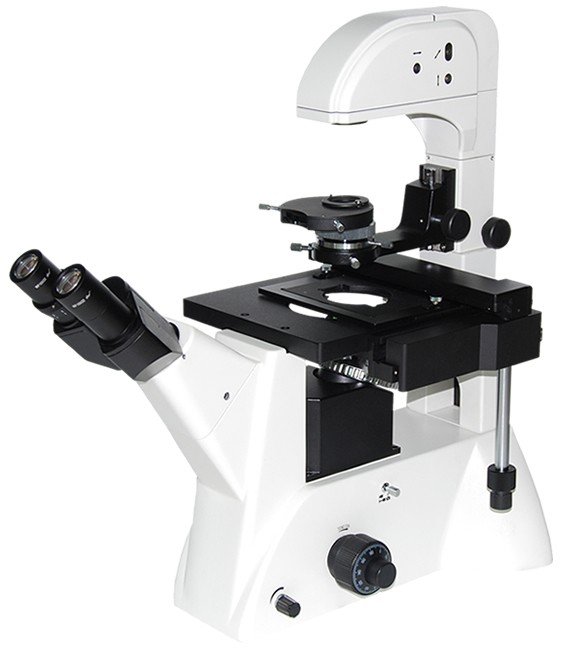

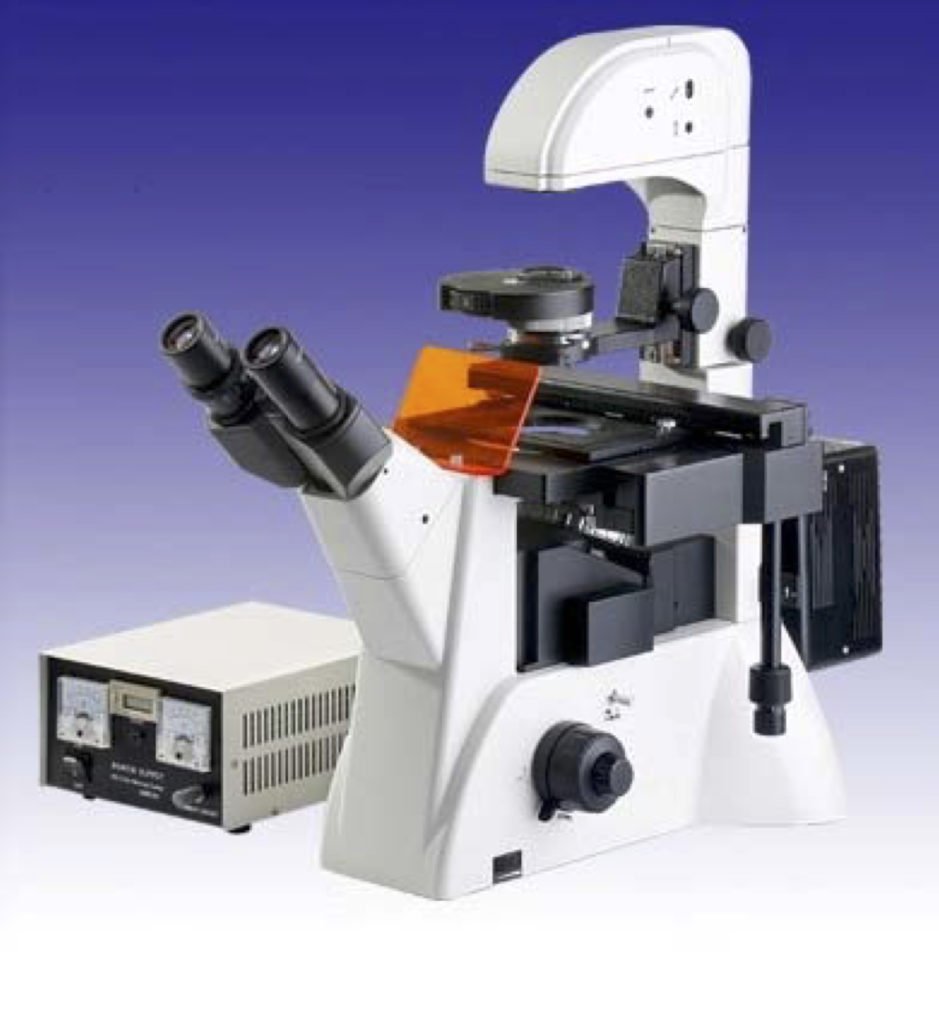

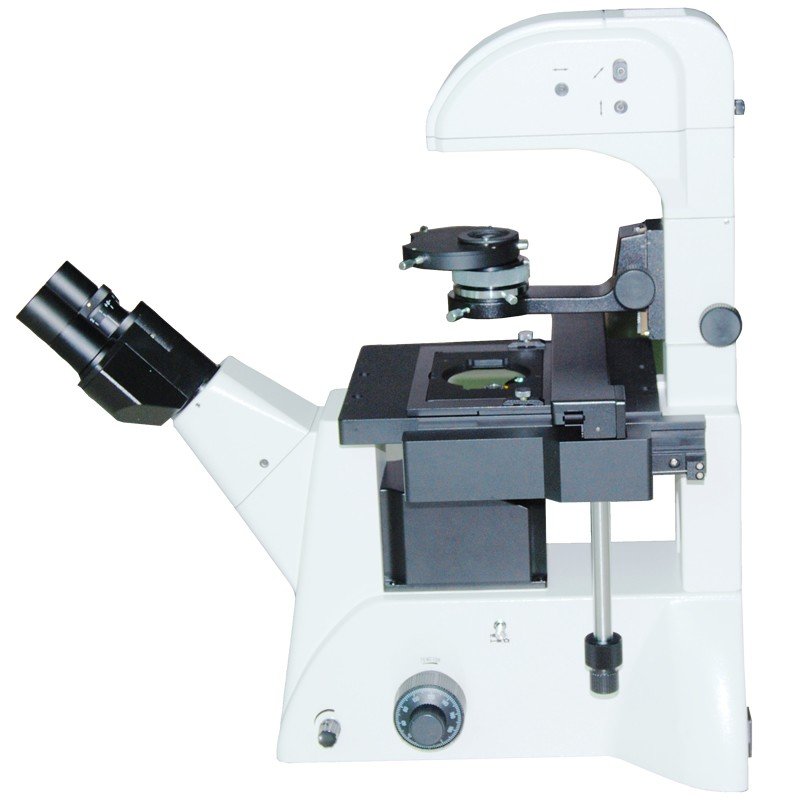

BIM720FL Inverted Epi-fluorescence Microscope

Availability:

In stock


Compare
  • Inverted Epi-Fluorescence Microscope
  • Excellent Phase Contrats imaging; Hoffman Modulation Contratst, Puller-type phase contrast condenser
  • 10x Ph, 20x Ph, 40x Ph obj lenses
  • B+G and UV+V filter sets, easy change of a filtre slider
  • LWD Condenser
  • XY stage ans sampel holder are inclduded
  • Side Video Port (100% transmsision)

In stock

$5,888.00 $6,638.00

BIM720FL Inverted fluorescent microscope is composed of Epi-fluorescent microscope and inverted microscope, equipped with excellent UIS optical system and adopted long working distance plan achromatic objectives and wide field eyepieces. Compact and steady main body represents the request of anti-shake during in the operation of observation, the condenser system can be rotary move is to make sure the high culture dish not be tainted during the cell of view.

Hoffman Modulation Contrast is another excellent feature of this microscope. The Epi-fluorescence microscope system is designed with modularization function notion, so it can be safely and quickly adjust the fluorescence illuminating system and switching-over fluorescence filters.

The Inverted fluorescent microscope is suitable for the field of fluorescence observation (tissue cells, zebrafish, C. elegans, bacteria, virus, transmitted liquid tissue), the biological pharmacy, medicine checking and measure and disease prevent.

BIM720FL Inverted Epi-fluorescence Microscope

  • Inverted Epi-Fluor Microscope
  • Excellent Phase Contrast imaging; Puller-type phase contrast condenser
  • 10x Ph, 20x Ph, 40x Ph obj lenses
  • B+G and UV+V filter sets, easy change of a filter slider
  • LWD Condenser
  • XY stage ans sample holder are included
  • Side Video Port (100% transmission)

BIM720FL Inverted Fluorescence Microscope

BIM720FL Inverted fluorescent microscope is composed of Epi-fluorescent microscope and inverted microscope, equipped with excellent UIS optical system and adopted long working distance plan achromatic objectives and wide field eyepieces. Compact and steady main body represents the request of anti-shake during in the operation of observation, the condenser system can be rotary move is to make sure the high culture dish not be tainted during the cell of view.

Hoffman Modulation Contrast is another excellent feature of this microscope. The Epi-fluorescence microscope system is designed with modularization function notion, so it can be safely and quickly adjust the fluorescence illuminating system and switching-over fluorescence filters.

The Inverted fluorescent microscope is suitable for the field of fluorescence observation (tissue cells, zebrafish, C. elegans, bacteria, virus, transmitted liquid tissue), the biological pharmacy, medicine checking and measure and disease prevent.

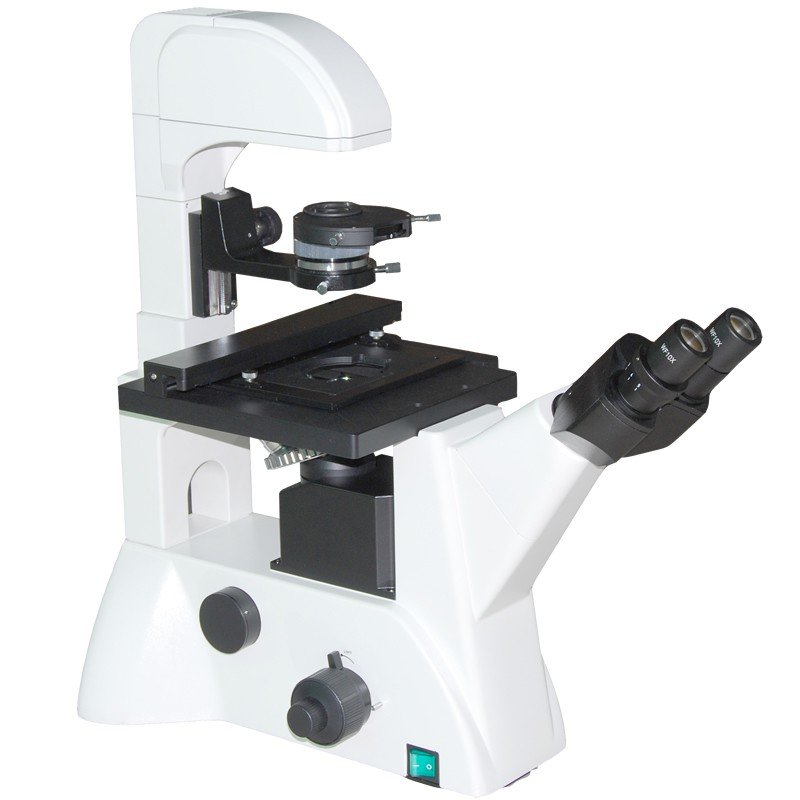

BIM720FL Inverted Epi-fluorescence MicroscopeBIM720 Inverted Brightfield/Phase Contrast Biological MicroscopePhase-Contrast/BIm720_L4.jpg

Phase Contrast Imaging

Fluorescence Imaging:

BIM720FL Inverted Epi-fluorescence Microscope

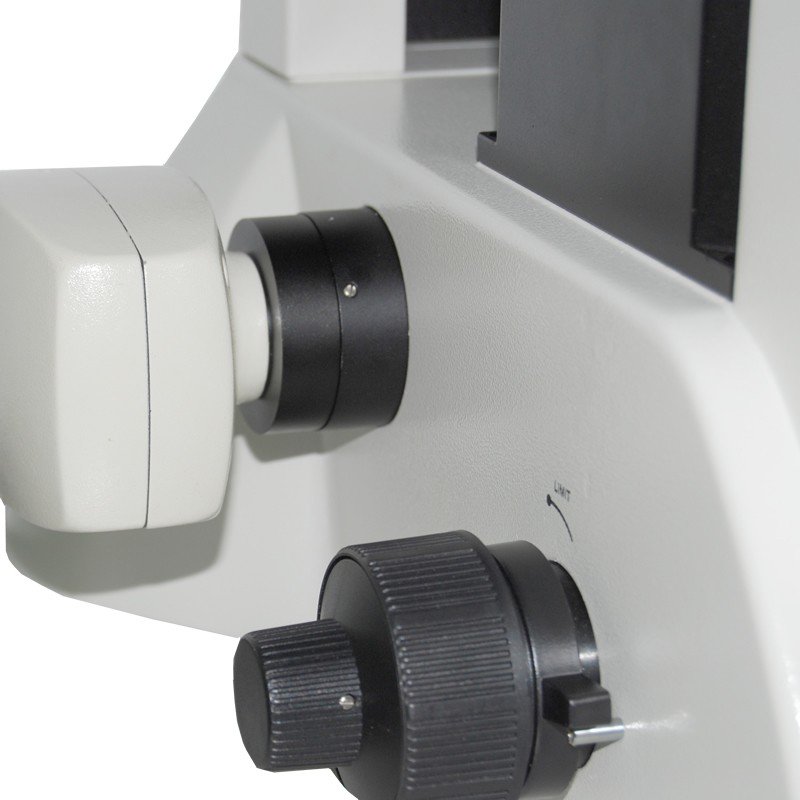

Easy Filter switch, B+G pair or UV+VSide Video Port with 100% Transmission

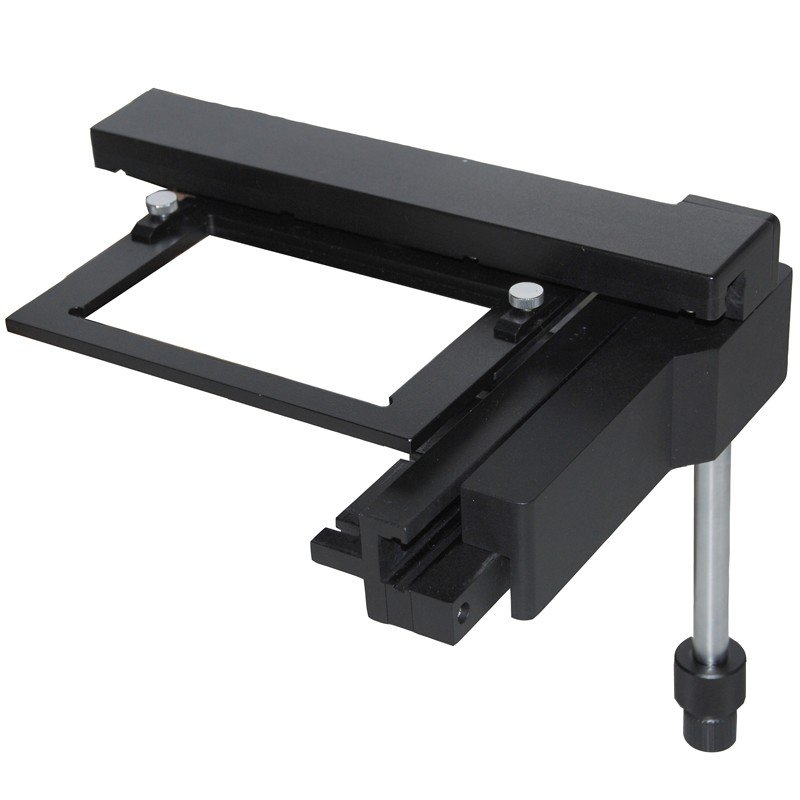

Mechanical XY stageQuintuple Nosepiece

Pricing

#ProductDescriptionPrice/ UnitQTPrice (USD)
1aBIM720Inverted Biological BF/Ph Microscope with swing-out Phase Condenser, 10x/22 eyepieces (Paired)1,999.0011,999.00
1bBIM720FLInverted Fluorescence BF/Ph/FL Microscope with swing-out Phase Condenser, 10x/22 eyepieces (Paired)5,888.0015,888.00
2BIM720-4xPlan 4x/0.10 Obj Lens100.001100.00
3BIM720-10xPhPlan 10x/0.25/WD4.3 Ph Lens150.001150.00
4BIM720-20xPhPlan L20x/0.40/WD8.0 LWD Ph Lens210.001210.00
5BIM720-40xPhPlan L40X/0.60/WD 3.5 LWD PH Lens220.001220.00
6BIM-CT30Centering Telescope (Φ30MM)99.00199.00
7BIM500-XYAttachable mechanical stage, X-Y coaxial control569.001569.00
8BIM500-TSKTerasaki Holder and 65mm Petri-dish holder59.00159.00
9BIM-35PDф38mm Petri Dish Holder59.00159.00
10BIM-GSLф54mm Petri-Dish & Slide Glass Holder69.00169.00
11BIM720-0.5xC-Mount adapter299.001299.00
12BIM720-1xC-Mount adapter199.001199.00
13BICS-0.010.01 mm calibration slide99.00199.00
14BI1022Apochromatic Obj lens 1.25x/ NA 0.04, WD 3.7mm1,300.0011,300.00
15BI830Plan Semi-Apo Obj lens 2.5x/ NA 0.07, WD 5.7mm598.001598.00
16BIMJ8314X/NA0.10/WD17.8 Brightfield Plan Semi Apo lens (Japan)199.001199.00
17BIMJ83210X/NA0.25/WD10.7 Brightfield Plan Semi Apo lens (Japan)240.001240.00
18BIMJ83320X/NA0.40/WD7.29 Brightfield Plan Semi Apo lens (Japan)253.001253.00
19BIMJ83440x/NA0.65/WD0.5 Brightfield Plan Semi Apo lens (Japan) [suitable for slides only]299.001299.00
20BIMJ85240x/NA0.60/WD2.8 Brightfield TC Planachromat lens (Japan) [suitable for well-plates]899.001899.00
21BIHR-50xPlanFluor EPI 50X BF Plan Semi Apochromat BF/FL Objective 50X/NA 0.80/W.D 1mm [suitable for micro well-plates]699.001699.00
22BIMJ96960x (dry)/NA0.80/WD 0.23 Brightfield Plan Objective lens (Japan) [suitable for slides only]399.001399.00
23BIMJ970100x (oil)/NA1.25/WD 0.14 Brightfield Plan Objective lens (Japan) [suitable for slides only]499.001499.00
BIM720FL Inverted Fluorescent Microscope
HeadInclination 45 Degree interpupillary distance is 53~75mm.
EyepieceWide field WF10X(field number:Φ22mm)
Centering telescope
ObjectiveInfinity Plan Achromatic Objective, PLL 10x/0.25, WD 4.3mm, Cover Glass 1.2mm
Infinity Plan Achromatic Objective, PLL 20x/0.40, WD 8.0mm, Cover Glass 1.2mm
Infinity Plan Achromatic Objective, PLL 40x/0.60, WD 3.5mm, Cover Glass 1.2mm
Phase Contrast Objective PLL10x/0.25 PHP2, WD 4.3mm, Cover Glass 1.2mm
Phase Contrast Objective PLL20x/0.40 PHP2, WD 8.0mm, Cover Glass 1.2mm.
Phase Contrast Objective PLL40x/0.60 PHP2, WD 3.5mm, Cover Glass 1.2mm
Epi-fluorescent
Illumination System
Power supply unit, 110V or 230V can be selected.
100W/DC Mercury lamp is 100W/DC
Fluorescent filters
GroupTypeWavelength of excitation lightWavelength of emitted light
UV+VUltraviolet light (UV)330nm~400nm425nm
Violet light (V)395nm~415nm455nm
B+GBlue light (B)420nm~485nm515nm
Green light (G)460nm~550nm590nm
Focus SystemCoaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2um
NosepieceQuintuple nosepiece

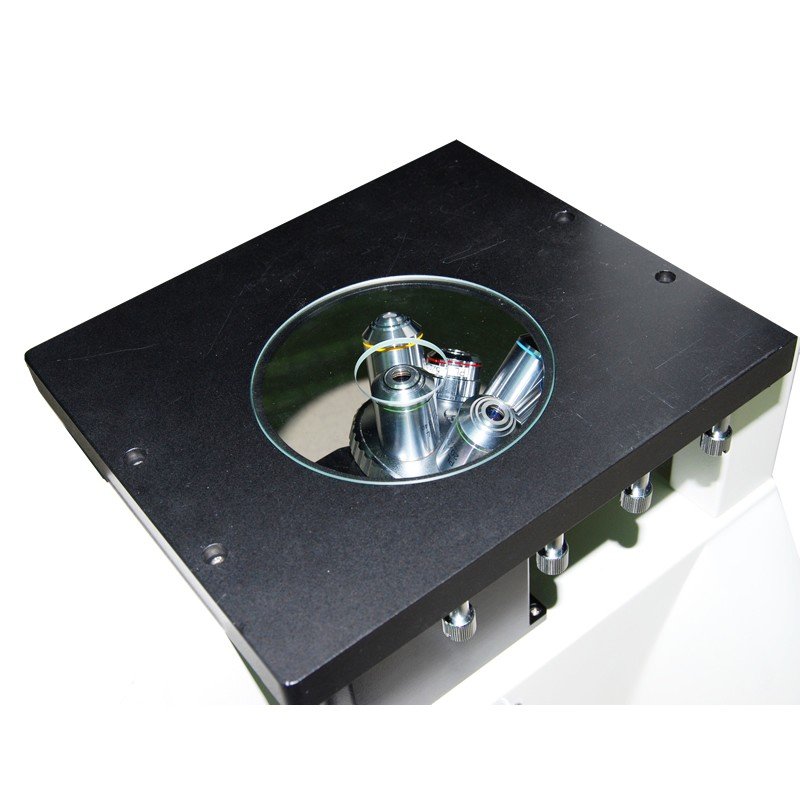

StageFixed stage overall size is 227mmX208mm
Glass rotundity stage overall size Dia:118mm
Mechanical moving device, moving range is 77mm (longitudinal)X114mm (transverse)
Culture dish holder 1Inside locating slot size: 86mm (W)X129.5mm (L), optional with a circular culture dish Ф87.5mm
Culture dish holder 2Inside locating slot size: 34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm
Culture dish holder 3Inside locating slot size:57mm (W)X82mm (L)
Transmitted illumination
system
Turnplate phase contrast condenser,  working distance is 55mm
6V30W halogen, brightness enable control
Frosted glass and blue , green filter



Optional AccessoryItem No.
Eyepiece10XDividing eyepiece(field number:¦µ22mm)    0.10mm/DivBIM7-1022
ObjectiveInfinity plan achromatic objective PL 5X/0.12 W.D26.1BIm7-5x
NosepieceSextupe (Backward ball bearing inner locating)BIM7-6N
CCD adapter0.4XBIM7-0.4xCA
0.5XBIM7-0.5xCA
1XBIM7-1.0xCA
0.5Xwith dividing 0.1mm/DivBIM7-0.5xCAR
DC AdapterCANON(EF), NIKON(F)BIM7-SLR

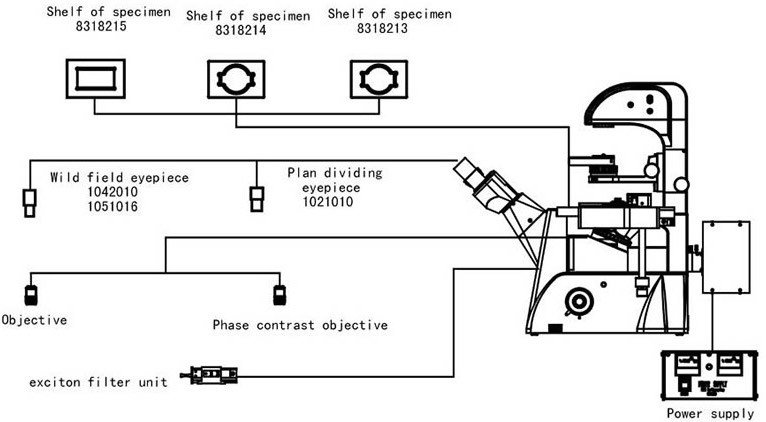

System Diagram:

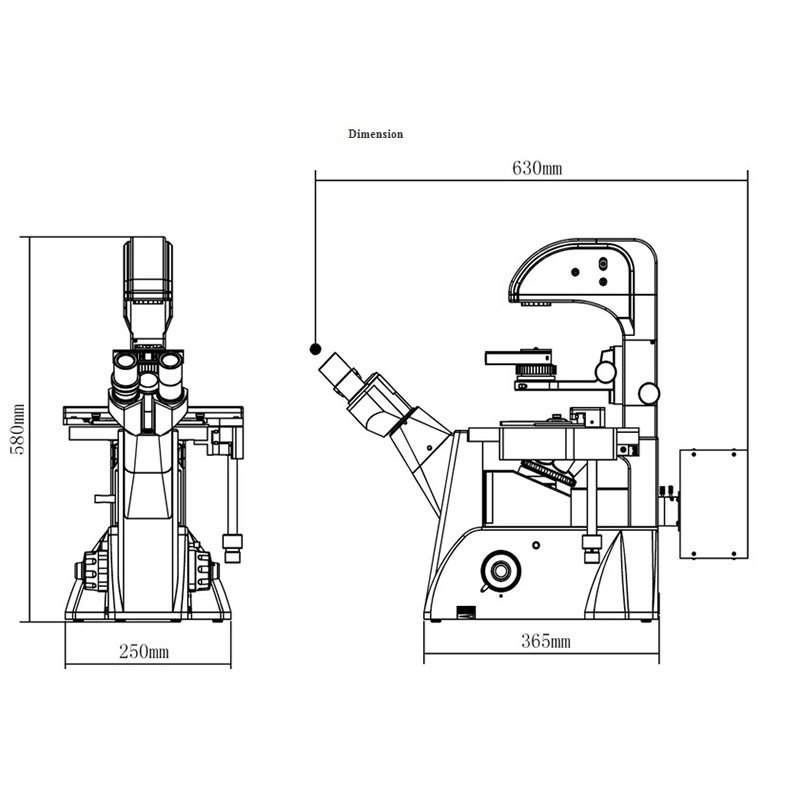

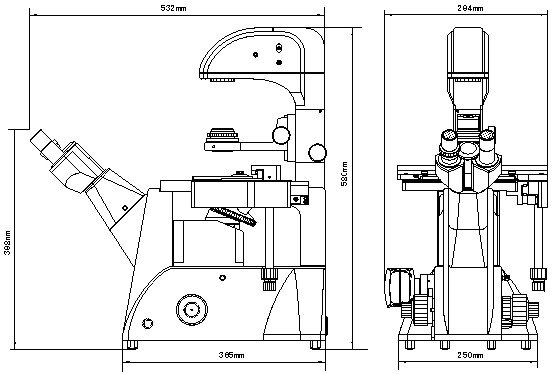

Dimension:
