MC-40 / MC-40T Metallurgical Measuring Microscope

$USD 8,000.00

-10%

Meiji Techno’s MC Series Precision Measuring Systems are composed of high quality metallurgical microscope components, precision X-Y stages and durable heavy duty stands. Meiji Techno measuring microscopes are available with 2-axis and 3-axis electronic digital readouts in inches and metric.

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Meiji Techno’s MC Series Precision Measuring Systems are composed of high quality metallurgical microscope components, precision X-Y stages and durable heavy duty stands. Meiji Techno measuring microscopes are available with 2-axis and 3-axis electronic digital readouts in inches and metric.

MC40: Bioncoular, Reflected Only

MC40T: Trinocular Head, Reflecetd & Transmitted light source

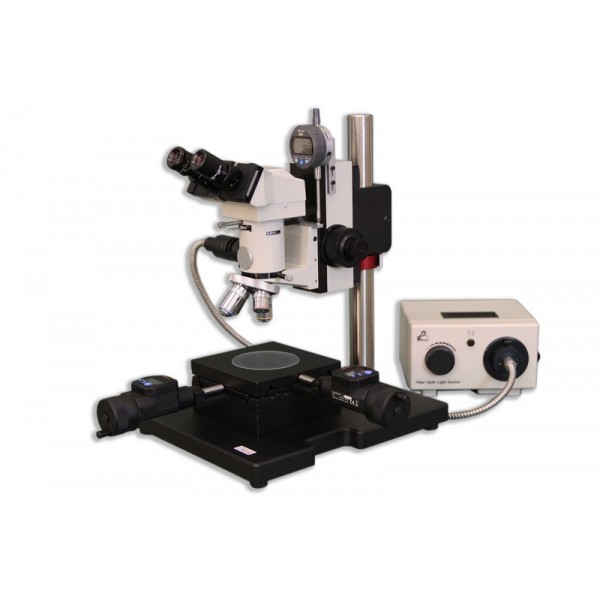

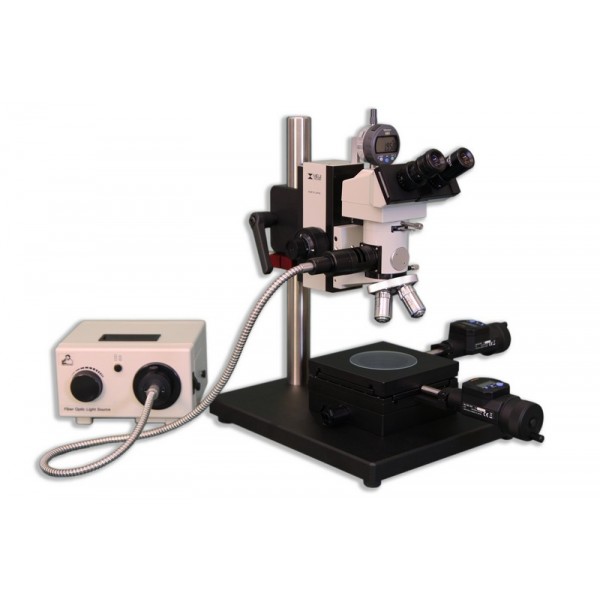

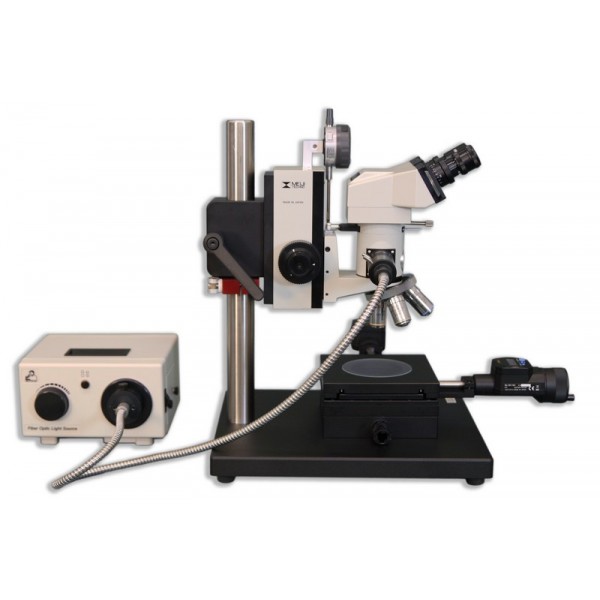

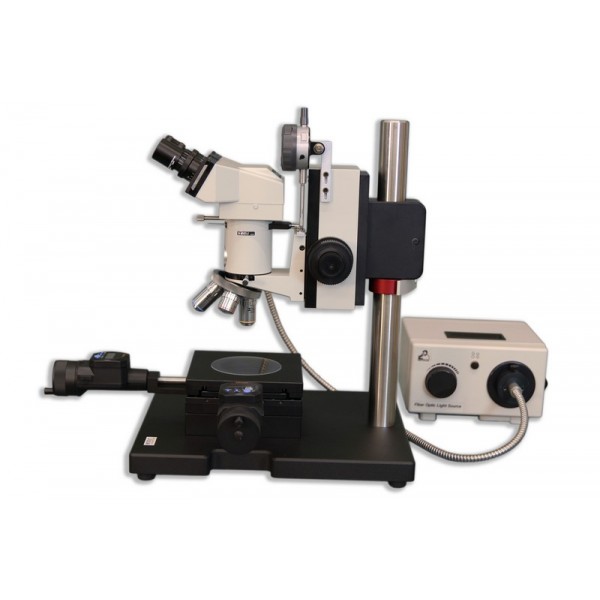

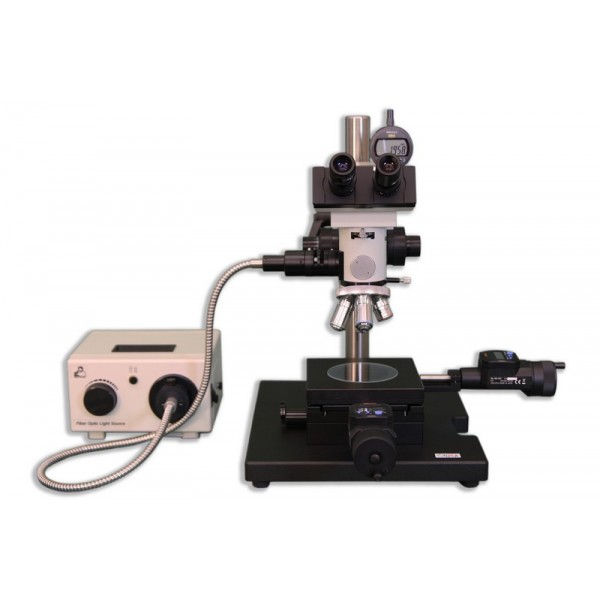

MC-40 / MC-40T Metallurgical Measuring Microscope

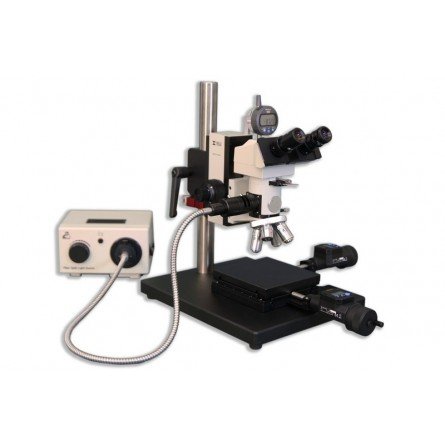

Our Model MC-40 is a reflective light measuring microscope with erect image and binocular head with depolarizer.

Model Head Illumination Eyepieces Objectives Stage
MC-40 Binocular Infinity corrected vertical Koehler illuminator, focal length 200mm, with sliding rotatable polarizer. Filter Set: Blue Clear, Green Clear, Neutral Density ND8 and Polarizing filters in metal mounts. Port to accept FL150/12 flexible 36″ (914.4mm) single arm fiber optic light guide. Flexible 36″ (914.4mm) single arm fiber light guide for MA806. Focusing lens for FL150/12. Light source: 115V, 50-60Hz halogen lamp, 21V 150W. Light source: 230V, 50-60Hz halogen lamp, 21V 150W Focusing eyepiece HWF10X-FF with cross-line reticule and set screw. High eyepoint eyepiece HWF10X, FN: 18, Eyepoint: 24mm Plan Epi M5X, N.A. 0.10, infinity corrected, W.D. 20mm
Plan Epi M10X, N.A. 0.25, infinity corrected, W.D. 7.48mm
Plan Epi M20X, N.A. 0.40, infinity corrected, W.D. 5.20mm
Plan Epi M50X, N.A. 0.75, infinity corrected, W.D. 0.38mm
Reflected light measuring stage: 150mm x 150mm with  50mm x 50mm X-Y movement with mounting brackets for digital micrometer heads
MC-40T Transmitted light measuring stage: 150mm x 150mm with  50mm x 50mm X-Y movement with glass stage plate and mounting brackets for digital micrometer heads
MC-50 Trinocular Reflected light measuring stage: 150mm x 150mm with  50mm x 50mm X-Y movement with mounting brackets for digital micrometer heads
MC-50T Transmitted light measuring stage: 150mm x 150mm with  50mm x 50mm X-Y movement with glass stage plate and mounting brackets for digital micrometer heads

Brightfield/Darkfield Metallurgical Measuring Microscope, MC-60 / MC-60TMC-40 / MC-40T Metallurgical Measuring MicroscopeMC-40 / MC-40T Metallurgical Measuring MicroscopeBrightfield/Darkfield Metallurgical Measuring Microscope, MC-60 / MC-60TMC-40 / MC-40T Metallurgical Measuring MicroscopeMC-40 / MC-40T Metallurgical Measuring Microscope
