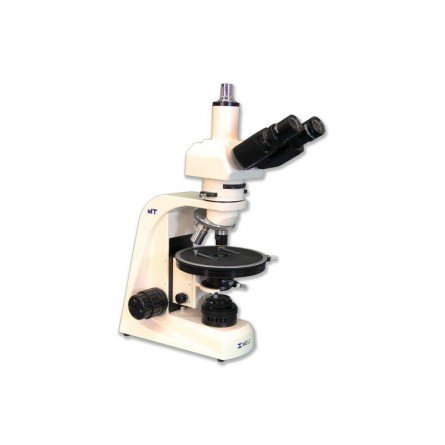

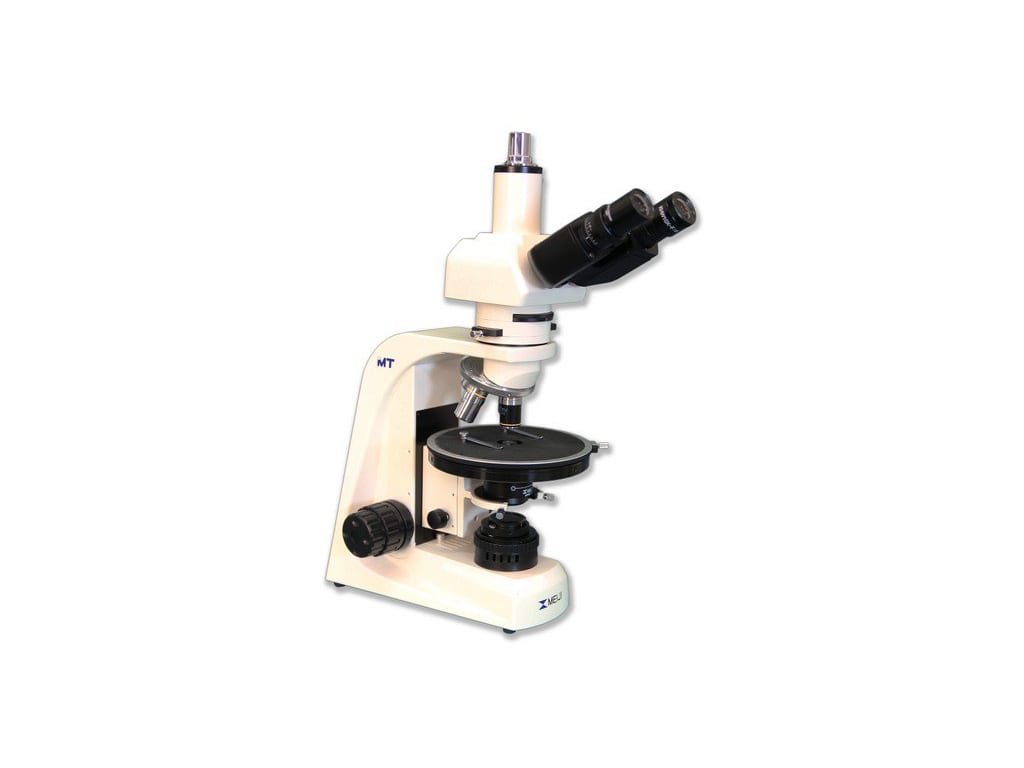

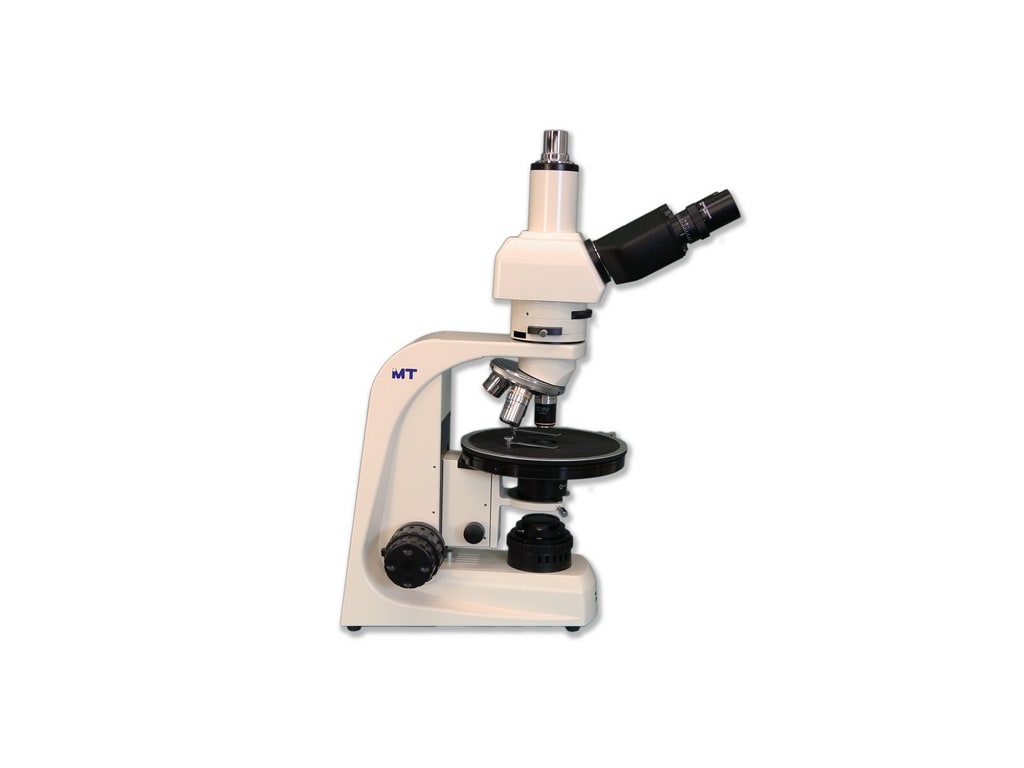

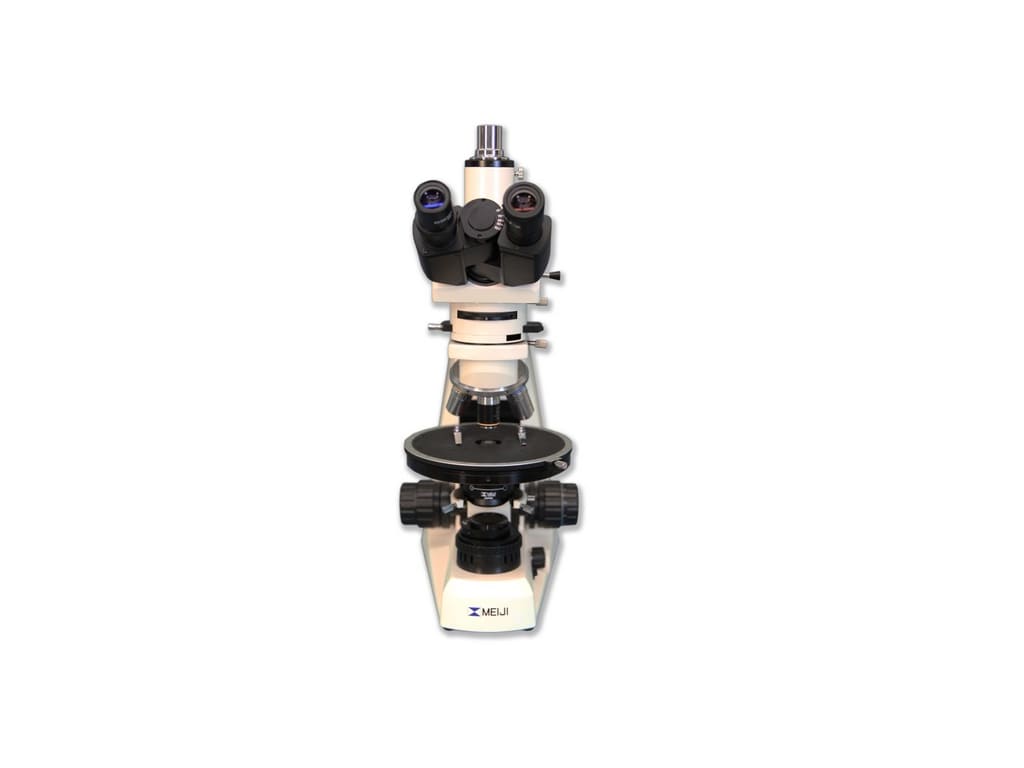

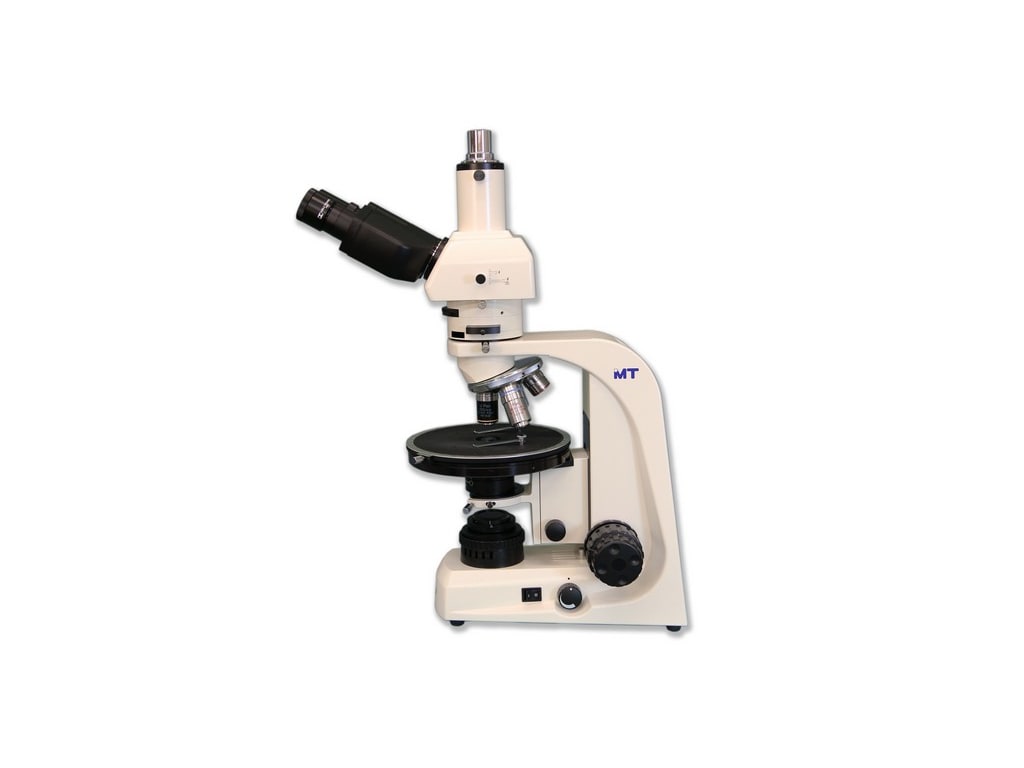

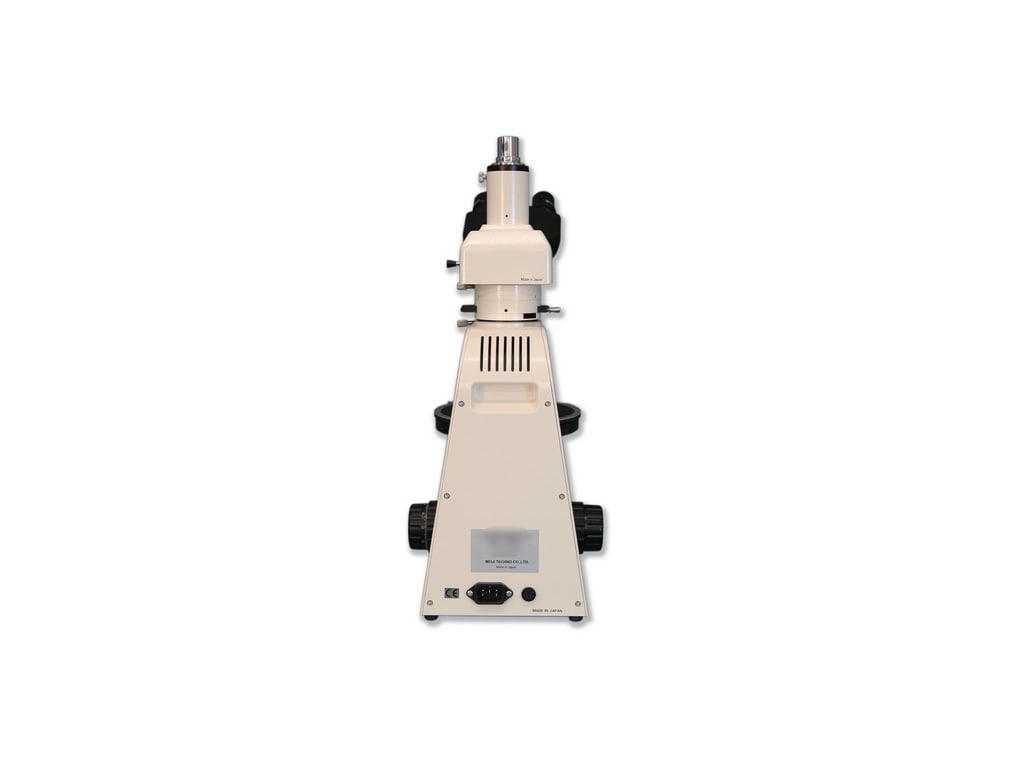

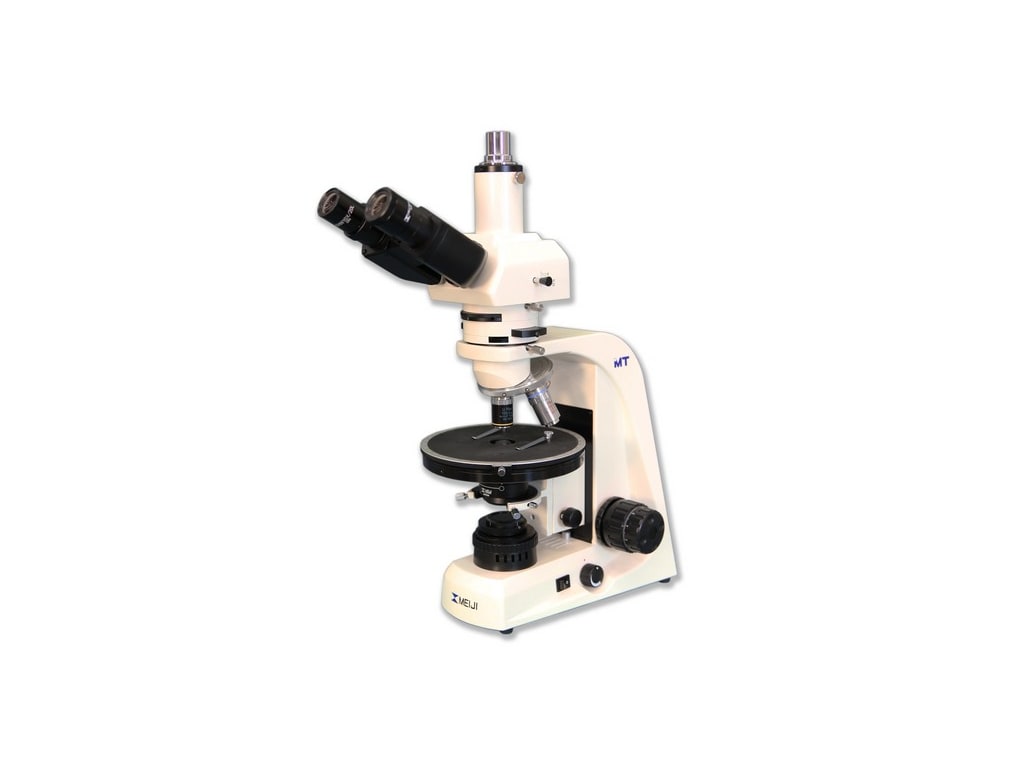

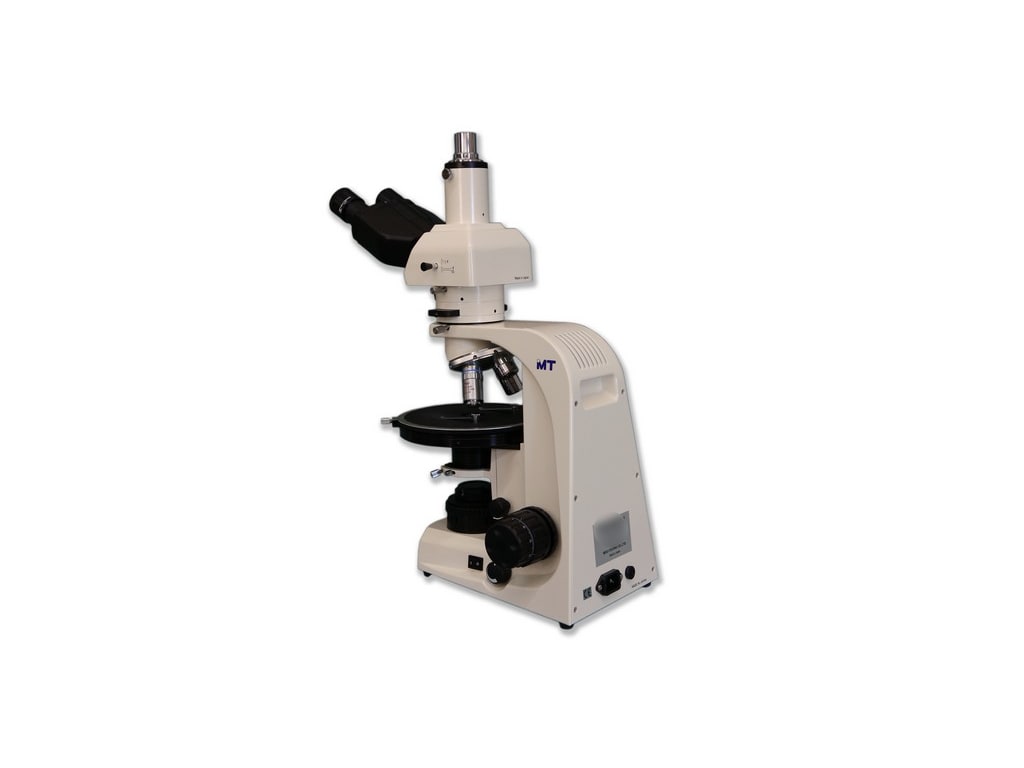

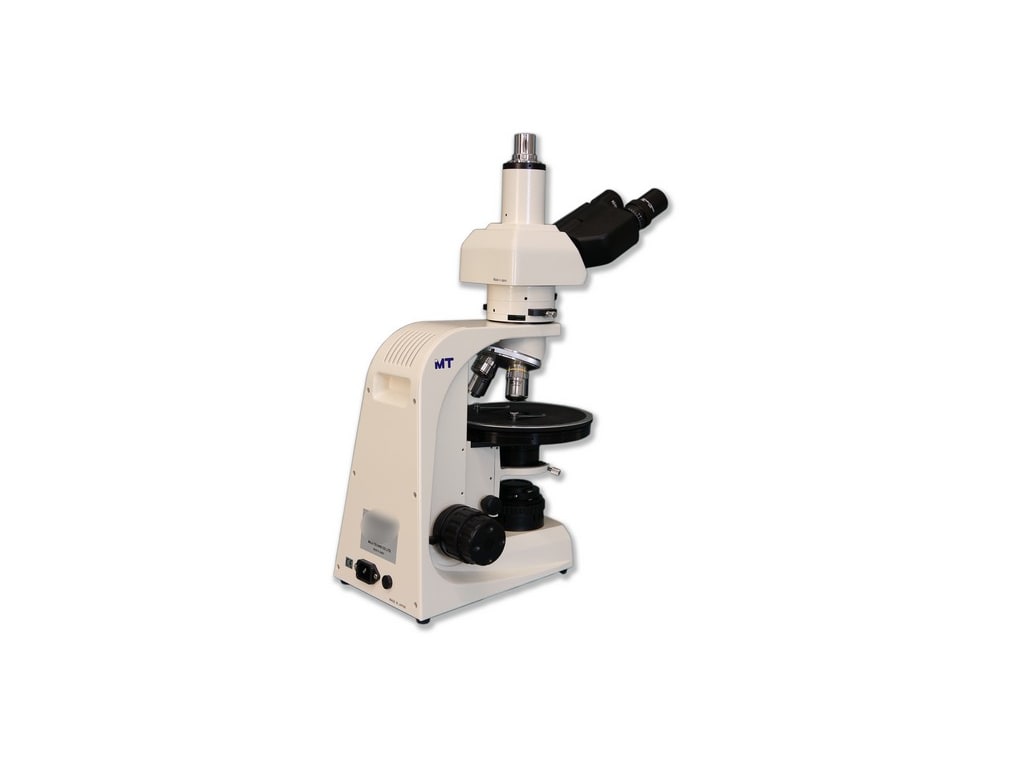

MT6130 Halogen Trinocular Asbestos PLM Microscope


Meiji Techno MT6100 Series Asbestos PLM Microscopes for Bulk Fiber Identification (NIOSH 9002) The MT6100 has been designed as a versatile, modular, ergonomic microscope system which are ideally suited in education, research or advanced laboratory applications.

$6,098.00 $6,775.00

Meiji Techno MT6100 Series Asbestos PLM Microscopes for Bulk Fiber Identification (NIOSH 9002) The MT6100 has been designed as a versatile, modular, ergonomic microscope system which are ideally suited in education, research or advanced laboratory applications. Ergonomic placement of controls allows for stress free operation, increased lab efficiency and maximum productivity. Transmitted 6V 30W Koehler Halogen illuminator with strain free condenser and strain free ∞ Infinity Corrected objectives and a Dispersion Staining Objectives. The MT6100 Series offers an outstanding range of features and optical performance with an emphasis on all newly engineered high performance optics based on Meiji Techno’s ICOS Optical System (Infinity Corrected Optical System). The new strain free optics, provide exceptionally bright, crisp images, with good color rendition and superior flat fields of view.

The MT6100 Series features include:

  • Polarizing microscope, binocular head with DIN standard eyepiece HWF10X and DIN focusing HWF10XF eyepiece with cross-line reticle.
  • Centerable quadruple nosepiece with Semi Plan Strain free objectives 10X, 20X and Dispersion Staining 40X and 10X
  • Rotatable stage with graduation 360°, with vernier graduations to 0.1° degree
  • Rotatable polarizer in swing-out mount, analyzer and Bertrand lens in sliding mount
  • Coaxial coarse and fine adjustment with graduation, built-in Koehler illuminator with halogen lamp 6V 30W light intensity control.
  • Includes First order red plate and Analyzer in sliding mount
  • Supplied with dust cover and Instruction Manual for MT6100 Series

MT6130:Trinocular PLM Asbestos Microscope for NIOSH 9002 Reference Method.  Equipped with a large stable microscope base and limb with graduated coaxial coarse and fine focusing( with safety stop), rack and pinion focusing condenser mount, strain free condenser and  strain free objectives with pre-centered transmitted Koehler illuminator with 6V 30W Halogen lamp with variable intensity control
MA953: Trinocular head, 30° inclination. One eye tube slotted for orientation of cross-line focusing eyepiece dual graduated diopter eyetubes with interpupillary adjustments of 53mm to 75mm
MA407CP: KHW-10X focusing eyepiece with cross-line and guide pin,(ea) (21mm reticle mount) (Tube O.D. 23.2mm)
MA407: KHW-10X Compensating eyepiece, F.N.20 (each)(Tube O.D. 23.2mm)
Nosepiece: Reverse Facing Quadruple ball-bearing with one fixed and three centerable objective apertures
MA936: Strain free Plan objective 10X/N.A. 0.25, W.D. 7.3mm
MA936D: Strain free Plan objective 10X/N.A. 0.25, W.D. 10.6mm (Dispersion Staining Objective)
MA937: Strain free Plan objective 20X/N.A. 0.40, W.D. 7.29mm
MA938: Strain free Plan objective 40XS/N.A. 0.40, W.D. 0.72mm
MA954/05: Strain free Abbe condenser, N.A. 1.25, includes sliding mount with annulus for 10X, 20X, 40X phase or dispersion staining objectives, iris diaphragm, dovetail mount
MA458: Focusing Centering Telescope, 23.2mm O.D.
MA946: Stainless Steel Stage Clips ( 2 pcs.)
MA470/05: First Order Red compensating plate, 530nm for MT6100 (20mm X 6mm X 80mm)
MA471/05: Analyzer (Sliding type for MT6100 Series (26mm X 6mm X 80mm)
MA477/05: Bertrand lens (Sliding type) for MT6100 Series (Built in to frame)
Stage: Rotatable stage with Vernier graduation 360° with Vernier, reading to 1°, 150mm diameter with stainless steel stage clips (Factory Installed)
Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns power division.  Incorporates tension adjustment and safety Auto-focus stage stop lever
MA289/05: Blue clear daylight filter, 29.8mm diameter, unmounted
MA326: Bulb 6V 30W Halogen (Factory Installed)
MA327: Fuse 3 Amp (Factory Installed)
MA809/10: Removable AC Electric cord with plug for 115V models (Included in all 115V models)
MA809/20: Removable AC Electric cord with plug for 220V models (Included in all 220V models)
Polarizer: Swing in-out click/clamp mount, fully rotatable 360° with click stop at 0°and 90°
MA712: Dust cover for MT6100 Series
Manual: Meiji Techno America MT6100 Manual
Warranty: Limited Lifetime Warranty Card

Product Information:
Manufactured: 100% MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
Weight: 29.0 lbs (8.0 kg)
Box Size: 16 x 14 x 21 inches
Footprint: 263mm (D) x 176mm (W)
Binocular head type: 263 mm(D) x 456mm (H) x 212mm(W) (9.06kg)( 33.0 lbs.)
Trinocular head type: 263 mm(D) x 510mm(H) x 212mm(W) (9.75Kg)( 35.0 lbs.)

ModelHeadIlluminationEyepiecesObjectivesStageCondenser
MT6120BinocularTransmitted light Koehler Illuminator 6V 30W halogen auto voltage sensing with intensity control(1) KHW10XCP Focusing with guide pin and crossline reticle, (1) KHW 10X, F.N. 20 O.D. 23.2mmDIN Strain Free Plan 10x, 20x, & 40x, & 10x Dispersion StainingRotatable with 360 degree graduations and vernierStrain Free Abbe N.A. 1.25 w/ slider for dispersion staining objectives
MT6130Trinocular

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

• ML6130: Trinocular PLM Asbestos Microscope for NIOSH 9002 Reference Method.  Equipped with a large stable microscope base and limb with graduated coaxial coarse and fine focusing( with safety stop), rack and pinion focusing condenser mount, strain free condenser and  strain free objectives with pre-centered transmitted Koehler illuminator with 6V 30W Halogen lamp with variable intensity control
• MA953: Trinocular head, 30° inclination. One eye tube slotted for orientation of cross-line focusing eyepiece dual graduated diopter eyetubes with interpupillary adjustments of 53mm to 75mm
MA407CP: KHW-10X focusing eyepiece with cross-line and guide pin,(ea) (21mm reticle mount) (Tube O.D. 23.2mm)
MA407: KHW-10X Compensating eyepiece, F.N.20 (each)(Tube O.D. 23.2mm)
Nosepiece: Reverse Facing Quadruple ball-bearing with one fixed and three centerable objective apertures
MA936: Strain free Plan objective 10X/N.A. 0.25, W.D. 7.3mm
MA936D: Strain free Plan objective 10X/N.A. 0.25, W.D. 10.6mm (Dispersion Staining Objective)
MA937: Strain free Plan objective 20X/N.A. 0.40, W.D. 7.29mm
MA938: Strain free Plan objective 40XS/N.A. 0.40, W.D. 0.72mm
MA954/05: Strain free Abbe condenser, N.A. 1.25, includes sliding mount with annulus for 10X, 20X, 40X phase or dispersion staining objectives, iris diaphragm, dovetail mount
MA458: Focusing Centering Telescope, 23.2mm O.D.
MA946: Stainless Steel Stage Clips ( 2 pcs.)
MA470/05: First Order Red compensating plate, 530nm for MT6100 (20mm X 6mm X 80mm)
MA471/05: Analyzer (Sliding type for MT6100 Series (26mm X 6mm X 80mm)
MA477/05: Bertrand lens (Sliding type) for MT6100 Series (Built in to frame)
Stage: Rotatable stage with Vernier graduation 360° with Vernier, reading to 1°, 150mm diameter with stainless steel stage clips (Factory Installed)
Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns power division.  Incorporates tension adjustment and safety Auto-focus stage stop lever
MA289/05: Blue clear daylight filter, 29.8mm diameter, unmounted
MA326: Bulb 6V 30W Halogen (Factory Installed)
MA327: Fuse 3 Amp (Factory Installed)
MA809/10: Removable AC Electric cord with plug for 115V models (Included in all 115V models)
MA809/20: Removable AC Electric cord with plug for 220V models (Included in all 220V models)
Polarizer: Swing in-out click/clamp mount, fully rotatable 360° with click stop at 0°and 90°
MA712: Dust cover for MT6100 Series
Manual: Meiji Techno America MT6100 Manual

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Viewing Heads:
MA952: Binocular head – Siedentopf type, inclined at 30 degrees with reticle angle compensation, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (23.2.0 mm I.D. eyetube) (Included in models MT6120)

Eyepieces:
MA407/05: KHW-10X Compensating Focusing eyepiece, F.N. 20 (each) (Tube O.D. 23.2mm)

Semi Planachromat POL Objectives for Transmitted Light Work:
MA935: Strain free Plan objective 4X/N.A.0.10, W.D. 25.89mm
MA939: Strain free Plan objective 60XS/N.A.0.85, W.D. 0.2mm
MA940: Strain free Plan objective 100XS/N.A.1.25 oil, W.D. 0.14mm

Dispersion Staining Objective:
MA937D: Strain free Plan objective 20X/N.A.0.40, W.D. 7.29mm
MA938D: Strain free Plan objective 40XS/N.A.0.75, W.D. 0.72mm

Stage:
MA299: Attachable mechanical stage for MT6100 Series

Bulbs and Fuses:
MA326: Halogen bulb 6V 30W, replacement
MA327: Fuse 3Amp, replacement
