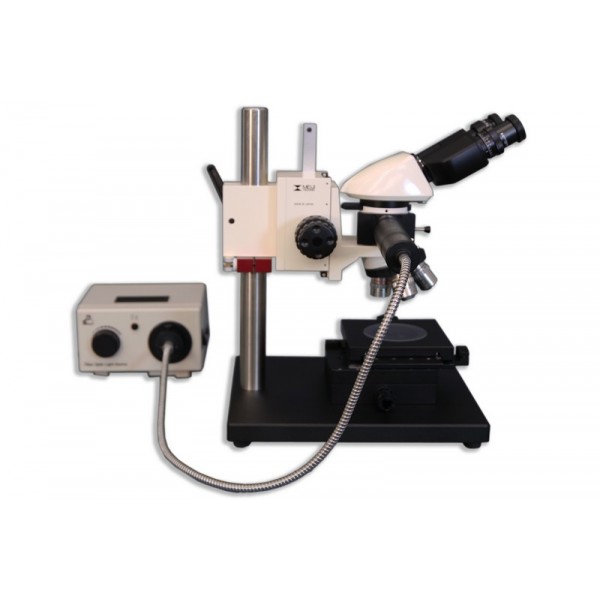

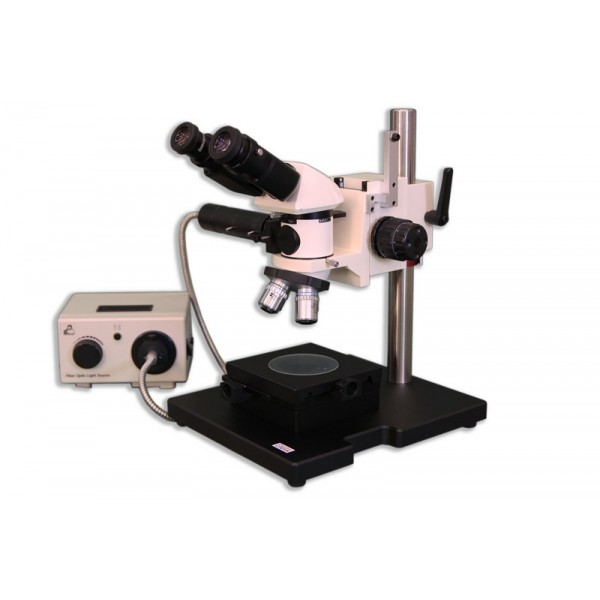

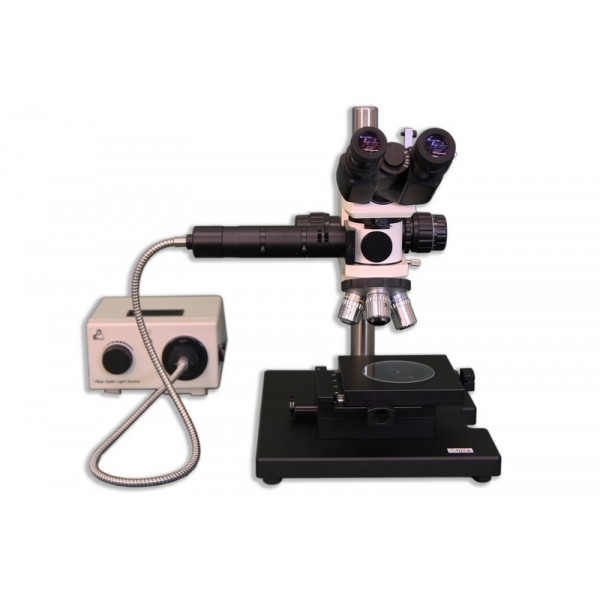

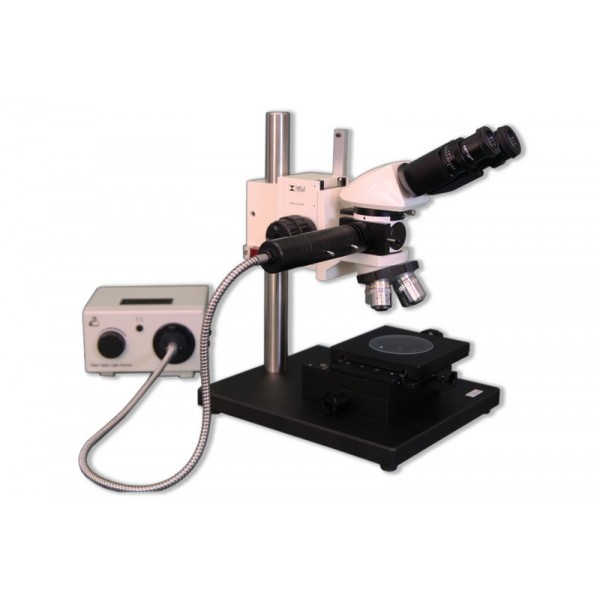

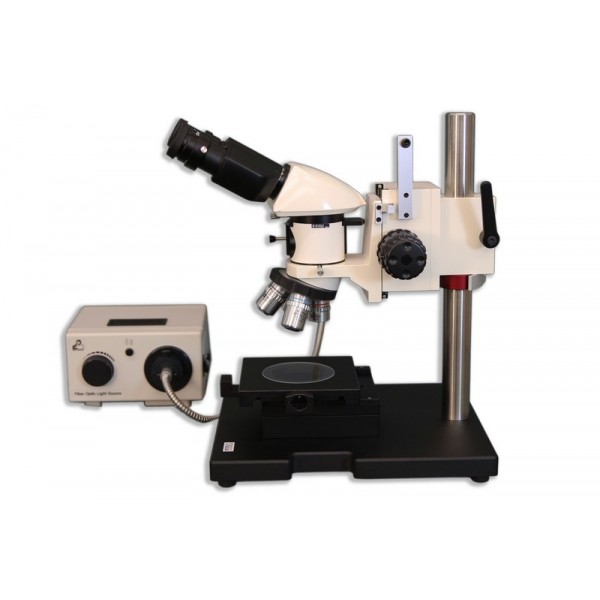

MC-60T Brightfield/Darkfield Metallurgical Measuring Microscope

Availability:

In stock


Compare

Meiji Techno’s MC Series Brightfield/Darkfield Precision Measuring Systems are capable of brightfield, darkfield, and simple polarization observation modes. They are composed of high quality metallurgical microscope components, precision X-Y stages and durable heavy duty stands. Meiji Techno measuring microscopes are available with 2-axis and 3-axis electronic digital readouts in inches and metric.

In stock

$9,250.00 $10,190.00

Meiji Techno’s MC Series Brightfield/Darkfield Precision Measuring Systems are capable of brightfield, darkfield, and simple polarization observation modes. They are composed of high quality metallurgical microscope components, precision X-Y stages and durable heavy duty stands. Meiji Techno measuring microscopes are available with 2-axis and 3-axis electronic digital readouts in inches and metric.

Brightfield/Darkfield Metallurgical Measuring Microscope, MC-60 / MC-60T

ModelHeadIlluminationEyepiecesObjectivesStage
MC-60BinocularVertical Koehler illuminator, focal length 200mm, with sliding rotatable polarizer, infinity tube lens. Filter Set: Blue Clear, Green Clear, Neutral Density ND25, and Polarizing filters in metal mounts. Port to accept FL150/12 flexible 36″ (914.4mm) single arm fiber optic light guide. Flexible 36″ (914.4mm) single arm fiber light guide for FL150/115.
Light source: 115V, 50-60Hz halogen lamp, 21V 150W. Light source: 230V, 50-60Hz halogen lamp, 21V 150W
Focusing eyepiece SWH 10X with cross-line reticule and guide pin. High eyepoint eyepiece SWH 10X, FN: 22, accepts optional 25mm diameter reticlePlan Epi BD 5X, N.A. 0.10, W.D. 17.0mm
Plan Epi BD 10X, N.A. 0.25, W.D. 7.48mm
Plan Epi BD 20X, N.A. 0.40, W.D. 5.20mm
Plan Epi BD 50X, N.A. 0.75, W.D. 0.38mm
Reflected light measuring stage: 150mm x 150mm with  50mm x 50mm X-Y movement
MC-60TTransmitted light measuring stage: 150mm x 150mm with  50mm x 50mm X-Y movement with glass stage plate
MC-70TrinocularReflected light measuring stage: 150mm x 150mm with  50mm x 50mm X-Y movement
MC-70TTransmitted light measuring stage: 150mm x 150mm with  50mm x 50mm X-Y movement with glass stage plate

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Digimatic Indicators
MTI164-164: Mitutoyo Digimatic Indicator for X-Y axis movement: Range 50mm (2”)( 2 Required)
MTI543-392: Mitutoyo Digimatic Indicator (lug back) for Z axis movement: Range 12.7mm (0.5”) (1 Required) (MA721 is required)
MA721: 1.5” (38 mm) Extension rod for Z axis digital indicator (Required for MTI543-392)
MA807: Mounting brackets for digital “Z” axis indicator (Included with FU1010)

Viewing Heads
MA816: Trinocular head – Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube). Inclined at 30 degrees (Included in Model MC-70 & MC-70T)
MA979: Trinocular head – Siedentopf type, erect image with sliding 0/100 beamsplitter, inclined at 30 degrees, I.P. adjustment 53mm to 75mm, graduated diopter on left eye tube

Eyepieces
MA817: SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm (each) (MA817 accepts optional 25mm diameter reticle)
MA859CF: SWH10X-Focusing eyepiece with reticle mount with cross-line reticle. Eye-tube O.D. 30.0 mm (each) (MA859CF accepts 25mm diameter reticle)
MA906: Eyeshield for MA817 SWH 10X eyepiece (each)

Brightfield/Darkfield Plan EPI Objectives
MA989: Plan Semi Apo Epi Objective BD 100X, N.A. 0.90. W.D. 0.37 mm, F.N. 22
MA686/05: Adapter to mount RMS thread objective to BF/DF nosepiece

Illuminator
MA993: Vertical Koehler illuminator, with sliding rotatable polarizer, infinity tube lens, focal length 200mm, with clear blue, clear green, ND 25 neutral density and polarizing filter in metal mounts. Port to accept FL150/12 flexible 36” single bundle light guide

Filters
MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/30: Green clear filter, 20.0mm diameter filter in metal mount, fits 30mm filter slot
MA275/50: N.D.50 neutral density filter, 20.0mm diameter filter in metal mount, fits 30mm filter slot
MA959: Polarizing filter, 20mm diameter filter in metal mount, fits 30mm filter slot

Eyepiece Micrometers
MA279: Cross-line reticle, 19mm diameter
MA539: Cross-line with 0.1mm graduations, 19mm diameter

Stage Micrometers
MA285: Stage micrometer, 1mm divided into 100 units, each unit 0.01mm
MA286: Stage micrometer, 0.04” divided into 100 units, each unit 0.001inch
MA292: Metal stage micrometer, 0.01mm, for reflected light

Bulbs
FL150/70: Spare bulb, 21V/150W (For FL150/100 or FL150/200)

Miscellaneous
MA569: Replacement glass stage plate for MA729 transmitted light stage

Brightfield/Darkfield Metallurgical Measuring Microscope, MC-60 / MC-60T
