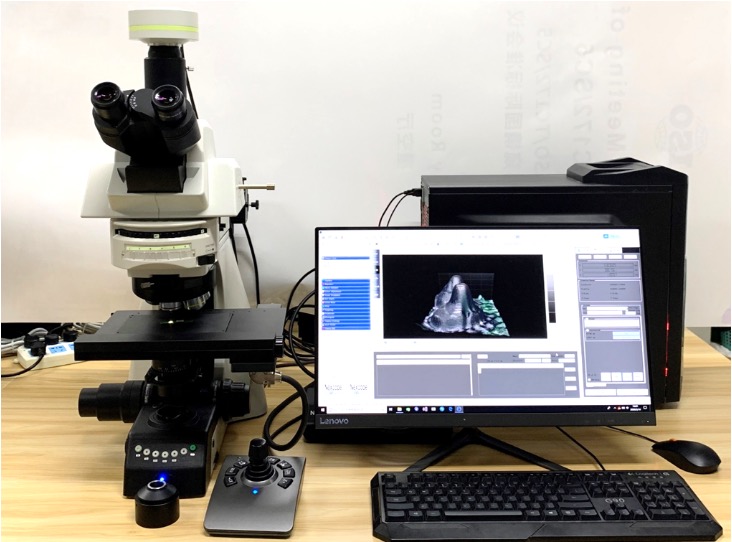

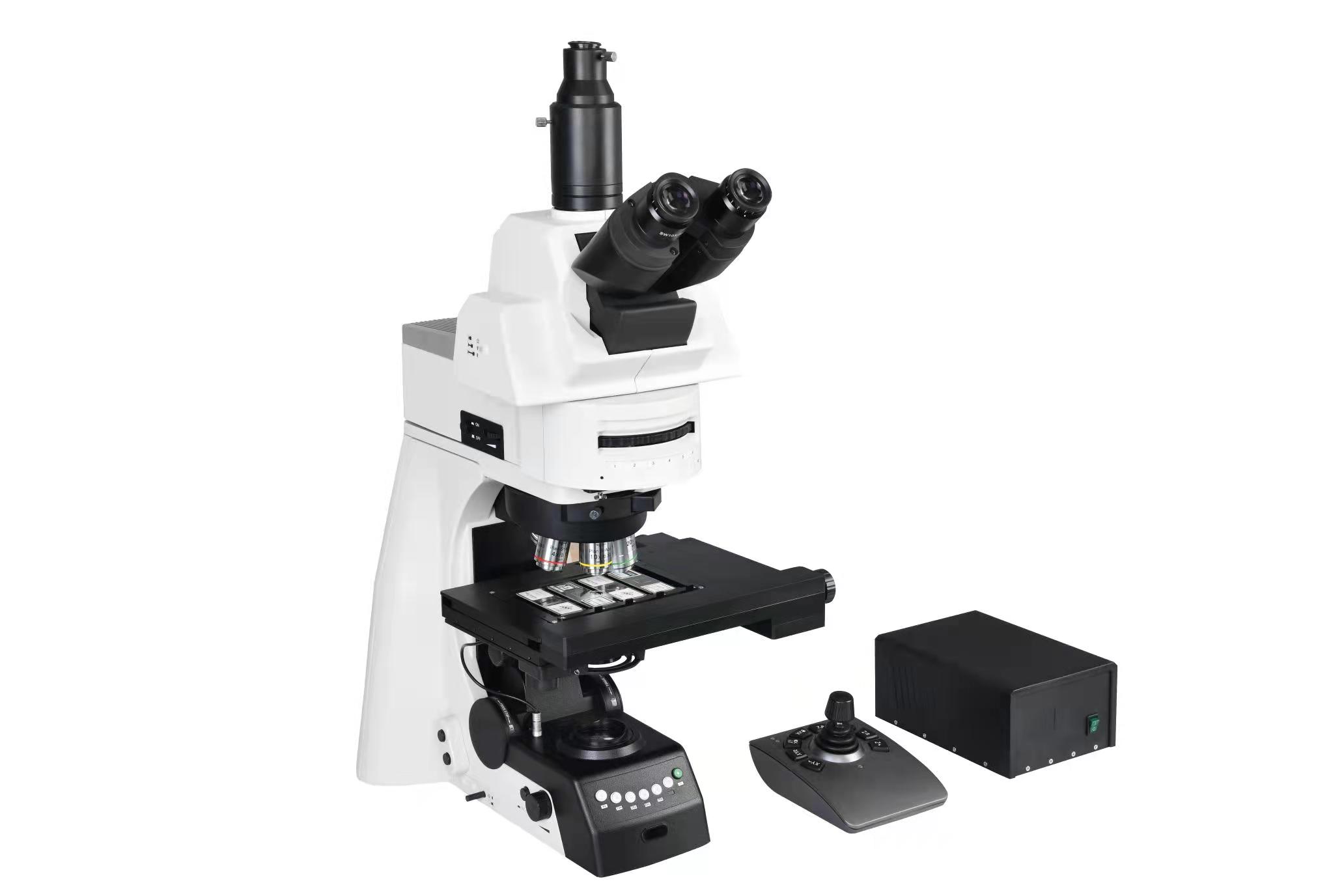

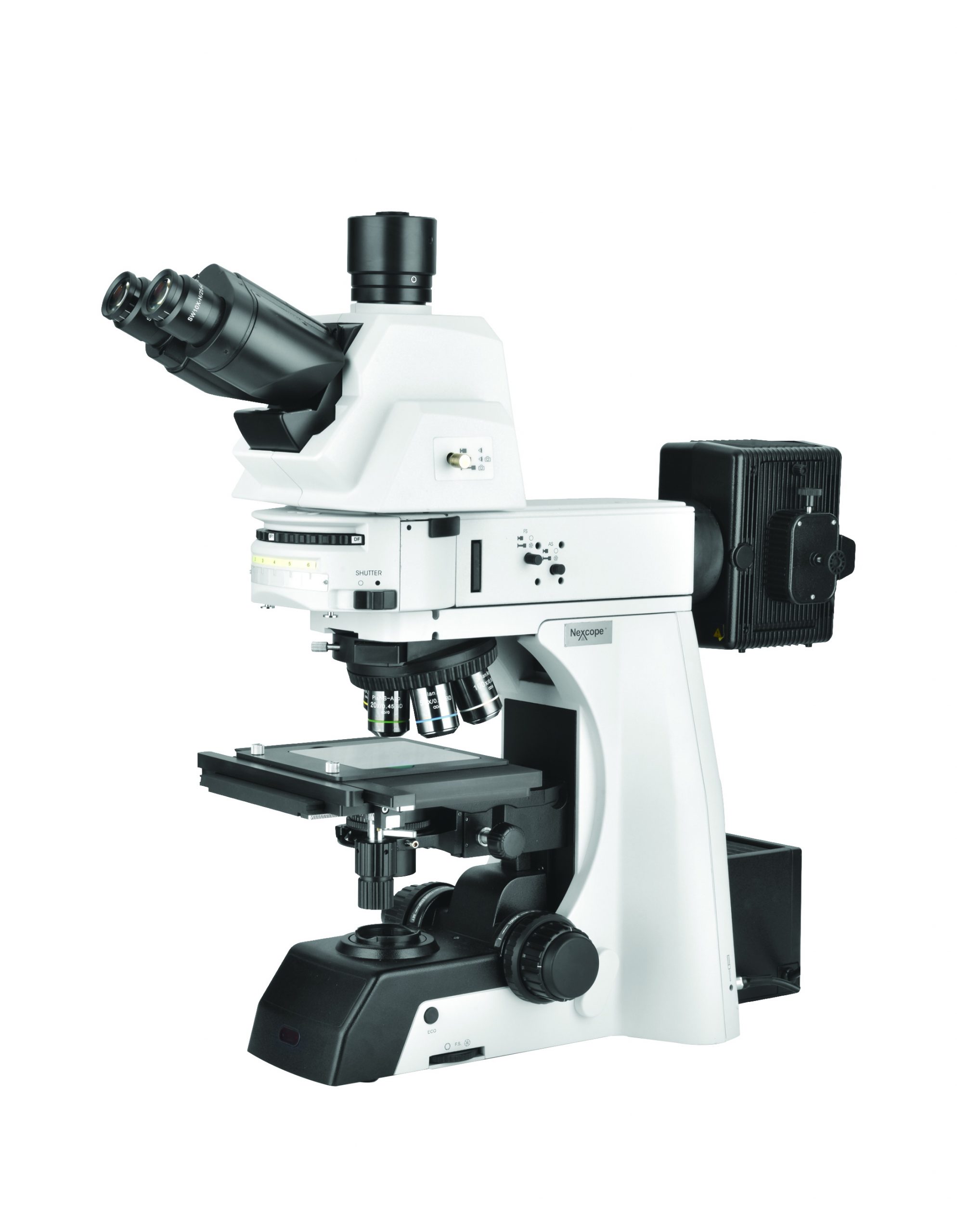

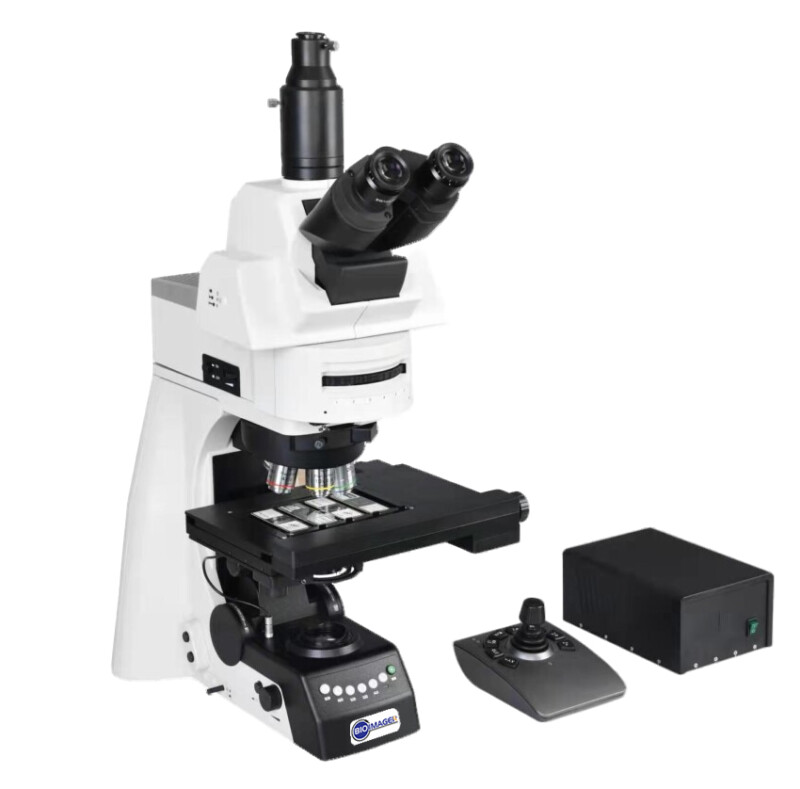

BMU950A Advanced Automated Metallurgical Microscope

Request a Quote

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

BMU950A Advanced Automated Metallurgical Microscope1. High Quality Optics

Optical System
  • Ergo Trinocular viewing head,
  • Eyepiece SW10x/25mm
  • NIS45mm Infinity Plan objective
    • 5x BD,
    • 10x BD
    • 20x BD
    • 50x BD
    • 100x BD
    • Optional 1.25x, 2x, 2.5x, 4x, 25x, 40x, 60x, 80x, 150x, 200x, 250x, 300x, 500x BF, POL objective lenses
  • Motorized 6-hole nosepiece
  • Auto Stage, XYZ movement and auto-focusing,scanning;
  • N.A.0.65 Condenser
  • Coaxial Coarse & Fine focusing adjustment
  • Transmitted light 3W S-LED

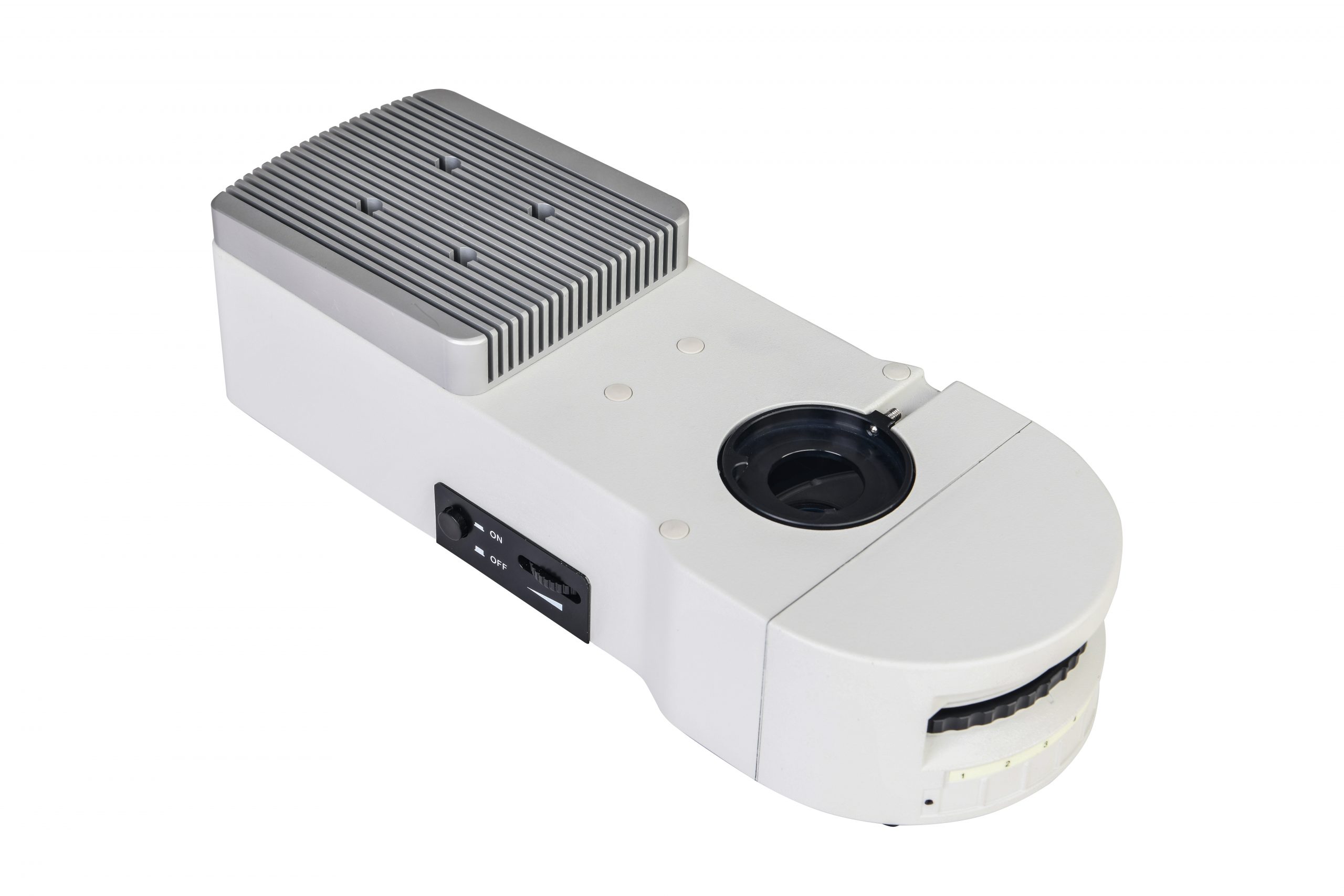

  • Reflected light 5W LED, Metallurgical attachment including ME-D dark field part and ME-B bright field part, koehler illumination, polarization,
  • LCD touch control screen, integrated control in microscope body, with joystick,
  • C-mounts adapters
    • 1x included
    • Optional 0.7x, 1.2x, 1.5x and 2x C-Mount Adapter

2. Automation

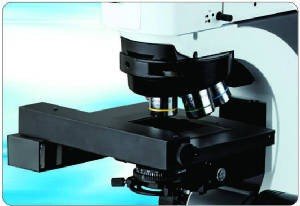

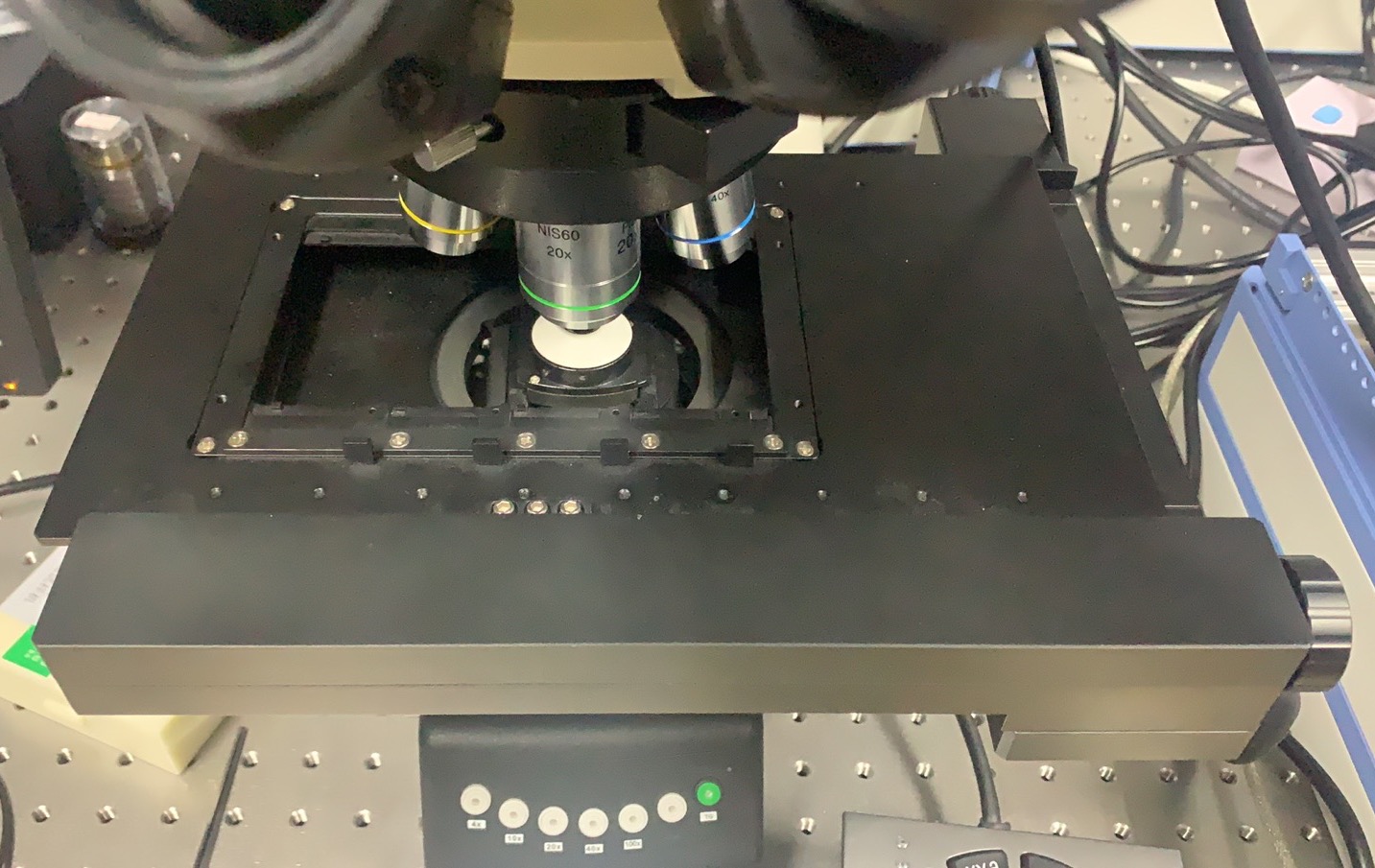

2.1.Motorized XY Stage

The stage is at fully horizontal position, with no lift or tilt at all.

2.2.Autofocus

The microscope has an intelligent autofocus that finds the best focus plane. You can also have option to limit the searching focus range manually, depending on the thicknes or height range of the sample, such as 1um, 5u, 10, 25, 50, 100, 250, 500, 1000um or any custom number that you think it is better to be applied.

2.3. Motorized Nosepiece

You can switch the nosepiece at the speed of one click.

Automation
  • Automated XY stage, autofocus and Motorized nosepiece.
  • Stage travel range: 125×75 x 20mm (XxYxZ)
  • Minimum Step Size: 0.1μm
  • Repeated positioning accuracy: ±1.5μm
  • Max XY Speed: 20mm/s
  • Z repeated position accuracy: average: ±1.5μm, Near the focus: ±0.1μm
  • Z Max Speed: 10 r/s
  • Size: 275x239x44.5mm
  • Rocker: 3D controllable rocker, Four speed
  • Port: USB 2.0, RS232
  • BAUD: 9600

3. Imaging

This microscope allows imaging of brightfield, darkfield, and optional polarization, DIC Nomarski and fluorescence imaging as well as phase-contrast.



4.Camera

Camera
  • Area Scan 2MP Camera
    • Optional 5MP, 8MP, 15MP, 20MP and etc.
  • USB 3.0
  • Color sensor
  • C-Mount Adapter

5. Software

Please check the software tab for further details.

Software
  • Image Display and Capture Software
  • Automatic Focus and Scanning Software
  • Graphic Reports and Print Software
  • Graphic Database Management Platform



Specifications

Specification
Optical system NIS45 Infinite optical system (F200)
Eyepiece SW10X/22
Viewing Head Ergo tilting trinocular head, adjustable  0-35 degree,  Interpupilary distance 47-78mm
NIS45
MET objective
Infinity Semi-APO MET 5x  NA=0.15 WD=20 BF/DF
Infinity Semi-APO MET 10x  NA=0.3 WD=11 BF/DF
Infinity Semi-APO MET 20x  NA=0.45 WD=3.1 BF/DF
Infinity APO MET 50x (Spring)  NA=0.8  WD=1 BF/DF
Infinity APO  100x (Spring) NA=0.9   WD=1 BF/DF
Nosepiece Sextuple nosepiece  (Auto)
Stage Mptorized (X,Y,Z) With Control box and Joystick,
X,Y resolution:0.1μm,
Z axis resolution (0.01μm)
Condenser LWD condenser NA0.65  WD 10.2
Focusing Coaxial Coarse and fine adjustment, Fine division 1um, Moving rang 35mm
Polarization analyzer and polarizer
Illumination Transimitted light 12V100W halogen,
Incident light 12V100W halogen
ECO function (Shut off after 15minits without operation)
AC 100-240V,50/60Hz
software BioView Basic (XYZ movement control, Real-time image preview, image processing, Image stitching + 3D demonstration, measurement, calibration)
A C-Mount Adapter
a Calibration slide
Camaera BioCam area scan camera

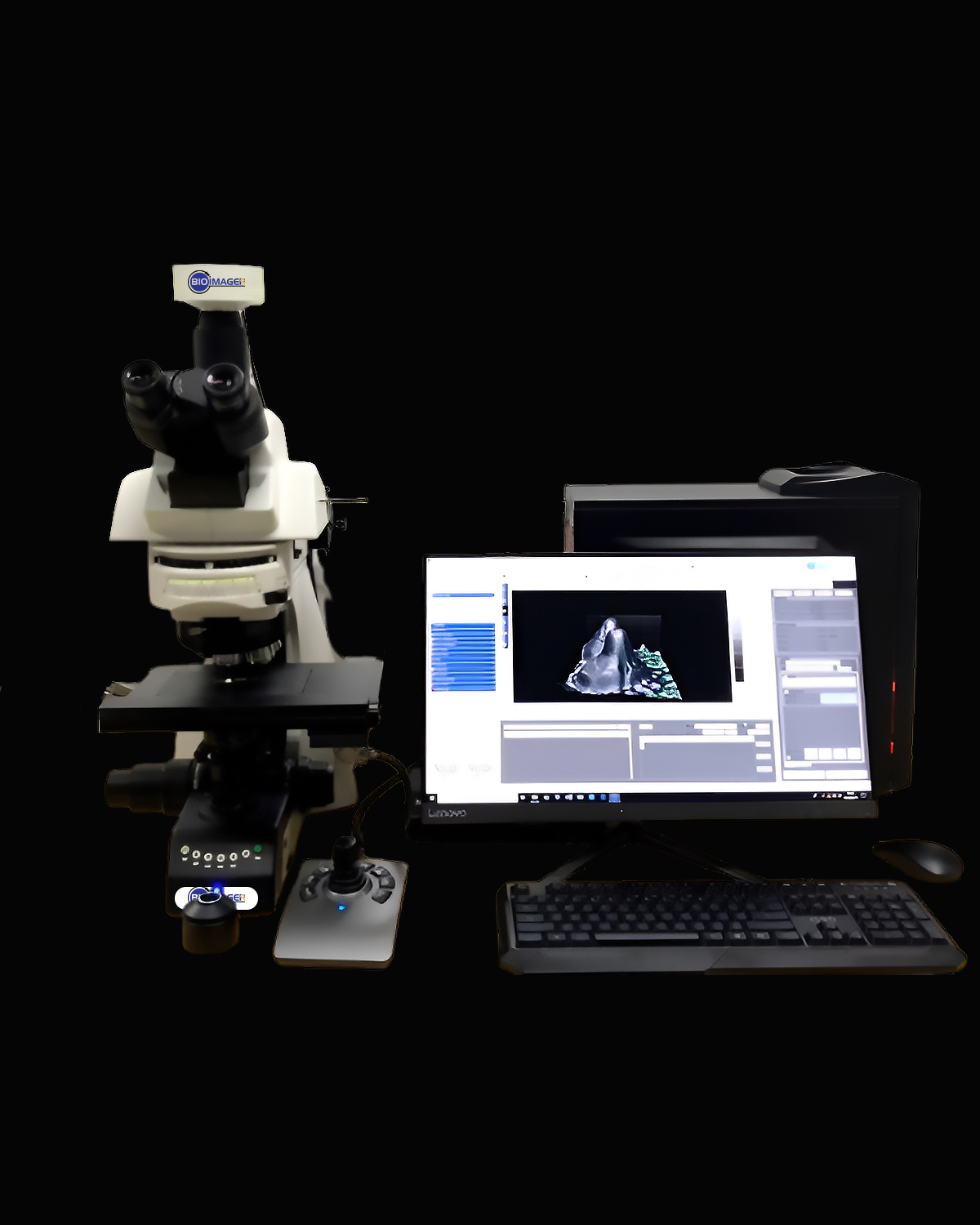

In this video we review how the BMU950A microscope with automated XY stage and autofocus can scan a slide, regions of interest, multiple points of interest, and more. This scanning uses a 8.3MP camera with a 0.75x C-Mount Adapter. You will see scanning of an actual sample at 20x objective lens.


In this video we review how the BMU950A microscope with automated XY stage and autofocus can scan a slide, regions of interest, multiple points of interest, and more. This scanning uses a 8.3MP camera with a 0.75x C-Mount Adapter. You will see scanning of an actual sample at 20x objective lens.

Examples of Customers:

  1. University of Florida, Department of Pharmacodynamics, Gainesville, FL USA
  2. Ben-Gurion University of the Negev, Beer-Sheva, Israel
  3. University of Central Oklahoma, Central Rec.-Human Physio Lab, Edmond, OK, USA
  4. MD Anderson Cancer Center, Houston, Texas USA
