Save $USD 4,020

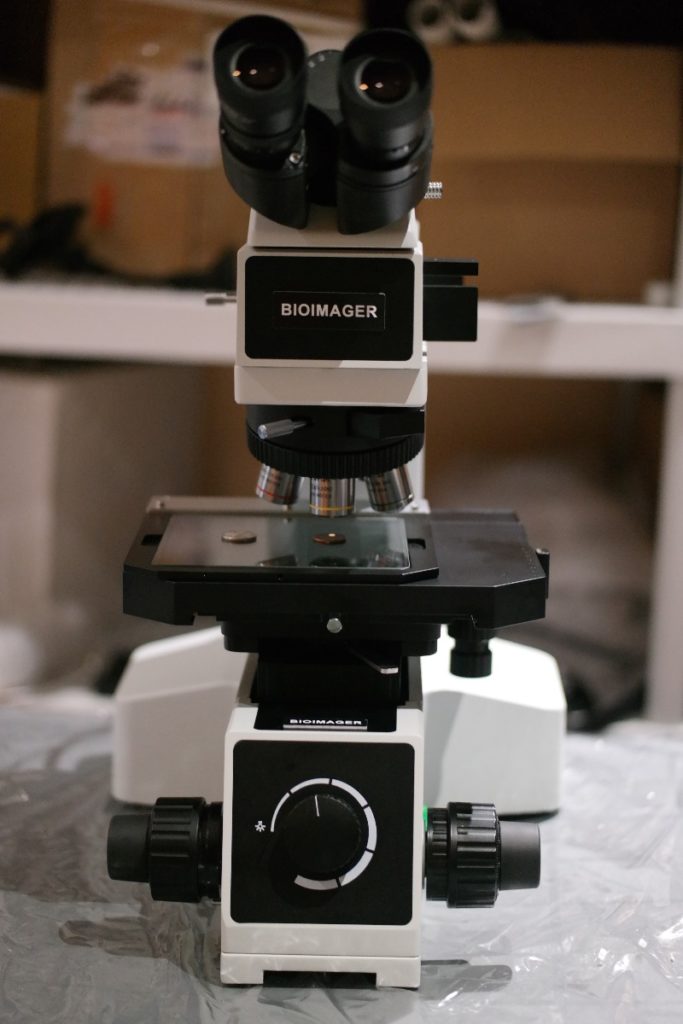

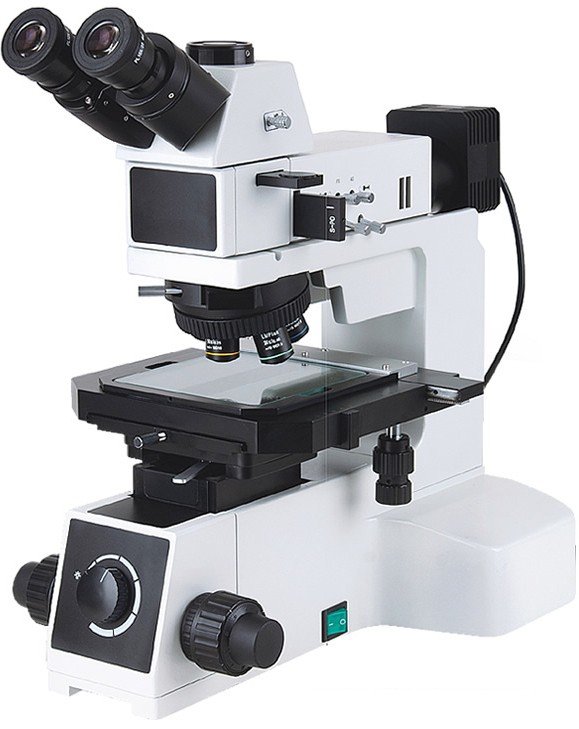

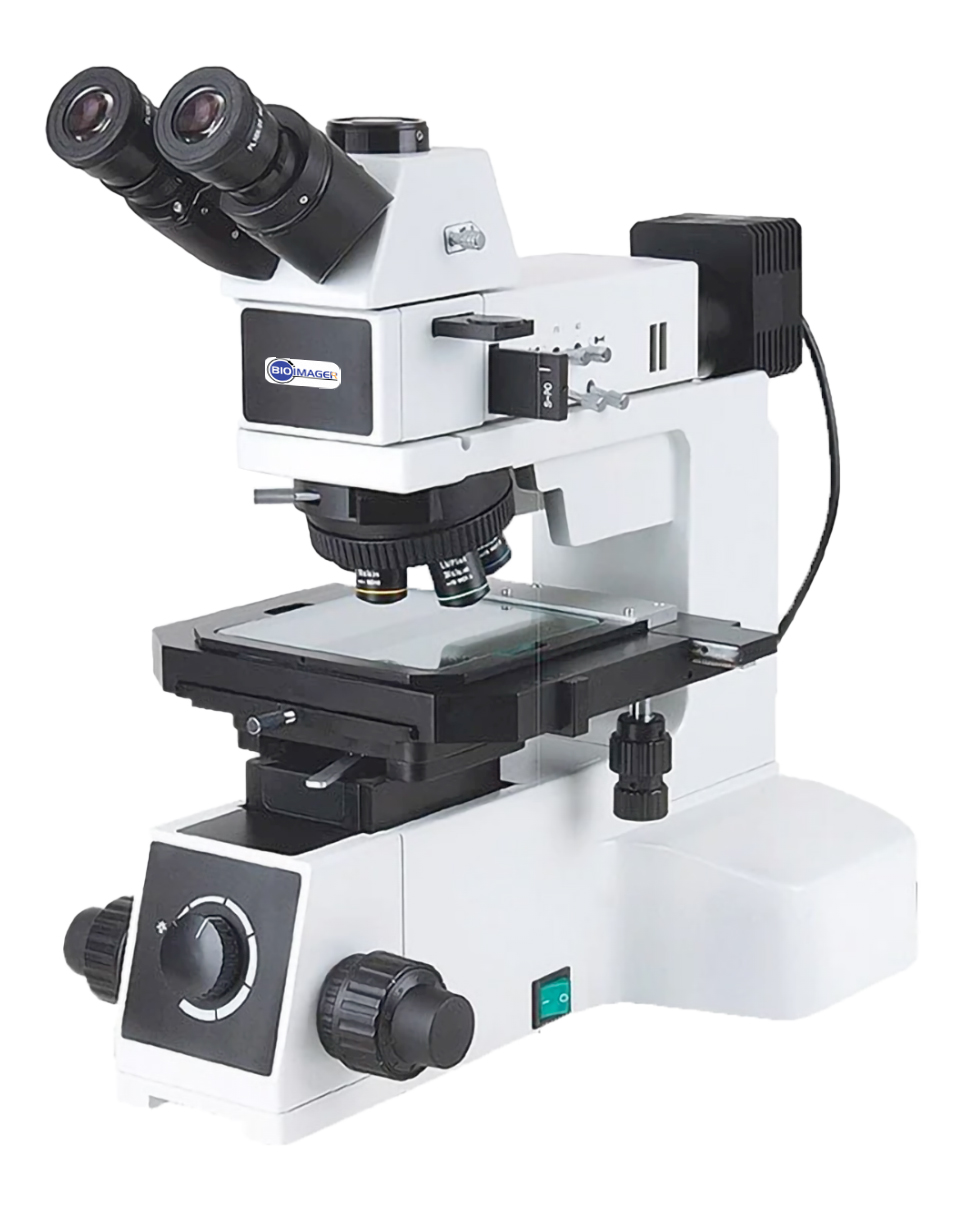

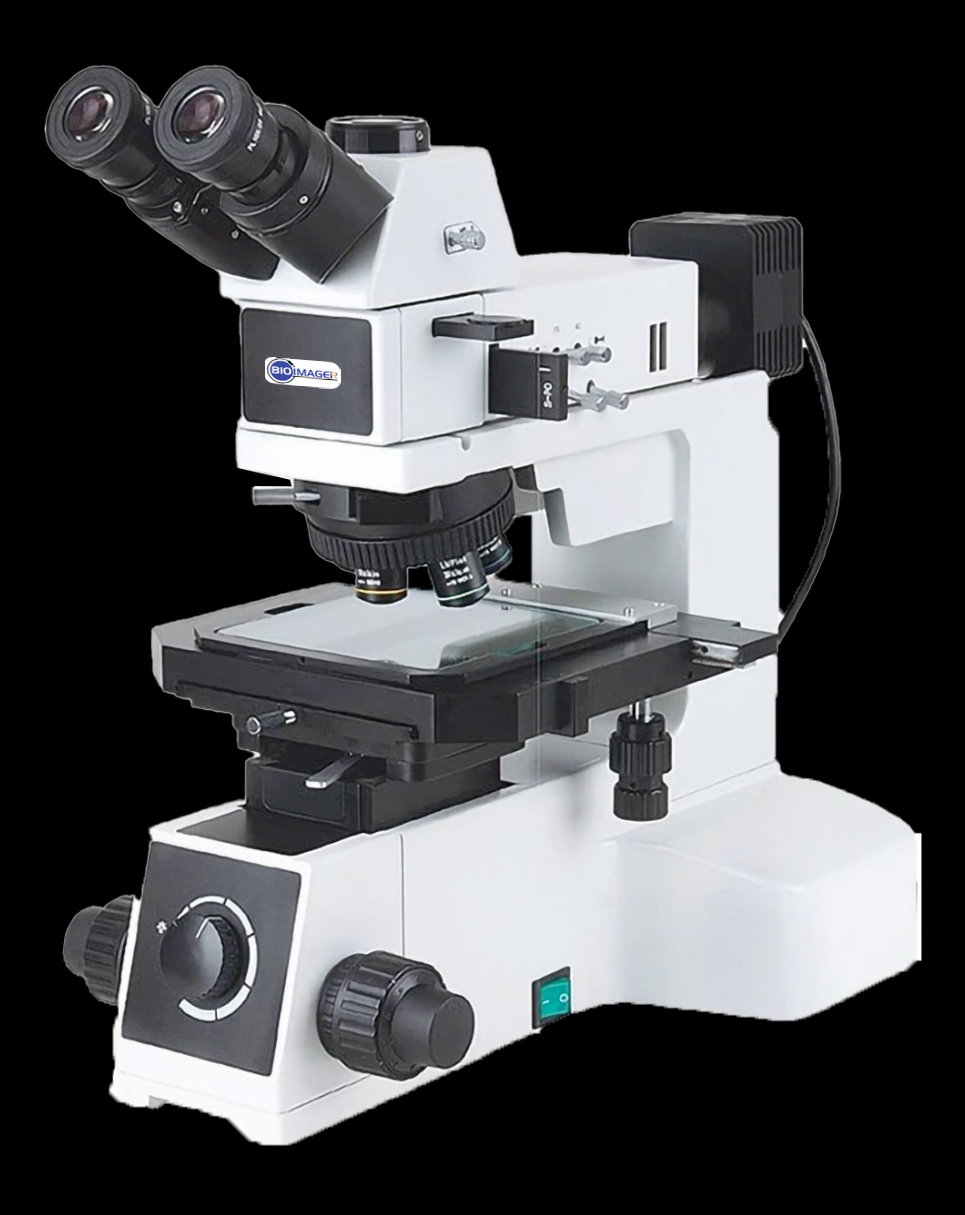

BMU900 Advanced Metallurgical Microscope


  • Advanced Upright Metallurgical Microscope
  • Reflected & Transmitted lIghts
  • Brightfield Imaging and optional Polarziing and DIC Nomarski Imaging Capability
  • Includes 4-in XY stage
  • 5x, 10x, 20x and 50x Plan Epi Obj lenses
  • 50x-500x Total Magnification
  • Lots of ND and imaging filters for both light sources.

$USD 5,980.00 $USD 10,000.00

Overview

BMU900 DIC Metallurgical Microscope, with flexible optical system, excellent imaging performance and stable system architecture. It is professional used in industrial testing and metallographic analysis. The operating mechanism according to ergonomic design. That can maximum reduce fatigue during using. Modular component design can freely assemble.
BMU900 Advanced Metallurgical Microscope-10766

Features

  • Integrated Bright Field/ Oblique Illumination, Polarizing, DIC (Differential Interference Contrast) or Nomarski
  • 4″ Double Layer Mechanical Stage X/Y Moving Range Achieve 105*105mm
  • New Design Long Working Distance Professional Metallurgical Objectives
  • High Power Semi-Apochromatic Technology Objective
  • Variety of Observation Methods To Have Sharp and High Contrast Microscopic Image
  • Accessories Complete, Well Equipped, The System Can be Flexibly Combined
  • Ergonomic Design, Reliable System Architecture

BMU900 Advanced Metallurgical Microscope

with Brightfield and optional Polarized & DIC Nomarski Imaging Capabilities and 4-in XY stage

BMU900 Metallurgical Microscope

RF

TRF

Optical System

Bright Field/Oblique Light, Polarizing, DIC, Reflected light (from top)

x

Bright Field/Oblique Light, Polarizing, DIC, Transmitted & Reflected Lights (from top & Bottom)

x

Head

30° Inclinded Trinocular, Splitting Ratio 100:0 or 50:50

Eyepiece

High Eyepoint Plan PL10x/22mm

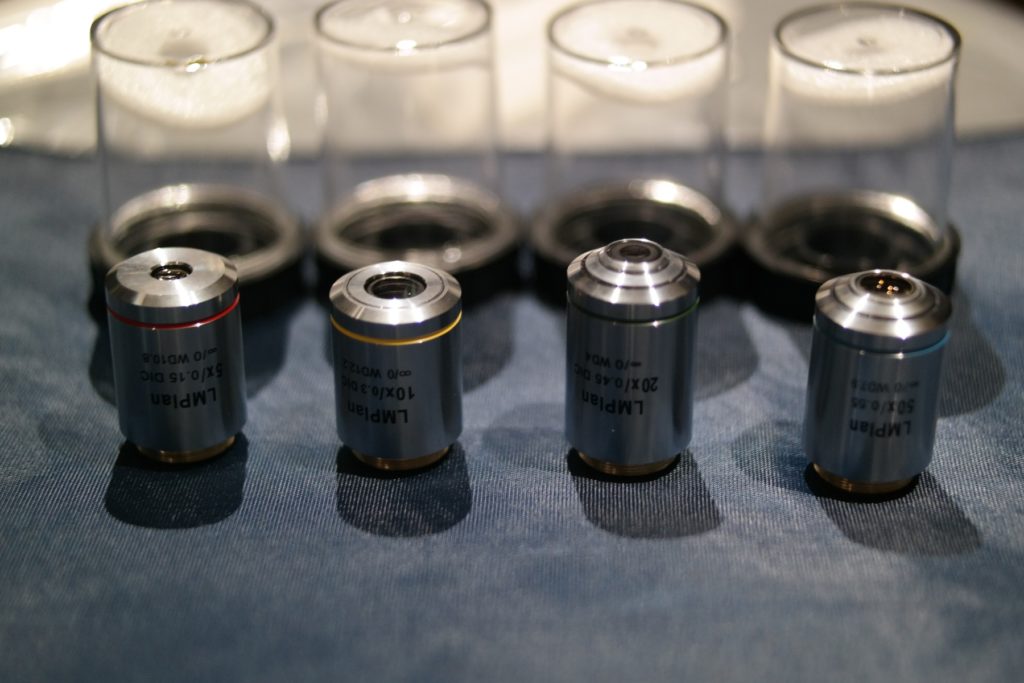

Objective

Long Working Distance Infinity Plan Metallurgical

DIC Achromatic

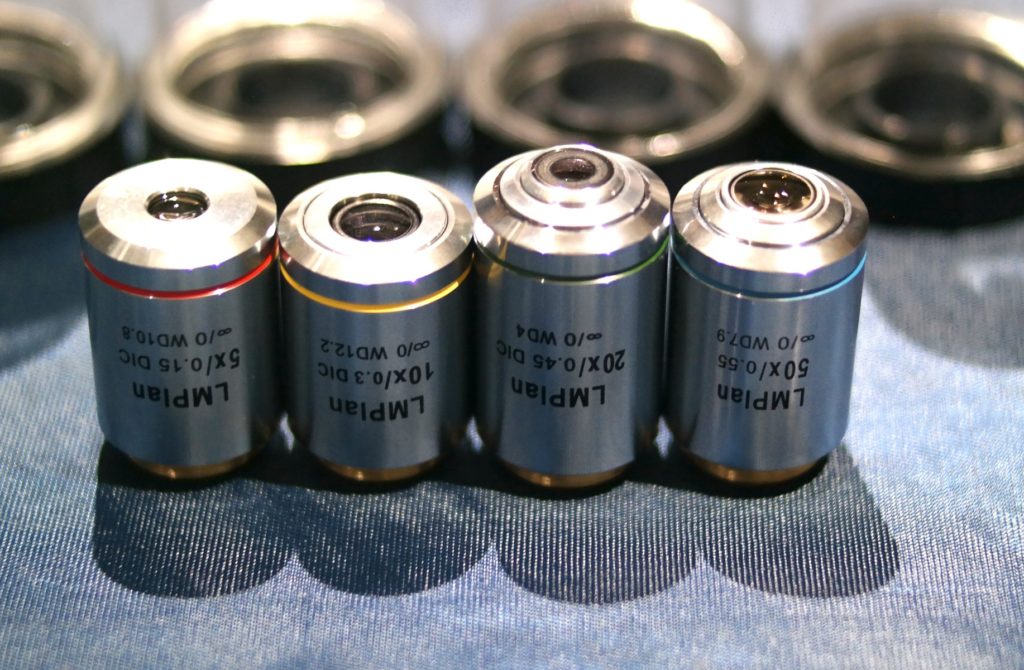

LMPL5X/0.15 WD10.8MM
LMPL10X/0.3 WD10MM
LMPL20X/0.45 WD4MM
Long Working Distance Infinity Plan Metallurgical  Semi-APOLMPL50X/0.55 WD7.8MM

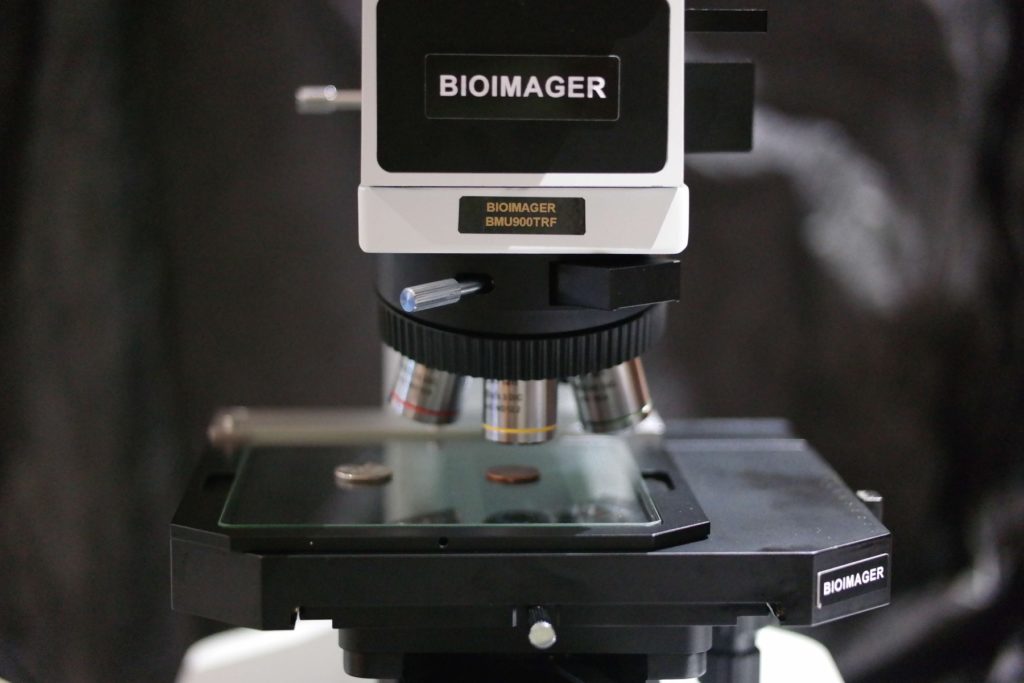

Nosepiece

Intilted, Quintuple, With DIC Slot

Stage

4″ Double Layer Mechanical Stage, Moving Range 105*105mm, with Metal Flat Stage, Right Hand Position, XY Moving Hand Wheel, with Stage Adapter

x

4″ Double Layer Mechanical Stage, Moving Range 105*105mm, with Glass Stage, Right Hand Position, XY Moving Hand Wheel, with Stage Adapter

x

Focusing

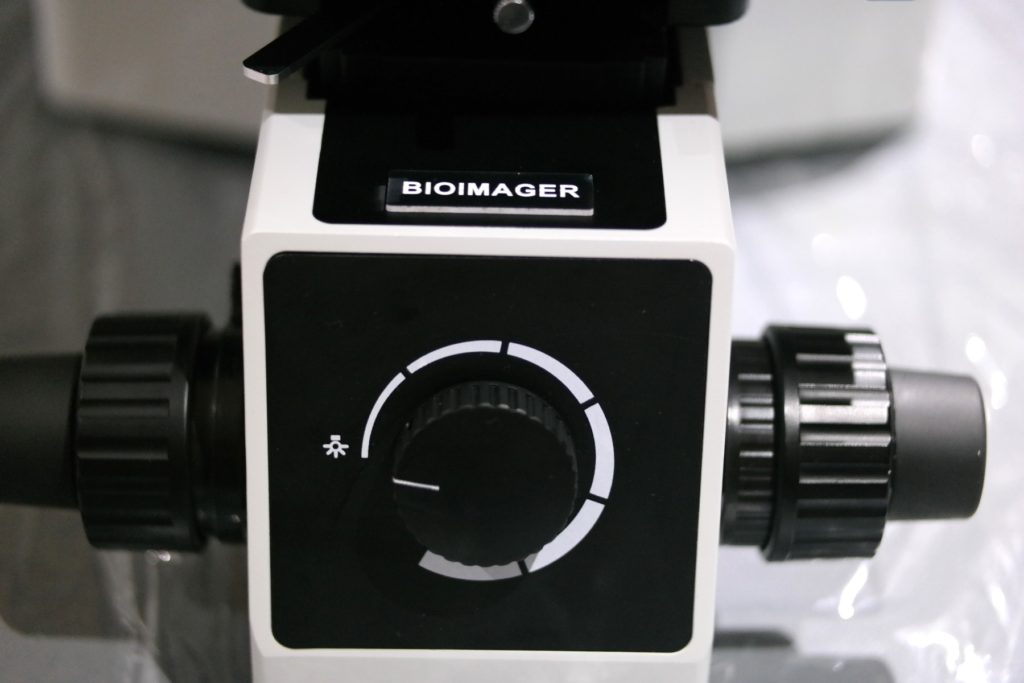

Coaxial Coarse & Fine Focusing, Coarse Focus Range 33mm, Fine Focusing Precision 0.001mm,With Coarse Adjustment Stop and Tightness Adjustment

Illumination

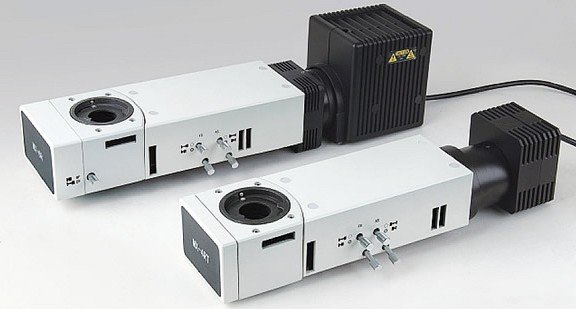

Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm, Central Adjustable, with Filter Slot and Polarizing Slot, With Oblique Illumination Switch. Single High Power 5W LED, White, Brightness Adjustable
Transmitted Illumination, Single High Power 5W LED, White Brightness Adjustable, N.A.0.5 Condenser, with Iris Diaphragm

x

Power

90-240V Wide Voltage, One Way Power Output

x

90-240V Wide Voltage, Double Way Power Output

x



BMU900 DIC Metallurgical Microscope Optional Accessories

EyepieceHigh Eyepoint Plan PL15x/16mm PL15x16BMU9-E1516
High Eyepoint Plan PL10x/22mm, with Cross PL10x22r,BMU9-E1022R
High Eyepoint Plan PL10x/22mm, Diopter Adjustable, PL10x22TBMU9-E1022T
ObjectiveLong Working Distance Infinity Plan Metallurgical Semi-APO LMPL100X/0.8 WD2.1MMBMU9–100x
DICDIC Attachment SetBMU9-DIC
FilterInterface Filter For Reflect illuminationBlue, <480nmBMU9-FB
Green, 520~570nmBMU9-FG
Red, 630~750nmBMU9-FR
Netural, for White BalanceBMU9-LBD
OtherSpecimen PresserBIA-SP0920
PolarizingFixed Polarizer Flashboard, Dia.30mmBMU9-Pol30
360° Rotatable Analyser FlashboardBMU9–ANLF
Fixed Analyser Flashboard,Dia.30mmBMU9-ANL360

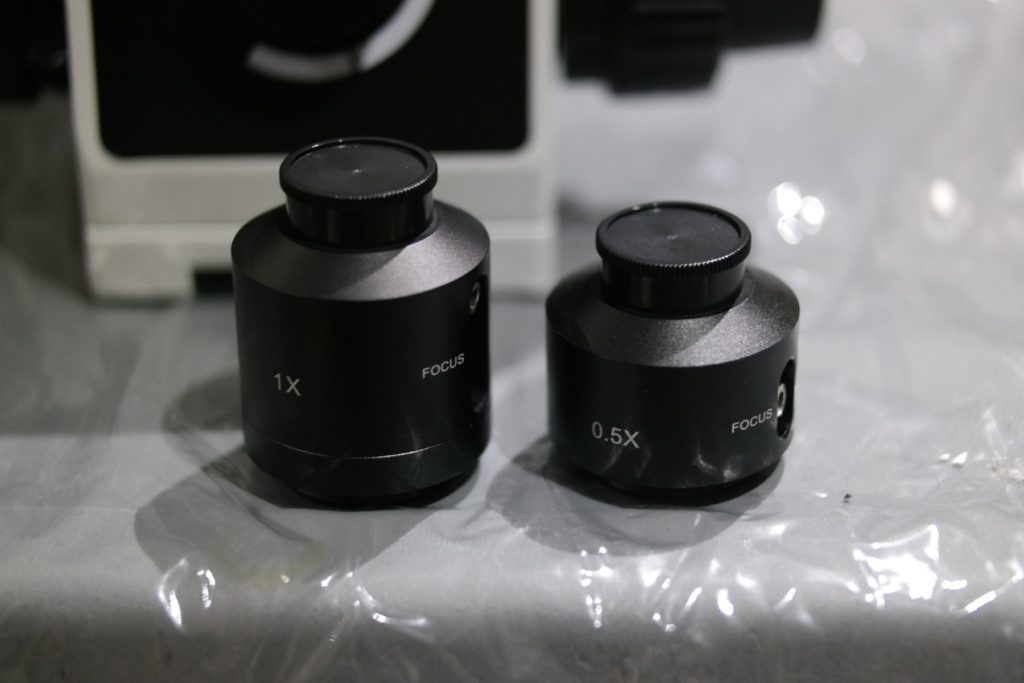

Adapter0.5x C-Mount, for 1/2″ CCD, Focus AdjustableBMU9-0.5xCA
1.0x C-Mount, Focus AdjustableBMU9-1xCA
Digital Camera Adapter with Photo EyepieceBMU9-SLR-X

BMU900 Metallurgical Microscope

RF

TRF

Optical System

Bright Field/Oblique Light, Polarizing, DIC, Reflected light (from top)

x

Bright Field/Oblique Light, Polarizing, DIC, Transmitted & Reflected Lights (from top & Bottom)

x

Head

30° Inclinded Trinocular, Splitting Ratio 100:0 or 50:50

Eyepiece

High Eyepoint Plan PL10x/22mm

Objective

Long Working Distance Infinity Plan Metallurgical

DIC Achromatic

LMPL5X/0.15 WD10.8MM
LMPL10X/0.3 WD10MM
LMPL20X/0.45 WD4MM
Long Working Distance Infinity Plan Metallurgical Semi-APOLMPL50X/0.55 WD7.8MM

Nosepiece

Intilted, Quintuple, With DIC Slot

Stage

4″ Double Layer Mechanical Stage, Moving Range 105*105mm, with Metal Flat Stage, Right Hand Position, XY Moving Hand Wheel, with Stage Adapter

x

4″ Double Layer Mechanical Stage, Moving Range 105*105mm, with Glass Stage, Right Hand Position, XY Moving Hand Wheel, with Stage Adapter

x

Focusing

Coaxial Coarse & Fine Focusing, Coarse Focus Range 33mm, Fine Focusing Precision 0.001mm,With Coarse Adjustment Stop and Tightness Adjustment

Illumination

Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm, Central Adjustable, with Filter Slot and Polarizing Slot, With Oblique Illumination Switch. Single High Power 5W LED, White, Brightness Adjustable
Transmitted Illumination, Single High Power 5W LED, White Brightness Adjustable, N.A.0.5 Condenser, with Iris Diaphragm

x

Power

90-240V Wide Voltage, One Way Power Output

x

90-240V Wide Voltage, Double Way Power Output

x



BMU900 DIC Metallurgical Microscope Optional Accessories

EyepieceHigh Eyepoint Plan PL15x/16mm PL15x16BMU9-E1516
High Eyepoint Plan PL10x/22mm, with Cross PL10x22r,BMU9-E1022R
High Eyepoint Plan PL10x/22mm, Diopter Adjustable, PL10x22TBMU9-E1022T
ObjectiveLong Working Distance Infinity Plan Metallurgical Semi-APO LMPL100X/0.8 WD2.1MMBMU9–100x
DICDIC Attachment SetBMU9-DIC
FilterInterface Filter For Reflect illuminationBlue, <480nmBMU9-FB
Green, 520~570nmBMU9-FG
Red, 630~750nmBMU9-FR
Netural, for White BalanceBMU9-LBD
OtherSpecimen PresserBIA-SP0920
PolarizingFixed Polarizer Flashboard, Dia.30mmBMU9-Pol30
360° Rotatable Analyser FlashboardBMU9–ANLF
Fixed Analyser Flashboard,Dia.30mmBMU9-ANL360
Adapter0.5x C-Mount, for 1/2″ CCD, Focus AdjustableBMU9-0.5xCA
1.0x C-Mount, Focus AdjustableBMU9-1xCA
Digital Camera Adapter with Photo EyepieceBMU9-SLR-X

A custom microscopy package of this model was provided to:

  1. University of Pennsylvania,  Philadelphia, PA, USA, on April 2016.
  2. A private corporate in Chicago, IL, USA.

BMU900 Advanced Metallurgical Microscope-10766
BMU900 Advanced Metallurgical Microscope-10770
