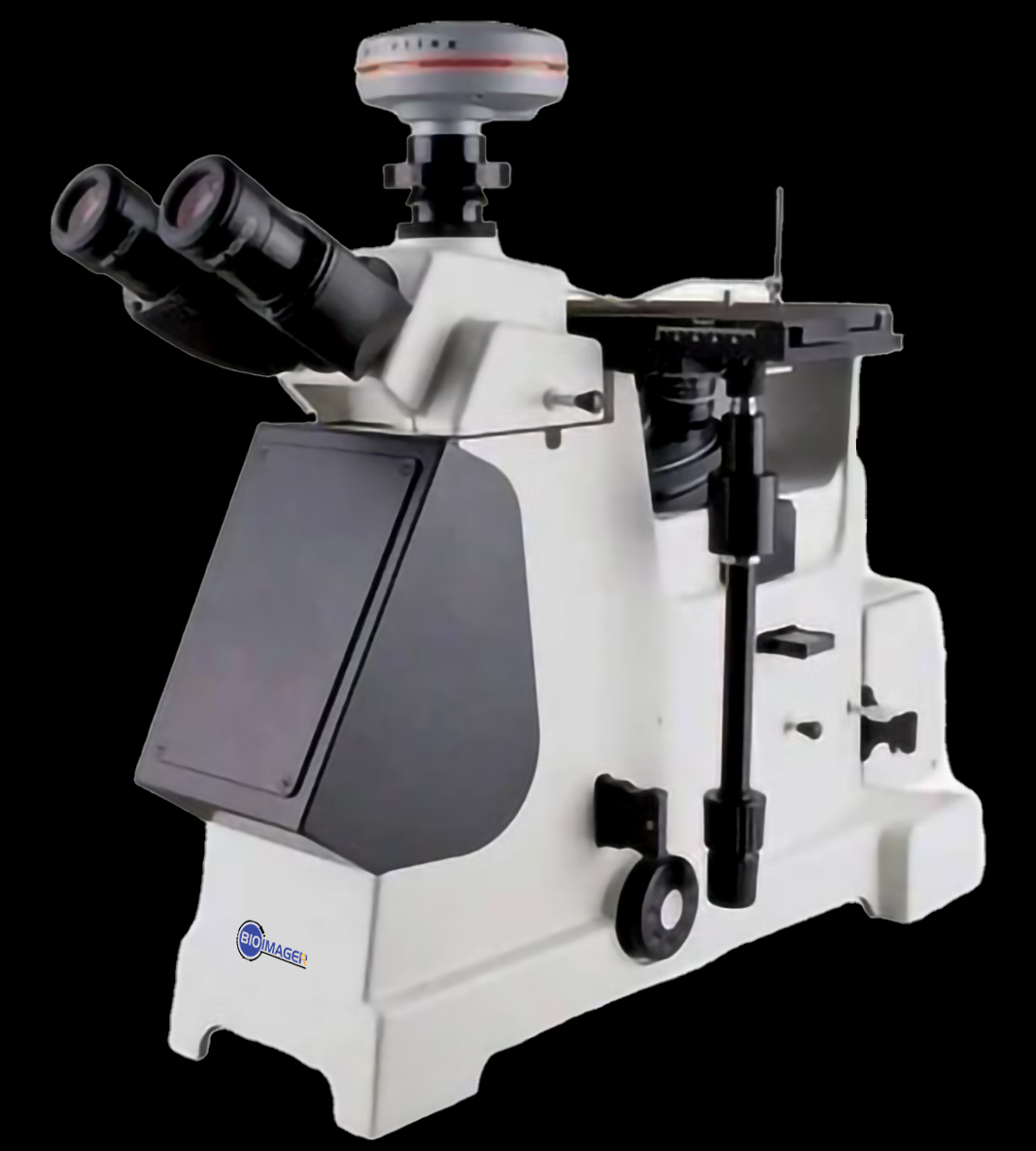

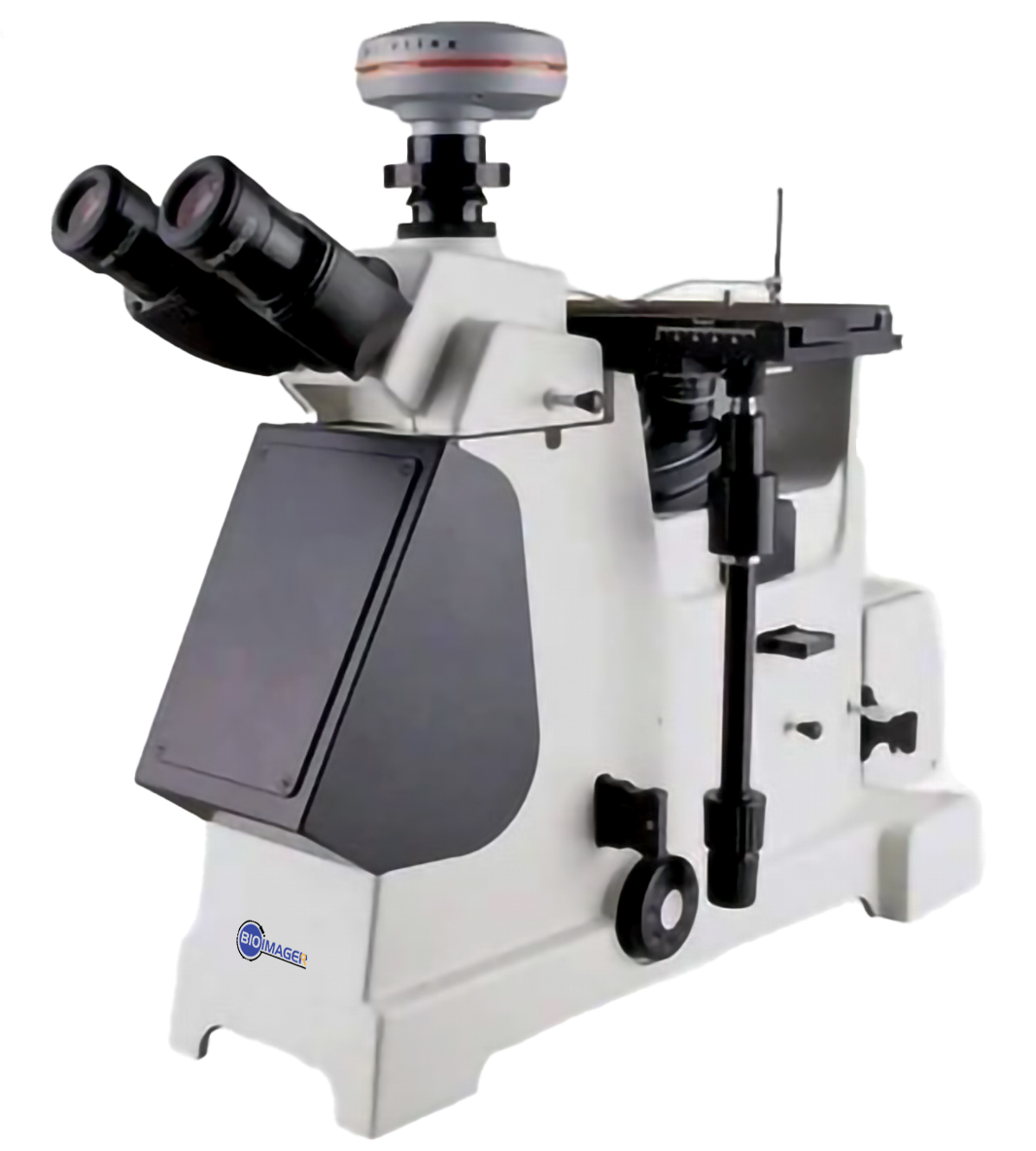

BMI800 Metallurgical Transmitted Inverted+DIC (Optional) Research

Availability:

In stock


Compare
  • Advanced inverted metallurgical microscope
  • Brightfield and darkfield imaging capabilities
  • Optional Polarzied and DIC observation
  • Infinite optical system provides excellent optical functions.
  • Siedentopf trinocular head, inclined at 30°, interpupillary distance 48-75mm
  • EW10x/ 20 Eyepiece with scale of cross hair
  • Infinite Plan APO Objective:
    • 5×/0.17/∞/0 (BF/DF);
    • 10×/0.28/∞/0 (BF/DF);
    • 20×/0.50/∞/0 (BF/DF);
    • 50×/0.85/∞/0 (BF/DF);
    • 100×/0.95(Dry)/∞/0 (BF)

In stock

$14,175.00 $18,000.00

Introduction

BMI800 Inverted Metallurgical Microscope is a high level research metallurgical microscope. It can identify and analyze not only a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also micro-particles, wires, fibers, surface coating and so on. Digital cameras can be added to the trinocular tube to take images and make image analysis. DIC observation is optional.

Applications

BMI800 inverted metallurgical microscope is the best choice for material microscopy expert who requires high-performance optical tool. It supplies the best optical performance for material research, quality control, invalidation analysis and other challenging applications. It can be used in institutes, universities, reseearch centrers and laboratories to observe and identify the structure of various metal and alloy, it also can be used in electronics, chemical and instrumentation industry to observe the opaque materials and transparent materials, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.

Features

  • Infinite optical system provides excellent optical functions.
  • DIC observation is optional.
  • Meet most of your requirements by high performance optical system, technological innovation and high stability.
Model

BMI800

Optical System

Infinite optical system

Viewing Head

Siedentopf trinocular head, inclined at 30°, interpupillary distance 48-75mm

Extra Wide Field Eyepiece

EW10x/ 20

EW10x/ 20 Eyepiece with scale of cross hair

EW15x/ 16

EW20x/ 12

Infinite Plan APO Objective

5x×/0.17/∞/0 (BF/DF), LWD 8.6mm

10x/0.28/∞/0 (BF/DF), LWD 3.4mm

20x/0.50/∞/0 (BF/DF), LWD 1.1mm

50x/0.85/∞/0 (BF/DF), LWD 0.5mm

100x/0.95(Dry)/∞/0 (BF), LWD 0.1mm

100x/1.32(Oil)/∞/0 (BF), LWD 0.1mm

Nosepiece

Quintuple nosepiece

Stage

Double layer mechanical stage 200×190mm, Moving range 40mm×40mm

Small stage plate, Φ16mm, Φ40mm

Focusing

Coaxial coarse & fine adjustment, fine division 2μm, move up 1mm, down 12mm

Kohler Reflected Illumination

12V/100W Halogen lamp, center and brightness adjustable

Polarizer and analyzer

DIC

Green, Blue, Yellow, Gray and Frosted filters

Optional Accessories

Photo attachment

Video attachment with C mount

Micrometer scale 0.01mm

Note: ●Standard parts  ○Optional parts
