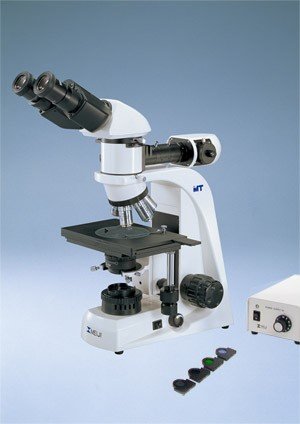

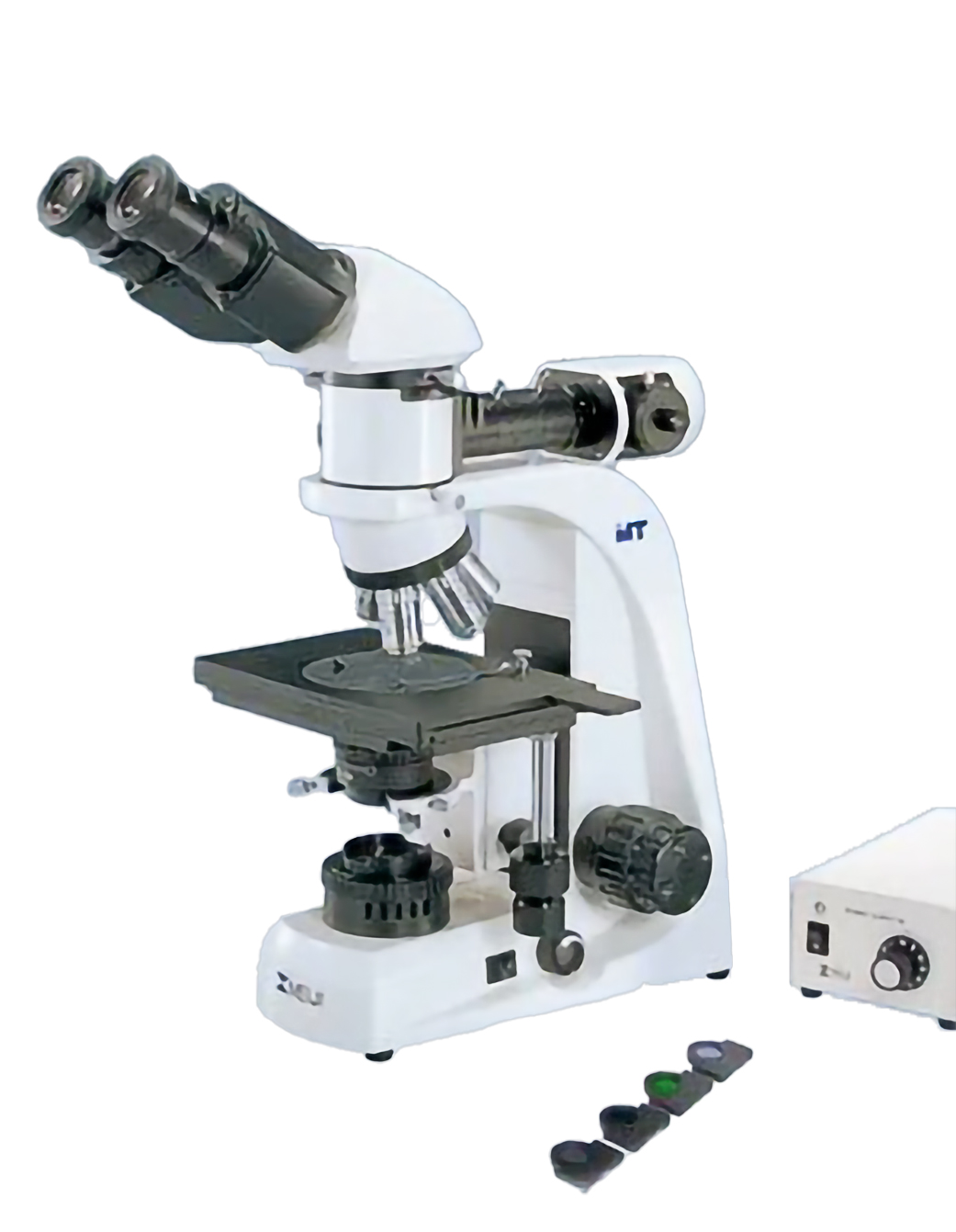

Metallurgical Microscopes MT8000 Series
Meiji Techno’s new upright incident and transmitted light brightfield metallurgical microscope line is the new and cost-effectiveMT8000 Series. The MT8000 Series employs all new and improved Plan Episcopic optical system.Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.
The MT8000 Series features include:
- Computer Aided Design
- Ergonomically positioned controls
- Comfortable Siedentopf viewing head
- 30W Vertical Koehler Illuminator with auto voltage sensing power supply
- 30W Transmitted Koehler Illuminator with auto voltage sensing power supply
- Brightfield Reflected Light and Brightfield Transmitted Light observation modes
- Optional Ergonomic binocular viewing head available
Other Metallurgicals IM7000 Inverted IM7500 Inverted BF-DF MT7000 MT7000E MT7500 MT8500 IM7000
Model MA815 is the Siedentopf-type binocular head and Model MA816 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. The optional Ergonomic Viewing Head has the inclination adjustable from 10 to 50 degrees to fit any size user.
10X Super Widefield High Eyepoint eyepieces F.N.22 are standard, and 15X and 20X eyepieces are available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts 25mm reticules is also available.
The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.
Meiji Techno offers an assortment of Plan Epi Infinity Corrected objectives for Brightfield work.
Ceramic coated left or right-handed, flat top stage measures 191mm x 126mm with x-y travel: 100mm(X) x 100mm(Y). Ergonomically positioned coaxial drop down controls.
Powerful 30 watt halogen transmitted and incident reflected illumination systems provides enhanced image quality and brightness for the observation of metallurgical specimens.
Meiji Techno offers a broad range of digital video cameras like the BIC4C-5.0C 5.0MP CCD camera, which offers a cost-effective, versatile solution for materials science and educational professionals. With the included software, one can preview and capture still shots and video with micrometer overlays to a PC or Mac with USB port. More information available here.
MT8000 Series Models
|MT8000||Bino.||30W Vertical Koehler + 30W Transmitted Koehler||SWH10x FN22||Plan Epi 5x, 10x, 20x, 50x||Ceramic Coated Fixed Flat-top left or right-handed controls|
|MT8000 Series Components & Accessories|
|MA815||Siedentopf type binocular head. 30 degree inclination, 30.0mm ø eyetubes. (MT8000)|
|MA816||Siedentopf type trinocular head. 30 degree inclination, 30.0mm ø eyetubes. (MT8100)|
|MA957||Siedentopf type Ergonomic binocular head. 10 – 50 degree adjustable inclination, 30.0mm ø eyetubes. (optional)|
|MA979||Trinocular head – Siedentopf type, erect image with sliding 0/100 beamsplitter, inclined at 30 degrees, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube. (optional)|
|MA817||SWH10X Super Widefield High Eyepoint eyepiece, FN22 (standard) (accepts 25mm reticle)|
|MA818||SWH15X Super Widefield High Eyepoint eyepiece, FN16 (optional) (accepts 19mm reticle)|
|MA819||SWH20X Super Widefield High Eyepoint eyepiece, FN12 (optional) (accepts 19mm reticle)|
|MA859||SWH10X-F Super Widefield High Eyepoint focusing, FN22 (optional) (accepts 25mm reticle)|
|Plan Epi * Long Working Distance * Brightfield Objectives – Infinity Corrected – F = 200mm|
|MA920||LWD Plan Epi 20X objective, NA: 0.40, Working Distance = 11.0mm (optional)|
|MA921||LWD Plan Epi 50X, objective, NA: 0.55, Working Distance = 7.5mm (optional)|
|Plan Epi Brightfield Objectives – Infinity Corrected – F = 200mm|
|MA870||Plan Epi 5X objective, NA: 0.10, Working Distance = 20.0mm (included)|
|MA871||Plan Epi 10X, objective, NA: 0.25, Working Distance = 7.48mm (included)|
|MA872||Plan Epi 20X, objective, NA: 0.40, Working Distance = 5.2mm (included)|
|MA873||Plan Epi 50X, objective, NA: 0.75, Working Distance = 0.38mm (included)|
|MA874||Plan Epi 100X, objective, NA: 0.90, Working Distance = 0.37mm (optional)|
|MA942||Ceramic coated flat-top stage, 191mm X 126mm, 100mm X 100mm, X-Y movement, with right hand drop-down coaxial controls and 94.5mm diameter clear glass stage plate. (Included in Model MT8000 and MT8100)|
|MA910/05||Substage condenser with iris diaphragm, dovetail mount (For MT8000 & MT8500) (included)|
|MA497||Polarizing filter, 20 mm in-mount (included)|
|MA475/05||Blue clear filter, LB100, 20mm in-mount (included)|
|MA476||Green clear filter, 20mm in-mount (included)|
|MA774||ND50 Neutral density filter 20mm in-mount (transmission: 50%) (included)|
|MA857/05||Green clear filter for transmitted illuminator, 44mm (optional)|
|F-V73990||Red clear filter in mount for bichromatic mode (optional)|
|Misc. Parts & Accessories|
|MA809/10||Replacement 115V AC Power cord with plug (USA)|
|MA809/20||Replacement 220V AC Power cord with plug (Eurocord)|
|MA809/30||Replacement 240V AC Power cord with plug (UK)|
|MA958||Photo/Video attachment with 80/20 beamsplitter, fits MA957 only|
|MA942||Ceramic coated flat top stage with glass plate insert (included)|
|MA711||Dust Cover for MT8000 Series (included)|
|MA927||Vertical Koehler Illuminator 6V 30W Halogen (included)|
|MA927/05||Power Supply for MA927, 100V – 240V (included)|
|MA326||Spare bulb for halogen transmitted illuminator, 6V, 30W|
|MA327||Spare fuse for halogen transmitted or vertical illuminator, 3A|
|MA906||Eyeshield (ea) for MA817 10x eyepieces (included)|
