Introduction

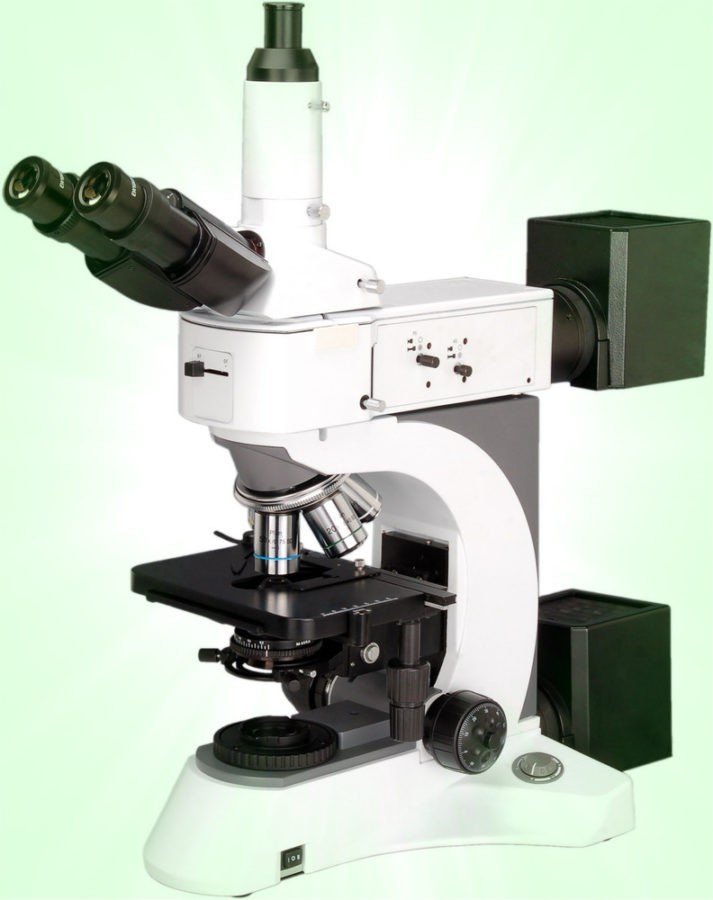

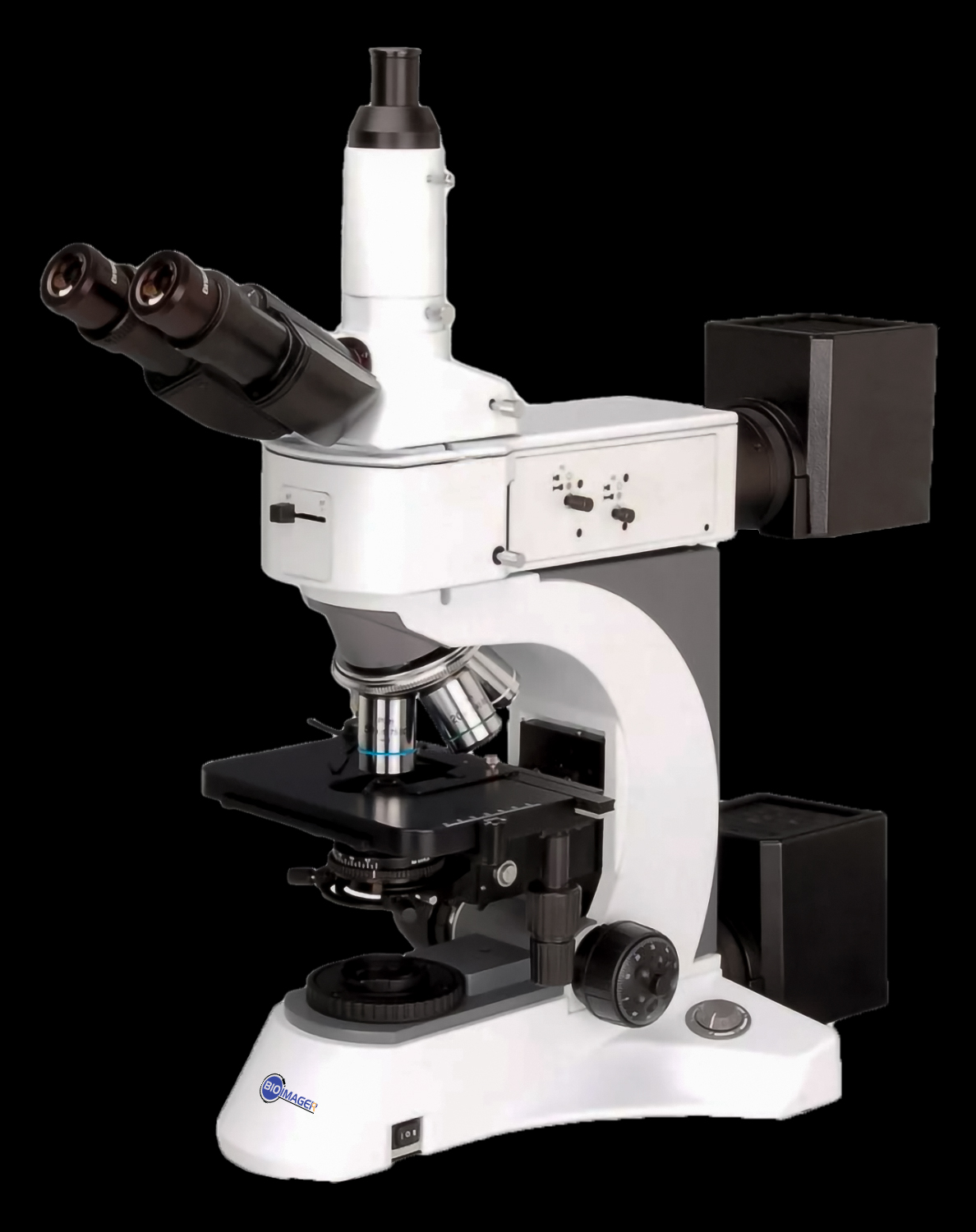

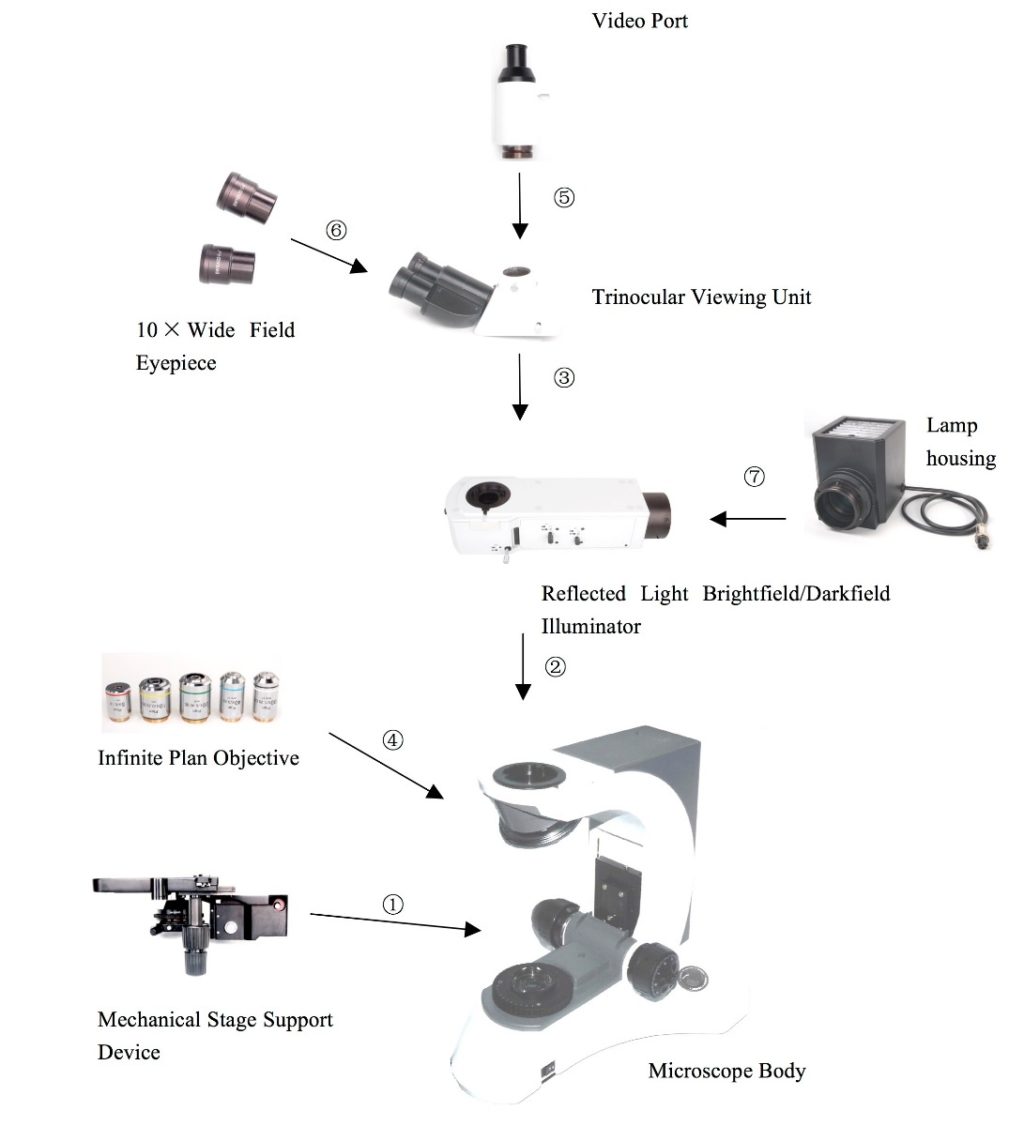

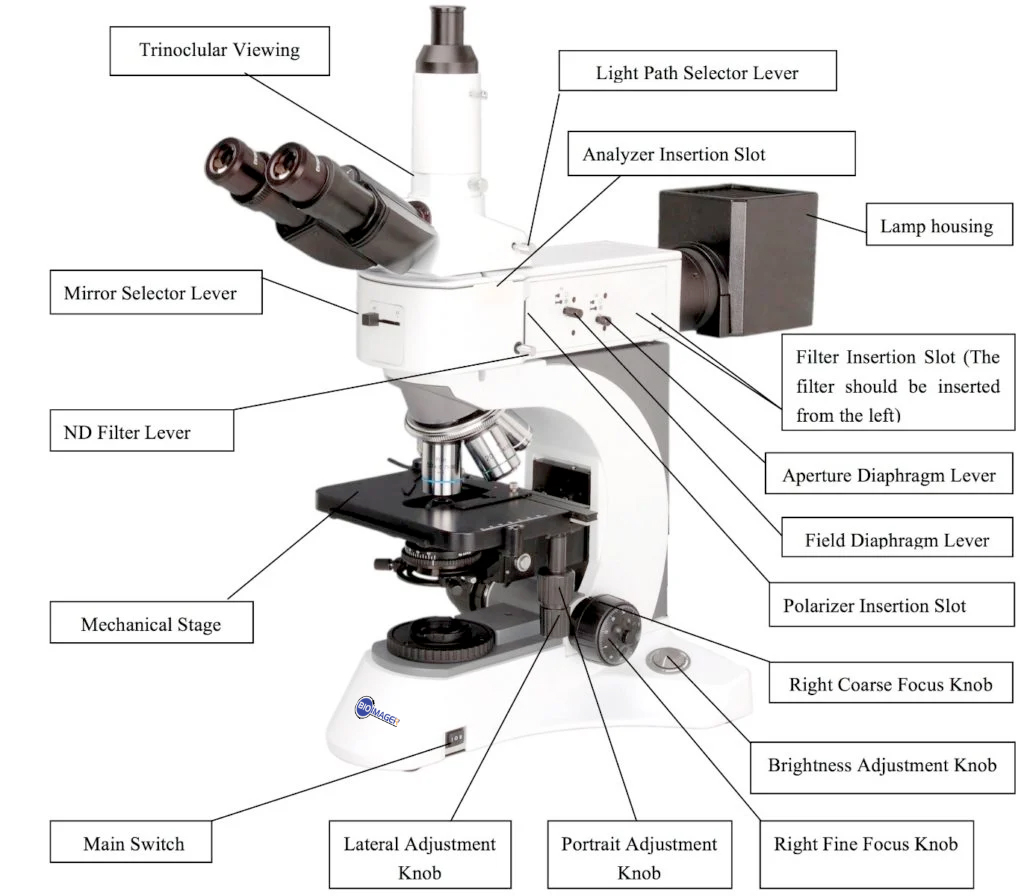

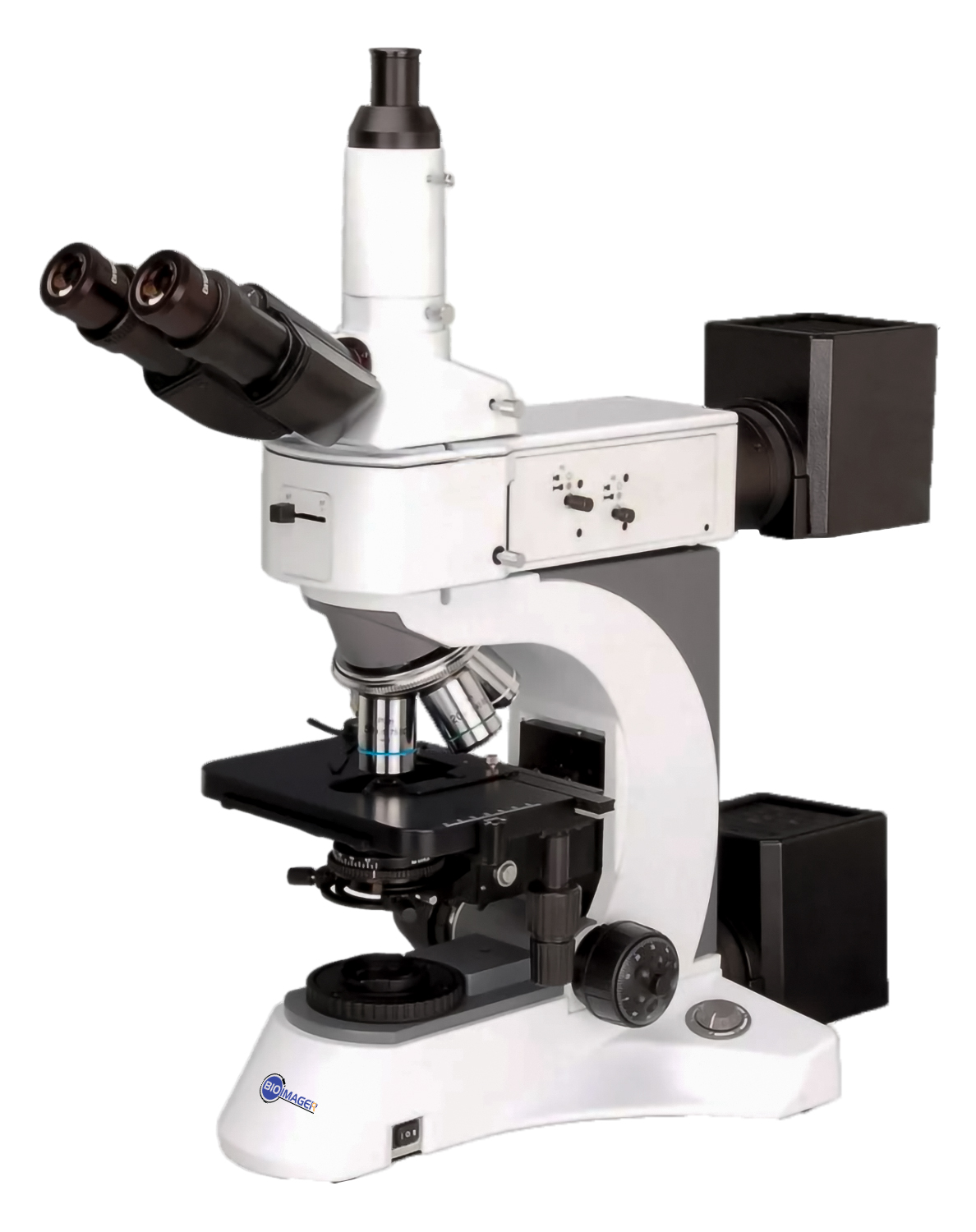

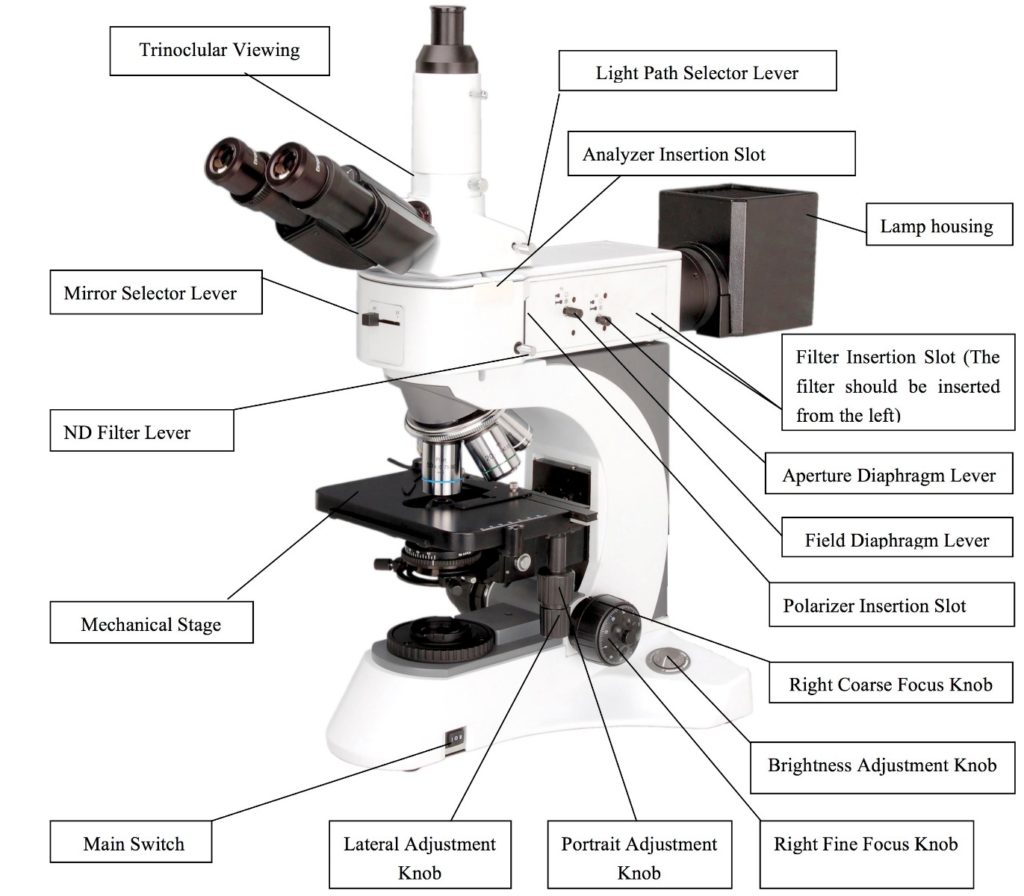

BMU500 metallurgical microscopes are high level professional microscopes which are specially designed for metallurgical analysis. With excellent optical system, ingenious stand and convenient operation, they will be your best choice.
Application
BMU500RF/TRF are widely used in institutes and laboratories to observe and identify the structure of various metal and alloy, they also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.

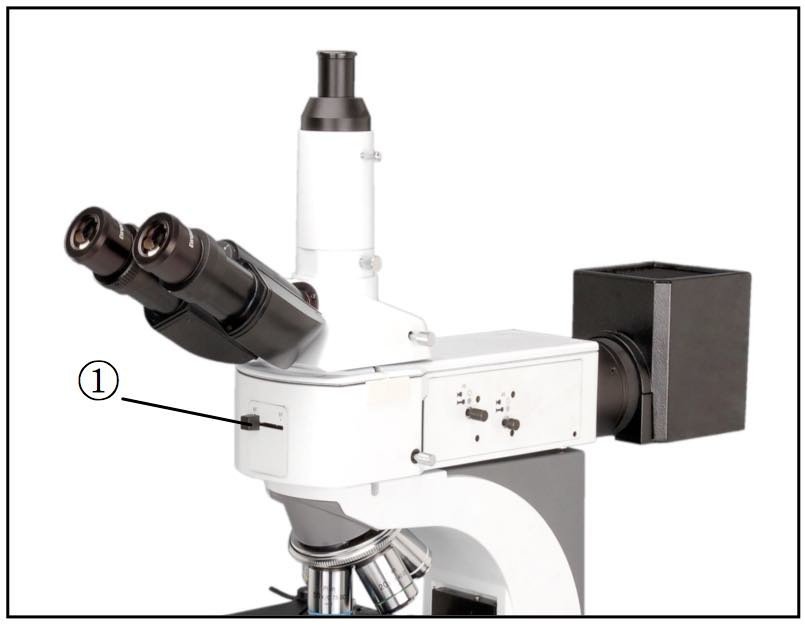

Laboratory metallurgical microscope, including bright field, dark field and polarization observation system.
Powerful transmitted and reflected system with Kohler illumination.
Ideal instrument for metallurgical analysis, industry inspection and science research.

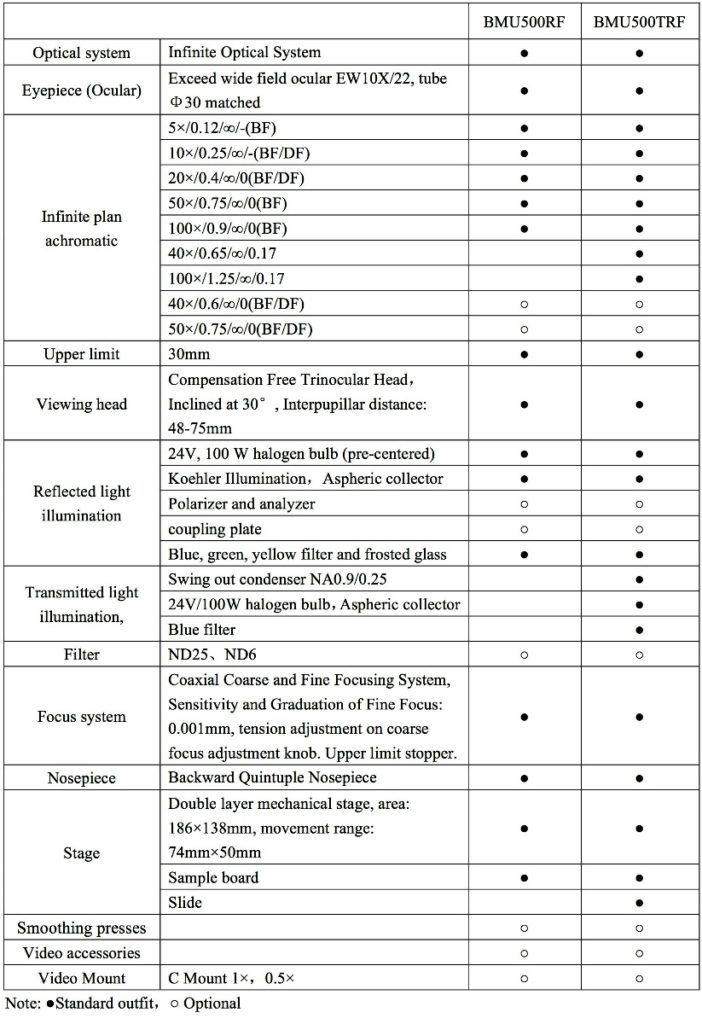

Model
BMU500 RF
BMU500 TRF
Optical System
Infinite optical system
●
●
Viewing Head

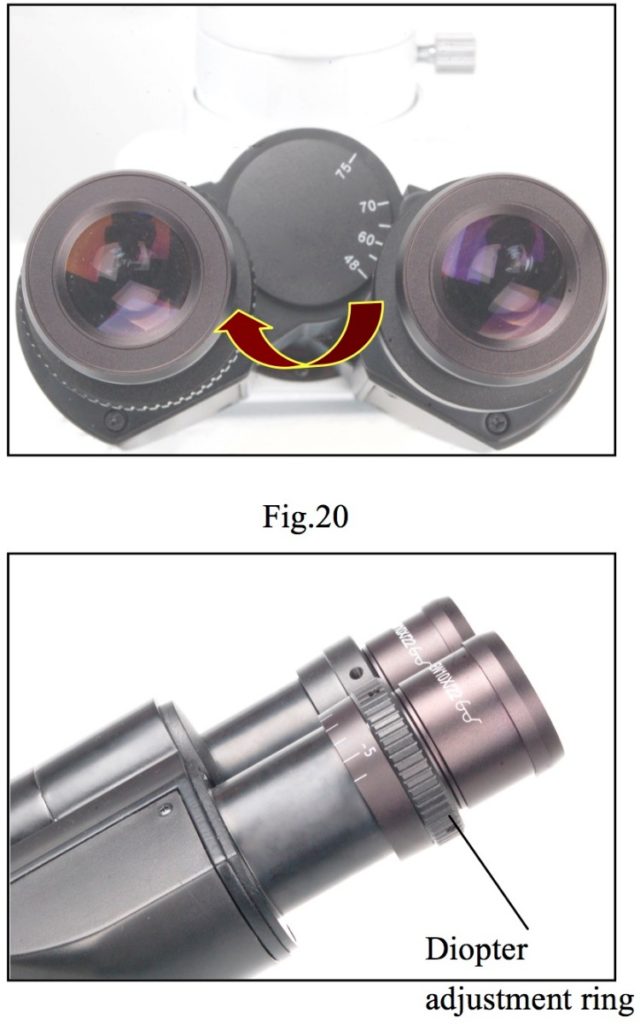

Siedentopf trinocular viewing head, inclined at 30°, interpupillarty distance 48mm-75mm
●
●
Eyepiece
Extral wide field eyepiece EW10×/22, eyepiece tube Φ30mm
●
●
Infinite Plan Achromatic Objective
5×/ 0.12/∞/ – (BF) WD 15.5mm
●
●
10×/ 0.25/∞/ – (BF/DF) WD 10.0mm
●
●
20×/ 0.4/∞/ 0 (BF/DF) WD 4.3mm
●
●
50×/ 0.75/∞/ 0 (BF) WD 0.32mm
●
●
100×/ 0.8/∞/ 0 (BF) WD 2mm
●
●
40×/ 0.65/∞/ 0.17 WD 0.54mm
●
100×/ 1.25/∞/ 0.17 WD 0.13mm
●
5×/ 0.12/∞/ – (BF/DF) WD 12mm
○
○
40×/ 0.6/∞/ 0 (BF/DF) WD 2.9mm
○
○
50×/ 0.75/∞/ 0 (BF/DF) WD 0.32mm
○
○
100×/ 0.8/∞/ 0 (BF/DF) WD 2mm
○
○
Maximum Sample Height
30mm
●
50mm
●
Reflected Light

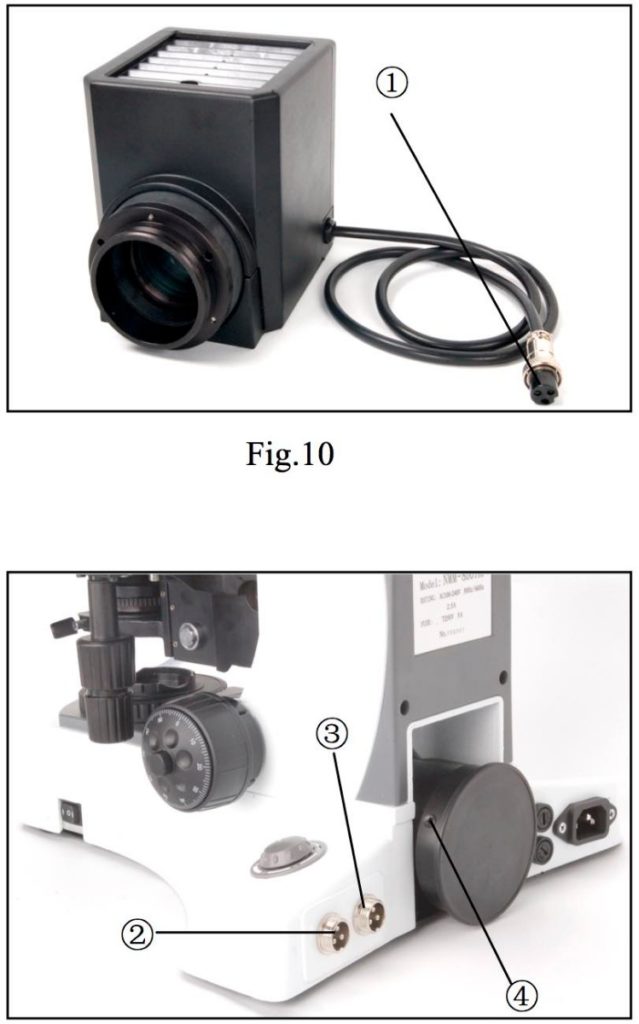

24V/100W Halogen light, Brightness adjustable
●
●

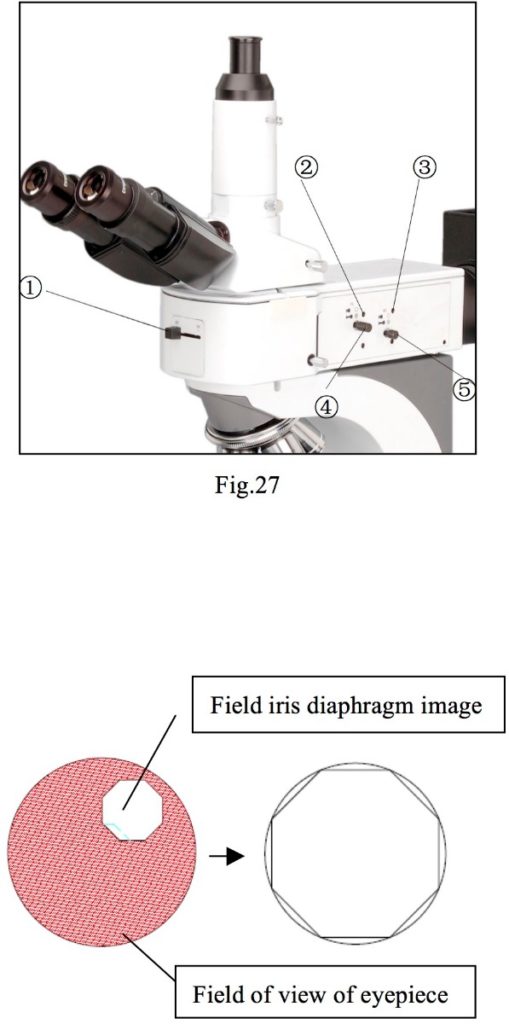

Kohler illumination and aspherical condenser
●
●

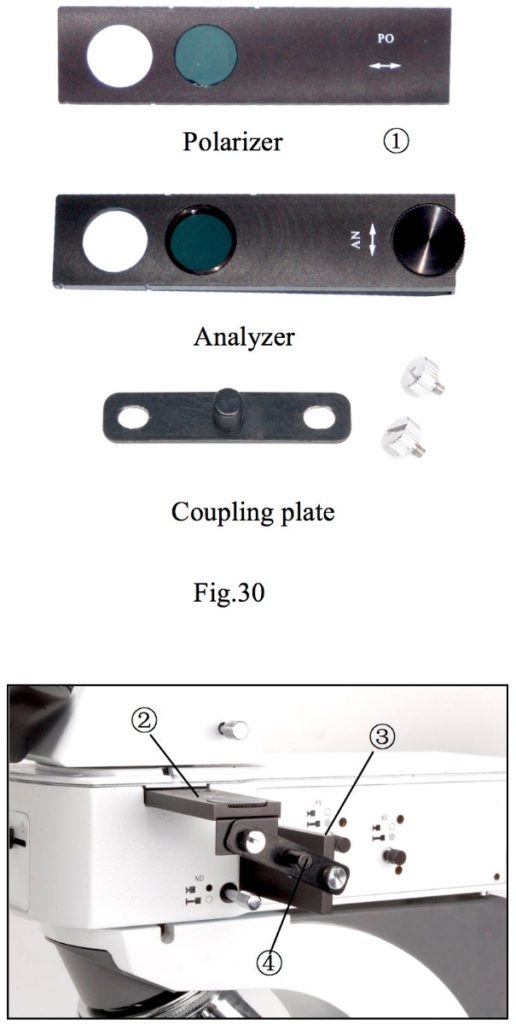

Polarizer and analyzer
○
○

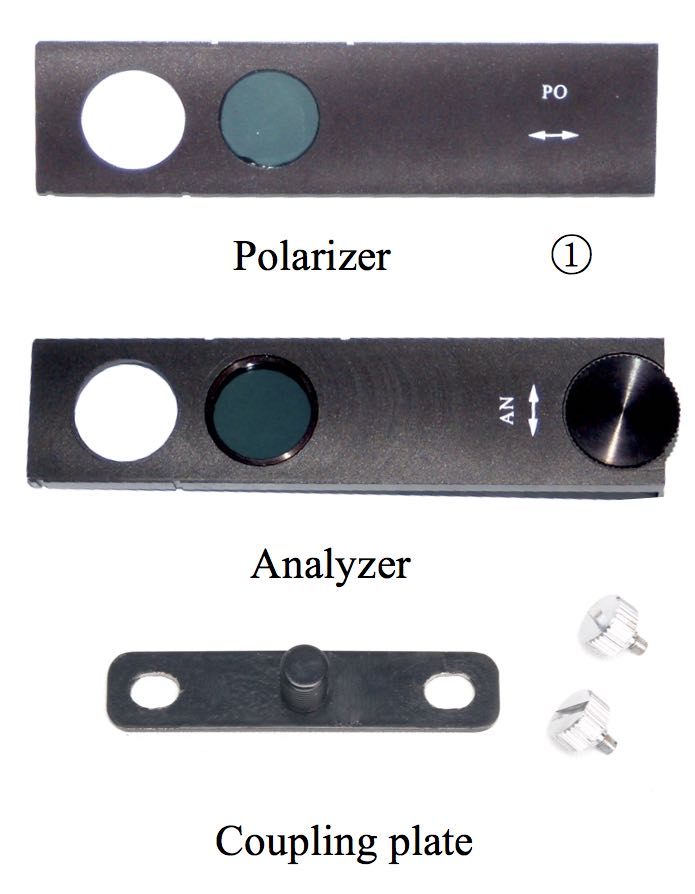

An integrate device for polarizer and analyzer
○
○

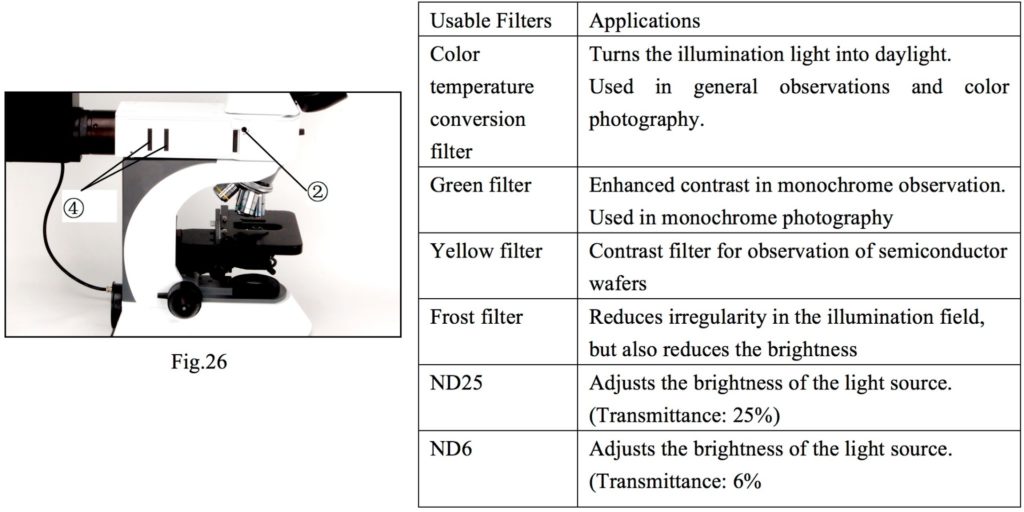

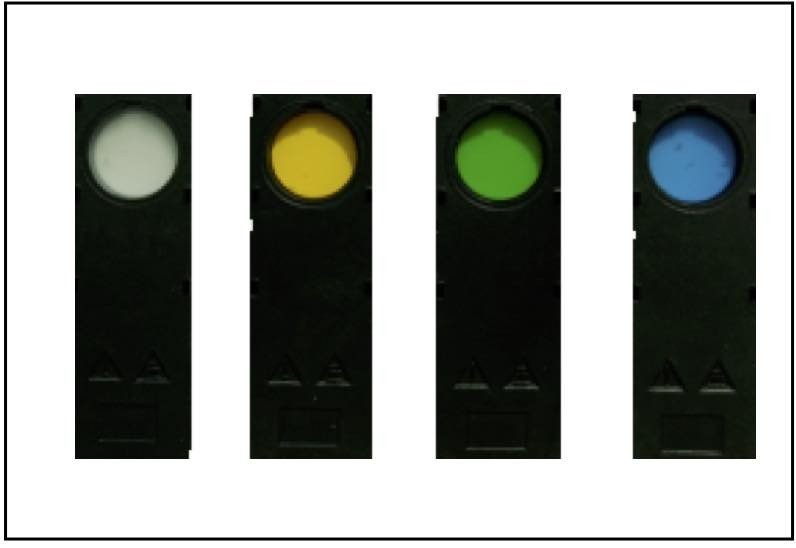

Blue, Green, Yellow and Frosted filter
●
●
Transmitted Light

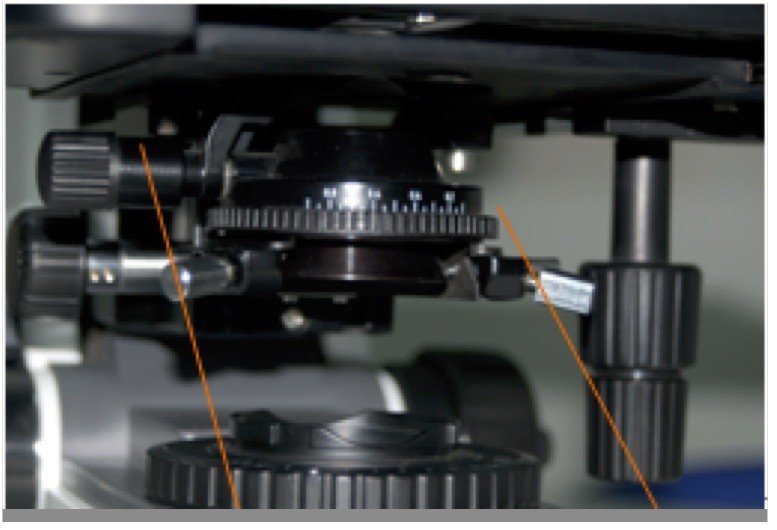

Swing-out condenser NA0.9/ 0.25
●
24V/100W Halogen light and aspherical condenser
●
Blue filter
●
Filter
ND25, ND6
○
○

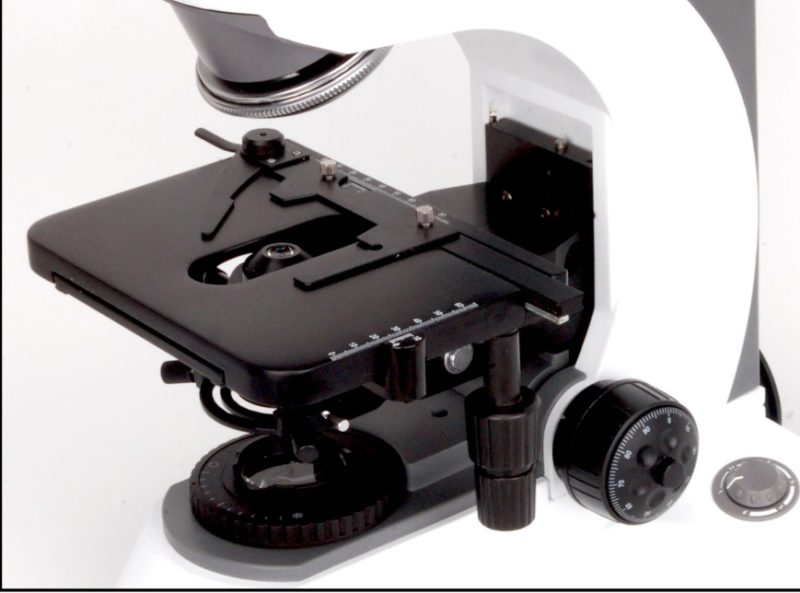

Focusing
Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm
Video 2: Imaging Capability: Brightfield imaging with transmitted or Reflected Light
Video 3. Using 16MP to show transmitted brightfield sample images of BMU500
This video demonstrates the microscopy camera BRC-1600which is a 16MP 1/2.33″ USB 3.0 colorful camera. The camera is connected to one of our upright industrial /metallurgical microscope BMU500DIC with 0.37x c-mount adapter, Windows 10, and sample images of Tilia (Basswood) are shown at different objective lenses.
Video 4. Fluorescence Imaging
This video demonstrates Bioimager BUM360FLED-A LED Fluorescence attachment to use with a standard upright microscope such as BMU500A.. It comes with 5W LED of Violet (V), Ultraviolet (UV), Blue (B) and Green (G) LEDs, and its correspondent excitation and emission filters. The video demonstrates the optics and mechanics as well as sample images at different magnifications.
