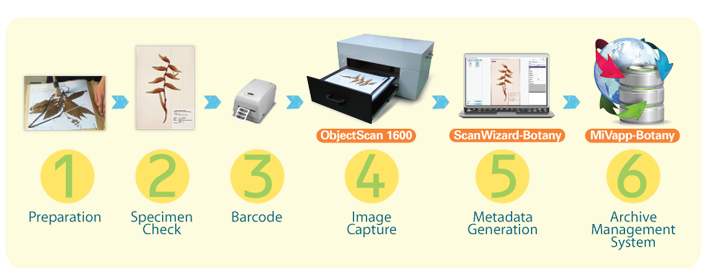

1600 SOP
Use in Multiple Ways
scanwizard
bio 1600 ScanWizard graph
Up to +/- 6.5 mm DOF Ensures Clear Images
1600 Feature 6.5
1600 Feature botany
bio 1600 magnets
Color CCD with 1600-dpi High Resolution Delivers Perfect Image Quality
Fast Scanning Speed and Auto File Saving
Smart Auto Calibration
Tokai-Hit KRi Cooling & Heating Incubator for Inveretd microscopes (Japan) -0 Tokai-Hit KRi Cooling & Heating Incubator for Inveretd microscopes (Japan) Request a Quote
BMU800 Advanced Uprigh Metallurgical Microscope Request a Quote

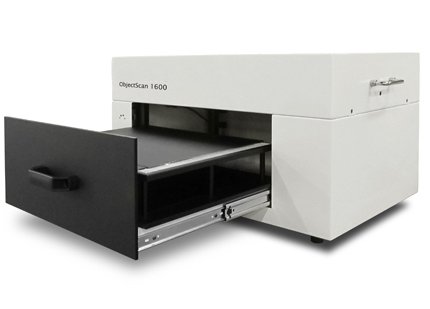

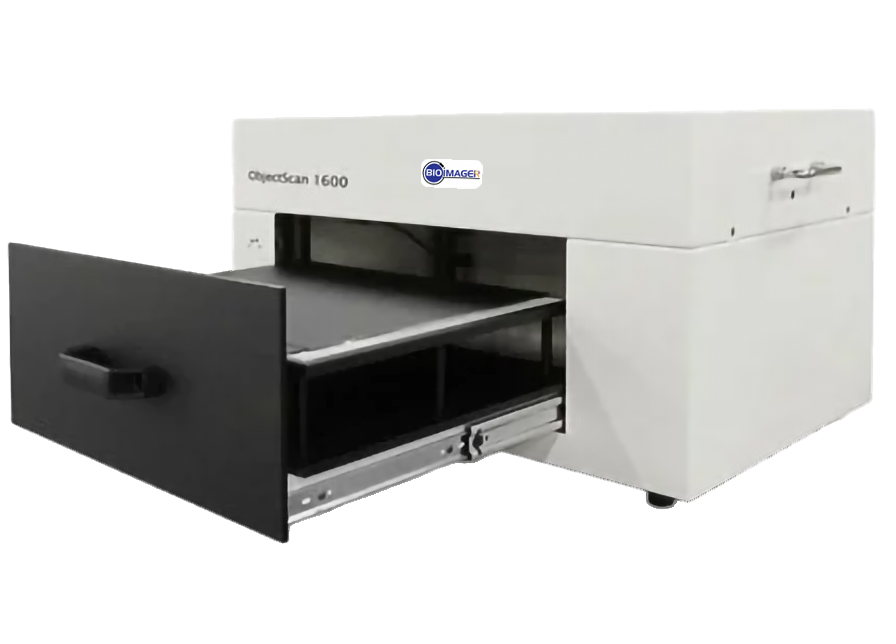

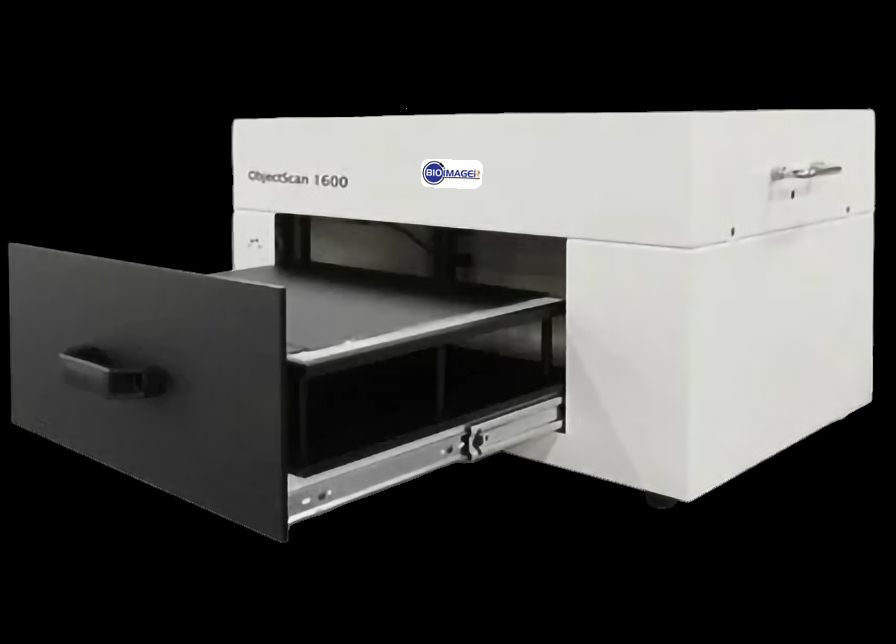

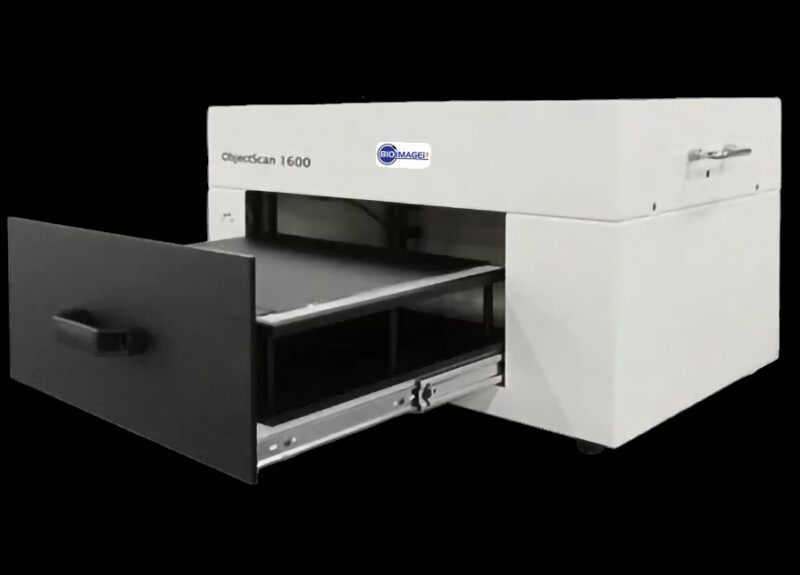

BioScan 1600 Object Scanner

Request a Quote

  • Designed for capturing images of material objects
  • Perfect scanning tool for specimen centers of animals, plants and minerals, research centers, collecting agencies, manufactures of building materials, art designing and advertising companies.
  • Challenges the 2D digital cameras, due to the ability to present the details of objects and the awareness of the light angles and brightness when shooting, make them become complicated and expensive in operations and maintenance.
  • Excellent alternative solution to make digitization of objects such as herbarium
  • 1600 dpi resolution
  • 48-bit colour image
  • Scanning area: 304.8 mm x 424.18 mm (12″ × 16.7″)
  • Extended Depth of Field: +/- 6.5mm at 300 dpi and +/-13mm at 150dpi.
Add to Wishlist
Guaranteed Safe Checkout

Questions? Request a Call Back

BioScan 1600 Object Scanner

BioScan-1600-Object-Scanner-ObjectScan

BioScan 1600 is a scanner exclusively designed for capturing images of material objects. It is perfect to be used in specimen centers of animals, plants and minerals, research centers, collecting agencies, manufacturers of building materials, art designing and advertising companies. In general, demands toward digital cameras, such as the ability to present the details of objects and the awareness of the light angles and brightness when shooting, make them become complicate and expensive in operations and maintenance. Therefore, Bioscan 1600 has been as a replaceable solution to make digitization of objects easier and more efficient.

  •  On-top Scan Design Does Not Damage the Objects
  • Two Scan Beds Support
  • Up to +/- 6.5 mm DOF Ensures Clear Images
  • Tri-wavelength LED Enriches Scanning Colors
  • Color CCD with 1600-dpi High Resolution Delivers
  • Perfect Image Quality
  • Fast Scanning Speed and Auto File Saving
  • Supporting Many Image Formats
  • Smart Auto Calibration
  • Use in Multiple Ways
  • Exclusively Designed and Easy-to-use Scanning Software

BioScan 1600 Object Scanner

BioScan-1600-Object-Scanner-ObjectScan 1600

On-top Scan Design Does Not Damage the Objects On-top Scan Design Does Not Damage the Objects
The BioScan 1600 takes on a design of a on-top scan structure. Under this structure, users have no need to turn the object over or place it face down on the glass surface. Thus, neither the object nor glass surface may be damaged by the contacts. The BioScan 1600 is perfect for digitalizing the originals of old and fragile objects.

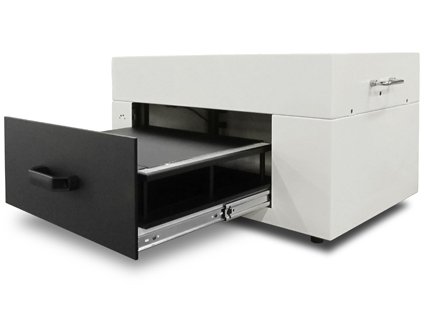

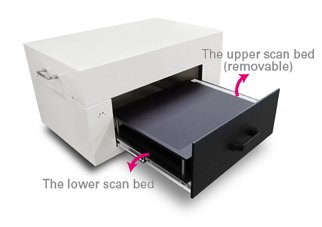

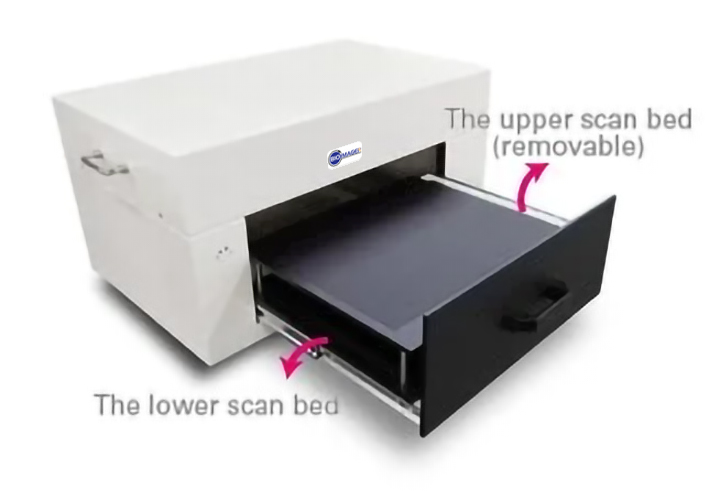

Two Scan Beds Support
Two scan beds are convenient for positioning objects with different heights. Users can choose the best scan bed based on the height of a scanned object. If the height of a scanned object is less than 7 cm, it can be put on the upper scan bed. On the contrary, it should be set on the lower scan bed if it is higher than 7 cm in order to get a clear extended DOF image.		 Two Scan Beds Support
1600 Feature 6.5 Up to +/- 6.5 mm DOF Ensures Clear Images
The DOF (Depth of Field) of BioScan 1600 is up to +/- 6.5 mm at 300 dpi and +/-13mm at 150 dpi, which can handle scanning of uneven documents or 3D objects efficiently, such as plant specimen. This is helpful to provide a clear extended DOF image (EDF), without vagueness and distortions.
Tri-wavelength LED Enriches Scanning Colors
Adopted a tri-wavelength LED as its light source, the ObjectScan 1600’s color gamut is closer to that by a NTSC, which presents delicate and brilliant color, making the after-scanned images as true as the real objects. Therefore, it can capture richer and deeper color than what a normal LED can do. Besides, the fortes include prevention of efficiency waste, no needs to warm up when powered on, product long life cycle, and use of convenience. Moreover, it will not cause image issues in lighting, exposure or shadow as cameras do, affected by ambient lights.		 1600 Feature sample
Color CCD with 1600-dpi High Resolution Delivers Perfect Image Quality Color CCD with 1600-dpi High Resolution Delivers Perfect Image Quality
The BioScan 1600 has a color linear CCD with resolution that reaches up to 1,600 pixels per inch. With the built-in 48-bit ADC (Analog to Digital Converter), the scanner can convert images of objects to digitized files with high fidelity format. Thus, it can clearly capture images for shapes and textures of objects, presenting original appearances of objects precisely and decreasing the happenings of damages on objects when doing researches.
Fast Scanning Speed and Auto File Saving
The BioScan 1600 is a flatbed scanner with a scanning area up to A3 size, allowing users to capture an A3-size image in just one scan. Therefore, there is no extra need for image stitching to present a complete after-scanned image. Also, images can be saved automatically when scanning is done. The BioScanObject 1600 is the best and the most convenient choice to digitize objects.		 Smart Auto Calibration

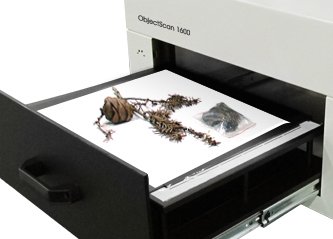

Use in Multiple Ways
The BioScan 1600 allows users to scan small stereoscopic objects, such as specimen of plants, insects and minerals, ancient relics (books/bamboo slips/sheepskins), collections, paintings, and building materials (tiles/porcelains/woods), to capture images based on different demands. As well, it can also scan normal documents, such as prints and reports.Use in Multiple Ways

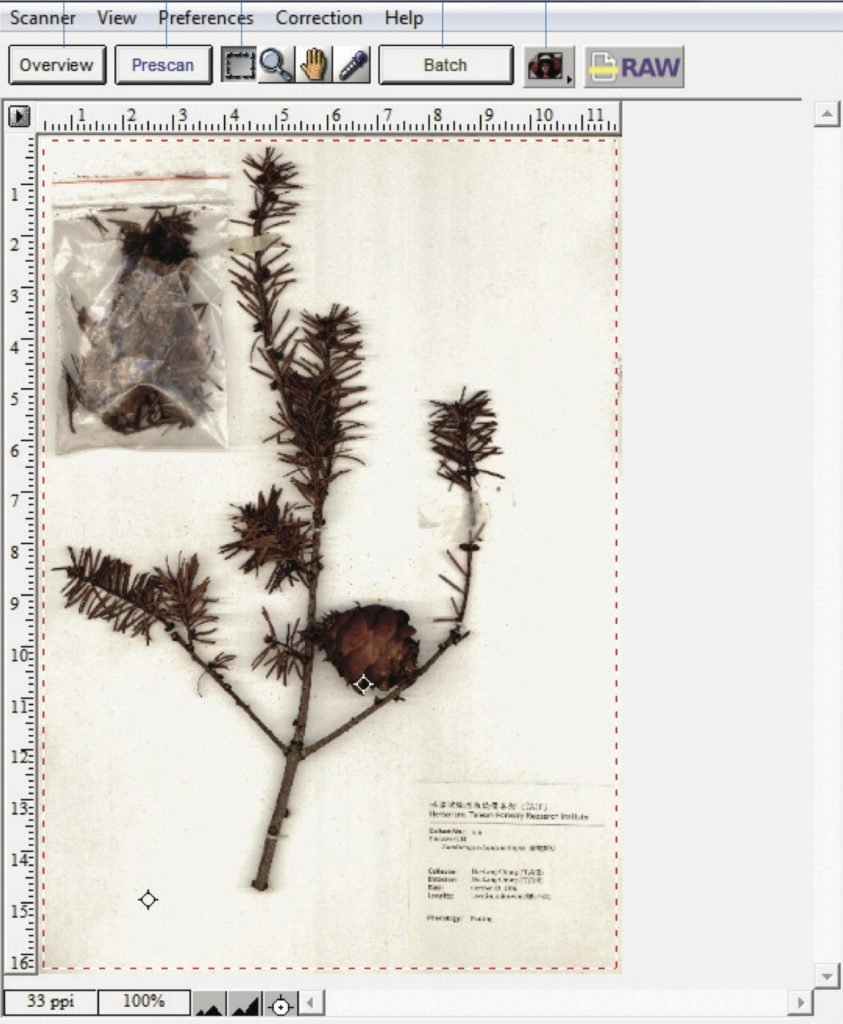

scanwizard Exclusively Designed and Easy-to-use Scanning Software
ScanWizard LS is software exclusively designed for scanning and saving large-scale images. With various easy-to-understand and practical functions, users can become an expert and use it in person in a very short time.
NO. ITEM DETAILS
01 Product Name ObjectScan 1600
02 Scanner Type On-top Scan Flatbed Scanner
03 Image Sensor Type Color Linear CCD
04 Resolution 1600 dpi
05 Light Source LED
06 Scanning Area 304.8 mm x 424.18 mm (12″ × 16.7″)
07 Scanning Speed 12 sec @ 400 dpi, A3 Color (without calibration)
08 Bit Depth 48-bit (Input) / 24-bit (Output)
09 Connectivity Hi-Speed USB 2.0
10 Supported File Types TIFF, JPEG, BMP, PDF
11 OS Support Windows 7 / 8
12 Dimensions (L x W x H) 750 x 470 x 376 mm / 29.5″ x 18.5″ x 14.8″ (foot stands excluded)
13 Weight 47 kg (103 lbs)
14 Power Source AC 100V-240V, 47-63 Hz, 1.5A max. (Input) DC 15V, 2.5A (Output)
15 Power Consumption 37.5 W
16 System Requirements PC CD-ROM drive (for installing software)

Color display with 24-bit color output capability

4 GB RAM or more

Intel Core i5 Processor at 3.0 GHz PC or higher with Hi-speed USB (USB 2.0) port

Microsoft Windows 7 / 8 /10
17 Software Included ScanWizard LS

Exclusively Designed and Easy-to-use Scanning Software

ScanWizard LS is software exclusively designed for scanning and saving large-scale images. With various easy-to-understand and practical functions, users can become an expert and use it in person in a very short time.


Examples of customers in the past

  1. Dinosaur National Monument, Jensen, Utah, USA
  2. TERN, The University of Adelaide, Urrbrae, SA, Australia
  3. Centre for Artificial Intelligence and Robotics (CAIRO), Universiti Teknologi Malaysia (UTM), Kuala Lumpur, Malaysia
  4. VELD Ltd, Аlmaty, Kazakhstan
