Save $600

BioScan-1040 10x-40x 5MP Digital Microscope Slide Imager

Availability:

In stock


Compare
  • Compact Digital Microscope Slide Viewer
  • 10x to 40x optical magnification / 500x to 2000x digital magnifications
  • FOV: 1.2mmx1.5mm – 0.30mmx0.38mm
  • 5MP High-Definition Camera

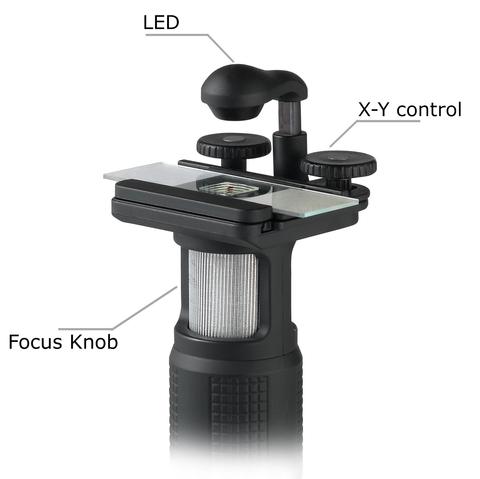

  • Manual Focus and XY stage

In stock

$2,400.00 $3,000.00

BioScan-1040 10x-40x 5MP Digital Microscope Slide Imager-10419BioScan-1040 10x-40x 5MP Digital Microscope Slide Imager-10420

BioScan-1040 10x-40x 5MP Digital Microscope Slide Imager-10421

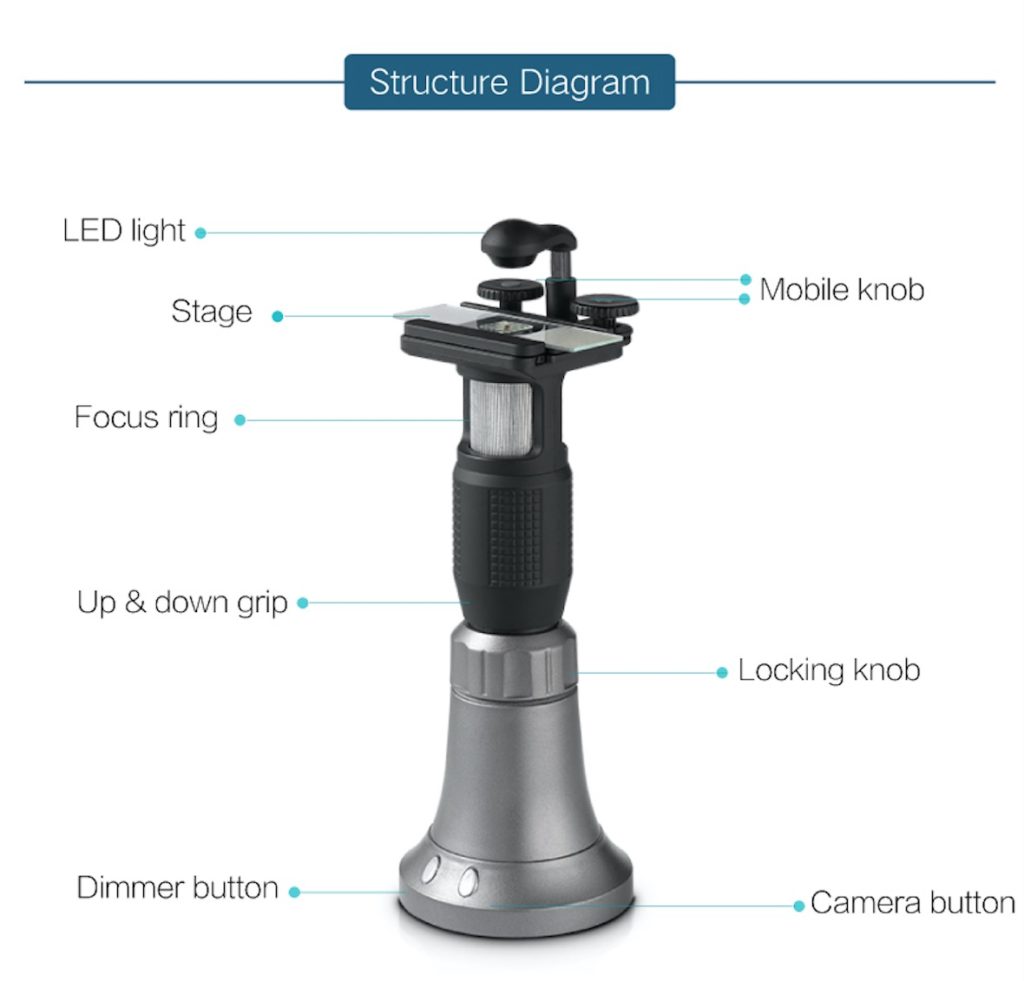

BioScan-1040 10x-40x 5MP Digital Microscope Slide Imager-10418Unique Features

  • This portable digital microscope slide viewer is an innovative device which provides a breakthrough solution for digital portable high magnification demands. It can replace traditional compound microscopes/ slide scanner /trinocular compound microscope at very low cost.
  • Traditional microscopes on the market allow you to see through either the trinocular port or eyepieces, forcing you to switch between the port and eyepieces. By using this device, you can easily adjust focus by looking at a computer monitor, and no additional accessories needed.

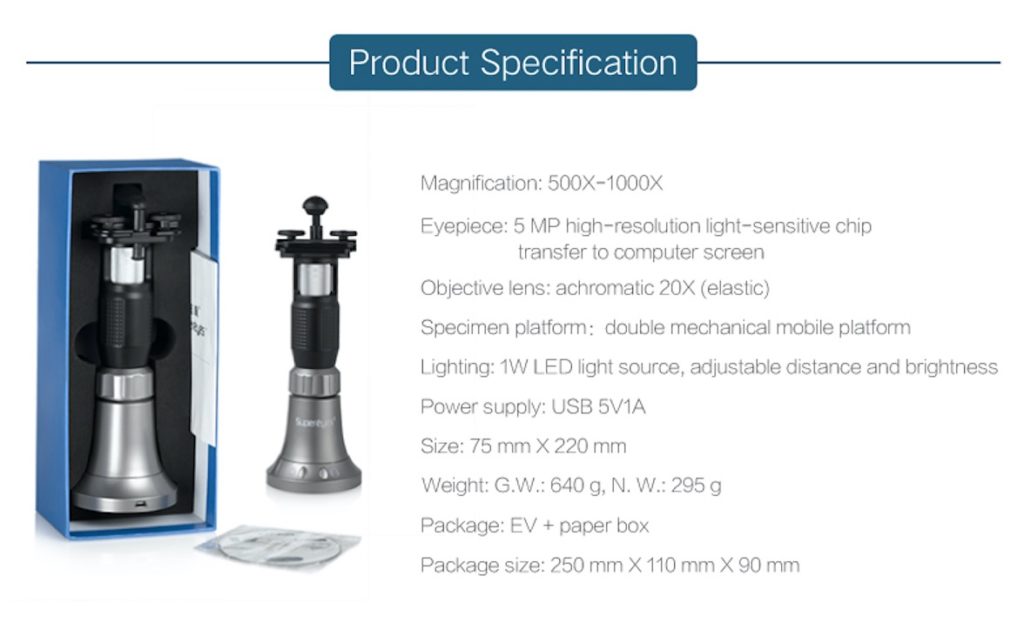

Specifications

  • Digital Magnification: 500 ~ 2000 times (continuous zoom capability)
  • Optical Zoom: 10x – 40x
  • Field of View: 1.2×1.5mm – 0.30mmx0.38mm
  • Sensor: 5.0MP (true hardware)
  • Operating System: Windows 10/8/7/Vista/XP/2000, Mac OS × 10.5 or above, Linux
  • Object distance:  0 mm ~ infinity
  • Focus type: manual focus
  • Interface USB 2.0
  • Max Size: Ø75 mm × 220 mm
  • Adjustable X-Y specimen stage.

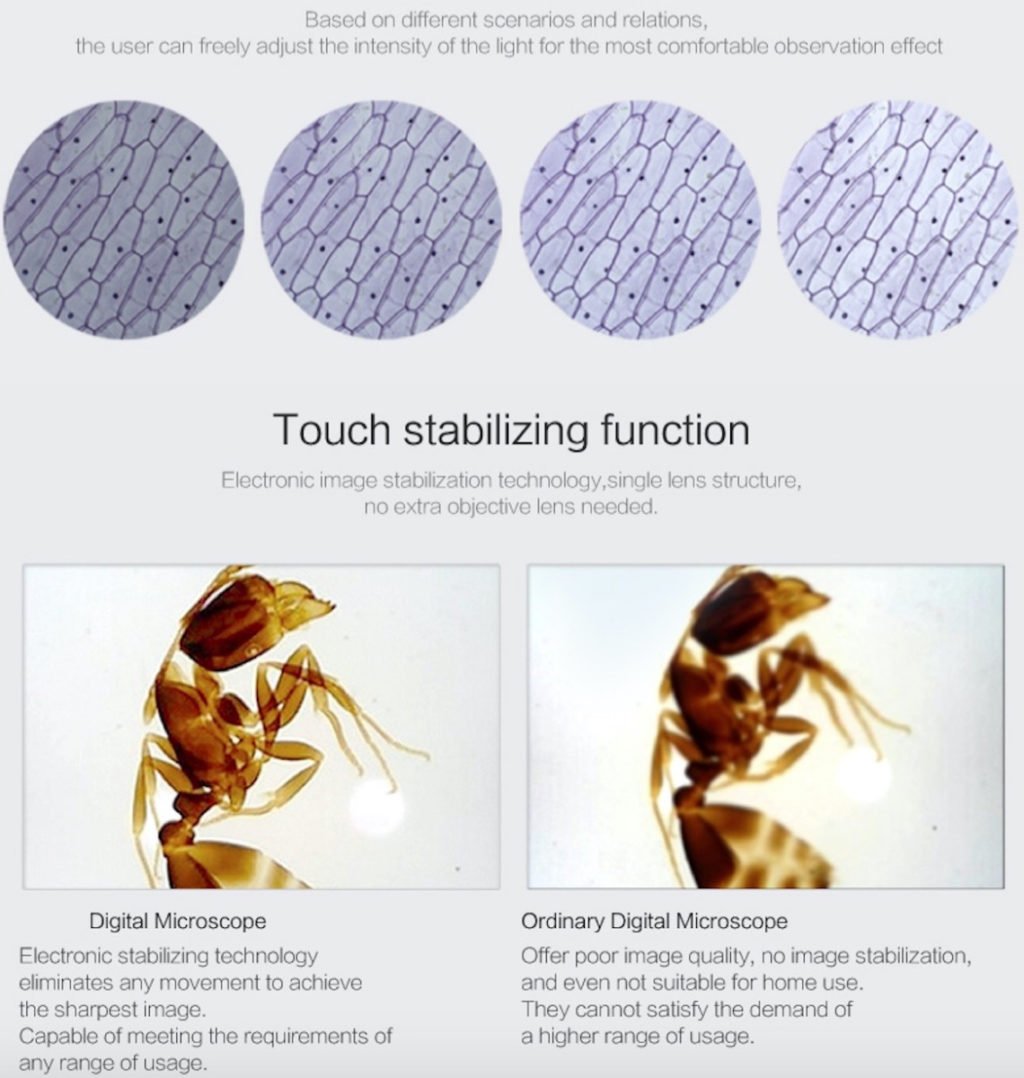

  • Light Sources: LED illumination (adjustable by control wheel)
  • OSD language: English, Chinese, German, Japanese
  • Software: Software with measurement and calibration function
  • For Mac, please use Photo Booth, FaceTime or QuickTime
  • For Linux, please use web camera software to open it
  • Snapshot by software/hardware
  • Still image capture resolution: max 2592 X 1944
  • Photo Format: JPEG
  • Video: High compression, 11 hours long
  • Video Capture Resolution: max 1600 X 1200
  • Video Format: WMV
  • Display Speed: Maximum 30 f/s

BioScan-1040 10x-40x 5MP Digital Microscope Slide Imager-10679

BioScan-1040 10x-40x 5MP Digital Microscope Slide Imager-10422

BioScan-1040 10x-40x 5MP Digital Microscope Slide Imager-10677

BioScan-1040 10x-40x 5MP Digital Microscope Slide Imager-10421
