Meiji Techno Research Zoom (RZ) Series CMO Stereo Microscopes are advanced, high-performance, modular, stereo microscopes specifically designed with today’s demanding microscopy applications in mind.

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

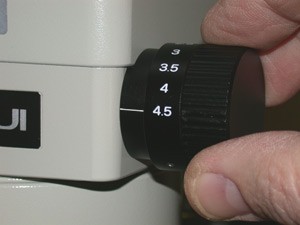

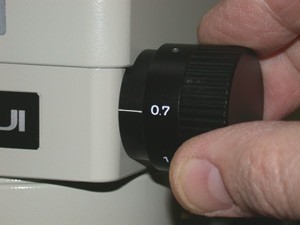

The RZ features a 10:1 zoom ratio with built-in variable dual-iris diaphragms and 12 positive click stops through the zoom range. Two perpendicular columns of eight zoom lenses in four groups move in smooth motion controlled by ergonomically sized and positioned zoom knobs. A magnification indicator is conveniently located on the zoom controls.

Exterior components are painted with special anti-static finish which is especially useful when working in sensitive environments. Two types of viewing heads are available.

RZ/RZ04.jpg

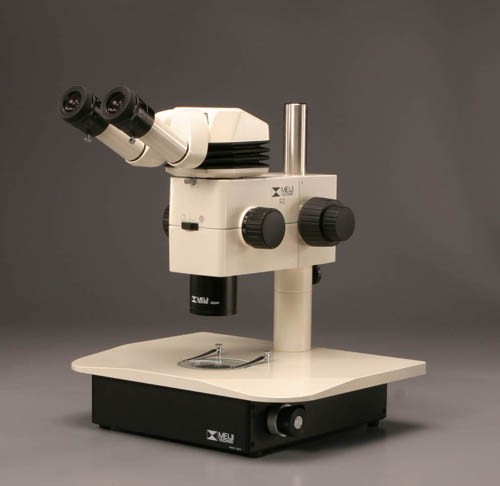

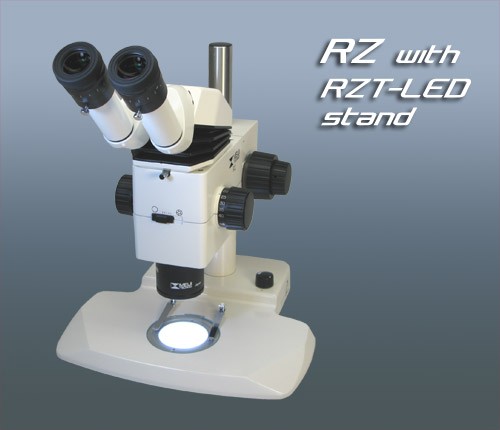

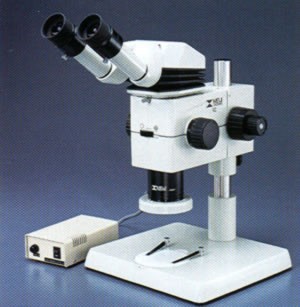

Meiji Techno Research Zoom Stereo Microscopes (Japan)

RZ/RZ01.jpg

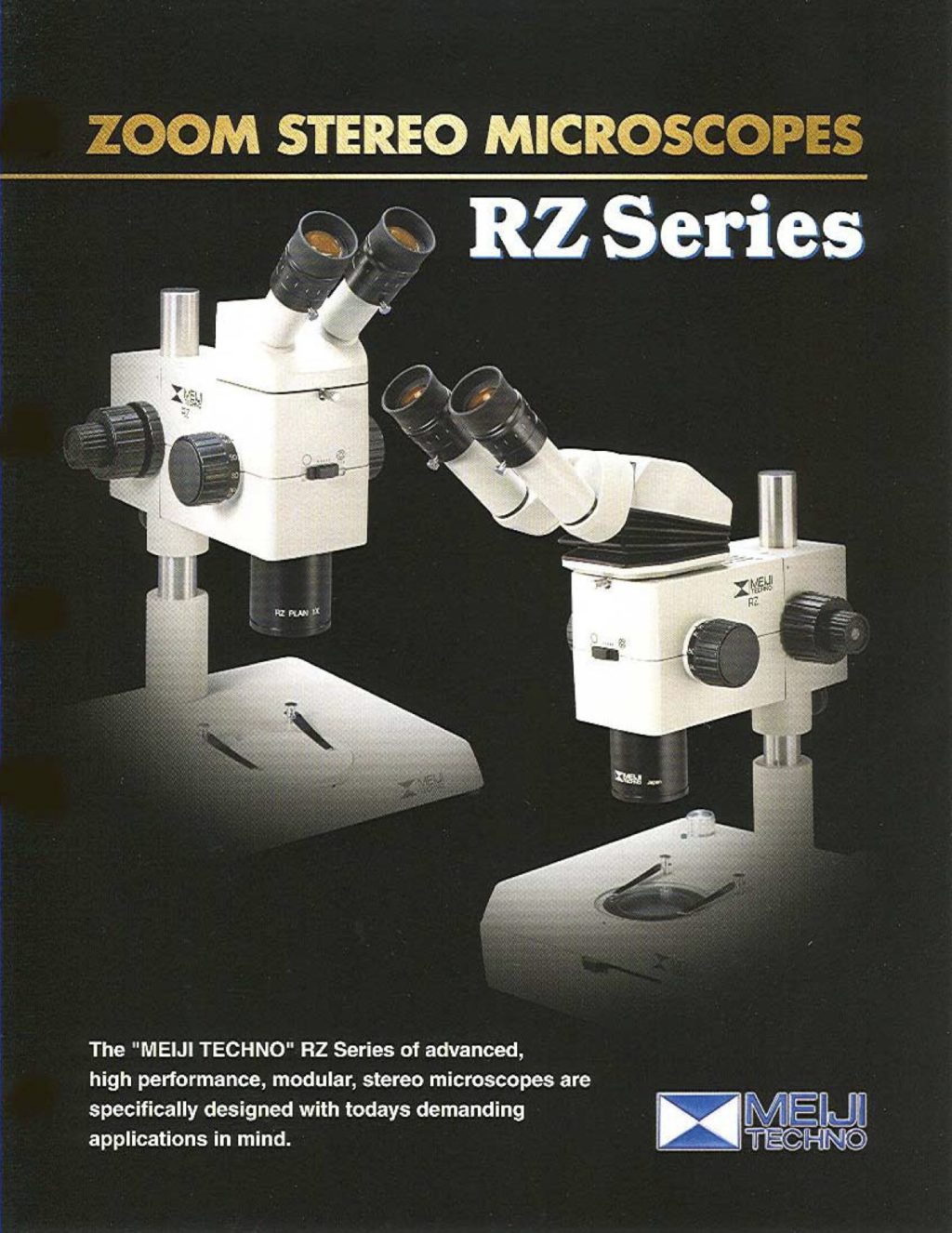

Meiji Techno Research Zoom (RZ)  Series CMO Stereo Microscopes are advanced, high-performance, modular, stereo microscopes specifically designed with today’s demanding microscopy applications in mind. Engineered around acommon main objective and parallel optical paths, the RZ Series offers crisp, distortion-free, high-resolution images at magnifications ranging from 3.75x to 300x. Browse the optical components,photo/video accessories, and stands to configure a system to meet your needs.
Features:

The RZ features a 10:1 zoom ratio with built-in variable dual-iris diaphragms and 12 positive click stops through the zoom range. Two perpendicular columns of eight zoom lenses in four groups move in smooth motion controlled by ergonomically sized and positioned zoom knobs. A magnification indicator is conveniently located on the zoom controls.

Exterior components are painted with special anti-static finish which is especially useful when working in sensitive environments. Two types of viewing heads are available.

RZ/RZ04.jpg

Meiji Techno Research Zoom Stereo Microscopes (Japan) RZ/RZ-ex02.jpg RZ/RZ-ex03.jpg
Live Shrimp (Neocardina Sp) imaged under darkfield transmitted light Crevice inside the Amber imaged under darkfield transmitted light Crevice inside the Amber imaged under brightfield transmitted light

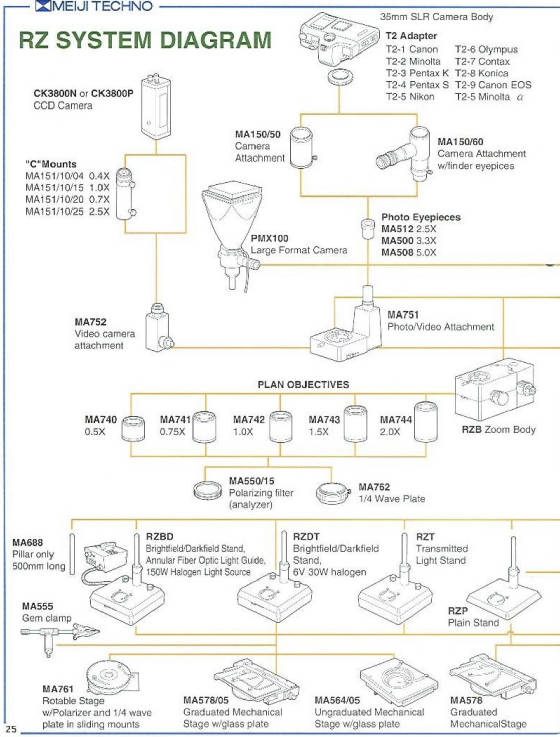

RZ/RZ_diag2.jpg
RZ/RZ_diag2.jpg
