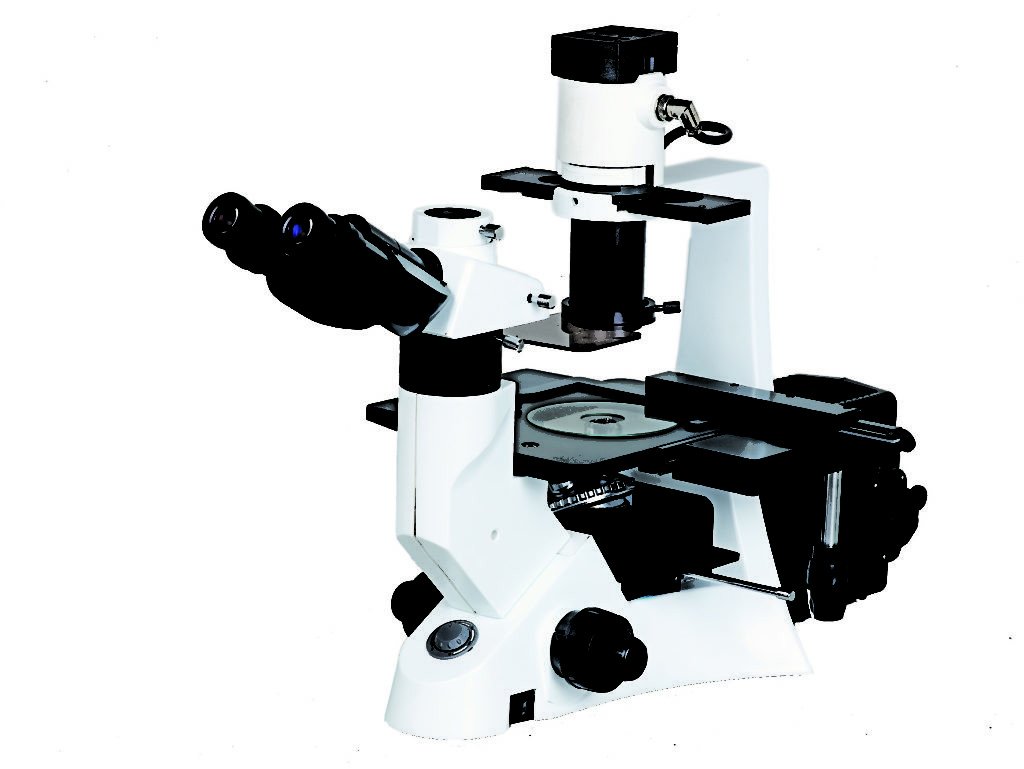

BIM500FL Inverted Epi-Fluorescnce Biological Microscope

BIM500FL Inverted Fluorescence Biological Microscope

BIM500FL Inverted Fluorescence Microscope
4x, 10x Ph, 20x Ph, 40x objective lenses included plus several optional obj lenses.
with GFP, RFP & optional UV , V or custom Excitation filters.
Trinocular head; Top video port.
HBO illumination

Fluor Illumination

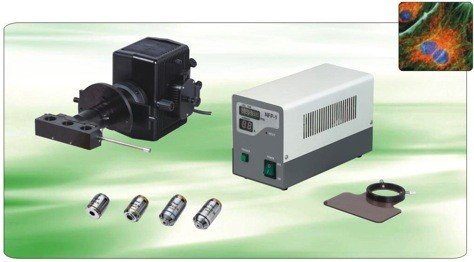

Fluorescent Accessories

XY Stage & Sample Holders

Epi-Fluor Lenses

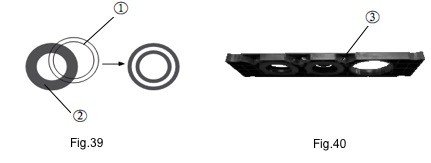

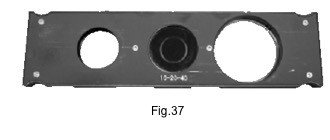

Phase Contrast

C-Mount Adapter

$USD 3,995.00 ~~$USD 5,000.00~~

Compare

BIM500FL Inverted Fluorescence Biological Microscope

Pros:

This microscope is an excellent choice for those entering the academic field.
It is particularly well-suited for new startup companies and faculty members who are just beginning their academic careers.
The microscope produces high-quality images that are suitable for publication.
It stands out as one of the most budget-friendly options among inverted fluorescence microscopes.

Cons:

The default configuration includes B and G filters (for GFP and RFP/Texas Red). These filters are mounted on a slider with three positions: empty (for brightfield or phase-contrast), B, and G filters. If you require a third filter, such as Dapi/Hoechst, you will need to acquire both a new filter slider and the additional filter.
The mechanical XY stage is not included in the base package. You can purchase it during the checkout process or at a later time if it is not immediately needed.
The microscope uses a Mercury bulb, which has a limited lifespan. Replacing it with an LED light source is a recommended upgrade, albeit incurring an extra cost.
Some users have reported concerns about the stability of the halogen lamphouse. If you prefer a more consistent and stable light source, we recommend selecting a white LED option right from the outset, and we encourage you to reach out to us for further details.
Any question or like to customize this, please contact us.

1. Excellent fluorescent image with high resolution fluorescent objectives.

2. Protect the light leak with advanced lamp housing.

3. Excellent Optical Performance with Infinite Optical System.

4. Innovative Stand structure, Sharp Image Display, Convenient and Special for Viewing Incubating Cell Tissue.

5. More stable power supply, digital display and timer.

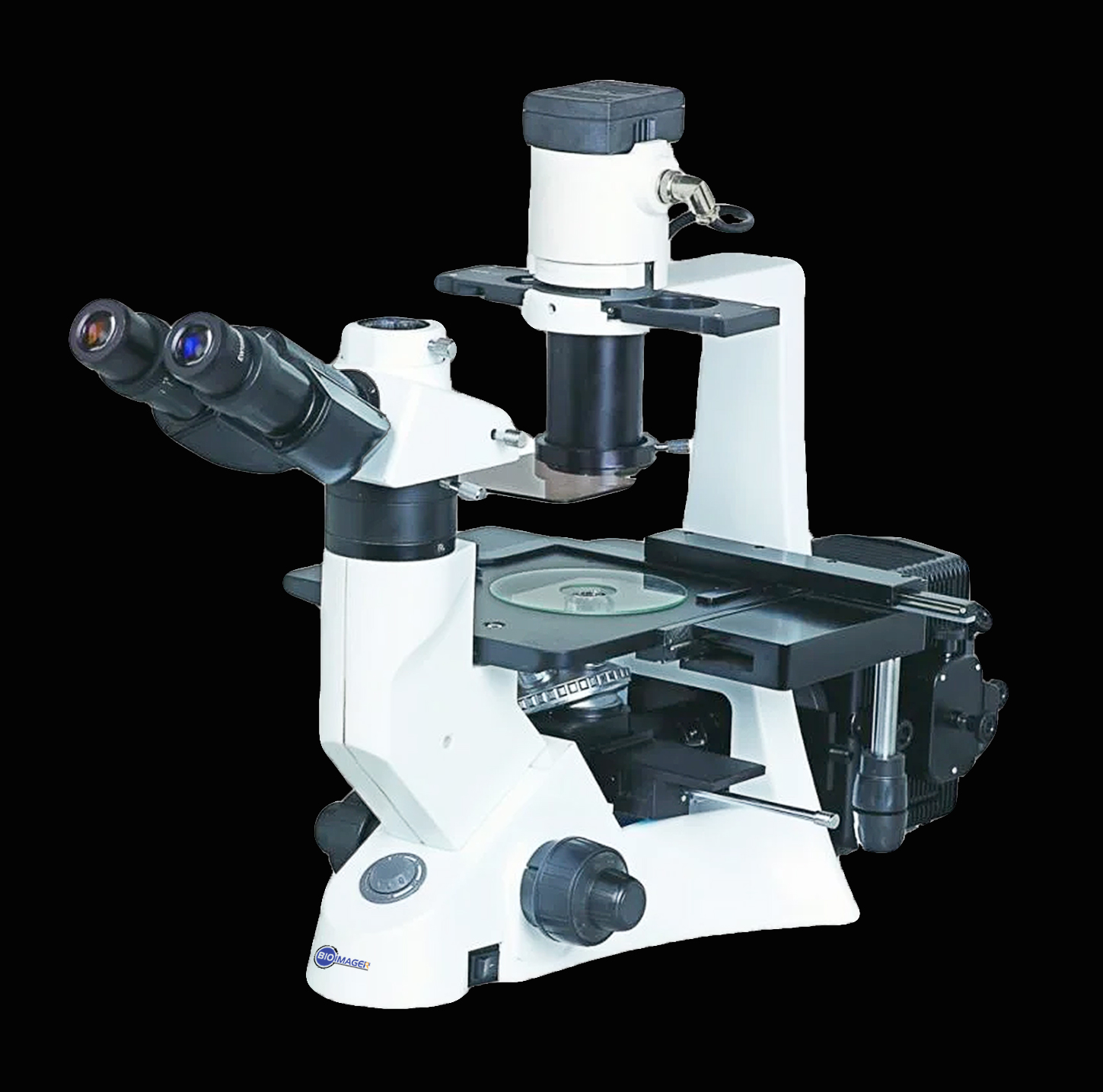

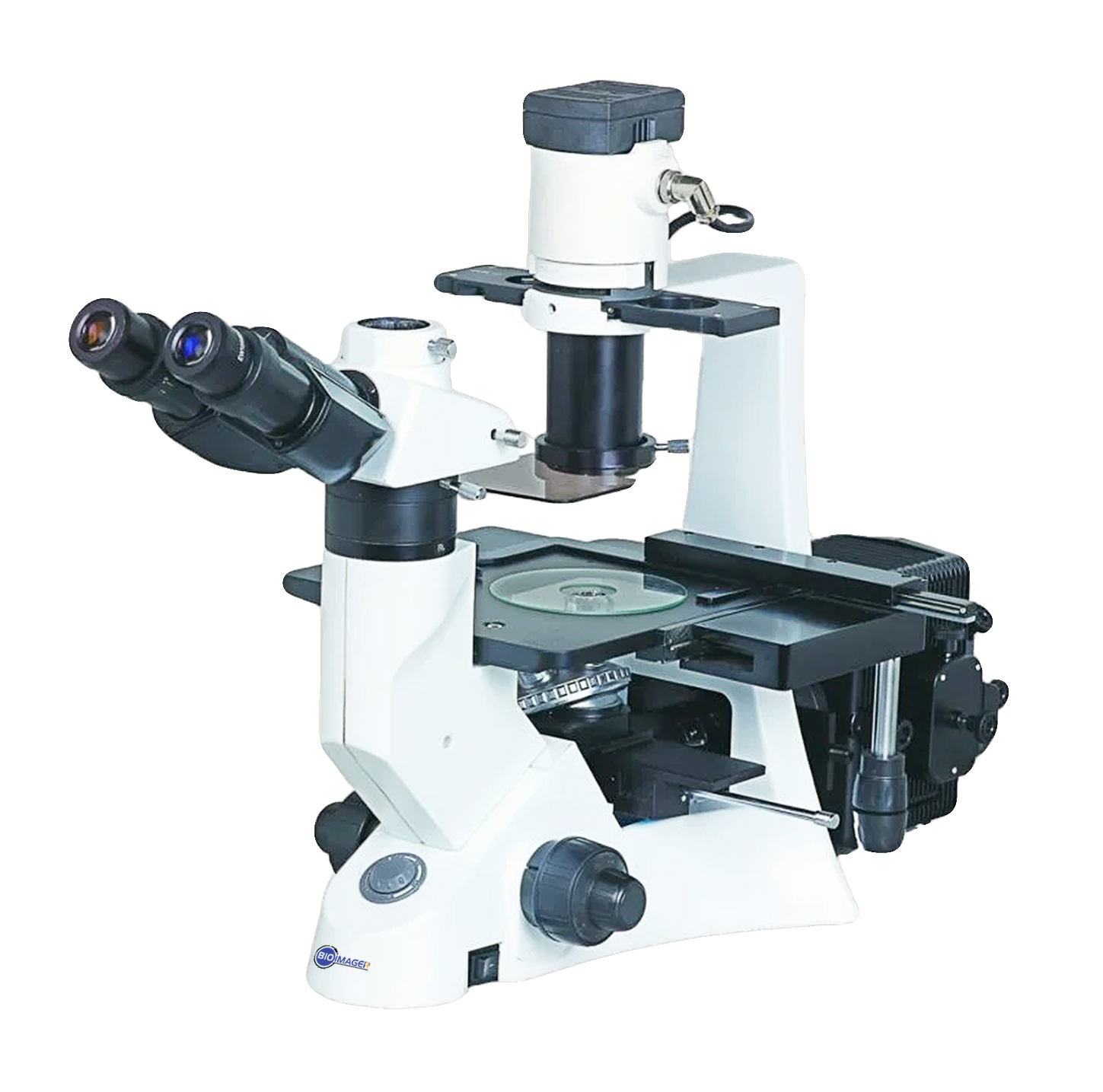

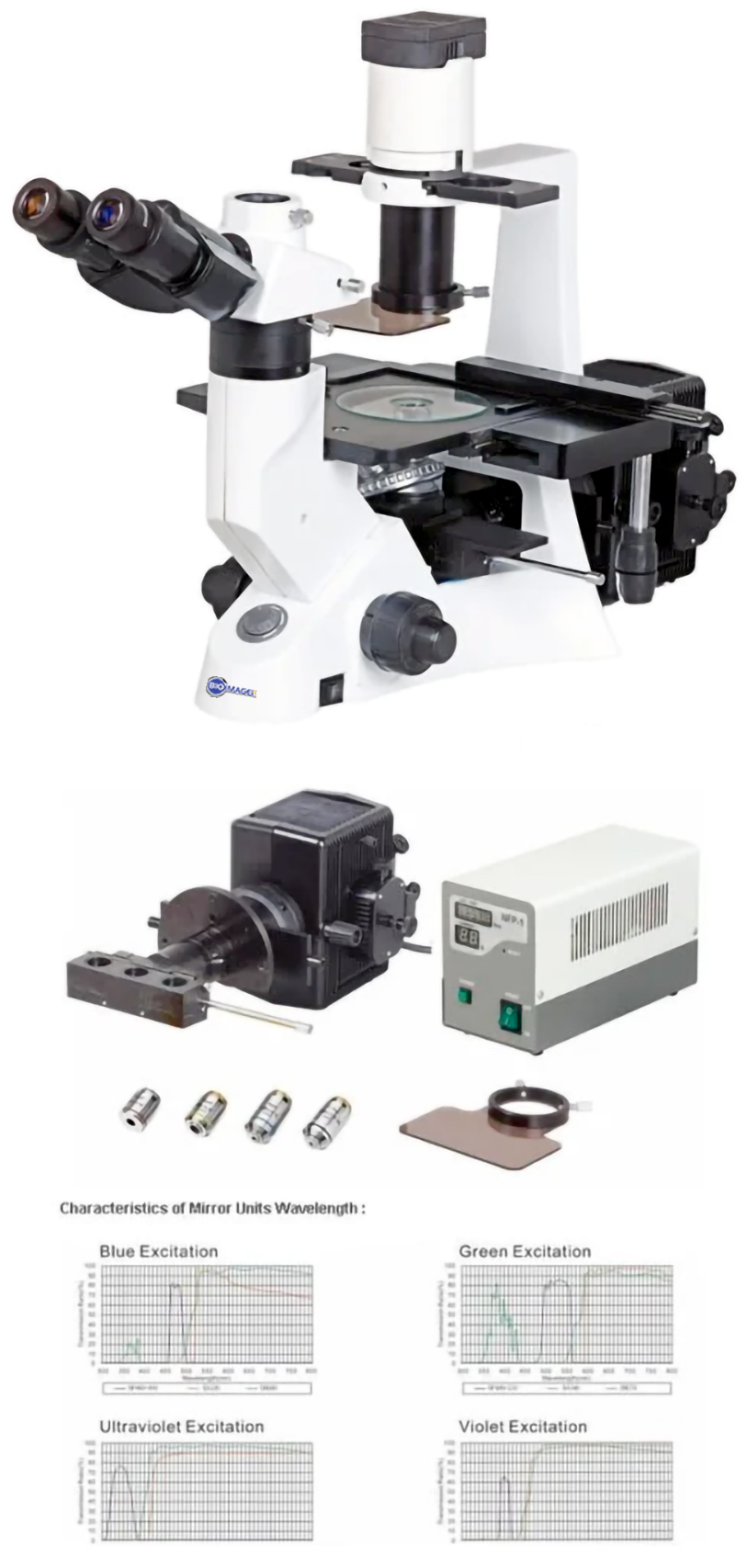

BIM500FL Inverted Fluorescence Biological Microscope

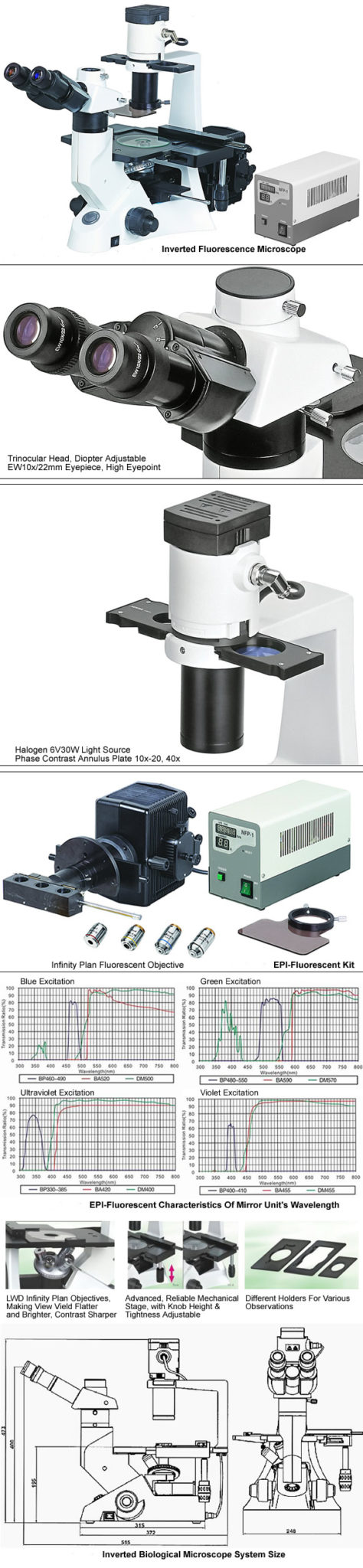

The BIM500FL Inverted Fluorescent Biological Microscope is meticulously crafted for the precise examination of cell cultures, especially those that have been stained with GFP or RFP. Its infinite optical system ensures exceptional optical performance, and you have the option to equip it with outstanding high-resolution fluorescent objectives to produce top-tier fluorescent images. This microscope serves as an invaluable companion for your laboratory research needs, catering to brightfield, phase contrast, and epi-fluorescence imaging.

Applications

The BIM500FL Inverted Fluorescent Biological Microscope finds its primary utility in the following domains:

Live cell imaging
General fluorescence imaging
Disease examination
Bacterial and viral studies
Immune diagnosis
Laboratory research fields

This versatile microscope is well-suited for a wide range of applications, making it an essential tool for scientific investigation and analysis.

SKU: BIM500FL Categories: Inverted Fluorescence, BIOIMAGER, Biological, Fluorescence, Inverted Biological, Microscopes, Phase Contrast, Phase Contrast Microscopes Tags: bim500fl, biological, economic, entry level, fluorescence, GFP, inverted, Phase Contrast, RFP

Specifications

BIM500FL
Optical System	Infinite Optical System				●
Viewing Head	Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm				●
Eyepiece	High-point, Extra Wide Field Eyepiece EW10×/ 22				●
Nosepiece	Quintuple Nosepiece				●
Objective	LWD Infinite Plan Objective	4×/0.1, WD 17.3mm			●
		10×/0.25, WD 10mm			○
		20×/0.4, WD 5.1mm			○
		40×/0.6, WD 2.1mm			●
	Infinite Plan Phase Objective	PH 10×/0.25, WD 10mm			●
		PH 20×/0.4, WD 5.1mm			●
		PH 40×/0.6, WD 2.1mm			○
	Infinite Plan Fluorescent Objective	4×/0.13, WD 16.3mm			○
		10×/0.3, WD 12.4mm			○
		20×/0.4, WD 1.5mm			○
		40×/0.6, WD 2.2mm			○
Condenser	ELWD Condenser NA 0.3, LWD 72mm				●
Focusing	Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per rotation, Fine Stroke 0.2mm per rotation				●
Stage	Plain stage 160×250 mm				●
	Glass Insert				●
	Attachable Mechanical Stage, X- Y Coaxial Control, Moving Range 120×78 mm				○
	Auxiliary Stage 70×180mm				●
	Terasaki Holder				○
	ф38mm Petri Dish Holder				○
	ф54mm Slide Glass Holder				○
Illumination	Halogen Lamp6V/ 30W				●
Filter	Blue/ Green and Frosted Glass Filter (ф45mm)				●
Phase Annulus					●
Centering Telescope(ф30)					○
Photo Attachment	Photo Attachment for SLR Cameras				○
Video Adapter	Video Adapter with C Mount				○

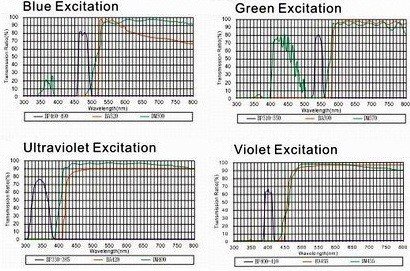

Reflected Light Source		Excitation	Dichroic Mirror	Barrier Filter
	Blue Excitation	BP460～490	DM500	BA520	●
	Blue Excitation (B1)	BP460～495	DM505	BA510-550	○
	Green Excitation	BP480～550	DM570	BA590	●
	Ultraviolet Excitation	BP330～385	DM400	BA420	○
	Violet Excitation	BP400～410	DM455	BA455	○
Lamp	100W HBO Ultra Hi-voltage Spherical Mercury Lamp				●
Protection barrier	Barrier to Resist the Ultraviolet Light				●
Power Supplier	Power Supplier NFP-1, 220V/ 110V interchangeable, Digital Display				●
Immersion Oil	Fluorescent Free Oil				●
Filter	Neutral ND25/ ND6 Filter				○
Centering Plate					●

Note: ● Standard Outfit, ○ Optional

References

This microscope is one of our best selling products and has been sold to so many places cross the world. If you need a reference, please fee free to contact us. Some examples of customers for this model are as below:

Canada:
1. University of Toronto (U of T)
2. University of British Columbia (UBC), Vancouver, BC
3. University of Ottawa, Ottawa, Ontario
4. Concordia University, Toronto, Ontario
5. Héma-Québec, Québec, QC
6. Sick Kids Hospital, Toronto, Ontario
7. Canadian Blood Services, Ottawa, Ontario
8. Waterloo University, Waterloo, Ontario
9. York University, Department of Mechanical Engineering, Toronto, ON

USA:
1. Stanford Depts of Pediatrics and Bioengineering, Stanford, CA
2. National Institutes of Health (NIH), Bethesda, MD and other branches of NIH.
3. UC Davis Health, Davis, California
4. University of Kentucky, Lexington, KY
5. AREVA Med, Plano, Texas
6. Bioqual Inc.Rockville, Maryland
7. Lucerna, Inc., Brooklyn, New York
8. Molecular Technologies Laboratories, Columbus, Ohio
Germany:
1. University of Cologne
2. University of Wuerzburg
3. Private Company
UK: Private Organizations
Australia: CSIRO-Store, CLAYTON, VIC
Argentina: Universidad Nacional de Río Cuarto
Mexico: Biotechnologia Veterinaria
Saudi Arabia: King Faisal Hospital
Yemen: Private Firm

Contact information of the private organizations will be shared after checking with them.

Summary of Package

BIM500FL Inverted Fluorescence Microscope
4x, 10xPh, 20xPh, 40x lenses included plus tens of optional obj lenses.
with GFP, RFP & optional UV or V Excitation filters.
Trinocular head; Top video port.
HBO illumination
