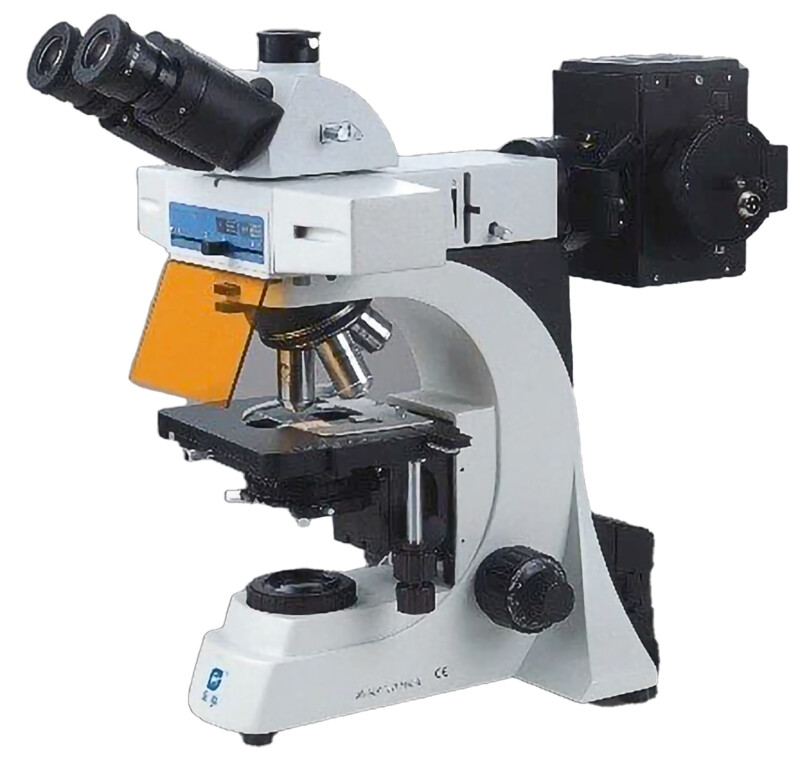

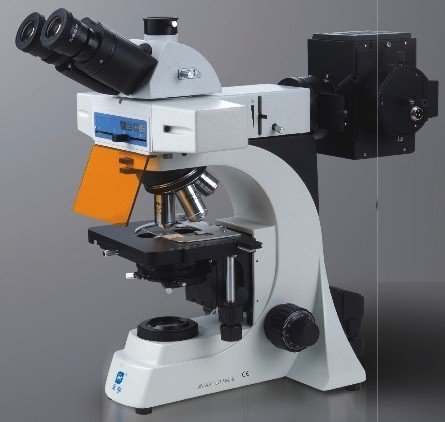

XY-RFL Upright Fluorescent Microscope
Upright Fluorescent microscope (BX51 Olympus Clone)
Package Includes
Part NoSpec.PL10X22high eyepoint Plan eyepiece PL10X/22mmOIPF4plan semi-apochromatic fluorescence objective 4X/0.13（infinty）,WD=15.13mmOIPF10plan semi-apochromatic fluorescence objective10X/0.30（infinty）,WD=8.53mmOIPF20plan semi-apochromatic fluorescence objective20X/0.50（infinty）,WD=2.33mmOIPF40plan semi-apochromatic fluorescence objective40X/0.75（infinty）,WD=0.55mmOIPF100plan semi-apochromatic fluorescence objective100X/1.28（infinty）,WD=0.21mmXYRFLFDfluorescence centred objective XY-TH30RFLP30°inclined Gemel Trinocular Head(infinty),360°rotating,with the inter-pupillary distance adjustment between 54-76mm, diopter adjustment range of +/-5; XY-NPI5Reversed Quadruple nosepieceXYRFLPFCoaxial coarse and fine adjustment,with coarse adjustment stop and tightness adjustmentXY-SGM175×145mm Mechnical stage with low position coaxial control,76x50mm moving range; XY-SACNA1.2/0.22 swing achromatic condenser.XYL2Built-in Koehler illuminator,adopt 90V-240V,6V/30W halogen bulbHB6-30halogen bulb 6V/30WXY-FCBblue filter（φ45）30ND25-RFLPAttenuation plateXY-CTV0.672/3CTVXYRFAP6-positions disc reflection fluoresennce illuminationXYLH100HG100W Mercury lamp housingU2-RFLT100Mercury lamp powerHBO100W/2Imported OSRAM 100W DC Mercury bulbXYDMPUV1Band-pass fluorescence filter UV1XYDMPB1Band-pass fluorescence filter BXYDMPG1Band-pass fluorescence filter G Fluorescence-free immersion 5ml.Packing mic.foam +cartonPacking Fluo.partsAlum.case+carton
CCD
(not included)
Scientific research class cold CCD, 140 million effective pixels, 2 / 3 “target surface, 12V DC high-efficiency semiconductor-cooling system, which can perfectly restrain noises of heat signal, elimination of dark current, and increase in S/N ratio greatly to help users to get high-resolution, high-definition professional fluorescence images. With USB2.0 high speed transmission interface, and easy PC connection。
Brochure
Item #XY-RFL_U
