Introduction

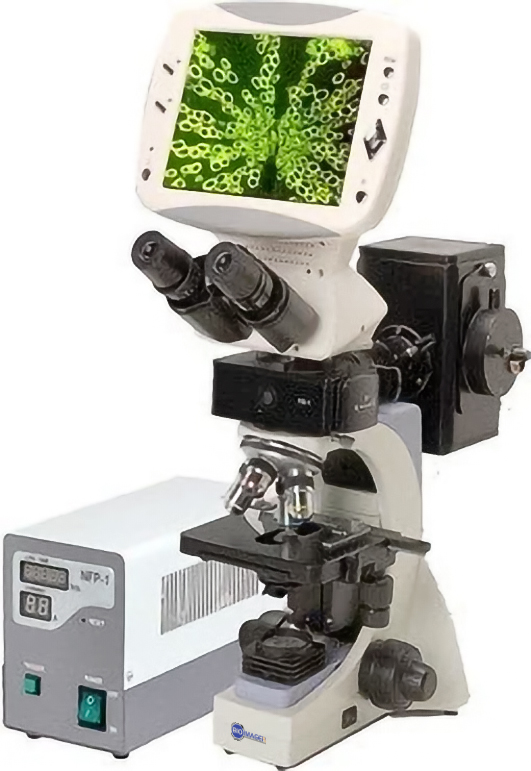

BUM350FLD compound digital LCD fluorescence microscope renovated the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time working. Eyepieces and LCD Screen can both be used for convenient and comfortable viewing by individuals and share with groups. It is also feature the latest 5 Mega Pixels digital imaging microscopy techniques for quick and easy snapshots or videos.
Features
Objective Lenses | Achromatic fluorescence objective lens, providing high-quality optical imaging and ensuring clear images. |
Illumination | More stable and reliable power supply boxes, with digital display and a timer. |
Epi-Fluorescence System | Protect the light leak with advanced lamp housing. |
LCD Screen | 1. It is consisted of a fluorescence microscope, an 8″ LCD screen and a 5 Mega Pixels camera, images and videos can be share with other people.
2. Real time images display, images and video recording. 3. USB Cable for transferring data to a PC. 4. SD card (Maximal Storage Capacity is 4G) slot for storage and printing. |
Application
This microscope is an ideal instrument for biology, cytology, oncology, genetics, immunology and other research works, it can be used in scientific research institutes, medical care, vaccination, animal husbandry and other departments, it also can be used in venereal disease examination and immunity diagnosis.
Sample Images
Specification
Digital Parts | Resolution | 5 Mega Pixel |
Photo Resolution | 2560X1920-1600X1200 | |
Video Resolution | 640X480 | |
Sensor Size | 1/2.5 Inches | |
LCD Screen | 8 Inches TFT Screen, Resolution is 800X 600 | |
Video Output | AV Output (NTSC/PAL) | |
Data Output | USB2.0 | |
Menu Language | English | |
Storage | SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G) | |
Scene Mode | Standard / Softness / Vivid | |
Exposure Mode | Auto Exposure | |
Date Mode | Year, Month, Day, Hour, Minute | |
Optical Parts | Viewing Head | Compensation Free Binocular Head, Inclined at 30° |
Eyepiece | Wide Field Eyepiece WF10×/ 18 | |
Objective | Achromatic Objective 4×,10×, 40, 100× | |
Nosepiece | Quadruple Nosepiece | |
Condenser | NA 1.25 Abbe Condenser with Iris Diaphragm and Filter | |
Focusing System | Coaxial Coarse & Fine Adjustment | |
Stage | Double Layers Mechanical Stage 140×140mm/ 75×50mm | |
Illumination | Halogen Lamp 6V/ 20W, Brightness Adjustable | |
Filter | Blue & Green Filter | |
Dark Field Attachment | Dark Field Condenser (Dry) | |
Dark Field Condenser (Oil) | ||
Fluorescent Attachment | Epi-fluorescent Attachment | |
Optional Parts | Phase Contrast Kit | Single Phase Contrast Kit |
Sliding Phase Contrast Kit | ||
Turret Phase Contrast kit | ||
Polarization Set | Simple Polarization Set |
Characteristics of Mirror Units Wavelength
