The uScopeMXII digital microscope produces high-quality images while allowing you to scan an area of interest. This digital workhorse offers unprecedented capability in a form factor ideal for desktop PC users. A little larger than an external hard drive, the uScopeMXII delivers high-resolution digital images from standard glass slides.
Personalized Digital Microscope
The uScope slide scanner is a small, portable digital desktop microscope you can setup and install in your home office or workplace laboratory. It’s so easy to use, you will be up and running in less than 10 minutes.
The uScope MXII digital microscope produces high-quality images while allowing you to scan an area of interest. This digital workhorse offers unprecedented capability in a form factor ideal for desktop PC users. A little larger than an external hard drive, the uScope MXII delivers high-resolution digital images from standard glass slides.
Unlimited Scientific Application
Clinical
Hematology
Pathology
Urinalysis
Microbiology
Cell Analysis
Biochemistry
Drug Testing
Parasite Detection
The scanner is compatible with Win7, 8, 10. You can run a remote control software on the host PC and control the scanner from everywhere in the world.
Automated Digital Imaging for OEMs
The uScope is a fast, friendly digital microscope for professional research applications. Connect it to a personal computer, capture individual images, or scan slides for automated analysis.
Time-Lapse Capture of Slides
Full Control of Imaging; The following user filters in the uScope Navigator software give you complete control over image processing and picture correction:
White Balance, Color (RGB), Brightness, Contrast, Gamma, Contrast Stretch, Histogram Equalization, Median, Blur, Sharpen, Lookup Table
Personal Digital Microscope; Most digital microscopes are shared between many researchers. That’s not the case with the uScope. The uScope is designed and priced for the individual user.
Self-Contained Hardware; The uScope is a self-contained digital microscope. All the electronics, cameras, stage, and optics are contained in a device about the size of an external disk drive. The only thing you need is a laptop or desktop computer.
High-Quality Imaging; Using a 0.4 N.A 20X Objective, the uScopeMXII delivers high-quality, brightfield images at near wavelength-limited resolution. The high-power objective brings your slide images up close and personal.
Portable Design; The uScopeMXII is designed to be small, lightweight, and portable. It’s small enough to fit inside most brief cases. As if working at the lab wasn’t enough, now you can take your life-saving research home. Spouses around the world will be thrilled!
Relaxed Environmental Requirements; The uScope MXII is very tolerant of typical office and lab environments. Special, weighted tables are not required to capture clear, vibration-free images.
Simple Setup; Users can easily setup and install the uScope without a team of IT specialists. Most users can take the uScope MXII from the box to viewing slides in under 10 minutes. Special file servers, network interfaces, and ultra high-performance desktop computers are not required.
Cloud Computing Compatible; The uScope provides industry-standard image formats that can be used with cloud-based computing services.
Flexible API for Developers; The .Net compatible API allows developers direct hardware control of the uScope. In addition, the API provides support for a variety of image enhancement filters. Developers can use the API to integrate support for the uScope MXII into existing analysis or imaging tools.

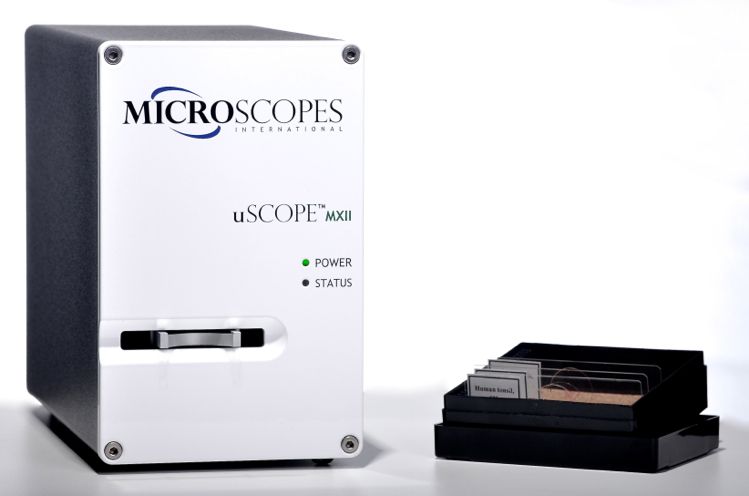

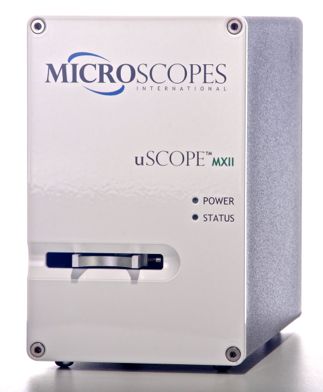

uScope MXII Slide Scanner
Introduction
Overview and Objective Cameras: The uScope MXII has an overview camera (for selecting regions of interest) and features a high-powered objective camera for scanning.
Automatic Focus: Images are automatically focused for high-quality captures.
Tiling or Stitching: You can easily zoom and navigate region scans which can be automatically tiled or stitched.
Portable Microscope Platform: At a weight of under 4 lbs., the uScope MXII is highly portable and can easily be moved from your office to the lab.
Integrated Image Processing: Image processing profiles allow you to apply common filters to the uScope MXII slide images. Preset and user-defined profiles are supported.
Economical Design: Finally, a digital slide microscope that everyone can afford.
Overview
Capture amazing images on your Personal Computer.
Incredible images!
The uScope MXII digital microscope produces high-quality images while allowing you to scan an area of interest. This digital workhorse offers unprecedented capability in a form factor ideal for desktop PC users. A little larger than an external hard drive, the uScope MXII delivers high-resolution digital images from standard glass slides.
Because of its size, the uScope MXII is highly portable. The industry-standard USB interface makes it easy to plug in and start capturing images at work or on the road. It easily interfaces with standard desktop or laptop PCs and allows you to view and capture slide images in a wide variety of environments.
All your friends will want to “borrow” it
The uScope Navigator software simplifies capturing an area of interest from your glass slides. You can easily capture single images or select an area of interest to scan. Regions are scanned using the parameters you select. You can even create and apply your own multi-step image processing profiles to change image sharpness, improve contrast, or perform gamma correction. The uScope MXII is so easy to use, all your friends will want to borrow it—but don’t let them. They may never return it.
Complete, Rugged, All-In-One Digital System
The uScope MXII digital microscope is a single unit that can browse or scan your prepared glass slides. It is completely self-contained and requires only a desktop or laptop Windows PC to scan or browse slides. The uScope Navigator application software enables you to easily capture single images or scan areas of interest.
FAQ
How fast is the uScope MXII?
We are often asked how fast the uScope scanner can scan a slide. The following video shows how long it takes to scan a coverslipe with size of around 15x15mm and process the images into a single, large deep zoom image. Note that portions of this video playback faster than reality in an effort to reduce the time required to demonstrate the actual scan speed. As you can see in the video, scanning a 15x15mm area using the 20x obj lens requires 2,775 individual images which takes 6minutes 20 seconds and creating the deep zoom requires 3 minutes, i.e total of 9:20 minutes for 2,775 images /15x15mm. In other words you can expect around 2.49 seconds per 1mmx1mm which requires 12 images of 3×4 tile.
Does the uScope MXII have a manual or motion-control stage?
The uScope MX is an automated digital microscope and includes a motion-control stage. The uScope Navigator software automatically moves to your area of interest to collect images or to scan tile sets.
What resolution is the uScope MXII?
The uScope MX is wavelength-limited. Image resolution is governed by the wavelength of the visible light utilized. Objects as small as 0.5 microns can be resolved.
Is the uScope MXII a whole slide scanner?
The uScope MXII is not considered to be a whole slide scanner but is suitable for scanning large areas of your slide.
Operating Parameters
Slide Capacity: Single Slide
Illumination: Dual LED (White)
Numerical Aperature: Better than 0.6
Overview Camera: 1920×1080 or 960×540 (color)
Slide Camera: 1920×1080 or 960×540 (color)
Pixel Resolution
Objective
µm/pixel
4x
≈1.4
10x
≈0.56
20x
≈0.28
40x
≈0.14
60x
≈0.093
100x
≈0.056
Image Format: JPEG
Image Capture: Single Image, Tiled Images (Optional Overlap), Stitched Image
Viewing Formats: Single Field, Tiled Fields, Deep Zoom Image
Export Formats: JPG (Q90), BMP, PNG, TIFF
Operating Requirements
Line Voltage: 110VAC – 240VAC
Line Frequency: 50Hz – 60Hz
Operating Temperature: 50° – 95° F (10° – 35° C)
Storage Temperature: 10° – 105° F (-12° – 40° C)
Relative Humidity: 0% – 80% non-condensing
Connectors
Power: 1.0A, 12VDC
Communications: USB 2.0
Dimensions
Width: 4.12″ (10.4 cm)
Height: 6.67″ (19.9 cm)
Depth: 8.84″ (22.4 cm)
Weight: 5.0 lbs. (12.27 kg)
What’s Included
uScopeMXII Digital Microscope
Power Supply
USB Cable
CD-ROM
Quick-Start Guide
PC Requirements
High Performance PC running one of the following:
Microsoft® Windows 7 (64-bit),
Microsoft® Windows 8 or 8.1 (64-bit),
Microsoft® Windows 10 (64-bit).
At least 8GB RAM (16GB recommended)
At least 20GB of available hard-disk space, 100GB or more is recommended depending on your imaging needs.
A high-performance SSD (Solid State Drive) is highly recommended for image storage.
1920×1080 or higher resolution monitor
Mouse or other pointing device
Several available USB ports
uSCope Slide Scanner Models
uScope slide scanner is offered in two models:
1) MX series with a fixed objective lens of 4x, 10x, 20x, 40x, 60x or 100x, fixed focal length of f = 160mm
2) HX series with an exchangable obj lens of 20x, 40x or 60x obj lense, infinity correcetd.
Imaging Capability
The uSCope can capture the images in the following modes:
1) Brighfield imaging, great for oathology and histology application
2) Polarized imaging, excellent for geology and mineralogy samples. The polarizing slide scanner has an automated rotating polarizer and analayzer.
Selection
uScope Models
MXII-20
MXII-40
MXII-60
HXII-20
HXII-40
Objective
20X
160mm Conjugate
40X
160mm Conjugate
60X
160mm Conjugate
20X
∞
40X
∞
Numerical Aperture
0.40NA
0.65NA
0.85NA
0.65NA
0.80NA
µm/pixel
at 960×540
≈0.5
≈0.25
≈0.167
≈0.54
≈0.27
µm/pixel
at 1920×1080
≈0.25
≈0.125
≈0.083
≈0.27
≈0.135
uScopeMXII-20 Digital Microscope 20x (0.4NA) Objective
The uScopeMXII-20 digital microscope comes with a 20x/0.4NA 160mm conjugate objective. This model is suited to applications where very high depth of field is required. The uScopeMXII-20 has a wider depth of field than higher power models of the uScopeMXII. So, tissue samples and smears can be thicker with more of the image in focus. This unit is able to produce very high-quality images while browsing or scanning an area of interest.
Because of its size, the uScopeMXII is highly portable. The industry-standard USB interface makes it easy to plug in and start capturing images at work or on the road. It easily interfaces with standard desktop or laptop PCs and allows you to view and capture slide images in a wide variety of environments.
See Your Slide Immediately
Choose the Area of Interest to TileWhen you insert a slide, the uScope Navigator software immediately displays an overview image where you can select the area of interest from which to collect a set of tiles.The region of interest can be selected from the available 20mmx34mm visible slide area. Once selected, the uScope Navigator prompts you for the job name and begins tiling.

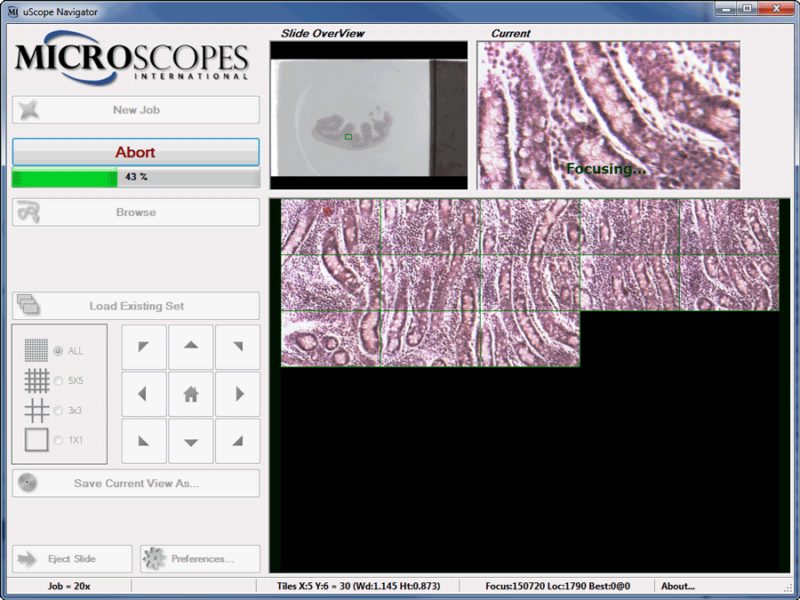

Tiling an Area of Interest
Let uScopeMX do the Hard Work
While collecting the set of tiles, the uScopeMXII auto-focuses each image in the area of interest and updates the on-screen representation as it writes the in-focus images to disk.
Navigating the Area of Interest
Would You Like to See More?
Once all tiles from an area of interest have been collected, you may click on a tile to zoom in and view that single tile, a 3×3 pattern, or a 5×5 pattern of tiles.

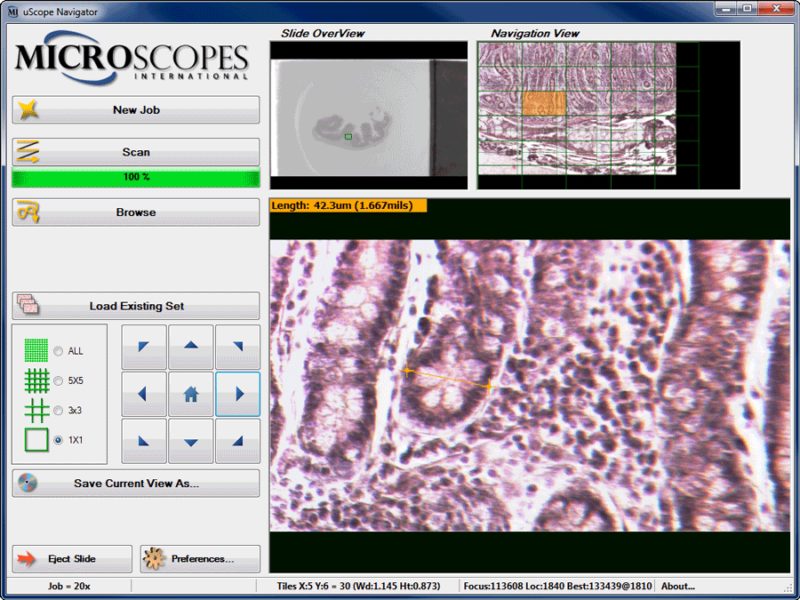

Using the Built-in Measurement Tools
Click & Drag to Measure Organelles
The built-in digital micrometer displays on-screen and allows you to take precise measurements anywhere within the captured image tiles. No additional reticals or optics are required for accurate image size determinations.

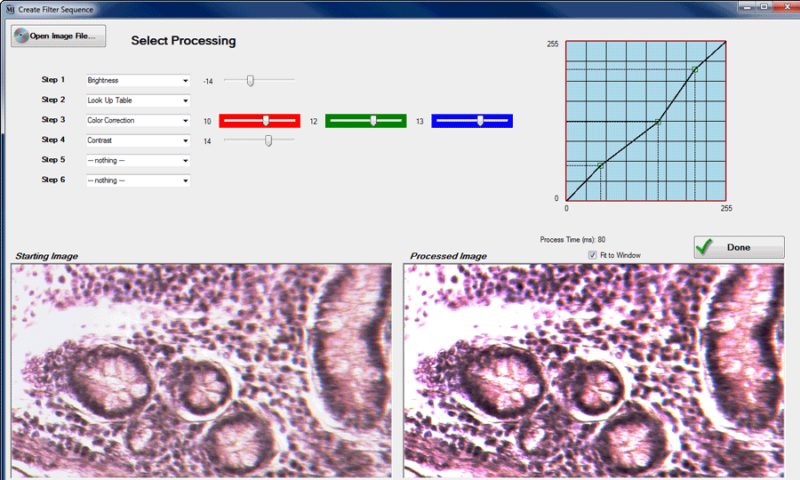

User-Defined Image Filter Strategies
Define an Image Enhancement Strategy
Users can combine image enhancement filters to apply to slide images. Image filter strategies may be used to visually improve the displayed image. Publication-Quality Images
Images are Saved in an Industry-Standard File Format
The uScope Navigator saves image tiles in the high-quality JPEG image file format. Files can be shared with colleagues and clients and are easily included in Word, Powerpoint, and image sharing web sites.
This product has been sold to some private and public firms in US, Canada, Germany, UK, Netherlands, UAE, Turkey and Saudi Arabia. If you need to talk to the end user, we can pass your contact info to our clients and ask them contact you to share their feedbacks.
I am interested in getting a personal economical whole slide imager/software. I use HE Slides for pathology diagnosis and mainly need 40x magnification. I need 40x to see the detail of nuclei. I scan around 1-5 slides per day. I saw there are options to use current microscope. My Budget range is couple of thousands. Which one do you suggest?
!["New](http://www3.microscopesinternational.com/images/mxii/software/240/new_job.png" "\"New")
!["Tiling](http://www3.microscopesinternational.com/images/mxii/software/240/run.png" "\"Tiling")
!["Navigating](http://www2.microscopesinternational.com/images/mxii/software/240/nav.png" "\"Navigating")
!["Built-in](http://www2.microscopesinternational.com/images/mxii/software/240/measure.png" "\"Built-in")
!["Filter](http://www2.microscopesinternational.com/images/mxii/software/240/filter.png" "\"Filter")
