BIM500 BIY Inverted Biological Microscope (Customizable)


Compare

BIM500 Inverted microscope is used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.

Request a Quote

Introduction

This microscope is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this inverted biological microscope makes your works enjoyable. It has a trinocular head, so digital camera or digital eyepiece can be add to the trinocular head take photos and videos.

Features

1. Excellent optical function with infinitive optical system.

2. Innovative stand structure, sharp image display, convenient and special for viewing incubating cell tissue.

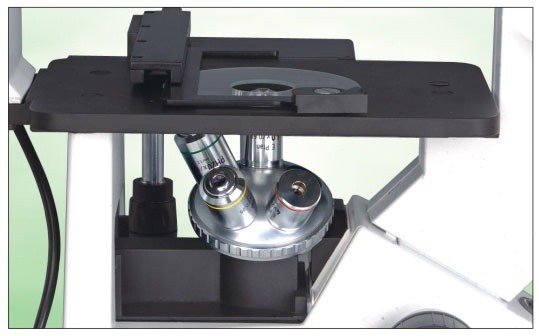

binocular/BS-2090_f1.jpgWith LWD Infinitive Plan Objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier

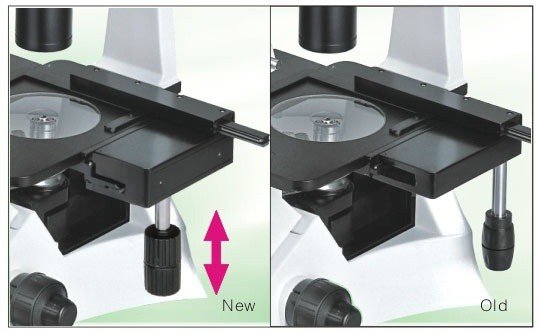

binocular/BS-2090_f2.jpgAdvanced and Reliable Mechanical Stage with Knob Height and Tightness Adjustable

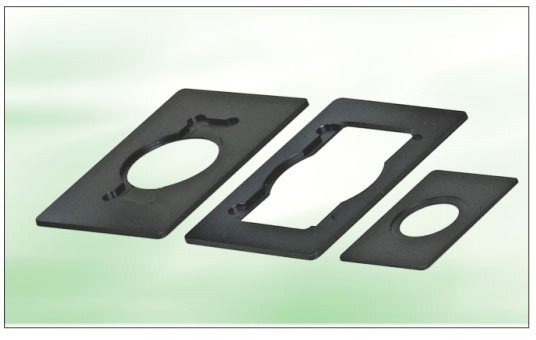

binocular/BS-2090_f3.jpgDifferent Holders for Various Observations
binocular/BS-2090_f4.jpgWith pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimens

Applications

BIM500 Inverted microscope is used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.

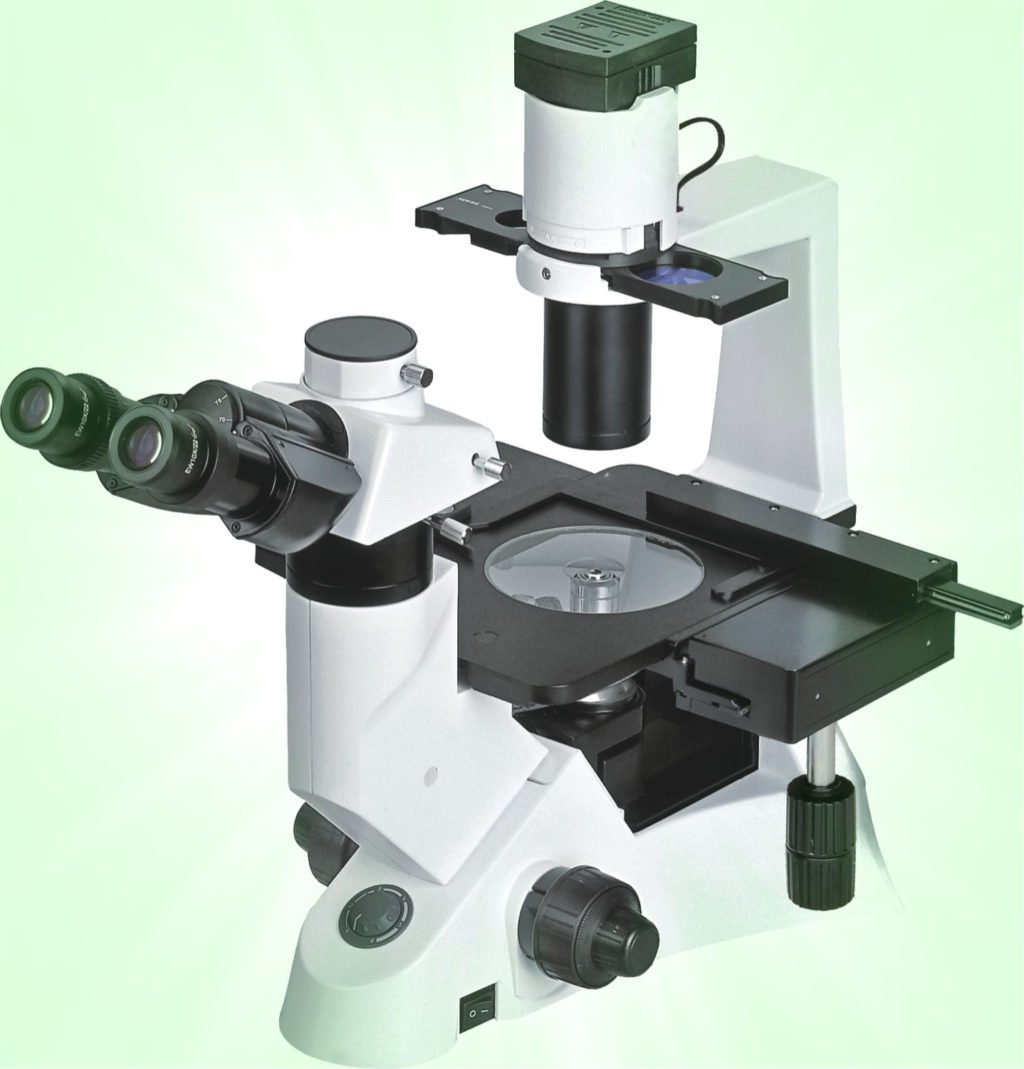

1. Main Body

binocular/BS-2090.jpg

2. Optical System

binocular/BS-2090_f1.jpg

Ask us how to add or swap with Japanese objective lenses and save lots of money (2.5x, 4x, 10x, 20x, 40x (dry or oil), 50x(oil), 60x (dry), 100x (oil)).

binocular/BIM200-07.jpgbinocular/BIM200-08.jpg
Bright Field ObjectivesPhase Contrast Objective

3. Mechanical XY Stage

Attachable Mechanical Stage, X-Y Coaxial Control,Moving Rang120mm×78mm
binocular/bim500-02.jpg

binocular/BIM200-13.jpgbinocular/BIM200-12.jpg binocular/BIM200-11.jpg
35mm Culture Dish Holder54mm Culture Dish Holder

& Glass slide holder

65mm Culture Dish Holder

& Terasaki Holder

4. Observation Tube

binocular/BIM200-05.jpgBIM200 Inverted Biological Microscope
0.5X C-Mount1X C-Mount

5. Dimension

binocular/bs-2090_dim2.jpg

Size (in mm)

6. Specifications

Viewing Head Trinocular Head Inclined at30°, Interpupillary Distance48-75mm
Eyepiece High-point, Extra Wide Field Eyepiece EW10×/ 22
Objective LWD (Long Working Distance) Infinite Plan Objective4×/ 0.1, WD 18mm
10×/ 0.25, WD 10mm
20×/ 0.4, WD 5.1mm
40×/ 0.6, WD 2.6mm
Infinite Plan Phase ObjectivePH10×/ 0.25, WD 10 mm
PH20×/ 0.4, WD 5.1mm
PH40×/ 0.65, WD 0.35mm
Nosepiece Quintuple Nosepiece
Condenser ELWD(Extra Long Working Distance) Condenser NA 0.3, LWD 72mm (Without Condenser 150mm)
Centering Centering Telescope (Φ30MM)
Phase Annulus 10×-20×, 40× Phase Annulus Plate(Center Fixed)
10×-20×, 40× Phase Annulus Plate(Center Adjustable)
Stage Plain Stage 160×250mm
Glass Insert
Attachable Mechanical Stage, X-Y Coaxial Control,Moving Rang120mm×78mm
Auxiliary Stages 70mm×180mm
Terasaki Holder
Φ38mm Petri Dish Holder
Φ54mm Slide Glass Holder
Focusing Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation
Illumination Halogen Lamp 6V/30W
Filter Diameter 45mm, Blue, Green and Ground Glass
Photo AttachmentPhoto Attachment
Video Adapter Video Adapter with C Mount
Fluorescence AttachmentInverted Fluorescence Attachment FI-100
Dimension& G.W.46.5cm*39.5cm*64cm, 15.5kg

Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
