Sale!

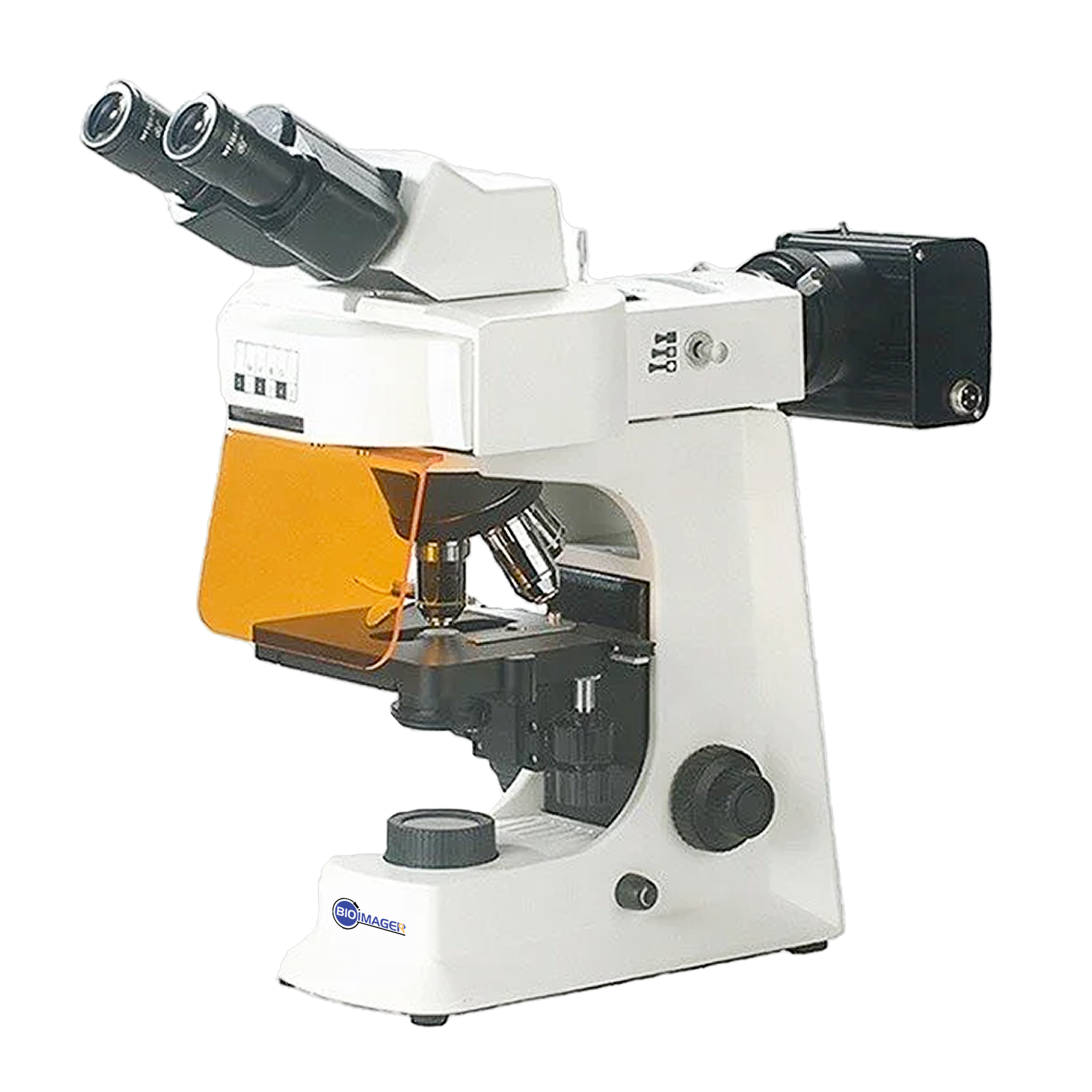

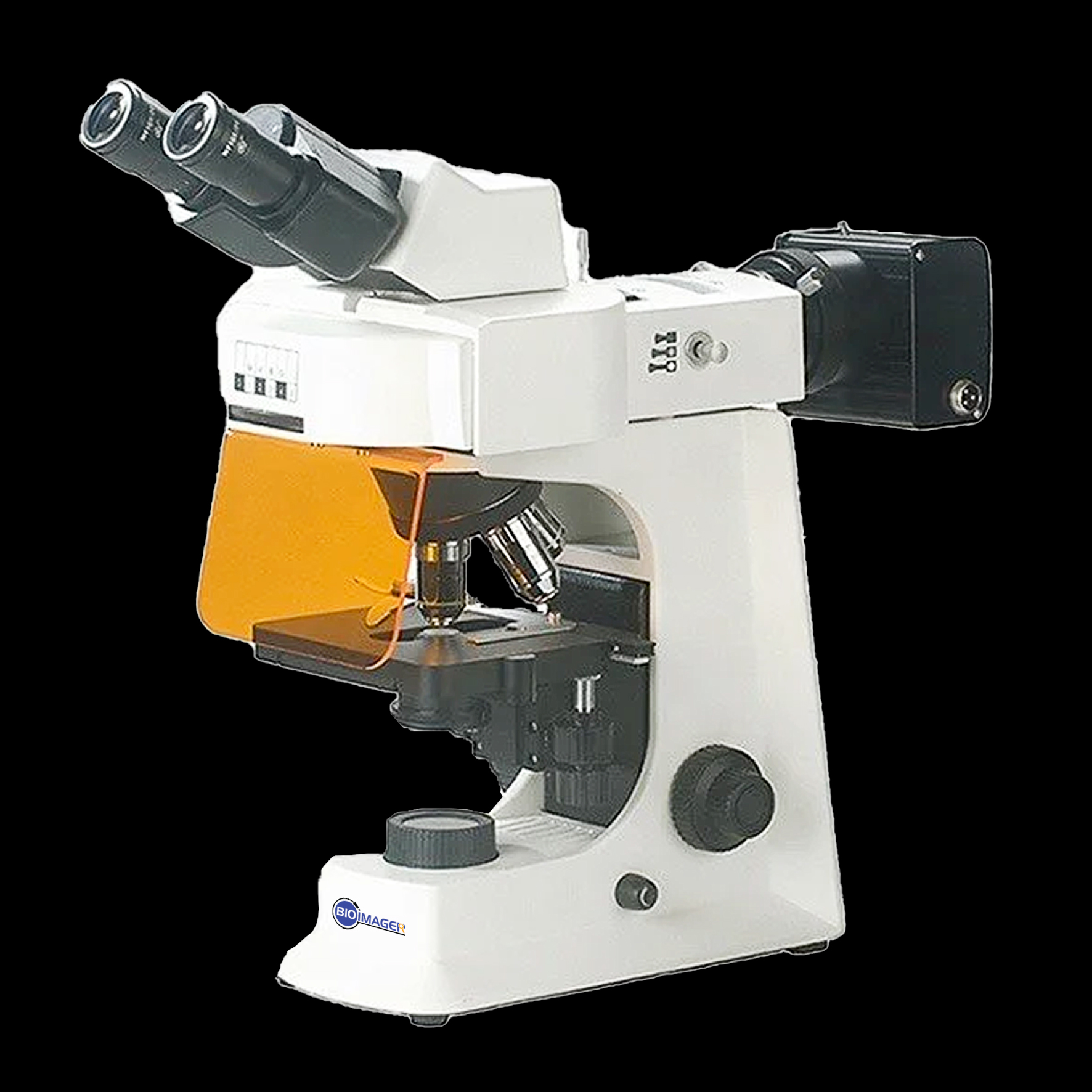

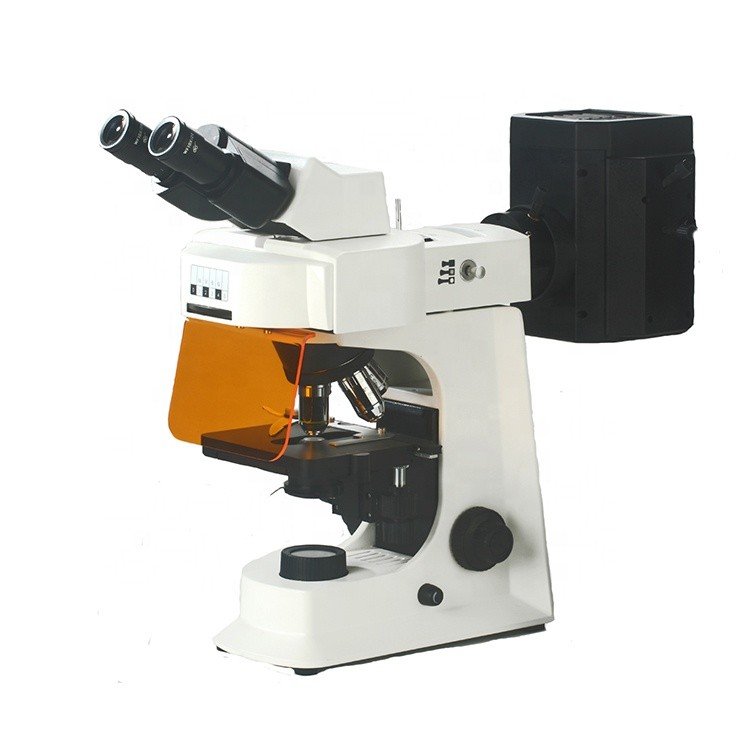

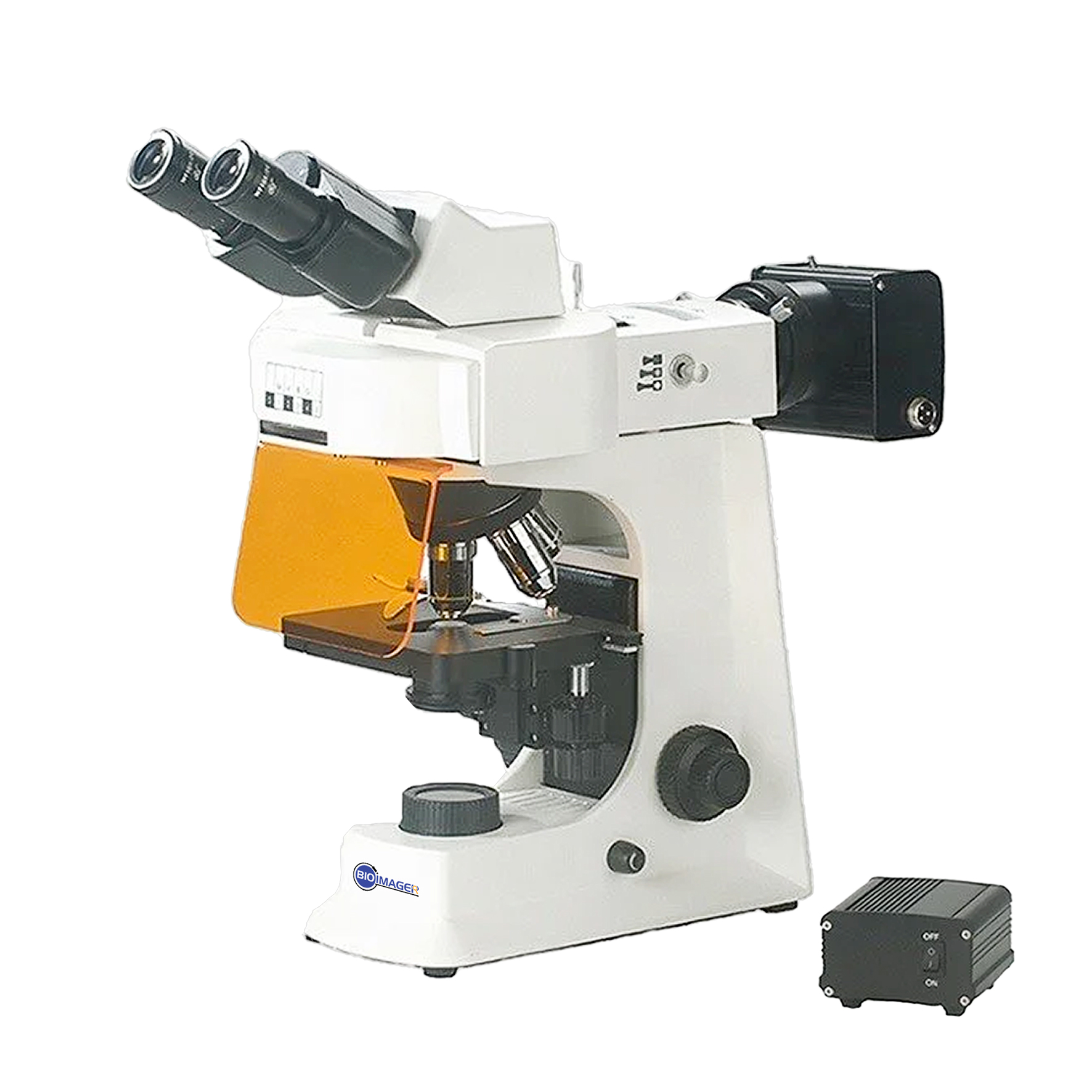

BUM450FL Advanced Upright Fluorescence Microscope

Original price was: $USD 5,000.00.Current price is: $USD 3,750.00.

Epi-fluorescence and brightfield imaging with optional Phase-Contrast, Darkfield, and Polarizing imaging
4x, 10x, 40x and 100x Lenses included, optional 2.5x, 5x, 20x, 50x, 60x and LWD
4 holes nosepiece
6-spot filters fluorescence attachment
Uv/V/B/G filters
Seidentopf Binocular & Trinocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-75mm
Top quality professional optical glass elements

Summary

The BUM450FL is a great upright fluorescence microscope, for all general fluorescence imaging you can expect to do in a research or teaching tab.

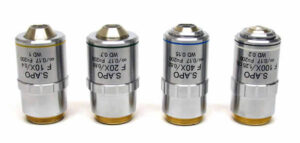

This microscope comes with four high-quality infinity objective lenses ( 4X, 10X, 40X, 100X). So, It offers high performance and advanced solution for your imaging purpose.

It provides both fluorescent and bright field microscopy features.

Therefore, this upright fluorescence microscope is an ideal instrument for:

advanced researching
basic theory research and clinical diagnosis about medicine
biology (analysis and test in the industry)
agriculture
stockbreeding
criminal investigation
legal medical appraise
environmental protection

That is to say, BUM450FL Advanced Upright Fluorescence Microscope can be operated in binocular or trinocular mode depending on need.

Brightfield and fluorescent observation
Top quality professional optical glass elements
180mm x140mm large double integrated stage with two slide holders
Rechargeable and non-rechargeable LED illumination can be chosen
Six hole disc media which can be fixed with Uv/V/B/G
Customizable Upright Fluorescence Microscope

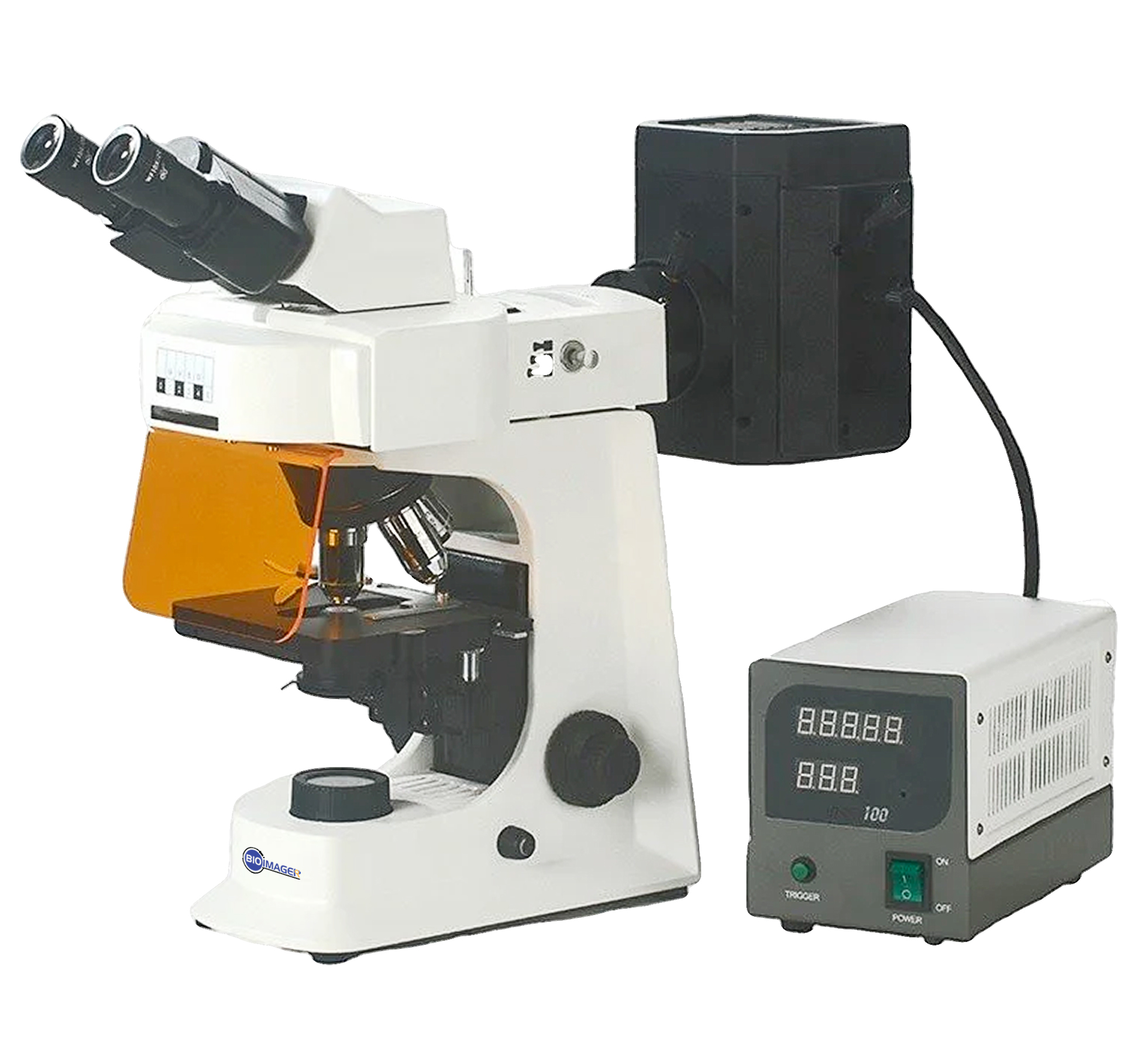

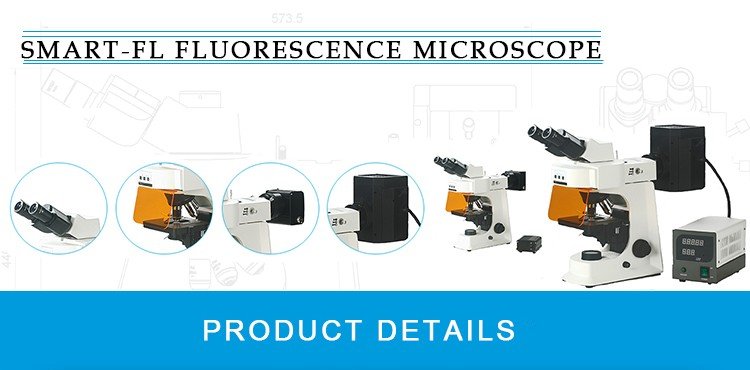

BUM450FL Fluorescence Microscope

The BUM450FL upright fluorescence microscope is one of the high-end microscopes which is specially designed for research works.

Firstly, it adopts an Infinite optical system, reasonable structure, and ergonomic design.

Secondly, it has an innovative optical and structure design idea, excellent optical performance, and an easy-to-operate system.

In short, this professional laboratory biological & upright fluorescence microscope make your laboratory works enjoyable.

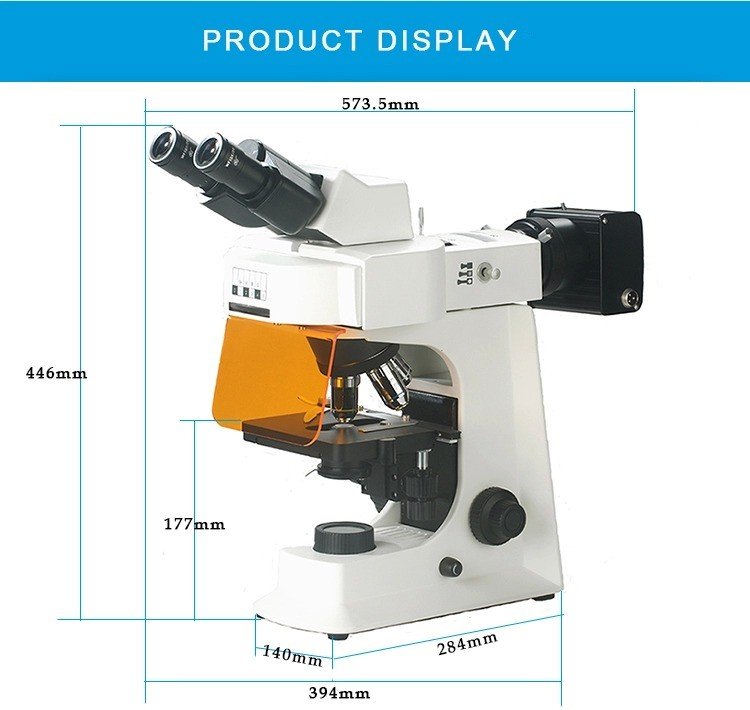

BUM450FL Advanced Upright Fluorescence Microscope Specifications

Items	Specification	BUM450FL	BUM450FLL
Eyepiece	WF10X /20mm	•	•
Infinity E-Plan Objective	4X	•	•
	10X	•	•
	40X(S)	•	•
	100X(O, S)	•	•
Infinity Plan Objective	4X	°	°
	10X	°	°
	40X(S)	°	°
	100X(O, S)	°	°
	Plan 20X	°	°
	Plan 60X(S)	°	°
Seidentopf Binocular Head	Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-75mm	•	•
Seidentopf Trinocular Head	Inclined 30°, Rotatable 360°, Interpupilary Distance:48-75mm Light Distribution 20:80	°	°
Nosepiece	Quadplex,Quintuple (optional)	•	•
Mechanical Stage	Stage size:145mm X140MM Travel:76mm x52mm, Scale:0.1mm Coaxial Coarse and Fine Focusing Knobs Travel range:26mm,Scale:2µm Two Slider Holder	•	•
Mechanical Stage	Integrated stage ,Stage Size:182mm X140mm Travel Range:77mm X52mm Two slide holder	°	°
Condenser	Abbe N.A.1.25 with iris diaphragm	•	•
Illumination	3W LED Illumination System	•	•
	12V/20W Halogen Lamp	°	°
	6V/30W Halogen Lamp	°	°
Field Diaphragm	—	°	°
Mirror	—	°
Polarizing Attachment	Analyzer/Polarizer	°	°
Independent Phase Contrast Unit	10X/20X/40X/100X	°

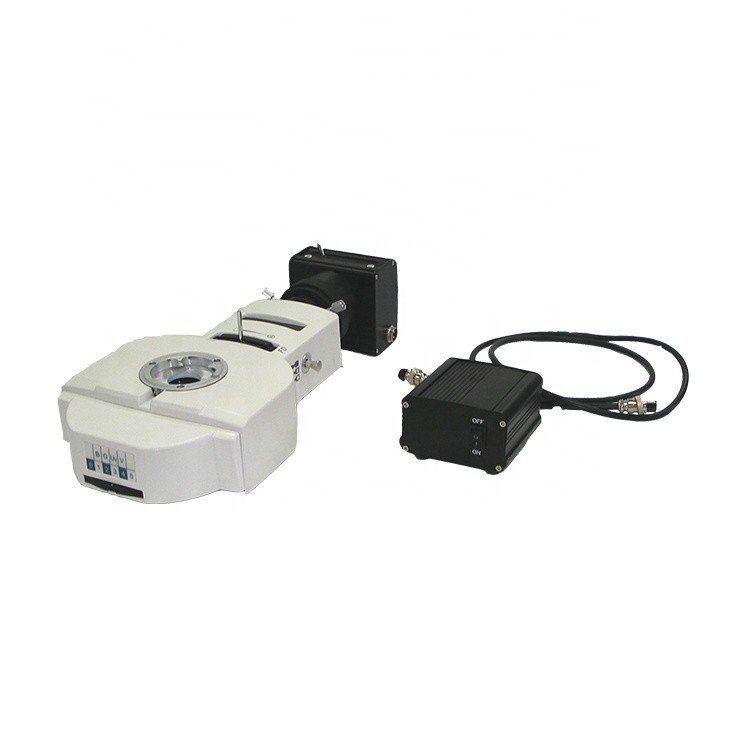

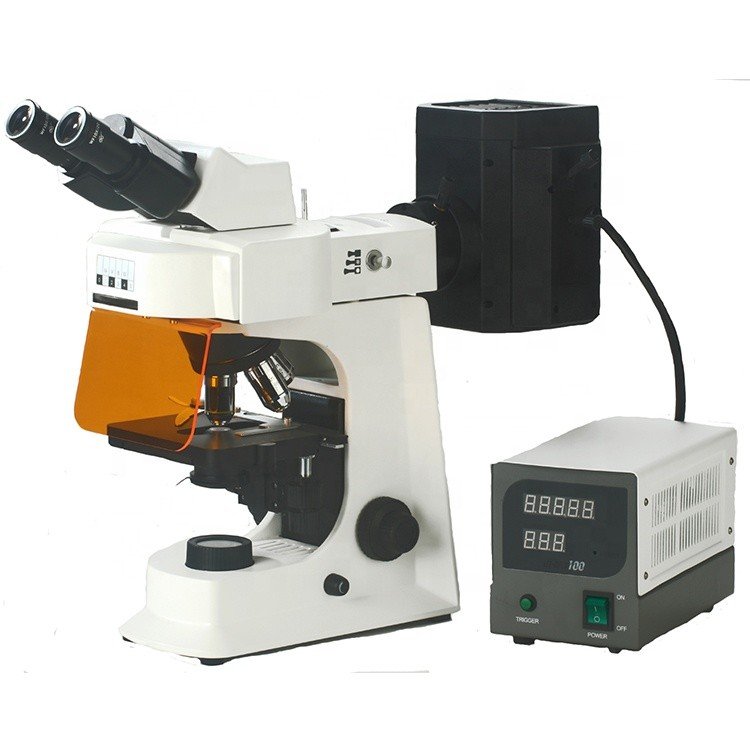

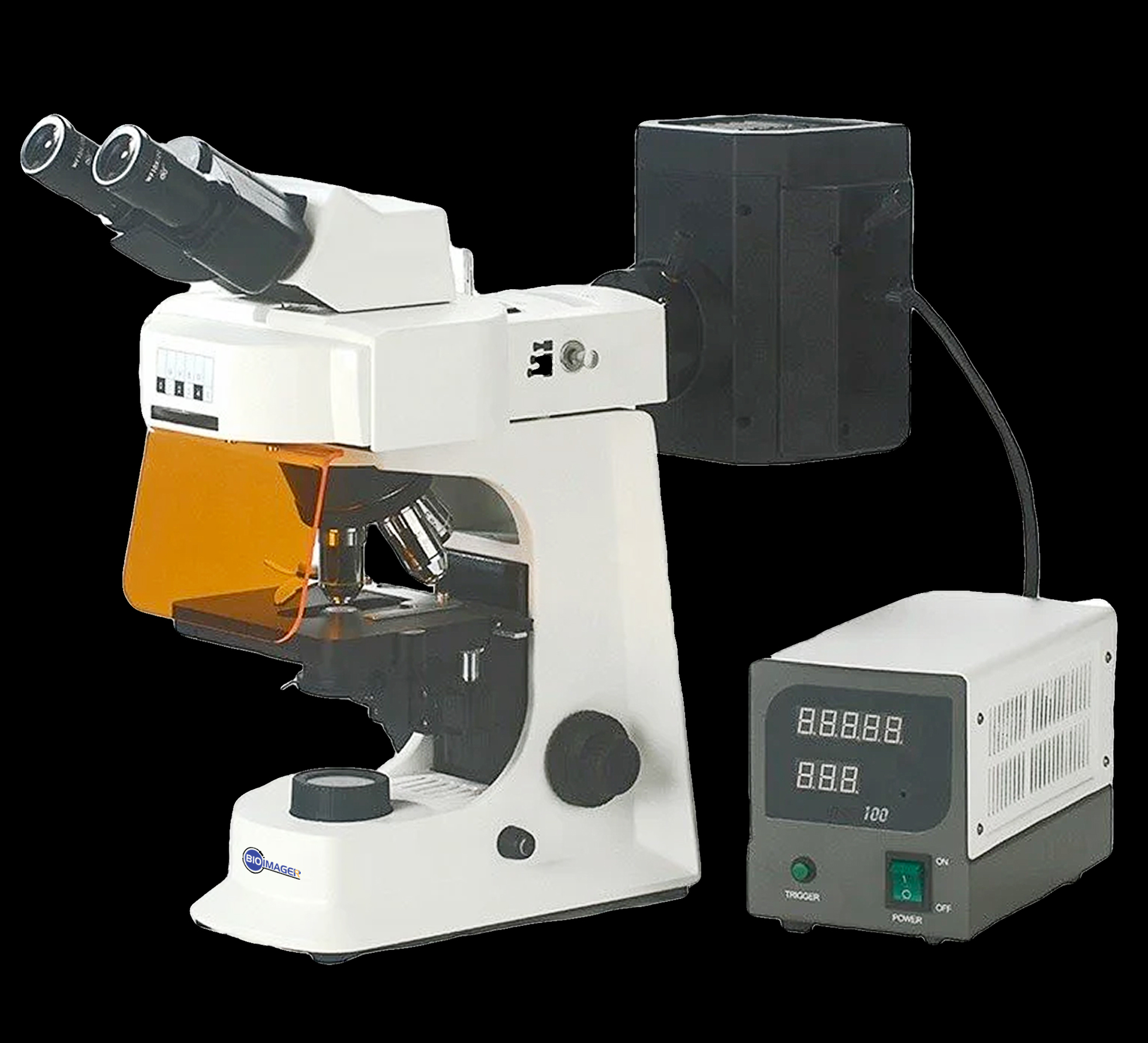

Fluorescence Attachment	Epi-fluorescence unit(six-hole disc media which can be fixed with B/G and other filters),100W mercury lamp	•	°

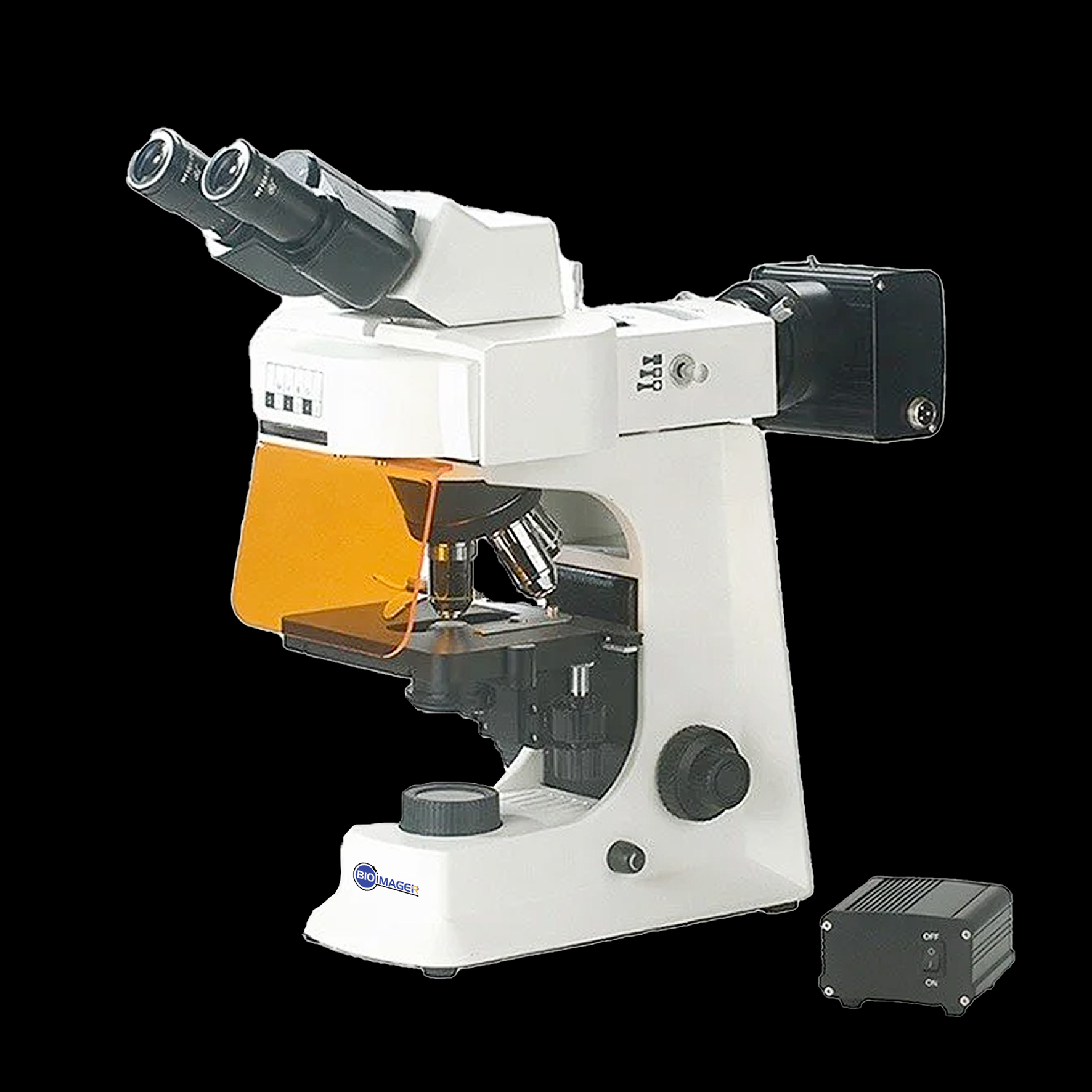

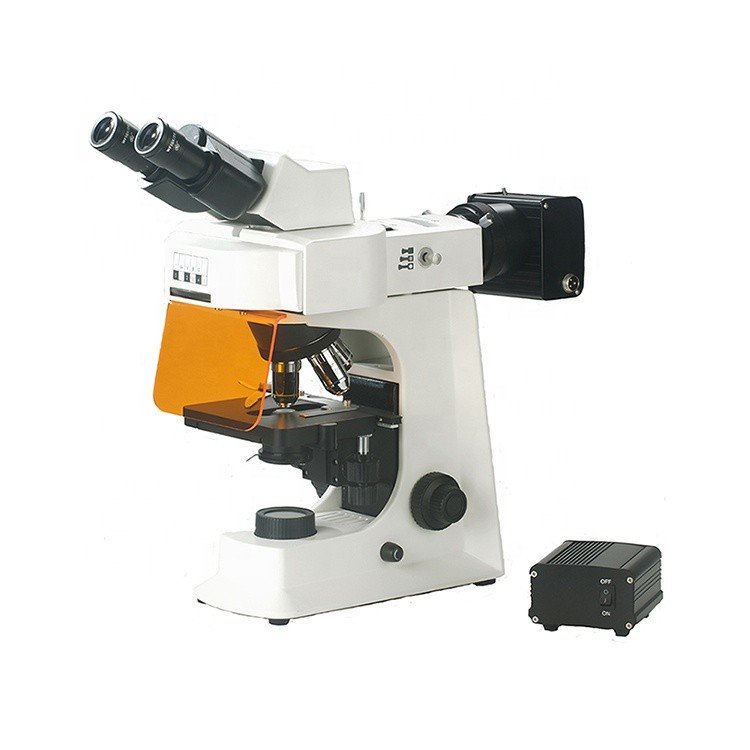

Fluorescence Attachment	Epi-fluorescence unit(six-hole disc media which can be fixed B/G), LED fluorescence lamp	°	•
Filter	Blue	°	°
	Green	°	°
	Yellow	°	°
C-Mount	1X	°	°
C-Mount	0.47X	°	°
Dark Field Condenser	Darkfield condenser(dry), apply to 4X~40X	°	°
Dark Field Condenser	Darkfield condenser(wet).apply to 100X	°	°
Wire Winding Device	—	°	°

Video 1. Phase Contrast Kit and Sample Images

BUM-PHK Phase Contrast Kit for Upright Biological Microscopes is composed of 10x, 20x, 40x , 60x and 100x (oil) Phase contrast objective lenses, green filter, Phase alignment tool and turret condenser with different annulus.
In this video we look at the samples images of an Onion Skin thins section slide and Tilia (basswood) thin section slide, using this kit installed on Bioimager BUM800FL upright biological microscope and connected a 2.3MP USB3.0 CMOS Colorful Camera as well as a 0.5x C-Mount Adapter.

BUM450FL Advanced Upright Fluorescence Microscope Sample Images

you can see some sample images taken with this microscope here:

Before using an upright fluorescence microscope, reading this blog article is highly recommended:

Fluorescence Microscopy
