Save $14,550

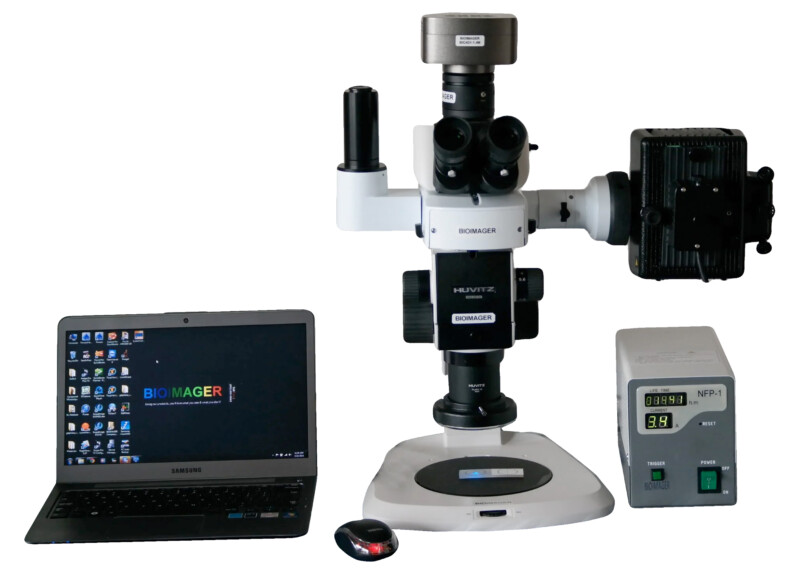

BSM780FL BIOIMAGER Epi-Fluorescence Stereoscopy Package

Availability:

In stock


Compare

The Stereo Fluorescence BISF Series was invented by BIOIMAGER to upgrade standard stereo microscopes to full fluorescence functionality with ease. The BISF is recently developed for the fluorescence community as the best complete fluorescence package. The BISF Fluorescence Illuminator gets up to four fluorescence filters that give clear, bright and even fluorescence images.

In stock

$15,450.00 $30,000.00

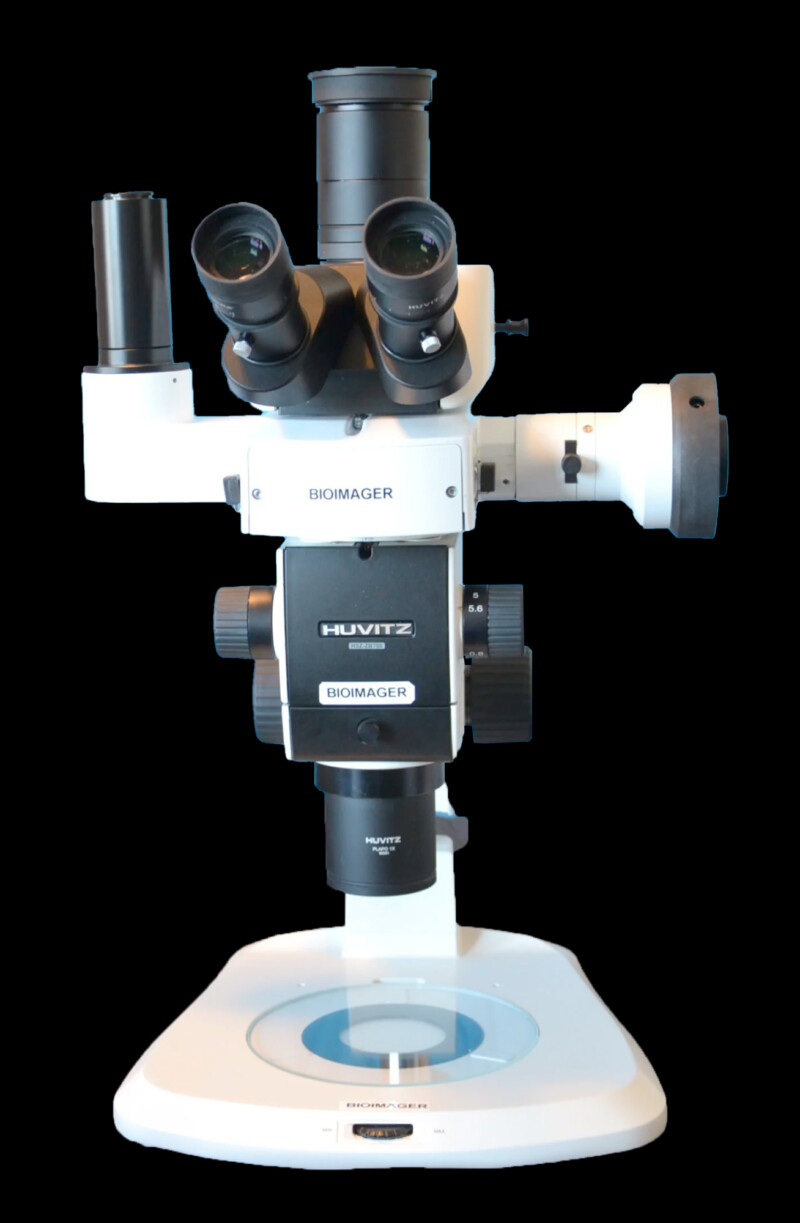

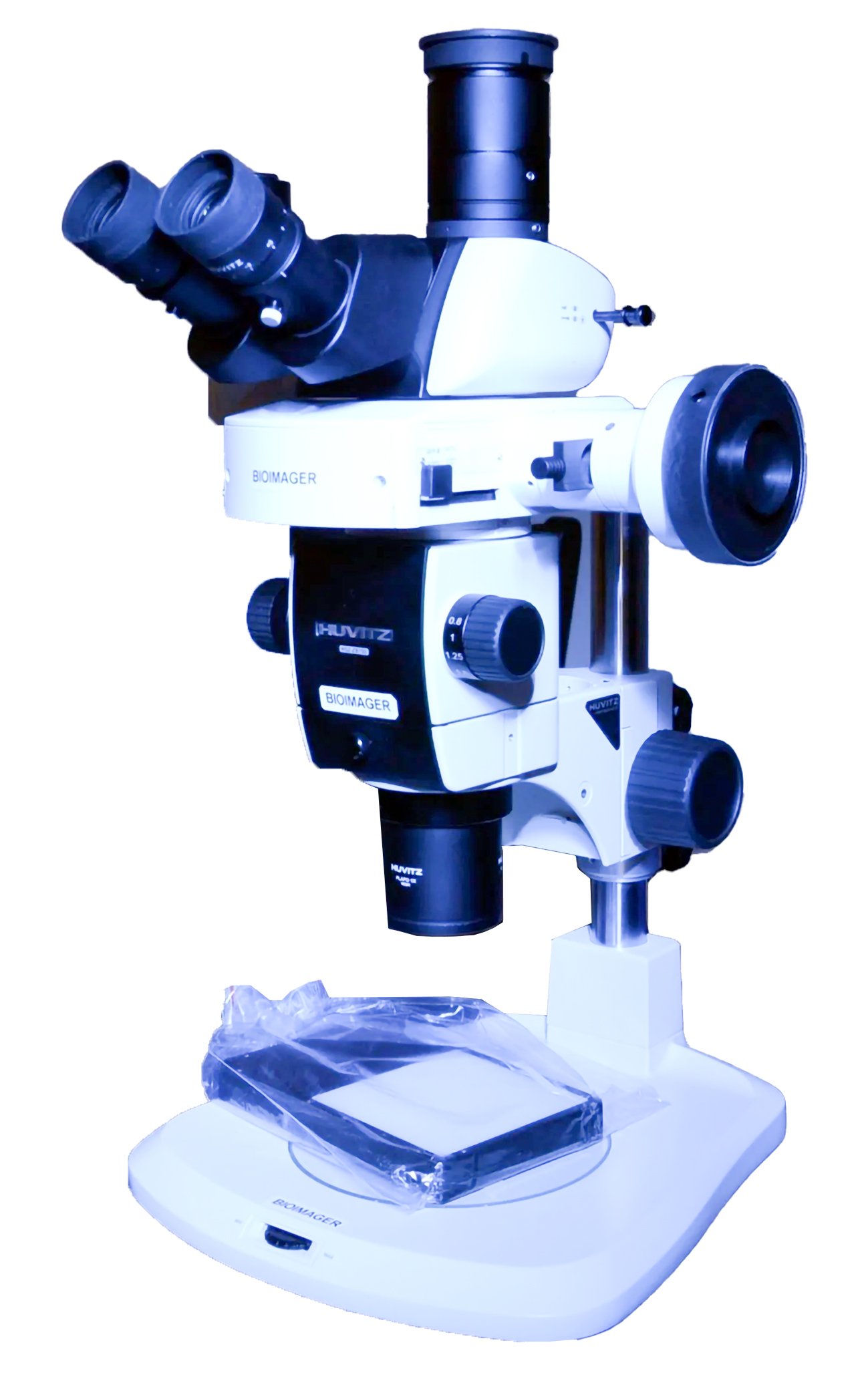

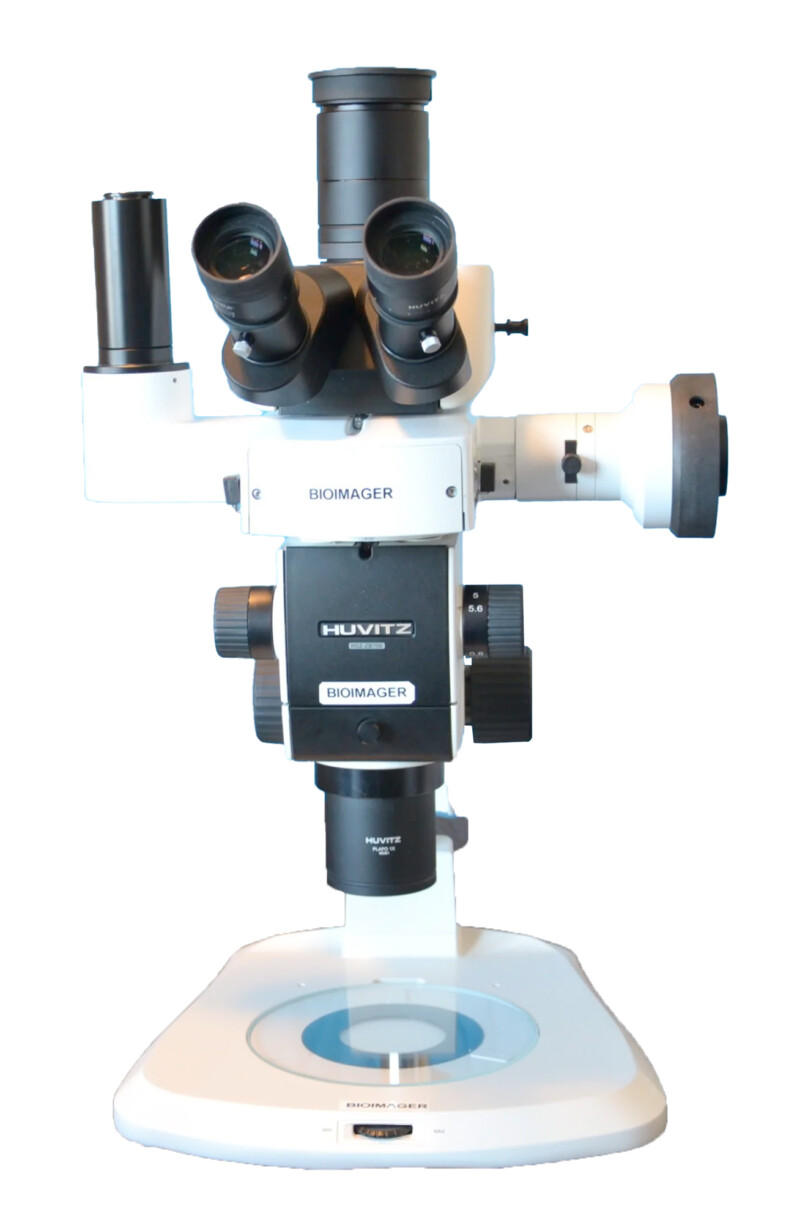

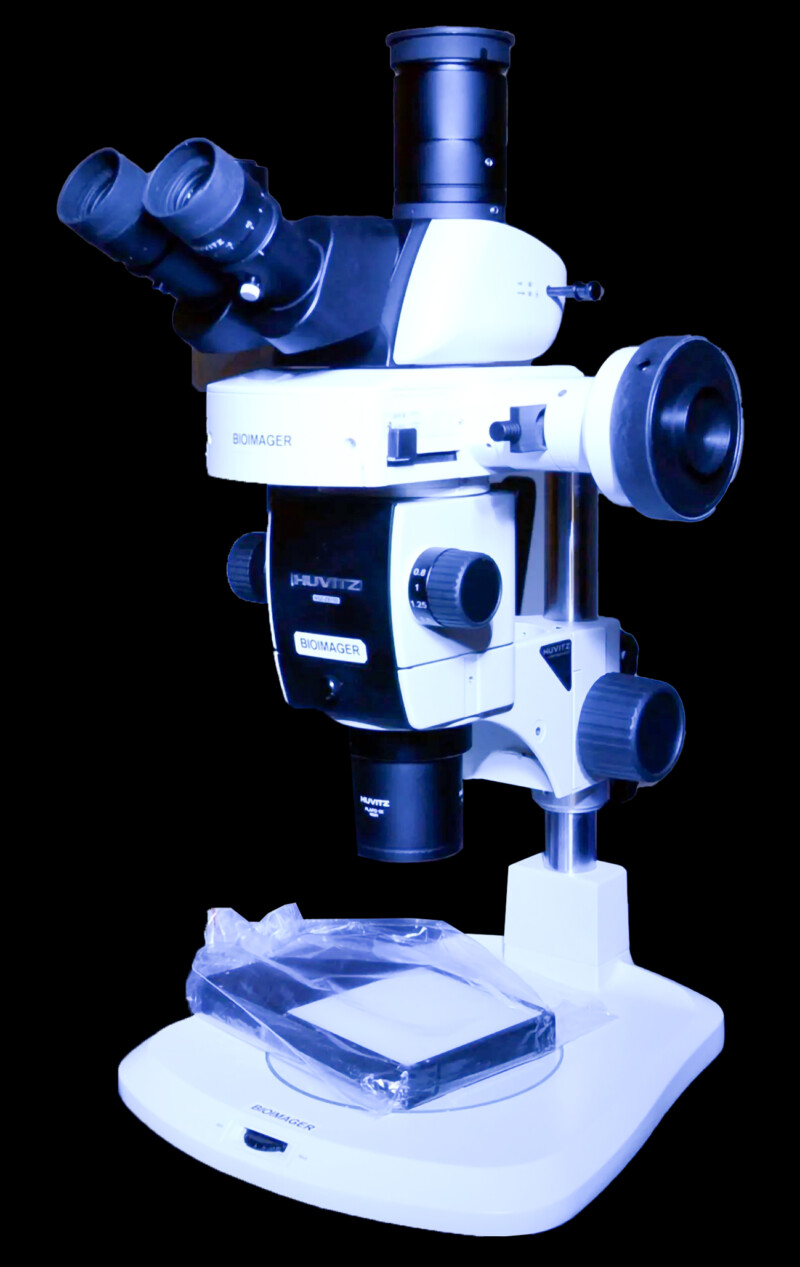

BIOIMAGER BSM780FL Epi-Fluorescence Stereoscopy Package

The Stereo Fluorescence BISF Series was invented by BIOIMAGER to upgrade standard stereo microscopes to full fluorescence functionality with ease. The BISF is recently developed for the fluorescence community as the best complete fluorescence package and also as an add-on to your standard stereo systp (Carl Zeiss, Huvitz, Leica, Meiji Techno, Nikon, Olympus, and others) which benfits frm teh same advanced imaging technqiues that upright/compound microscope users have long enjoyed. The BISF Fluorescence Illuminator gets up to four fluorescence filters that give clear, bright and even fluorescence images. BIOIMAGER offers an extensive set of filters made by Chroma or omega for your fluorescence needs.

Features

  • A high quality super bright imaging solution for stereo epi-fluorescence techniuqes, screening and manipulation of transgenic speciees.

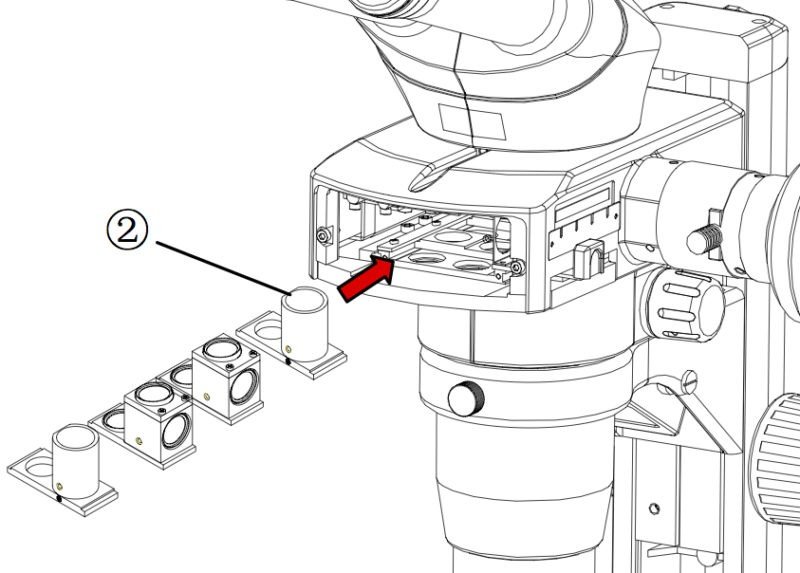

  • Four-position filter slider
  • 100% fluorescent light can be sent directly from the specimen to the optinal photo tube
  • Base configurations availble for epi-fluorescence only or with LED transmitted light source
  • Easy upgrade to optinal episcpic imaging and oblique coherent contrast
  • Ideal Screening Fluorescence Microscope
  • Bright, easily visible outputs. Multiwavelength excitation
  • Custom light adapter source, upgradable for bright GFP, TRITC or any custom design filters
  • Long working distance
  • Perfect tool for studies of Zebrafish, C. elegans, mouse fluorescent imaging, pbryo development, microfluiodics or Lab-on-a-chip devices.
  • #1 choice for Vet and IVF labs.
  • We offer up to 40 different specilaized filter cubes.Please contact us for the listing.

Huvitz/hsz730tr.jpg
Stereo/fl800FluorescenceAttachment.jpg

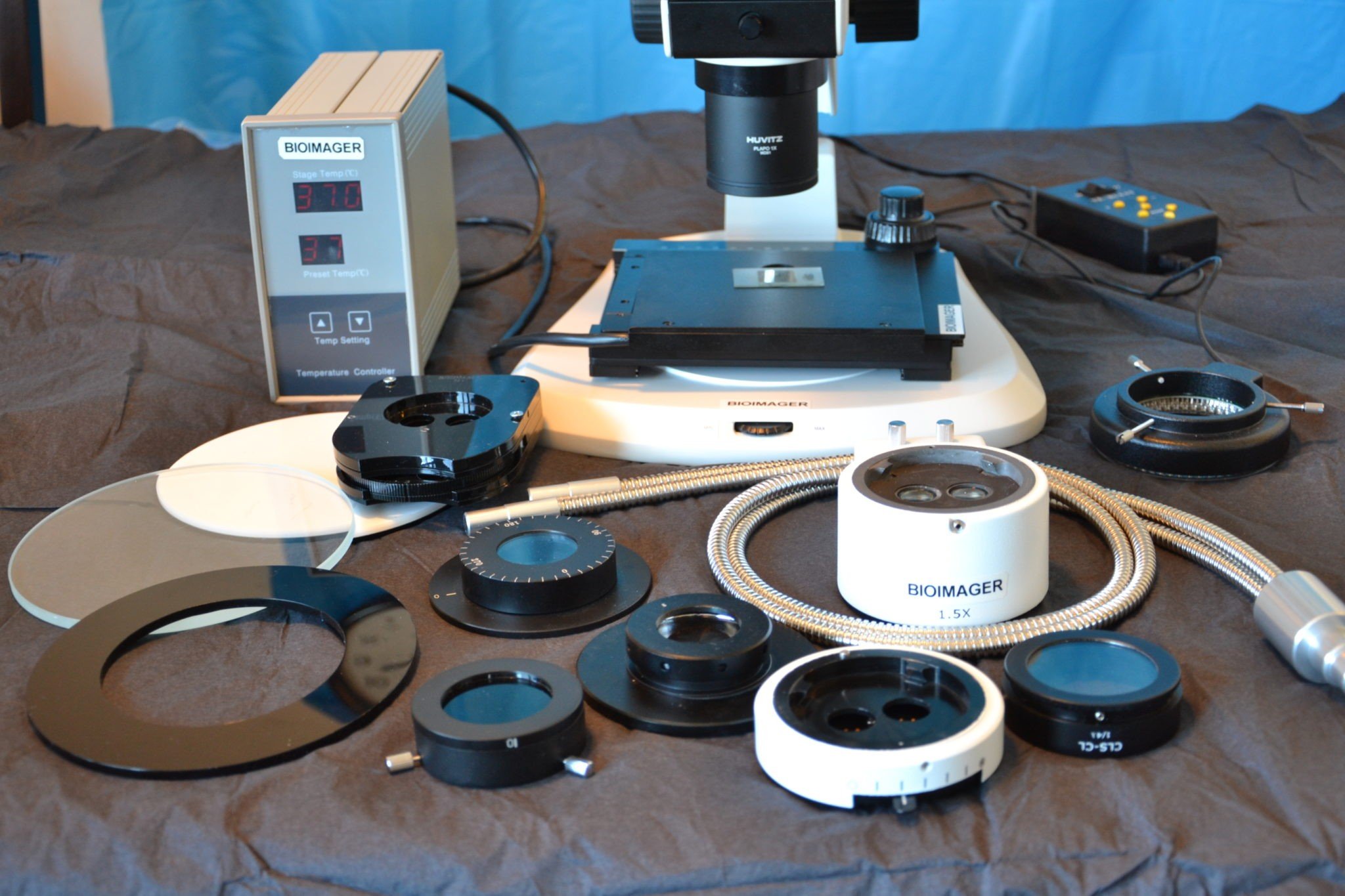

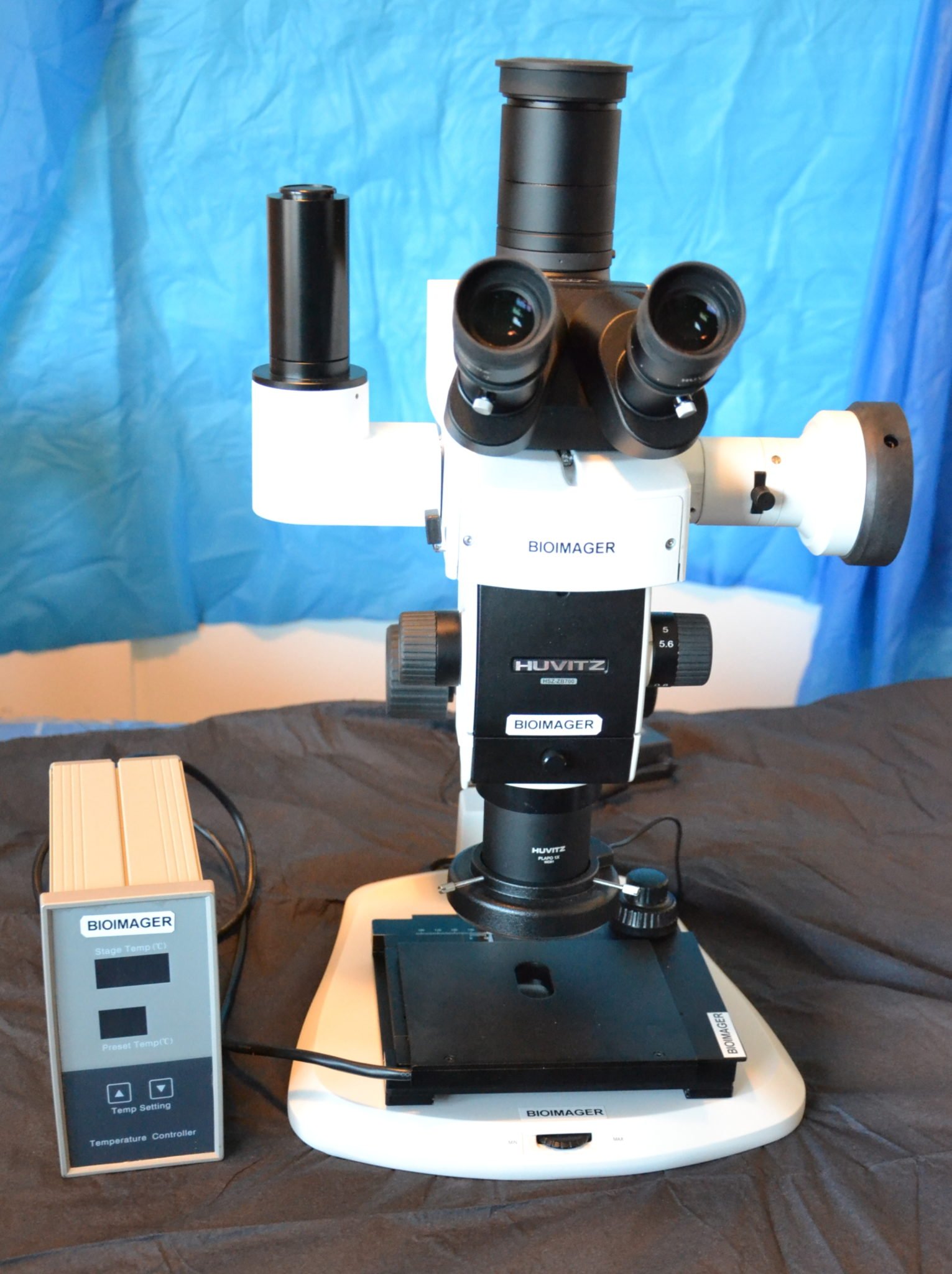

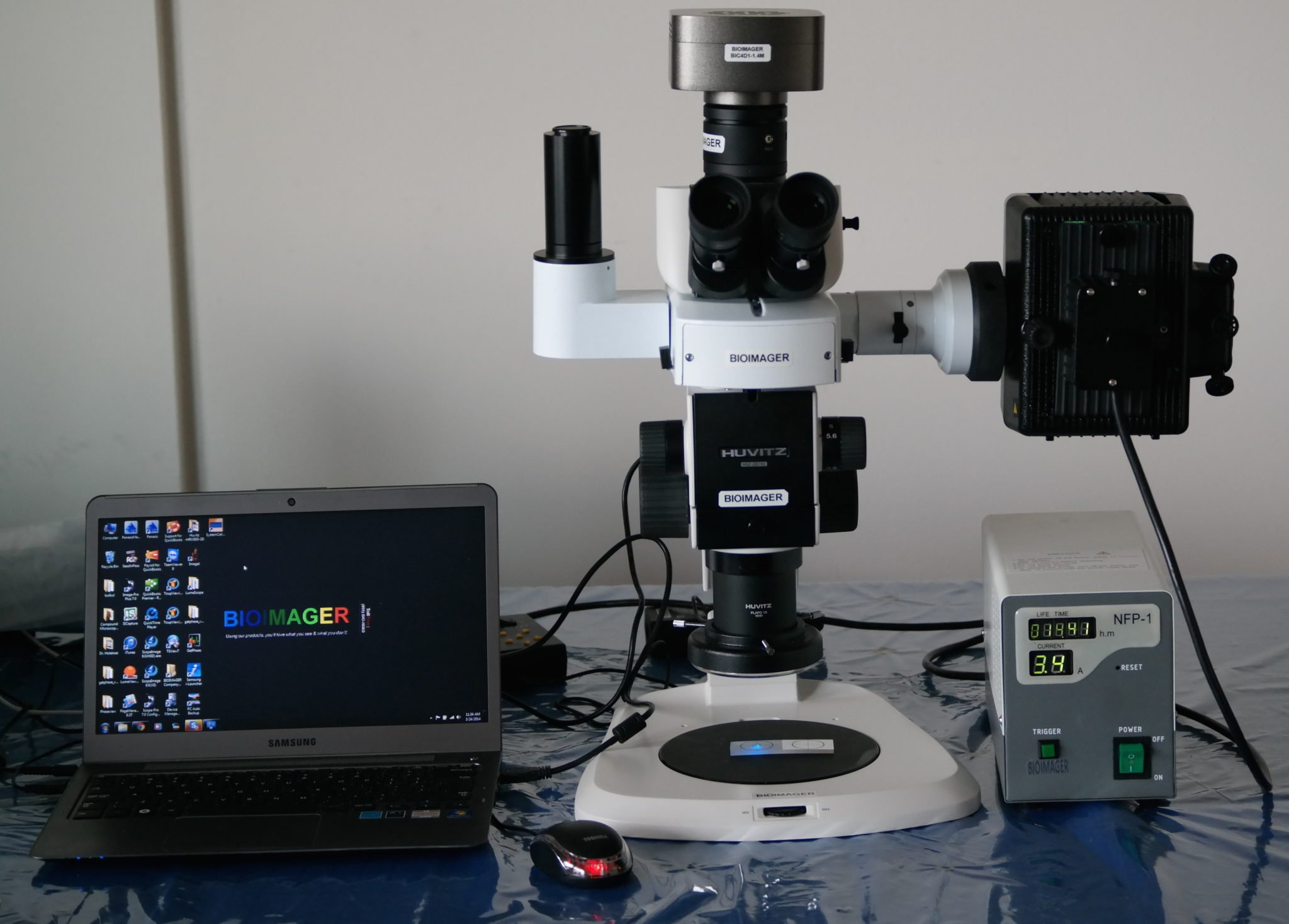

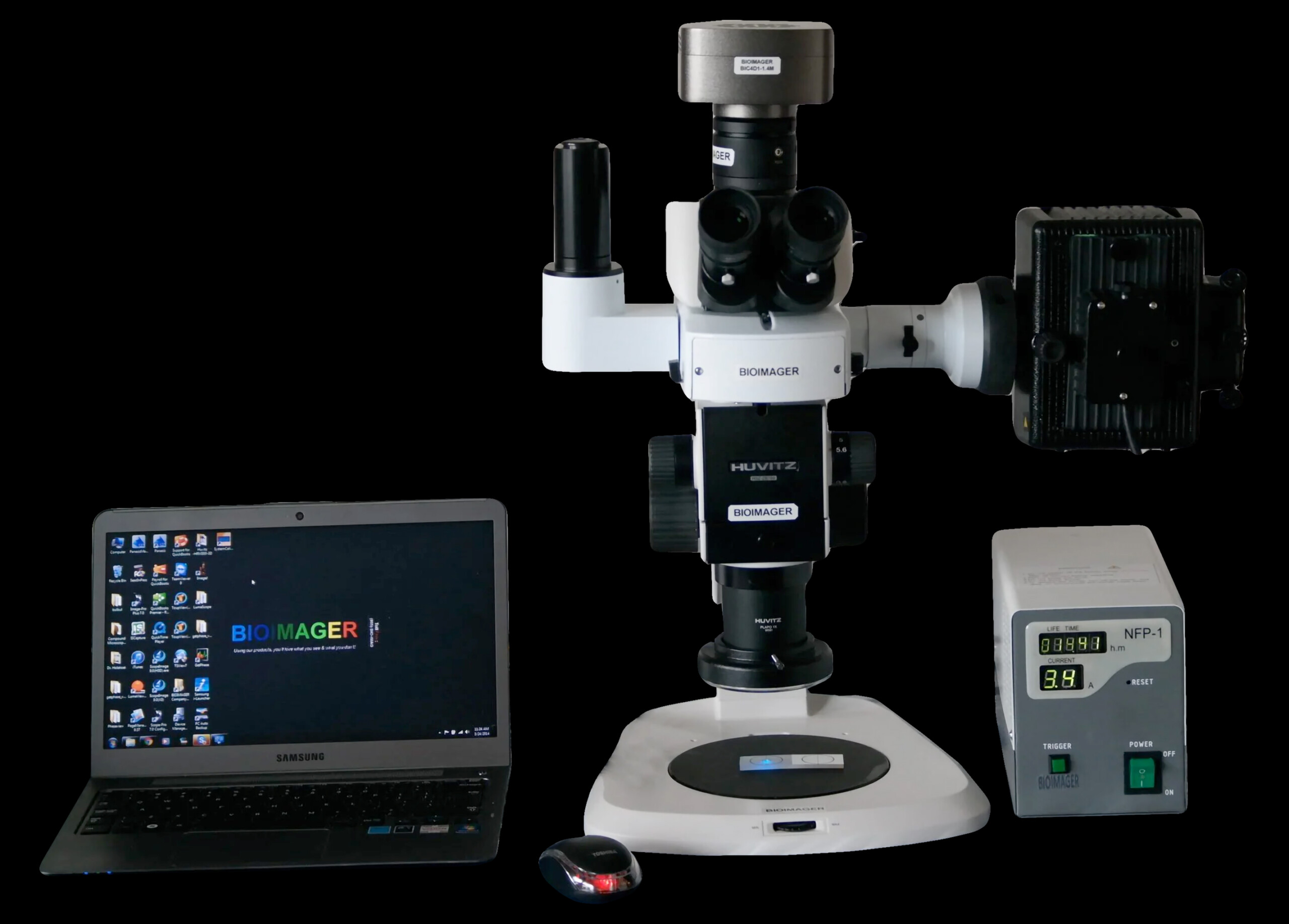

The package includes the following itps:

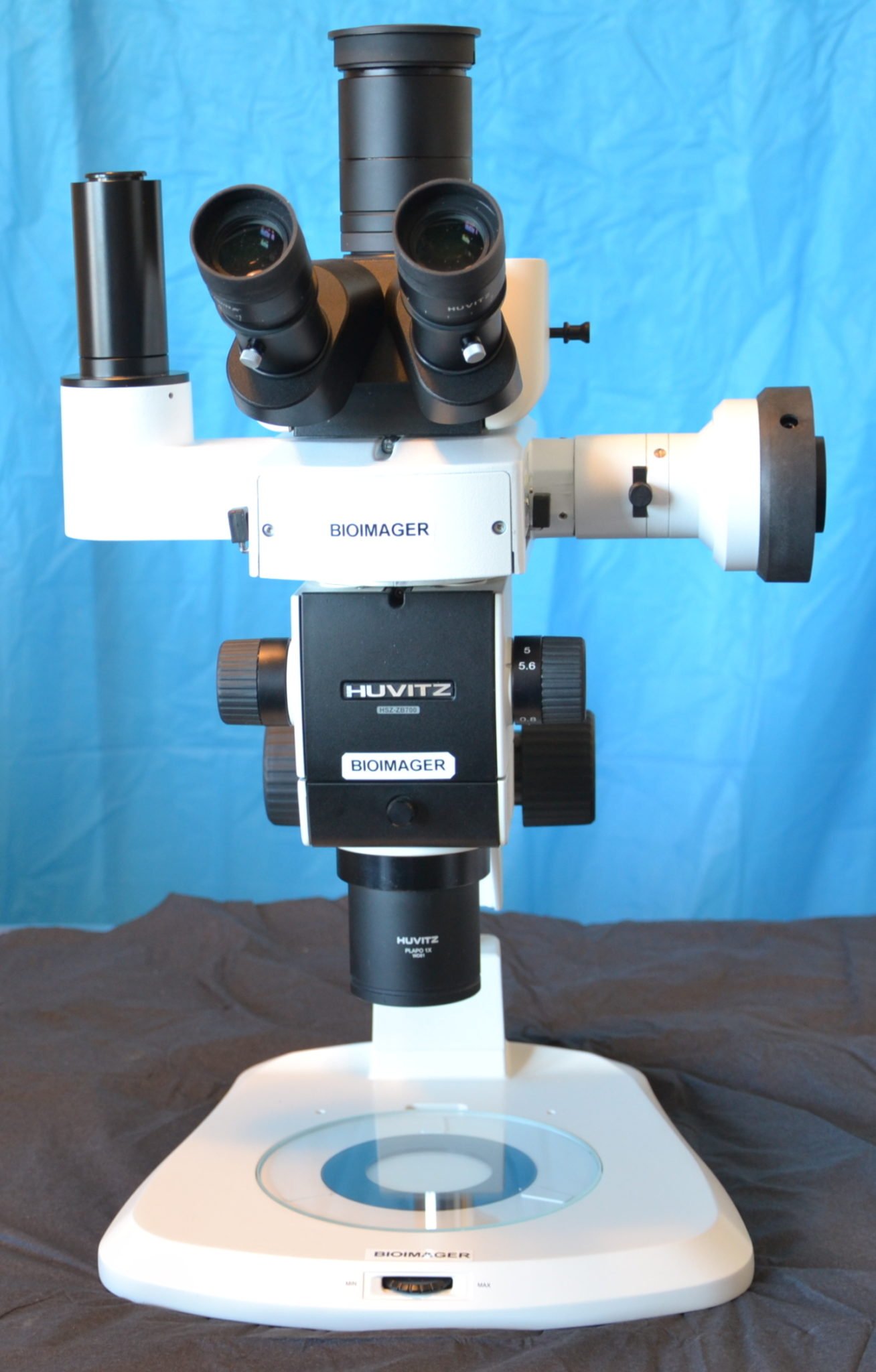

1. Huvitz HSZ700TR Research Zoom Stereo Microscope (Korean Product, Japanese Quality, Chinese Price)

Huvitz/hsz730tr.jpg

Huvitz Stereoscopes: S. Korean Product, Chinese Price, Japanese Quality

HSZ-700 Series
Optimized zoom range and color reproduction offer
top quality images.

Interchangeable objective lenses and accessories can be
implpented to provide a guaranteed satisfaction for any
given inspection environment and task.

ItemSpecifications
Zoom microscope body
HSZ-ZB700
  • Zoom drive : Horizontal knob system
  • Click stop for each zoom magnification: On-Off switching possible
  • Zoom ratio values : 7:1 (0.8~5.6x)
  • Zoom magnification indication : 0.8, 1, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 5.6.
  • Objective lens mounting : Screw mounting into thread

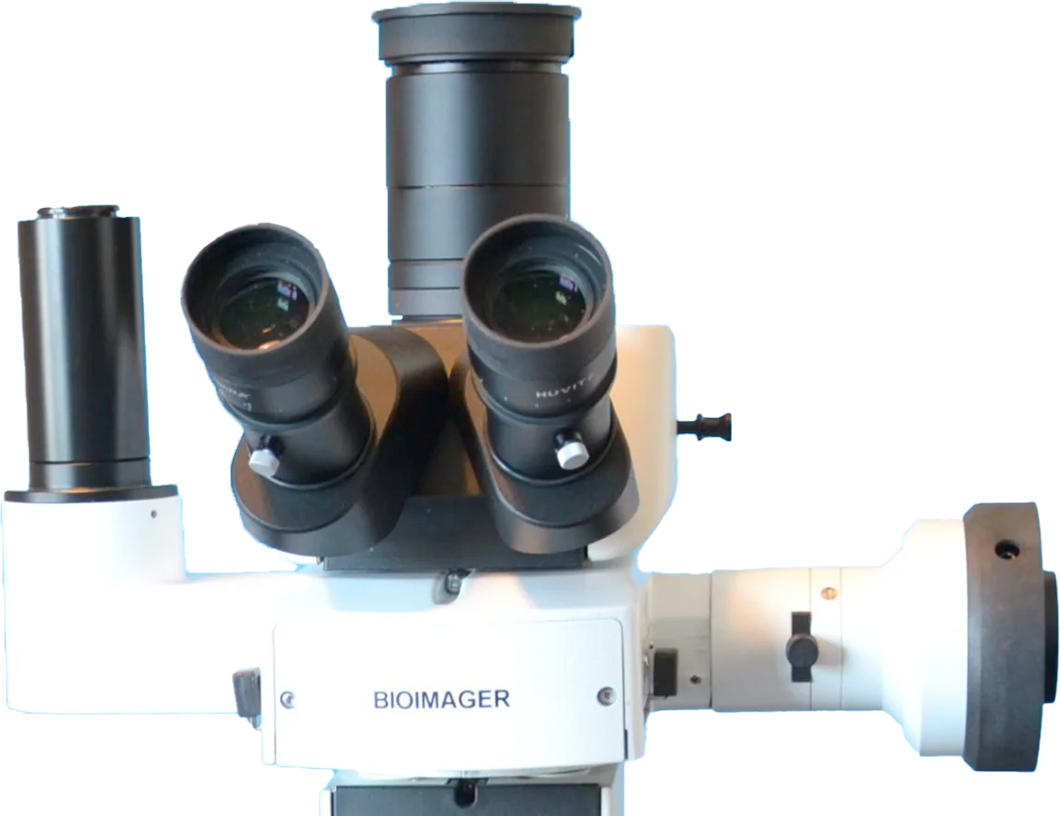

Observation tube
HSZ-TR30
HSZ-BI30
  • Trinocular tube(HSZ-TR30), Binocular tube(HSZ-BI30)
  • View inclination angle : 30°
  • Light path selection(only HSZ-TR30) : 2 steps (Binocular 100%, Video 80%-Binocular 20%)
  • Interpupillary distance adjustable range : 55 to 75mm
  • Eyepiece clamping knob provided
Stand (Optional)HSZ-ST7HSZ-ILSTS7HSZ-ILST7
HSZ-ST7Standard large standLED reflected / transmitted
illumination stand
LED reflected / transmitted
illumination large stand
HSZ-ILST7Frame installationMounting diameter : 76mm
HSZ-ILSTL7Focusting adjustmentKnob rotation tension adjustment
Focusing storoke : 120mm

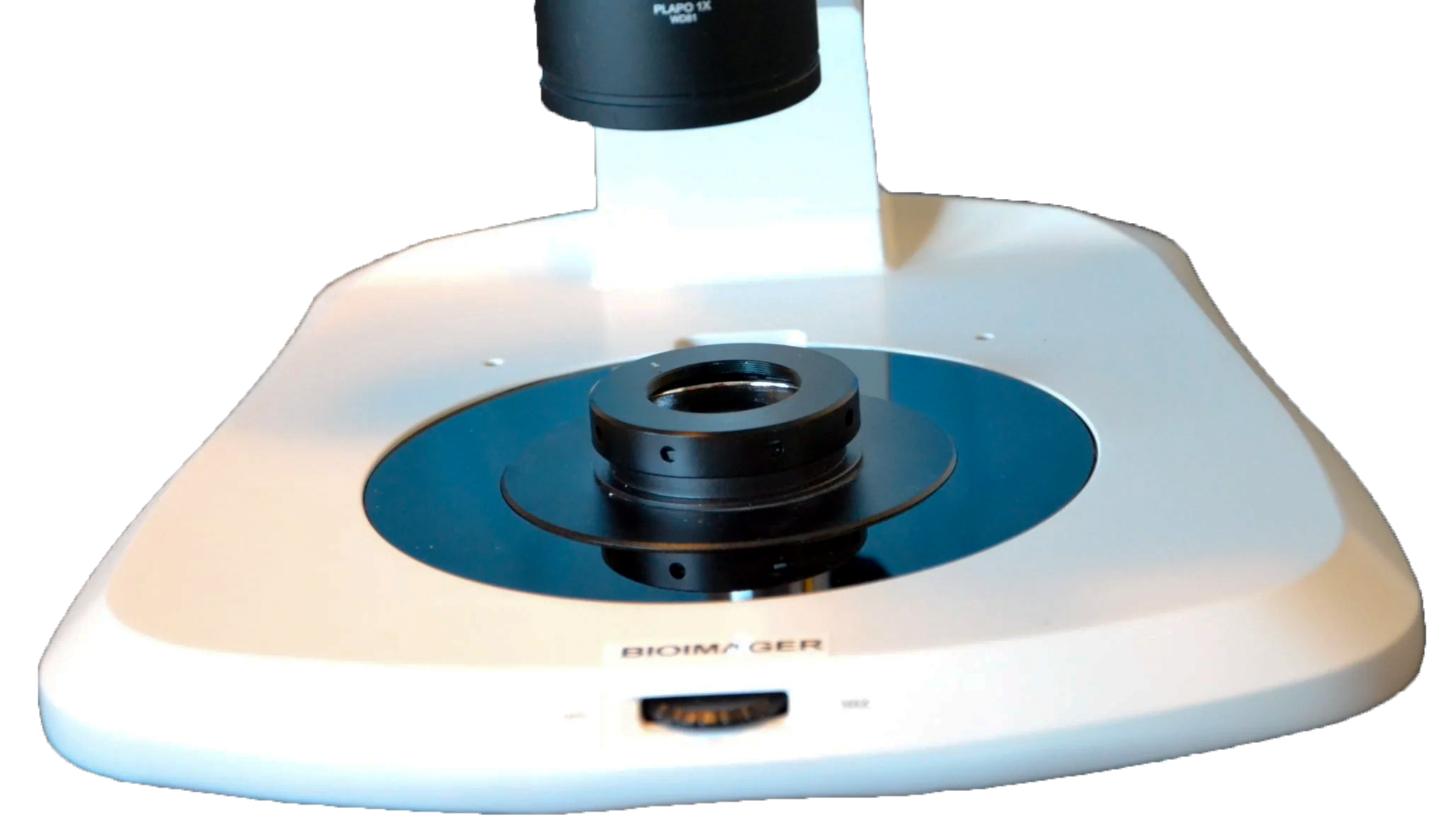

Stage plate
  • HSZ-SPG
  • HSZ-SPBW
  • HSZ-SPG100
  • HSZ-SPG
  • HSZ-SPBW
Light source
  • Transmitted illumination: LED
  • Reflected illumination: LED
  • Average LED life span: 10,000 hrs.
  • Input rating: AC 100-240V, 50/60Hz, 10W
Objective lens (Optional)
  • Model
  • HSZ-ACH1x
  • HSZ-PLAPO1x
  • HSZ-ACH1.5x
  • HSZ-ACH2x
  • Working distance
  • W/D : 90.5mm
  • W/D : 81mm
  • W/D : 45.5mm
  • W/D : 33.5mm
EyepiecesEyepiece series
Weight
Stereo/HSZ780-Refl_2.jpgStereo/transmitted_light_HSZ700.JPG
 Brightfield Reflected light (from top) Brightfield Transmitted light (from bottom)

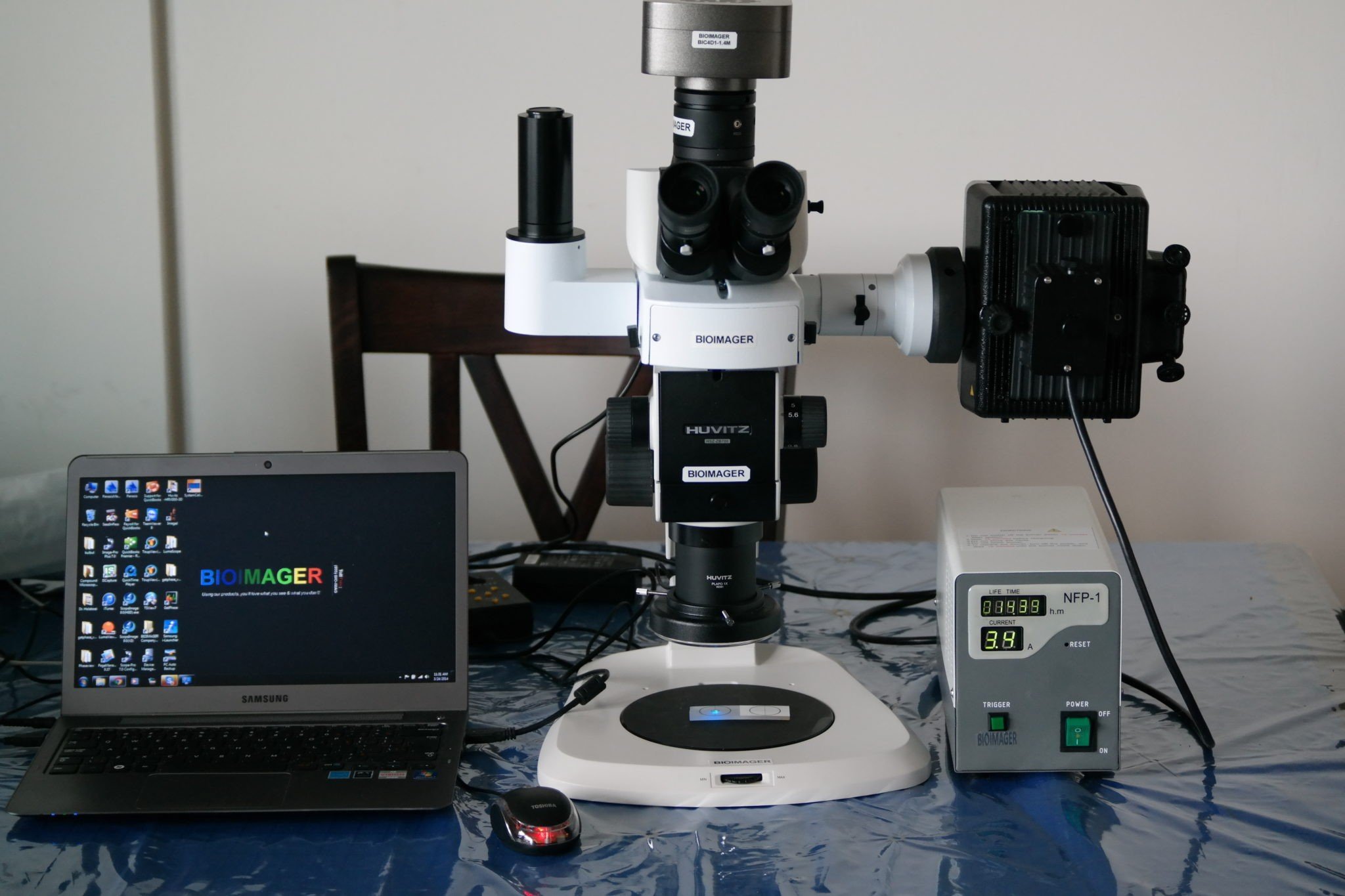

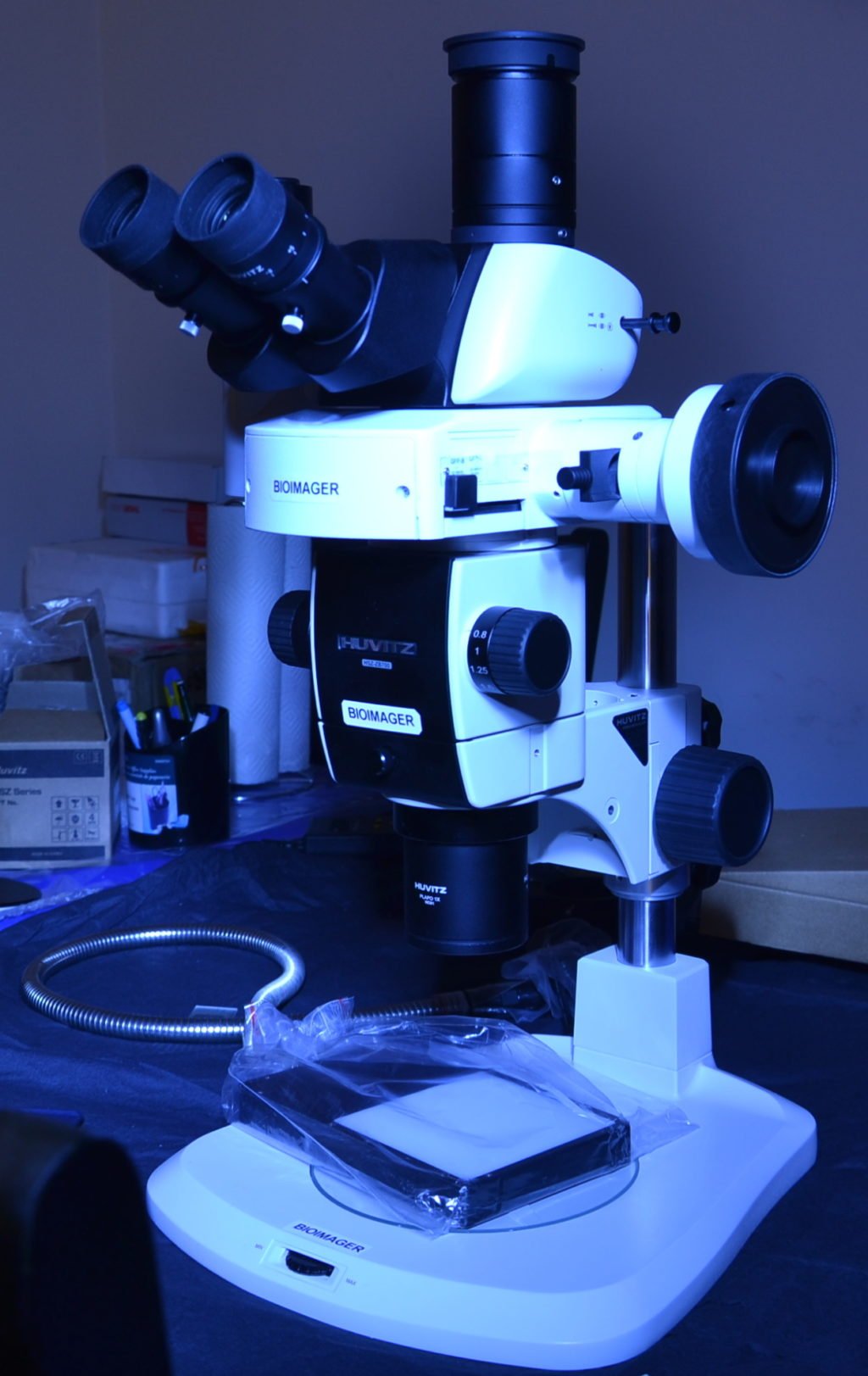

2. Epi-Fluorescent System

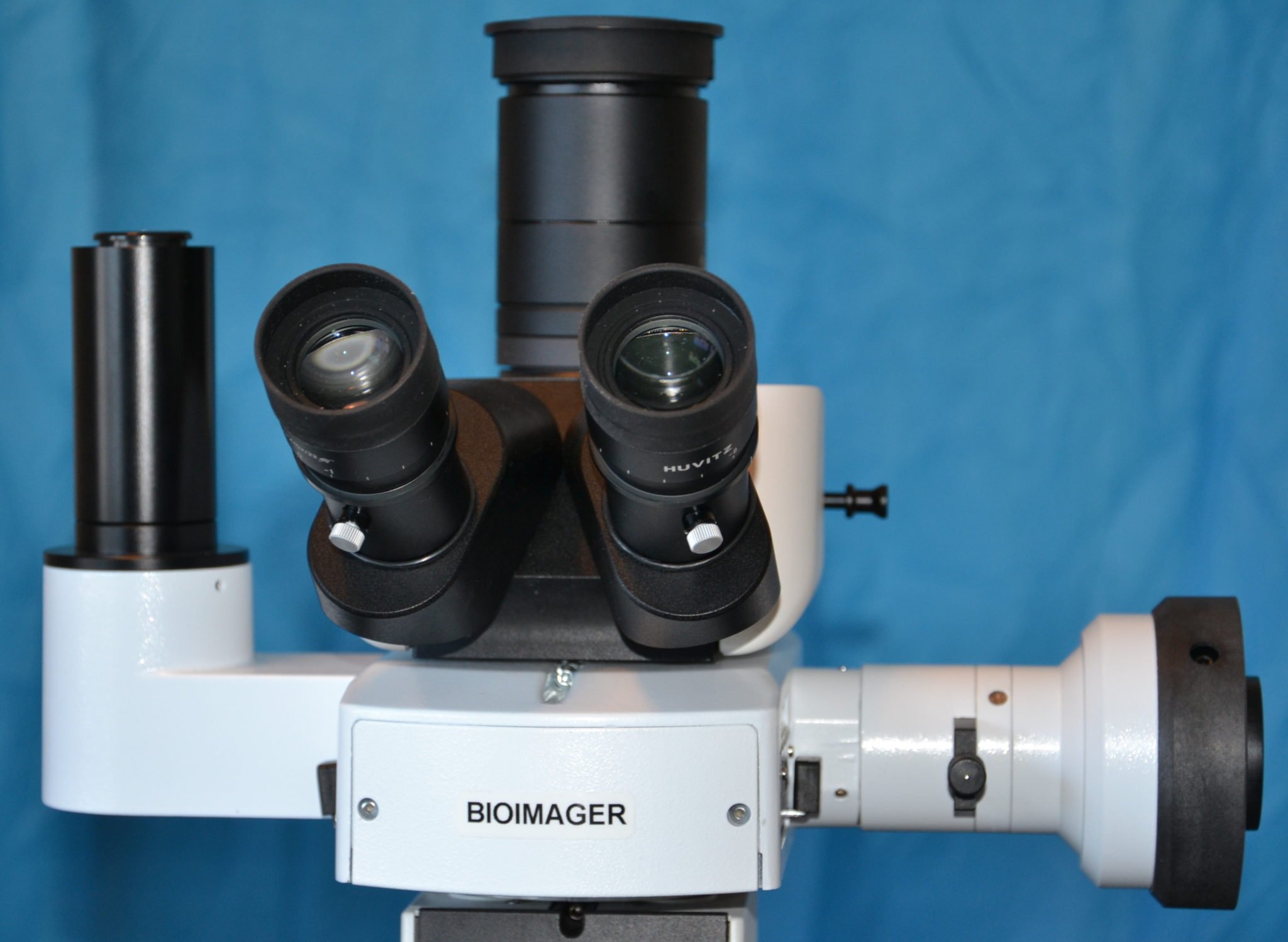

Stereo/HSZ780-epifluor_attachment.JPG

 Stereo/FL800-3.jpg

Stereo/FL800-1.jpgStereo/FL800-2.jpg

<font >100% fluorescent light can be sent directly from the specimen to the optinal photo tube

Galilean Optical Systp
The Galilean Optical Systp uses interchangeable objective lens that provide the best quality images.
Effective 7:1 Zoom
The 8x to 56x zoom magnification range accommodates a vast majority of inspection tasks.



Click-Stop
To achieve consistent magnification, the Click Stop function has been implpented to improve work
efficiency. (HSZ-730TR)
Variety of Video Ports
Huvitz exclusive video port lenses assure better quality video images for any digital camera systps.
(HSZ-730TR)
Superior optic systp
Accurate color reproduction and high resolution power are the result of superior optic design minimizing
distortion and aberration offering a clear image on wide range and variety of samples.
Built-in LED
Bright and durable LED illumination provides suitable transmission or reflection with low energy
consumption. (HSZ-ILST7)
4 Split LED
Compact and adaptable, this LED illuminator can light each quadrant individually or in any combination to
better manage reflection and observation.



SKU: BSM780FL Categories: , ,
