Save $4,812

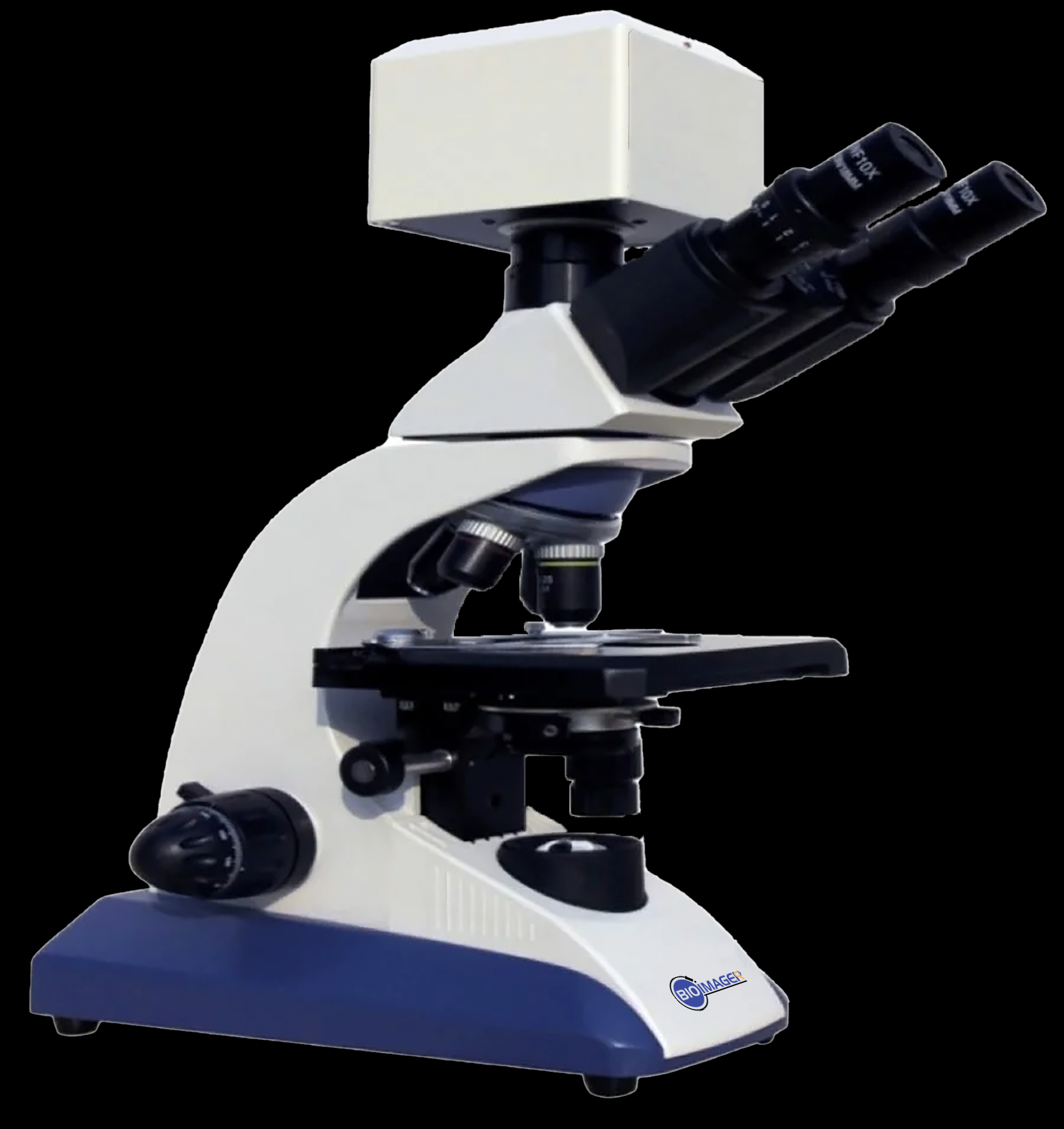

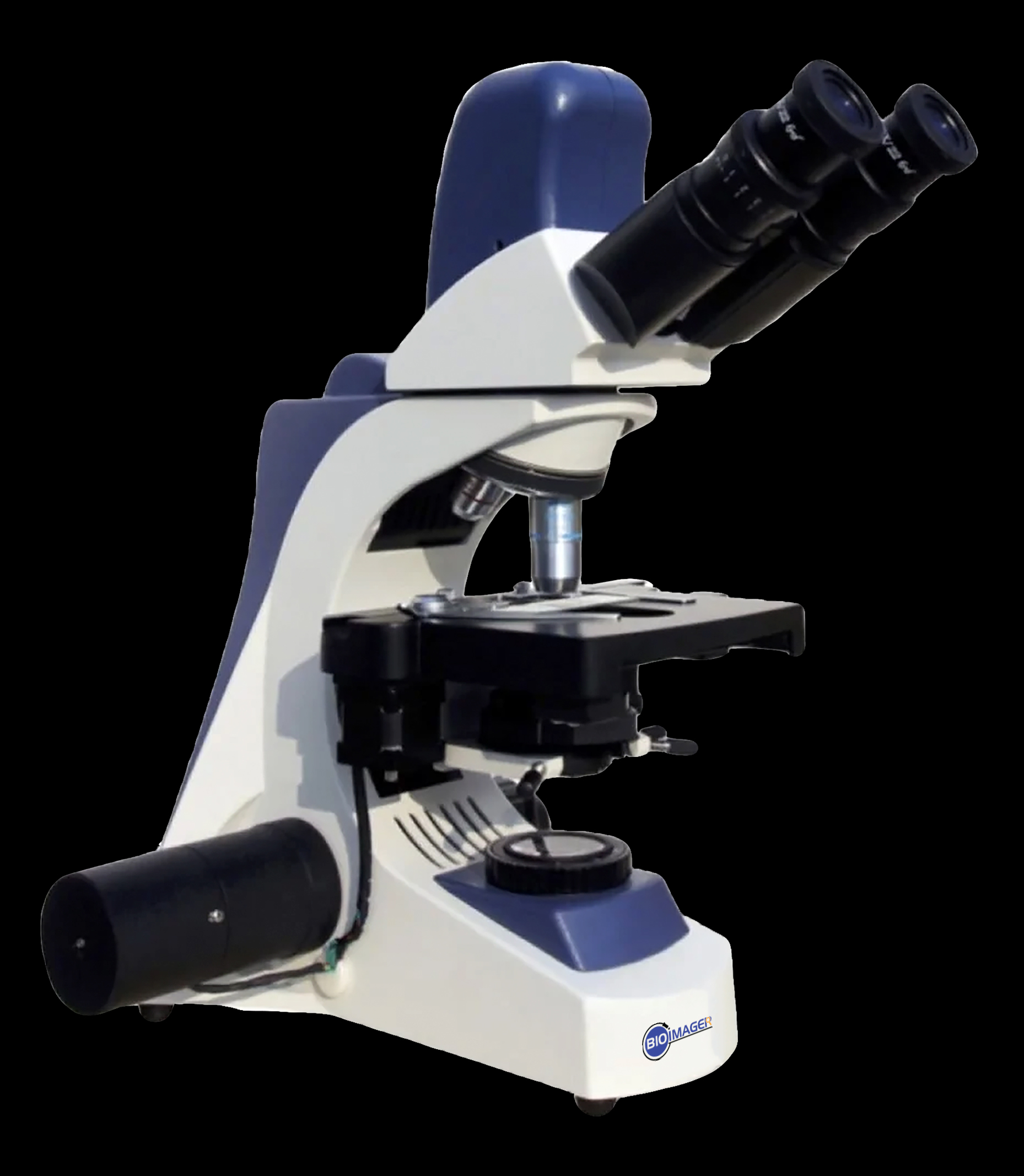

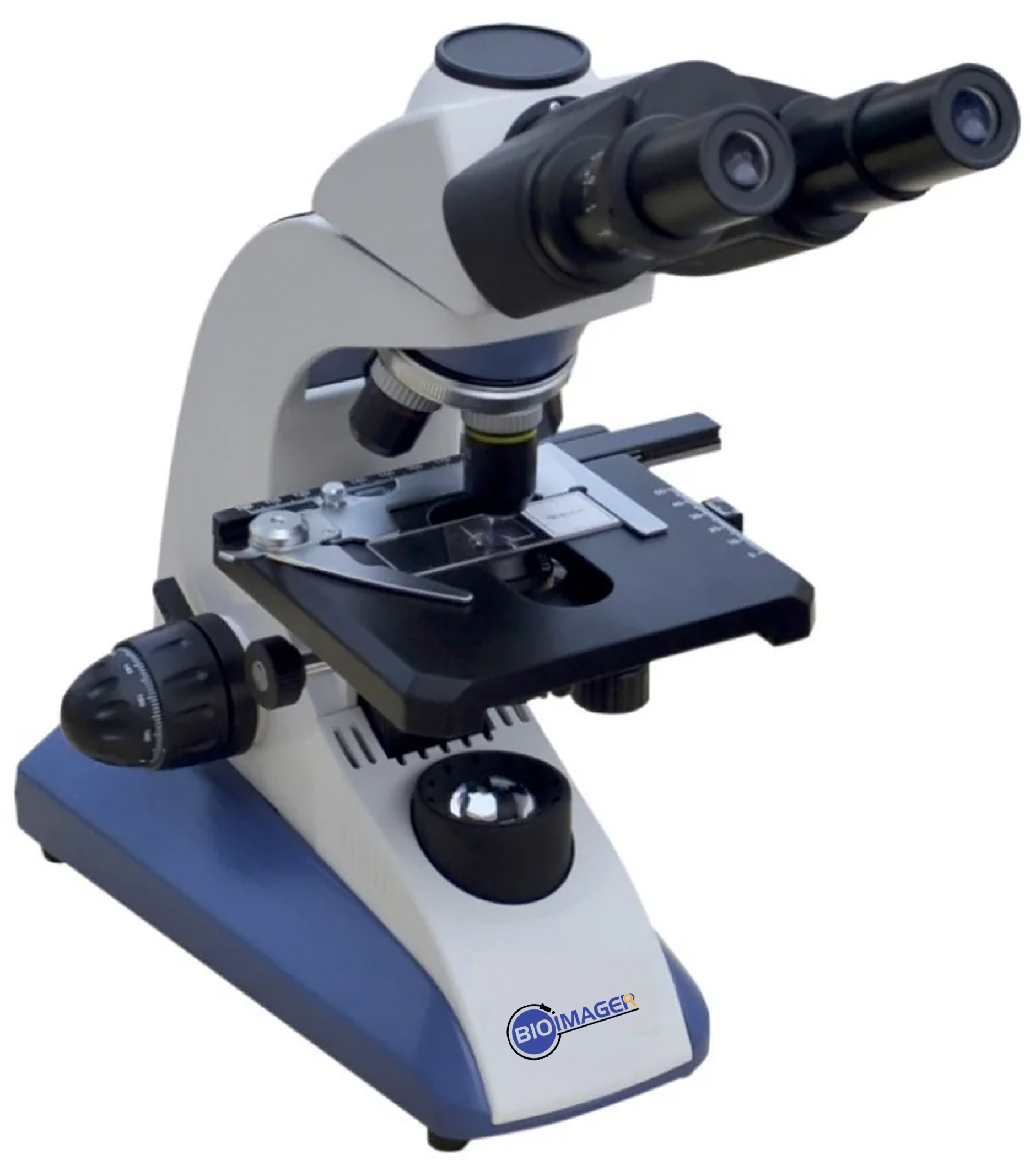

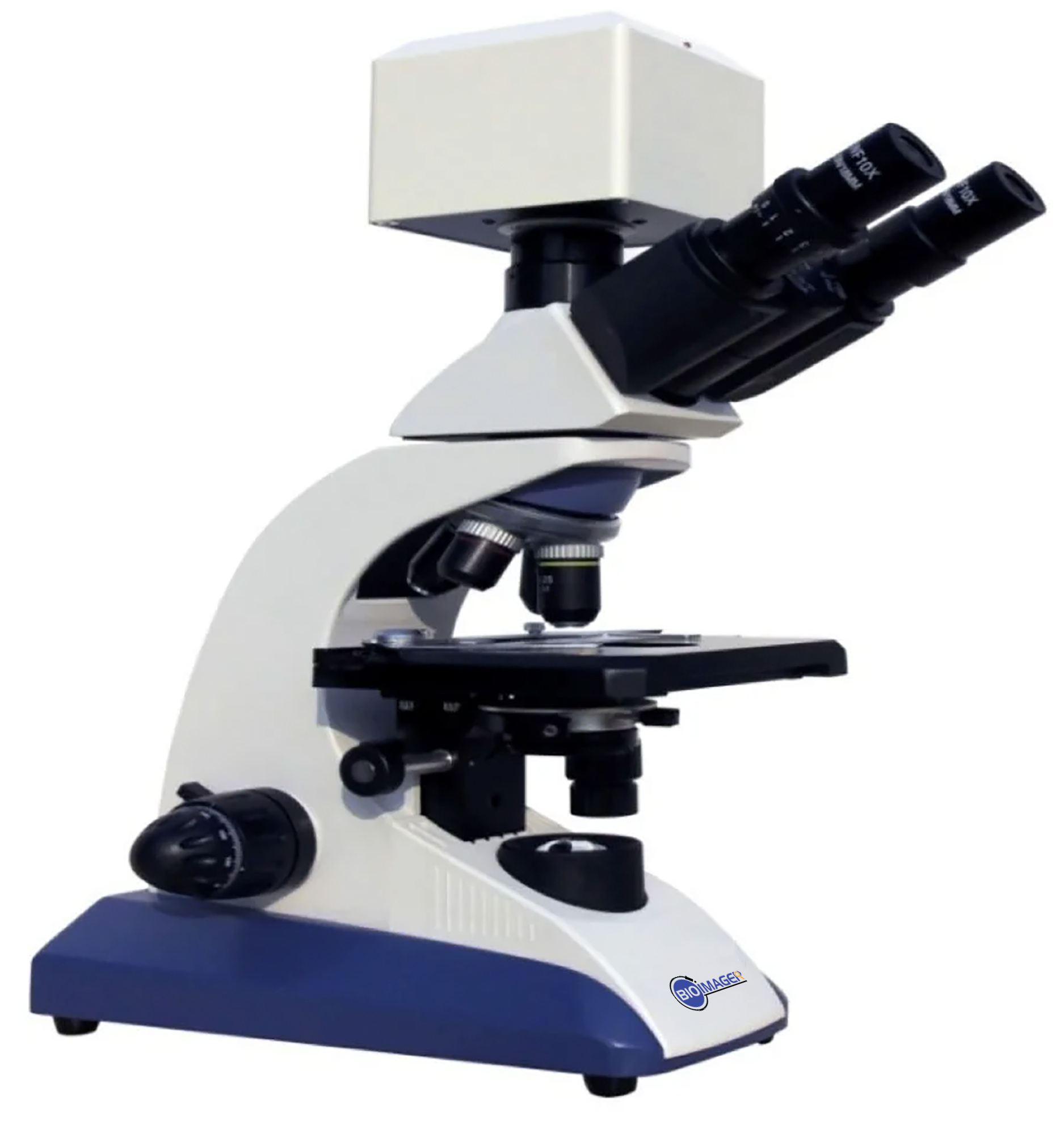

BUM400A Fully Motorized Auto-Focus Biological Microscope

Availability:

In stock


Compare
  • Fully automated digital microscope
  • 4x, 10x, 20x, 40x and 100x plan obj lenses
  • Brighfield Imaging with LED illumination
  • Automated XY stage, Auto-focus and Motorized Nosepiece
  • Easy remote control via internet makes excellent choice for tele-consultation
  • Auto-focus, Auto-scanning and auto-recognition features
  • Standard Image Analysis Software
  • The most economical solution for automatic XY-Z biological microscope, slide scanning and tele-pathology
  • Excellent solution for sperm / semen analysis, stool analysis, counting of cancer cells, blood cells, mammalian cells and bacteria, medical diagnosis, pathological analysis and real-time teaching, etc.

In stock

$7,188.00 $12,000.00

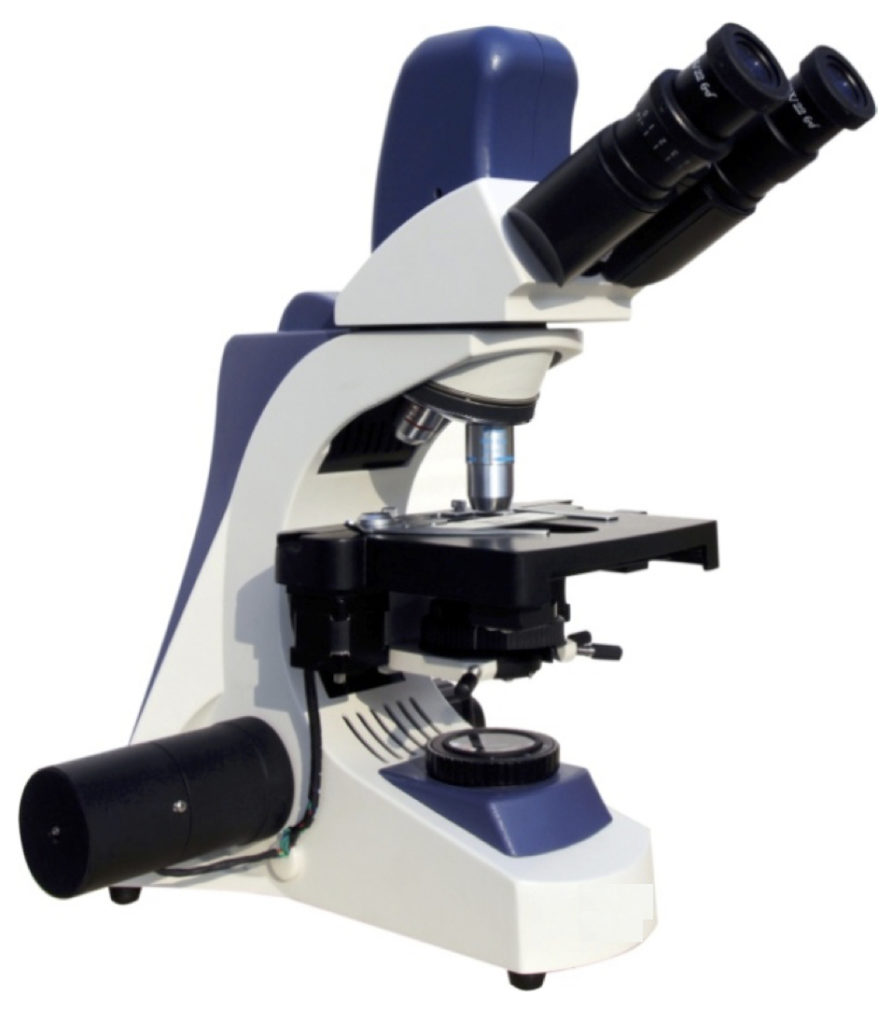

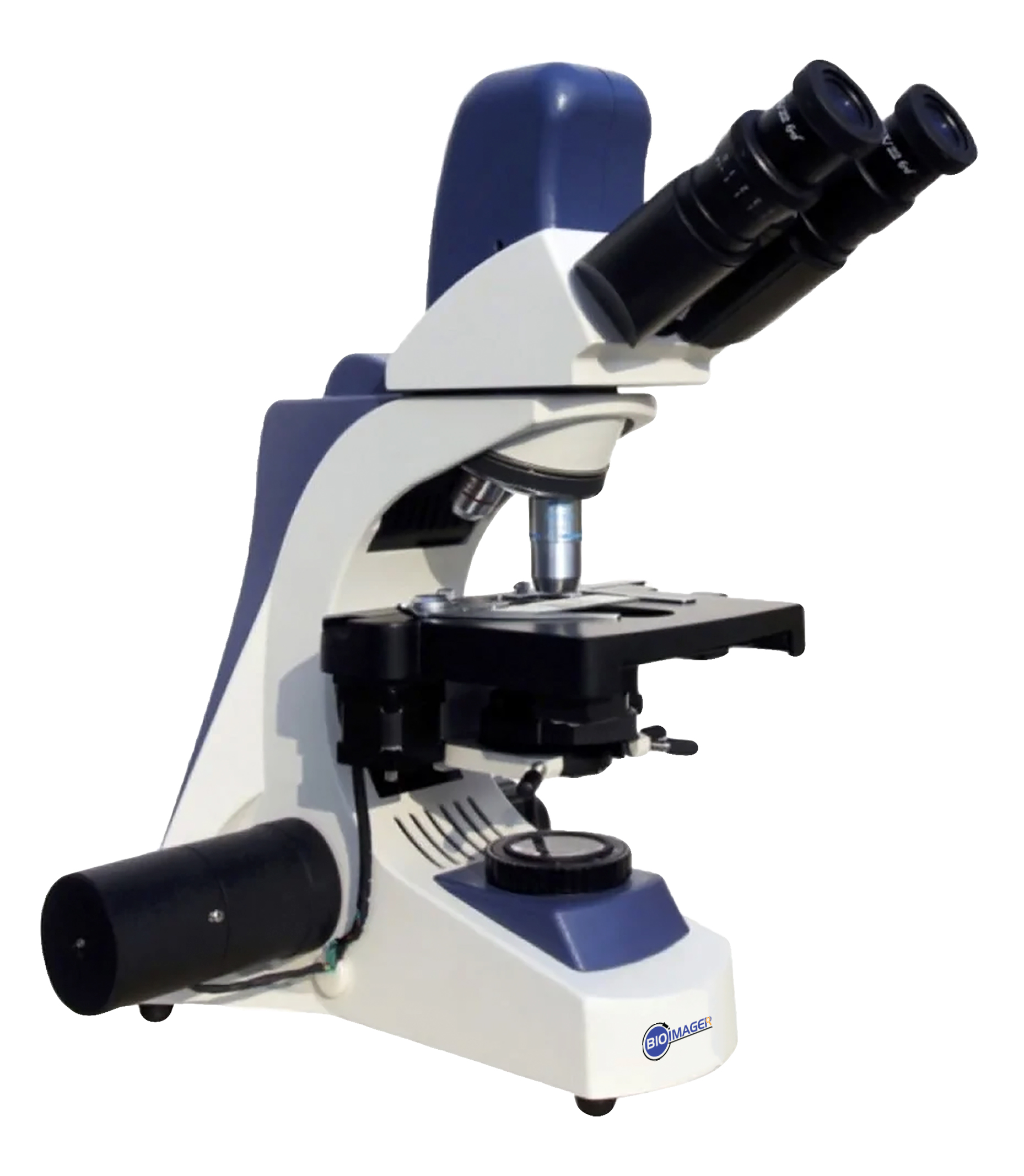

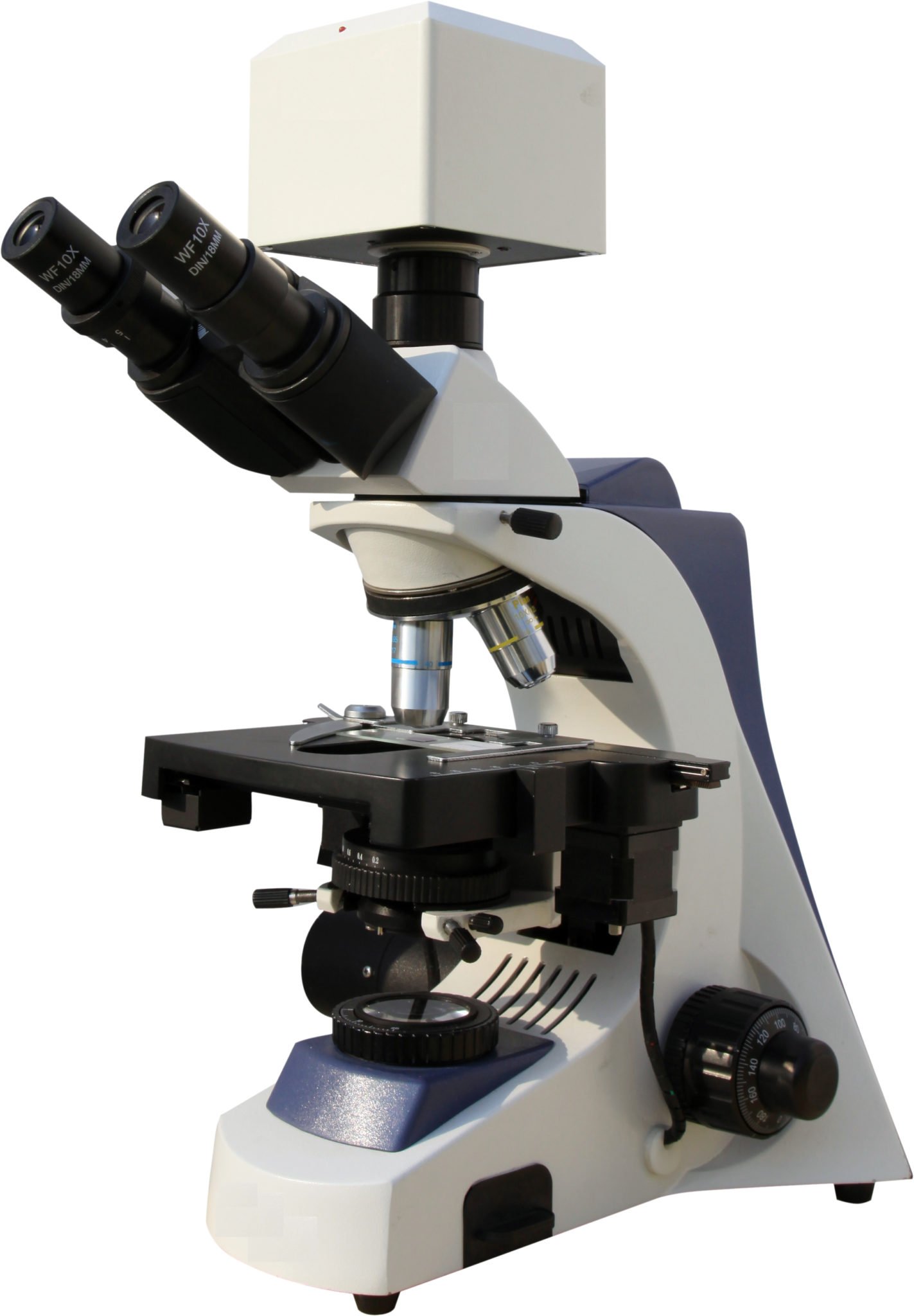

BUM400A automated biological microscope

BUM400A- motorized XYZ

  • Fully automated digital microscope
  • 4x, 10x, 20x, 40x and 100x plan obj lenses are included.
  • Brighfield Imaging with LED illumination
  • Automated XY stage and Auto-focus
  • Easy remote control via internet makes excellent choice for teleconsultation
  • Auto-focus, Auto-scanning and auto-recognition features
  • Standard Image Analysis Software
  • The most economical solution for automatic XY-Z biological microscope, slide scanning and telepathaology
  • Excellent choice for sperm / semen analyzer, urine sediment analyzer, stool analyzer, scan of cancer cells, mammalian and blood cells as well as bacterial, and telepathology etc.

BUM400A Fully Motorized Auto-Focus Biological Microscope-9846

  1. BUM400A Automated Microscope was designed to cover a wide range of applications from daily work to scientific research in biology field for universities and biotechnology companies for teaching and research purposes. It has a high performance per cost ratio, minimum manual work, high efficient, flexible and stable design which makes it the first choice for individual, hospital and scientific research institutes.
  2. Integrated light, mechanism, electric and computer into a high-tech product, BUM400A is the automatic thrust slides and focusing system of microscopic analysis. It is a product with high reliability, stability and accuracy. This system adopts the standard RS232 communication connector.
  3. With the computer control, end-users can conveniently adjust microscope field, focus and light to achieve multiple fields and fully automatic measurement, analysis of images and to achieve remote control of microscope via modern communication technology. This system can be greatly used for hospital tele-consultation and telepathology.
  4. BUM400A Automated Microscope is a advanced and complete product, combining high/low power to scan and improve focusing with oil lens in a cost effective performance and open SDK. Based on these, we provide secondary development application and OEM product solutions wholeheartedly for most microscopic medical image equipment manufacturers.

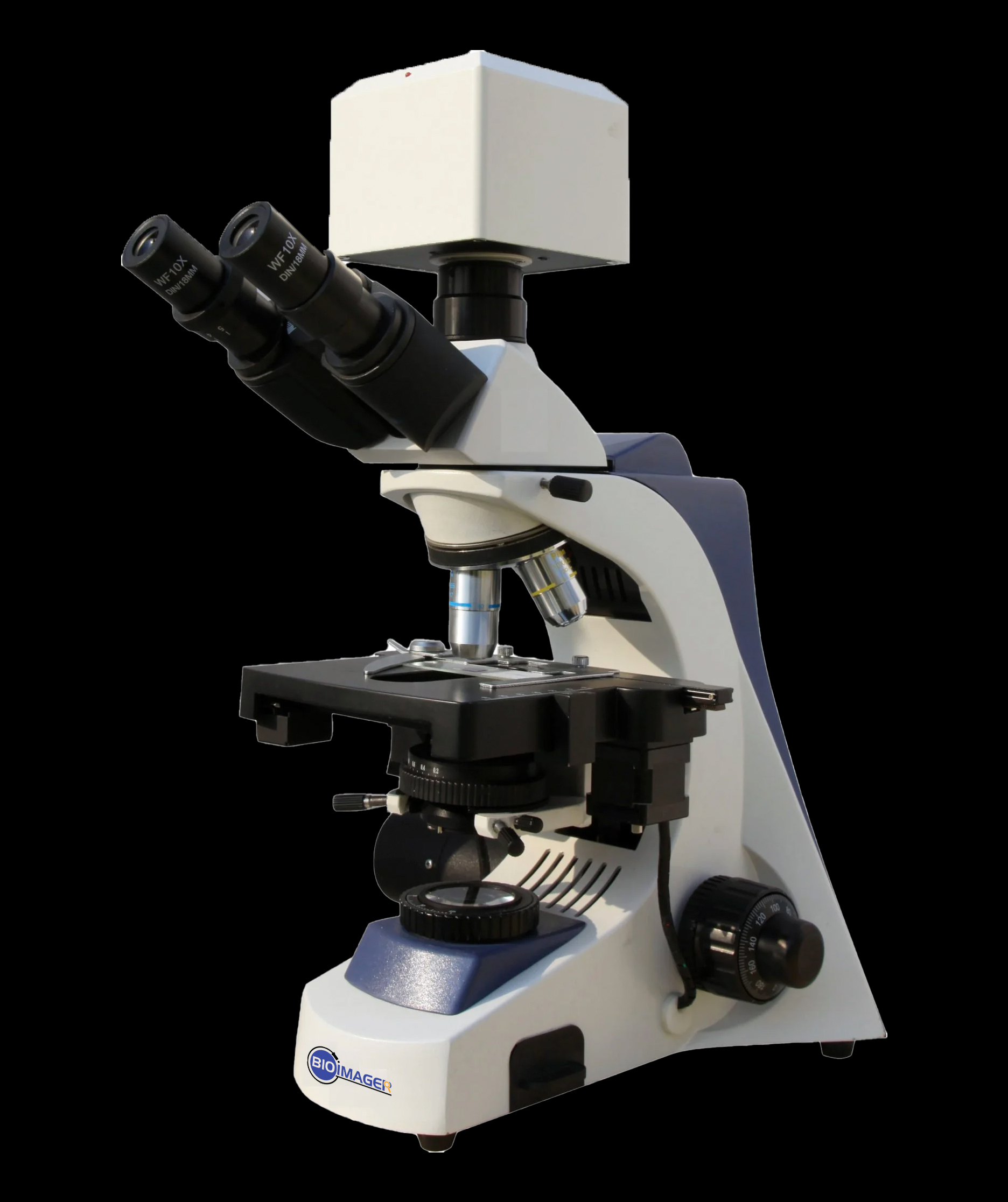

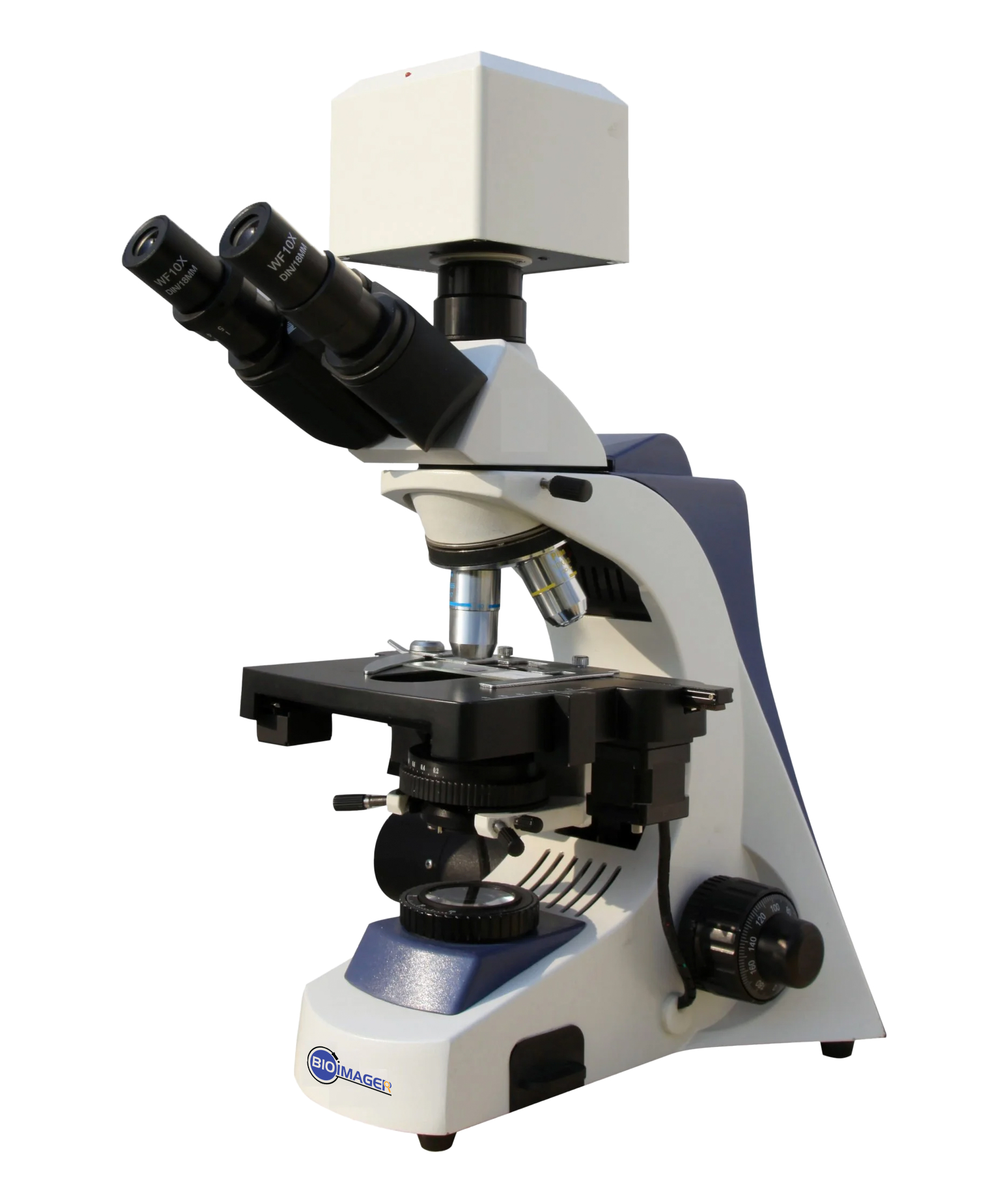

Fully Automated Digital Microscope BUM400A

BUM400A Fully Motorized Auto-Focus Biological Microscope-9840

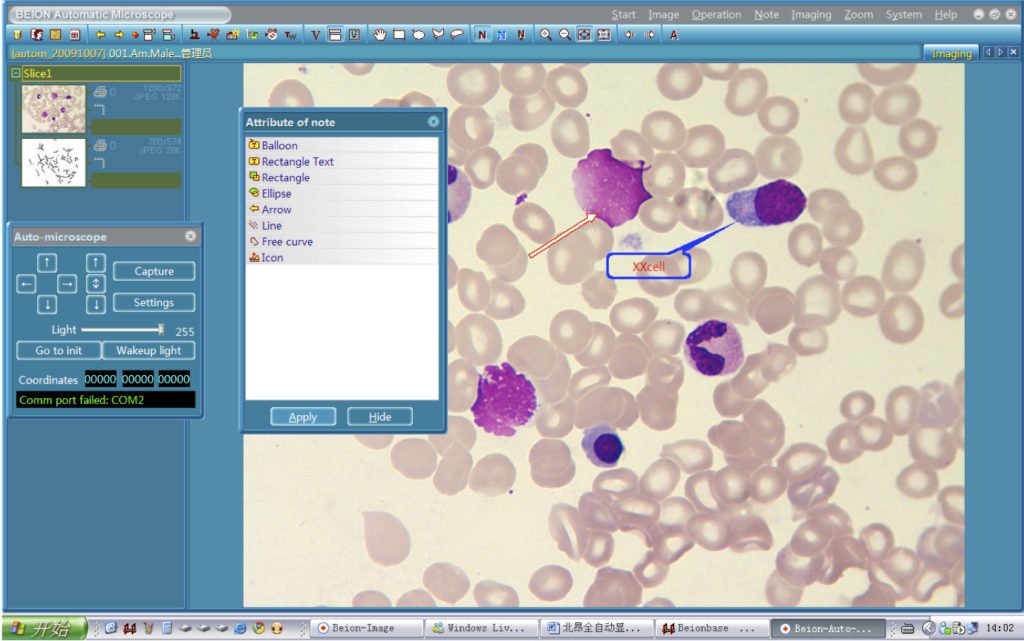

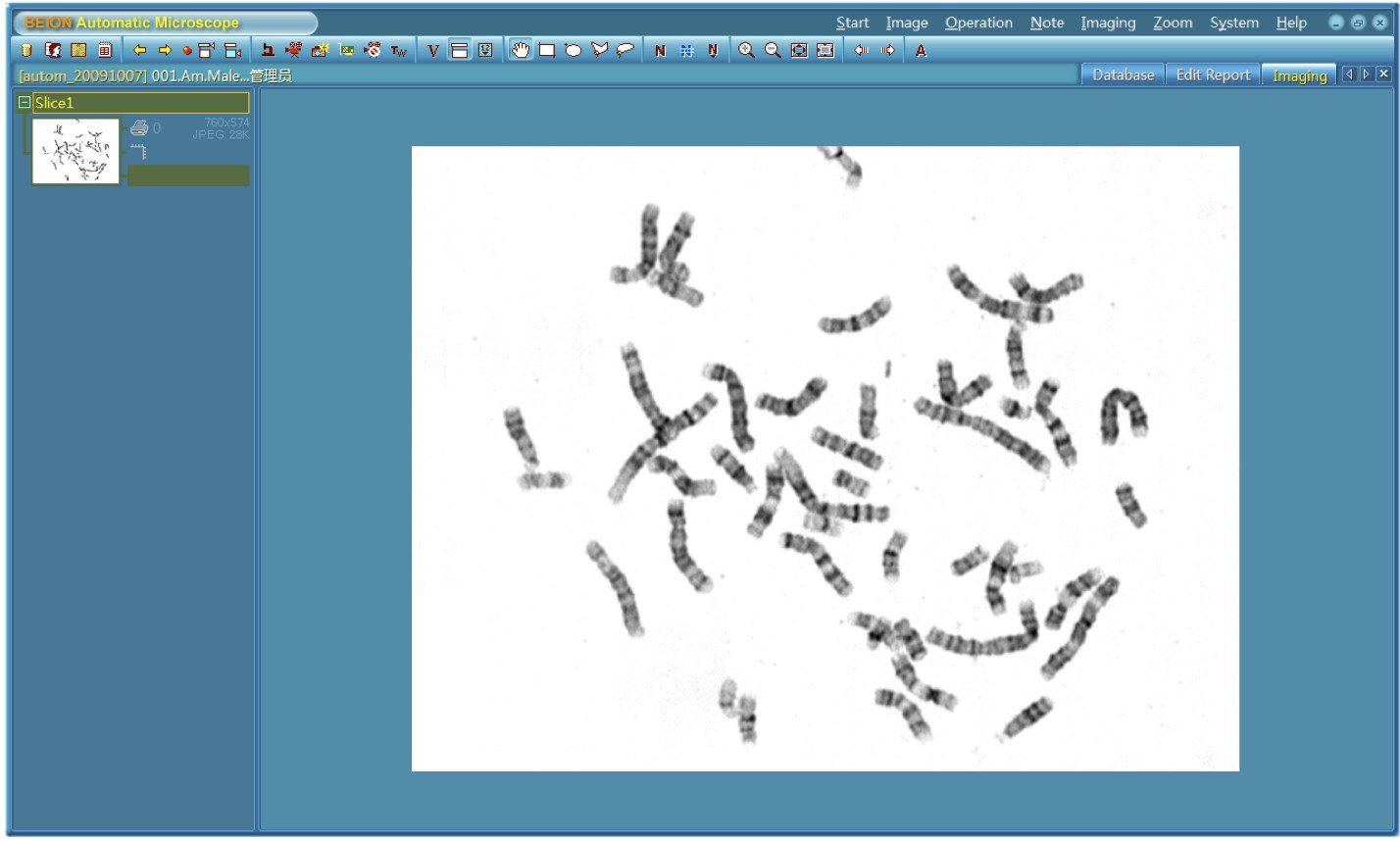

Comes with Image analysis software for various applications

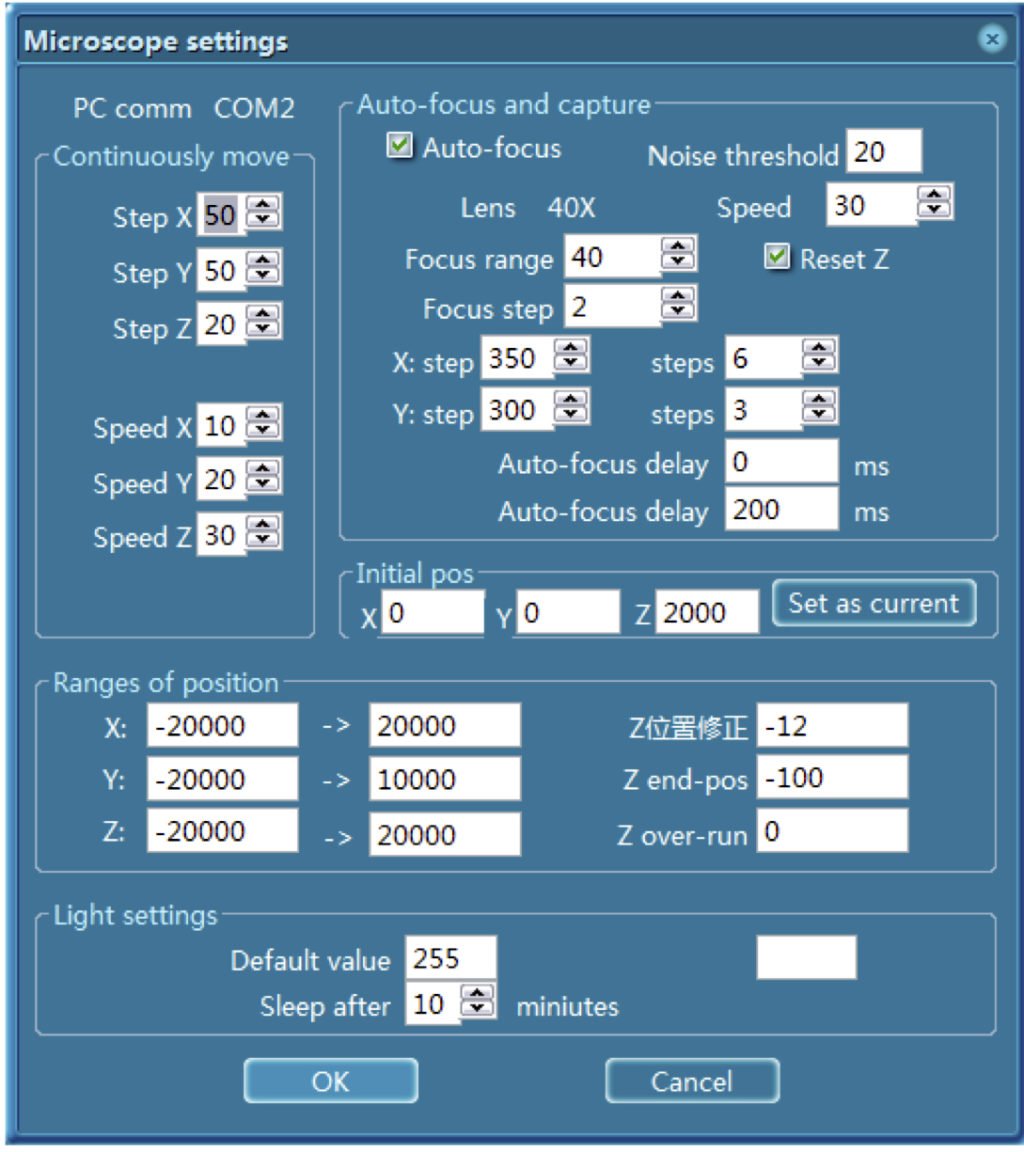

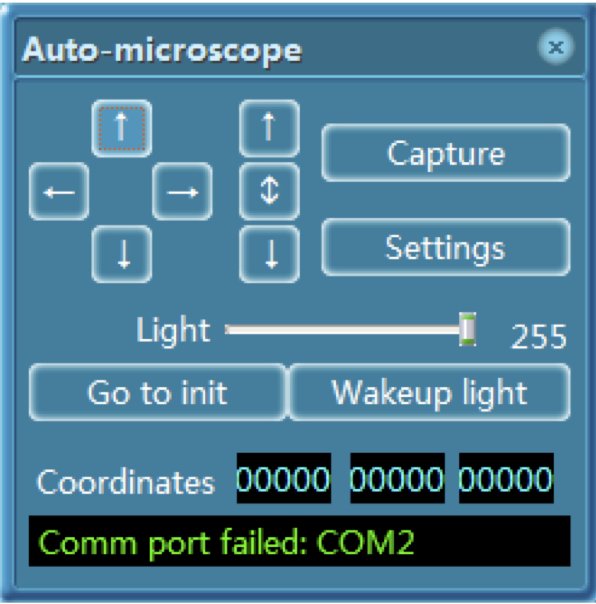

BUM400A Fully Motorized Auto-Focus Biological Microscope-9844– Full automatic control

BUM400A Fully Motorized Auto-Focus Biological Microscope-9848

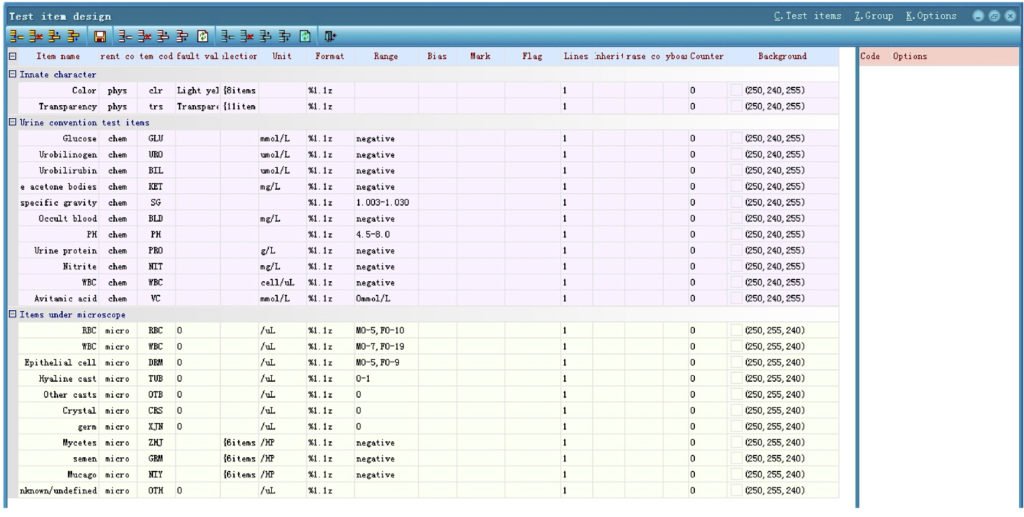

BUM400A Fully Motorized Auto-Focus Biological Microscope-9845– several measurement features

BUM400A Fully Motorized Auto-Focus Biological Microscope-9846

BUM400A Fully Motorized Auto-Focus Biological Microscope-9850

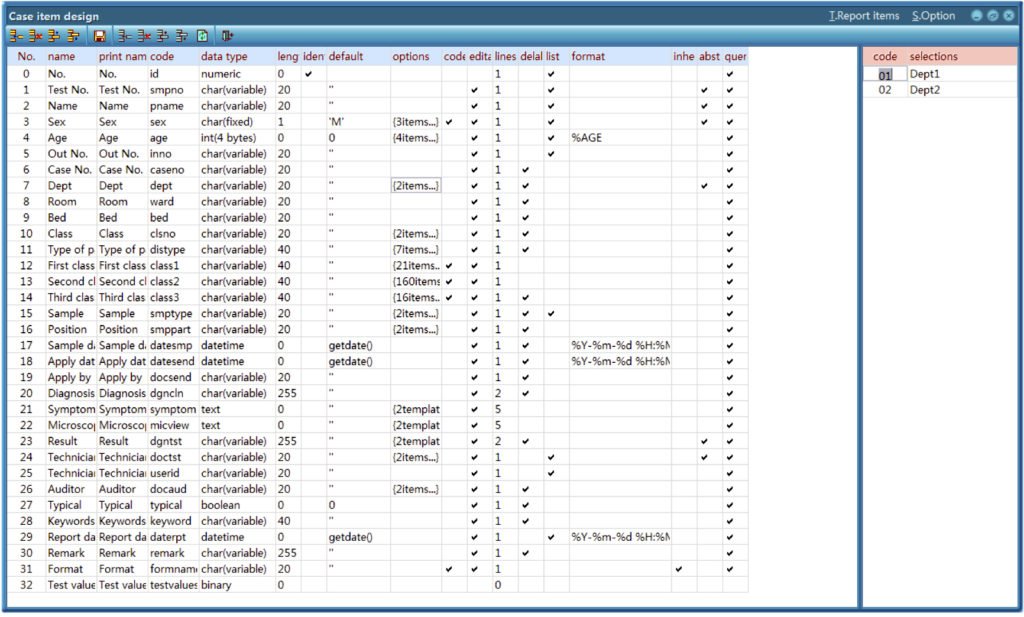

report the results in a great excel file for customized analysis:

BUM400A Fully Motorized Auto-Focus Biological Microscope-9841

BUM400A Fully Motorized Auto-Focus Biological Microscope-9847

BUM400A Fully Motorized Auto-Focus Biological Microscope-9852

SPECIFICATIONS

1- Scanning set size 180cm×155cm
2- Stage travel range 60cm×40cm(diffenent according to microscope size)
3- Screw lead 0.5cm
4- Resolution <1μm
5- Minimum Step Size 1um
6- Minimum step of focusing meet automatic focusing requirement
7- Hystersis <5um
8- Location repeatability <3um
9- Limited switch XY
10- Interface RS232
11- Step rotary degree of motor 1.8°
12- Accuracy <5um(Accuracy is the discrepancy between practical and standard measurement during long movement of screw lead

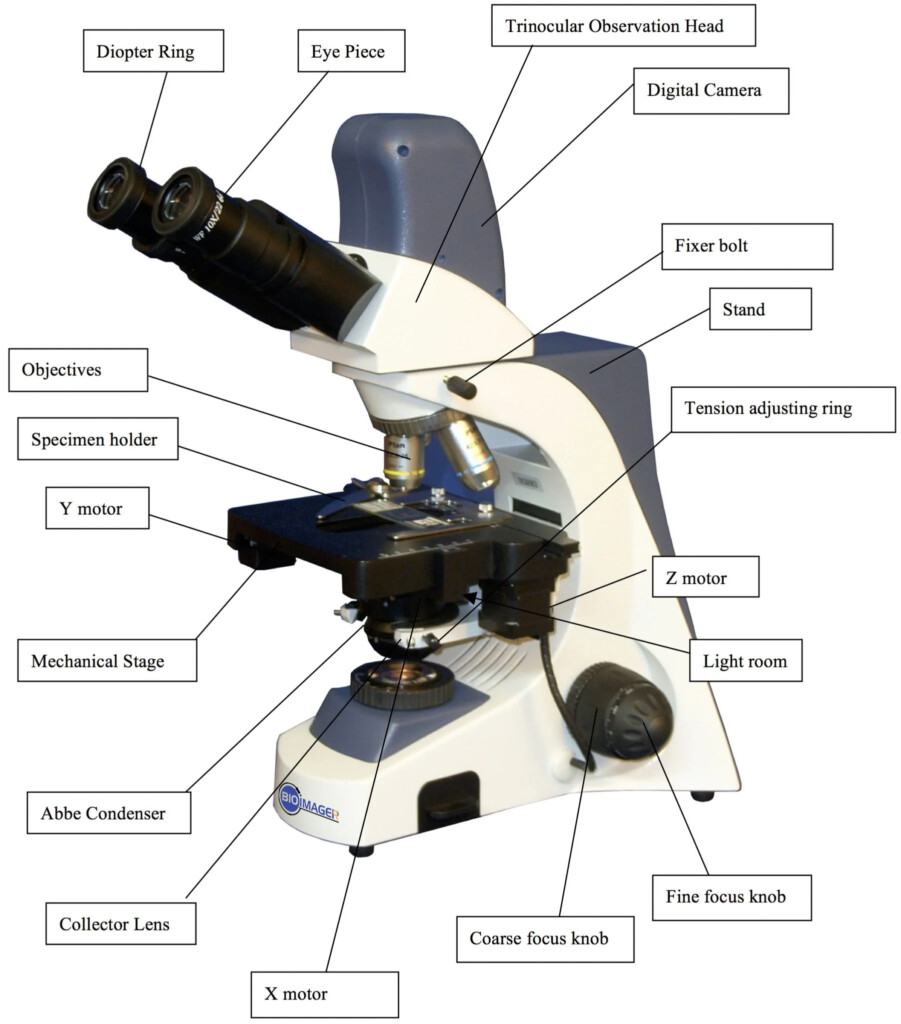

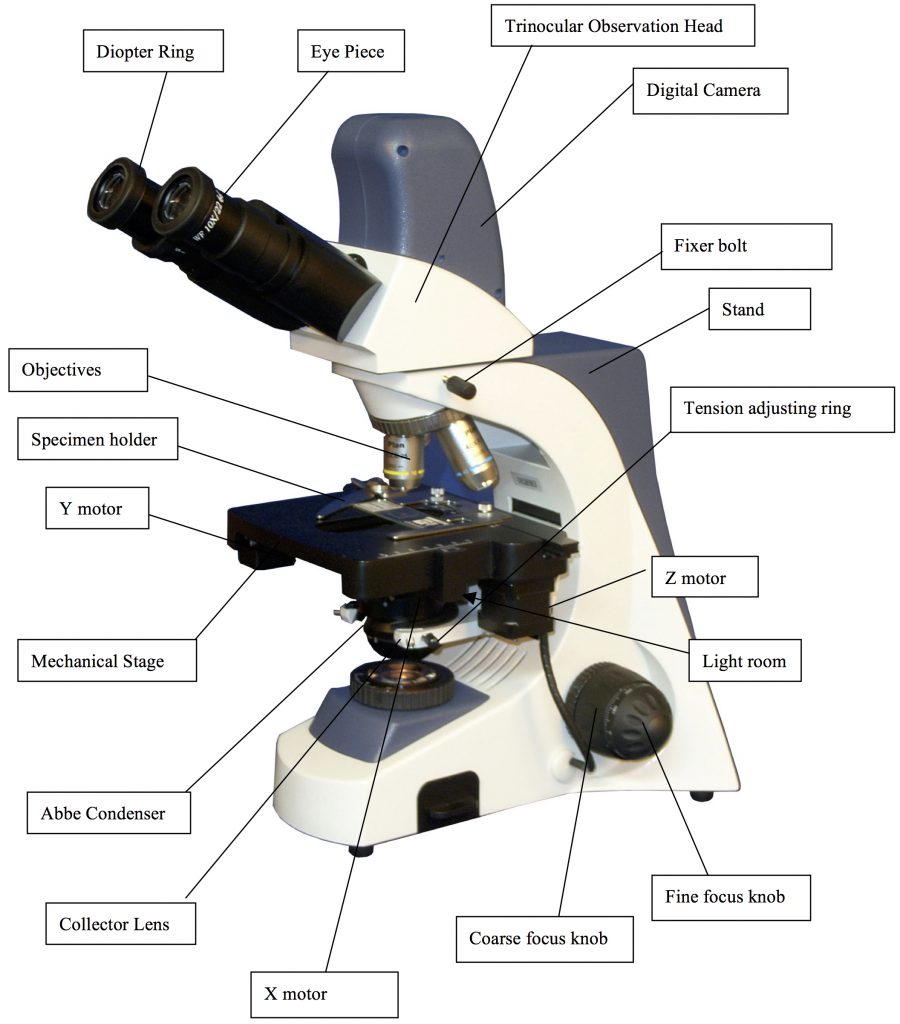

DESCRIPTIONSPECIFICATIONIncluded
HardwareBasic UnitBUM400A Automated Microscope1
Control SystemBUM400A-CS1
Eyepiece tube30°hinged, binocular, (55mm-75mm)1
ObjectivesPlan 4×, 10×, 40×, 100×1
Revolving nosepieceCan hold up to 4 objectives
EyepiecesWF 10×1
CondenserN.A 1.25 Abbe condenser with variable diaphragm and filter1
Power Adapter110V or 220 V1
FocusFine/Coarse coaxial focus to use gear rack transmission mechanism with 0.002 mm resolution1
Filter1
LampHigh brightness Kohler illumination, Adjustable Halogen lamp 12V/20W AC 85V – 230V or LED lamp1
Serial/USB data cableBum400A Automated Microscope exclusive1
Optical SystemBuilt-in U.S.A LABB Limitless Optical System protected by LOS patent1
ComputerCore Duo/ 500G HDD/DVD/2G/19’’ LEDOptional
Camera SystemLABB C20 digital video camera1
SoftwareImage Display and Capture Software1
Automatic Focus and Scanning Software1
Graphic Reports and Print Software1
Graphic Database Management Platform1





BUM400A Fully Motorized Auto-Focus Biological Microscope-9840

BUM400A Fully Motorized Auto-Focus Biological Microscope-9844

BUM400A Fully Motorized Auto-Focus Biological Microscope-9845

BUM400A Fully Motorized Auto-Focus Biological Microscope-9848

BUM400A Fully Motorized Auto-Focus Biological Microscope-9846

BUM400A Fully Motorized Auto-Focus Biological Microscope-9847

BUM400A Fully Motorized Auto-Focus Biological Microscope-9841

BUM400A Fully Motorized Auto-Focus Biological Microscope-9846

Video 1. Automated Imaging (Coming Soon)

Video 2. Phase Contrast Kit and Sample Images (optional imaging capability)

BUM-PHK Phase Contrast Kit for Upright Biological Microscopes is composed of 10x, 20x, 40x , 60x and 100x (oil) Phase contrast objective lenses, green filter, Phase alignment tool and turret condenser with different annulus.
In this video we look at the samples images of an Onion Skin thins section slide and Tilia (basswood) thin section slide, using this kit installed on Bioimager BUM800FL upright biological microscope and connected a 2.3MP USB3.0 CMOS Colorful Camera as well as a 0.5x C-Mount Adapter.

Video 3. LED Fluorescent Attachment (Optional)

This video demonstrates Bioimager BUM360FLED-A LED Fluorescence attachment to use with a standard upright microscope such as BUM400A. It comes with 5W LED of Violet (V), Ultraviolet (UV), Blue (B) and Green (G) LEDs, and its correspondent excitation and emission filters. The video demonstrates the optics and mechanics as well as sample images at different magnifications.
