Meiji Techno’s new upright Brightfield incident light metallurgical microscope is the new and cost-effective MT7000 Series Microscope. The MT7000 Series employs all new and improved optics.
MT7000L LED Bino Brightfield Metallurgical Microscope
$USD 6,100.00
MT7100L LED Trino Brightfield Metallurgical Microscope
$USD 6,310.00
MT7100 Halogen Trino Brightfield Metallurgical Microscope
$USD 6,310.00
Meiji Techno’s new upright Brightfield incident light metallurgical microscope is the new and cost-effective MT7000 Series Microscope. The MT7000 Series employs all new and improved optics.

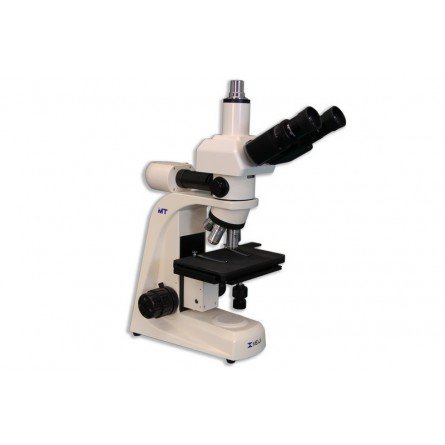

MT7100 Halogen Trino Brightfield Metallurgical Microscope
$USD 6,310.00
The MT7000 Series features include:
- Computer Aided Design
- Ergonomically positioned controls
- Comfortable Siedentopf viewing head
- 30W Vertical Koehler Illuminator with auto sensing power supply
- Brightfield observation mode
- Optional Ergonomic binocular viewing head available
Includes:
• MT7100: Trinocular Compound Metallurgical Microscope with 6V 30W Halogen Koehler Incident (Reflected) light observation and Infinity Corrected Optical System
• MA816: Trinocular head-Siedentopf type, Interpupillary Diameter adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube). Inclined at 30 degrees
• MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
• MA870: Plan Epi Objective 5X, N.A.0.10, W.D. 20.0 mm, F.N.24
• MA871: Plan Epi Objective 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 24
• MA872: Plan Epi Objective 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 24
• MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 24
• MA927: Vertical Koehler illuminator, 6V 30W Halogen lamp, with clear blue, clear green, N.D.50 neutral density filter and polarizing filters in metal mounts, 100V-240V (Powered by transformer built into MT7000 Series stand)
• MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
• MA476: Green clear filter, 19.5mm diameter in metal mount, fits 25mm filter slot (Included in all halogen models)
• MA774: N.D.50 neutral density filter, 19.5 mm diameter filter in metal mount, fits 25 mm filter slot
• MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
• MA941: Ceramic coated flat-top stage, 191mm X 126 mm, 100mm X 100mm X-Y movement, with right hand drop-down coaxial controls
• MA326: 6V 30W Halogen lamp (Factory Installed)
• MA327: 3 Amp Fuse for Halogen illuminator (Factory Installed)
• MA809/10: Removable AC electric cord with plug for 115V Models
• MA906 (x 2): Rubber Eyeshield for MA817 SWH10X eyepiece
• MA711: Dust cover for all MT7000 Series microscope
• Manual: Meiji Techno America MT7000 Manual
• Warranty: Limited Lifetime Warranty Card
Product Information:
• Manufactured: 100% MADE IN JAPAN
• Warranty: LIMITED LIFETIME WARRANTY
• Customer Support: 1-(800) 832-0060 (U.S.A Based)
Package Information:
• Weight: 30.8 lbs (13.6 kg)
• Box Size: 16 x 14 x 21 inches
• Footprint: 263mm (D) x 176mm (W)
• Binocular head typeB 424.5 mm(D) x 471mm (H) x 210mm(W) (8.5kg)( 30.8 lbs)
• Trinocular head type: 424.5 mm(D) x 526mm(H) x 210mm(W) (9.2kg)( 33.35 lbs)
• Binocular Ergonomic head type: 424.5 mm(D) x 471mm (H) x 210mm(W) (8.5kg)( 30.8 lbs)
• Trinocular Ergonomic head type: 424.5 mm(D) x 550mm(H) x 210mm(W) (9.6kg)( 35.00 lbs)
Included:
• MT7100: Trinocular Compound Metallurgical Microscope with 6V 30W Halogen Koehler Incident (Reflected) light observation and Infinity Corrected Optical System
• MA816: Trinocular head-Siedentopf type, Interpupillary Diameter adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube). Inclined at 30 degrees
• MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
• MA870: Plan Epi Objective 5X, N.A.0.10, W.D. 20.0 mm, F.N.24
• MA871: Plan Epi Objective 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 24
• MA872: Plan Epi Objective 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 24
• MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 24
• MA927: Vertical Koehler illuminator, 6V 30W Halogen lamp, with clear blue, clear green, N.D.50 neutral density filter and polarizing filters in metal mounts, 100V-240V (Powered by transformer built into MT7000 Series stand)
• MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
• MA476: Green clear filter, 19.5mm diameter in metal mount, fits 25mm filter slot (Included in all halogen models)
• MA774: N.D.50 neutral density filter, 19.5 mm diameter filter in metal mount, fits 25 mm filter slot
• MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
• MA941: Ceramic coated flat-top stage, 191mm X 126 mm, 100mm X 100mm X-Y movement, with right hand drop-down coaxial controls
• MA326: 6V 30W Halogen lamp (Factory Installed)
• MA327: 3 Amp Fuse for Halogen illuminator (Factory Installed)
• MA809/10: Removable AC electric cord with plug for 115V Models
• MA906 (x 2): Rubber Eyeshield for MA817 SWH10X eyepiece
• MA711: Dust cover for all MT7000 Series microscope
• Manual: Meiji Techno America MT7000 Manual
OPTIONAL COMPONENTS & ACCESSORIES BELOW
Viewing Heads:
• MA815: Binocular head-Siedentopf type, Interpupillary Diameter adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube). Inclined at 30 degrees
• MA957: Ergonomic tilting binocular head – Adjustable vertically from 10 to 50 degrees (30.0 mm I.D. eyetube) Erect image (Included in MT7000EH, MT7100EH, MT7000EL and MT7100EL models)
• MA959: Trinocular head – Siedentopf type, erect image with sliding 0/100 beamsplitter, inclined at 30 degrees, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube
Photo/Video Attachment :
• MA958: Photo/video attachment with sliding 80/20 beam-splitter. For use with video or digital cameras when MA957 ergonomic head is used (Included in Model MT9550)
Eyepieces:
• MA818: SWH 15X Widefield high eyepoint eyepiece, Field No. 16.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
• MA819: SWH 20X Widefield high eyepoint eyepiece, Field No. 12.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
• MA859: SWH 10X-F Focusing eyepiece with reticle mount (without reticle), tube O.D. 30.0 mm (each) (MA859 accepts optional 25mm diameter reticle)
Brightfield Plan Epi Objectives :
• MA874: Plan Epi Objective 100X, N.A. 0.90, W.D. 0.37mm, F.N. 24
Brightfield LWD (Long Working Distance) Plan Epi Objectives :
• MA920: LWD Plan Epi Objective 20X, N.A. 0.40, W.D. 11.0 mm, F.N. 24
• MA921: LWD Plan Epi Objective 50X, N.A. 0.55, W.D. 7.5 mm, F.N. 24
Eyepiece Micrometer (25mm diameter for use with MA817 or MA859 eyepieces):
• MA523: Eyepiece micrometer, cross-line reticle, 25mm diameter
• MA506: Eyepiece micrometer, 10mm line divided into 100 units, 25mm diameter
• MA509: Eyepiece micrometer, 5mm line divided into 100 units, 25mm diameter
• MA510: Eyepiece micrometer, 10mm square divided into 100 parts, each square 1.0 mm, 25mm diameter
• MA542: Eyepiece micrometer, cross-line reticle with 0.1mm graduations, 25mm diameter
• MA738: Eyepiece micrometer, for grain sizing in steel
Eyepiece Micrometer (19mm diameter for use with MA818 or MA819 eyepieces):
• MA279: Eyepiece micrometer, cross-line reticle, 19mm diameter
• MA280: Eyepiece micrometer, 10mm line divided into 100 units, 19mm diameter
• MA281: Eyepiece micrometer, 5mm line divided into 100 units, 19mm diameter
• MA283: Eyepiece micrometer, 10mm square divided into 100 parts, each square 1.0 mm, 19mm diameter
• MA539: Eyepiece micrometer, cross-line reticle with 0.1mm graduations, 19mm diameter
Stage Mircometers:
• MA292: Metal stage micrometer, 1mm divided into 100 units, 0.01mm
Replacement Bulbs and Fuses:
• MA326: Spare bulb 6V 30W halogen lamp for MT7000 and MT7100
• MA327: Spare fuse 3A for halogen Illuminator for MT7000 and MT7100
