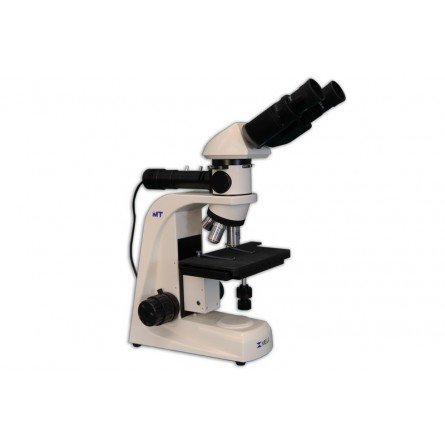

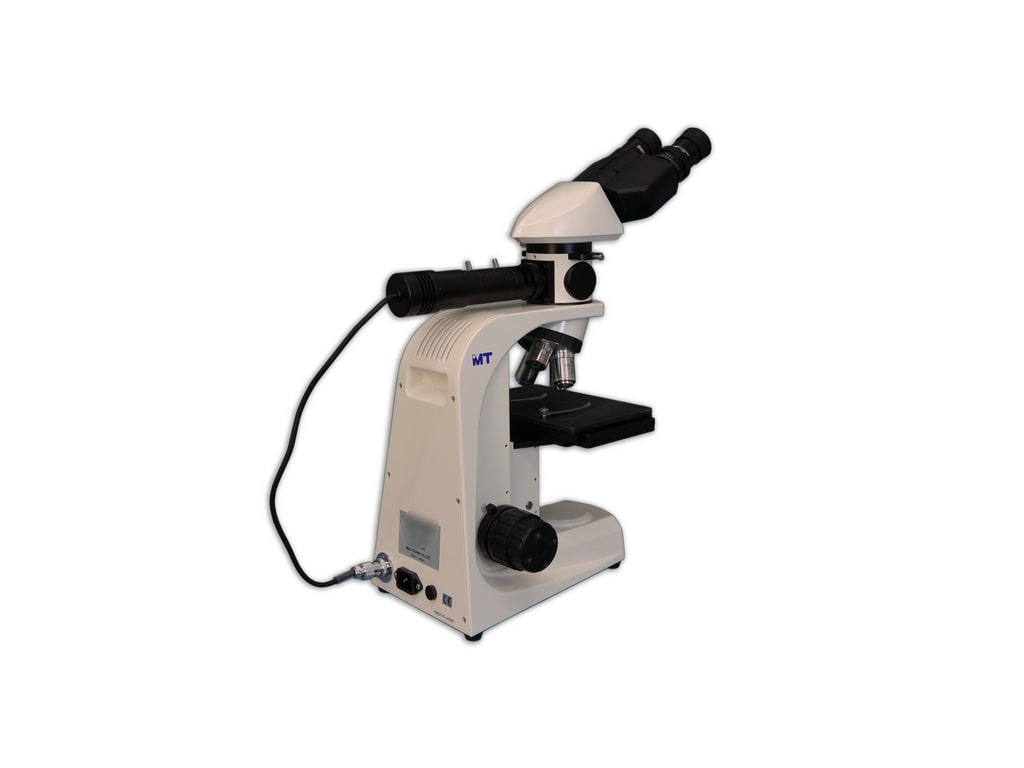

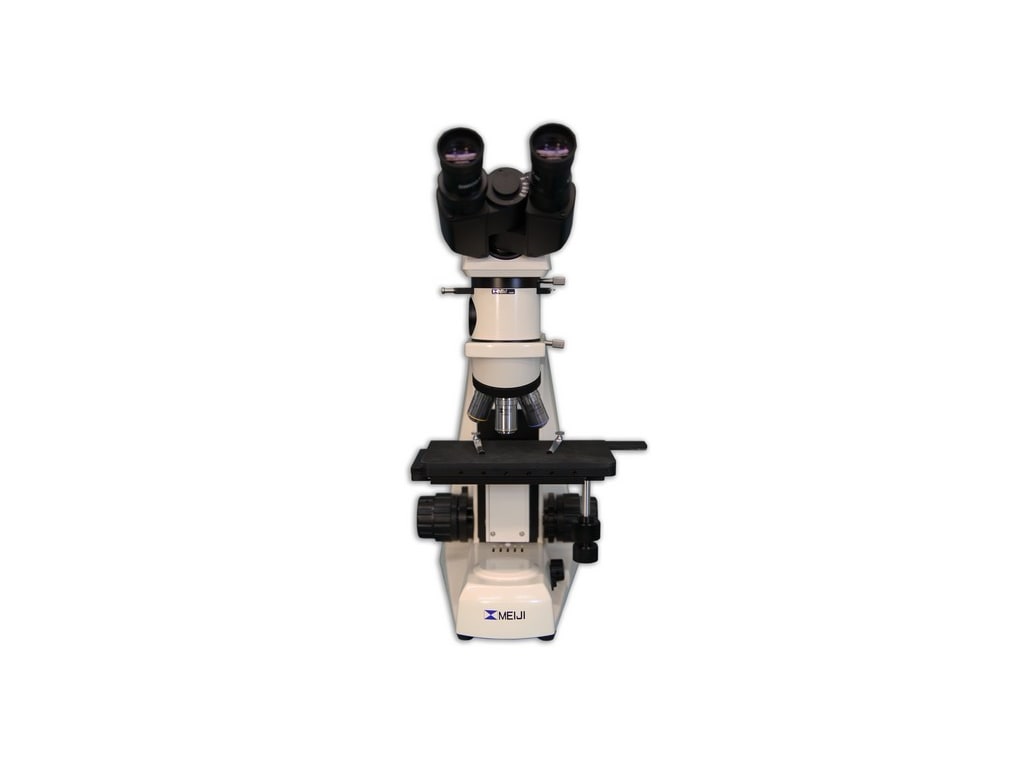

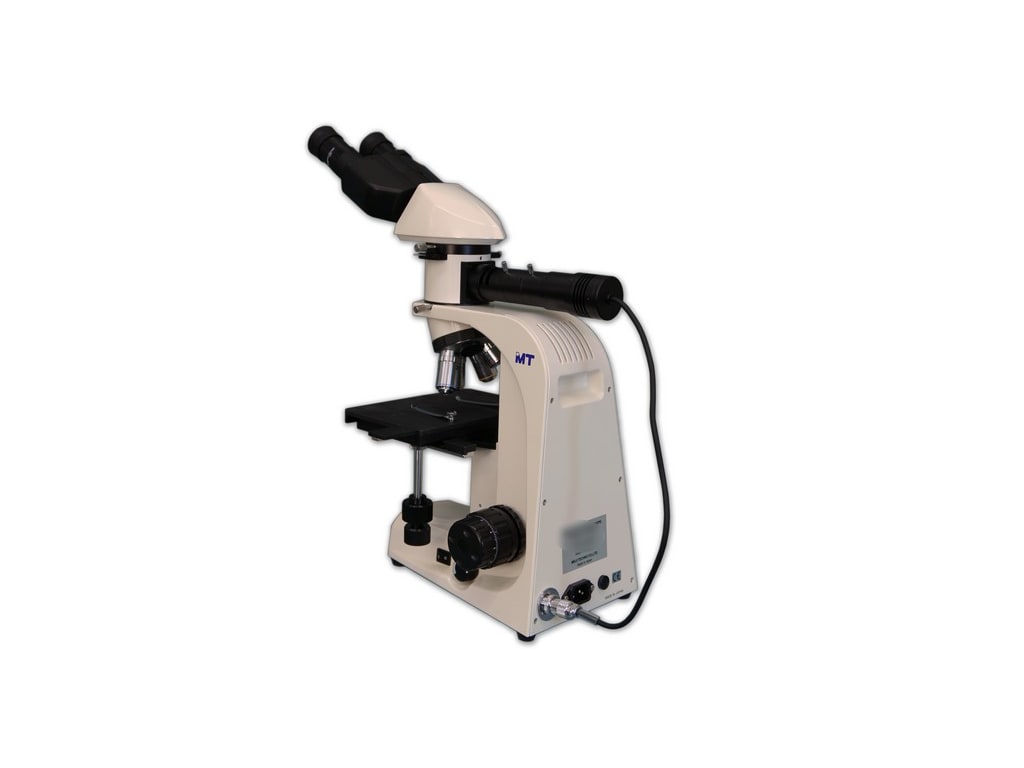

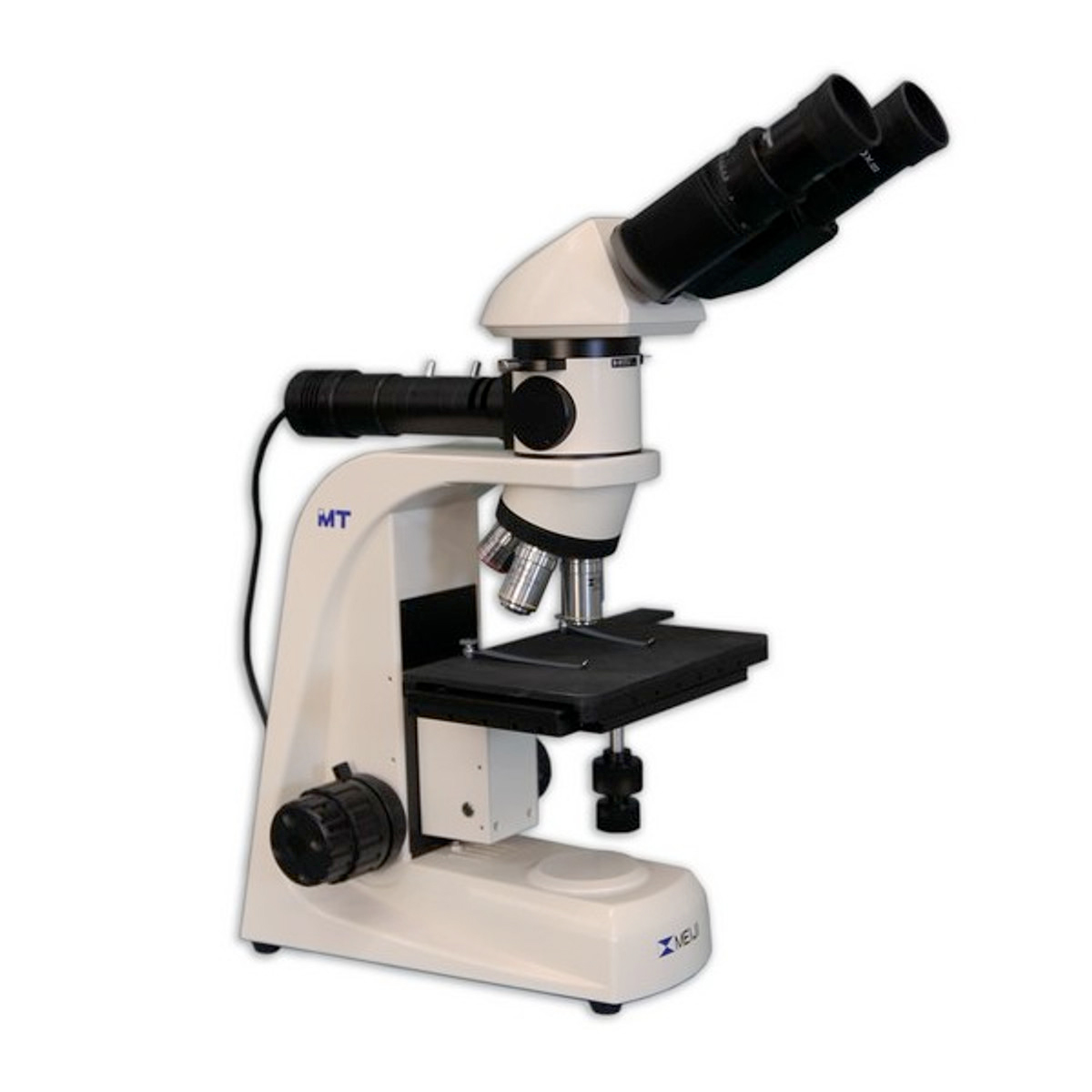

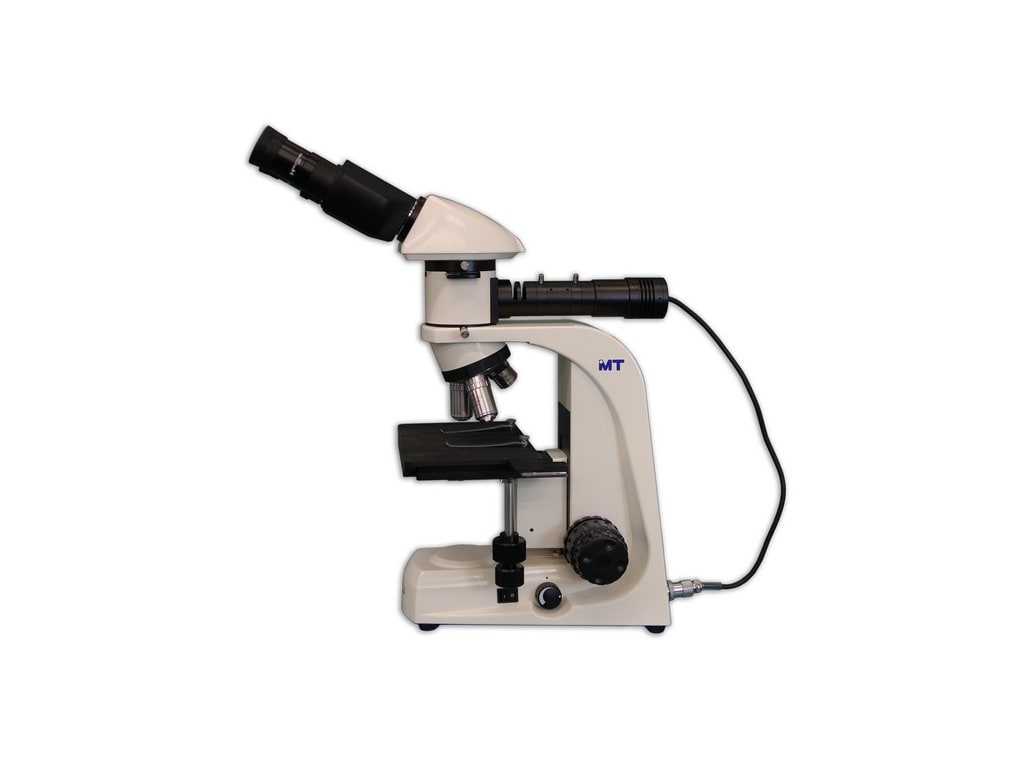

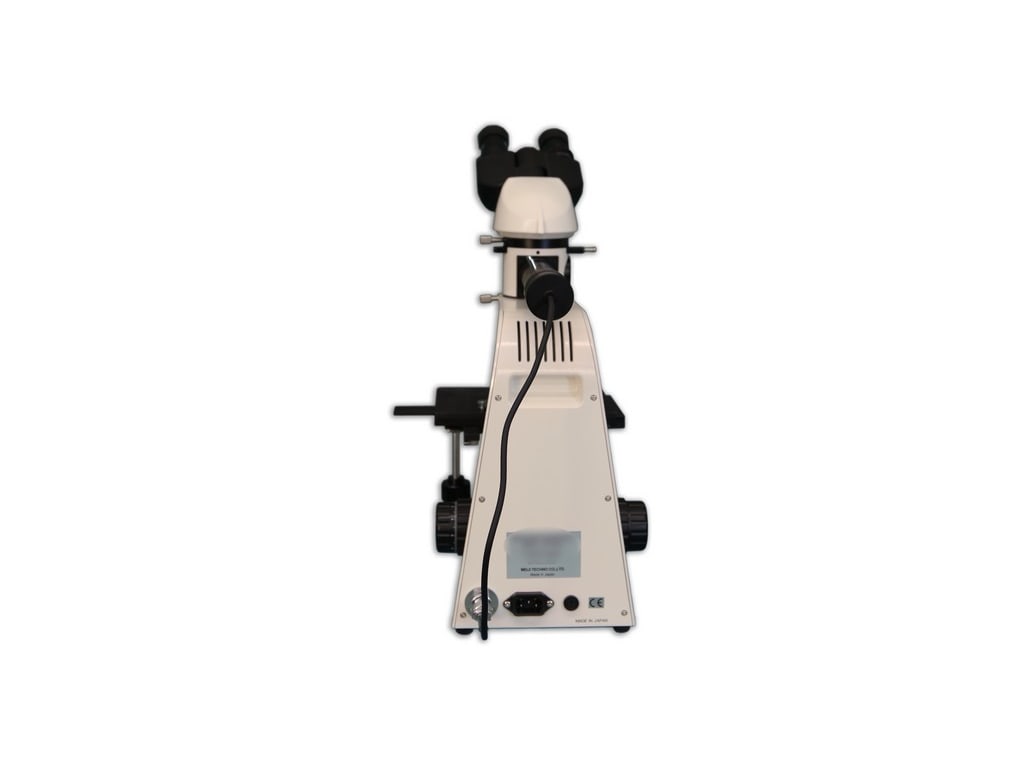

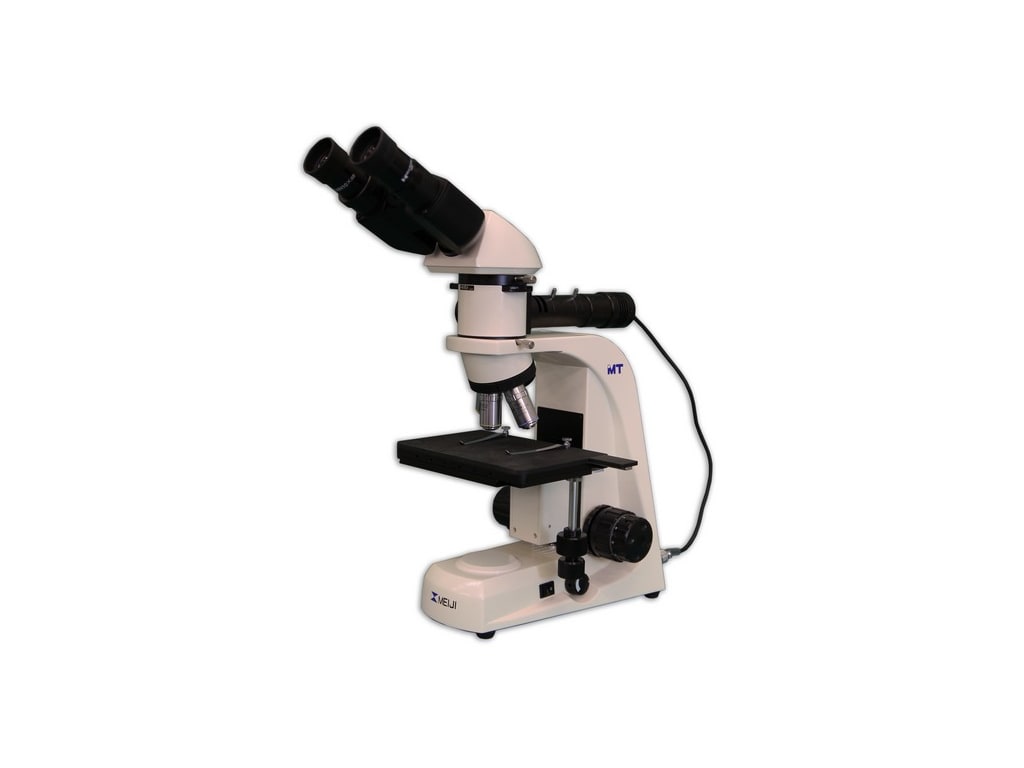

MT7000L LED Bino Brightfield Metallurgical Microscope

$USD 6,100.00

Meiji Techno’s new upright Brightfield incident light metallurgical microscope is the new and cost-effective MT7000 Series Microscope. The MT7000 Series employs all new and improved optics.

Guaranteed Safe Checkout

Meiji Techno’s new upright Brightfield incident light metallurgical microscope is the new and cost-effective MT7000 Series Microscope. The MT7000 Series employs all new and improved optics.

The MT7000 Series features include:

  • Computer Aided Design
  • Ergonomically positioned controls
  • Comfortable Siedentopf viewing head
  • 30W Vertical Koehler Illuminator with auto sensing power supply
  • Brightfield observation mode
  • Optional Ergonomic binocular viewing head available

Includes:
MT7000L: Binocular Compound Metallurgical Microscope with Vertical Koehler LED Incident (Reflected) light observation and Infinity Corrected Optical System
MA815: Binocular head-Siedentopf type, Interpupillary Diameter adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube). Inclined at 30 degrees
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA870: Plan Epi Objective 5X, N.A.0.10, W.D. 20.0 mm, F.N.24
MA871: Plan Epi Objective 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 24
MA872: Plan Epi Objective 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 24
MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 24
MA927: Vertical Koehler illuminator, 6V 30W Halogen lamp, with clear blue, clear green, N.D.50 neutral density filter and polarizing filters in metal mounts, 100V-240V (Powered by transformer built into MT7000 Series stand)
MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA476: Green clear filter, 19.5mm diameter in metal mount, fits 25mm filter slot (Included in all halogen models)
MA774: N.D.50 neutral density filter, 19.5 mm diameter filter in metal mount, fits 25 mm filter slot
MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA941: Ceramic coated flat-top stage, 191mm X 126 mm, 100mm X 100mm X-Y movement, with right hand drop-down coaxial controls
PKL/LED-I/BULB: 5W LED Bulb for LED illuminator(Factory Installed)
MA929: 0.5Amp Fuse for LED illuminator(Factory Installed)
MA809/20: Removable AC electric cord with plug for 115V Models
MA906 (x 2): Rubber Eyeshield for MA817 SWH10X eyepiece
MA711: Dust cover for all MT7000 Series microscope
Manual: Meiji Techno America MT7000 Manual
Warranty: Limited Lifetime Warranty Card

Product Information:
Manufactured: 100% MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
Weight: 30.8 lbs (13.6 kg)
Box Size: 16 x 14 x 21 inches
Footprint: 263mm (D) x 176mm (W)
Binocular head typeB 424.5 mm(D) x 471mm (H) x 210mm(W) (8.5kg)( 30.8 lbs)
Trinocular head type: 424.5 mm(D) x 526mm(H) x 210mm(W) (9.2kg)( 33.35 lbs)
Binocular Ergonomic head type: 424.5 mm(D) x 471mm (H) x 210mm(W) (8.5kg)( 30.8 lbs)
Trinocular Ergonomic head type: 424.5 mm(D) x 550mm(H) x 210mm(W) (9.6kg)( 35.00 lbs)

Model Head Illumination Eyepieces Objectives Stage
MT7000 Binocular 30W Vertical Koehler SWH10x FN22 Plan Epi 5x, 10x, 20x, 50x Fixed flat-top left or right-handed controls
MT700EH Ergonomic Binocular
MT7100 Trinocular
MT7100EH Ergonomic Trinocular
MT7000L Binocular LED Illumination
MT7000EL Ergonomic Binocular
MT7100L Trinocular
MT7100EL Ergonomic Trinocular

VIEWING HEADS
Model MA815 is the Siedentopf-type binocular head and Model MA816 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. The optional Ergonomic Viewing Head has the inclination adjustable from 10 to 50 degrees to fit any size user.

EYEPIECES
10X Super Widefield High Eyepoint eyepieces F.N.22 are standard, and 15X and 20X eyepieces are available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts 25mm reticules is also available.

OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.

OBJECTIVES
Meiji Techno offers an assortment of Plan Epi Infinity Corrected objectives for Brightfield work.

STAGE
Ceramic coated left or right-handed, flat top stage measures 191mm x 126mm with x-y travel: 100mm(X) x 100mm(Y). Ergonomically positioned coaxial drop down controls.

CONDENSER
Strain free Abbe 1.25 NA Condenser with iris diaphragm in dovetail mount.

ILLUMINATION
Powerful 30 watt halogen illumination provides enhanced image quality and brightness for the observation of metallurgical specimens.

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

MT7000L LED Bino Brightfield Metallurgical MicroscopeMT7000L LED Bino Brightfield Metallurgical MicroscopeMT7000L LED Bino Brightfield Metallurgical MicroscopeMT7000L LED Bino Brightfield Metallurgical MicroscopeMT7000L LED Bino Brightfield Metallurgical Microscope

Included:
• MT7000L: Binocular Compound Metallurgical Microscope with Vertical Koehler LED Incident (Reflected) light observation and Infinity Corrected Optical System
• MA815: Binocular head-Siedentopf type, Interpupillary Diameter adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0mm I.D.eyetube). Inclined at 30 degrees
• MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
• MA870: Plan Epi Objective 5X, N.A.0.10, W.D. 20.0 mm, F.N.24
• MA871: Plan Epi Objective 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 24
• MA872: Plan Epi Objective 20X, N.A. 0.40, W.D. 5.20 mm, F.N. 24
• MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 24
• MA927: Vertical Koehler illuminator, 6V 30W Halogen lamp, with clear blue, clear green, N.D.50 neutral density filter and polarizing filters in metal mounts, 100V-240V (Powered by transformer built into MT7000 Series stand)
• MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
• MA476: Green clear filter, 19.5mm diameter in metal mount, fits 25mm filter slot (Included in all halogen models)
• MA774: N.D.50 neutral density filter, 19.5 mm diameter filter in metal mount, fits 25 mm filter slot
• MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
• MA941: Ceramic coated flat-top stage, 191mm X 126 mm, 100mm X 100mm X-Y movement, with right hand drop-down coaxial controls
• PKL/LED-I/BULB: 5W LED Bulb for LED illuminator(Factory Installed)
• MA929: 0.5Amp Fuse for LED illuminator(Factory Installed)
• MA809/20: Removable AC electric cord with plug for 115V Models
MA809/10: Removable AC electric cord with plug for 115V Models
MA906 (x 2): Rubber Eyeshield for MA817 SWH10X eyepiece
MA711: Dust cover for all MT7000 Series microscope
Manual: Meiji Techno America MT7000 Manual

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Viewing Heads:
MA816: Trinocular head – Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube) Inclined at 30 degrees Inverted Image (Included in MT7100 and MT7100L models))
MA957: Ergonomic tilting binocular head – Adjustable vertically from 10 to 50 degrees (30.0 mm I.D. eyetube) Erect image (Included in MT7000EH, MT7100EH, MT7000EL and MT7100EL models)
MA959: Trinocular head – Siedentopf type, erect image with sliding 0/100 beamsplitter, inclined at 30 degrees, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube

Photo/Video Attachment :
MA958: Photo/video attachment with sliding 80/20 beam-splitter. For use with video or digital cameras when MA957 ergonomic head is used (Included in Model MT9550)

Eyepieces:
MA818: SWH 15X Widefield high eyepoint eyepiece, Field No. 16.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
MA819: SWH 20X Widefield high eyepoint eyepiece, Field No. 12.0, tube O.D. 30.0 mm (each) (19mm reticle mount)
MA859: SWH 10X-F Focusing eyepiece with reticle mount (without reticle), tube O.D. 30.0 mm (each) (MA859 accepts optional 25mm diameter reticle)

Brightfield Plan Epi Objectives :
MA874: Plan Epi Objective 100X, N.A. 0.90, W.D. 0.37mm, F.N. 24

Brightfield LWD (Long Working Distance) Plan Epi Objectives :
MA920: LWD Plan Epi Objective 20X, N.A. 0.40, W.D. 11.0 mm, F.N. 24
MA921: LWD Plan Epi Objective 50X, N.A. 0.55, W.D. 7.5 mm, F.N. 24

Eyepiece Micrometer (25mm diameter for use with MA817 or MA859 eyepieces):
MA523: Eyepiece micrometer, cross-line reticle, 25mm diameter
MA506: Eyepiece micrometer, 10mm line divided into 100 units, 25mm diameter
MA509: Eyepiece micrometer, 5mm line divided into 100 units, 25mm diameter
MA510: Eyepiece micrometer, 10mm square divided into 100 parts, each square 1.0 mm, 25mm diameter
MA542: Eyepiece micrometer, cross-line reticle with 0.1mm graduations, 25mm diameter
MA738: Eyepiece micrometer, for grain sizing in steel

Eyepiece Micrometer (19mm diameter for use with MA818 or MA819 eyepieces):
MA279: Eyepiece micrometer, cross-line reticle, 19mm diameter
MA280: Eyepiece micrometer, 10mm line divided into 100 units, 19mm diameter
MA281: Eyepiece micrometer, 5mm line divided into 100 units, 19mm diameter
MA283: Eyepiece micrometer, 10mm square divided into 100 parts, each square 1.0 mm, 19mm diameter
MA539: Eyepiece micrometer, cross-line reticle with 0.1mm graduations, 19mm diameter

Stage Mircometers:
MA292: Metal stage micrometer, 1mm divided into 100 units, 0.01mm

Replacement Bulbs and Fuses:
• PKL/LED-I/BULB: 5W LED Bulb for LED illuminator
• MA929: 0.5Amp Fuse for LED illuminator
