Save $525

Jenoptik ProgRes CF/MF Cool/Scan USB/FireWire 1.4MP 2/3″ 6.45μm/pixel CCD Research Camera


In stock


The ProgRes® Research cameras are furnished with sensitive CCD color or monochrome sensors and have been optimized for applications in exacting tasks, especially in the research field. Brilliant images even with low-light specimen are granted due to the high sensitivity of these models. High live image frame rates as well as a broad dynamic range provide expeditious and smooth workflow. Optionally available with cooling these cameras are also suitable for low-noise long-time exposures.

In stock

$4,765.00 $5,290.00

Highest image quality

The high sensitivity of the color and monochrome ProgRes® CCD Research cameras warrants brilliant images, especially when
working with low-light specimens. Expeditious and smooth operation is provided by sensitive CCD sensors with high frame rates
and a broad dynamic range. Especially the cooled camera models are adapted to handle mainly low-noise long-time exposures.
ProgRes® CS / MS for highest sensitivity.
Due to the very large pixel size of 8.3 μm these USB 2.0 cameras are especially suitable for most sensitive applications,
where also a very fast live image is required. Even moving objects can be recorded and fast processes can be followed up.
ProgRes® C14plus for true colors.
For detailed image analysis and informative image documentation, the Microscanning technology provided in the
scanning ProgRes® CCD Research cameras allows for capturing overview images and details in high-resolution of up to
12.5 mega pixels. The ProgRes® C14plus offers genuine color reproduction in proper detail with up to 12.5 mega pixels. Its
patented Color-Co-Site-Sampling records the color information exactly in three color channels for an absolutely real color image.


• High frame rates

• Perfect color reproduction

• Highest image resolution

• High sensitivity and low noise

• Fit to any PC and microscope

• Free ProgRes® capture software for easy operation

• Safe investment

• Excellent price-performance ratio

Fields of Application

Image analysis, documentation and archiving in micro- and macroscopy

in the fields of:

  • Fluorescence microscopy
  • Phase contrast microscopy
  • Macroscopy
  • Material science, geology & mineralogy
  • Life science, diagnostics
  • Quality control
  • Pathology & cell biology
  • Forensics

Brief Description
– 2/3” 1.4 mega pixel Color-CCD-Camera, 1360 x 1024 pixel
– Pixel size: 6.45 x 6.45 μm
– Pixel clock: 12 MHz | 24.5 MHz
– Digitization: 14bit
– Hermetically sealed sensor with IR cut-off filter (optional: clear glass)
– Switchable thermo-electric cooling (Peltier & fan) for integration times up to 10 minutes
– Highest resolution up to 12.5 mega pixel by Microscanning Technology
– True color reproduction (no interpolation) by Color-Co-Site Sampling Technology

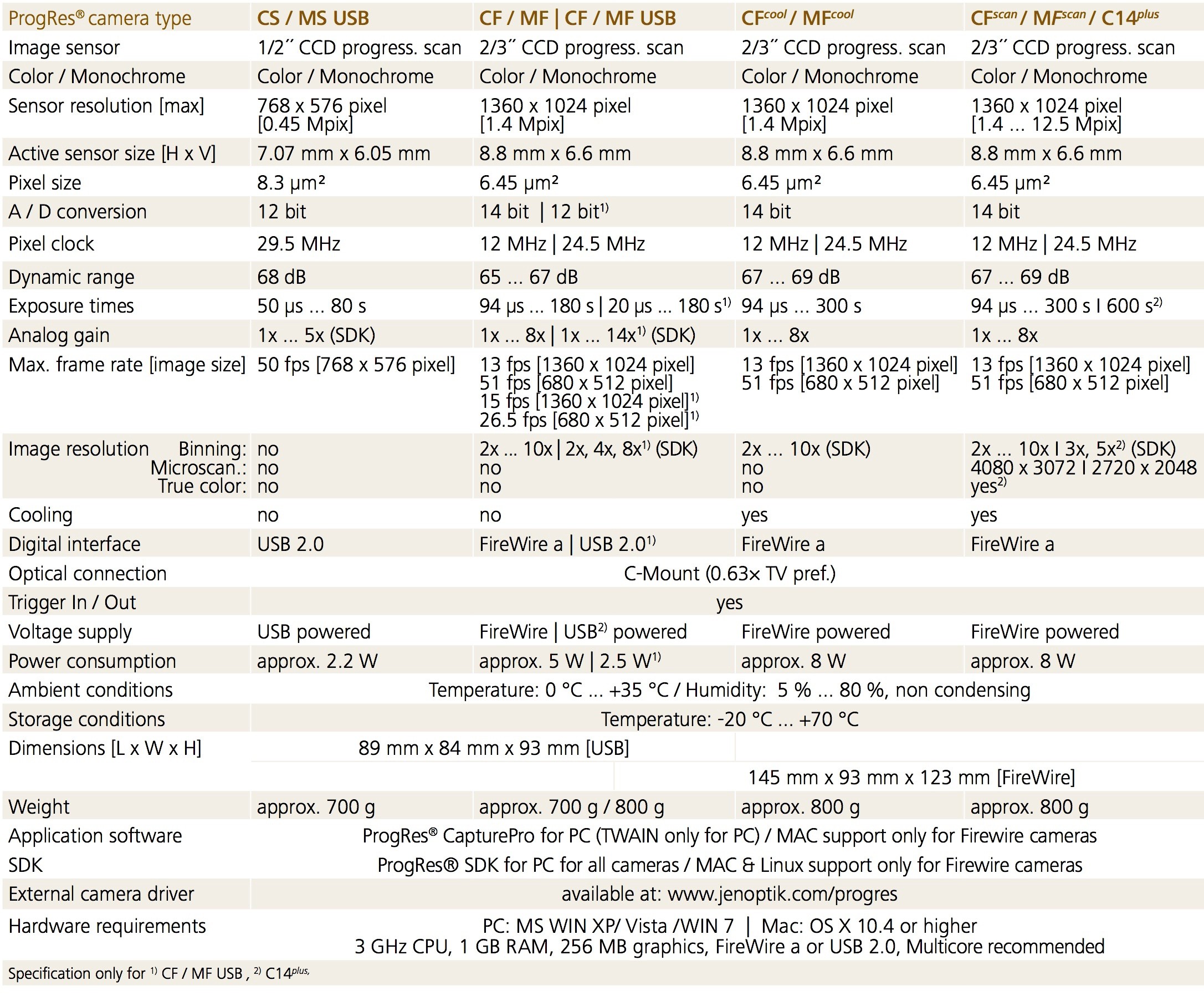

Camera Specifications

Computer Requirements

PC – Windows 2000, XP, VISTA or MAC – OSX 10.4 or higher
3GHz CPU, 1 GB RAM, 64MB graphics recommended
IEEE1394 Firewire (OHCI compliant)

ProgRes® CapturePro Software

The ProgRes® CapturePro Software is included with all of the Jenoptik ProgRes® microscope cameras.

Mulit-Fluorescence Mode

  • Define up to five different color filters
  • Capture monochrome images and have them colored automatically
  • Use image merging to generate multi fluorescence images
  • Black balance to avoid auto-fluorescence

Measurement Tools

  • Calibrate your camera with your microscope
  • Display your calibration bar while using the software
  • Perform measurements of: line, circle, ellipse, angle, rectangle, polygon and freeform
  • Store measurements in a separate layer
  • Make measurements on either a live or captured image
  • Export measurements to analysis software


  • Capture single files or video stream
  • Data is stored on the hard drive which results in higher capture frame rates
  • More workflow oriented possibilities for setting up time-lapse experiments
  • Settings give you more control: delay for start time, total number of images, total time and interval time

Monochrome Mode

  • Works with all color cameas in monochrome mode
  • All the advantages of color imaging and fluorescence microscopy are available


  • Captured images can be displayed in the image gallery
  • Ability to easily select, delete, rename or replace images

Multi-Camera Operation

  • Connect up to 5 ProgRes® cameras to one computer
  • Choose between the cameras when starting a project or switch between the cameras with the software

Extended Image Display Functionality

  • Perfect image quality with controls for: white and black balance (fluorescence), live gamma, contrast, brightness, and saturation
  • Adjust RGB values in the live image
  • ROI function in full pixel resolution
  • Rotate/Mirror images

Shading Correction

  • Flatfield correction (homogeneous light) available for both live and captured image
  • Background subtraction (fluorescence) available for both live and captured image

Multi-Language Support

  •  Supported languages include: German, English, French, Spanish, Italian, Japanese and Chinese

Free Software Upgrades

  • Registered users may download the latest software for free for the life of the product

ProgRes Software Brochure

Jenoptik C14 PLus Camera Brochure

ProgRes Software Brochure
