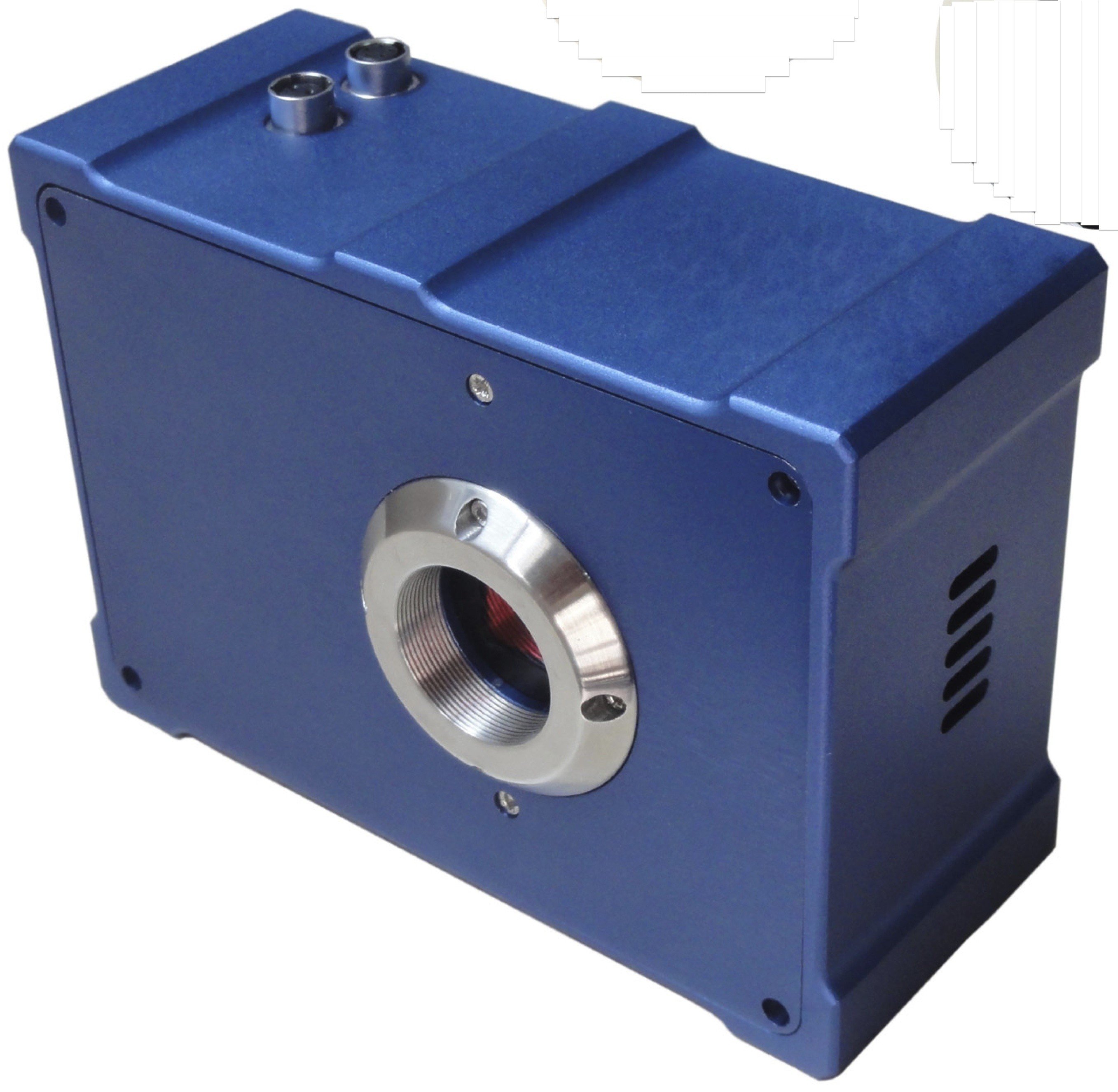

The CCD camera is based on high performance SONY CCD sensors. Thanks to less noise, wide dynamic range, high-definition, and excellent color production, the BCF CCD camera can help the users get high quality images.
Cooling function is optional for S1UC01M (Sony ICX285), and S1UC04M (Kodak KAI-4022). Employing thermal electronic cooler (TEC), it makes CCD noise less. BCF cooled CCD is ideal for dim light and fluorescence application. It is widely used in the Microscopic Fluorescence Imaging, Medical Testing (FISH), Solar Cell EL Inspection (NIR), Chemiluminescence, Industrial Fluorescence Detection (UV fluorescence), GEL Document, and other life scientific applications.
Applications:
• Machine vision and inspection
• Microscopic Fluorescence Imaging
• Gel Imaging
• Chemiluminescence
• Medical Testing (FISH)
• Astronomy
• Education
• Smart dustproof technology
• High performance CCD sensor
• Output without interpolation
• 30℃ cooling function options
• SDK available
• Most cost-effective
• Customizable
Applications:
• Machine vision and inspection
• Microscopic Fluorescence Imaging
• Gel Imaging
• Chemiluminescence
• Medical Testing (FISH)
• Astronomy
• Education
Cat #
S1UC04C(M)-Cool
Image sensors

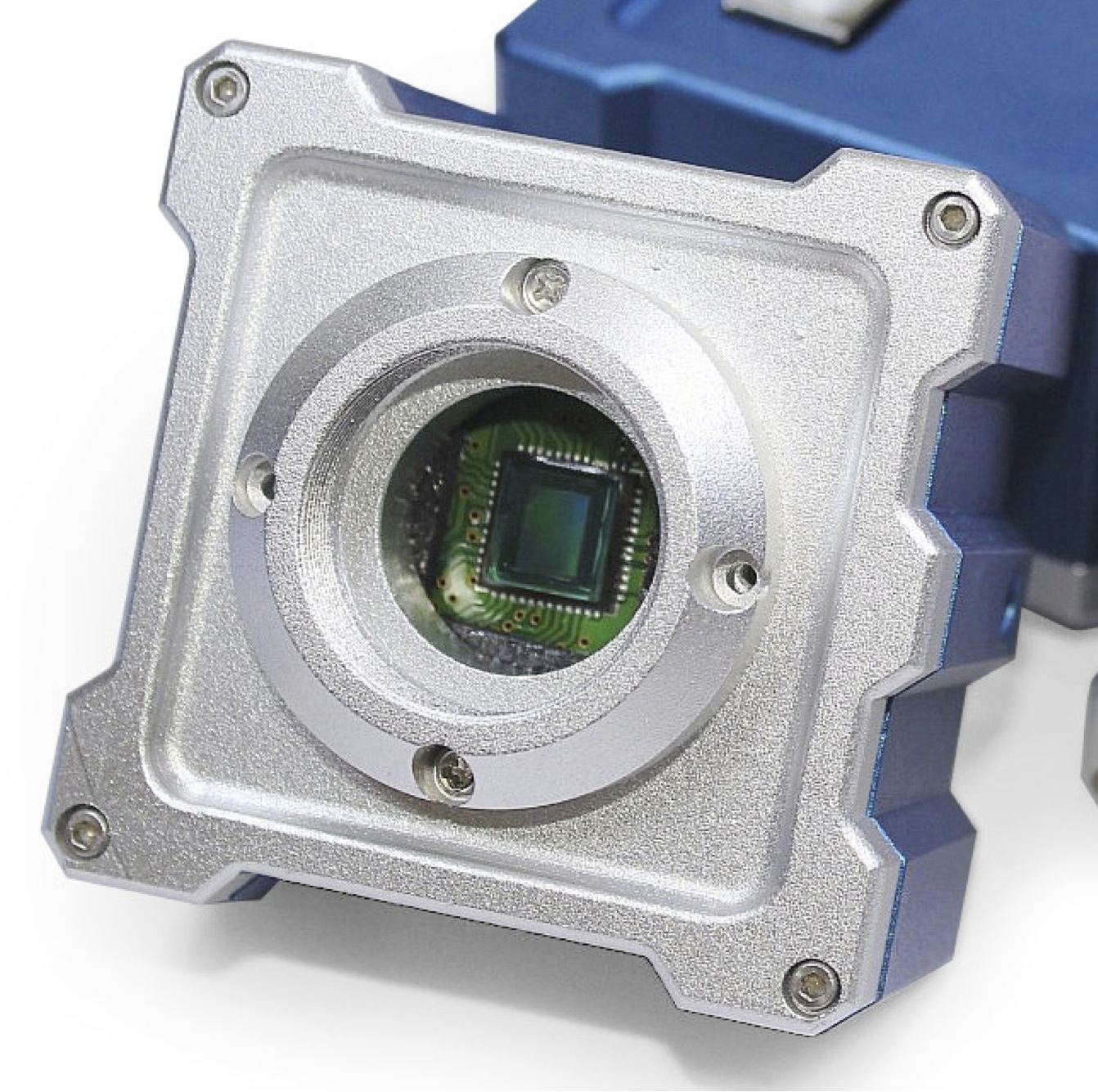

4/3″Kodak KAI-4022
Pixel size
7.40μm x 7.40μm
Resolution
2048×2048
Bin
2×2, 4×4
Scan method
Progressive scan
Sensibility
2.56V
Frame rate
8fps@2048×2048
Shutter
Electronic shutter
SNR
40.5dB

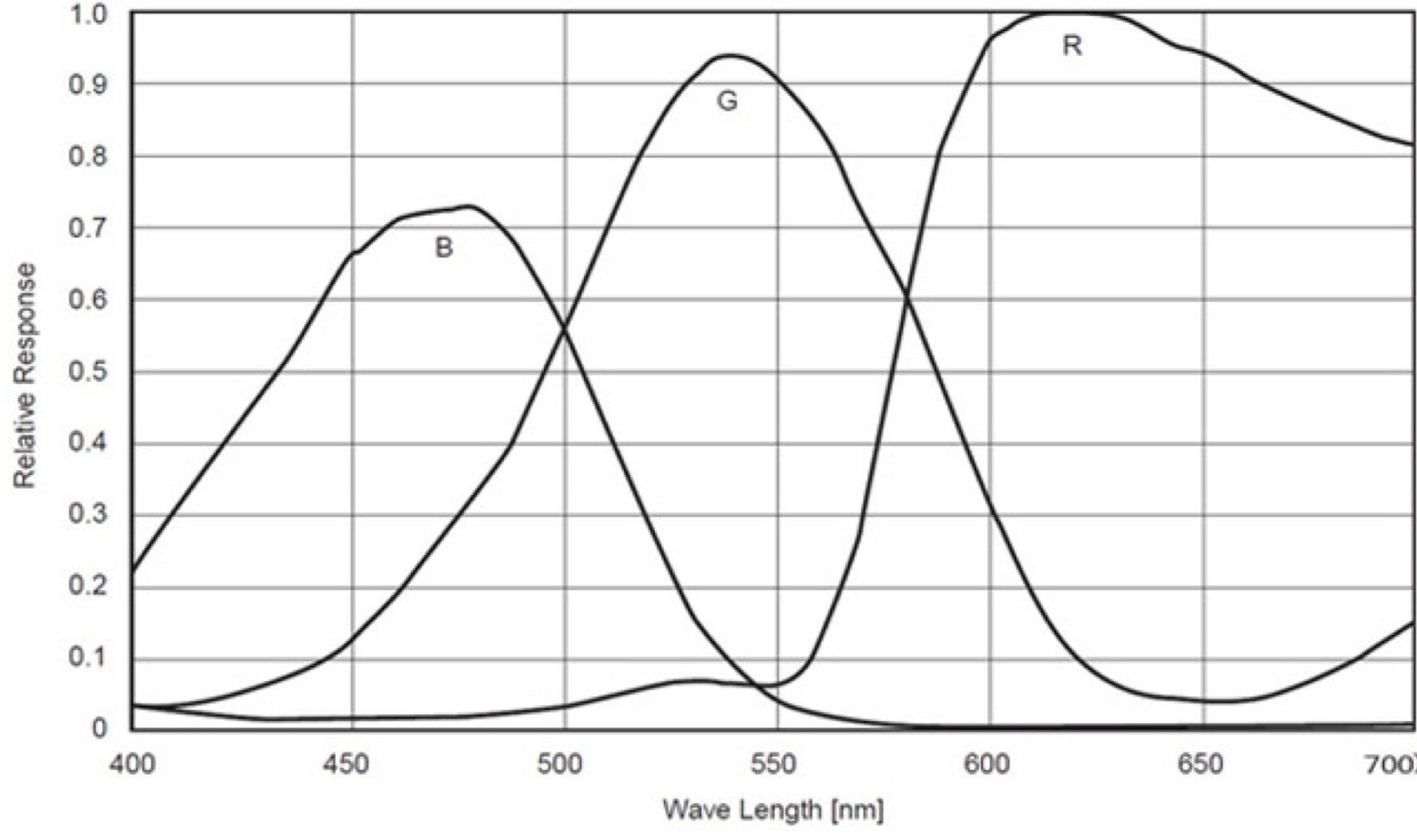

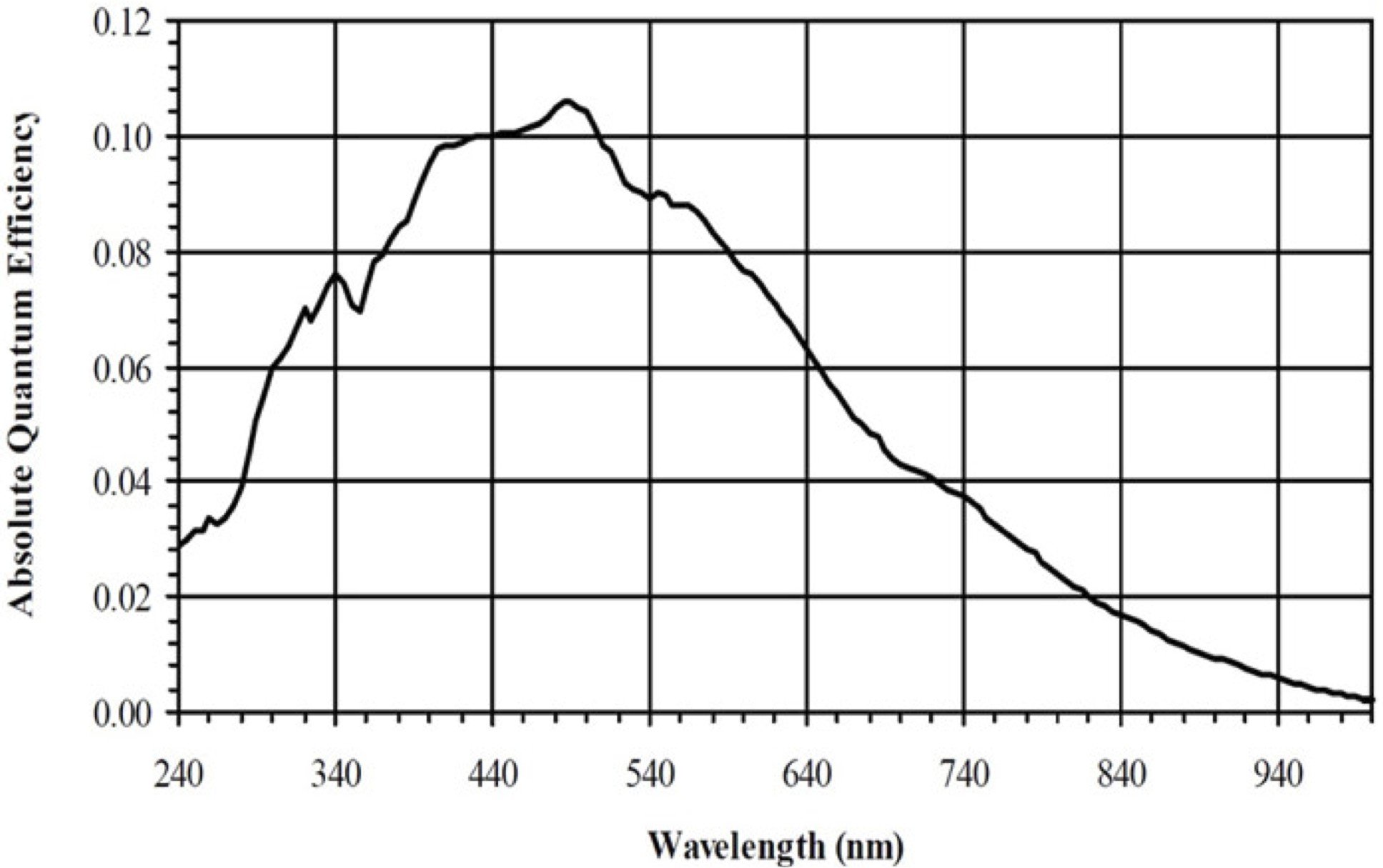

Spectral response
400nm~1000nm
Data interface
USB 2.0, 480Mbps, 3M cable
Power
DC 5V ±5%
Current
≈100 mA
White balance
Manual/Auto One-key white balance
Auto exposure control
1μs ~20min, Manual/Auto exposure
lens mount
C Mount
Busy Indicator
LED
Working temperatureWorking humidity
0-60’C45-85%
Peltier Cooling
Operating Temperature -25’C
Software
SpectrumSe image analysis software with modular designing,including imagePreviewing,capturing,analysing,processing,sharing function, it gives users the Latest Image processing experiences.
The software function: image capturing, time lapse, measuring, data exporting, image mosaic, depth of field overlaying,text instruction inserting, etc.
spectrumsee image analysis software with modular designing,including image previewing,capturing,analysing,processing,sharing fuction.It gives users the latest image processing experiences.
The software fuction:image capturing,time lapse,measuring,data exporting image mosaic,depth of field overlaying,text instruction inserting,etc.
SpectrumSee Specification
Basic Version
Advance Version
Fluorescence Version
Real-time preview,capturing,recording
√
√
√
Auto proportional resizing
√
√
√
Marker remark
√
√
√
Line measuring
√
√
Angle measuring
√
√
Multi points circle measuring
√
√
Multi points rectangle measuring
√
√
Fitting polygon measuring
√
√
Arc measuring
√
√
Random area geometric parameters measuring
√
√
Image mosaicing
√
Fluorescence multi-channel image fusion&alignment
√
Fluorescence staining cotains more than 130 kind common fluorescence chromophores,and custom adding new fluorescence chromophores is allowed.
