This microscope is an ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

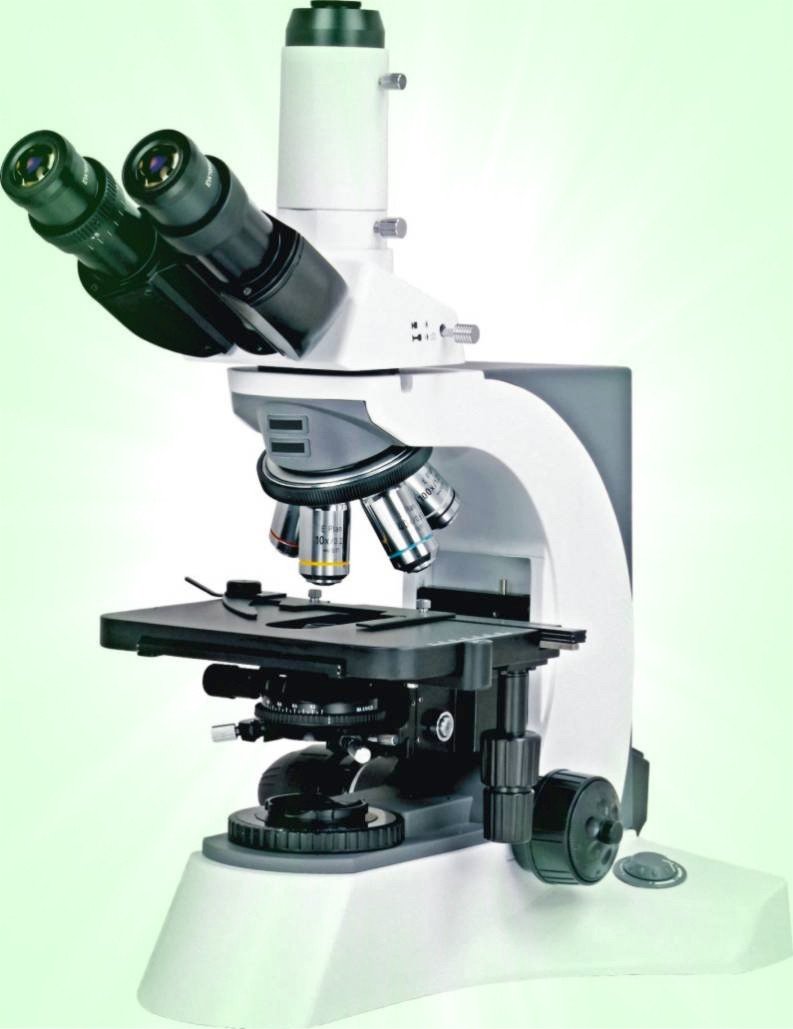

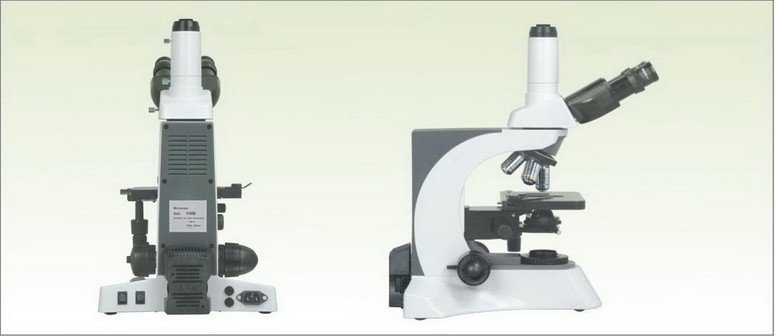

This microscope is a high level microscope which is specially designed for laboratory study. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this laboratory biological microscope makes your laboratory works enjoyable.
Newly designed with comfortable operating and ergonomic design, better illumination, convenient replacement of attachment with sliding-in center adjustable condenser.
–Infinity Optical System Supply High Quality Optical Image
–Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm
–Swing-out Condenser N.A.0.95/0.25
–External Illumination, Asperical Collector, Halogen Lamp 6V30W
–Full Line of Dark Field, Phase Contrast, Polaring, Fluorescent Attachment as well as automatic XY or Z focus is avilable for upgrade
|Optical System||Infinite Optical System||●|
|Viewing Head||Swiveling Siedentopf type Trinocular Head, Inclined at 30°, Interpupillary 48-75mm||●|
|Angle Adjustable Binocular/ Trinocular Head||○|
|Eyepiece||Extra Wide Field Eyepiece EW10×/ 22||●|
|Nosepiece||Backward Quintuple Nosepiece||●|
|Backward Sextuple Nosepiece||○|
|Objective||Infinite Plane Achromatic Objective 4×, 10×, 40×, 100×||●|
|Infinite Plane Achromatic Objective 20×||○|
|Condenser||Swing-out Condenser NA 0.9/ 0.25||●|
|Stage||Double Layers Mechanical Stage 185×142mm, moving range 75×55mm||●|
|Illumination||External Illumination, Aspherical Collector, Halogen Lamp 6V/30W||●|
|External Illumination, Aspherical Collector, Halogen Lamp 24V/100W||○|
|Video Adapter||C Mount 1×||○|
|C Mount 0.5×||○|
|Multi Viewing Attachments||Multi Viewing Attachments for 5 persons||○|
|Multi Viewing Attachments for 3 persons||○|
|Multi Viewing Attachments for 2 persons||○|
|Dark Field Attachment||Dark-field Condenser(Dry)||○|
|Optional Attachment||Photo Attachment||○|
|Turret Phase Contrast Kit||○|
|Temperature Controlled Stage||○|
|Dimension& G. W.||43.5cm*39.5cm*59cm, 14kg||●|
Note: ● Standard Outfit, ○ Optional
This system can be upgraded to afully automated model.
Please check Other models of this microscope:
BUM500Fl Epi-Fluor Upright Microscope
BUM500A Automatic Biological Microscope
BMM500 Metallurgical Uprighty Microscope
Video 1. Phase Contrast Kit and Sample Images
BUM-PHK Phase Contrast Kit for Upright Biological Microscopes is composed of 10x, 20x, 40x , 60x and 100x (oil) Phase contrast objective lenses, green filter, Phase alignment tool and turret condenser with different annulus.
In this video we look at the samples images of an Onion Skin thins section slide and Tilia (basswood) thin section slide, using this kit installed on Bioimager BUM800FL upright biological microscope and connected a 2.3MP USB3.0 CMOS Colorful Camera as well as a 0.5x C-Mount Adapter.
