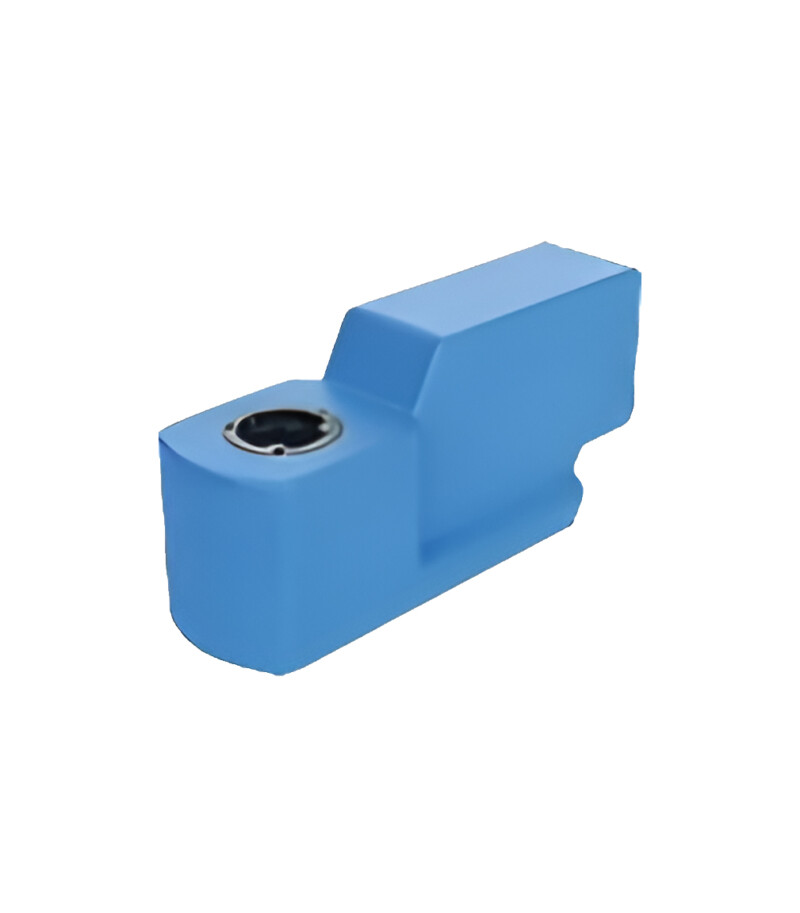

High Speed Spectro-Microscopy System, BSMS500

Original price was: $USD 20,000.00.Current price is: $USD 12,888.00.

-36%

High speed spectrum transfer technology achieves fast detection in microsecond. Low spray light technology Full spectrum technology, the wave band range is 320-1100nm UV-sensitivity technology achieves the detection of DUV spectrum Spatial resolution: 5*5um2

Add to Wishlist
Guaranteed Safe Checkout

Questions? Request a Call Back

The high speed spectro-microscope system is loaded on the trans-reflective metallurgical microscope. It is a microspectroscopy analysis platform with high quality and accuracy, high S/N and sensitivity. Transmittance/reflectance spectrum of the full spectrum from UV, visible light to near infrared can be collected quickly by this system.

Applications
1. Photonic crystals research;

2. Characterization on optical properties of nano-materials;

3. Optical properties characterization of micromachining materials;

4. Surface Plasmon research.

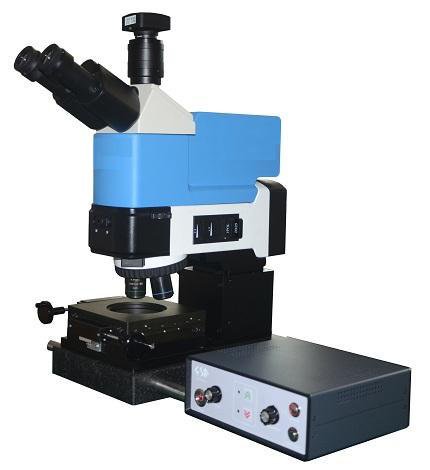

High Speed Spectro-Microscopy System, BSMS500

Intrdouction

The high speed spectro-microscope system is loaded on the trans-reflective metallurgical microscope. It is a microspectroscopy analysis platform with high quality and accuracy, high S/N and sensitivity. Transmittance/reflectance spectrum of the full spectrum from UV, visible light to near infrared can be collected quickly by this system.

Applications
1. Photonic crystals research;
2. Characterization on optical properties of nano-materials;
3. Optical properties characterization of micromachining materials;
4. Surface Plasmon research.

High Speed Spectro-Microscopy System, BSMS500

Main technical parameter

Item Parameter
Optical system Infinite optical system, tube lens f=200mm
Observation tube trinocular viewing head, 0.3X CCD mount adapter.
Eyepiece 1. Super wide plan eyepiece: WF10X/26mm; 2. 0.1mm reticule eyepiece, WF10X/22mm
Objective LWD Infinite plan BD objective: 5X/NA0.20 (W.D=14.47mm), 10X/NA0.25(W.D=16.0mm), 20X/NA0.40(W.D=10.5mm), 50X/NA0.55(W.D=5.1mm)
Nosepiece Quadruple nosepiece with DIC jack
Stage Precision measurement stage: travel range: 50mm X 50mm; accuracy: 3u+L/25.
Filter Blue, green and neutral filter
Focusing mechanism Motorized
Illuminator Transmitted illumination: LED, 5W/ AC85V-260V, brightness adjustable

Reflective illumination: Kohler illumination Halogen lamp, 12V50W/AC85V-260V, brightness adjustable with aperture diaphragm and filed diaphragm
Polarizing device Analyzer can rotate 360°, polarizer and analyzer can be removed from the optical path.
Measuring tool Standard ruler: 0.01mm micrometer
Options 1. Professional metallurgical image analysis software with measurement functions2. DIC device

3. ELWD infinite plan BD objective: 80X/0.75(W.D=4.0mm), 100X/0.80(W.D=3.0mm)

4. 300 mega pixel, 500 mega pixel, 800 mega pixel, and 1000 mega pixel CMOS

5. Digital grating

6. Rotary table

Main technical Specifications

Item Parameter
Optical system Infinite optical system, tube lens f=200mm
Observation tube trinocular viewing head, 0.3X CCD mount adapter.
Eyepiece 1. Super wide plan eyepiece: WF10X/26mm; 2. 0.1mm reticule eyepiece, WF10X/22mm
Objective LWD Infinite plan BD objective: 5X/NA0.20 (W.D=14.47mm), 10X/NA0.25(W.D=16.0mm), 20X/NA0.40(W.D=10.5mm), 50X/NA0.55(W.D=5.1mm)
Nosepiece Quadruple nosepiece with DIC jack
Stage Precision measurement stage: travel range: 50mm X 50mm; accuracy: 3u+L/25.
Filter Blue, green and neutral filter
Focusing mechanism Motorized
Illuminator Transmitted illumination: LED, 5W/ AC85V-260V, brightness adjustable

Reflective illumination: Kohler illumination Halogen lamp, 12V50W/AC85V-260V, brightness adjustable with aperture diaphragm and filed diaphragm
Polarizing device Analyzer can rotate 360°, polarizer and analyzer can be removed from the optical path.
Measuring tool Standard ruler: 0.01mm micrometer
Options 1. Professional metallurgical image analysis software with measurement functions

2. DIC device

3. ELWD infinite plan BD objective: 80X/0.75(W.D=4.0mm), 100X/0.80(W.D=3.0mm)

4. 300 mega pixel, 500 mega pixel, 800 mega pixel, and 1000 mega pixel CMOS

5. Digital grating

6. Rotary table
