Bright LED imaging solution for all brands of stereoscopes
Compare with mercury lamp, LED fluorescence illumination have several benefits:

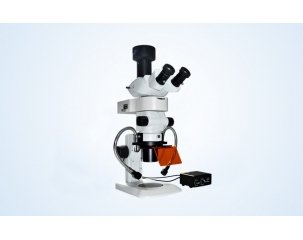

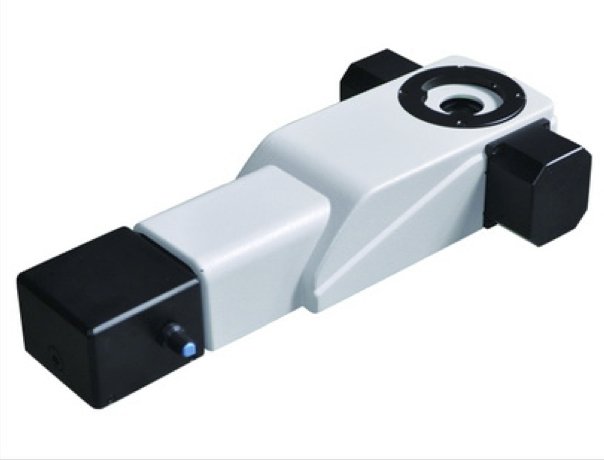

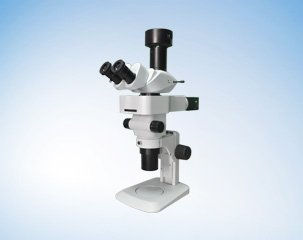

LED Fluorescence stereo microscope attachmnet BIA4-FLA has excellent performance and it is very cost-effective solution. Fluorescence stereo microscope is the core technique of fluorescent imaging in vivo of living animals. BIA4-FLA is widely used in the fields of biology, industrial inspection and criminal justice, etc. It is an essential instrument for fluorescent anti-counterfeiting printing detection and also an ideal device for mineral research.
Applications
It is suitable for LC-die inspection, LCD printing paste inspection, LED production inspection, PCB board inspection, stamping plating inspection and electronics components inspection.
Data sheet of LED fluorescence illuminator
| Excitation color | LED lightingcentral wavelength | Excitation filter | Dichroicmirror | Emissionfilter |
| Blue (GFP) | 475nm | 460-490nm | >500nm | >510nm |
| Green (RFP) | 530nm | 510-550nm | >570nm | >590nm |
Based on the clients requirement, filters are offered from Chroma, Semrock or Omega.
| LED epi-fluorescence illumination | Blue | Green |
| LED light source | Central wavelength 475nm | Central wavelength 530nm |
| Excitation filter | 460-490nm | 510-550nm |
| Dichroic mirror | >500nm | >570nm |
| Emission filter | >510nm | >590nm |
