BUM220M/B/T Biological Mono/Bi/Tri-nocular / Digital Microscope

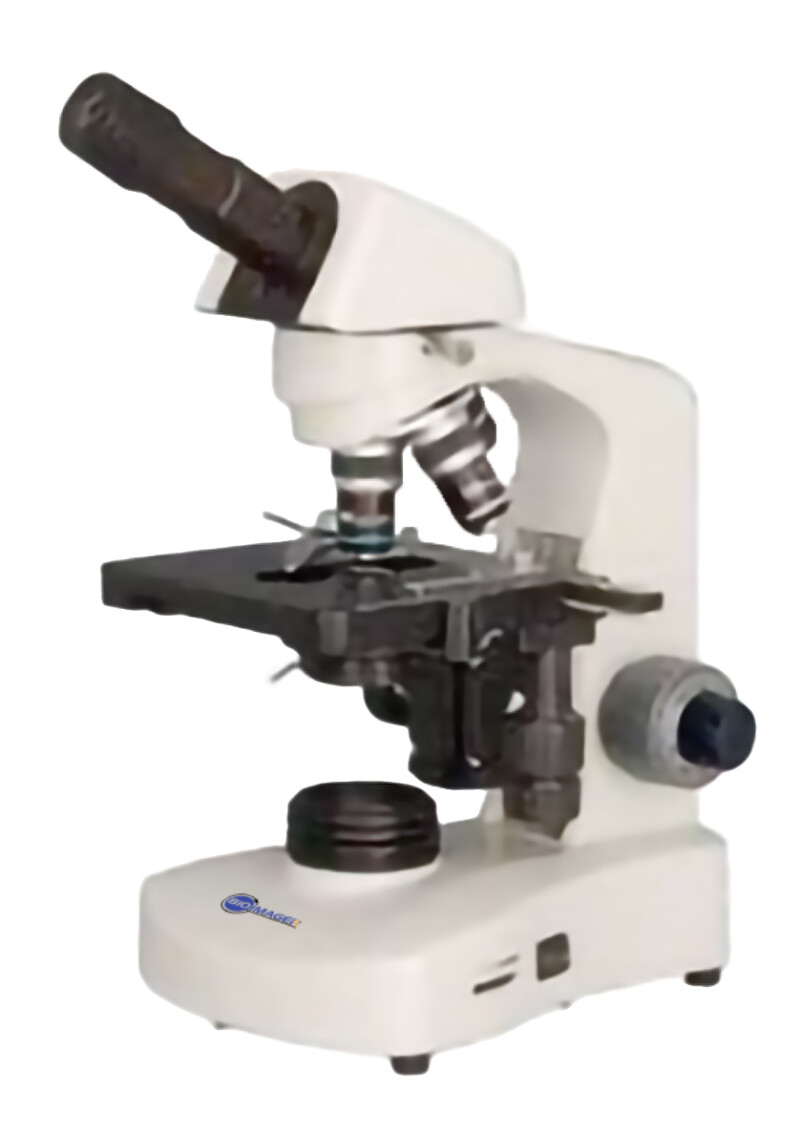

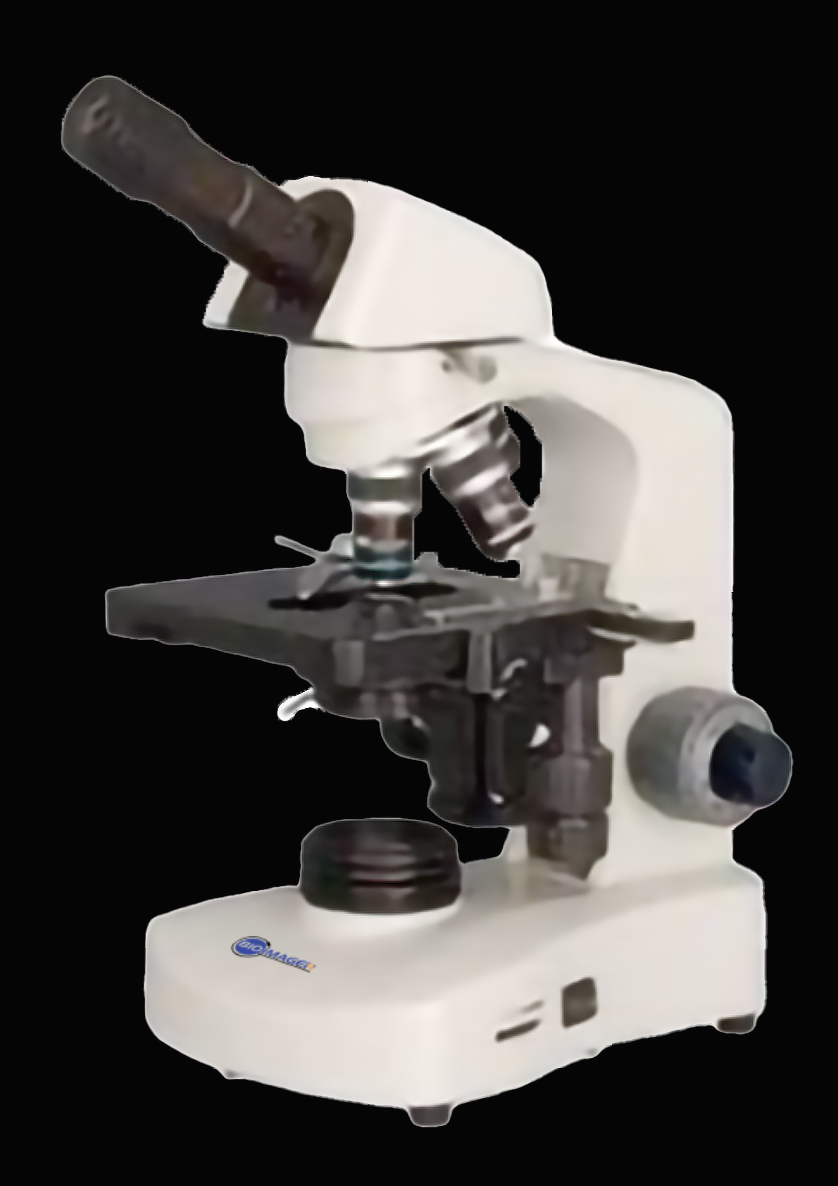

BUM220M
Monocular |

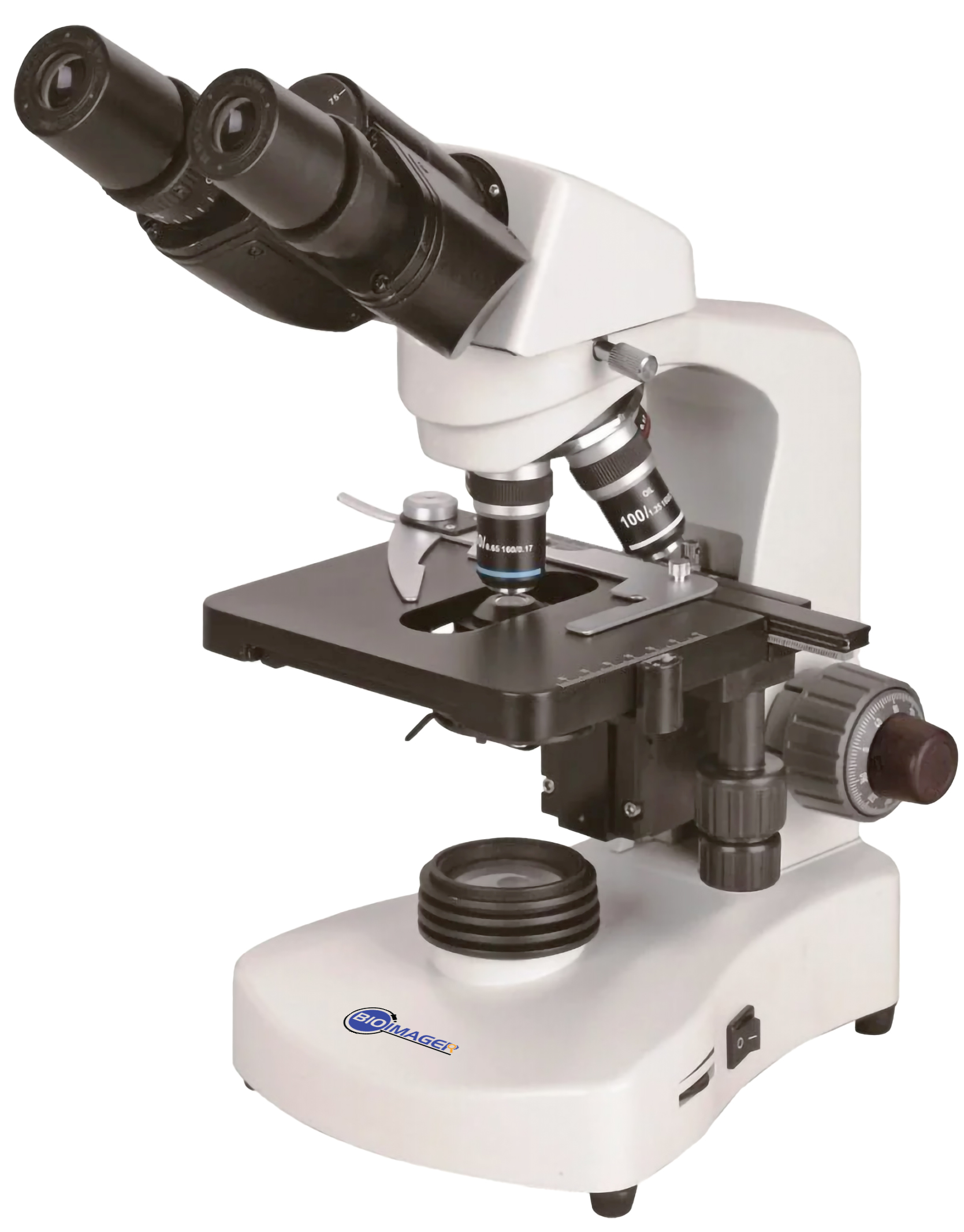

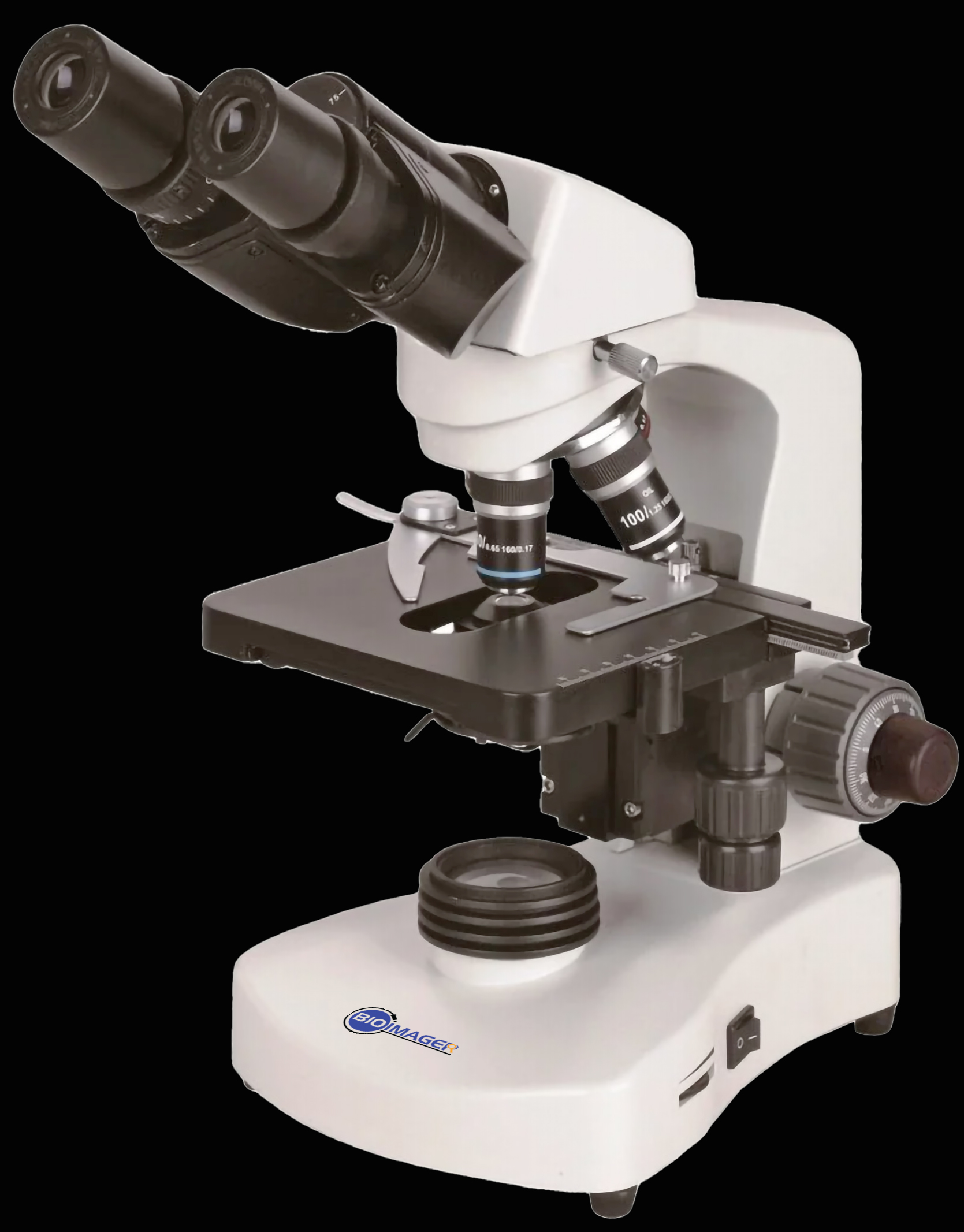

BUM220B
Binocular |

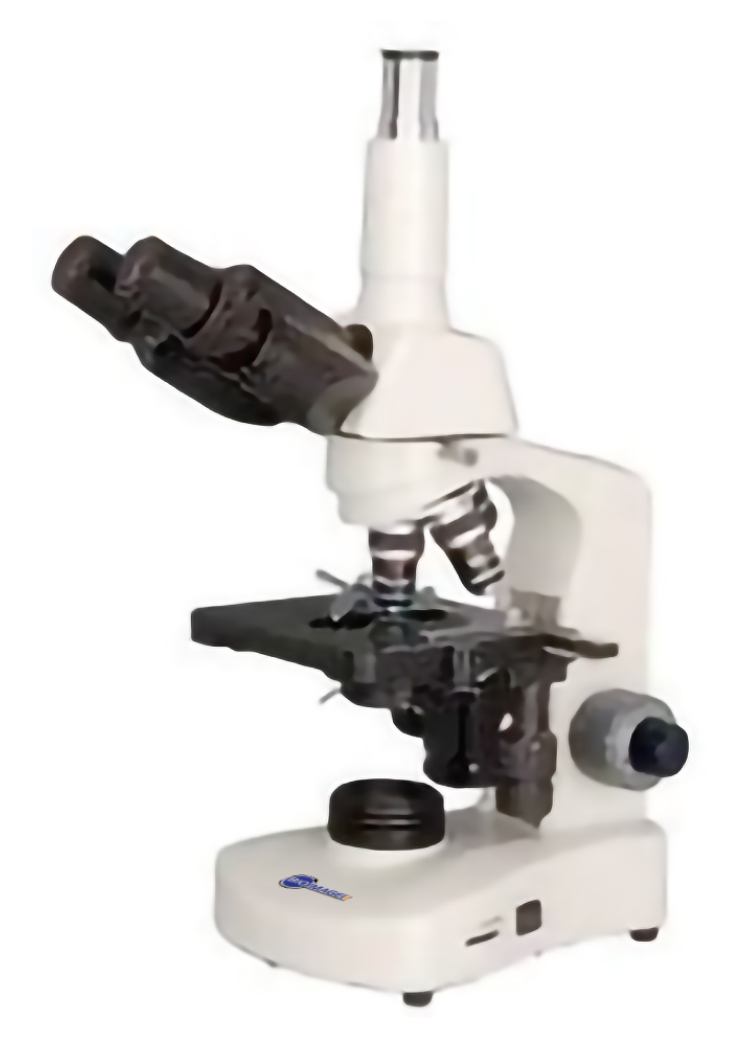

BUM220T
Trinocular |

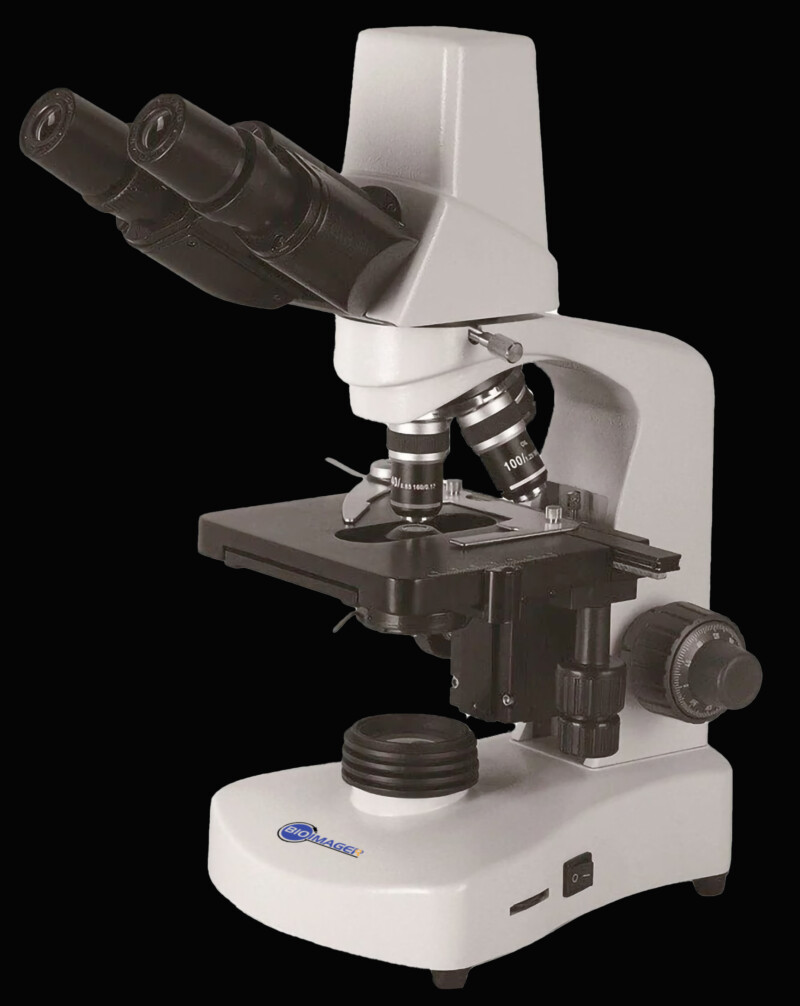

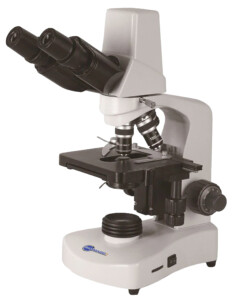

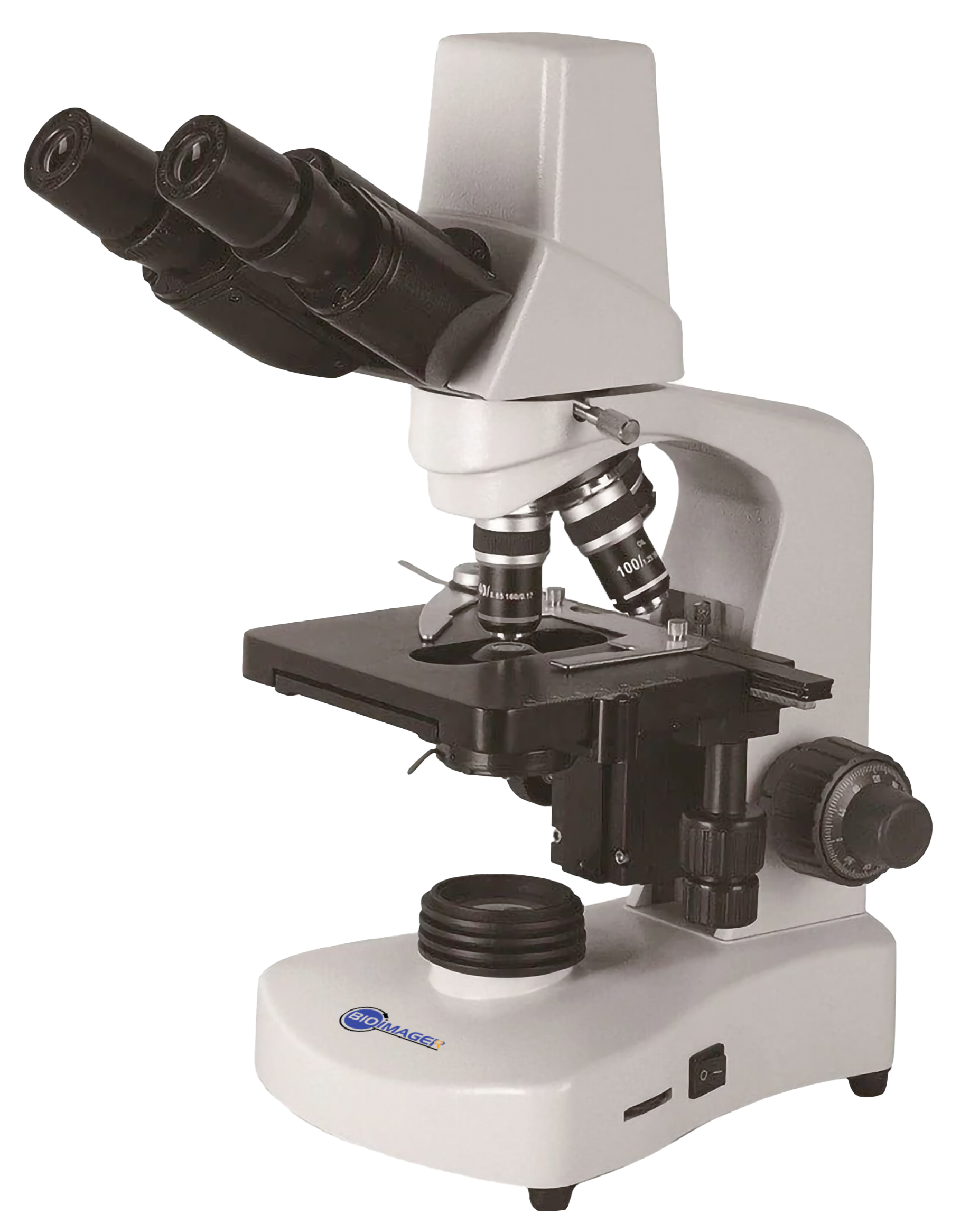

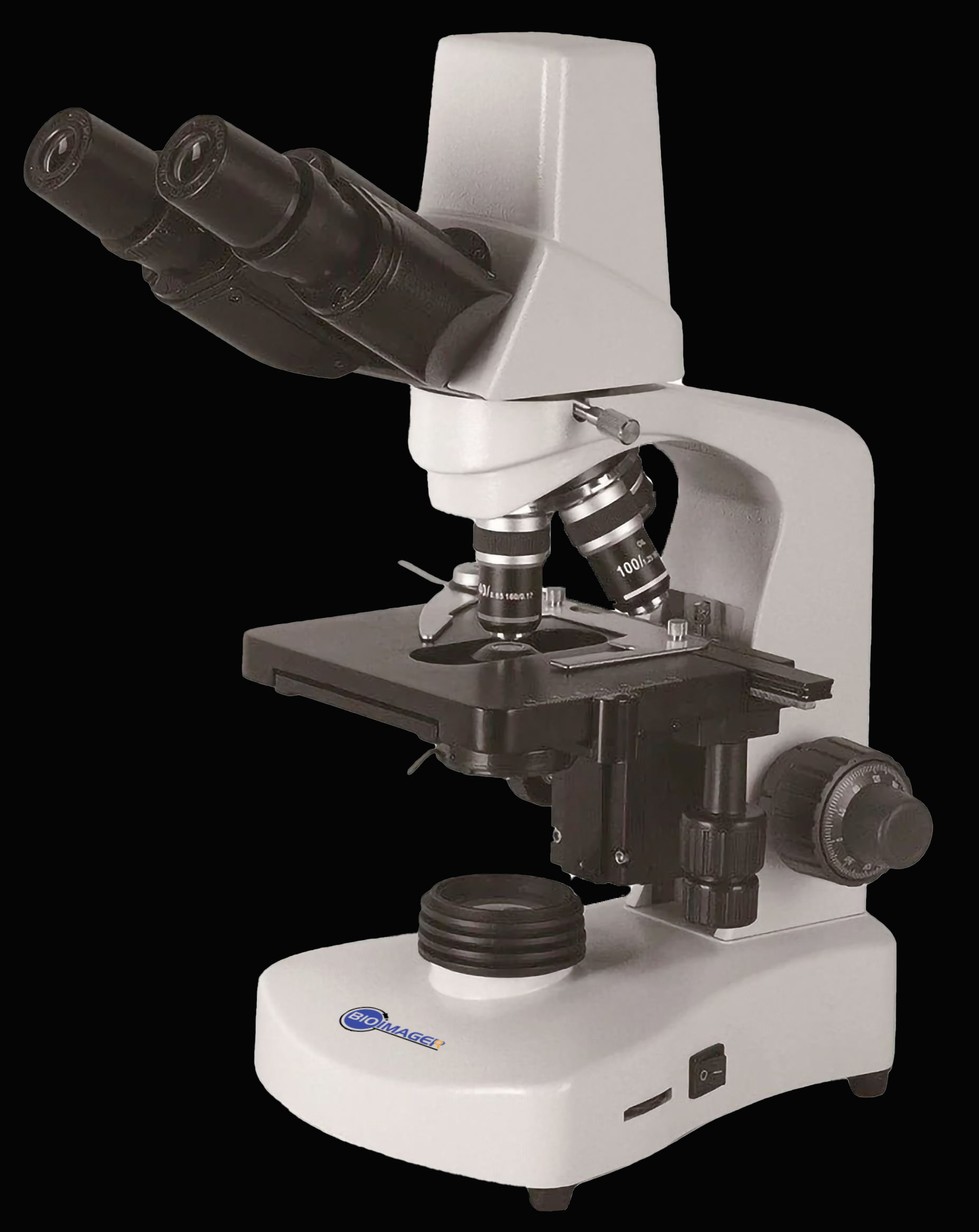

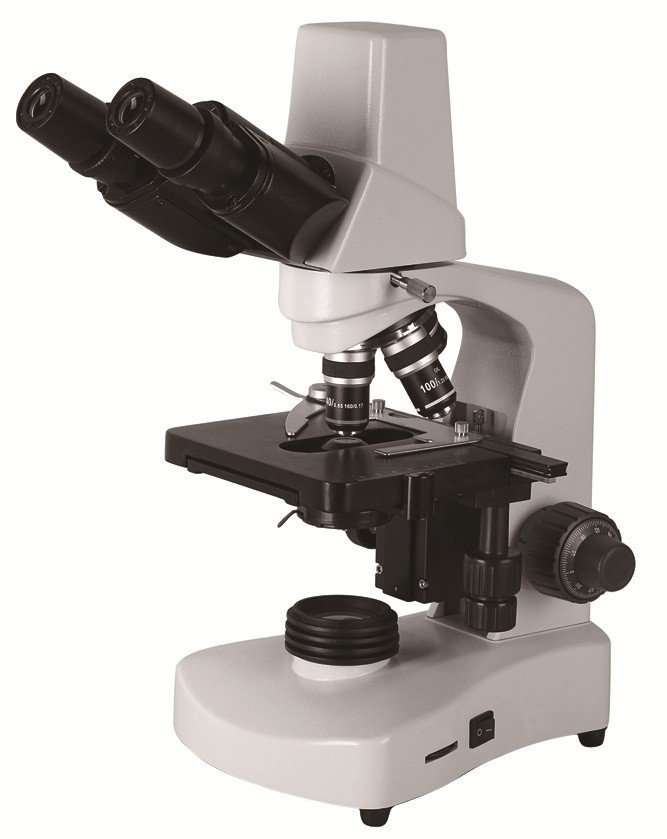

BUM220D
Digital |
Introduction
BUM220 series microscopes are economic, practical and easy to operate. These microscopes adopt LED illumination, which save energy and have long working life, it is also very comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adaptor, a digital camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Built-in rechargeable battery is optional for outdoors operation or places that power supply is not stable.
Features
1. New machining facility and advanced alignment technology;
2. Comfortable operation with updated and ergonomic design;
3. LED light illumination, save energy and long working life;
4. Compact and flexible, ideally suited for desktop, laboratory worktable;
5. Eyepoint height and interpupillary distance can be adjusted to fit for observation.
Application area
BUM20 series microscopes are ideally suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in clinics, hospitals, schools, academic labs and scientific research department.
Specifications
model | BUM220 M | BUM220 B | BUM220 T | |
Viewing Head | Monocular Head, Inclined at 30°, 360° Rotatable | ● | ||
Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm, | ● | |||
Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 55-75mm | ● | |||
Eyepiece | WF10×/18 | ● | ● | ● |
P16×/11 | ○ | ○ | ○ | |
Objective | Achromatic Objective 4×, 10×, 40×, 100×(Oil) | ● | ● | ● |
Nosepiece | Backward Quadruple Nosepiece | ● | ● | ● |
Stage | Double Layer Mechanical Stage 132×142mm/ 75×40mm | ● | ● | ● |
Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.004mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.4mm per Rotation, Moving Range 24mm | ● | ● | ● |
Condenser | Abbe NA 1.20 with Iris Diaphram and Filter | ● | ● | ● |
Illumination | LED 3W, Brightness Adjustable | ● | ● | ● |
Halogen Lamp 6V/ 20W, Brightness Adjustable | ○ | ○ | ○ | |
Immersion oil | 5ml Immersion oil | ● | ● | ● |
Optional Accessories | Phase Contrast Kit | ○ | ○ | ○ |
Dark Field Attachment | ○ | ○ | ○ | |
Polarization Attachment | ○ | ○ | ○ | |
Rechargeable battery | ○ | ○ | ○ | |

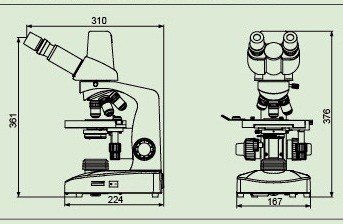

Dimension & G.W. | 39.5cm*26.5cm*50cm, 7kg | ● | ● | ● |
Note: ● Standard Outfit, ○ Optional
Sample Images
The following specimen images are taken with BUM220T.
