Save $6,112

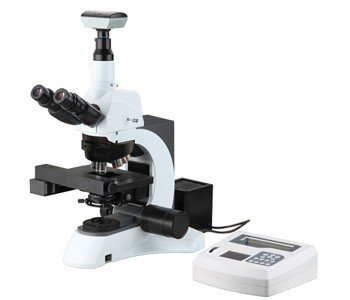

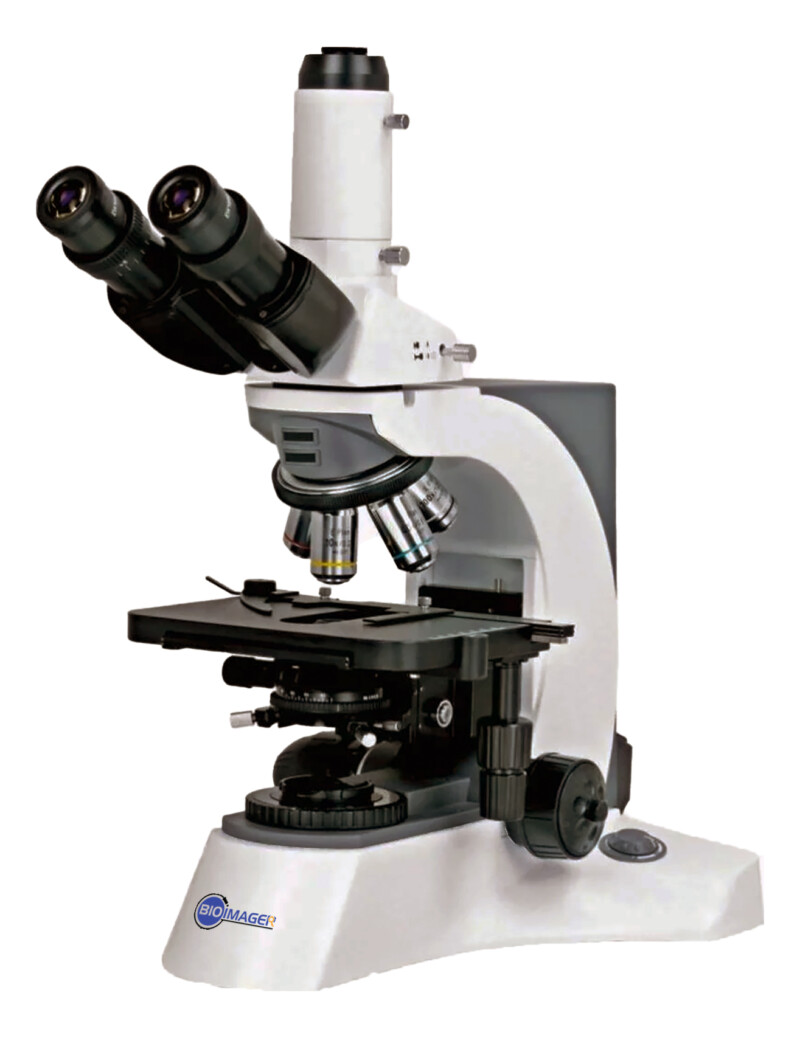

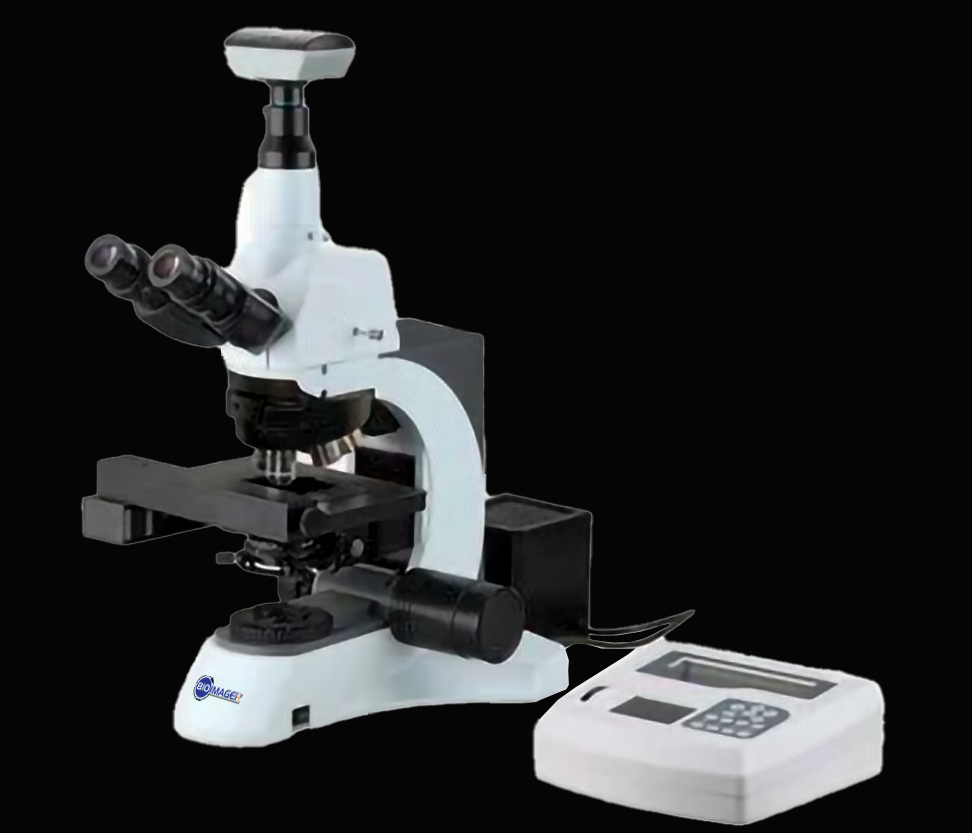

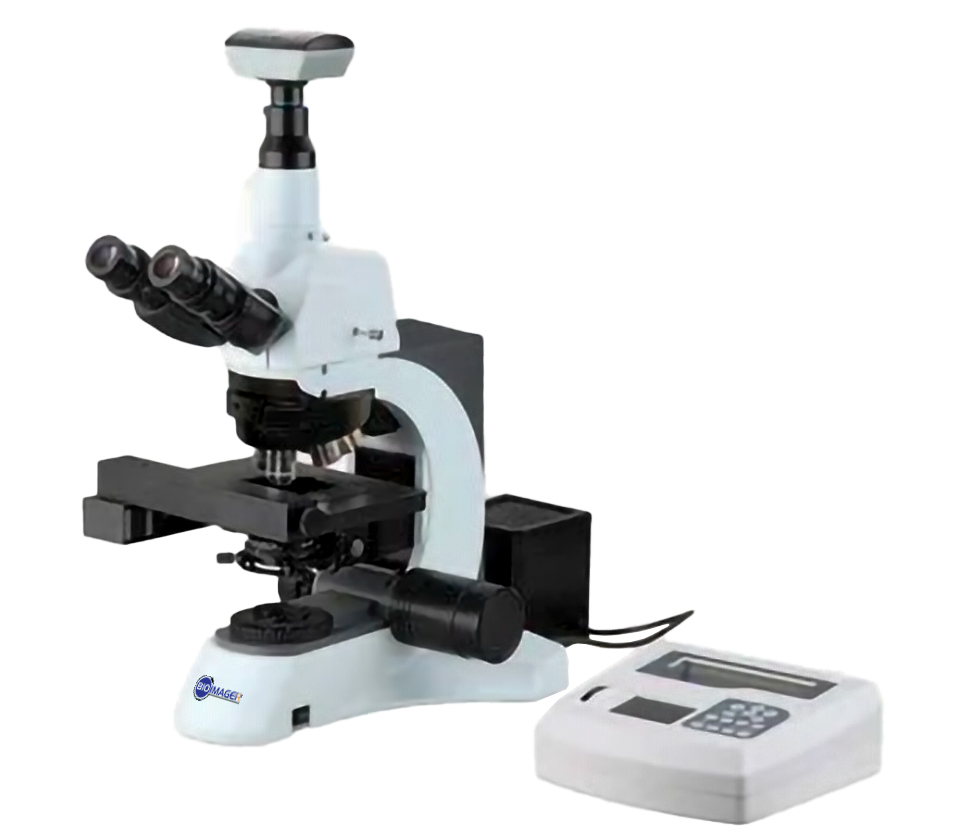

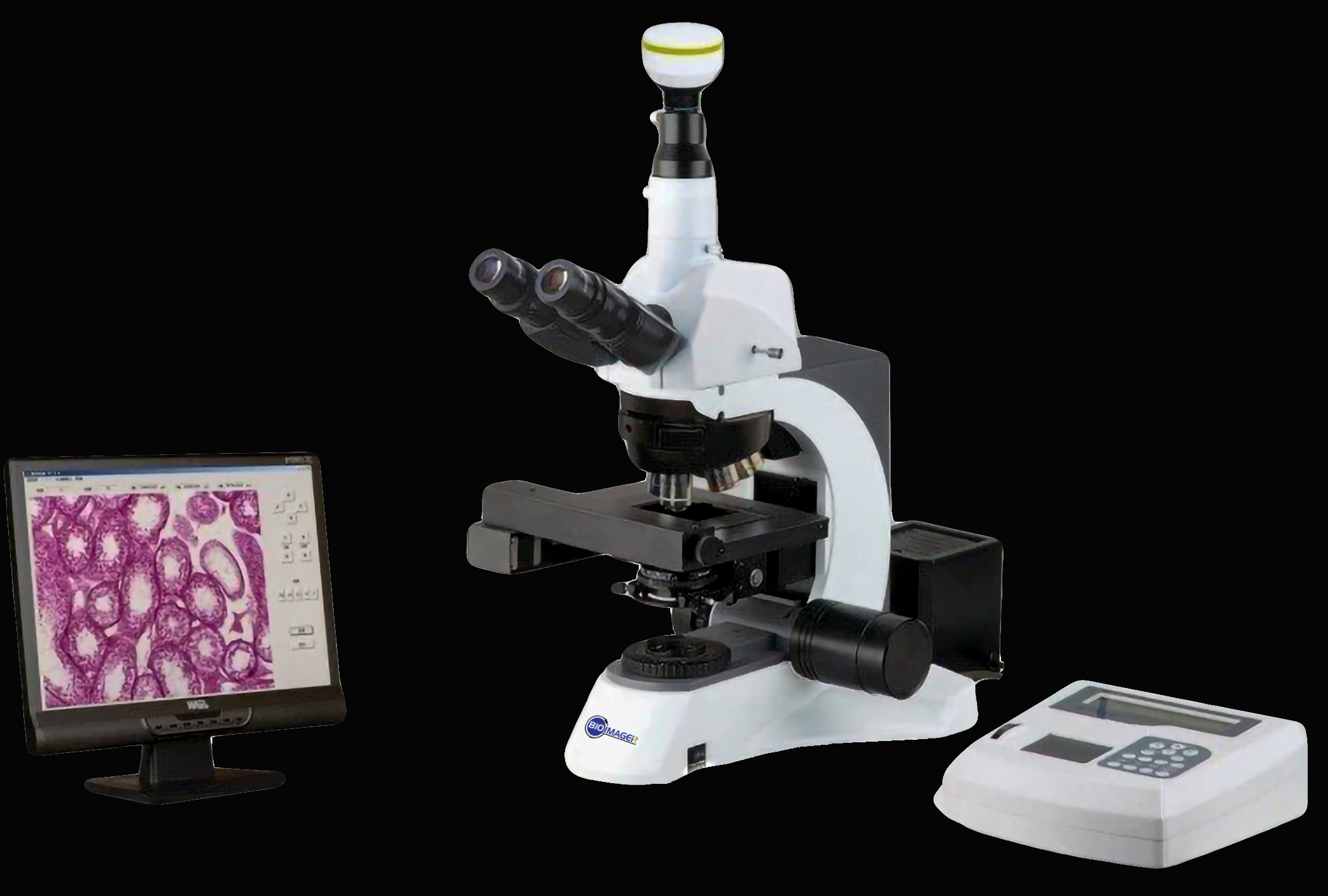

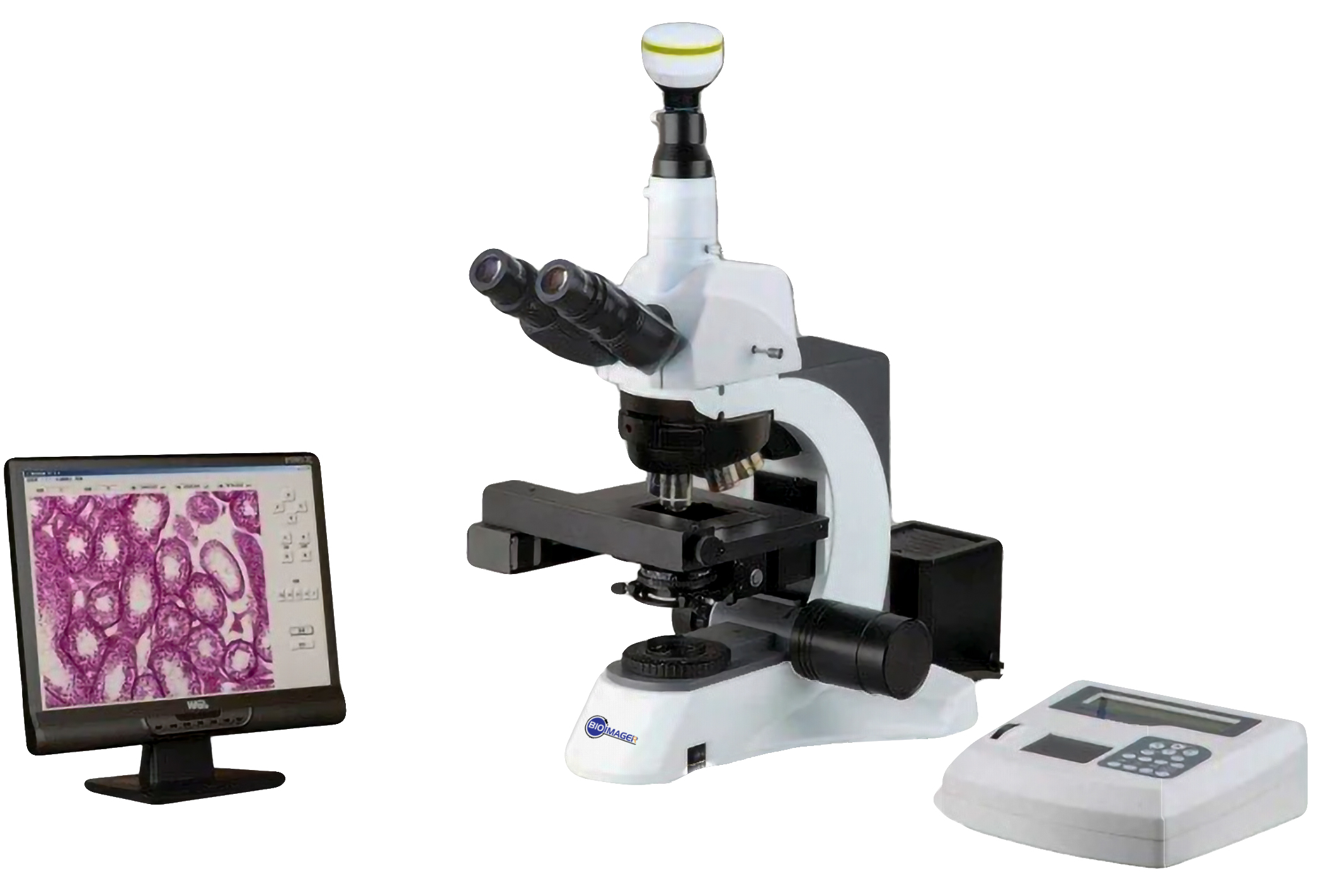

BUM500A Fully Motorized Auto-Focus Biological Microscope

Availability:

In stock


Compare
  • Professional Upright Biological/Clinical Microscope
  • 4x, 10x, 20x, 40x and 100x plan obj lenses are included.
  • Brighfield Imaging and optional Phase Contrast, Darkfield, Polarizing, DIC and epi-fluorescence
  • Automated XY stage, Auto-focus, Automatic lens switch
  • Control Pad, remote-control access over network
  • Auto-focus, Auto-scanning and auto-recognition features
  • Standard Image Analysis Software
  • The most economical solution for automatic XY-Z biological microscope
  • Excellent solution for medical diagnosis, pathological analysis and real-time teaching, etc.

In stock

$11,888.00 $18,000.00

Introduction

This microscope is a high level microscope which is specially designed for laboratory study. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this laboratory biological microscope makes your laboratory works enjoyable.

Main Features

  • Four motor-drives: Objective nosepiece, XY stage and Z focus, controlled manually and automatically
  • Advanced technological digital dimmer with 100 steps of halogen lamp brightness division
  • High precision positioning leading new stage,
  • The clearest images with immediate access just by click on auto-focus, auto-scanning and auto-recognition features
  • Built-in dynamic focus mechanism; achieve the laboratory microscope automation through network remote control system,
  • widely used in medical diagnosis, pathological analysis and real-time teaching, etc.
  • 3.2MP Camera with great Imaging software is included
  • With Infinite Optical System, Kohler Illumination, providing excellent optical quality and making Image perfect.
  • With low and forward position of C&F coaxial focus system, focusing knobs and brightness adjustable knob within reaching location, stable integral
  • structure, and reasonable ergonomic design, making operators feel more comfortable and effective.
Metallurgical/bmm500a_Motorized_stage.jpgMetallurgical/bmm500a_Controller.jpgMetallurgical/bmm500a_Z_motor.jpg

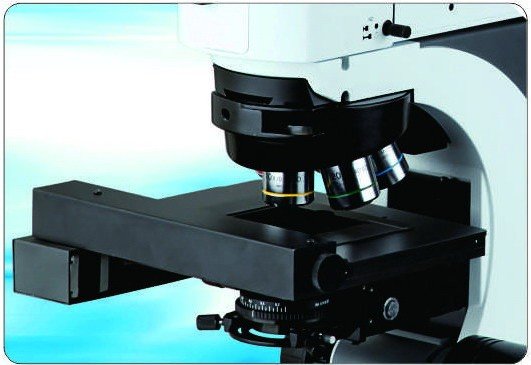

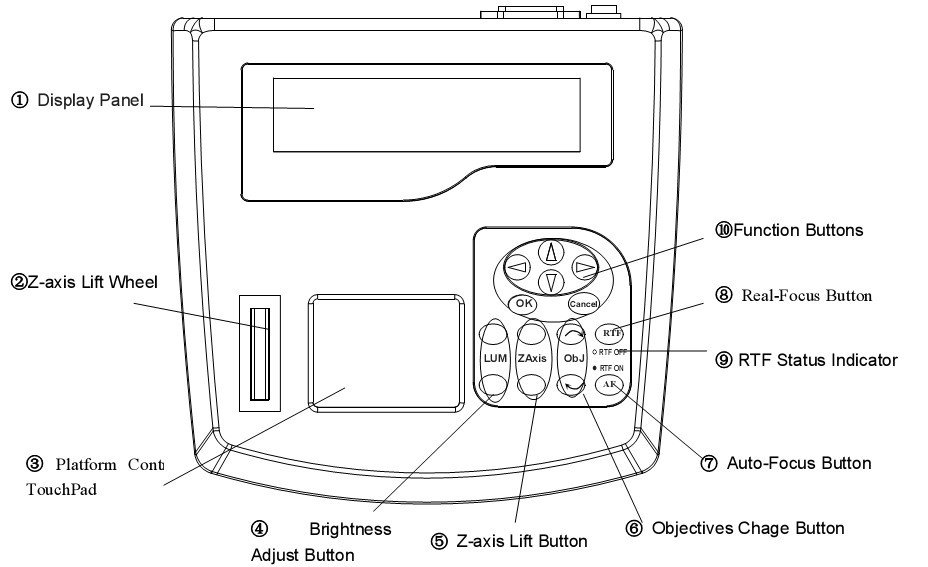

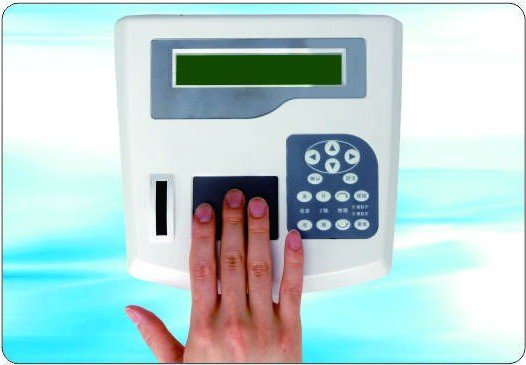

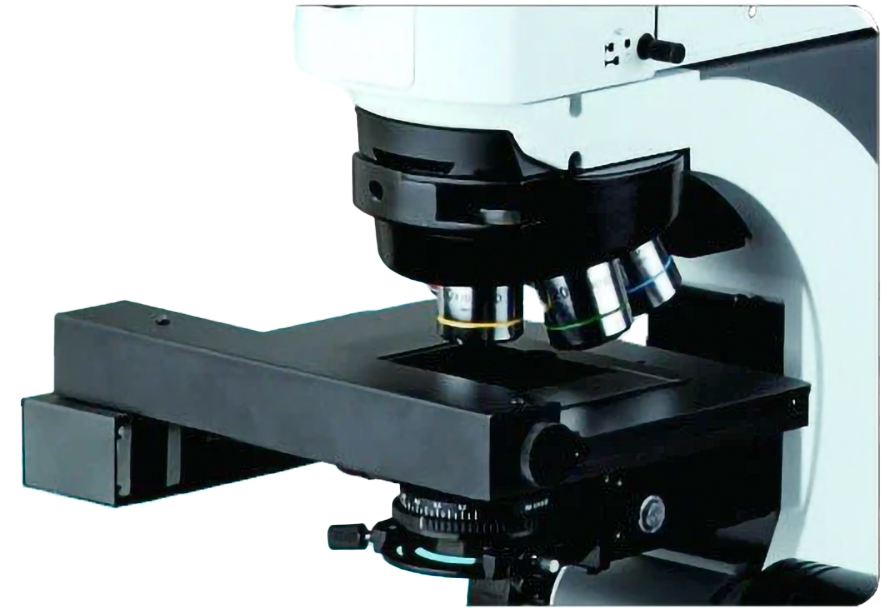

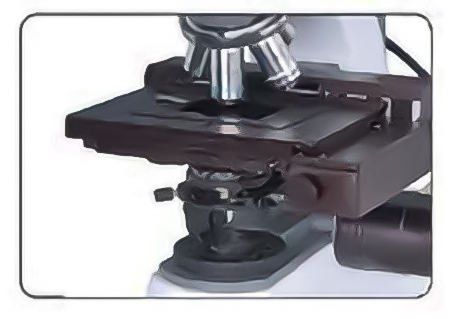

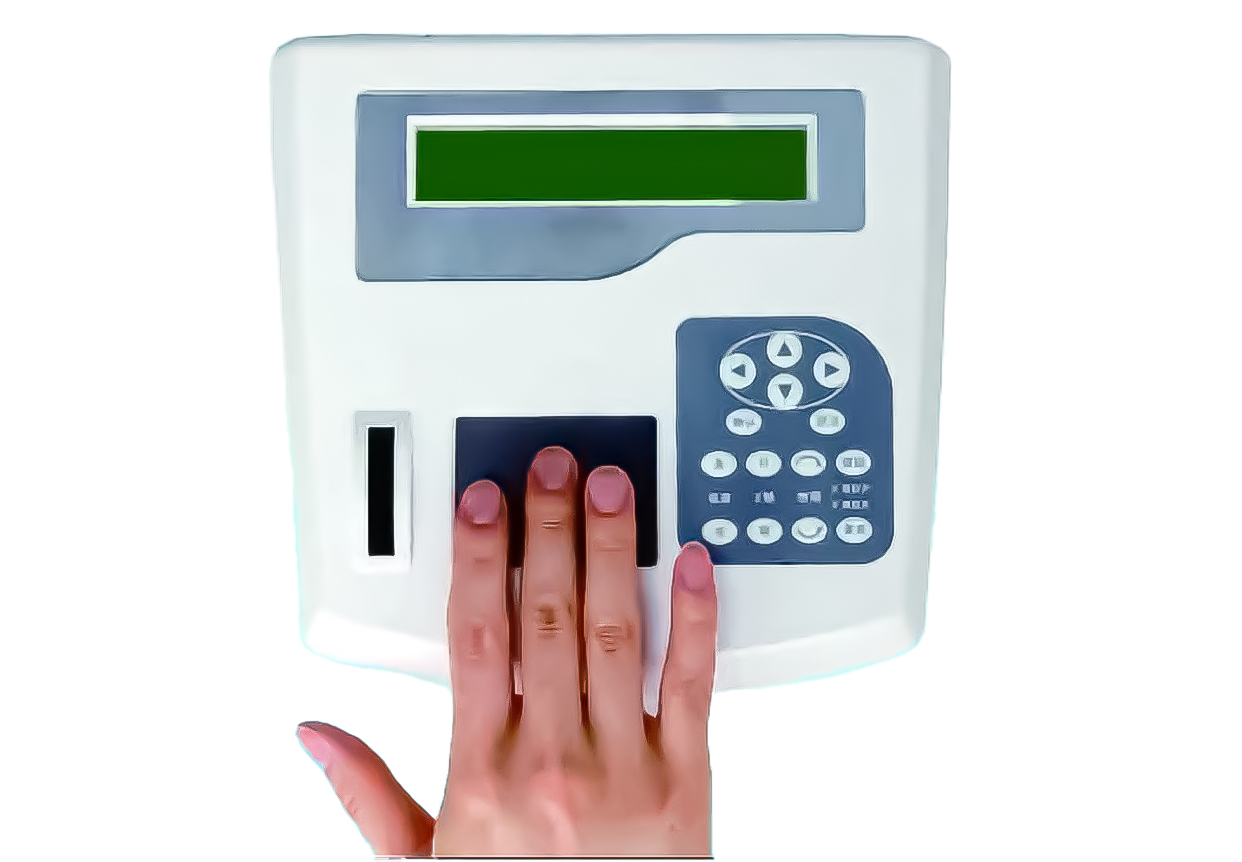

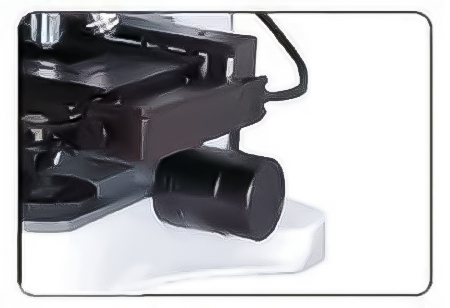

High precision stage guarantees the high quality imagesMan-machine integration touchpad controllerBuilt-in dynamic focusing system, auto-focus without computer
Metallurgical/SW-interface-autofocus.jpgMetallurgical/travel_path.jpg
Sharp Auto-focus fetaureGreat Image Analysis Software /Travel Path

Applications

This microscope is an ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

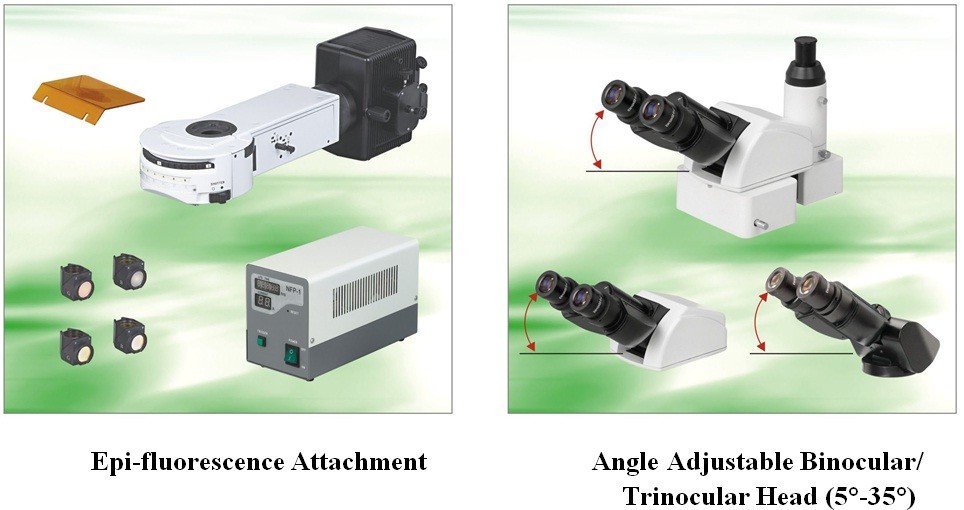

Accessories

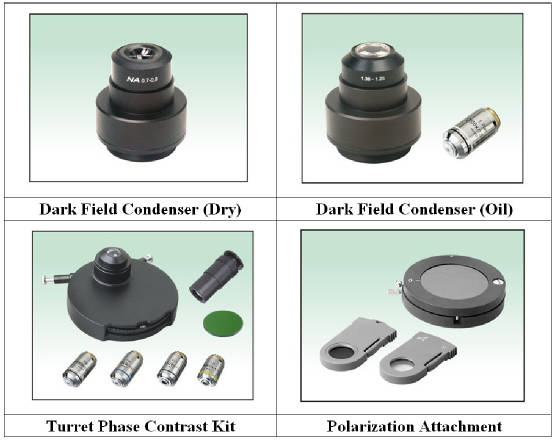

binocular/BS-2080_access.jpg

binocular/BS-2080_access2.jpg

To add the optional items, please contact us or check from the Accessories page.



Automatic Control Specifications

  • Optical System: Infinite optical system
  • Viewing Head: Seidentopf Trinocular Head Inclined at 30°, interpupillary 48-75mm
  • Camera: 1.3 MP color USB 2 digital camera with CMOS chip or higher resolution/sensitivity (Contact us)
  • Eyepiece: Extra Wide Field EW10x/22
  • Nosepiece: Quintuple nosepiece
  • Objective lenses: 4x, 10x, 20x, 40x, 100x infinite plan achromatic
  • Stage:
    • X-Y: 75×45 mm +- 1um; Z: 20 mm
    • Resolution: 1 um in X-Y and Z directions
    • Maximum speed: X-Y: 3 mm/s, Z: 0.3 mm/s
    • Specimen Holder
  • Illumination:
    • Condenser: NA0.9/0.25 swing condenser
    • 24v/100W, Halogen Lamp
    • Filter: Blue and Green
  • Focus: auto-focus resolution < 1um.
  • Control System
    • the control box of motorized auto-focus microscope
    • control software of motorized auto-focus microscope
    • image analysis software (ScopeImage 9.0)
    • USB dongle
    • PC (optional)
  • Other Hardware:
    • USB cable
    • 9-pin control port cable (serial)
    • 15-pin control port cable (VGA)
    • 25-pin control port cable
    • 3.5 mm single cable
    • DC24V 5A Adapter
  • Operation Temperature: 15-90°C
  • Power Supply: AC85V- AC220V
  • Power Consumption: 50W

Camera Specification

  • Image Sensor: 1/2″CMOS
  • Valid Pixel: 2048×1536 (3.0M Pixel)
  • Pixel Size: 3.2μm × 3.2μm
  • Digital Output: 24–bit (color)
  • Image Format: 2048×1536 @7.5 f/s; 1024×768 @30f/s; 640×480 @30f/s
  • Sensitivity: >1.0 V/lux-sec (550nm)
  • Exposure: Manual/Auto Exposure Process, Exposure Time; Adjustable: 1~500 ms
  • SNR: 43dB
  • Dynamic Range: 61dB
  • Connecting Mode: Insert it into Eyepiece Tube of Microscope Directly or Using Standard C Mount
  • Image Output: USB2.0, Directshow & Twain
  • Working Temperature: 0°C ~ +60°C
  • System Windows: 2000/XP/Vista/Win7 32bit or 64bit
  • With High Resolution chip (3.0M), Providing High Quality Image and Widely Used in Academic and Medical Field for High Precision and Resolution Image Capturing and Processing; By USB2.0, getting Real-time and Non-compressing Video Data and Capturing Image Directly;

System Requirements



  • Operating System: Windows 2000/XP/Vista/Win7 32bit or 64bit
  • DirectX 9.0 or higher (for Windows 2000)
  • Video adapter supports 24bit color or more, and 1280×1024 or 1024×768 resolution
  • CPU with 1.8GHz or more
  • System Memory 512MB or more
  • Display Memory 256MB or more
  • USB2.0 interface
  • Hard Disk Space 1GB for installation plus additional space for captured images.

Microscope Specifications

ModelBUM500A
Optical SystemInfinite Optical System
Viewing HeadSwiveling Siedentopf type Trinocular Head, Inclined at 30°, Interpupillary 48-75mm
Angle Adjustable Binocular/ Trinocular Head
EyepieceExtra Wide Field Eyepiece EW10×/ 22
NosepieceBackward Quintuple Nosepiece
Backward Sextuple Nosepiece
ObjectiveInfinite Plane Achromatic Objective 4×, 10×, 40×, 100×
Infinite Plane Achromatic Objective 20×
CondenserSwing-out Condenser NA 0.9/ 0.25
StageDouble Layers Mechanical Stage 185×142mm, moving range 75×55mm

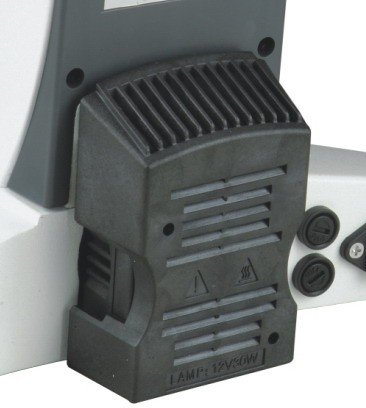

IlluminationExternal Illumination, Aspherical Collector, Halogen Lamp 6V/30W
External Illumination, Aspherical Collector, Halogen Lamp 24V/100W
Video AdapterC Mount 1×
C Mount 0.5×
FilterBlue Filter
Green Filter
Multi Viewing AttachmentsMulti Viewing Attachments for 5 persons
Multi Viewing Attachments for 3 persons
Multi Viewing Attachments for 2 persons
Dark Field AttachmentDark-field Condenser(Dry)
Dark-field Condenser(Oil)
Optional AttachmentPhoto Attachment
Polarization Attachment
Turret Phase Contrast Kit
Epi-fluorescence Attachment
Temperature Controlled Stage
Dimension& G. W.43.5cm*39.5cm*59cm, 14kg

Note: ● Standard Outfit, ○ Optional

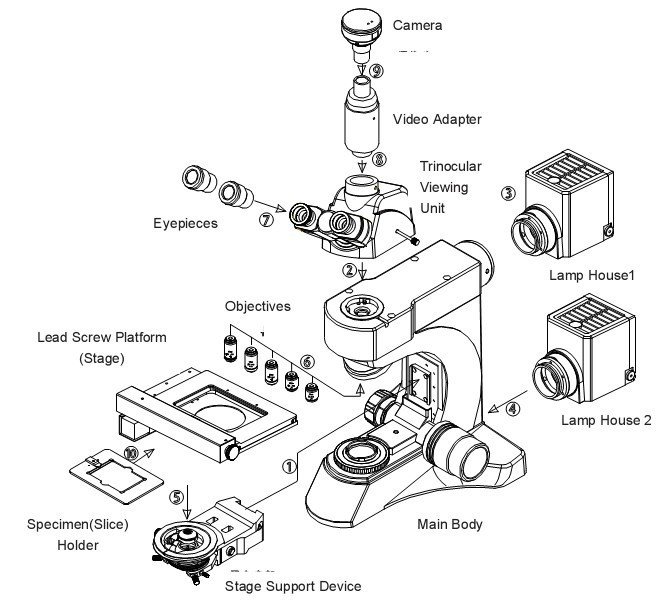

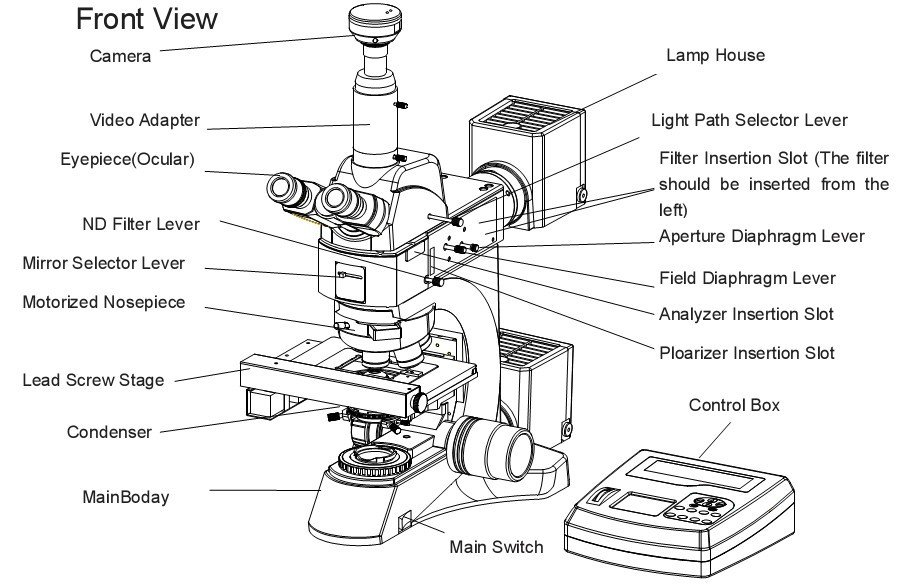

Components

ProWay/1800AT_assembly.jpg

Software

High resolution image processing software is especially designed for digital microscope; it has friendly operation interface, stable performance and powerful function, very easy to operate. And can be widely used in various optical micro fields, such as teaching, researching, electronic checking and so on.

BMU500A Fully Motorized Auto-Focus Metallurgical Microscope

The interface of software

Software Features

ScopeImage 9.0 is image-processing software professionally designed for digital microscope. It allows you to view, capture, edit, record, zoom, measure, and process microscope images. Specific features include as follows:

  • Multi-language Support: English, Germen, French, Japanese, Chinese and Arabic; It can switch easily between the languages.
  • Preview modes: active image, freezing, fit to window, actual pixels and full screen preview, all in a user-friendly environment.
  • Convenient color adjustment of the active image, containing brightness, contrast, saturation, RGB value, white balance and so on.
  • Special design color database; Users can associate the parameters of the color to the database, store or delete the color scheme.
  • Various image measurement tools include line, angle, rectangle, polygon and circle, move, delete or set the color of the objects, add text on the image, burn all the objects into the image for further use.
  • Automatic measurement and real-time measurement result display.
  • Basic image operations like other similar software are included in the Image menu. User-friendly image manipulation and enhancement.
  • Image flip function include horizontal and vertical flips of the active image, and rotate 90 degree, 180 degree, 270 degree or any angle degree of the captured image.
  • Image Zoom: Contain image zoom in, zoom out, 1:1 display.

Video 1: Main Body and Performance Overview:

Video 2: Imaging Capability: Brightfield imaging with transmitted or Reflected Light
