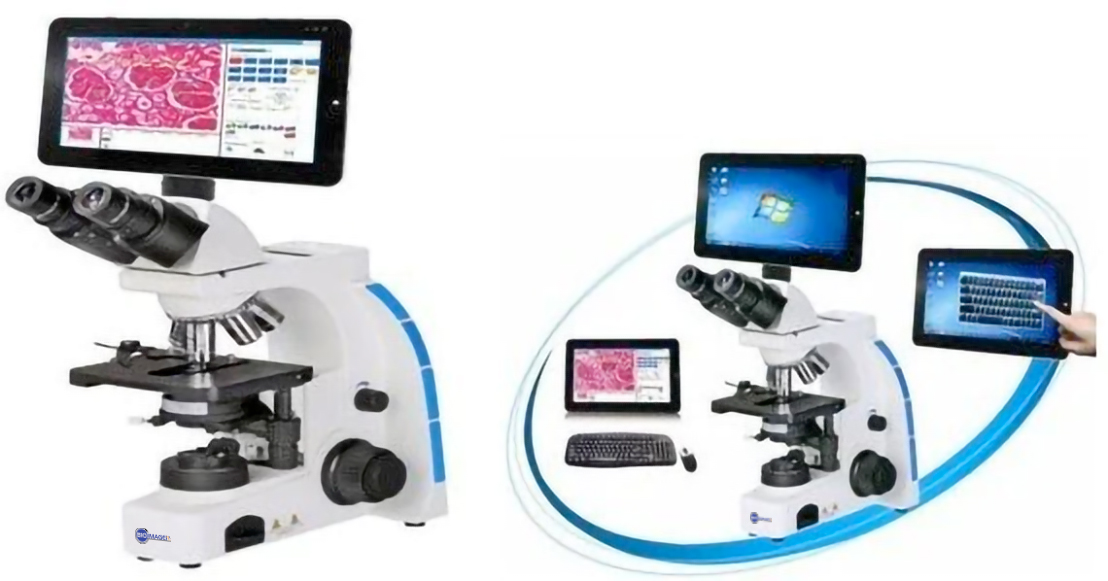

BUM265A Digital LCD Biological Microscope
Features
- Makes the Observation More Comfortable
- Make the Operation More Convenient
- Real 5 Megapixels Color CMOS Sensor Designed for Professional Microscopy
- 9.7″ High Resolution LED Capacity Touch Screen
- Bundled with Professional Measuring Software
- Windows Operating System
- Complete Application Functions
- Embedded Professional Measuring Software
Specifications
| Specification | BUM265A |
| Head | 9.7″ LED Capacitance Touch Screen with Android operating system |
| Trinocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm | |
| Eyepiece | WF10X/18mm, High Eyepoint up to 21mm |
| Objective | Infinity Achromatic Objectives 4x/0.13, 10x/0.30, 40x/0.70 (Spring),100x/1.25 (Spring,oil) |
| Focus System | Low positioning, Coaxial coarse/fine focus system, Coarse knob tension adjustable, 14mm per rotation Fine knob 0.1mm per rotation, minimum reading 1 microns on left-side fine knob |
| Nosepiece | Quadruple inward nosepiece |
| Stage | Double layer mechanical, size 142x135mm, moving range 78x52mm Low positioned X-Y coaxial control knob, can hold 2 specimen slides |
| Condenser | Abbe N.A.1.25 with aperture iris diaphragm and with socket to accommodate Phase Contrast Slide. |
| Filter | Blue filter |
| Light Source | Fixed Kohler, 6V 20W halogen, with brightness control |
| Optional Accessories | Item No. | ||
| Head | Binocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm | BI53-2702 | |
| Trinocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm | BI53-2704 | ||
| Eyepiece | WF10x/20mm, High Eyepoint up to 21mm | BI51-2701-10B | |
| WF16x/13mm, High Eyepoint up to 21mm | BI51-2701-1613 | ||
| Pointer Eyepiece WF10x/18mm | BI51-2702-10 | ||
| Pointer Eyepiece WF10x/20mm | BI51-2702-10B | ||
| Reticle Eyepiece WF10x/18mm | BI51-2703-10 | ||
| Reticle Eyepiece WF10x/20mm | BI51-2703-10B | ||
| Objective | Infinity Plan Objective | 4X/0.13 ∞/0.17,WD12.31 | BI52-2706-04C |
| 10X/0.30 ∞/0.17,WD4.00 | BI52-2706-10C | ||
| 20X/0.45 ∞/0.17,WD1.24 | BI52-2706-20C | ||
| 40X/0.70 ∞/0.17,WD0.29 (Spring) | BI52-2706-40C | ||
| 60X/0.80 ∞/0.17,WD0.40 (Spring) | BI52-2706-60C | ||
| 100X/1.25 ∞/0.17,WD0.09 (Spring,Oil) | BI52-2706-100C | ||
| Stage | Double layer mechanical, size 156x138mm, moving range 76x54mm | BI54-2701 | |
| Nosepiece | Quintuple inward nosepiece | BI54-2705-A | |
| Light | Upgrade to LED 3W | BI56-2705E | |
| Upgrade to LED 3W Set including Battery | BI56-2705EC | ||
| Filter | Green filter | BI56-2706-G | |
| Yellow filter | BI56-2706-Y | ||
| Frosted Glass | BI56-2706-F | ||
| Polarizing | Simple Polarizing Set | Analyzer | BI5P-2701-A |
| Polarizer | BI5P-2701-P | ||
| Dark Field | Dark field condenser, dry, for objective 4x,10x,40x,100x | BI57-2701 | |
| Phase Contrast | Centering telescope | BI5C-2710-B | |
| Phase Contrast Slide, for Infinity Phase Contrast Objective | 10x | BI5C-2712-10 | |
| 40x | BI5C-2712-40 | ||
| 100x | BI5C-2712-100 | ||
| Infinity Phase Contrast Objective, Positive | 10x | BI5C-2720-10P | |
| 40x | BI5C-2720-40P | ||
| 100x | |||
