Meiji Techno’s laboratory grade upright microscope line is the new and cost-effective MT5000 Series Biological Microscopes. The MT5000 Series employs all new and improved U.Plan optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the study of mounted specimens fast and easy while delivering an excellent cost-to-performance ratio. The MT5000 Series features include:MT5210H biological research microscope
- Computer Aided Design
- Ergonomically positioned controls
- Comfortable Siedentopf viewing heads
- Your choice and preference in illumination, halogen or LED
- Brightfield, darkfield and phase contrast observation modes
- Available with motorized stage and focus drive
- Optional Ergonomic Binocular Viewing Head Available

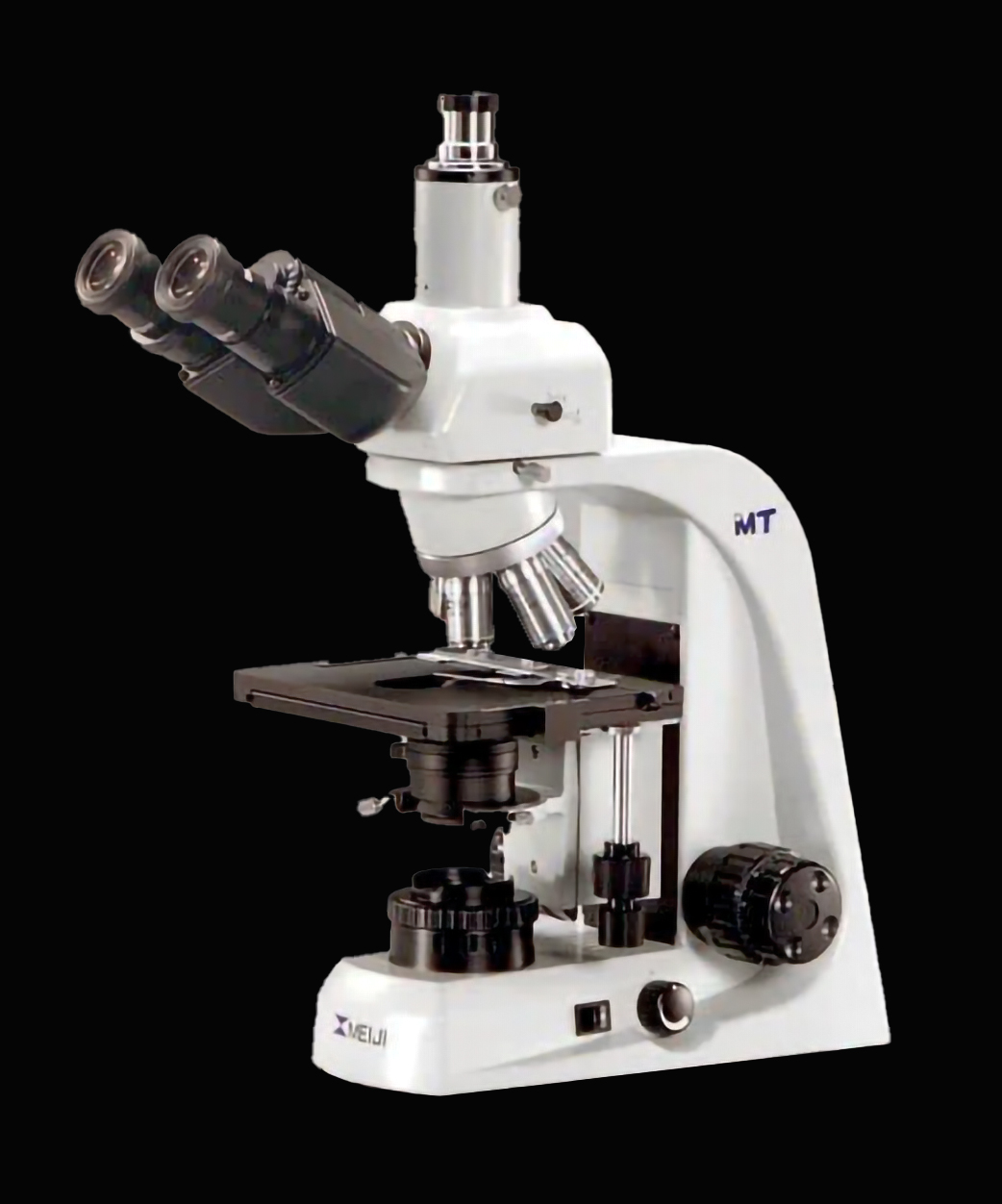

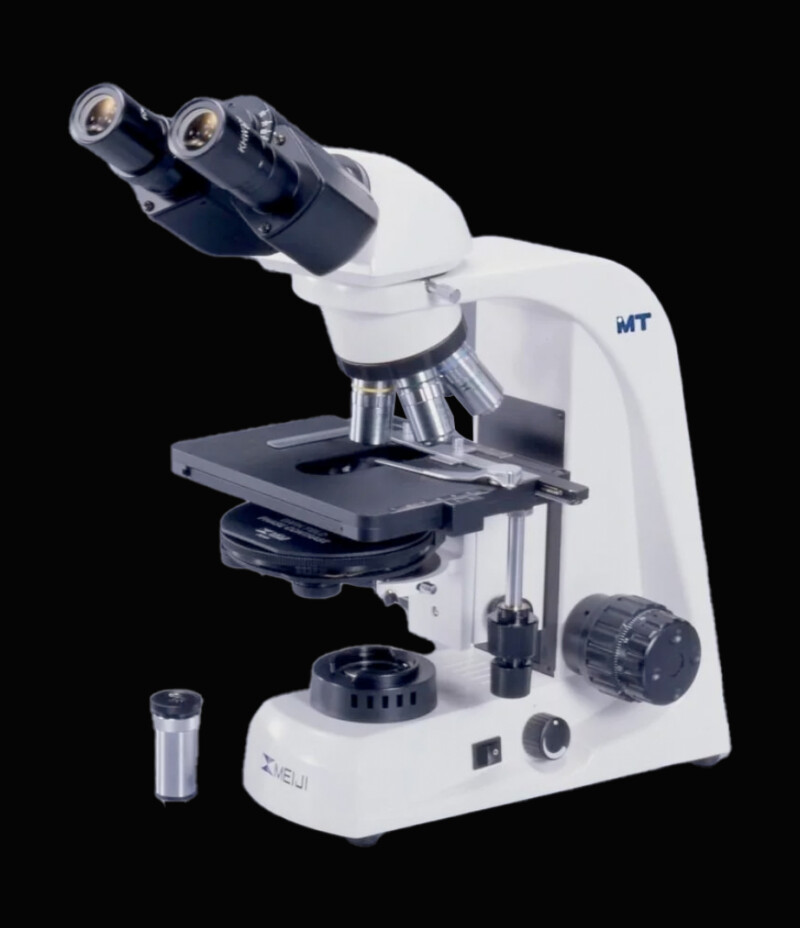

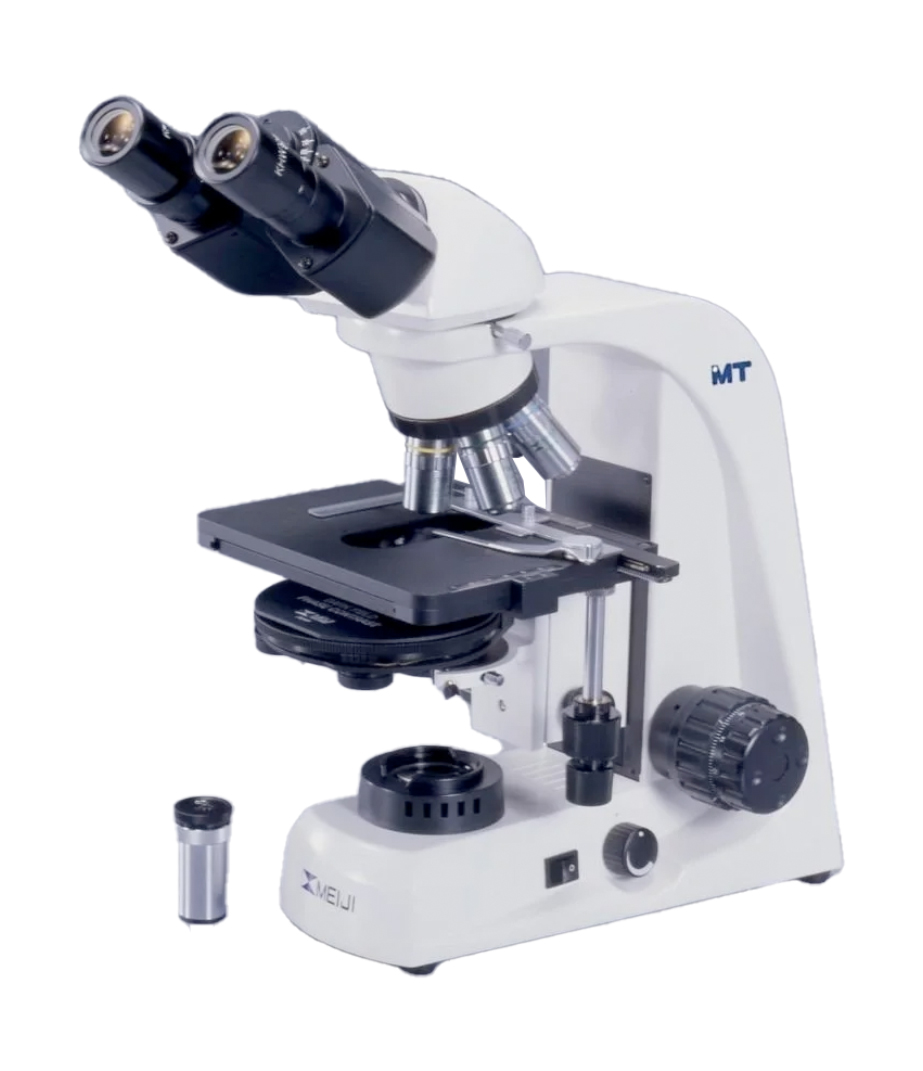

MT5000 Meiji Techno Upright Biological Microscope
The MT5000 features all new infinity corrected U.Plan optics, F.N.22 super widefield eyepieces and your choice of LED Illumination or true Koehler 30W halogen illumination. The MT5000 Series is also perfect for day-to-day use in vet and doctor’s offices as well as laboratories and universities
Models to Select
MT5000 Series Brightfield Models
| Model |
Head |
Illumination |
Eyepieces |
Objectives |
Stage |
Condenser |
| MT5200L |
Bino. |
LED Illumination |
SWH10x FN22 |
U.Plan 4x, 10x, 40x, 100x oil |
Fixed flat-top left or right-handed controls |
Abbe NA 1.25 with iris in dovetail mount |

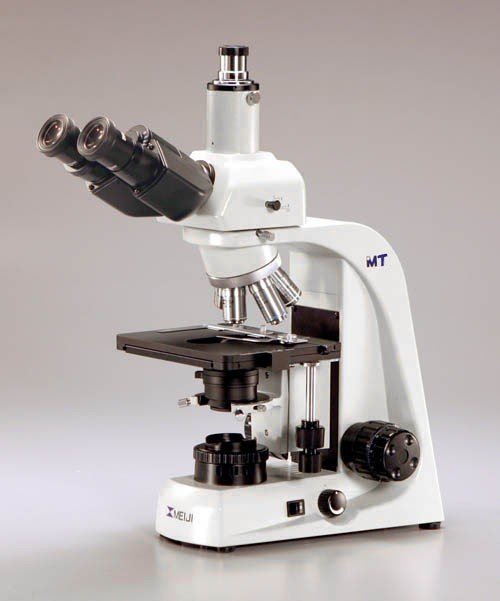

| MT5300L |
Trino. |
| MT5200H |
Bino. |
Koehler 30W halogen |
U.Plan 4x, 10x, 40x, 100x oil |
| MT5300H |
Trino. |
MT5000 Series Phase Contrast Models
| Model |
Head |
Eyepieces |
Objectives |
Stage |
Condenser |
Illumination |

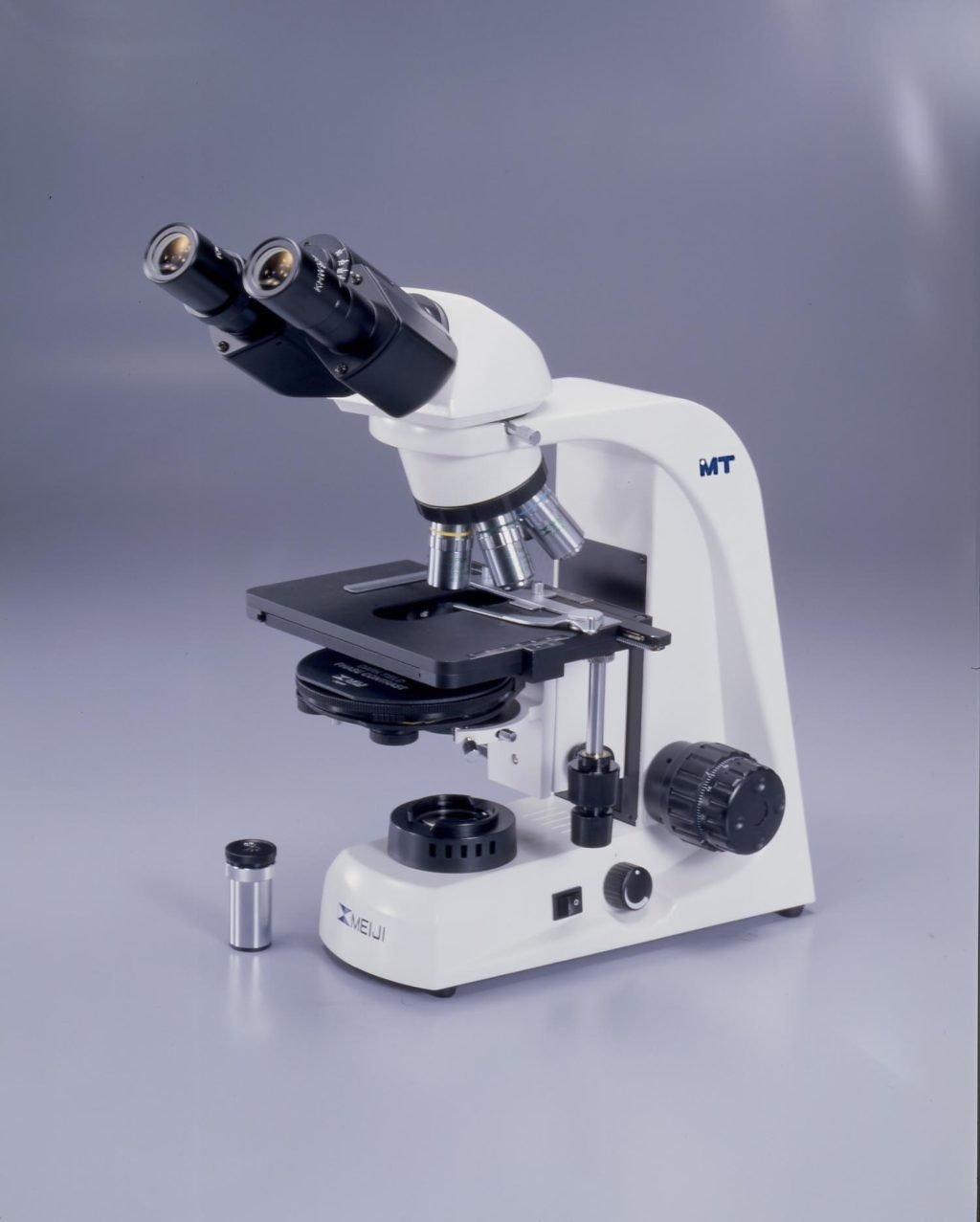

| MT5210H |
Bino. |
SWH10x FN22 |
U. Plan Phase
Ph10x, Ph20x, Ph40x, Ph100x oil |
Fixed flat-top |
Zernike Type Phase
NA 1.25 in dovetail mount |
Koehler 6V 30W halogen |
| MT5310H |
Trino. |
| * Centering telescope is included with phase contrast models. |
The Meiji MT5000 series biological microscopes include the infinity corrected optical system and high quality U. Plan objectives.
- Objective Lenses: DIN Infinity Corrected Optical System (ICOS) U. Plan brightfield 4x, 10x, s40x and s100x oil mounted in smooth-operating, ball bearing mounted, quintuple nosepiece.

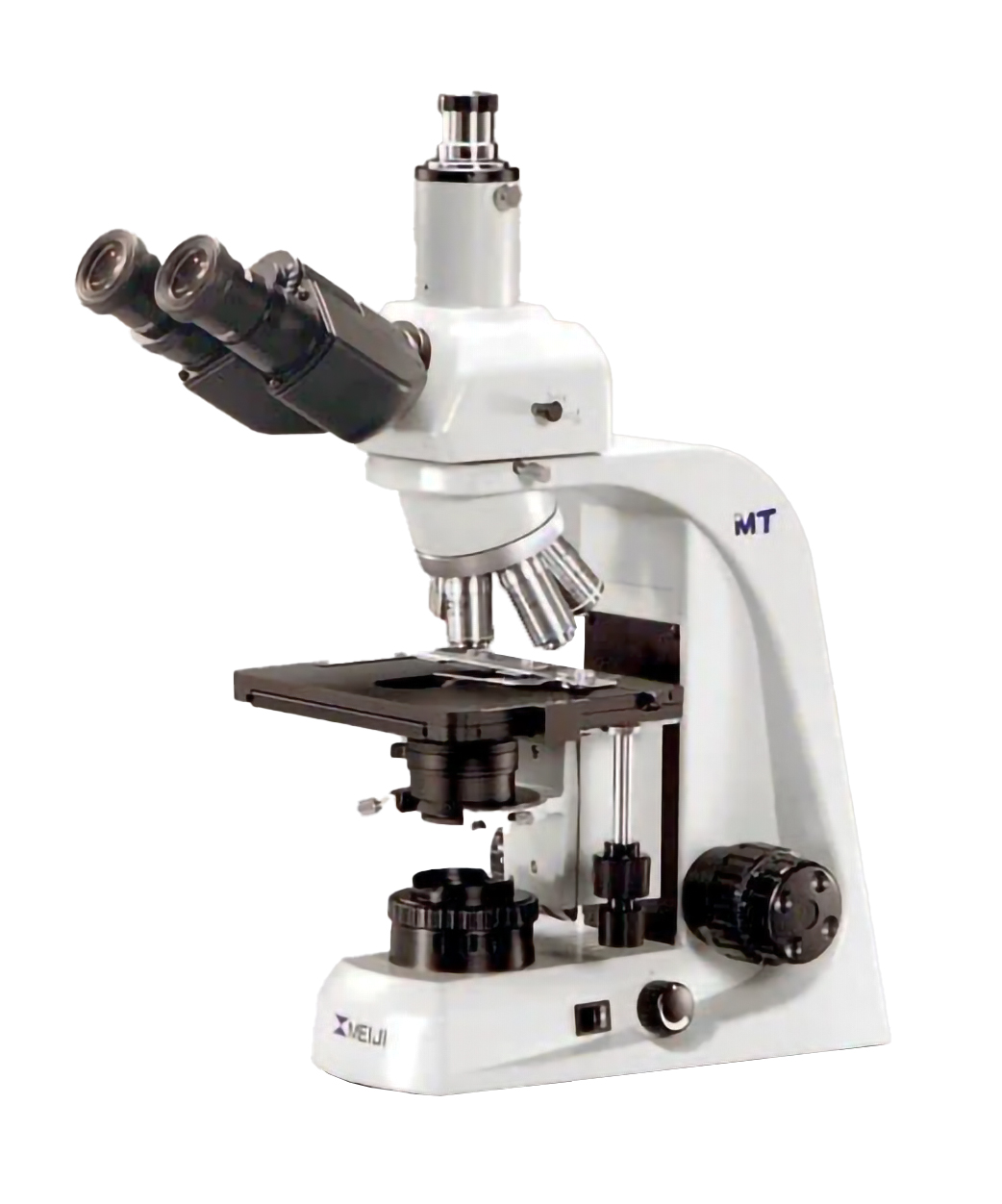

- Viewing Head: Siedentopf-type binocular head or trinocular head for camera integration. Each head has the eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. (100% to eyetubes or 80% to phototube & 20% to the eyetube.) The optional Ergonomic Viewing Head has the inclination adjustable from 10-50° to fit any size user.
- Eyepieces: 10x Super Widefield High Eyepoint eyepieces F.N.22 are standard, and 15x and 20x eyepieces are available as an option. Also avilable – Super Widefield High Eyepoint 10x focusable eyepiece (accepts 25mm reticles).
- Total Magnification: 40x, 100x, 400x and 1000x.
- Specimen Stage: Ceramic coated right-handed (left-handed available), flat top stage 191mm x 126mm with travel: 100mm(X) x 100mm(Y). Stage has ergonomically positioned coaxial drop down controls.
- Illumination: Powerful white LED or 30 watt Halogen Koehler Illumination provides enhanced image quality and brightness for the observation of specimens and photomicroscopy.
- Light Focusing: Abbe 1.25 NA Condenser with iris diaphragm in quick change dovetail mount.
- Size & Weight:
- Binocular – 390mm (15.6″) D x 410 (16.1″) H x 210mm (8.3″) W, 8kg (17.6 lbs).
- Trinocular – 390mm (15.6″) D x 465 (18.3″) H x 210mm (8.3″) W, 8.7kg (19.2 lbs).
- Warranty: Meiji Techno warrants this product against defects in material and/or workmanship for the life of the instrument from the date of original purchase to the original purchaser. Electrical warranty is 90 days.
VIEWING HEADS
Model MA815 is the Siedentopf-type binocular head and Model MA816 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. (100% to eyetubes or 80% to phototube & 20% to the eyetube.) The optional Ergonomic Viewing Head has the inclination adjustable from 10 to 50 degrees to fit any size user.
| MA815 |
Siedentopf type binocular head. 30 degree inclination, 30.0mm ø eyetubes. (MT5200L, MT5200H, MT5210H) |
| MA816 |
Siedentopf type trinocular head. 30 degree inclination, 30.0mm ø eyetubes. (MT5300L, MT5300H, MT5310H) |
| MA957 |
Siedentopf type Ergonomic binocular head. 10 – 50 degree adjustable inclination, 30.0mm ø eyetubes. (optional) (Fits all MT5000 Series Models) |
|
|
EYEPIECES
10X Super Widefield High Eyepoint eyepieces F.N.22 are standard, and 15X and 20X eyepieces are available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts 25mm reticules is also available.
| MA817 |
SWH10X Super Widefield High Eyepoint eyepiece 30.0mm ø, FN22 (standard) (accepts 25mm reticle) |
| MA818 |
SWH15X Super Widefield High Eyepoint eyepiece 30.0mm ø, FN16 (optional) (accepts 19mm reticle) |
| MA819 |
SWH20X Super Widefield High Eyepoint eyepiece 30.0mm ø, FN12 (optional) (accepts 19mm reticle) |
| MA859 |
SWH10X-F Super Widefield High Eyepoint focusing 30.0mm ø, FN22 (optional) (accepts 25mm reticle) |
|
|
OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.
OBJECTIVES
Meiji Techno offers an assortment of Planachromat Infinity Corrected objectives for Brightfield, Darkfield and Phase Contrast observation modes.
| U.Plan Brightfield Objectives – Infinity Corrected – F = 200mm – Included in Brightfield Models |
| MA830 |
U.Planachromat 2.5X objective, NA: 0.07, Working Distance = 5.7mm (optional) |
| MA831 |
U.Planachromat 4X objective, NA: 0.10, Working Distance = 17.8mm (included) |
| MA832 |
U.Planachromat 10X, objective, NA: 0.25, Working Distance = 10.67mm (included) |
| MA833 |
U.Planachromat 20X, objective, NA: 0.40, Working Distance = 7.29mm (optional) |
| MA834 |
U.Planachromat 40X objective, NA: 0.65, Working Distance = 0.5mm (included) |
| MA835 |
U.Planachromat 50X oil, objective, NA: 0.87, Working Distance = 0.28mm (optional) |
| MA837 |
U.Planachromat 100X oil objective, NA: 1.25, Working Distance = 0.23mm (included) |
| U.Plan Phase Contrast Objectives – Infinity Corrected – F = 200mm – Included in Phase Contrast Models |
| MA839 |
U.Planachromat Ph10X objective, NA: 0.25, Working Distance = 10.7mm (included) |
| MA840 |
U.Planachromat Ph20X objective, NA: 0.25, Working Distance = 7.29mm (included) |
| MA841 |
U.Planachromat Ph40X objective, NA: 0.65, Working Distance = 0.5mm (included) |
| MA842 |
U.Planachromat Ph100X oil objective, NA: 1.25, Working Distance = 0.23mm (included) |
| U.Plan Darkfield Objectives with Iris – Infinity Corrected – F = 200mm |
| MA836 |
U.Planachromat 50X oil with iris objective, NA: 0.87, Working Distance = 0.28mm (optional) |
| MA838 |
U.Planachromat 100X oil with iris objective, NA: 1.25, Working Distance = 0.23mm (optional) |
|

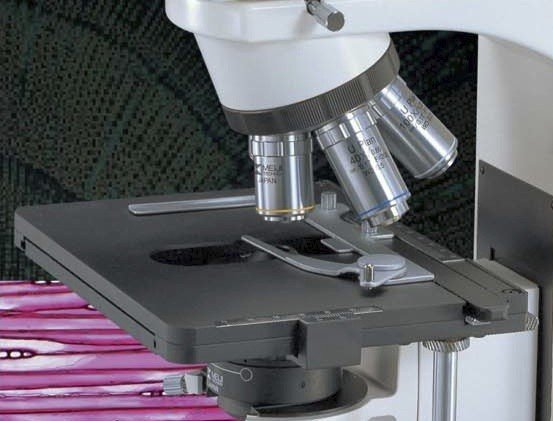

| STAGE
Ceramic coated left or right-handed, flat top stage 191mm x 140mm with travel: 80mm(X) x 52mm(Y). Ergonomically positioned coaxial drop down controls.
CONDENSER
New design Abbe 1.25 NA Condenser with iris diaphragm in dovetail mount. |
|
ILLUMINATION
Powerful white LED or 30 watt halogen illumination provides enhanced image quality and brightness for the observation of specimens and photomicroscopy.
PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras like the 2MP CCD camera, which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. With the included software, one can preview and capture still shots and images to a PC or Mac with USB port.
| Filters |
| MA861/05 |
Green interference filter 40mm un-mounted (546nm) |
| MA856/05 |
Blue filter, LB100, 40mm un-mounted |
| MA857/05 |
Green filter, clear, 40mm un-mounted |
| MA858/05 |
ND25 Neutral density filter 40mm un-mounted (transmission: 25%) |
| Misc. Parts & Accessories |
| MA918R |
Ceramic Coated Flat Top Stage, 190mm X 140mm, with 80mm X 52mm X-Y movement and right handed drop down coaxial controls. (included) |
| MA918L |
Ceramic Flat Top Stage, 190mm X 140mm, with 80mm X 52mm X-Y movement and left handed drop down coaxial controls. (included, ordered as option) |
| MA676 |
Attachable Clinical Specimen Holder fits MA918R & MA918L (optional) |
| MA598 |
Replacement Finger Assembly fits MA918R & MA918L (included) |
| MA958 |
Photo/Video attachment with 80/20 beamsplitter, fits MA957 only |
| MA809/10 |
Replacement 115V AC Power cord with plug (USA) |
| MA809/20 |
Replacement 220V AC Power cord with plug (Eurocord) |
| MA809/30 |
Replacement 240V AC Power cord with plug (UK) |
| MA326 |
Spare bulb, 6V 30W Halogen |
| MA929 |
Spare fuse for LED illuminator, 0.5A |
| MA327 |
Spare fuse for halogen illuminator, 3A |
| MA458/05 |
Centering Telescope for phase contrast, O.D.= 30.0mm (included in PC models) |
| MA913 |
Six Position Zernike Phase Condenser, darkfield stop & blocking stop with iris in dovetail mount. (included in PC models) |
| MA910 |
Abbe NA 1.25 Condenser with iris diaphragm in dovetail mount. (included in BF models) |
| MA910/10 |
Abbe NA 1.25 Condenser with centerable phase annuli in slider for use with 20x and 40x phase objectives, iris diaphragm, and dovetail mount. (optional) |
| MA910/15 |
Abbe NA 1.25 Condenser with darkfield stop in slider for use with 20x and 40x brightfield objectives, iris diaphragm, and dovetail mount. (optional) |
| MA911 |
Achromatic NA 1.25 Condenser with iris diaphragm in dovetail mount. (optional) |
| MA976 |
Abbe NA 1.25 Condenser with swing out top lens and iris diaphragm in dovetail mount. (optional) For use with low power scanning objective, MA830 (optional) |
| MA914 |
Darkfield NA 1.25 Condenser in dovetail mount. (optional) |
| MA915 |
Polarizing set for MT5000 Series microscope. (optional) |
| MA906 |
Eyeshield (ea) for MA817 10x eyepieces (included) |
| MA701 |
Dust Cover for MT5000 (included) |
|
