Introduction

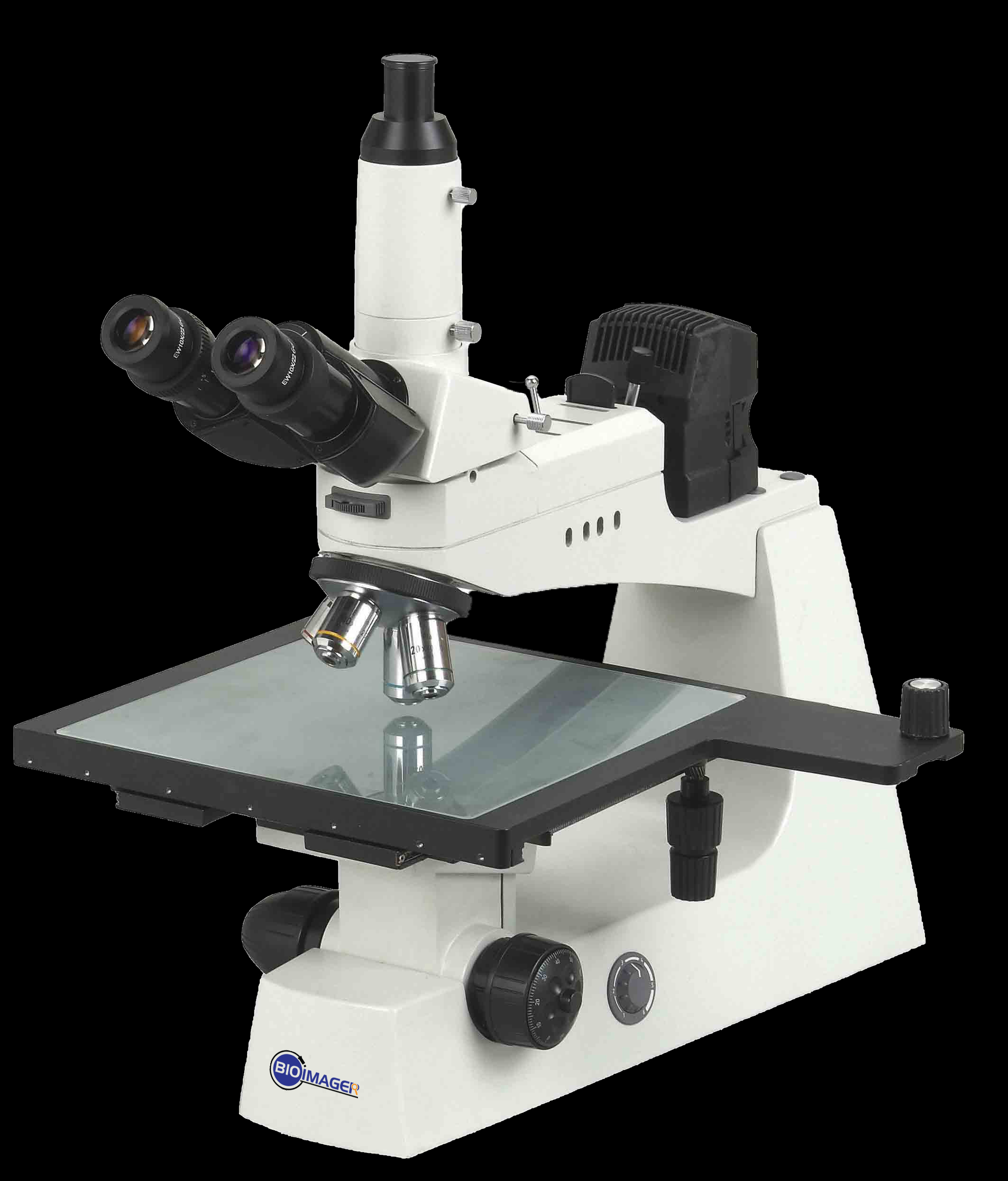

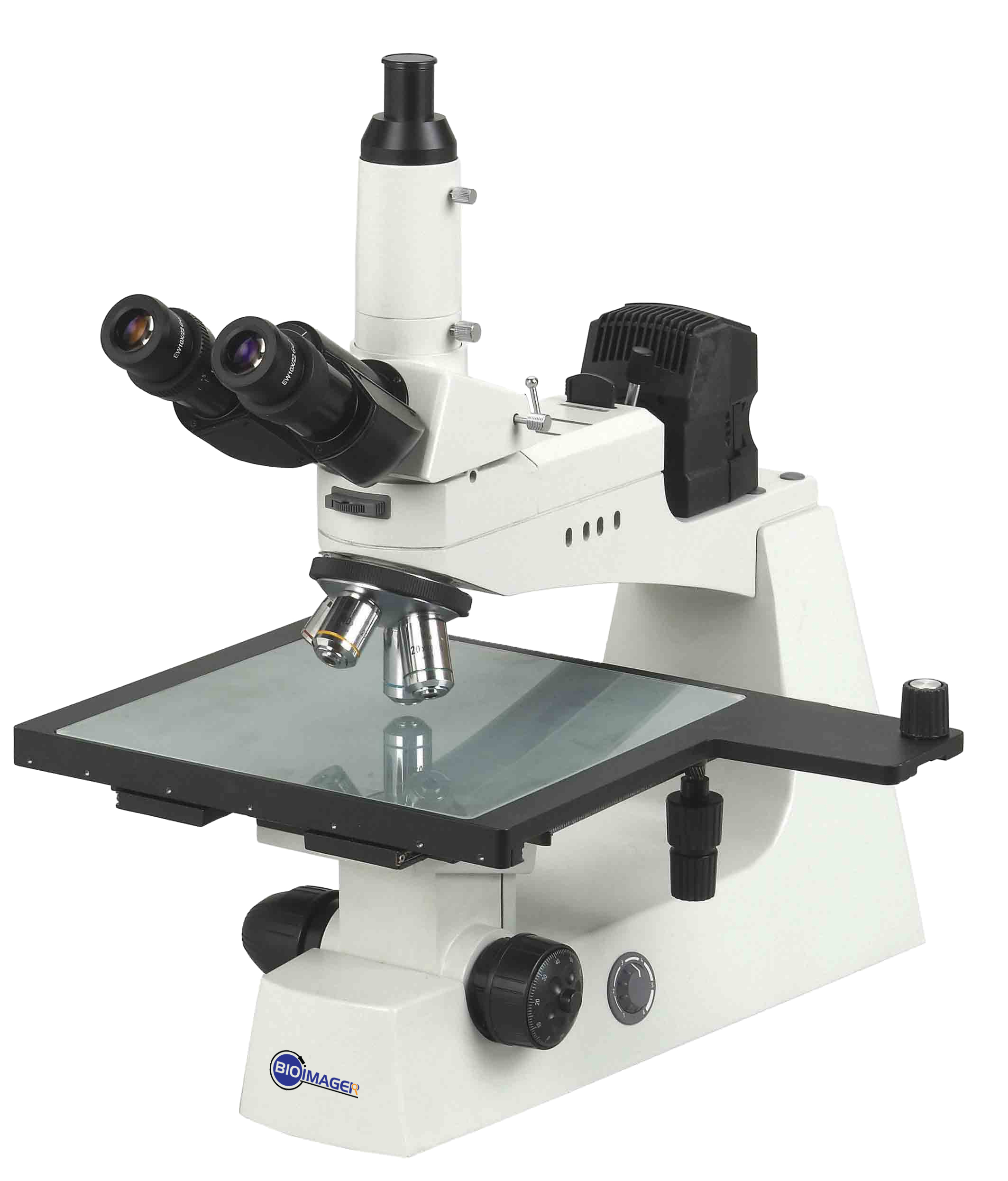

BMI300 series microscopes are specially designed for precise industrial inspection. They adopt infinity optical system and long working distance high-power objective lens. They provide an outstanding optical performance and available to IT industry, large-scale integrated circuits, chips observation and testing. It is stable, easy and comfortable to operate.
Application area
It is specially used in IT Industry for Large Area Integrate Circuit, Wafer Observation and other industrial Inspection.
| Model |
BMI300A |
BMI300B |
| Viewing Head |
Seidentopf type trinocular head |
● |
● |
| Eyepiece |
Extra Wide Field Eyepiece EW10×/ 22 |
● |
● |
| Objective |
Infinitive Plan Achromatic Objectives |
4×/0.1/∞/- WD 17.8mm |
● |
|
| 5×/0.12/∞/-WD 15.5mm |
○ |
● |
| 10×/0.25/∞/-WD 10.0mm |
● |
|
| 10×/0.25/∞/- (BF/DF)WD 10.0mm |
|
● |
| 20×/0.40/∞/0 WD 5.8mm |
● |
|
| 20×/0.40/∞/0 (BF/DF) WD 4.3mm |
|
● |
| 40×/0.6/∞/0 WD 2.9mm |
● |
|
| 50×/0.75/∞/0 WD 0.32mm |
○ |
● |
| 100×/0.8/∞/0 WD 2.0mm |
○ |
● |
| Nosepiece |
Quadruple Nosepiece |
● |
|
| Quintuple Nosepiece |
|
● |
| Stage |
Stage size 300×268mm, Moving range 250×250mm |
● |
● |
| Focusing |
Coaxial coarse & fine Adjustment, Moving Range 24mm |
● |
● |
| Illumination |
6V/ 20W Halogen Lamp, Brightness Adjustable |
● |
|
| 24V/ 100W Halogen Lamp, Brightness Adjustable |
|
● |
| Polarization Set |
Analyzer and Polarizer |
○ |
○ |
| Filter |
Blue, Green, Yellow and Frosted glass filters |
● |
● |
| Photo Attachment |
|
○ |
○ |
| Video Adapter |
C-Mount |
○ |
○ |
| Camera System |
BUC1, BUC2, BUC3, BUC4, BUC5, BVC, BLC |
○ |
○ |
| Software |
Image Processing Software |
○ |
○ |
Note: ● Standard Outfit, ○ Optional
