Save $5,894

Medi 5000 Digitizer for Mammography Grade Certified by CE MDD & TFDA

Availability:

In stock


Compare
  • Mammography grade certified by CE MDD & TFDA
  • No warm up time with LED light source
  • 4.5 Dmax, 3200 dpi optical resolution (7.9 um spot size, 63 lp/mm)
  • Smart-Scan to auto-crop multi-films scan at a time
  • Provides customized templates to scan two films at a time
  • Excellent image quality with very fine details
  • Supports DICOM 3.0 and telemedicine with optional MiPAX
  • Easy to operate, clean, and maintain
  • Offers excellent image quality, performance, and secure e-medical records

Request a Quote

Hi-Speed Digitizer for Mammography Grade Certified by CE MDD & TFDA

“30% Reduction in time for Image Interpretation with Digitized Analog Mammograms.” ~from 2009 RSNA, Brem, MD, etc.

Bioimager  medical grade digitizer, the BioMedi-5000, can digitize X-Ray and mammography films rapidly in seconds. With the advanced technology of the LED light source, the BioMedi-5000 can reach full brightness and on/off operation immediately. The energy-saving BioMedi-5000 is perfect for fast-paced environment of the medical doctor’s office, QC Station and PACS.

It captures details in bright and dark areas at a high optical resolution up to 3200 dpi, 4.5 Dmax, and 16-bit grayscale. Furthermore, the digitized mammography films can be easily read and utilized in the optional MiPAX gateway software to be integrated with PACS RIS/ system. It provides the medical professionals a smart and easy way to digitize and observe the traditional mammography films easily and efficiently.

Medi 5000 Digitizer for Mammography Grade Certified by CE MDD & TFDA -0

  • Mammography grade certified by CE MDD & TFDA
  • No warm up time with LED light source
  • 4.5 Dmax, 3200 dpi optical resolution (7.9 um spot size, 63 lp/mm)
  • Smart-Scan to auto-crop multi-films scan at a time
  • Provides customized templates to scan two films at a time
  • Excellent image quality with very fine details
  • Supports DICOM 3.0 and telemedicine with optional MiPAX
  • Easy to operate, clean, and maintain
  • Offers excellent image quality, performance, and secure e-medical records
BioMedi 5000
Hi-Speed Digitizer for Mammography Grade Certified by CE MDD & TFDAMedi 5000 Digitizer for Mammography Grade Certified by CE MDD & TFDA -0

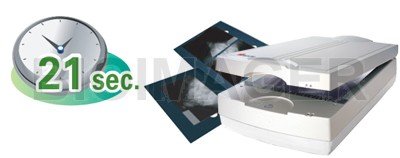

Medi 5000 Digitizer for Mammography Grade Certified by CE MDD & TFDA -1039821 seconds per scanning for two mammograms together

No warm up time with LED light source

Superior scans with 3200 dpi resolution, 4.5 Dmax

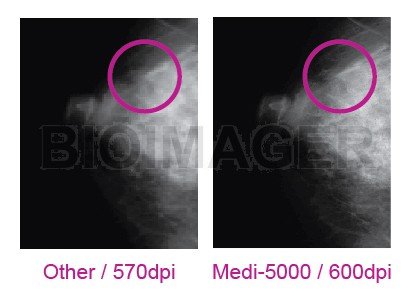

The Medi-5000 delivers impressive image quality, versatility and productivity features with the default 600 dpi, up to 3200 dpi optical resolution, 16-bit grayscale, 4.5 maximum optical densityThe higher resolution of Medi-5000 provides better image details.
Medi 5000 Digitizer for Mammography Grade Certified by CE MDD & TFDA -10401
Medi 5000 Digitizer for Mammography Grade Certified by CE MDD & TFDA -10400

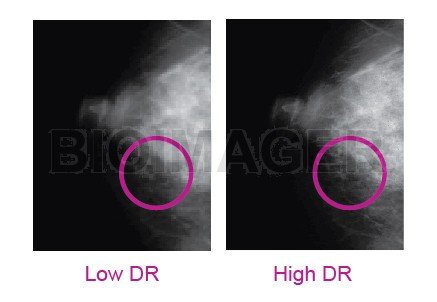

Medi-5000 provides 4.5 Dmax for a better performance in grayscale.

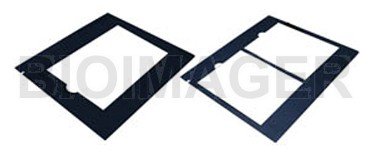

Various film templates
Medi-5000 provides two kinds of special designed templates and allows medical professionals to scan multi-films at the same time. Frame Sizes for films:24cm x 30cm ; 18cm x 24cm
Medi 5000 Digitizer for Mammography Grade Certified by CE MDD & TFDA -10403
Medi 5000 Digitizer for Mammography Grade Certified by CE MDD & TFDA -10399Make multi-films scanning easily at a time

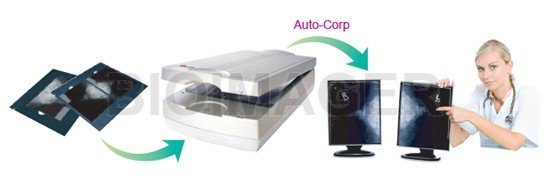

Templates and Smart-Scan make auto-crop simply to scan multi-films at a time.

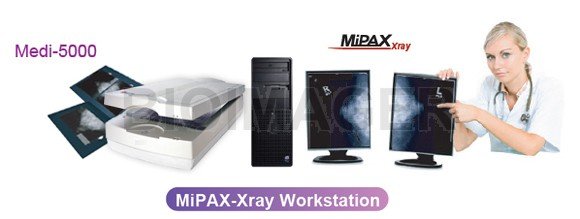

Supports DICOM 3.0 and telemedicine with optional MiPAXMedi 5000 Digitizer for Mammography Grade Certified by CE MDD & TFDA -10402
SKU: Medi 5000 Categories: ,
NO.ITEMDETAILS
01Product NameBioMedi-5000
02Scanner TypeMammography films,
Flatbed digitizer
03Image Sensor TypeCCD
04Resolution3200 dpi (7.9 um spot size, 63 lp/mm)
05Light SourceLED
06Scanning AreaFilm Scan Area: 12″ x 16″ (305 x 407 mm)
07Scanning Speed21 seconds @ 800 dpi, 24 x 18 cm
08Dynamic RangeTransparency 0.05D~3.9D, 4.5Dmax
09Bit Depth8/12/16-bit grayscale
10ConnectivityHi-Speed USB (USB 2.0)
11DriversTWAIN
12Smart-Touch Buttons1 button (Scan)
13Scanable Media TypesTransparent, Reflective
14Supported File TypesTIF, BMP, EPS, JPG, PSD, SCT, GIF, IFF, PCX, PXR, TGA, PDF, DCX
15Supported Film TypesMammography films 18 x 24 cm , 24 x 30 cm
16OS SupportWindows XP/ Vista/ Windows 7 (ScanWizard Medi)
17Dimensions (L x W x H)627.6 x 367.2 x 180.5 mm
18Weight35.49 lbs (16.1 kg)
19CertificationsFDA (X-Ray Film), CFDA, BSMI, CB, ETL, FCC, RoHS
CE, TFDA003519
20Power SourceAC 100V ~ 240V, 47 ~ 63 Hz
21Power Consumption54.9 Watts
22System Requirements PCCD-ROM drive (for installing software)
2 GB RAM or more
Pentium IV PC or higher with USB port
Microsoft Windows XP/ Vista/ Windows 7
23Inbox ContentsDigitizer unit
Power adapter & power cord
2 Film holders
High-Speed USB 2.0 cable
CD(s)
Manual(s)
24Software IncludedMicrotek ScanWizard Medi
Adobe Acrobat Reader
25AccessoriesMicrotek MiPAX-Xray software (Optional)

MiPAX XRay Software

Medi 6000 Plus X-Ray Digitizer, FDA Certified-10395

MiPAX is a medical image management software system, the major functions are: archive, storage, transmission, and medical images printing.MiPAX series products play a major role on connecting with X-Ray or document digitizers to scan medical images or documents. They combine captured images or documents with patients’ information from other sites in the hospital, then transfer them into a format of the worldwide committed DICOM standard, and finally save these files in a database. MiPAX series products turn physical films and physical documents into digital files which are easier for storage and future references. MiPAX series products allow users to copy, print, and share these files on demand.

Please chekc MiPax product page or buy it now in a bundle here and save at least 25%.
