BUM320S Laboratory Microscope |
Head |
Binocular, 30° Inclined, Interpupillary Distance 50-75mm |
Eyepiece |
PL10x/20mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree |
Objective |
Infinity Plan Achromatic 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 |
Nosepiece |
Backward Quadruple |
Focusing |
Low Position Coaxial Coarse & Fine Focusing Knob, with Safty Limitation and Tension Adjustment Ring. Coarse Range 25mm, Fine Precision 0.002mm |
Working Stage |
Double Layer Mechanical Stage 150*140mm, Moving Range 76*50mm, Precision 0.1mm |
Condenser |
Kohler N.A. 1.25, with Socket for Phase Contrast and Dark Field Slides, Center Fixed |
Light Source |
3W LED, Intensity Adjustable, Center Fixed |
Power |
90~240V Wide Range Power Supply |

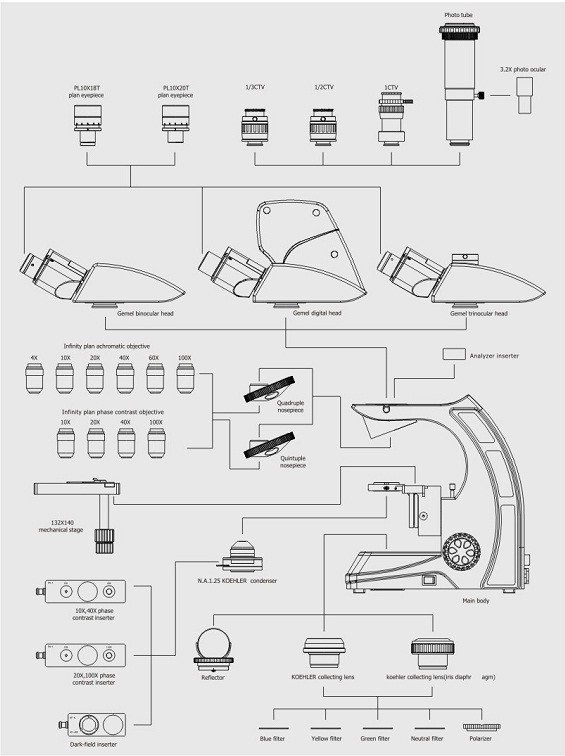

BUM320S Laboratory Microscope Optional Accessories |
Head |
Trinocular, 30° Inclined, Interpupillary Distance 50-75mm |
BUM320S-TR |
Eyepiece |
PL10x/22mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree |
BUM320S-10×22 |
Objective |
Infinity Plan Achromatic 20x/0.50 |
BUM320S-20x |
Nosepiece |
Backward Quintuple |
BUM320S-BS5 |
Filter |
Blue, Dia.45 |
BUM320S -XYB |
Yellow, Dia.45 |
BUM320S -XYY |
Green, Dia.45 |
BUM320S -XYG |
Netural, Dia.45 |
BUM320S -XYF |
Adapter |
C-Mount 1.0x, Focus Adjustable |
BUM320S-1xCA |
C-Mount 0.5x, Focus Adjustable, for ½” CCD |
BUM320S -0.5xCA |
C-Mount 0.35x, Focus Adjustable, for 1/3 CCD |
BUM320S-0.35xCA |
Photo Adapter with PK or MD mount, with 3.2x Photo Eyepiece |
BUM320S-PK |
Professional Photo C Mount, with Photo Eyepiece |
BUM320S-SLR |
Fluorescent |
Trinocular Head for Fluorescent View, 30° Inclined, Interpupillary Distance 50-75mm |
BUM320S-FLA |
Infinity Plan Semi Apochromatic Fluorescence Objective |
4x/0.13,WD=15.3mm |
BUM320S-4x |
10x/0.30,WD=8.7mm |
BUM320S-10x |
20x/0.50,WD=2.5mm |
BUM320S-20x |
40x/0.75,WD=0.72mm |
BUM320S-40x |
100x/1.30,WD=0.21mm |
BUM320S-100x |
Dark Field |
Dark Field Slide, for 4x~40x Objective |
BUM320S-DF |
Polarizing |
Polarizer |
BUM320S-Pol |
Analyser |
BUM320S-ANL |
Phase Contrast |
Centering Telescope, Dia.30mm |
BUM320S-CT |
Phase Contrast Slide, for 10x, 40x Infinity Objective |
BUM320S-Ph01 |
Phase Contrast Slide, for 20x, 100x Infinity Objective |
BUM320S-Ph02 |
N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condense Set, For 10x, 20x, 40x, 100x Phase Contrast Observation |
BUM320S-Ph03 |
N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condenser + Dark Field Condenser Set, For 10x, 40x, 100x Phase Contrast Observation and Dark Filed Observation |
BUM320S-Ph04 |
Infinity Plan Phase Contrast Objective 10x/0.25, W.D.=4.70mm |
BUM320S-10xPh |
Infinity Plan Phase Contrast Objective 20x/0.50, W.D.=1.75mm |
A5C.0937-20 |
Infinity Plan Phase Contrast Objective 40x/0.65, W.D.=0.72mm |
A5C.0937-40 |
Infinity Plan Phase Contrast Objective 100x/1.25, W.D.=0.15mm |
A5C.0937-100 |
