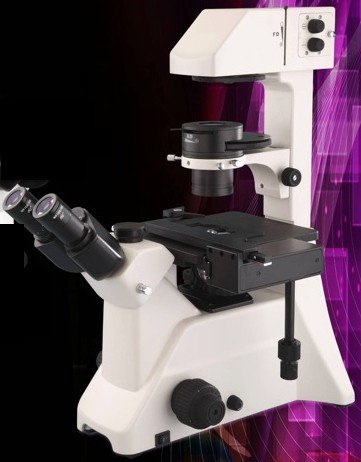

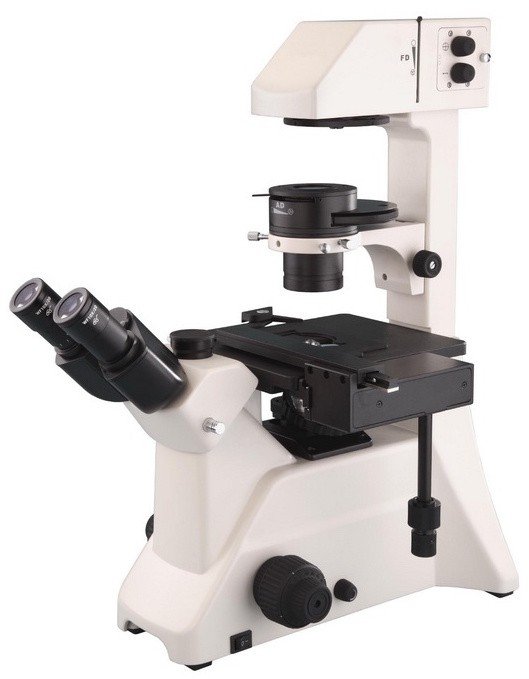

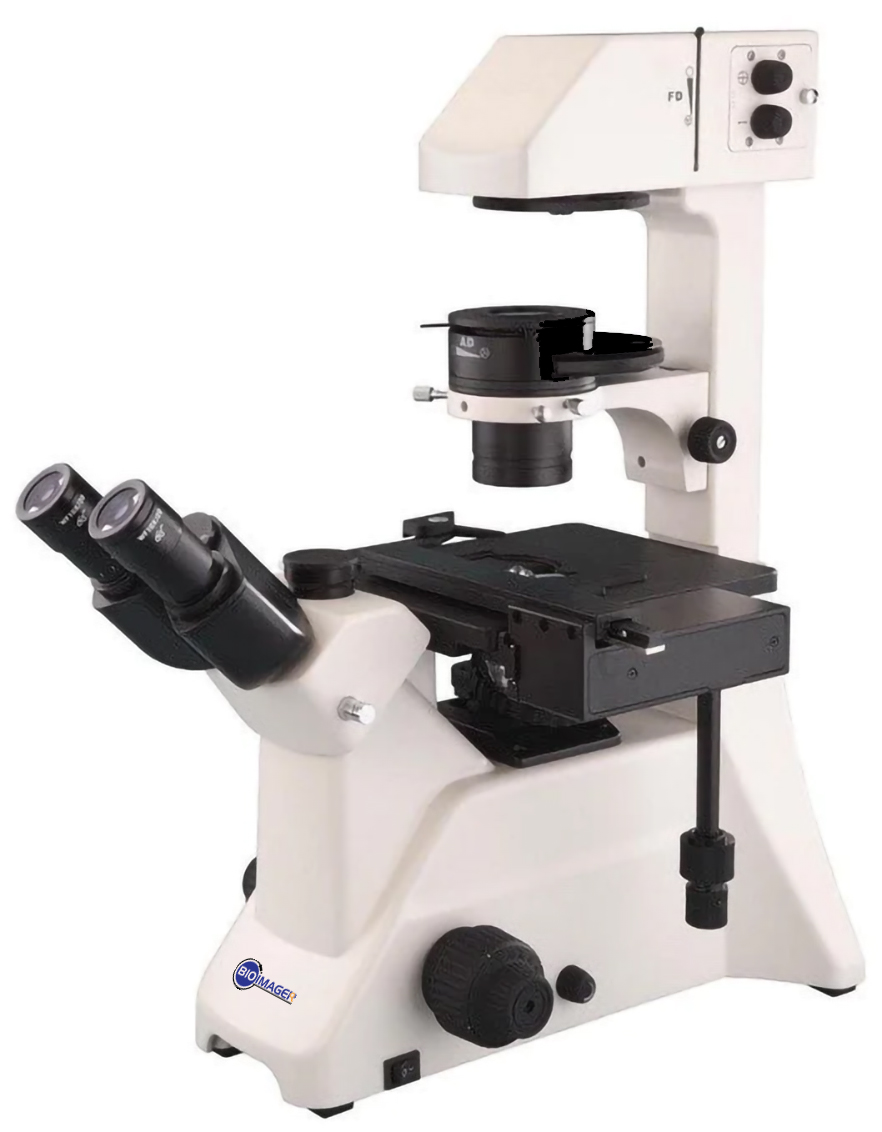

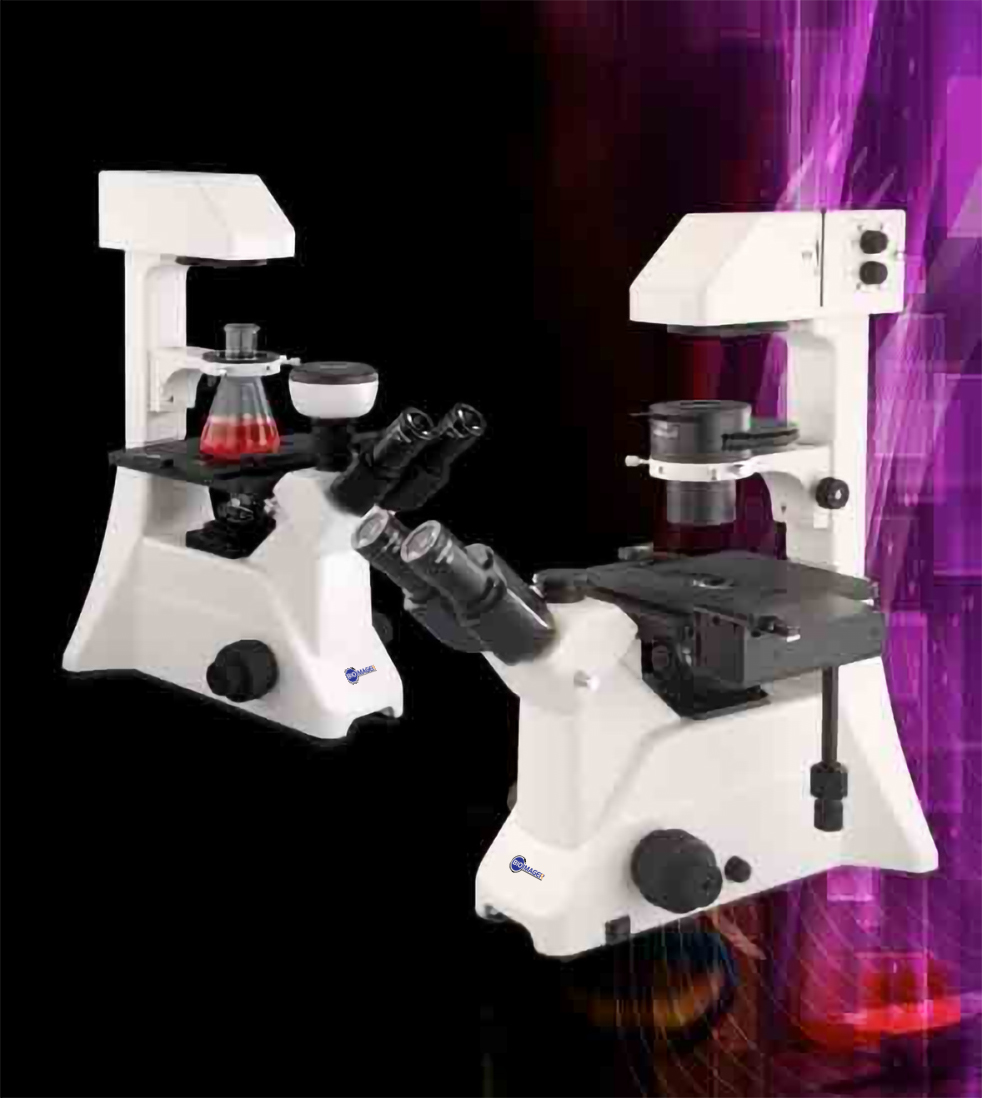

1. Main Body
2. Illumination System
3. Mechanical XY Stage
Large Stage: 206 (X) × 170 (Y) mm
Mechanical stage available for 96-well plates, moving range: 128（X）×80（Y）mm
Knob can be changed by left or right, convenient for all users
 |
 |
 |
| BIM-300 with attached mechanical stage | ||
 |
 |
 |
| 65mm Culture Dish Holder & Terasaki Holder |
4. Observation Tube
Both 100 (binocular tube) : 0 (photo tube) and 20 (binocular tube) : 80 (photo tube)
 |
 |
| 0.6X C-Mount (Adjustable Focus) | 1X C-Mount |
5. Long Working Distance Objective Lenses with Relief Phase Contrast
 |
 |
| Relief Phase Contrast Objective |
 |
 |
| Ordinary Phase Contrast Observe |
Relief Phase Contrast Unit makes 3D image for crystal living sample

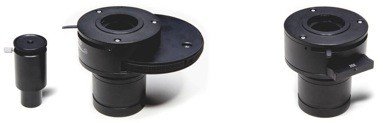

Rotatable Relief Phase Contrast Condenser Slide Relief Phase Contrast Condenser
| Objective | N.A. | Working Distance | |
|
LWD Plan Objective |
LPL 2.5× |
0.07 |
29.7 |
|
LPL 4× |
0.10 |
17.5 |
|
|
LPL10× |
0.25 |
7.9 |
|
|
LPL25× |
0.40 |
5.0 |
|
|
LPL40× |
0.65 |
3.0 |
|
|
LWD Plan Phase Contrast Objective |
LPL Ph+ 10× |
0.25 |
7.9 |
|
LPL Ph+ 25× |
0.40 |
5.0 |
|
|
LPL Ph+ 40× |
0.65 |
3.0 |
6. Dimension
Size (in mm); Packing Size: 586mm X 586mm X 380mm; Gross Weight: 15 kgs; Net Weight: 11 kgs
7. Specifications
|
Item Description |
BIM-300BF |
BIM-300PH |
||
|
Main Body |
● |
● |
||
|
Eyepiece |
WF10×/20mm |
●● |
●● |
|
|
WF16×/13mm |
○○ |
●● |
||
|
10X Article Eyepiece (0.1mm) |
○ |
● |
||
|
Telescope |
● |
● |
||
|
LWD Plan Objective |
LPL 2.5×/0.07 |
W.D.=29.7mm |
○ |
○ |
|
LPL 4×/0.10 |
W.D.=17.5mm |
○ |
● |
|
|
LPL10×/0.25 |
W.D.=7.9mm |
● |
○ |
|
|
LPL25×/0.40 |
W.D.=5.0mm |
● |
● |
|
|
LPL40×/0.65 |
W.D.=3.0mm |
● |
● |
|
|
LWD Plan Phase Contrast Objective |
LPL Ph+ 10×/0.25 |
W.D.=7.9mm |
○ |
● |
|
LPL Ph+ 25 /0.40 |
W.D.=5.0mm |
● |
● |
|
|
LPL Ph+ 40 / 0.65 |
W.D.=3.0mm |
○ |
● |
|
|
Annular Spot 10× |
○ |
● |
||
|
Annular Spot 25× |
● |
● |
||
|
Annular Spot 40× |
○ |
● |
||
|
Slide Relief Phase Contrast Condenser N.A.0.35 W.D. =45mm |
● |
|
||
|
Rotatable Relief Phase Contrast Condenser N.A.0.35 W.D. = 45mm |
|
● |
||
|
Seidentopf Trinocular Head: Inclined 45°; Both 100 (binocular tube) : 0 (photo tube) and 20 (binocular tube) : 80 (photo tube) |
● |
● |
||
|
Mechnical stage available for 96 holes plate; Stage Size: 206 (X) × 170 (Y) mm; moving range: 128（X）×80（Y）mm |
● |
● |
||
|
65mm Culture Dish Holder |
● |
● |
||
|
54mm Culture Dish Holder |
○ |
○ |
||
|
35mm Culture Dish Holder |
● |
● |
||
|
Filter (Blue, Green, Gray) |
● |
● |
||
|
1X C-mount |
○ |
● |
||
|
0.6X C-mount (focus adjustable) |
○ |
○ |
||
|
12V/20W Halogen lamp |
● |
● |
||
|
Micrometer (0.01mm) |
○ |
○ |
||
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
