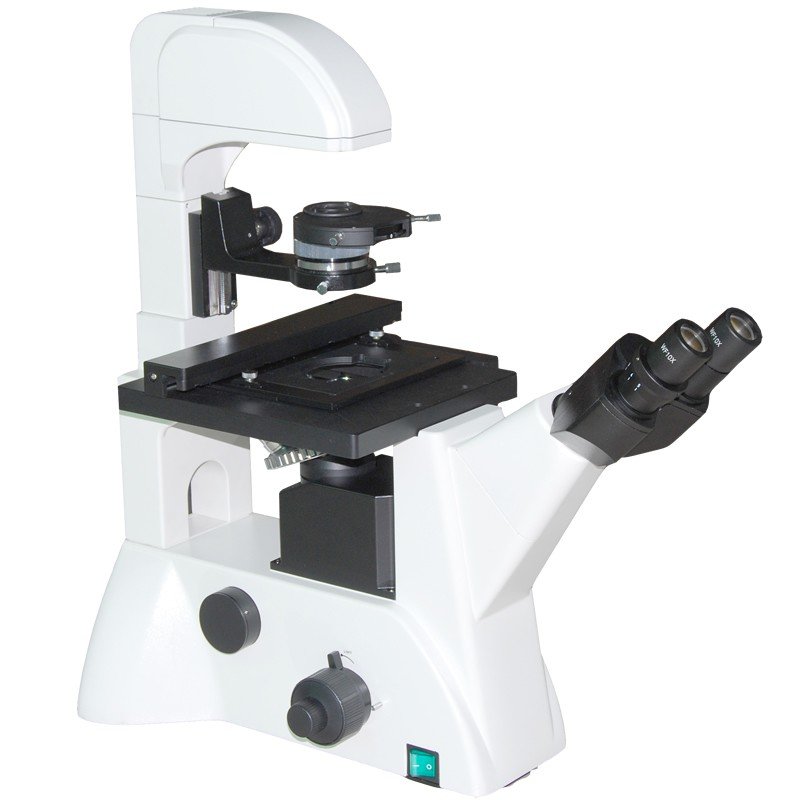

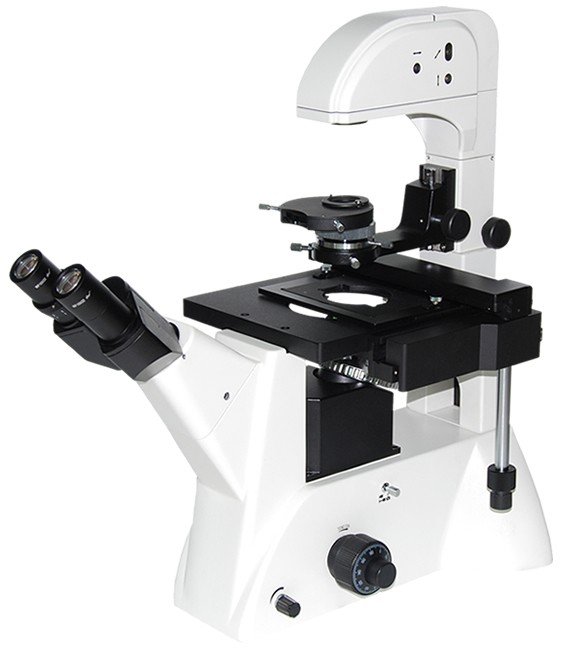

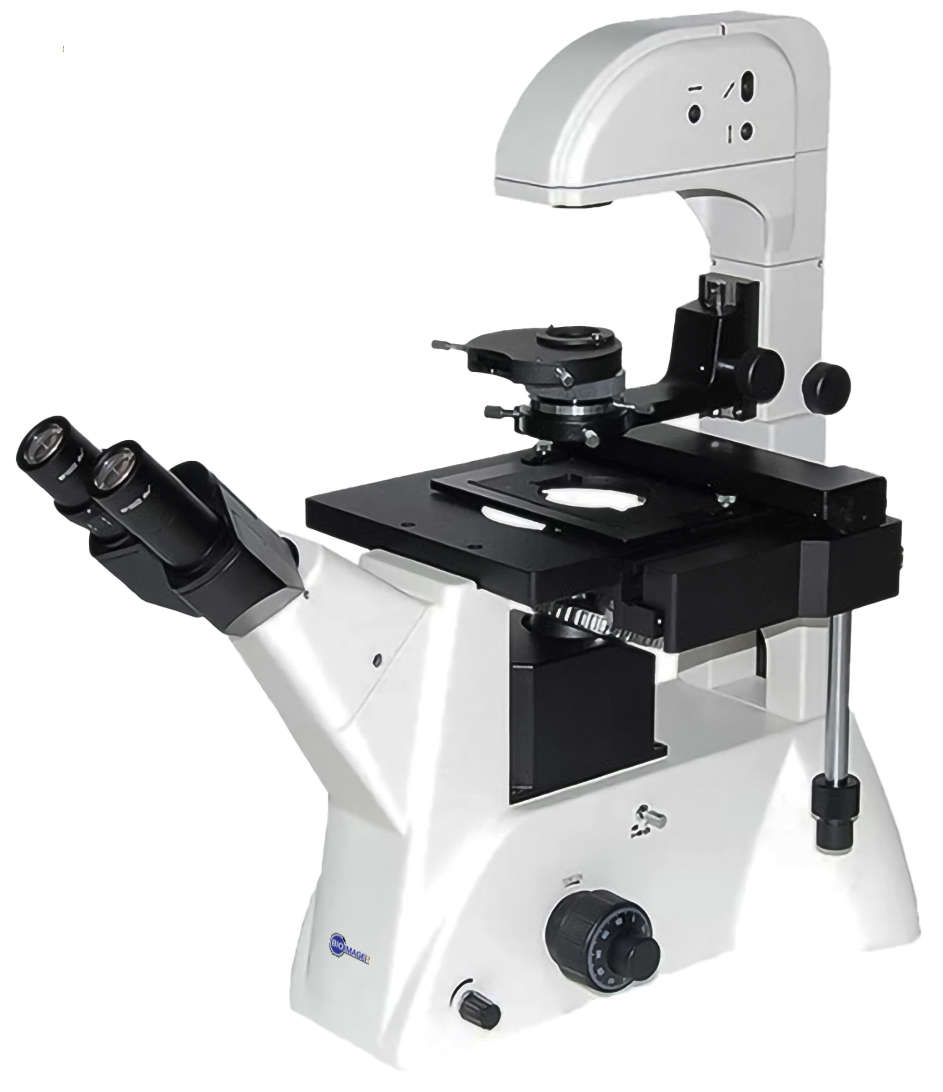

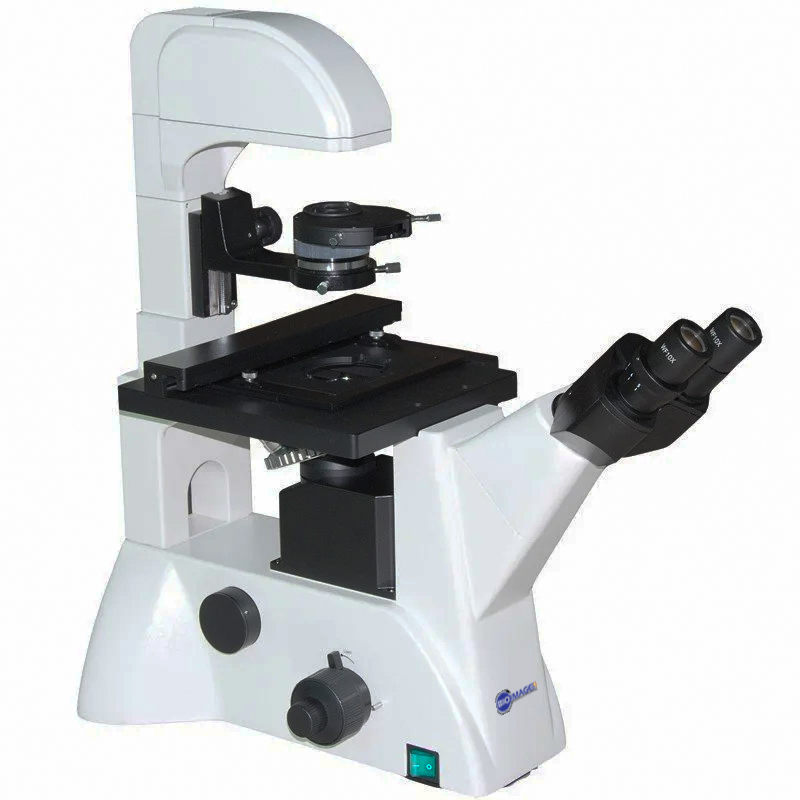

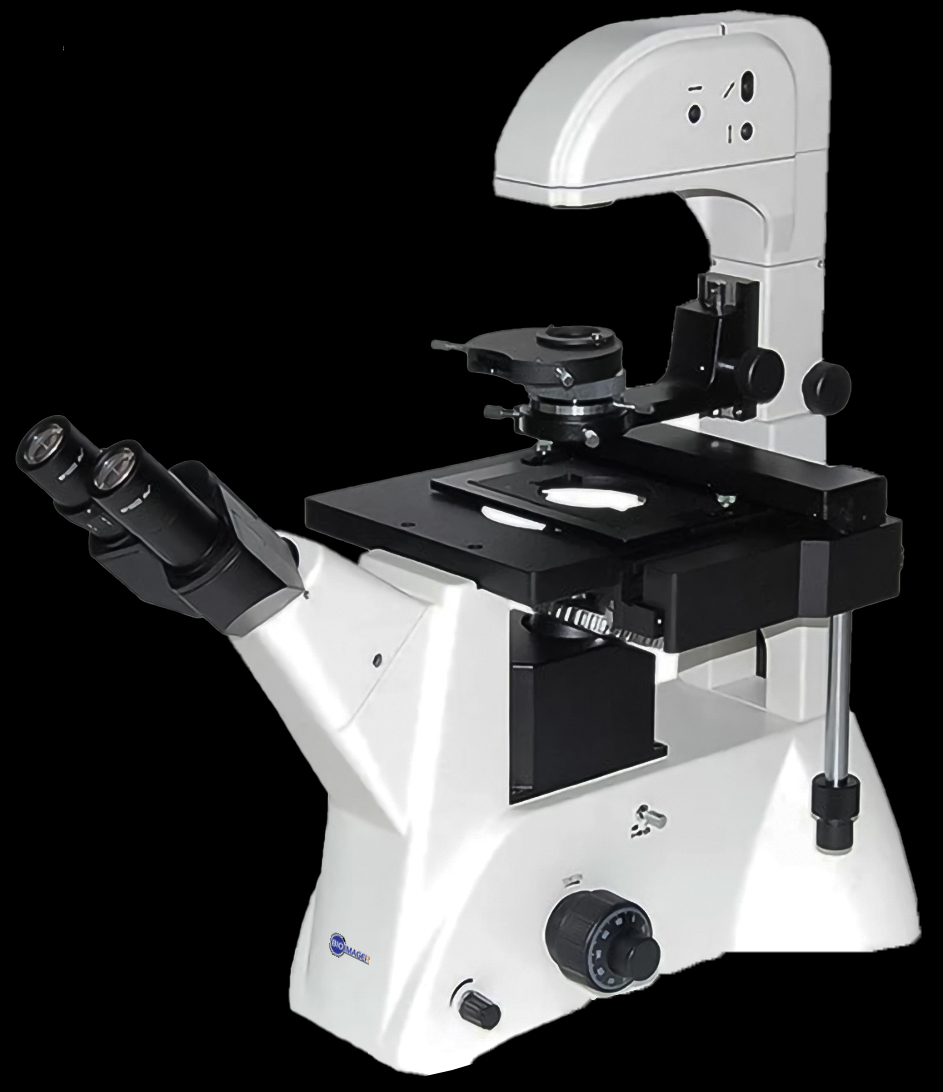

BIM720 Inverted Brightfield/Phase Contrast Biological Microscope

Availability:

In stock


Compare
  • Inverted Biological Microscope
  • Excellent Phase Contrats imaging; Hoffman Modulation Contratst, Puller-type phase contrast condenser
  • 10x Ph, 20x Ph, 40x Ph obj lenses
  • Upgradable to Epi-Fluorescence
  • LWD Condenser
  • XY stage ans sampel holder are inclduded
  • Side Video Port (100% transmsision)

In stock

$2,288.00 $2,499.00

Description:



BIM720 Inverted Optical Microscope, with its light source and condenser on the top, above the stage pointing down, while the objectives and turret are below the stage pointing up. It is very useful for observing living cells or organisms at the bottom of a large container like a tissue culture flask, under more natural conditions than on a glass slide. It is  also used in micromanipulation applications where space above the specimen is required for manipulator mechanisms and the micro tools they hold, and in metallurgical applications where polished samples can be placed on top of the stage and viewed from underneath using reflecting objectives.

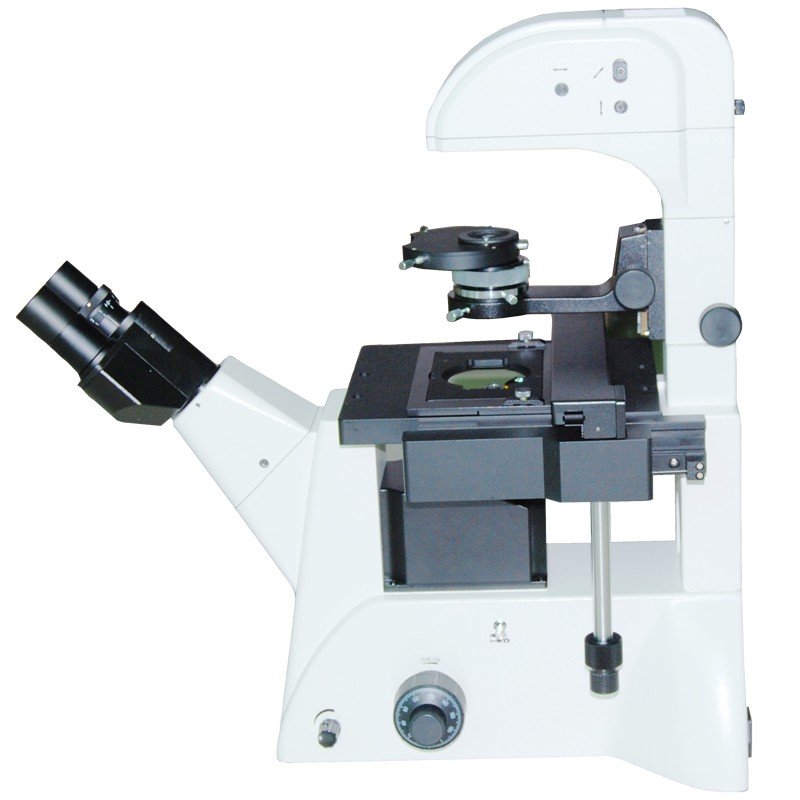

 Phase-Contrast/BIm720_L4.jpg

Phase-Contrast/BIM720_01.jpg

Phase-Contrast/BIM720_L6.jpg

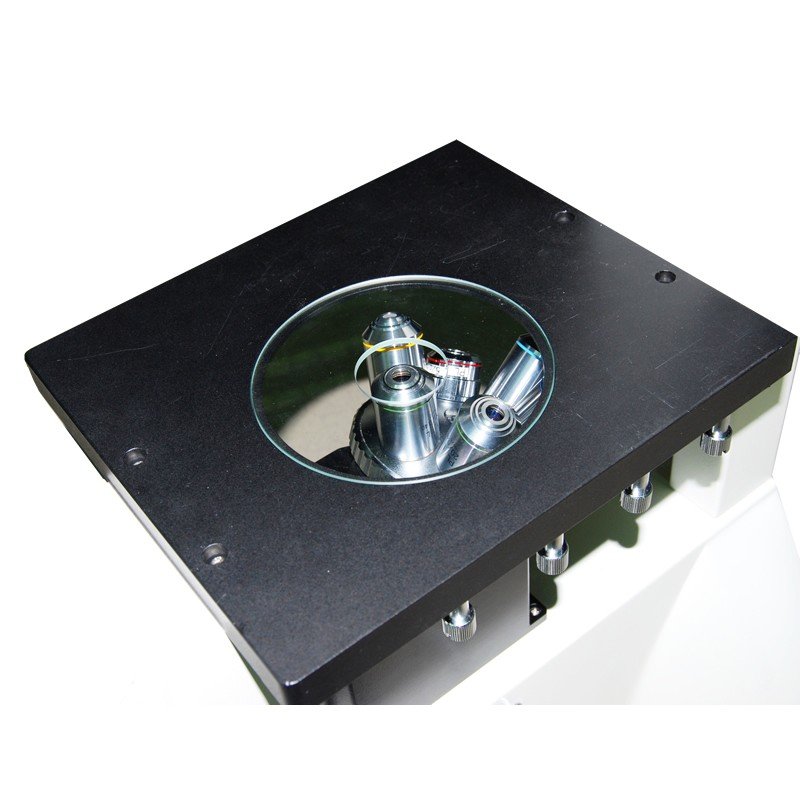

Phase-Contrast/BIm720_L7.jpgPhase-Contrast/BIm720_L5.jpg

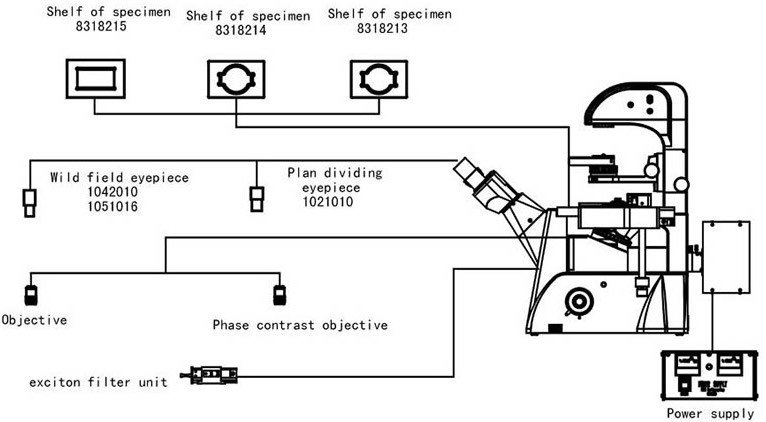

System Diagram



Phase-Contrast/BIM720FL_Sys-Diag.jpg

Check BIM720FL page for upgrade to epi-fluorescence.

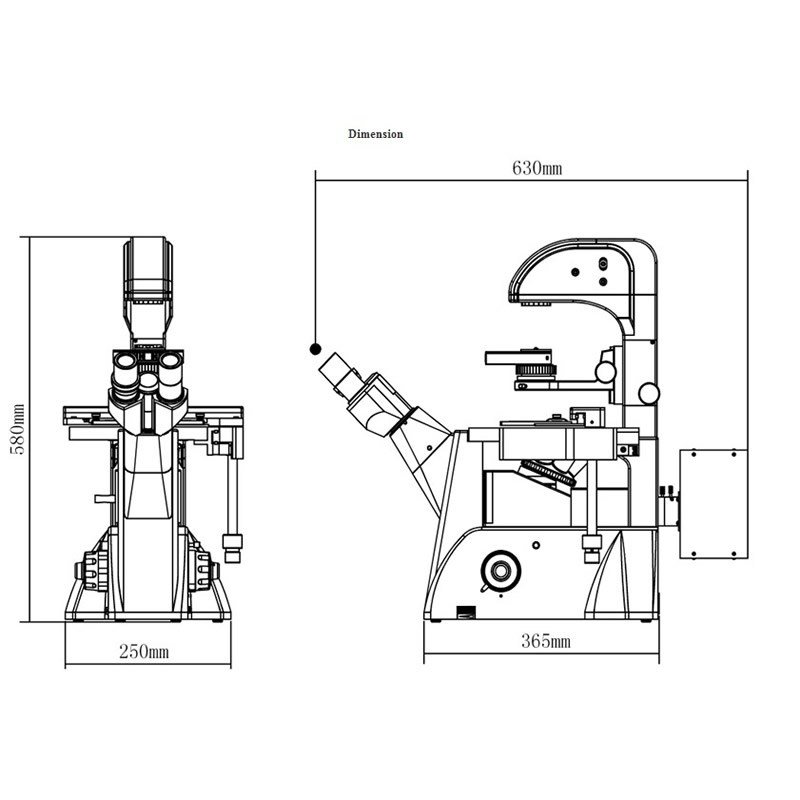

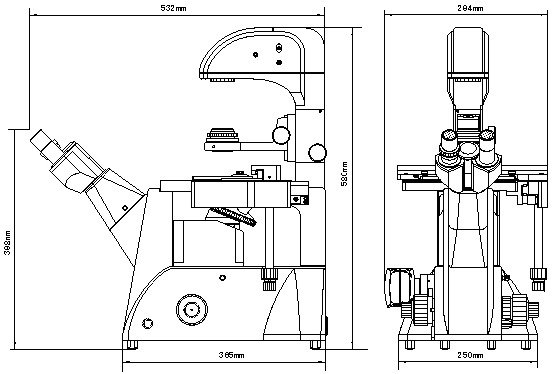

Dimension



Specifications:



BIM720 Inverted Microscope
Eyepiece
Wide field WF10X(field number:Φ22mm
Centering telescope
Infinity, Long Working Distance Plan Achromatic Objective
PLL 10X0.25 Work distance:4.3 mm,Cover glass thickness:1.2mm
PLL 20X0.40 Work distance:8.0 mm,Cover glass thickness:1.2mm
PLL 40X0.60 Work distance:3.5 mm,Cover glass thickness:1.2mm
PLL 10X0.25 PHP2 Work distance:4.3 mm,Cover glass thickness:1.2mm .Phase Contrast Objective
Head
Inclination angle is 45Degree interpupillary distance is 53~75mm.
Focus System

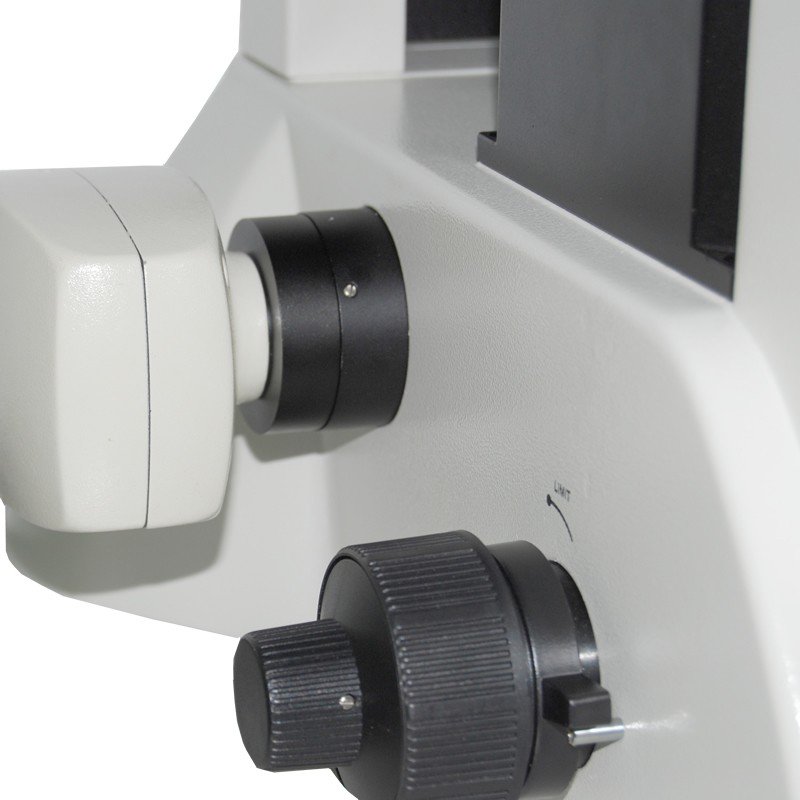

Coaxial coarse/fine focus, with tension adjustable, up stop, minimum division of fine focusing is 2um
Nosepiece
Quintuple
Stage
Fixed stage overall size is 227mmX208mm
Glass rotundity stage overall size Dia:118mm

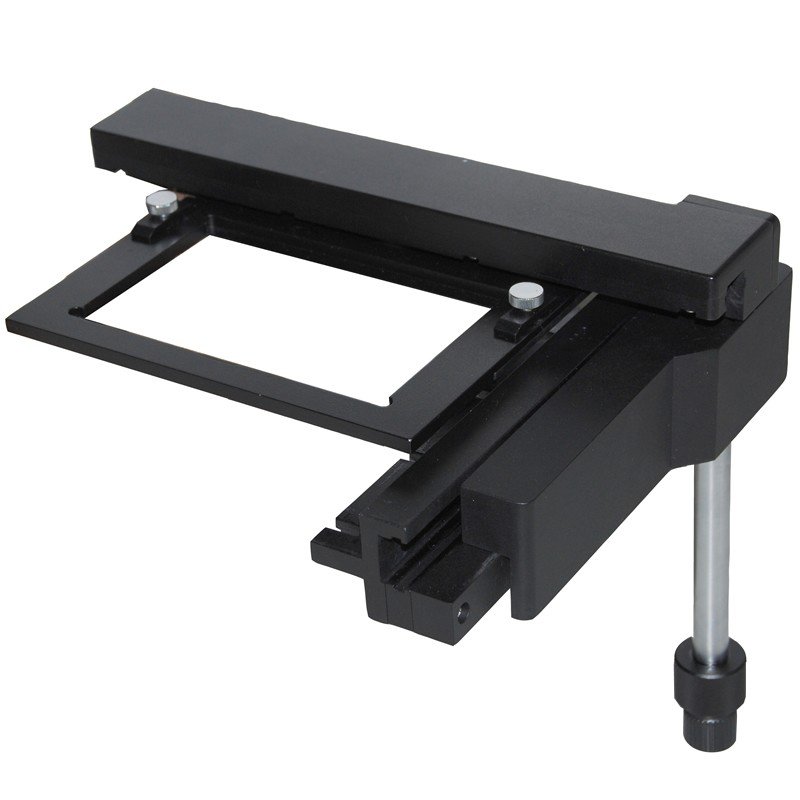

Mechanical moving device, moving range is 77mm (longitudinal)X114mm (transverse)
Culture dish holder 1Inside locating slot size: 86mm (W)X129.5mm (L), optional with a circular culture dish Dia 87.5mm
Culture dish holder 2
Inside locating slot size: 34mm (W)X77.5mm (L), optional with a circular culture dish Dia 68.5mm
Culture dish holder 3Inside locating slot size:57mm (W)X82mm (L)
Condensor
Long working distance condenser, working distance: 55mm, and with turnplate phase contrast unit
Light Source6V30W halogen, brightness enable control
Filter
Frosted glass, blue, green filter
Optional Accessory
Item No.
Eyepiece
Dividing eyepiece10x(field number:Φ22mm)    0.10mm/Div
BIM720-10xR
Phase Contrast Objective
PL L20X/0.40 PHP2 Work distance8.0 mm
BIM720-20xPhL
PL L40X/0.60 PHP2 Work distance3.5 mm
BIM720-40xPhL
Nosepiece
Sextuple nosepiece
BIM720-6N
CCD Adapter
0.5X
BIM720-0.5xC
1X
BIM720-1xC
DC Adapter
For Canon ditigal camera adapter (A610, A620, A630, A640)
BIM720-SLRC
