BIM600 inverted biological microscope is one of the special microscopes with front and top video ports, trinocular head, which allows to mount two cameras or one SLR and one microscope camera simoultanously.
BIM600 Inverted Biological Microscope is mainly used to observe cultured living cells. It adopts an Infinity correcetd optical system and ergonomic design.

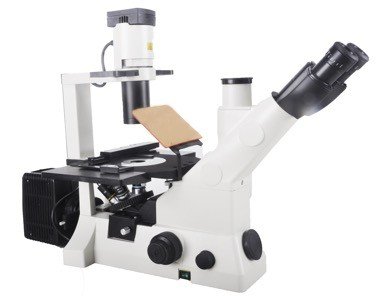

BIM600 Inverted Biological Microscope
Original price was: $USD 2,198.00.$USD 1,988.00Current price is: $USD 1,988.00.
-10%1
1. Excellent optical function with infinite optical system.

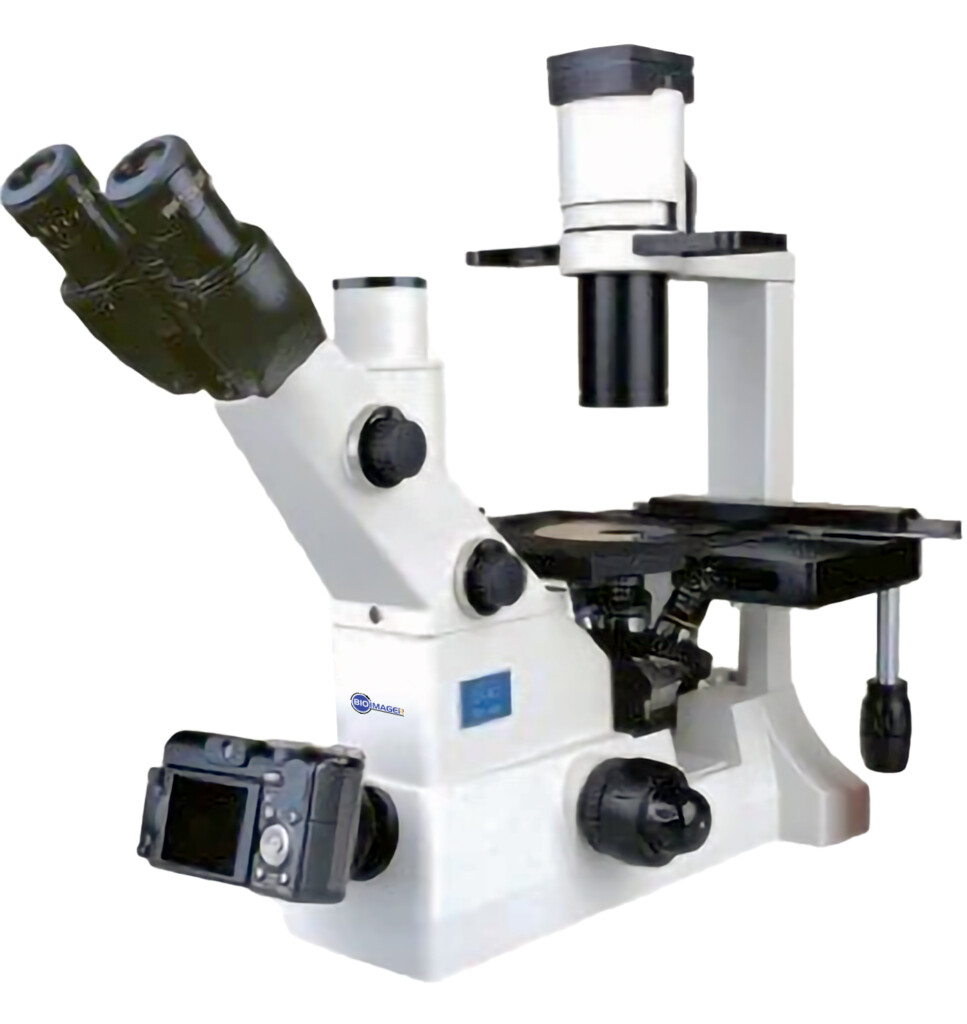

2. DSLR(Digital Single Lens Reflex) and microscope digital camera can be used together for image and video capture.
3. Innovative stand structure, sharp image display, convenient and special for viewing incubating cell tissue.
4. With LWD Infinite Plan Objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier.
5. Advanced and Reliable Mechanical Stage with Knob Height and Tightness Adjustable.
6. With pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimens
BIM600 Inverted Biological Microscope
Note: The DSLR camera is not included
Introduction
BIM600 Inverted Biological Microscope is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this inverted biological microscope makes your works enjoyable.
Applications
BIM600 Inverted microscope is used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.
Model |
|
BIM600 |
|
Optical System |
Infinite Optical System |
● |
|
Viewing Head |
Seidentopf Trinocular Viewing Head, Inclined at 45°, 360° Rotatable, Interpupillary Distance 48-75mm |
● |
|
Eyepiece |
Wide Field Eyepiece WF10×/ 22, Eyepiece Tube Diameter 30mm |
● |
|
Wide Field Eyepiece WF15×/ 16 |
○ |
||
Wide Field Eyepiece WF20×/ 12 |
○ |
||
Objective |
LWD(Long Working Distance) Infinite Plan Achromatic Objective 4×/ 0.1,WD 22mm |
● |
|
LWD(Long Working Distance) Infinite Plan Achromatic Phase Objective |
10×/ 0.25, WD 6mm |
● |
|
20×/ 0.4, WD 3.1mm |
● |
||
40×/ 0.55, WD 2.2mm |
● |
||
Lamp House Adjustment Objective |
○ |
||
Nosepiece |
Backward Quintuple Nosepiece |
● |
|
Condenser |
ELWD(Extra Long Working Distance) Condenser NA 0.3, LWD 72mm (Without Condenser the WD is 150mm) |
● |
|
Centering Telescope |
Centering Telescope (Φ30mm) |
● |
|

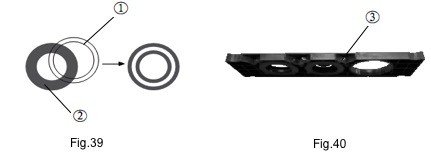

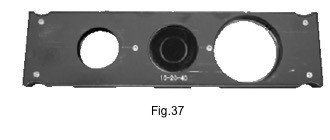

Phase Annulus |
10×-20×, 40× Phase Annulus Plate(Fixed) |
● |
|
10×-20×, 40× Phase Annulus Plate(Adjustable) |
○ |
||
Stage |
Plain Stage 160×250mm |
● |
|
Glass Insert |
● |
||
Attachable Mechanical Stage, X,Y Coaxial Control, Moving Rang120mm×78mm |
○ |
||
Auxiliary Stages 70mm×180mm |
● |
||
Terasaki Holder |
○ |
||
Petri Dish Holder Φ35mm |
○ |
||
Slide Glass Holder Φ54mm |
○ |
||
Petri Dish Holder Φ90mm |
○ |
||
Focusing |
Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range up 8mm, down 3mm |
● |
|
Illumination |
Halogen Lamp 6V/30W, Brightness Adjustable |
● |
|
Filter |
Blue, Green and Frosted Glass Filter, Diameter 45mm |
● |
|
Accessories |
Photo tube Attachment(used to connect microscope adaptor and camera) |
○ |
|

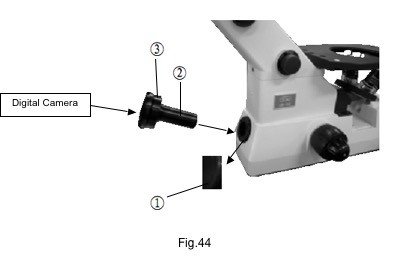

C Mount(Used to directly connect to a digital camera) |
○ |
||
Epi-Fluorescent Attachment |
○ |
||
Dimension& G.W. |
46.5cm*39.5cm*64cm, 18kg |
● |
Note: ● Standard Outfit, ○ Optional
