Inverted Microscope – Meiji TC5300 – Inverted Biological Phase Contrast Microscope
Meiji Inverted biological microscope with infinity corrected optical system. Inverted microscope includes the following:
- Objective Lenses: TC plan phase infinity corrected long working distance objectives – LWD Phase 10x (WD = 7.6mm) and LWD Phase 20x (WD = 7.0mm). Mounted in quintuple nosepiece.
- Eyepieces: Binocular Siedentopf head, inclined at 30°. Interpupilliary distance is adjustable from 53mm to 75mm. A graduated diopter adjustment is provided on the left eyetube. Includes paired SWH10x widefield high eyepoint eyepieces, FN 22 with a 25mm reticle mount. Optional SWH15x, SWH20x and SWH10x-F focusing eyepieces are available. Trinocular version available as well.
- Total Magnification: 100x, 200x.
- Specimen Stage: 180mm (X) x 245mm (Y) plain stage with replaceable glass insert with 45mm opening. Optional attachable mechanical stage (MA380/05) and a variety of specimen holders are available.
- Focusing: Ergonomically low-positioned, coaxial, coarse and fine focus knobs with adjustable tension control. Range of travel is 9mm total – 1mm up and 8mm down. Rotations of fine focus is 0.2mm per revolution.
- Illumination: Koehler 6v, 30w halogen lamp without iris. Includes phase slider. An aspheric condenser lens, a diffusion filter and a heat absorbing filter are also incorporated into the lamphouse. A lever-type iris diaphragm is provided for aperture control.
- Light Focusing: Extra long working distance condenser, NA 0.30, WD 73mm. Optional condenser with NA 0.55, WD 20.5mm is available for more demanding work with 40x objectives (MA854).
- Body: Chemical resistant baked enamel finish. Automatic voltage sensing power supply, removeable power cord.
- Photo Port: Front mounted camera port suitable for CCD, 35mm or digital cameras. Optional camera adapters are available.
- Size & Weight: 411mm (H) x 485mm (L) x 220mm (W), 23 lbs.
- Warranty: Meiji Techno warrants this product against defects in material and/or workmanship for the life of the instrument from the date of original purchase to the original purchaser. Electrical warranty is 90 days.
Detailed Description:
Meiji Techno latest inverted microscope line is the cost-effective TC-5000 Series Inverted Biological Microscopes. The TC Series makes routine examining of tissue cultures, microbes and other live specimens in petri dishes and culture bottles fast and easy while delivering an excellent performance-to-cost ratio.
The TC Series is available in brightfield, phase contrast and epi-fluorescence models with either binocular or trinocular viewing head. The TC5000 Series Microscopes have an integrated front mounted camera port with adapters available for 35mm, CCD/CMOS and other cameras.
TC Series Brightfield and Phase Contrast Models
| Model | Head | Illumination | Eyepieces | Objectives | Stage | Condenser |

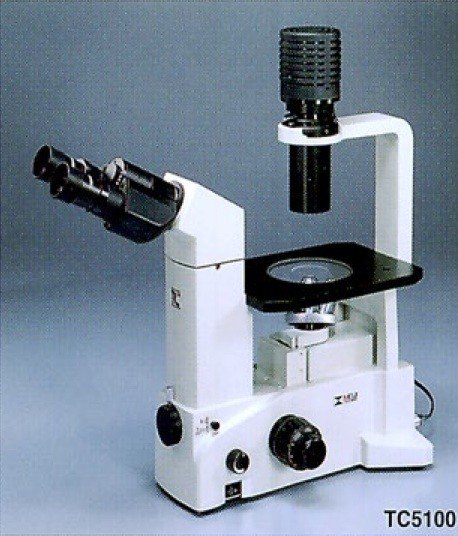

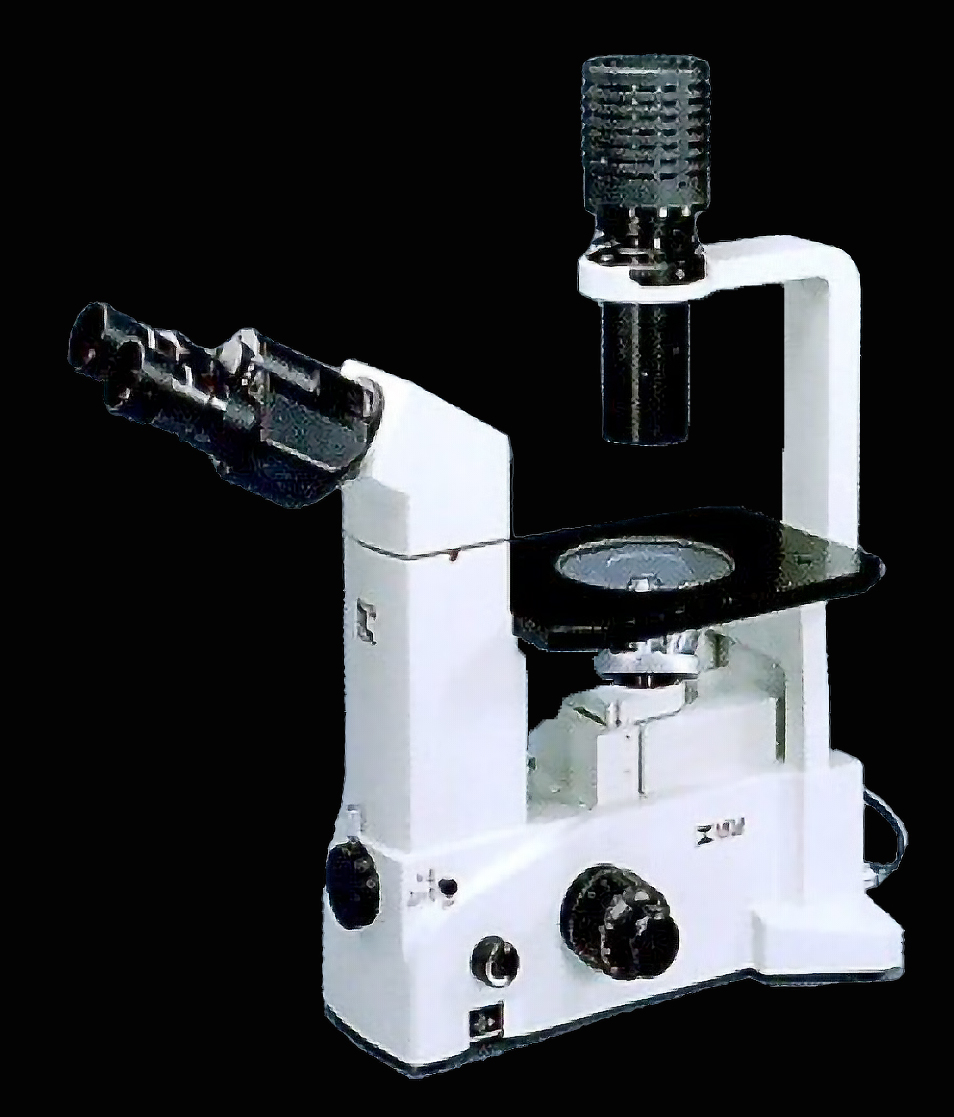

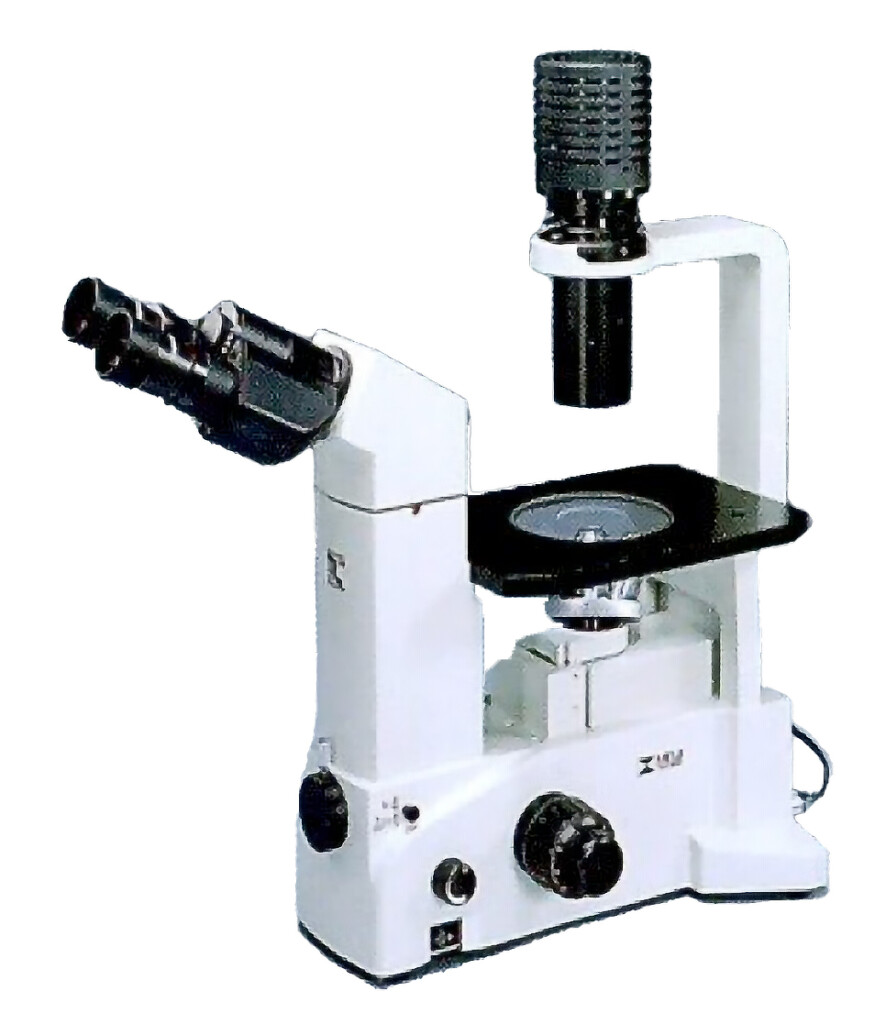

| TC5100 Brightfield | Bino. | Koehler w/o iris 6V 30W halogen | SWH10X FN22 |
Quintuple Nosepiece w/LWD 10X & LWD 20X |
Plain Fixed Stage 180mm X 247mm |
TC Condenser WD 73mm NA 0.30orTC Condenser2 WD 20.5mm NA 0.55 |
| TC5200 Brightfield | Trino. | |||||

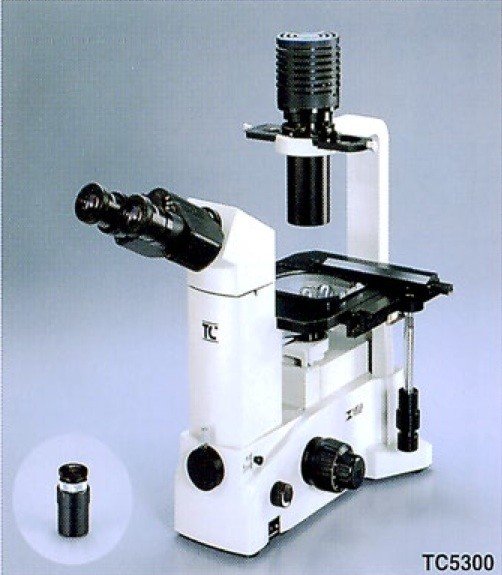

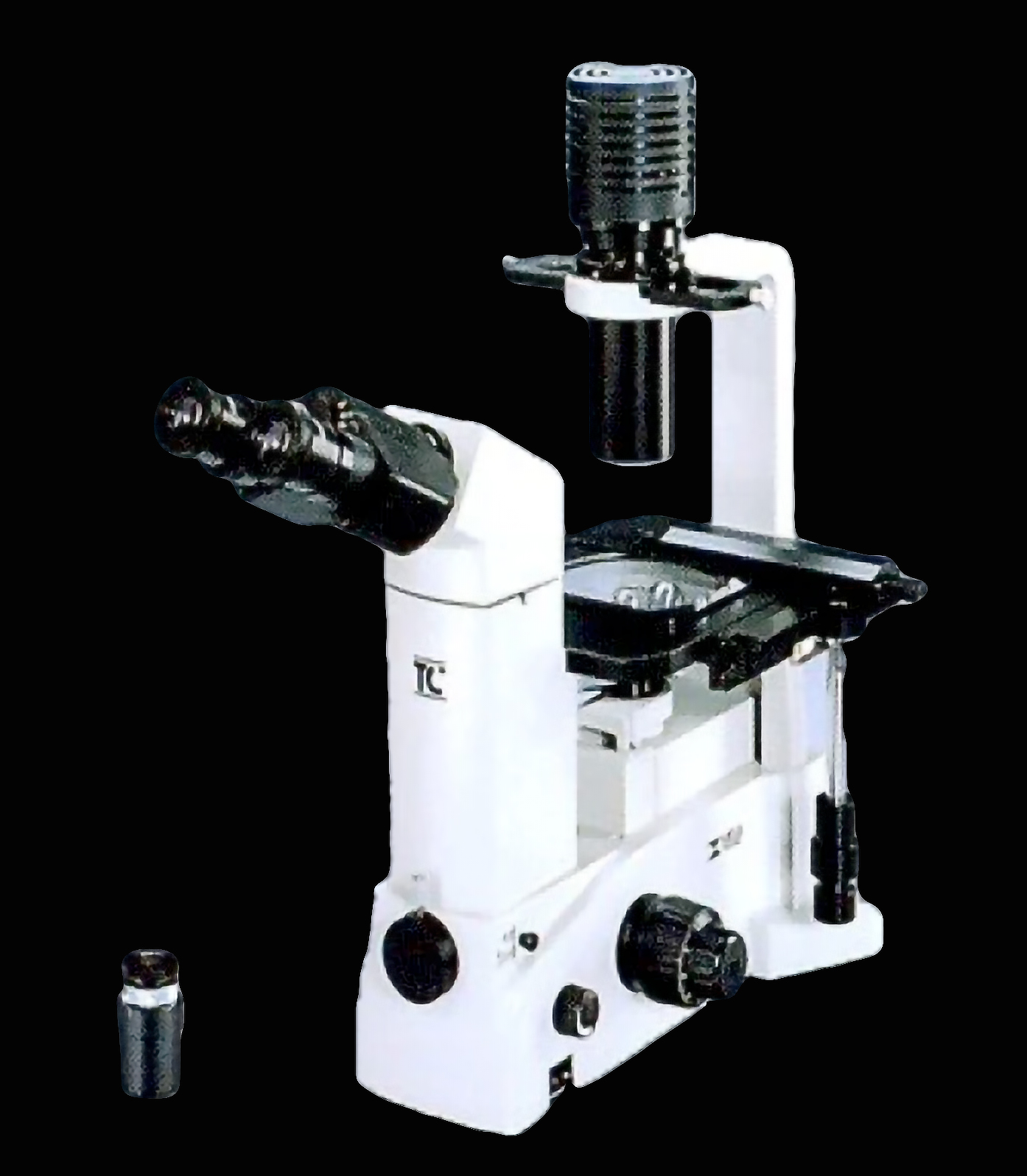

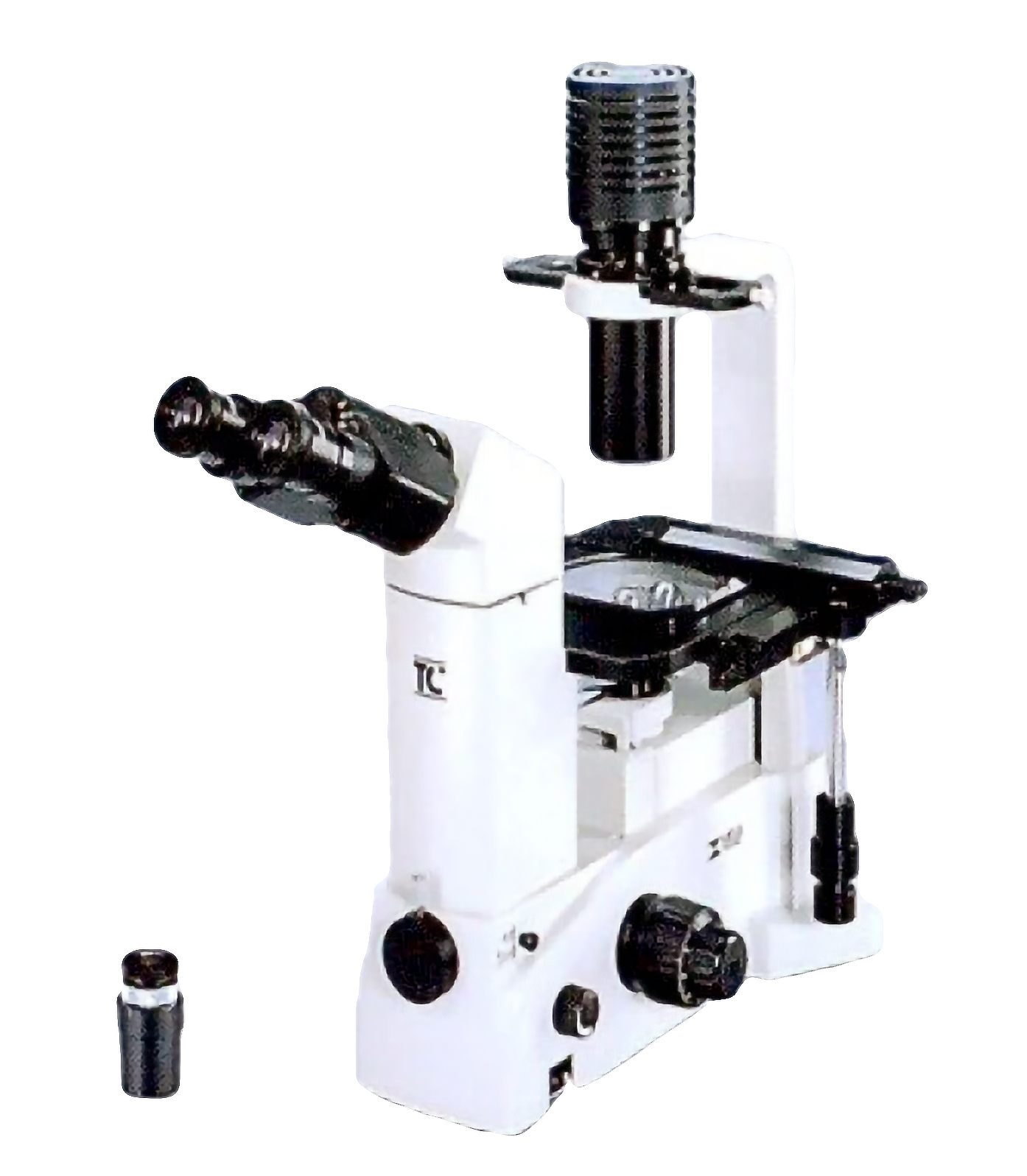

| TC5300 Phase Contrast | Bino. | Koehler w/o iris with phase slider 6V 30W halogen |
Quintuple Nosepiece LWD TCPlan Ph10X LWD TCPlan Ph20X |
|||

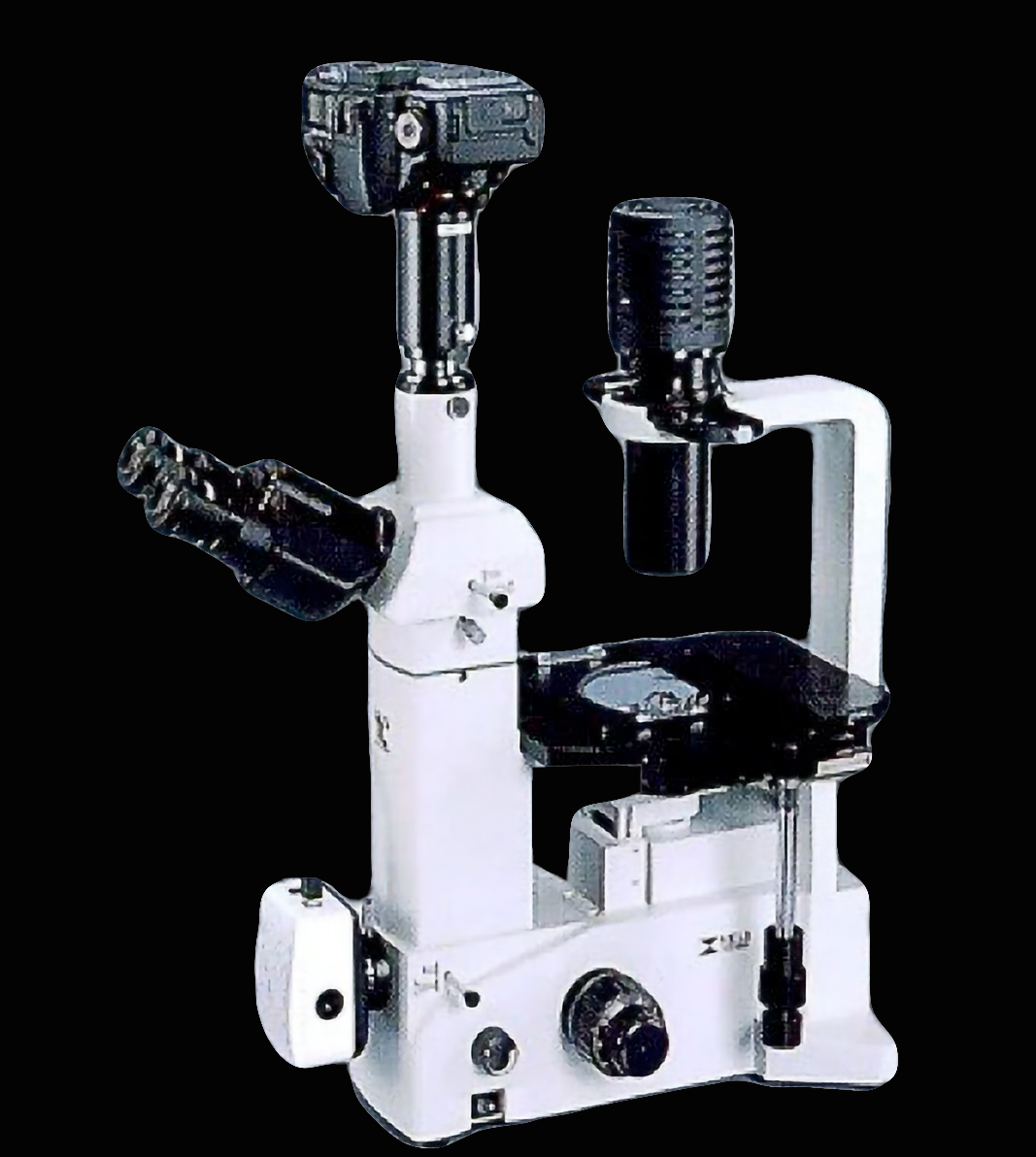

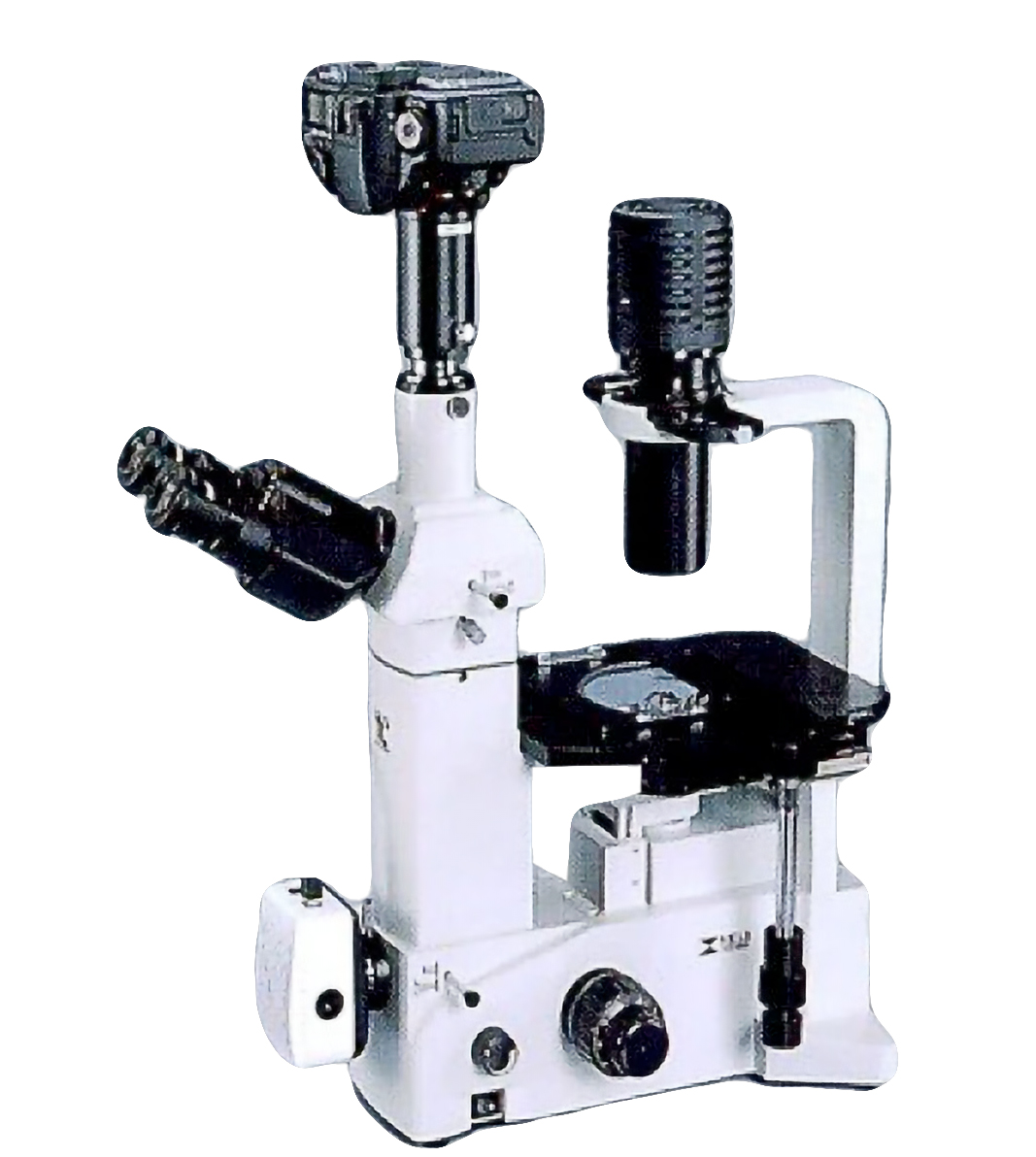

| TC5400 Phase Contrast | Trino. |
TC Series Epi-Fluorescence Models
| Model | Head | Eyepieces | Objectives | Stage | Condenser | Illumination |
| TC5500 | Bino. | SWH10X FN22 | Quintuple Nosepiece TC Planachromat F10X, F20X |
Plain Fixed Stage 180mm X 247mm |
TC Condenser WD 73mm NA 0.30 or TC Condenser2 WD 20.5mm NA 0.55 |
100W Mercury + Koehler w/o iris 6V 30W halogen |
| TC5600 | Trino. | |||||
| Centering telescope is included with models TC-5300, TC-5400, TC-5500 & TC5600. | ||||||
VIEWING HEADS
Binocular models, the TC5100, TC5300 and TC5500, incorporate the MA814 Siedentopf-type binocular head while the trinocular models, the TC5200, TC5400 and TC5600 have the MA816/10 Siedentopf-type trinocular head. The MA816/10 uses an 80/20 beam splitter that can be engaged for photo-microscopy. (100% to eyetubes or 80% to phototube and 20% to the eyetube.) Each microscope head has the eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings. The interpupillary distance on the viewing heads is adjustable between 53mm – 75mm. An optional ergonomic binocular head is also available.
| MA814 | Siedentopf type binocular head, 30 degree inclination, 30mm I.D. eyetubes (TC5100, TC5300 & TC5500) |

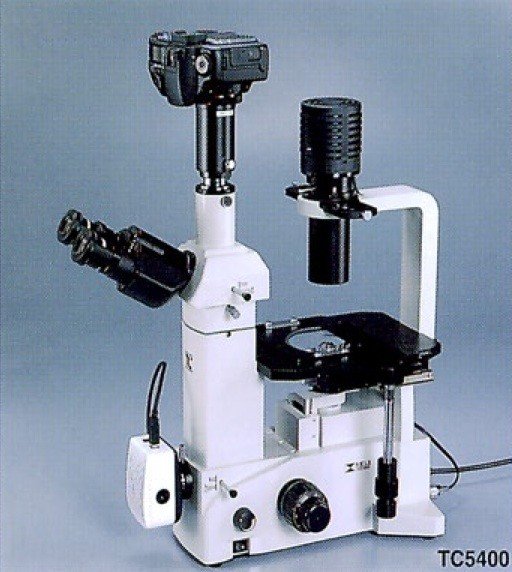

| MA816/10 | Siedentopf type trinocular head, 30 degree inclination, 30mm I.D. eyetubes (TC5200, TC5400 & TC5600) |
| MA957/15 | Siedentopf type ergonomic binocular head, 10 – 50 degrees adjustable vertical inclination, 30mm I.D. eyetubes (optional) |
EYEPIECES
10X Super Widefield High Eyepoint eyepieces are standard and 15X and 20X eyepieces are also available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts standard 25mm reticules is also available.
The optional attachable mechanical stage measures 112mm(X) x 72mm(Y). It has ergonomically positioned right-handed coaxial drop down controls. It also accepts the following optional accessory plates: 35mm, 55mm, 65mm, Petrie Dish Holders, 96-well Terasaki Plate Holder, 1″ X 3″ glass slide holder, Hemacytometer holder.Slide, chamber, and petri dish holding plates of various sizes are available separately.

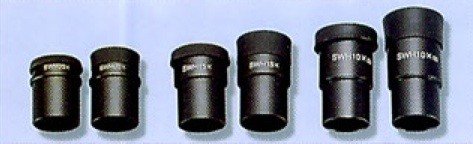

Eyepieces
| Part Number | Description |
| MA817 | SWH10X Super Widefield High Eyepoint eyepiece, FN22 (standard) (accepts 25mm reticle) |
| MA818 | SWH15X Super Widefield High Eyepoint eyepiece, FN16 (optional) (accepts 19mm reticle) |
| MA819 | SWH20X Super Widefield High Eyepoint eyepiece, FN12 (optional) (accepts 19mm reticle) |
| MA859 | SWH10X-F Super Widefield High Eyepoint focusing, FN22 (optional) (accepts 25mm reticle) |
OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.
OBJECTIVES
Meiji Techno offers an assortment of newly designed Planachromat Infinity Corrected objectives for Brightfield, Phase Contrast and Fluorescence Microscopy.
| Brightfield Objectives – Planachromat – Infinity Corrected – F = 200mm | |
| MA820 | TC Planachromat 4X objective ∞/1.0 , NA: 0.13, Working Distance = 17.3mm |
| MA821 | TC Planachromat 10X objective ∞/1.0 , NA: 0.25, Working Distance = 7.6mm |
| MA822 | TC Planachromat 20X, objective ∞/1.0 , NA: 0.40, Working Distance = 7.0mm |
| MA823 | TC Planachromat 40X objective ∞/1.0 , NA: 0.65, Working Distance = 2.8mm |
| Phase Contrast Objectives – Planachromat – Infinity Corrected – F = 200mm | |
| MA825 | TC Planachromat Phase 4X objective ∞/1.0 , NA: 0.13, Working Distance = 17.3mm |
| MA826 | TC Planachromat Phase 10X objective ∞/1.0 , NA: 0.25, Working Distance = 7.6mm |

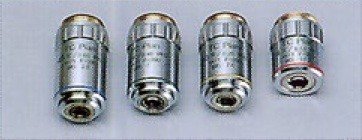

| MA827 | TC Planachromat Phase 20X objective ∞/1.0 , NA: 0.40, Working Distance = 7.0mm |
| MA828 | TC Planachromat Phase 40X objective ∞/1.0 , NA: 0.65, Working Distance = 2.8mm |
| Epi-Fluorescent Objectives – Planachromat – Infinity Corrected – F = 200mm | |
| MA849 | TC Planachromat F4X objective ∞/1.0 , NA: 0.13, Working Distance = 17.5mm |
| MA850 | TC Planachromat F10X objective ∞/1.0 , NA: 0.30, Working Distance = 7.5mm |
| MA851 | TC Planachromat F20X objective ∞/1.0 , NA: 0.40, Working Distance = 7.5mm |
| MA852 | TC Planachromat F40X objective ∞/1.0 , NA: 0.60, Working Distance = 2.9mm |
STAGE
The optional attachable mechanical stage measures 112mm(X) x 72mm(Y). It has ergonomically positioned right-handed coaxial drop down controls. It also accepts the following optional accessory plates: 35mm, 55mm, 65mm, Petrie Dish Holders, 96-well Terasaki Plate Holder, 1″ X 3″ glass slide holder, Hemacytometer holder. Slide, chamber, and petri dish holding plates of various sizes are available separately.
| MA380/05 | Optional Mechanical Stage, movement: 112mm(X) x 72mm(Y) with drop down coaxial controls. (Requires at least one “holder” listed below. The most common for glass slides and hemocytometers would be MA378.) |
| MA378 | Glass Slide Holder for 1″ X 3″ slides and Hemocytometer holder, fits MA380/05 |
| MA383 | Chamber holder, fits MA380/05 |
| MA864 | Terasaki plate holder, fits MA380/05 |
| MA384 | Petri Dish Holder for 35mm diameter dishes, fits MA380/05 |
| MA385 | Petri Dish Holder for 55mm diameter dishes, fits MA380/05 |
| MA387 | Petri Dish Holder for 65mm diameter dishes, fits MA380/05 |
CONDENSER
The standard condenser has a working distance of 73mm.

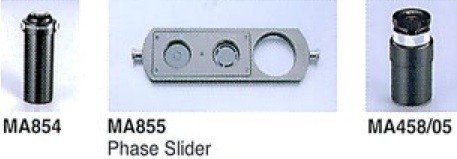

| MA853 | TC Condenser, N.A. 0.30, working distance 73mm (included) |
| MA854 | Optional TC Condenser, N.A. 0.55, working distance 20.5mm (for use with 40X phase objective) |
| MA855 | Phase Contrast Slider (included in Phase Contrast models) |
| MA458/05 | Centering Telescope for phase contrast, O.D.= 30.0mm (included in PC models) |
ILLUMINATOR
A powerful 6 volt 30 watt halogen bulb with pre-centered socket provides enhanced image quality and brightness for the observation of specimens.
| Accessories | |
| MA861 | Green interference filter in 51mm mount (546nm) |
| MA863 | Cobalt clear filter in 51mm mount |
| MA856 | Blue filter, LB100, in 51mm mount |
| MA857 | Green filter, G533, in 51mm mount (533nm) |
| MA858 | ND25 Neutral density filter for brightfield or phase contrast, in 51mm mount |
| Epi-Fluorescent Parts & Accessories | |
| TC-FL | Fluorescent Illuminator Attachment |
| FL-LHJ | Lamphouse for 100W Mercury Lamp |
| FL-PWJ | Power supply for Lamphouse |
| BA005 | Replacement Mercury Lamp HBO 100W/2 |
| MA865 | Basic Blue Excitation Filter set |
| MA866 | Basic Green Excitation Filter set |
| TC-RF36 | UV Protection Filter |
| MA196 | ND50 Neutral density filter for epi-illuminator (optional) |
| MA197 | ND13 Neutral density filter for epi-illuminator (optional) |
| MA860 | ND25 Neutral density filter for epi-illuminator (included with TC5500, TC5600) |
Digital Camera Adapters

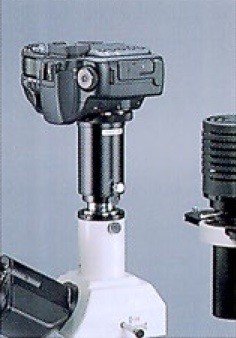

| MA868 | Digital camera adapter for non “C” mount type cameras (52mm O.D. thread), for front camera port (Requires additional DC adapter ring for your specific model camera. Please contact us for the exact DC ring part.) |

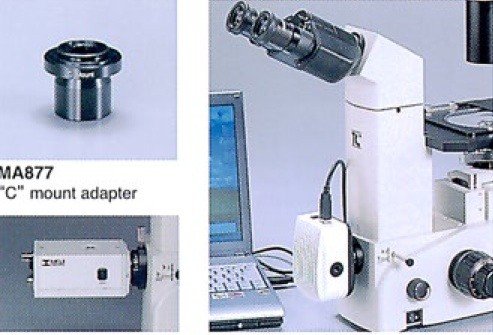

| MA877 | C-Mount Adapter for CCD/CMOS camera, for front port TC Series (no lens, port has 0.66x mag factor) |
Miscellaneous Parts & Accessories
| MA326 | Replacement halogen bulb 6V 30W |
| MA809/10 | Replacement AC Power cord with plug 115VAC (USA) |
Meiji Techno TC-5000 Models
 |
 |
 |
 |
| Brightfield Only
TC5100 Bionocular BF |
Brighfield & Phase Contrast TC5300 Binocular BF/PhTC5400 Trinocular BF/Ph |
Brightfield & Epi-Fluorescent TC5500 Binocular BF/FLTC5600 Trinocular BF/FL |
Brightfield, Phase Contrast & Epi-Fluorescent TC5700 Bioncular BF/Ph/FLTC5800 Trinocular BF/Ph/FL |
