Save $1,325

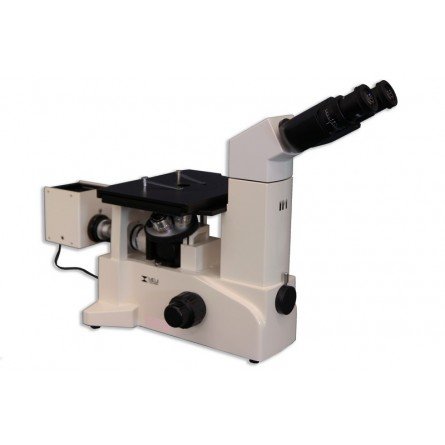

IM7500 Meiji Techno Inverted Brightfield/Darkfield Metallurgical Microscope

Availability:

In stock


Compare

The Meiji Techno IM7500 Series Inverted Brightfield/Darkfield and simple Polarizing 12V/ 50W Metallurgical Microscope have an ergonomic slim triangular shaped design that saves bench space to maximize efficiency and offers ultimate stability with its cast aluminum alloy frame. This is the most rugged Inverted Microscope from Japan. Infinity Corrected Plan Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units. All of our IM7500 Series controls are ergonomically positioned to provide comfort and extended ease of use for the operator.

In stock

$11,920.00 $13,245.00

The Meiji Techno IM7500 Series Inverted Brightfield/Darkfield and simple Polarizing 12V/ 50W Metallurgical Microscope have an ergonomic slim triangular shaped design that saves bench space to maximize efficiency and offers ultimate stability with its cast aluminum alloy frame. This is the most rugged Inverted Microscope from Japan. Infinity Corrected Plan Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units. All of our IM7500 Series controls are ergonomically positioned to provide comfort and extended ease of use for the operator.

Meiji Techno IM7500 Inverted Brightfield/Darkfield Metallurgical Microscope

Basics & Principles of a Metallurgical Microscope

The IM7500 Series features include:

  • All models come standard with ∞ Infinity Corrected Optical objectives (F=200) delivers bright, clear, high resolution images with superior contrast.
  • Viewing heads are supplied with a Siedentopf type binocular head, inclined at 30° or a trinocular Siedentopf head inclined at 45°. Interpupillary distance is adjustable from 53mm to 75mm. A graduated diopter adjustment is provided as a standard feature on the left eyetube of all units.
  • Eyepieces are SWH10X, widefield, high eye point eyepieces, F.N. 22, with a 25mm reticle mount, SWH15X, SWH20X and SWH10X-F focusing eyepieces are available as an option. Anti-reflection coated, manufactured with a large diameter lens with more optical elements and high eyepoint to reduce eye fatigue and accommodate eyeglass wearers, and come equipped with a fold-down rubber eye-guards.  The newly designed eyepieces allow for a wide field of view observation, making it possible to see the whole image of an embedded resin sample.
  • Infinity Corrected Brightfield/Darkfield  Plan. Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units. Objectives are made with extra-low-dispersion glass and utilize new advanced multilayer anti-reflection coatings. The advanced technology used in designing and creating objectives result in an objective with a higher resolving power, higher image contrast, wider field of view, improved flatness of field, and a sharp image with a minimum of flare and ghosting. The objectives are color corrected for chromatic aberration in the red and blue regions of the spectrum and offer and exceptional flat field of view.
  • Quintuple Nosepiece, side facing, with positive precision detent, click stops
  • Mechanical Stage with  240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls
  • Circular Round 110mm diameter, 2mm thick metal stage plate insert with 22mm opening
  • Focus travel, 9mm total, 1.0mm up and 8mm down, Rotation of fine focus: 0.2mm per revolution.
  • Vertical Koehler illuminator equipped with 12V 50W Halogen bulb, Variable rheostat and automatic voltage sensing power supply are incorporated as standard
  • Cast aluminum alloy body for rigidity and exceptional stability

Includes

IM7520: Binocular IM7520 Series Inverted Brightfield/Darkfield/Polarizing 12V/50W Metallurgical Microscope has a ergonomic slim triangular shaped design that saves bench space to maximize efficiency and offers ultimate stability with its cast aluminum alloy frame. This is the most rugged Inverted Microscope from Japan.  Infinity Corrected Plan Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units. All of our IM7500 Series controls are ergonomically positioned to provide comfort and extended ease of use for the operator. An integrated Incident High power 12V/50W vertical Koehler Halogen illuminator with variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast
MA814/05: Siedentopf type binocular head – inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA923: Plan Epi Objective BD5X, ∞ Infinity Corrected objective N.A. 0.10, W.D. 17.0mm, F.L. 40.0
MA924: Plan Epi Objective BD10X, ∞ Infinity Corrected objective N.A. 0.25,W.D. 7.48mm, F.L. 20.0
MA925: Plan Epi Objective BD20X, ∞ Infinity Corrected objective N.A. 0.40, W.D. 5.20mm, F.L. 10.0
MA995: Plan Epi Objective BD50X, ∞ Infinity Corrected objective N.A. 0.50, W.D. 5.00mm, F.L. 4.0

Nosepiece: Quintuple Nosepiece, side facing, with positive precision detent, click stops (Factory Installed)

MA1011: Vertical Koehler illuminator, including filters and polarizer in sliding mount(without lamphouse)
MALH50: Lamphouse for use with 12V/50W Halogen Lamp (Included in 50w models)
MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mmfilter slot   •
MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
MA1016: Round 110mm diameter, 2mm thick metal stage plate insert with 22mm opening for specimen

Stage: Mechanical Stage with  240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls (Factory Installed)

Front Photo Port: Integrated photo port on the front of the body makes image documentation quick and easy with the proper C” mount or digital camera and SLR adapters

MA593: Stainless Steel Stage Clips, 4mm pin diameter, 75mm long (paired)
MA275/05: Halogen bulb, 12V/50W (Included in 50W models)(Factory Installed)
MA327: Fuse 3 Amp replacement (Included in 50W models)(Factory Installed)
MA809/10: Removable AC Electric cord with plug for 115V models or
MA809/20: Removable AC Electric cord with plug for 220 models
MA1014: Dust cover for IM7500

Manual: IM7500 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

Product Information
Manufactured: 100% MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information
Weight: 33lbs (9.06kg)
Box Size: 16 x 14 x 21 inches
Footprint: 364mm (D) x 220mm (W)
Binocular head type: 485 mm(D) x 411 mm (H) x 220 mm(W) (8.0kg)( 29.0 lbs.)
Trinocular head type: 485 mm(D) x 440 mm(H) x 2210 mm(W) (8.5Kg)(31.0 lbs.)
Binocular Ergonomic head type: 485 mm(D) x 440mm(H) x 2210mm(W) (8.5Kg)(31.0 lbs.)

ModelHeadTypeIlluminationEyepiecesObjectivesStage
IM71000BinocularBrightfieldKoehler Vertical
6 volt 30 watt halogen
SWH10x FN22Planachromat E5X, E10X, E20X, E50X,Fixed flat-top
180mm X 245mm
IM71000EErgonomic Binocular
IM72000Ergonomic Trinocular
IM7520BinocularBrightfield/DarkfieldKoehler Vertical
12 volt 50 watt halogen
Planachromat BD E5X, BD E10X, BD E20X, BD LWD E50XFixed mechanical 224mm(x) X 174mm(y)
IM7510Ergonomic Binocular
IM7530Ergonomic Trinocular

VIEWING HEADS

The binocular model, the IM7510, incorporates the MA957/20 Ergonomic Siedentopf binocular head with inclination adjustable vertically from 10° to 50°. The trinocular model, the IM7520, has the MA979 Siedentopf-type trinocular head with eyetubes inclined at 30 degrees. The MA979 uses a 0/100 beamsplitter (100% to eyetubes or 100% to phototube) that can be engaged for photomicroscopy. Both microscope heads’ left eyetubes have graduated diopter settings. The interpupillary distance on the viewing heads is adjustable between 53mm – 75mm.

EYEPIECES

10X Super Widefield High Eyepoint eyepieces are standard, and 15X and 20X eyepieces are also available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts standard 25mm reticules is also available.

OBJECTIVE CHANGER

The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.

OBJECTIVES

Standard objectives are the newly designed Planachromat EPI Infinity Corrected objectives for brightfield and darkfield observation modes. Infinity tube lens: F = 200mm.

STAGE

The standard fixed mechanical stage measures 224mm(x) by 184mm(y), with 50mm(x) by 40mm(y) movement. The mechanical stage features ergonomically positioned right-handed coaxial drop down controls.

ILLUMINATION

A powerful Koehler method vertical illuminator with 12 volt 50 watt halogen bulb in an adjustable centering socket provides enhanced image quality of observations. Adjustable brightness control and automatic voltage sensing power supply are standard.

PHOTOMICROGRAPHY

Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

Included

IM7520: Binocular IM7520 Series Inverted  Brightfield/Darkfield/Polarizing 12V/50W Metallurgical Microscope has a ergonomic slim triangular shaped design that saves bench space to maximize efficiency and offers ultimate stability with its cast aluminum alloy frame. This is the most rugged Inverted Microscope from Japan.  Infinity Corrected Plan Semi Apo BD 5X, 10X, 20X and LWD 50X objectives are standard in all units. All of our IM7500 Series controls are ergonomically positioned to provide comfort and extended ease of use for the operator. An integrated Incident High power12V/50W vertical Koehler Halogen illuminator with variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast
MA814/05: Siedentopf type binocular head – inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA923: Plan Epi Objective BD5X, ∞ Infinity Corrected objective N.A. 0.10, W.D. 17.0mm, F.L. 40.0
MA924: Plan Epi Objective BD10X, ∞ Infinity Corrected objective N.A. 0.25,W.D. 7.48mm, F.L. 20.0
MA925: Plan Epi Objective BD20X, ∞ Infinity Corrected objective N.A. 0.40, W.D. 5.20mm, F.L. 10.0
MA995: Plan Epi Objective BD50X, ∞ Infinity Corrected objective N.A. 0.50, W.D. 5.00mm, F.L. 4.0

Nosepiece: Quintuple Nosepiece, side facing, with positive precision detent, click stops (Factory Installed)

MA1011: Vertical Koehler illuminator, including filters and polarizer in sliding mount(without lamphouse)
MALH50: Lamphouse for use with 12V/50W Halogen Lamp (Included in 50w models)
MA275/25: Blue clear filter, 19.5mm diameter filter in metal mount, fits 30mmfilter slot   •
MA275/30: Green clear filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA275/50: N.D.50 neutral density filter, 19.5mm diameter filter in metal mount, fits 30mm filter slot
MA959: Polarizing filter, 19.5mm diameter filter in metal mount. Fits 30mm filter slot
MA1016: Round 110mm diameter, 2mm thick metal stage plate insert with 22mm opening for specimen

Stage: Mechanical Stage with  240mm (X) x 184mm (Y) dimensions with 50mm (X) x 40mm (Y) movement and drop down coaxial X-Y controls (Factory Installed)
Front Photo Port: Integrated photo port on the front of the body makes image documentation quick and easy with the proper C” mount or digital camera and SLR adapters

MA593: Stainless Steel Stage Clips, 4mm pin diameter, 75mm long (paired)
MA275/05: Halogen bulb, 12V/50W (Included in 50W models)(Factory Installed)
MA327: Fuse 3 Amp replacement (Included in 50W models)(Factory Installed)
MA809/10: Removable AC Electric cord with plug for 115V models or
MA809/20: Removable AC Electric cord with plug for 220 models
MA1014: Dust cover for IM7500

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Viewing Heads
MA816/15: Siedentopf type trinocular head, inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer Includes 80/20 beamsplitter (100% to eyetubes or 80% to photo 20% to eyetube) Inverted image (Included in Model IM7530 )
MA957/20: Ergonomic binocular Siedentopf head, erect image, inclination adjustable vertically from 10° to 50°, I.P. adjustment 53mm to 75mm,
graduated diopter on left eyetube (30mm I.D. eyetubes) (Optional viewing head) (Included in Model IM7510 with depolarizer)
MA1031: Trinocular Siedentopf head, erect image, inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer (Optional viewing head) Includes 0/100 beamsplitter (100% to eyetubes or 100% to phototube)

Eyepieces
MA818: SWH 15X, widefield, high eyepoint eyepiece (each) Field No. 16 (MA818 accepts 19mm diameter reticle) (30mm I.D. eyetubes)
MA819: SWH 20X, widefield, high eyepoint eyepiece (each) Field No. 12 (MA819 accepts 19mm diameter reticle) (30mm I.D. eyetubes)
MA859: SWF 10X-F, focusing widefield, high eyepoint eyepiece (each) Field No. 22 (MA859 accepts 25mm diameter reticle) (30mm I.D. eyetubes)

Brightfield/Darkfield Objectives
MA989: Plan Semi Apo Epi BD 100X ∞ objective N.A. 0.90, F.L. 2.0, W.D. 0.50

Adapter Ring
MA686/05: Adapter ring to mount RMS thread objectives to BF/DF nosepiece

Eyepiece Micrometers
MA523: Cross-line reticle, 25mm diameter
MA506: 10mm line divided into 100 units, 25mm diameter
MA509: 5mm line divided into 100 units, 25mm diameter
MA524: 10mm square divided into 400 parts, 0.5mm squares, 25mm diameter
MA510: 10mm square divides into 100 parts, 1.0mm squares, 25mm diameter
MA542: Cross-line with 0.1mm graduations, 25mm diameter
MA738: Grain sizing reticle for steel, 25mm diameter

Stage Micrometers
MA285: 1mm line divided into 100 units, each division 0.01mm
MA286: 0.04” divided into 40 units, each division 0.001”

Bulbs and Fuses
MA275/05: Halogen bulb, 12V / 50W (Included in 50W models)
MA327: Fuse 3A (Included in 50W models), replacement
