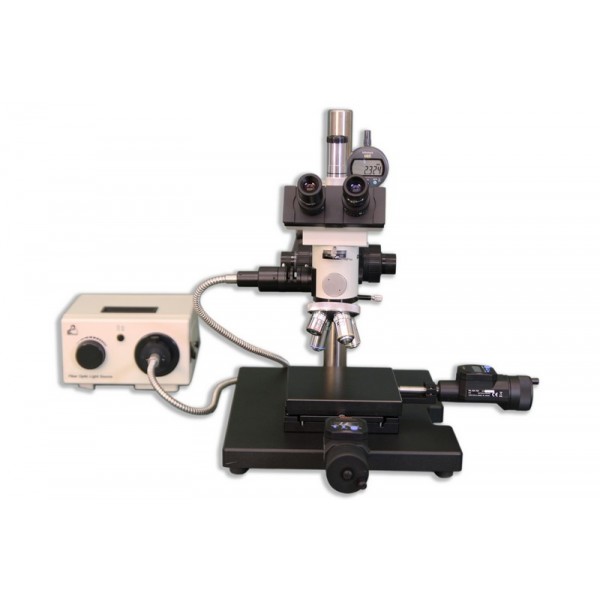

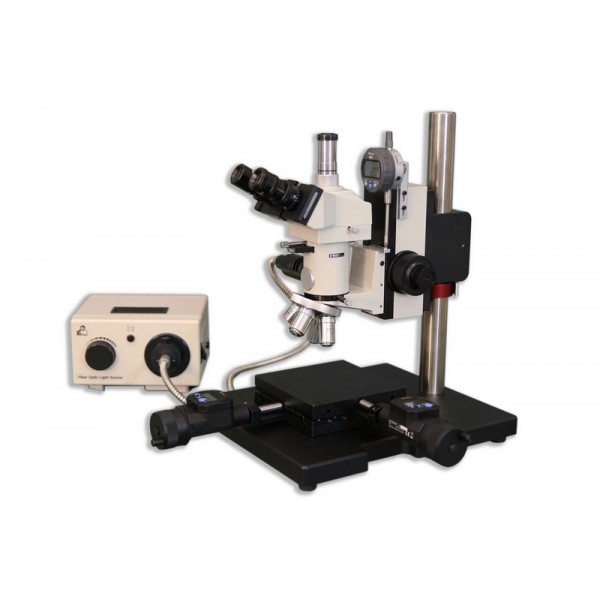

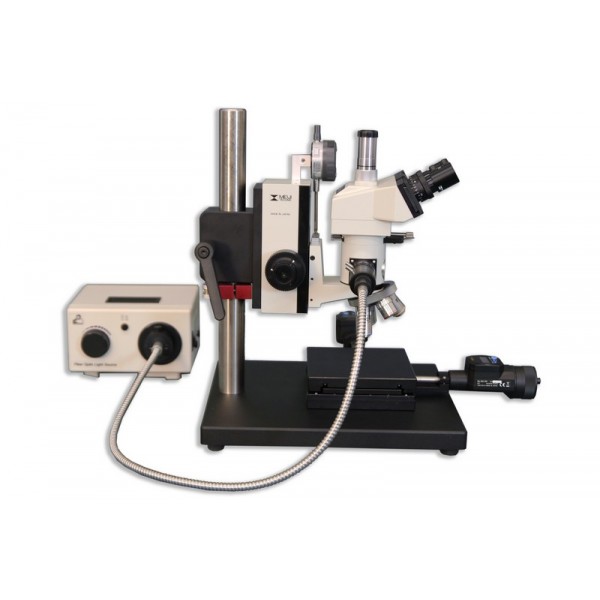

MC-50 Reflected/Transmitted Light Metallurgical Measuring Microscope

Availability:

In stock


Compare

Meiji Techno’s MC Series Precision Measuring Systems are composed of high quality metallurgical microscope components, precision X-Y stages and durable heavy duty stands.

In stock

$8,200.00 $9,050.00

Meiji Techno’s MC Series Precision Measuring Systems are composed of high quality metallurgical microscope components, precision X-Y stages and durable heavy duty stands.

MC-50 Reflected/Transmitted Light Metallurgical Measuring Microscope

Basics & Principles of a Metallurgical Microscope

ModelHeadIlluminationEyepiecesObjectivesStage
MC-40BinocularInfinity corrected vertical Koehler illuminator, focal length 200mm, with sliding rotatable polarizer. Filter Set: Blue Clear, Green Clear, Neutral Density ND8 and Polarizing filters in metal mounts. Port to accept FL150/12 flexible 36″ (914.4mm) single arm fiber optic light guide. Flexible 36″ (914.4mm) single arm fiber light guide for MA806. Focusing lens for FL150/12. Light source: 115V, 50-60Hz halogen lamp, 21V 150W. Light source: 230V, 50-60Hz halogen lamp, 21V 150WFocusing eyepiece HWF10X-FF with cross-line reticule and set screw. High eyepoint eyepiece HWF10X, FN: 18, Eyepoint: 24mmPlan Epi M5X, N.A. 0.10, infinity corrected, W.D. 20mm
Plan Epi M10X, N.A. 0.25, infinity corrected, W.D. 7.48mm
Plan Epi M20X, N.A. 0.40, infinity corrected, W.D. 5.20mm
Plan Epi M50X, N.A. 0.75, infinity corrected, W.D. 0.38mm
Reflected light measuring stage: 150mm x 150mm with  50mm x 50mm X-Y movement with mounting brackets for digital micrometer heads
MC-40TTransmitted light measuring stage: 150mm x 150mm with  50mm x 50mm X-Y movement with glass stage plate and mounting brackets for digital micrometer heads
MC-50TrinocularReflected light measuring stage: 150mm x 150mm with  50mm x 50mm X-Y movement with mounting brackets for digital micrometer heads
MC-50TTransmitted light measuring stage: 150mm x 150mm with  50mm x 50mm X-Y movement with glass stage plate and mounting brackets for digital micrometer heads

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Digimatic Indicators:
MTI164-164: Mitutoyo Digimatic Indicator for X-Y axis movement: Range 50mm (2”)( 2 Required)
MTI543-392: Mitutoyo Digimatic Indicator (lug back) for Z axis movement: Range 12.7mm (0.5”) (1 Required) (MA721 is required)
MA721: 1.5” (38 mm) Extension rod for Z axis digital indicator (Required for MTI543-392)
MA807: Mounting brackets for digital “Z” axis indicator (Included with FU1010)

Viewing Heads:
MA657/05: Erect image binocular head with depolarizer
MA655/05: Erect image trinocular head with depolarizer

Eyepieces:
MA406: DIN HWF 10X widefield eyepiece, field No. 18
MA413: CF Focusing eyepiece HWF10X-F with cross-line reticle and guide pin
MA584: Protractor eyepiece 10X

Plan EPI Objectives:
MA874: Plan Achromat Epi Objective 100X, N.A. 0.90, W.D. 0.37mm, F.N. 24

LWD (Long working distance) Plan EPI Objectives:
MA920: LWD Plan Achromat Epi Objective 20X, N.A. 0.40, W.D. 11.0 mm, F.N. 24
MA921: LWD Plan Achromat Epi Objective 50X, N.A. 0.55, W.D. 7.5 mm, F.N. 24

Illuminator:
MA806: Infinity corrected vertical Koehler illuminator with sliding rotatable polarizer Filter Set: Blue Clear, Green Clear, Neutral Density ND8 and Polarizing filter in metal mount Port to accept FL150/12 flexible 36” single arm fiber optic light guide
MA806/LED: Infinity corrected vertical Koehler LED illuminator with sliding rotatable polarizer Filter Set: Blue Clear, Green Clear, Neutral Density ND8 and Polarizing filter in metal mount (MA927/05/LED Transformer needed)
MA927/05/LED: Transformer only in metal case for MA806/LED vertical Koehler illuminator (input 100V -240V)

Filters:
MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA476: Green clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA198: ND13 neutral density filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot

Eyepiece Micrometers:
MA279: Cross-line reticle, 19mm diameter
MA539: Cross-line with 0.1mm graduations, 19mm diameter

Stage Micrometers:
MA285: Stage micrometer, 1mm divided into 100 units, each unit 0.01mm
MA286: Stage micrometer, 0.04” divided into 100 units, each unit 0.001inch
MA292: Metal stage micrometer, 0.01mm, for reflected light

Bulbs:
FL150/70: Spare bulb, 21V/150W (For FL150/100 or FL150/200)

Miscellaneous:
MA569: Replacement glass stage plate for MA729 transmitted light stage
