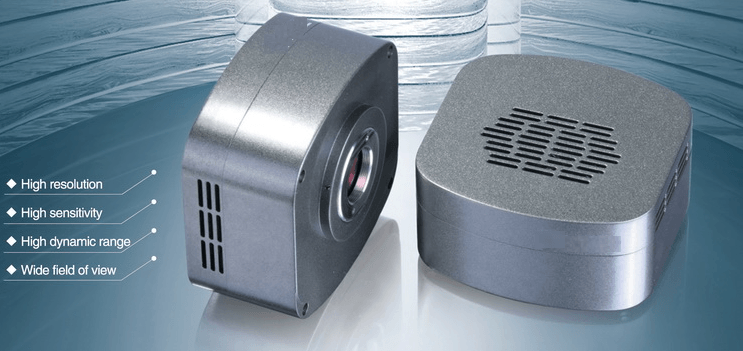

BIC-2800M (H-674) series 2.8MP 2/3″ Cooled Mono CCD Cameras

Availability:

In stock


Compare

1- or 2-stage cooled CCD,

Monochrome; USB2.0,

2- 8MP (1912 x 1452), 2/3″ Sony ICX694, 4.54μm/pixel, 3.5-9fps, 12bit.

Software: IsCapture, Windows/Mac.

In stock

$3,400.00 $4,250.00

1- or 2-stage cooled CCD,

Monochrome; USB2.0,

2- 8MP (1912 x 1452), 2/3″ Sony ICX694, 4.54μm/pixel, 3.5-9fps, 12bit.

Software: IsCapture, Windows/Mac.

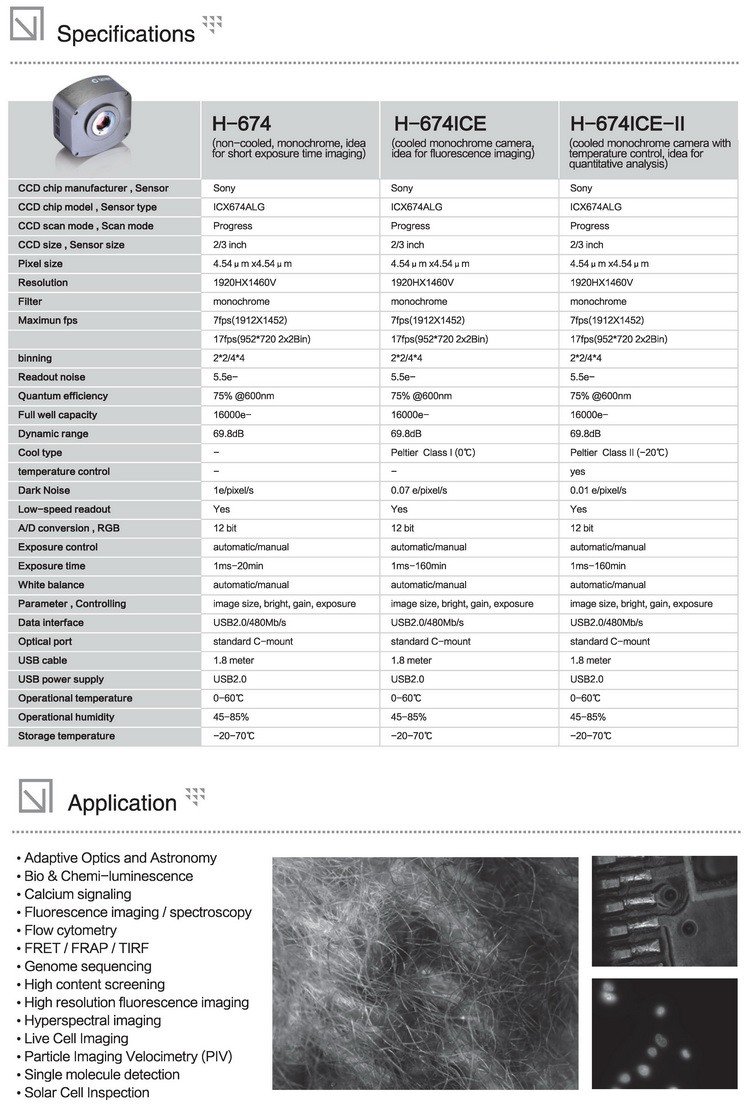

 ParameterDescription
CCD chip manufacturer , SensorSony
CCD chip model , Sensor typeICX674AL
CCD scan mode , Scan modeProgress
CCD size , Sensor size2/3″
Pixel size4.54μm x4.54μm
G sensitivity , Sensitivity950mV
Resolution1920HX1460V
FilterMono
Optical portstandard C-mount
Maximun fps7fps(1912X1452)17fps(952*720 2x2Bin)

17fps(472*356 4x4Bin)

Low-speed readoutYes
A/D conversion , RGB12 bit
Exposure controlautomatic/manual
Exposure time1ms-160min
Angle light controlYes
White balanceautomatic/manual
Parameter , Controllingimage size, bright, gain, exposure
Data interfaceUSB2.0/ 480Mb/s
USB cable1.8 meter
USB power supplyUSB2.0
Operational temperature0-60℃
Operational humidity45-85%
Storage temperature-20-70℃
binning2*2/4*4
Readout noise5.5e
Quantum efficiency77% @525nm50% @380nm & 720nm
Spectral response310nm ~1100nm
Dark Current0.01 e/pixel/s
Full well capacity20000e
Dynamic range69.8dB
Freeze frame noise reduction
Time exposureAutomatic integral
Cooling temperaturePeltier class I (0℃)
Lens interfaceC mount
ShutterGlobal shutter
Total power consumption<8W without TEC<50W with TEC ON
Mac compatibleYes

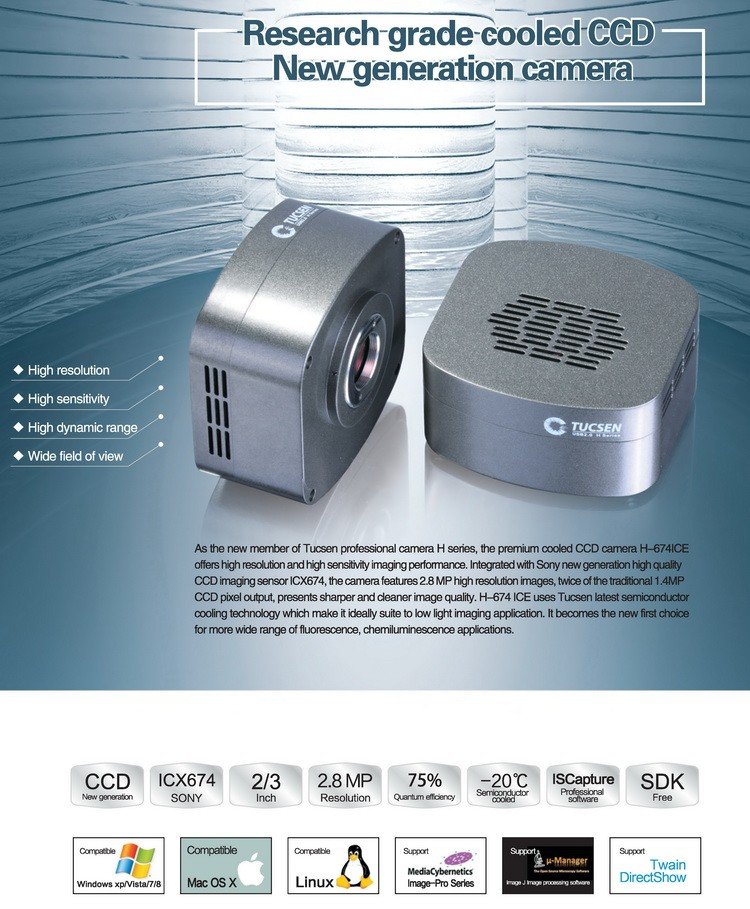

BIC-2800M (H-674) series 2.8MP 2/3" Cooled Mono CCD Cameras

BIC-2800M (H-674) series 2.8MP 2/3" Cooled Mono CCD Cameras

Two softwrares are offered at no extra cost. Free updated version will be avilable too.

iSCapture Software Manual

TSView Software Manual

SDK driver si avilable too.

Two softwrares are offered at no extra cost. Free updated version will be avilable too.

iSCapture Software Manual

TSView Software Manual
