The MT4000 Series employs all new and improved Plan optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the study of mounted specimens fast and easy while delivering an excellent cost-to-performance ratio.
ML5000 Meiji Techno Upright Microscope
MT5000 Meiji Techno Upright Biological Microscope

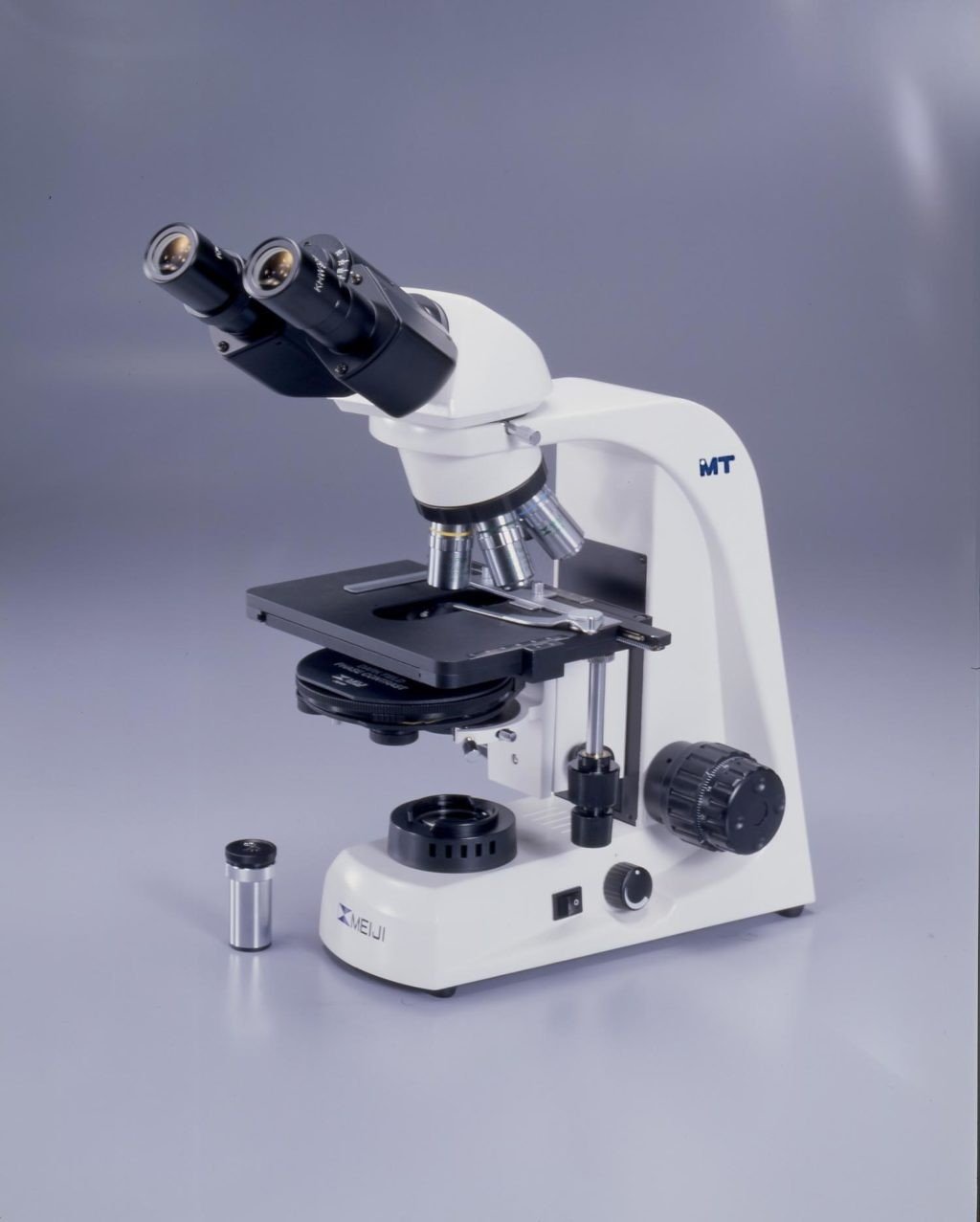

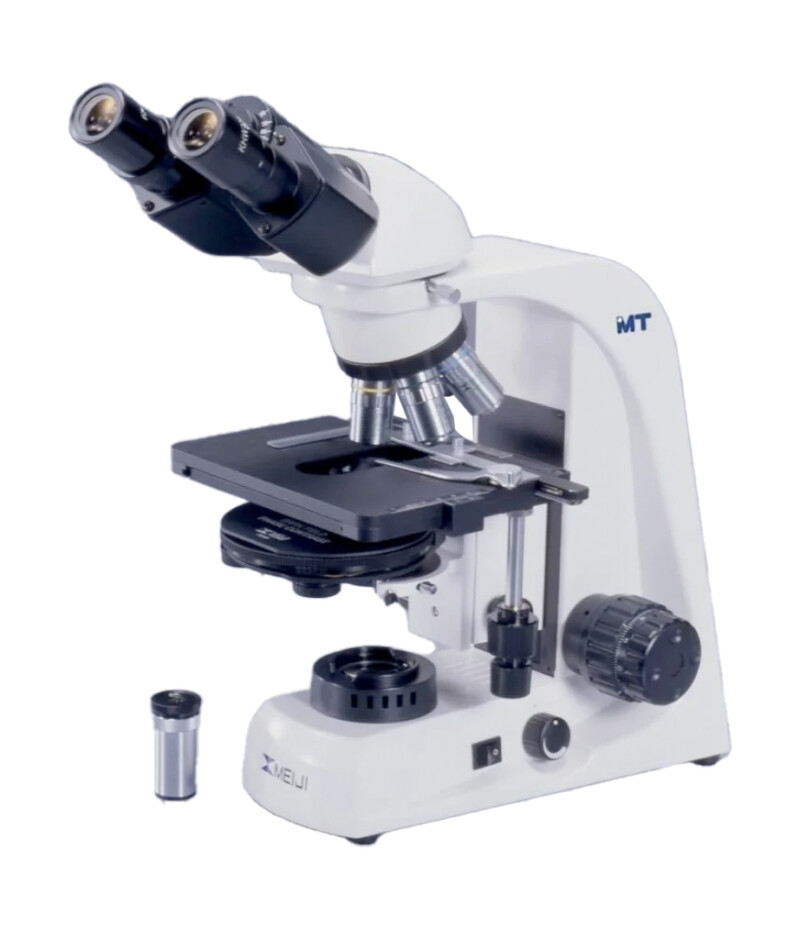

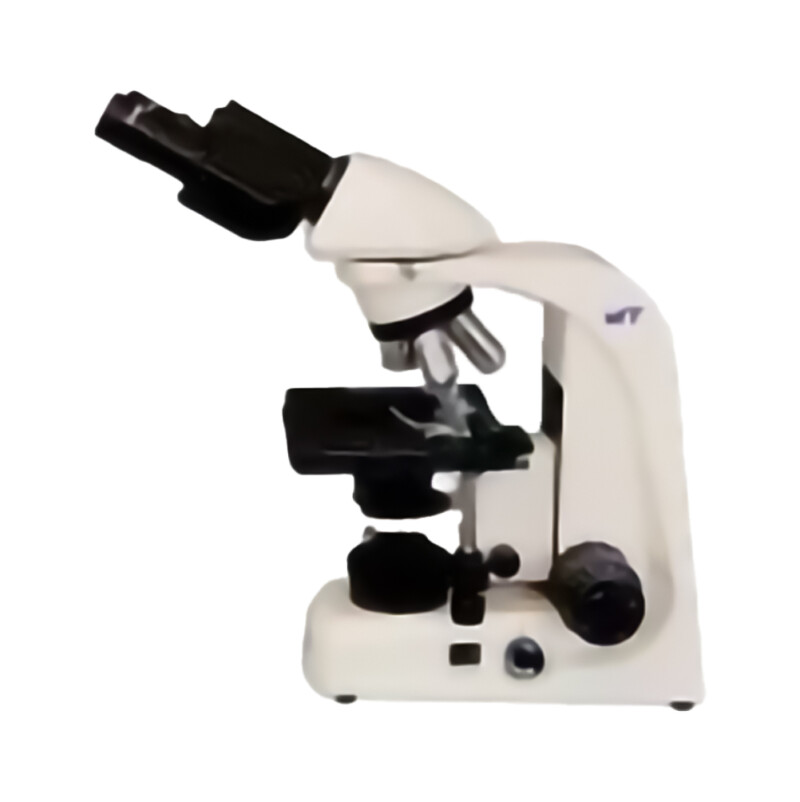

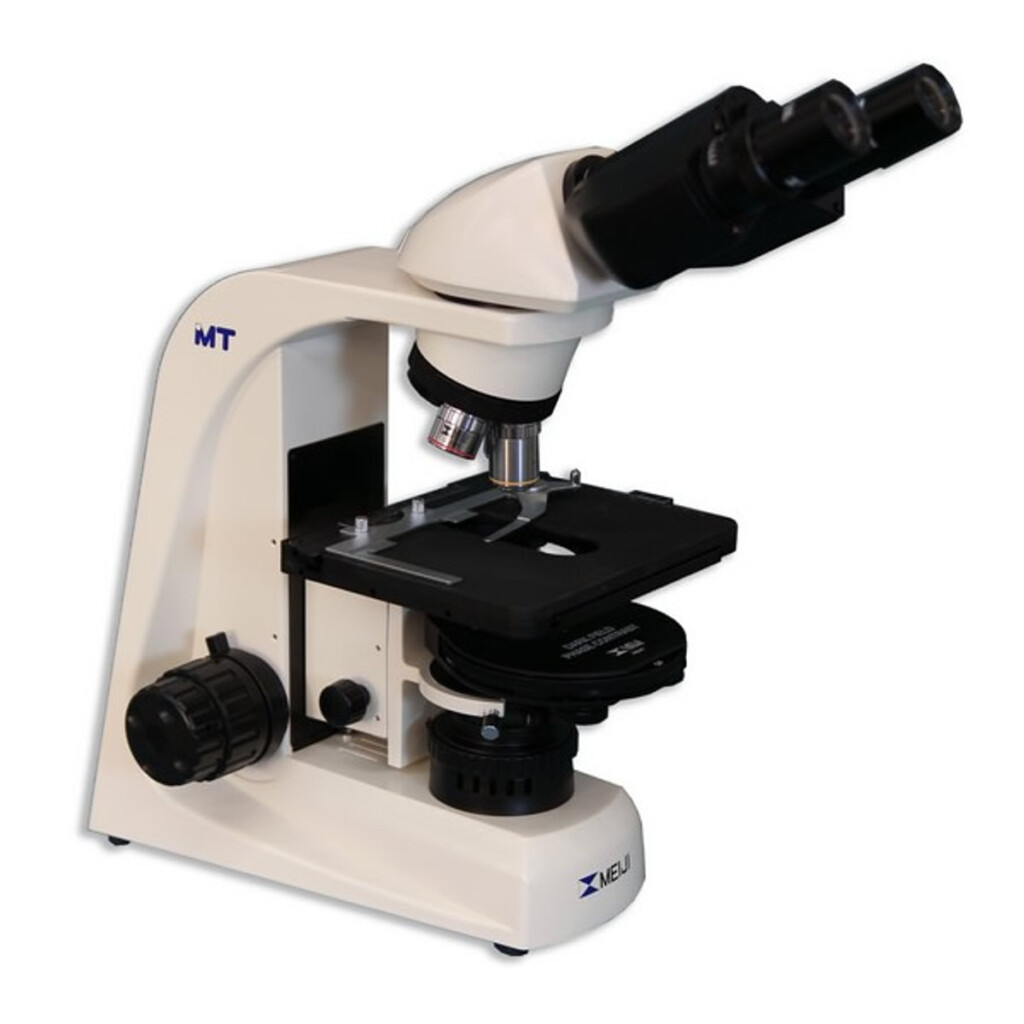

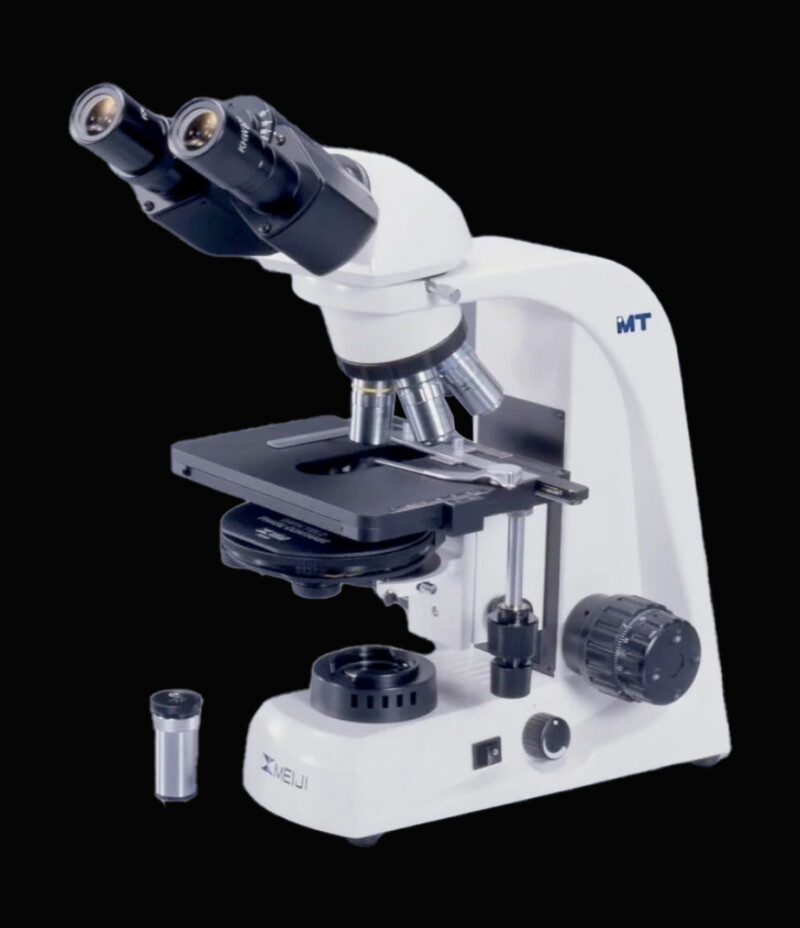

MT4000 Meiji Techno Biological Brightfield Microscope Series
Original price was: $USD 2,165.00.$USD 1,970.00Current price is: $USD 1,970.00.
-9%Meiji Techno (Japan) MT4000 Series Biological Lab Microscope Brightfield imaging 4x, 10x, S40x, S100x (oil) obj lenses binocular / trinocular viewing head Halogen or LED illumination at no extra cost Ergonomical designed viewing head is available (optional) infinity corrected Optical system, F=200mm
MT4000 Meiji Techno Biological Brightfield Microscope Series
The MT4200L Microscopes features include:
- Computer Aided Design
- All New Infinity Corrected Optics
- Ergonomically positioned controls
- Comfortable Siedentopf viewing heads
- Ergonomic Binocular Head Available
- 30W Halogen for Phase Contrast and Brightfield Models and LED Illumination for Brightfield Models
- Brightfield, darkfield and phase contrast observation modes available
Meiji Techno’s university grade upright microscope line isbiological research microscopes the new and cost-effective MT4000 Series Biological Microscopes. The MT4000 Series employs all new and improved Plan optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the study of mounted specimens fast and easy while delivering an excellent cost-to-performance ratio.
VIEWING HEADS
Model MA815/05 is the Siedentopf-type binocular head and Model MA816/05 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30 ° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work.The optional MA957/05, Ergonomic Binocular Viewing Head, has the inclination adjustable from 10 to 50 degrees to fit users of different heights. The Ergonomic Trinocular model comes with the MA958, photo/video attachment with sliding 80/20 beam-splitter (Included in MT4300ED).
EYEPIECES
10X Widefield High Eyepoint eyepieces F.N.20 are standard, and 15X and 20X eyepieces are available as an option. A Widefield High Eyepoint 10X focusable eyepiece that accepts 21mm reticules is also available.
OBJECTIVE CHANGER
Quintuple nosepiece provides effortless objective changes with smooth-operating, ball bearing mounted.
OBJECTIVES
Meiji Techno America offers an assortment of Planachromat Infinity Corrected (ICOS) objectives for Brightfield, Darkfield and Phase Contrast observation modes.
STAGE
Ceramic coated standard right-handed or optional left-handed controls, flat top stage 171mm x 115mm and travels 78mm(X) x 52mm(Y). Ergonomically positioned coaxial drop down controls. Available with motorized focus and stage controls.
CONDENSER
New design centerable Abbe 1.25 N.A. Condenser with built-in iris diaphragm in dovetail mount.
ILLUMINATION
Powerful white LED illumination provides enhanced image quality and brightness for the observation of specimens and photomicroscopy.
PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.
Includes:
• MT4200H: Binocular Brightfield Compound microscope with Bright 30W Halogen Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
• MA815/05: Binocular head-Siedentopf type .I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube ( 23.2mm I.D. eyetube). Inclined at 30 degrees
• MA407 (x 2): KHW10X compensating eyepiece, Field No. 20, Tube O.D. 23.2MM (each)
• MA965: Plan Achromat Objective 4X, N.A 0.10, W.D. 15.3mm
• MA966: Plan Achromat Objective 10X, N.A. 0.25,W.D. 7.3mm
• MA968: Plan Achromat Objective 40X, N.A.0.65,W.D. 0.72mm
• MA970: Plan Achromat Objective 100X, N.A. 1.25 oil, W.D. 0.14mm
• MA910: Abbe condenser, N.A. 1.25 with iris diaphragm and dove-tail mount
• MA917R: Ceramic coated flat-top stage, 170mm x 140mm, 80mm x 52mm
• MA598: Attachable finger assembly for MA917R and MA917L
• MA326: Spare bulb 6V 30W Halogen lamp
• MA327: Spare 3A Fuse for Halogen illuminator
• MA809/10: Removable AC Electric cord with plug for 115V models
• MA701: Dust Cover for MT4000
• Manual: MT4000 Meiji Techno Instruction Manual
• Warranty: Limited Lifetime Warranty Card
Product Information:
• Manufactured: 100% MADE IN JAPAN
• Warranty: LIMITED LIFETIME WARRANTY
• Customer Support: 1-(800) 832-0060 (U.S.A Based)
Package Information:
• Weight: 29 lbs (8.0kg)
• Box Size: 16 x 14 x 21 inches
• Footprint: 263mm (D) x 176mm (W)
• Binocular head type: 390 mm(D) x 410mm (H) x 210mm(W) (8.0kg)( 29.0 lbs)
• Trinocular head type: 390 mm(D) x 465mm(H) x 210mm(W) (8.7Kg)( 30.0 lbs)
• Binocular Ergonomic head type: 390 mm(D) x 483mm (H) x 210mm(W) (8.4kg)(31 lbs)
• Trinocular Ergonomic head type: 390 mm(D) x 533mm(H) x 210mm(W) (8.9Kg)(33 lbs)
| Model | Head | Illumination | Eyepieces | Objectives | Stage | Condenser |
| MT4200L | Binocular | LED Illumination | KHW10x FN20 | Plan 4x, 10x, 40x, 100x oil | Fixed flat-top left or right-handed controls | Abbe NA 1.25 with iris in dovetail mount |
| MT4200EL | Ergonomic Binocular | |||||
| MT4300L | Trinocular | |||||
| MT4300EL | Ergonomic Trinocular | |||||
| MT4200H | Binocular | Koehler 30W halogen | ||||
| MT4200EH | Ergonomic Binocular | |||||
| MT4300H | Trinocular | |||||
| MT4300EL | Ergonomic Trinocular |
Included:
• MT4200H: Binocular Brightfield Compound microscope with Bright 30W Halogen Koehler illumination with quintuple nosepiece and auto voltage sensing power supply
• MA815/05: Binocular head-Siedentopf type .I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube ( 23.2mm I.D. eyetube). Inclined at 30 degrees
• MA407 (x 2): KHW10X compensating eyepiece, Field No. 20, Tube O.D. 23.2MM (each)
• MA965: Plan Achromat Objective 4X, N.A 0.10, W.D. 15.3mm
• MA966: Plan Achromat Objective 10X, N.A. 0.25,W.D. 7.3mm
• MA968: Plan Achromat Objective 40X, N.A.0.65,W.D. 0.72mm
• MA970: Plan Achromat Objective 100X, N.A. 1.25 oil, W.D. 0.14mm
• MA910: Abbe condenser, N.A. 1.25 with iris diaphragm and dove-tail mount
• MA917R: Ceramic coated flat-top stage, 170mm x 140mm, 80mm x 52mm
• MA598: Attachable finger assembly for MA917R and MA917L
• MA326: Spare bulb 6V 30W Halogen lamp
• MA327: Spare 3A Fuse for Halogen illuminator
• MA809/10: Removable AC Electric cord with plug for 115V models
• MA701: Dust Cover for MT4000
OPTIONAL COMPONENTS & ACCESSORIES BELOW
Viewing Heads:
• MA816/05: Trinocular head – Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (23.2mm I.D. eyetube). Inclined at 30 degrees (Included in Model MT4300L, MT4300H, MT4310L and Model MT4310H) Inverted image
• MA957/05: Ergonomic binocular head, inclination adjustable from 10-50 degrees (23.2mm I.D. eyetube) Erect image. (Included in all Ergonomic Bino. & Trino. models)
Photo/Video Attachment:
• MA958: Photo / video attachment with sliding 80/20 beam-splitter. For use with video or digital cameras when MA957/05 ergonomic head is used (Included in all Ergonomic Trinocular models)
Eyepieces:
• MA407/05: KHW10X-F Compensation Focusing eyepiece, Field No. 20, Tube O.D. 23.2mm (each)
• MA200: Eyeshield for MA407 KHW10X eyepiece (each)
• MA408:HWF15X Widefield eyepiece, Field No. 12.2, Tube O.D. 23.2mm (each) (no reticle mount)
• MA409:HWF20X Widefield eyepiece, Field No. 9, Tube O.D. 23.2mm (each) (no reticle mount)
• MA406:HWF10X Widefield high-eyepoint eyepiece, Field No. 18, Tube O.D. 23.2mm (each) (19mm reticle mount)
• MA413:HWF10X Focusing eyepiece with reticle mount, Field No. 18, Tube O.D. 23.2mm (each) (19mm reticle mount)
Planachromat Objectives:
• MA833: Plan Semi Apo Objective 20X, N.A. 0.40, W.D. 7.29mm
• MA969: Plan Achromat Objective 60X, N.A. 0.80, W.D. 0.23mm
Semi Plan Phase Objectives:
• MA930: Semi Plan Phase 10X Objective, N.A. 0.25, W.D. 7.3mm (Included in PH model)
• MA931: Semi Plan Phase 20X Objective, N.A. 0.40, W.D. 5.1mm
Plan Semi Apochromat Phase Objectives:
• MA841: Plan Semi Apo Phase Objective, 40X, N.A. 0.65, W.D. 0.5mm (Included in PH Model)
• MA842: Plan Semi Apo Phase Objective, 100X, N.A. 1.25 oil, W.D. 0.23mm
Centering Telescope:
• MA458: Centering Telescope, 23.2mm OD (Included in Models MT4210L, MT4310L, MT4210H and MT4310H)
Polarizer:
• MA915: Polarizer set for MT4000 Series microscopes
• MA915/PT#2: Unmounted 43mm polarizing filter for use with MA1043 Intermediate tube
• MA1043: Intermediate tube with built in analyzer and compensator slot for MT4000 & MT5000 Series (requires a MA915/PT#2 43mm polarizing filter)
Condensers:
• MA910/10: Abbe condenser, N.A. 1.25, with centerable Phase annuli in slider for use with 20X and 40X phase objectives, with iris diaphragm and dovetail mount
• MA910/15: Abbe condenser, N.A. 1.25 with darkfield stop in slider for use with 20X and 40X brightfield objectives, with iris diaphragm and dovetail mount
• MA911: Achromatic condenser, N.A. 1.25 with iris diaphragm and dovetail mount
• MA913: Zernike Phase condenser with centerable phase annuli for 10X, 20X, 40X, 100X with brightfield position, dark-field stop for 40X objective, (black-out position- for epi-fluorescence on MT6000 Series only) with iris and dove tail mount (Included in Models MT4210L, MT4310L, MT4210H & MT4310H)
• MA976: Abbe condenser, N.A. 0.90 with swing out top lens, iris diaphragm and dovetail mount For use with low power scanning objectives
Filters:
• MA858/05: ND 25 Neutral density filter, 44.0mm diameter, unmounted
• MA857/05: Green filter, clear, 44.0mm diameter, unmounted (Included in all phase models)
• MA861/05: Green Interference filter, 44.0mm diameter, unmounted (546nm)
Stages:
• MA917L: Ceramic coated flat-top stage, 170mm x 140mm, 80mm x 52mm X-Y movement, with left hand drop-down coaxial controls
• MA598: Attachable finger assembly for MA917R and MA917L (Included with MA917R & MA917L)
• MA676: Attachable clinical finger assembly for MA917R and MA917L
Eyepiece Micrometers (21mm diameter for use with MA407 eyepiece)
• MA284: Cross-line reticle, 21mm diameter
• MA255: 10mm line divided into 100 units, 21mm diameter
• MA256: 5mm line divided into 100 units, 21mm diameter
• MA283/05: 10mm square divided into 100 parts, each square 1.0mm, 21mm diameter
• MA540: Cross-line reticle with 0.1mm graduations, 21mm diameter
Stage Micrometers
• MA285: 1mm divided into 100 units, 0.01mm
• MA286: 0.04” divided into 40 units, 0.001”
Replacement Blubs and Fuse
• MA326: Spare bulb 6V 30W halogen lamp (For use with MT4000 halogen models)
• MA327: Spare 3A Fuse for Halogen illuminator
Miscellaneous
• MA977: Eye level riser for MT Series stands
