Save $USD 765

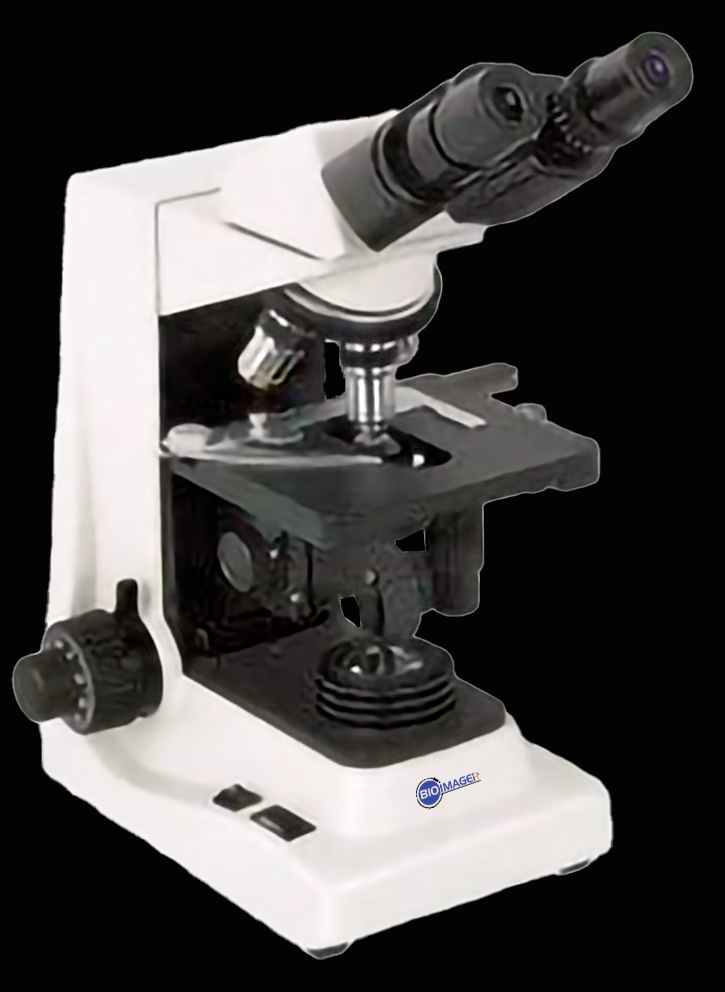

BUM260 Biological Upright Clinical Microscope


BUM260 series microscopes are specially designed for medical area. They adopt a high-brightness optical system, overall structure and reasonable man-machine design. A variety of accessories make it an ideal study and analysis instrument for biology, bacteriology, histology, immunizations and pharmacy. It can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

$USD 1,035.00 $USD 1,800.00

BUM26 series microscopes are specially designed for medical area. They adopt a high-brightness optical system, overall structure and reasonable man-machine design. With precision machining equipment and advanced alignment technology, a variety of accessories make it an ideal analyzing instrument of biology, bacteriology, histology, immunizations and pathology.

1.     High-brightness optical system, the overall structure and reasonable man-machine design.

2.     A variety of accessories make it an ideal study and analysis instrument for biology, bacteriology, histology, immunizations and pharmacy.

3.     Monocular, Binocular and Trinocular Head Available for Different Requirements.

4.     Aluminum Carrying Case Available for High Level Packing Requirement

BUM260Biological Upright Clinical Microscope

BUM260 series microscopes are ideal instrument in biological, histological, pathological, bacteriology, immunizations and pathology field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Specifications

ModelBUM260 MBUM260 BBUM260 T
Viewing HeadSeidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary 55-75mm
Monocular Head, Inclined at 30°, 360° Rotatable
Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary 55-75mm
EyepieceWide Field Eyepiece WF10×/ 18
Wide Field Eyepiece P16×/ 11
ObjectiveAchromatic Objective 4×, 10×, 40×, 100×
Achromatic Objective 20×, 60×
Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×
NosepieceBackward Quadruple Nosepiece
Backward Quintuple Nosepiece
StageDouble Layers Mechanical Stage 140×140mm/ 75×50mm
CondenserNA 1.25 Abbe Condenser with lris Diaphragm and Filter, Rack & Pinion Adjustment
FocusingCoaxial Coarse & Fine Adjustment System, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 24mm
IlluminationLED Illumination, Brightness Adjustable
Halogen Lamp 6V/ 20W, Brightness Adjustable
Kohler Illumination
FilterBlue Filter
Green Filter
SKU: BUM260 Category:
ModelBUM260 MBUM260 BBUM260 T
Viewing HeadSeidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary 55-75mm
Monocular Head, Inclined at 30°, 360° Rotatable
Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary 55-75mm
EyepieceWide Field Eyepiece WF10×/ 18
Wide Field Eyepiece P16×/ 11
ObjectiveAchromatic Objective 4×, 10×, 40×, 100×
Achromatic Objective 20×, 60×
Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×
NosepieceBackward Quadruple Nosepiece
Backward Quintuple Nosepiece
StageDouble Layers Mechanical Stage 140×140mm/ 75×50mm
CondenserNA 1.25 Abbe Condenser with lris Diaphragm and Filter, Rack & Pinion Adjustment
FocusingCoaxial Coarse & Fine Adjustment System, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 24mm
IlluminationLED Illumination, Brightness Adjustable
Halogen Lamp 6V/ 20W, Brightness Adjustable
Kohler Illumination
FilterBlue Filter
Green Filter
