Save $840

MT9900 Meiji Techno Halogen/LED Transmitted & Incident Polarizing Microscope (Japan)

Availability:

In stock


Compare
  • Meiji Techno’s MT9000 Series Polarizng Microscope (Japan)
  • Incident & Transmitted lights
  • LED or Halogen illumination
  • Strain free obj lenses: 4x, 10x, 40x, 100x
  • Monocular, Binocular or Trinocular Head

In stock

$7,565.00 $8,405.00

Meiji Techno MT9900 Polarizing Microscope with Incident & Transmitted LIghts

Meiji Techno America’s MT9900 Series Incident and Transmitted Polarizing Microscope is an investigative tool for isotropic and anistropic materials. The MT9900 has been designed as a versatile, modular, ergonomic microscope system which are ideally suited in education, research or advanced laboratory applications such as forensic analysis, polymer, crystal identification. Ergonomic placement of controls allows for stress free operation, increased lab efficiency and maximum productivity. Incident and Transmitted 6V 30W Koehler Halogen illuminator or LED Koehler illuminator with newly engineered high performance optics strain free ∞ Infinity Corrected objectives reduce internal strain to an absolute minimum. Our redesigned polarizing condensers with a swing out top lens helps maximize the field of view with lower power objectives to enhance performance in polarized light, yielding unmatched image contrast, provide exceptionally bright, crisp images with good color rendition and superior flat fields of view. Intermediate tube with a built in focusable Bertrand lens and a rotatable Analyzer greatly increases the quality of the image along with a compensator slot and rotatable polarizer with full wave plate. A perfect instrument for geology, petrology, mineralogy, forensics, material science, manufacturing, crystallography, medical research, environmental science and industrial quality control and quality assurance applications.

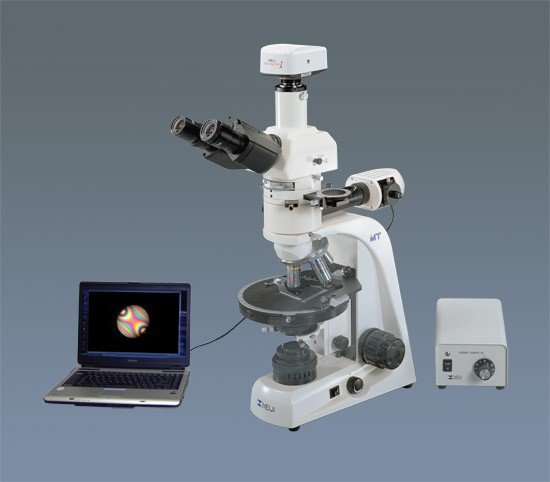

polarizing/MT9930_DK3000_MA945_550w.jpg

  • Focusable Bertrand lens ( Factory installed)
  • Rotatable Analyzer with 180° graduations
  • Combination First order red compensating plate and ¼ Wave-length test plate and Brightfield spot with a slider locking pin standard in all models.
  • Newly designed Strain free Abbe Condenser 1.25 N.A. with a swing out top lens and built in iris in a dovetail mount is easy to change and operates and tracks very smoothly and predictably facilitating accurate iris control with improved usability
  • Polarizer in a Swing in-out click/clamp mount, fully rotatable 360° with click stop at 0°and 90°
  • Super Widefield compensating KHW10X, focusing eyepiece with cross-line and guide pin, F.N. 20 are standard with 21mm reticle mount
  • Ergonomic Siedentopf type binocular or Trinocular viewing heads are standard
  • Smooth operating ball bearing centerable nosepiece provides effortless objective changes
  • Clear Observation Images with Newly improved ∞ Infinity Corrected Objectives ICOS Optical System
  • Available accessories suited for high-level Polarization Observation
  • Intermediate tube with built in analyzer and compensator slot and rotatable polarizer in a swing-out mount
  • Ceramic coated, 175mm diameter, ball bearing, circular rotating stage graduated 360°, with 1°increments and vernier reading to 0.1°. Stage equipped with easy to maintain ceramic coating allows for smooth exchange of specimens while offering maximum protection to the stage surface from abrasions and wear overtime of use. The super hard coating is durable and rugged enough to provide years of demanding use.
  • Focus tension adjustment and safety Auto-focus stage stop lever
  • Choice of Bright Lambertian designed LED illumination or 30 watt Koehler Halogen illumination allowing observation of clear images of polarization with automatic voltage sensing power supply 110V-240V.
  • Trinocular models compatible with Digital, CCD, CMOS, Analog Meiji Techno adapters for photomicrography
  • Cast Aluminum Alloy construction with chemical resistant finish
  • Triangular designed frame for maximum ergonomics, greatly lessens user fatigue during hours of extended observation
polarizing/MT9200_295w.jpgMeiji Techno MT9900 Halogen/LED Transmitted & Incident Polarizing Microscope (Japan)
 MT9000 Transmitted Light  MT9900 Incident & Transmitetd Light



Meiji Techno’s brand new polarized microscopes are the MT9000 Series with incident illumination, and the MT9900 Series with incident and transmitted illumination among other features. The MT9000 and MT9900 Series employ all new and improved strain free S. Plan optics. Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the study of thin sections and other mounted samples fast and easy while delivering an excellent cost-to-performance ratio.

polarizing/MT9920-01.jpg

Features

  • Computer Aided Design
  • Ergonomically positioned controls
  • Comfortable Siedentopf viewing heads
  • 30W Transmitted Koehler Halogen Illuminator
  • 30W Vertical Incident Koehler Halogen Illuminator (MT9920 & MT9930)
  • Strain Free Optics Throughout
  • Brightfield and Polarized Light observation modes
  • Optional Point Counting Stage

MT9000 Series Transmitted Brightfield Models

ModelHeadIlluminationEyepiecesObjectivesStageCondenser
MT9200Bino.Transmitted 30W KoehlerKHWF10XCP FN20Strain Free S.Plan 4x, 10x, 40xSRotatable 360 degree, graduated with vernierStrain Free Abbe NA 1.25 with iris in dovetail mount
MT9300Trino.

*New!* T9900 Series Incident and Transmitted Brightfield Models with Focusable Bertrand lens, Rotable Analyzer, 3-Position Slider with 1st Order Red, 1/4 Wave Plate, Brightfield Position, and swing-out condenser.

ModelHeadIlluminationEyepiecesObjectivesStageCondenser
MT9920Bino.Transmitted 30W Koehler & 30W Vertical Koehler IncidentKHWF10XCP FN20Strain Free S.Plan 4x, 10x, 40xSRotatable 360 degree, graduated with vernierStrain Free Abbe NA 1.25 with swing-out top lens, with iris in dovetail mount
MT9930Trino.



VIEWING HEADS

Model MA952 is the Siedentopf-type binocular head and Model MA953 is the trinocular head for camera integration. Each head has the 23.2mm eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings.

The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work.

Each head has the new integrated reticle angle compensation system. When the IP distance or number is changed, the crossline reticle remains perpendicular in the FOV.



Part NumberDescription
MA952Siedentopf-type binocular head, 23.2mm eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings.
MA953Siedentopf-type trinocular head, 23.2mm eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings.

polarizing/mt_bertrand.jpeg



EYEPIECES

10X Widefield High Eyepoint eyepieces F.N.20 are standard. A Widefield High Eyepoint 10X focusable eyepiece that has a 21mm crossline reticule and guide pin is also available.

Part NumberDescription
MA407KHW10XCP compensating 23.2mm eyepiece, FN20 (standard) (accepts 19mm reticle)
MA407CPKHF10X-F; 23.2mm focusing eyepiece, FN20 with crossline (optional) (accepts 21mm reticle)

OBJECTIVE CHANGER

The smooth-operating, ball bearing mounted, quadruple nosepiece provides effortless objective changes.OBJECTIVES

Meiji Techno offers an assortment of S.Planachromat Infinity Corrected objectives for Transmitted Light or Incident Light .

polarizing/CenterableNosepiece.jpg

Centerable Nosepiece

Strain Free S. Plan Objectives for Transmitted Light – Infinity Corrected – F = 200mm
MA935Strain Free S.Planachromat 4X objective, NA: 0.10, WD = 15.3mm (included)
MA936Strain Free S.Planachromat 10X, objective, NA: 0.25, WD = 7.3mm (included)
MA937Strain Free S.Planachromat 20X objective, NA: 0.73, WD = 5.0mm (optional)
MA938Strain Free S.Planachromat 40XS objective, NA: 0.65, WD = 0.72mm (included)
MA939Strain Free S.Planachromat 60XS objective, NA: 0.85, WD = 0.2mm (optional)
MA940Strain Free S.Planachromat 100XS oil objective, NA: 1.25, WD = 0.14mm (optional)
 Strain Free S. Plan Objectives for Incident Light– Infinity Corrected – F = 200mm
MA935Strain Free S.Planachromat 4X objective, NA: 0.10, WD = 15.3mm (included)
MA936Strain Free S.Planachromat 10X, objective, NA: 0.25, WD = 7.3mm (included)
MA947Strain Free S.Planachromat 20X objective, NA: 0.40, WD = 5.2mm (optional)
MA948Strain Free S.Planachromat 40XS objective, NA: 0.65, WD = 0.81mm (optional)

STAGE
Ceramic coated 360 degree rotatable fully indexed stage with vernier and stage clips.

MA299Attachable Mechanical Stage (option)
MA945Attachable Point Counting Mechanical Stage (optional)
MA946Stage Clips – 2 pieces (included)





polarizing/mt_polstage.jpgpolarizing/MA945.jpegpolarizing/ma299.jpg
 rotating stageMA945 Point CounterMA299 mechanical Stage

ILLUMINATION

Powerful 30 watt Koehler halogen illumination in either transmitted and/or vertical incident, provides enhanced image quality and brightness for the observation of specimens.



MA9556V 30W Vertical Koehler Illuminator (included with MT9920 & MT9930)
MA927/05Power Supply for MA955 Vertical Illuminator 100 – 260VAC (included with MT9920 & MT9930)

POLARIZING ACESSORIES

All MT9000 Series come standard with 1/4 wave plate, Bertrand lens and first order red plate. Optional Senarmont compensator and quartz wedges are available along with attachable point counting stage.

MT9900
MA469/051/4-wave test plate in DIN sliding mount (included)
MA470/05First Order Red Compensating Plate in DIN sliding mount (included)
MA471/05Replacement Analyzer in sliding mount (included)
MA477/05Replacement Bertrand Lens in sliding mount (included)
MA904/05Senarmont Compensator for MT9000 Series (A highly accurate 1/4 wave plate plus rotating analyzer used to measure retardation) (option)
MA904/10Senarmont Compensator for MT9900 Series (A highly accurate 1/4 wave plate plus rotating analyzer used to measure retardation) (option)
MA905Interference Color Chart (option)
MA654/05Quartz Wedge 6 order for MT9000 Series (option)
MA654N/05Quartz Wedge 6 order graduated for MT9000 Series (option)
MA654N/10Quartz Wedge 6 order graduated for MT9900 Series (option)
MA945Point Counting Stage for MT9000 Series (option) (does not fit ML Series stages)
MA956Rotatable Analyzer in sliding mount, 180 degree graduated for MT9200 and MT9300 (option)
MA956/05Rotatable Analyzer in sliding mount, 180 degree graduated (included with MT9920 and MT9930)
polarizing/CenterableBertrand.jpg
 Centerable Betrand Lens

Accessories

MA809/10Replacement 115V AC Power cord with plug (USA)
MA809/20Replacement 220V AC Power cord with plug (Eurocord)
MA809/30Replacement 240V AC Power cord with plug (UK)
MA326Spare bulb for illuminator, 6V, 30W
MA327Spare fuse for halogen illuminator, 3A
MA961Wooden Storage Cabinet with lock and key (option)
MA711Dust Cover (included)



MA200Eyeshield (ea) for MA407 10x eyepieces (included)
MA946Stage Clips (pair) (included)

Eyepieces

MA407CP: KHW-10X focusing eyepiece with cross-line and guide pin (each) (21mm reticle mount) (Tube O.D. 23.2mm) (INCLUDED)
MA407: KHW-10X Compensating eyepiece, F.N. 20 (each) (Tube O.D. 23.2mm) (INCLUDED)
MA407/05: KHW-10X Compensating Focusing eyepiece, F.N. 20 (each) (Tube O.D. 23.2mm)

Semi Planachromat POL Objectives for Transmitted Light Work

MA935: Strain free Plan objective 4X/N.A.0.10, W.D. 25.89mm (INCLUDED)
MA936: Strain free Plan objective 10X/N.A.0.25, W.D. 7.3mm (INCLUDED)
MA937: Strain free Plan objective 20X/N.A.0.40, W.D. 7.29mm
MA938: Strain free Plan objective 40XS/N.A.0.65, W.D. 0.72mm (INCLUDED)
MA939: Strain free Plan objective 60XS/N.A. 0.85, W.D. 0.2mm
MA940: Strain free Plan objective 100XS/N.A. 1.25 oil, W.D. 0.14mm

Semi Planachromat POL Objectives for Incident Light Work

MA935: Strain free Plan objective 4X/N.A. 0.10, W.D. 25.89mm (INCLUDED)
MA936: Strain free Plan objective 10X/N.A. 0.25, W.D. 7.3mm (INCLUDED)
MA947: Strain free Plan objective 20X/N.A. 0.40, W.D. 5.2mm
MA948: Strain free Plan objective 40XS/N.A. 0.65, W.D. 0.81mm

Included

MT9930L: Trinocular MT9930L Series LED Incident and LED Transmitted Polarizing Microscope is an investigative tool for isotropic and anistropic materials. Focusable Bertrand lens, Rotatable Analyzer with 180° graduations. Newly designed Strain free Abbe Condenser 1.25 N.A. with a swing out top lens and built in iris in a dovetail mount is easy to change and operates and tracks very smoothly and predictably facilitating accurate iris control with improved usability. Newly improved ∞ Infinity Corrected Objectives ICOS Optical System.  Ceramic coated, 175mm diameter, ball bearing, circular rotating stage graduated 360°, with 1°increments and vernier reading to 0.1°. Polarizer in a swing in-out click/clamp mount, fully rotatable 360° with click stop at 0°and 90°.
MA953: Trinocular head – Siedentopf type, inclined at 30 degrees with reticle angle  compensation, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (23.2.0 mm I.D. eyetube) (*Included in model MT9930 & MT9930L)
MA407CP: Super Widefield compensating KHW10X, focusing eyepiece with cross-line and guide pin, F.N. 20 are standard with 21mm reticle mount
MA407: KHW-10X Compensating eyepiece, F.N. 20 (each) (Tube O.D. 23.2mm) (qty#1)
MA935: Strain free Plan objective 4X/N.A.0.10, W.D. 25.89mm, ∞ Infinity Corrected
MA936: Strain free Plan objective 10X/N.A.0.25, W.D. 7.3mm, ∞ Infinity Corrected
MA938: Strain free Plan objective 40XS/N.A.0.65, W.D. 0.72mm, ∞ Infinity Corrected
MA976/05: Strain free Abbe condenser with swing out top lens, N.A. 0.90 with iris diaphragm and dovetail mount
Stage: Rotatable stage with Vernier graduation 360° with Vernier, reading to 1°, 150mm diameter with stainless steel stage clips (Factory Installed)
MA946: Stainless steel Stage Clips (qty#2)
MA988: CombinationFirst order red compensating plate and 1/4 Wave-length test plate and Brightfield spot, for use with MT9920 and MT9930 (20mm X 6mm X 142mm)
MA956/05: Rotatable analyzer with 180 degree graduations (34mm x 6mm x 156mm)
MA955: Vertical illuminator attachment, 6V 30W halogen Koehler (Included in MT9920 and MT9930 Series)
MA927/05: Table-top transformer with automatic voltage sensing power supply for use with MA955 vertical illuminator (Input voltage 100V-240V) (Included with MT9920 and MT9930 Series)
MA289/05: Blue clear filter, 29.8mm diameter unmounted, for transmitted light (Included in Halogen models)
MA679: Polarizing filter in metal mount (For use with incident illuminator, fits 25mm filter slot)
Polarizer: Swing in-out click/clamp mount, fully rotatable 360° with click stop at 0°and 90° (Included in MT9920 and MT9930 series) (Factory Installed)
MA955LED: Vertical Koehler illuminator attachment, LED (Included in MT9920L & MT9930L)
MA927/05LED: Table-top transformer with automatic voltage sensing power supply for use with  MA955LED
MA809/10: Removable AC Electric cord with plug for 115V models (*Included in all 115V models) or
MA809/20: Removable AC Electric cord with plug for 220V models (*Included in all 220V models)
MA494/PT#1: Nosepieces centering screws (each) (qty# 2)
MA711: Dust cover for MT9900 Series (Included in all models)
MA905: Interference Color Chart Laminated Sheet

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Viewing Heads:

MA952: Binocular head – Siedentopf type, inclined at 30 degrees with reticle angle compensation, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (23.2.0 mm I.D. eyetube) (Included in model MT9920 & MT9920L)

Eyepieces:

MA407/05: KHW-10X Compensating Focusing eyepiece, F.N. 20 (each) (Tube O.D. 23.2mm)

Semi Planachromat POL Objectives for Transmitted Light Work:

MA937: Strain free Plan objective 20X/N.A.0.40, W.D. 7.29mm
MA939: Strain free Plan objective 60XS/N.A. 0.85, W.D. 0.2mm
MA940: Strain free Plan objective 100XS/N.A. 1.25 oil, W.D. 0.14mm

Semi Planachromat POL Objectives for Incident Light Work:

MA947: Strain free Plan objective 20X/N.A. 0.40, W.D. 5.2mm
MA948: Strain free Plan objective 40XS/N.A. 0.65, W.D. 0.81mm

Stage:

MA299: Attachable mechanical stage for MT9000 or MT9900 Series
MA945: Attachable mechanical stage for MT9000 or MT9900 Series with Point Counter

Wave Plate and Condensers:

MA904/10: Senarmont compensator (A highly accurate 1/4 wave plate for use with MA956/05 rotating analyzer – used to measure retardation) (For use with MT9920 & MT9930)
MA654/10: Quartz Wedge, 6 order, graduated for MT9000 or MT9900 Series (20mm x 6mm x 150mm)

Filters:

MA475/05: Blue clear filter, 19.5mm diameter in mount (For use with incident illuminator) )
MA198: ND13 neutral density filter, 19.5mm in diameter in mount, fits 25mm filter slot (For use with incident illuminator)

Bulbs and Fuses:

MA326: Spare bulb, 6V 30W Halogen
MA327: Fuse 3A (Included in 50W models), replacement

Download Brochure. Polarizing Microscopy Basics & Applications
