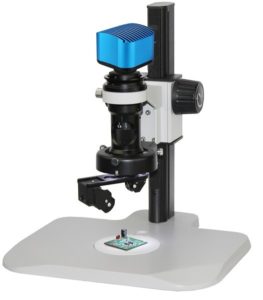

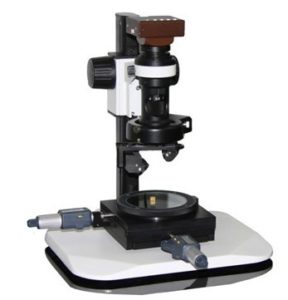

Advanced Optical System, Low Distoration, High Definition, Large Field of View, Super Depth of Field(≥6mm) and Good Parfocality.The Minimum Size in the Industry and Compact, Practical and Cost-effective.
Zoom Range | 0.3X—2.2X |
Zoom Ratio | 1:7 |
Standard Objective Lens and Coupler | 1X |
Total Magnification | 7X—150X(17″LCD, Maximum 300X) |
Field of View | 3.5—25mm |
Working Distance | 45.66—99mm |
Optional Objective Lenses | 0.5X&2.0X (Can’t Work with 2D/3D Rotary Observation Lens Attachment) |
Optional Coupler | 2X |
Objective Lens | 0.5X | 1X | 2X |
N.A. | 0.0058-0.041 | 0.012-0.08 | 0.014-0.1 |
Res.(lp/mm) | 17.3-122 | 35.8-238 | 41-298 |
MAG. | 0.16X-1.13X | 0.32X-2.27X | 0.65X-4.55X |
D.O.F.(mm) | 16.3-0.33 | 6-0.086 | 2.8-0.055 |
W.D.(mm) | 190 | 95 | 45.6 |
F.O.V.(mm) 1/2″ | 50-7 | 25-3.5 | 12.3-1 |
