Sale!

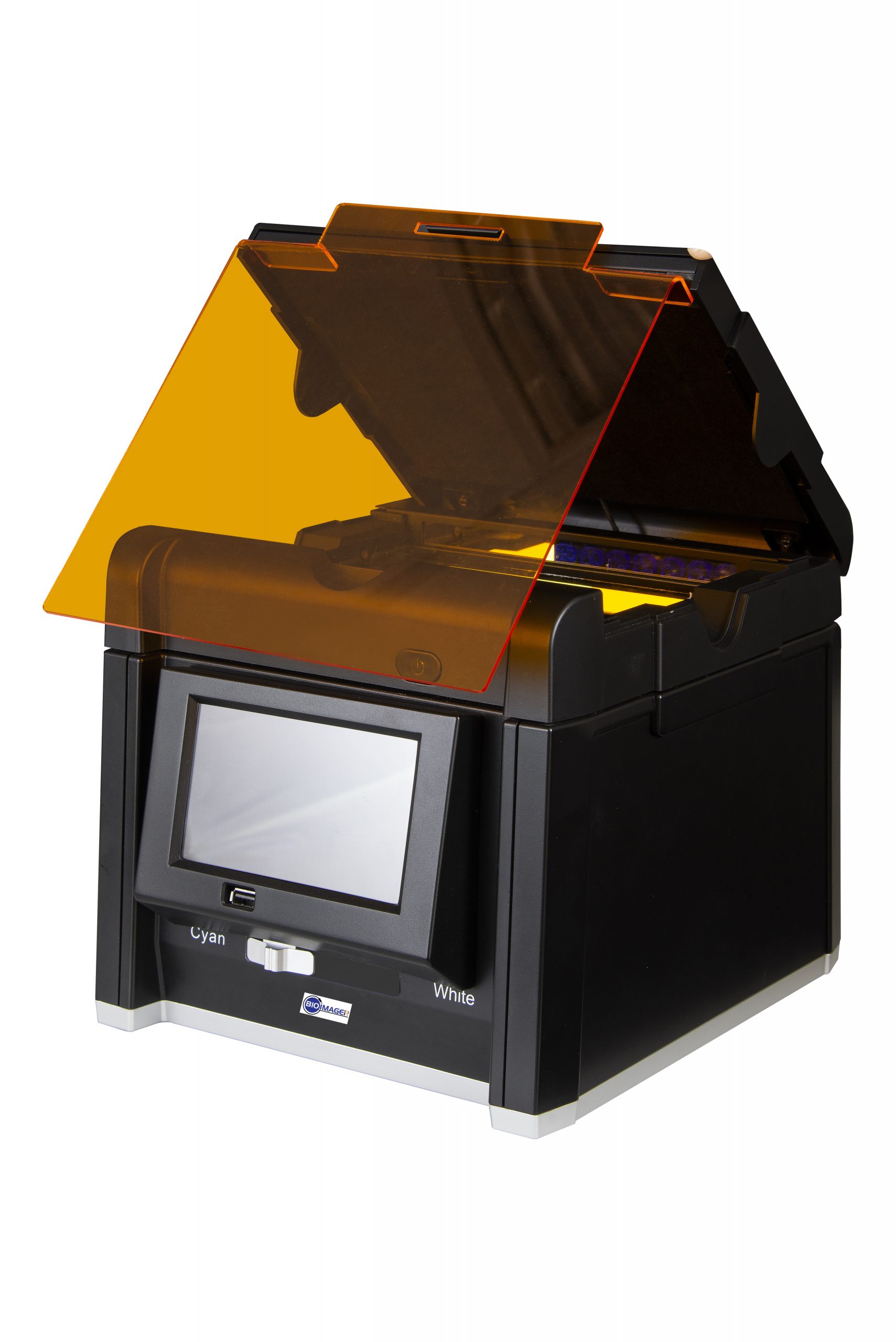

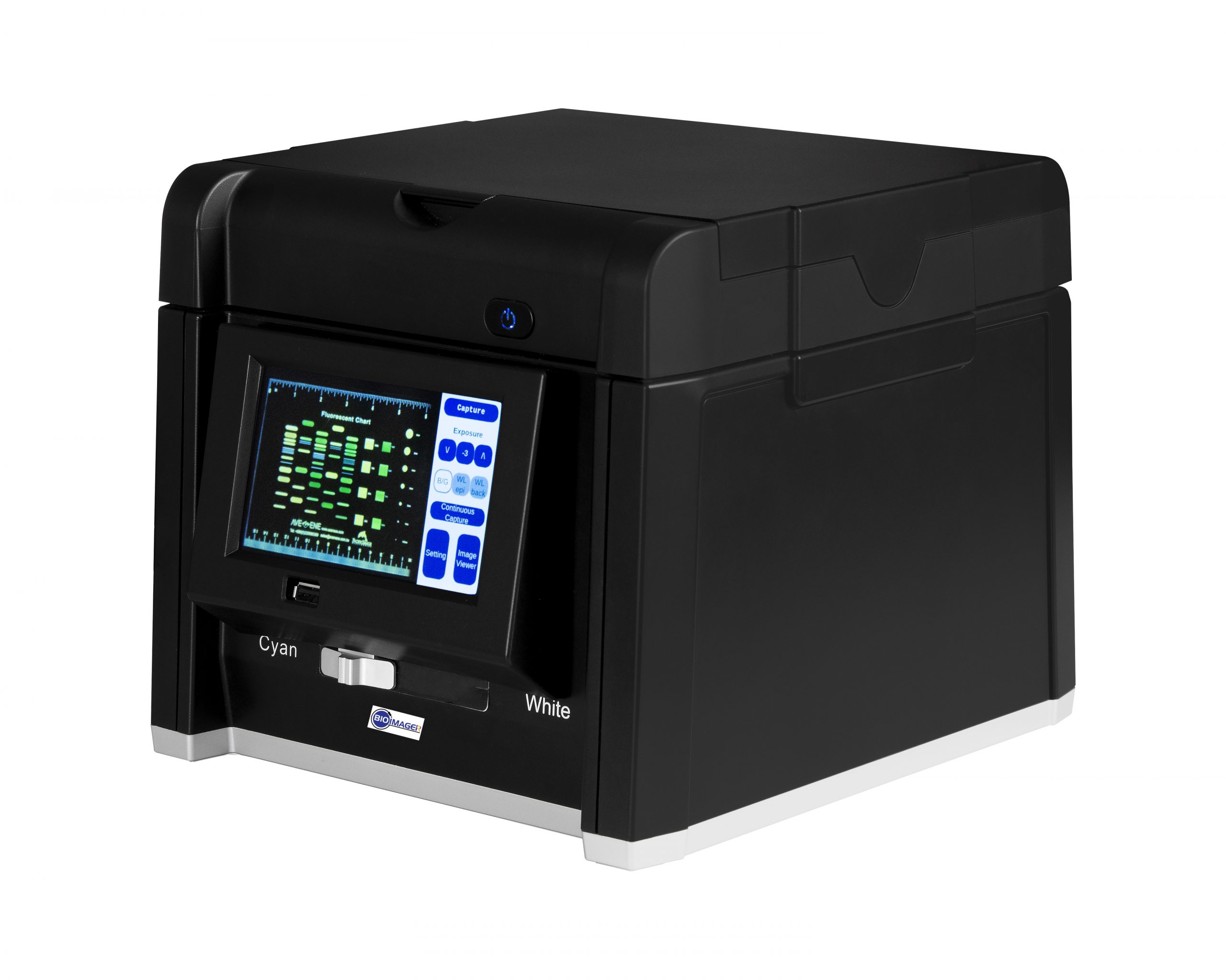

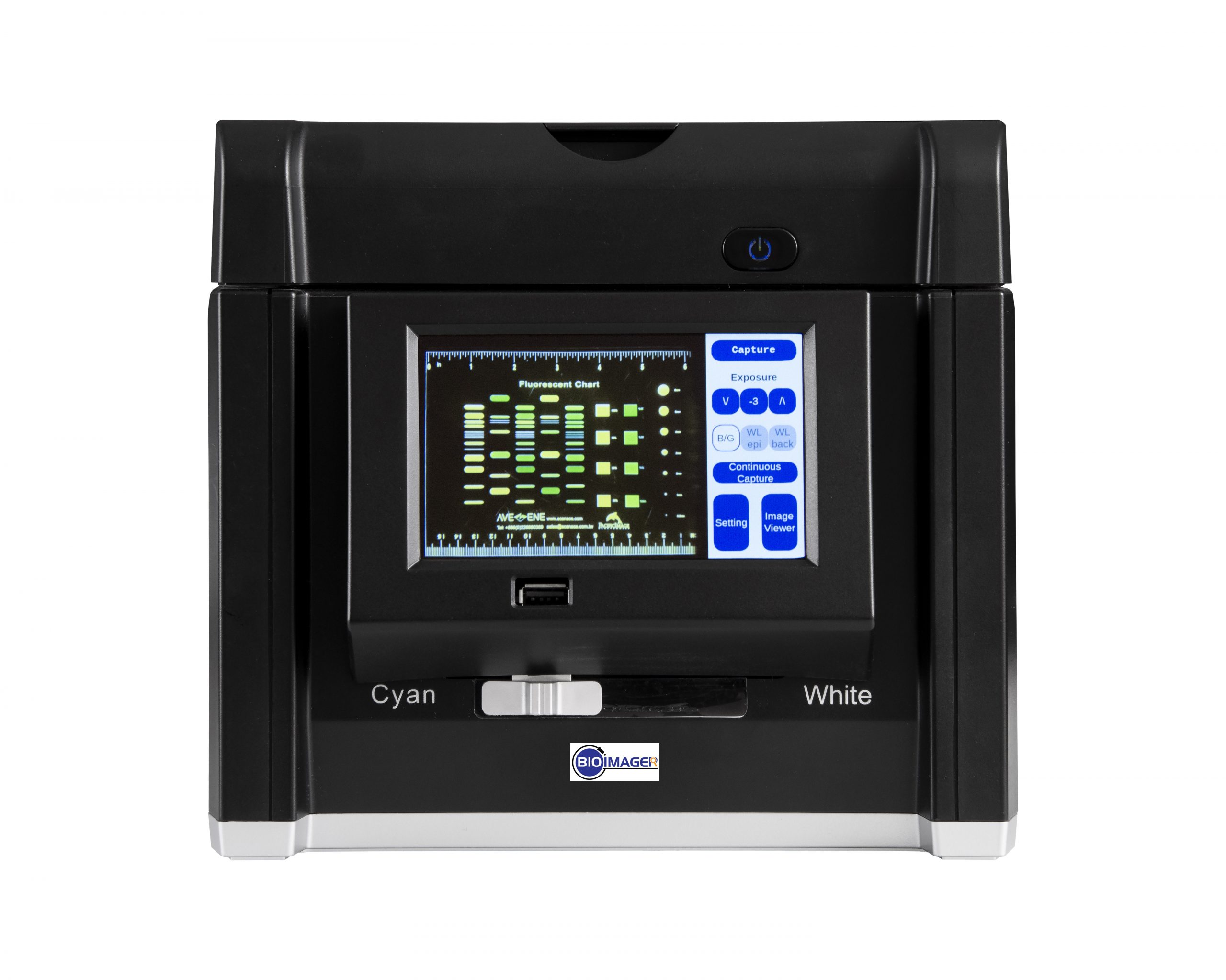

BGS-LiteT8 Gel Scanning System

$USD 4,444.00

-44%
  • Gel scanner for Agarose Gel Electrophoresis, Protein SDS PAGE & Western Blot
  • An 8 MP color CMOS Camera
  • A 5″ touch pad with user friendly software
  • 21 level of exposure
  • 160×105 mm viewing area
  • Fluorescent dyes: Cyan 470nm, EcoSafe, GeGreen, gelred, SYBR Green, EtBr, etc.
  • Protein gel imaging with Epi-White LED for Coomassie Blue, SYPRO Ruby and Silver.
  • Western blot (colorimetric) imaging  of HRP/DAB petridish with Transmitted white LED
  • HDMI ports for monitor, projector, etc and USB port for thermal printer.
  • Ultra light: 3.3kg / 6 .5lb
  • Affordable price
Guaranteed Safe Checkout

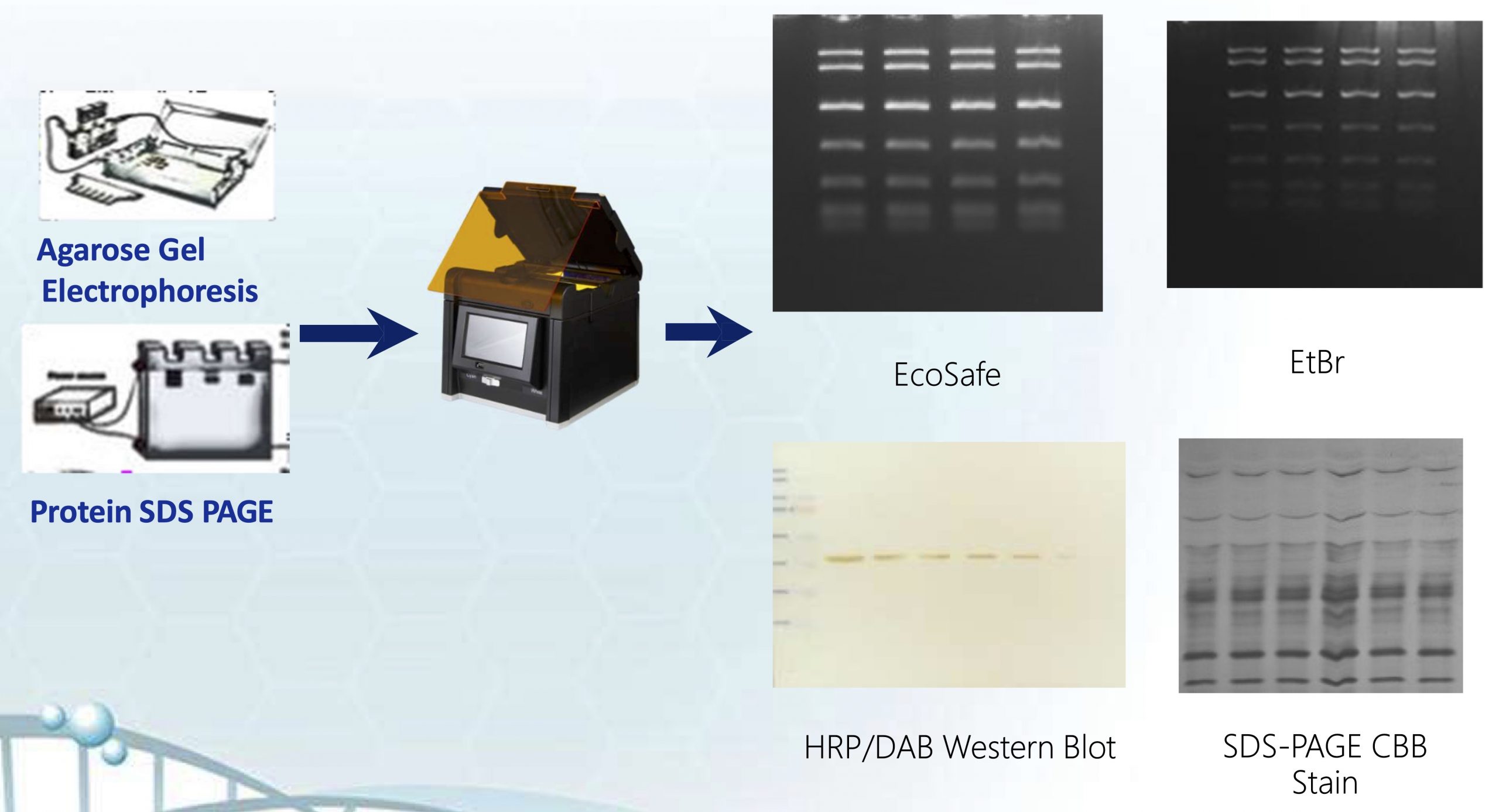

Applications

Illuminations

Applications

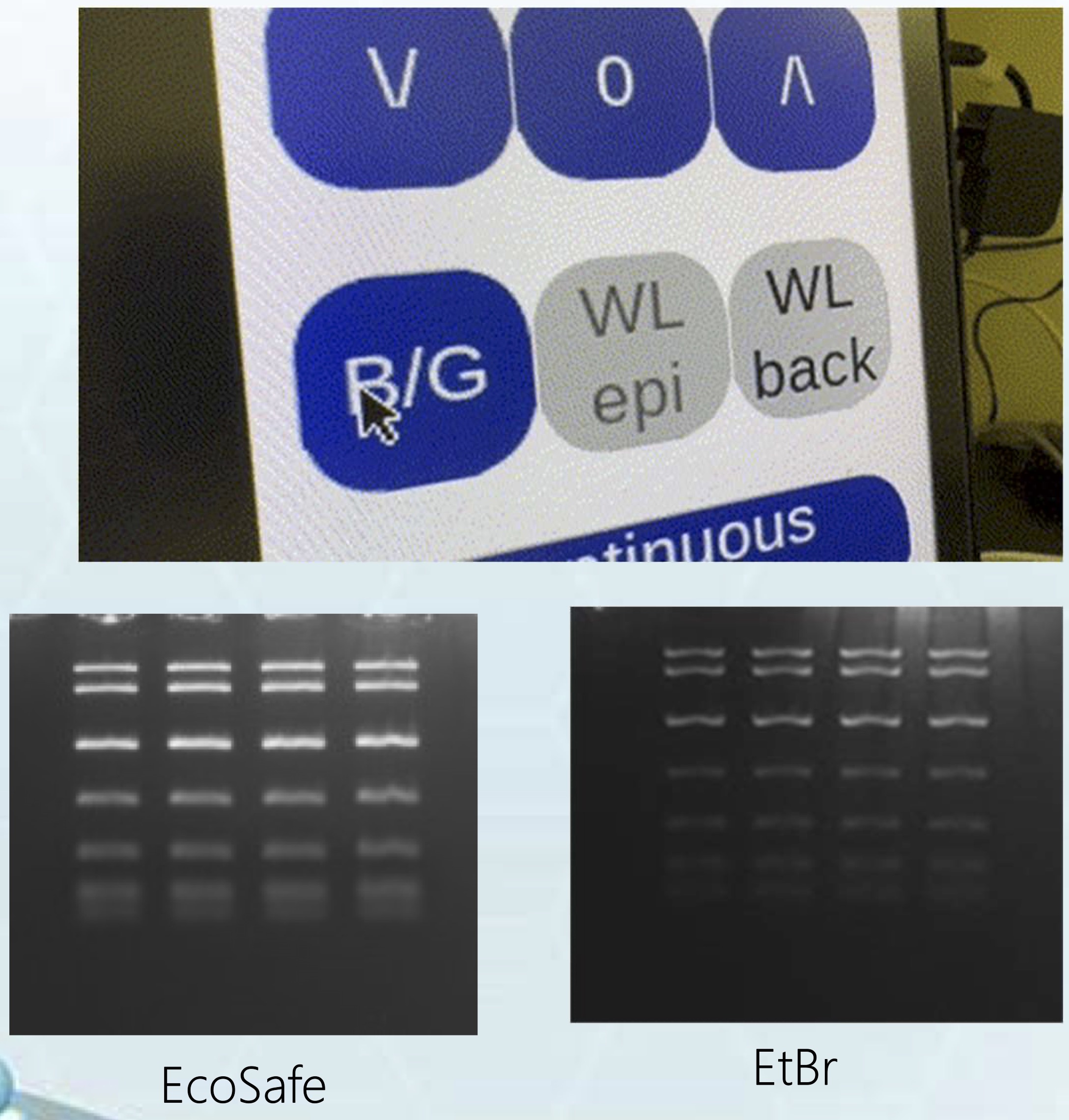

Trans-Cyan

Fluorescent Dyes:

EcoSafe, GelGreen & GelRed SYBR Green, EtBr, etc.

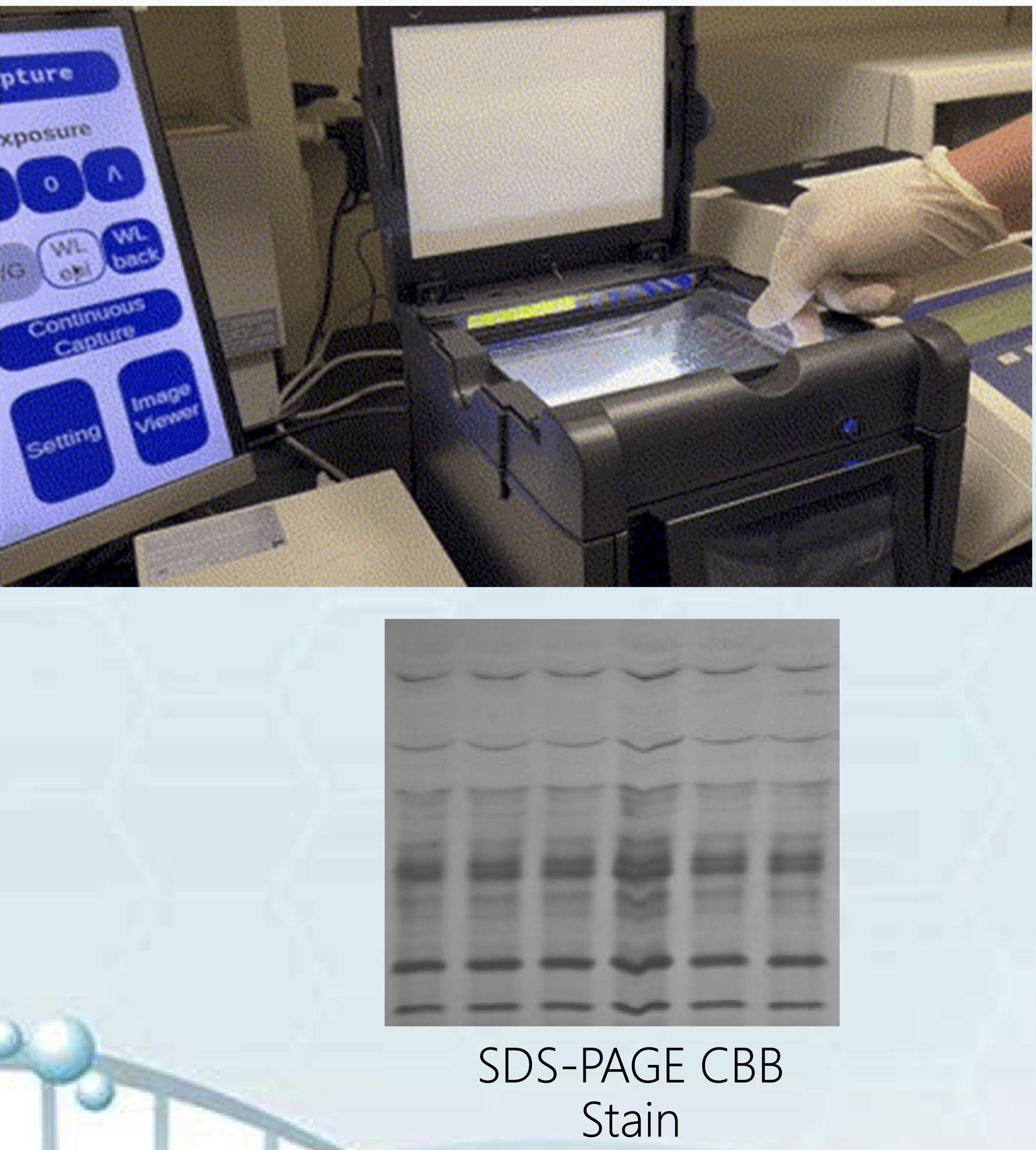

Trans-White

Protein Gels:

Coomassie Blue, SYPRO Ruby & Silver, SDS-PAGE CBB Stain

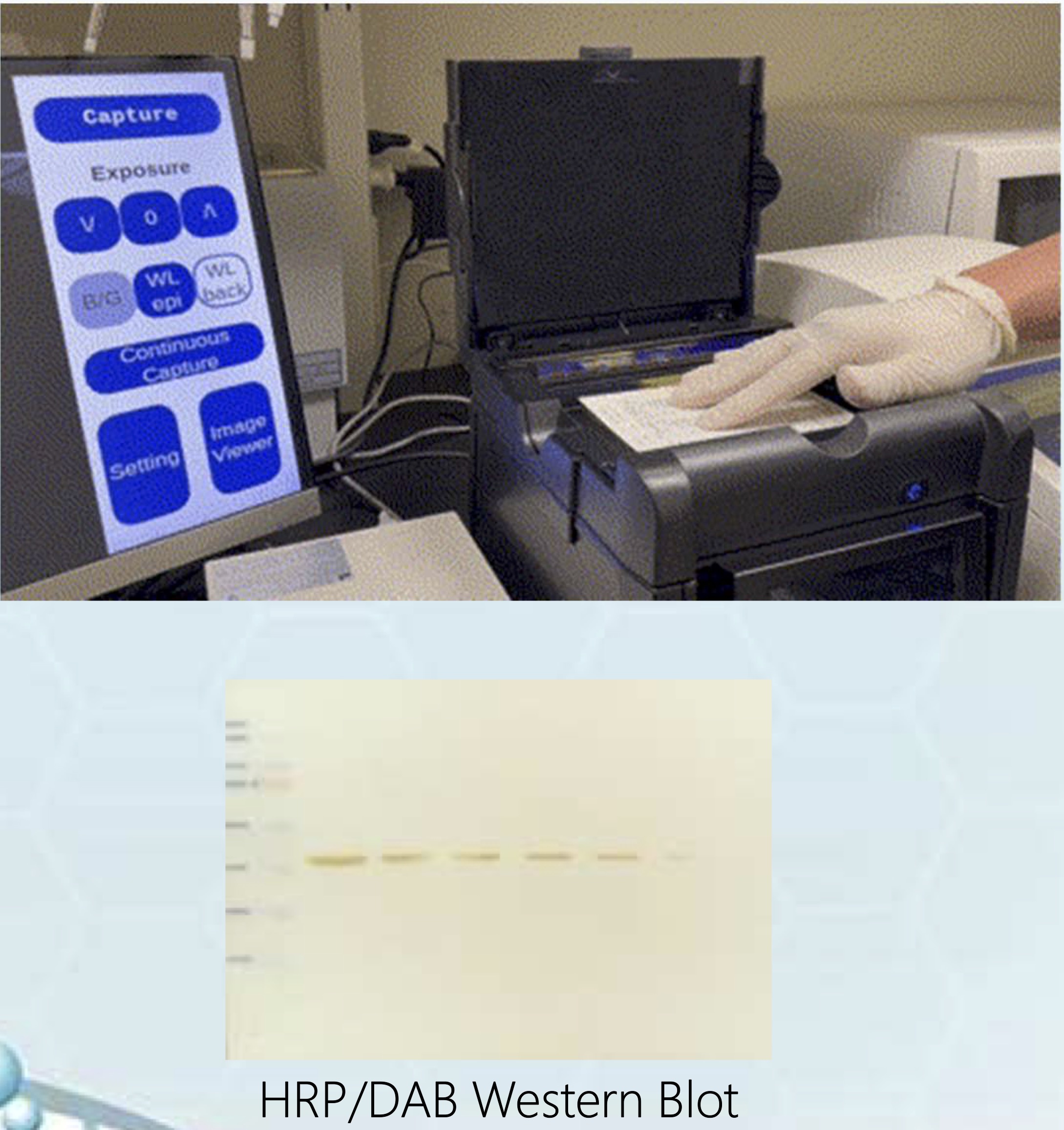

Epi-White

Western Blot (Colorimetric only) Petri Dish, HRP/DAB

Features

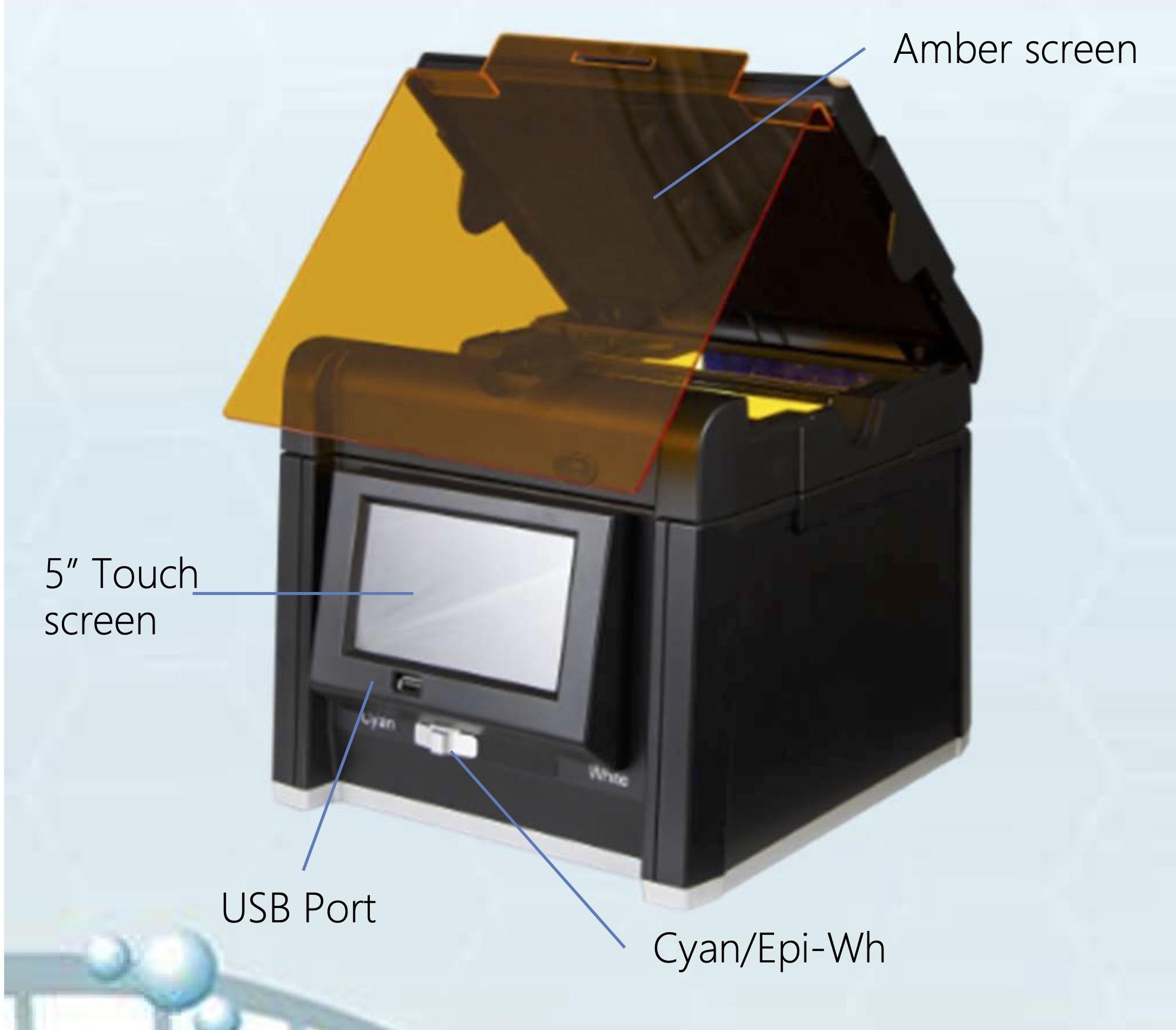

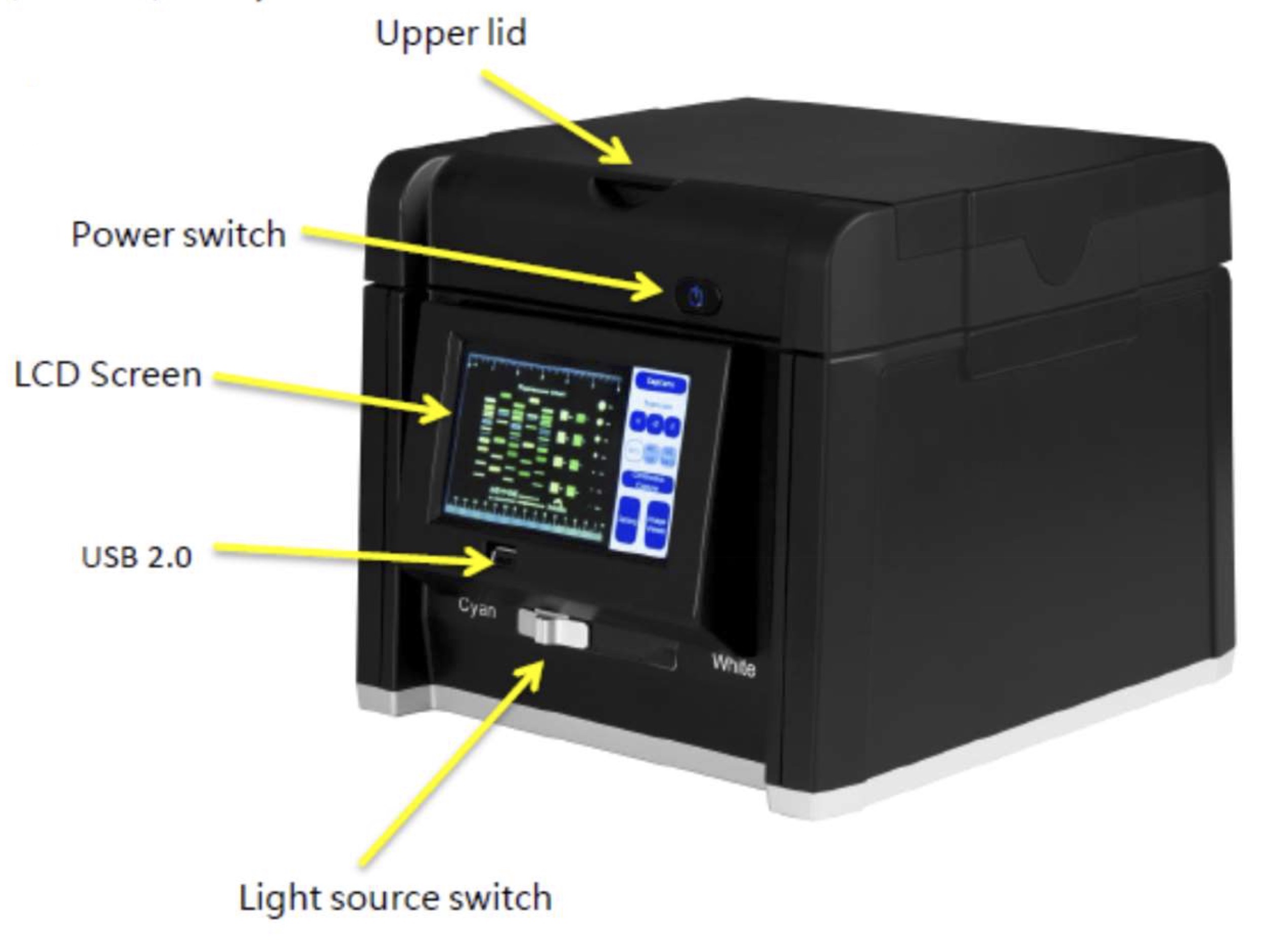

  • Touch screen / display

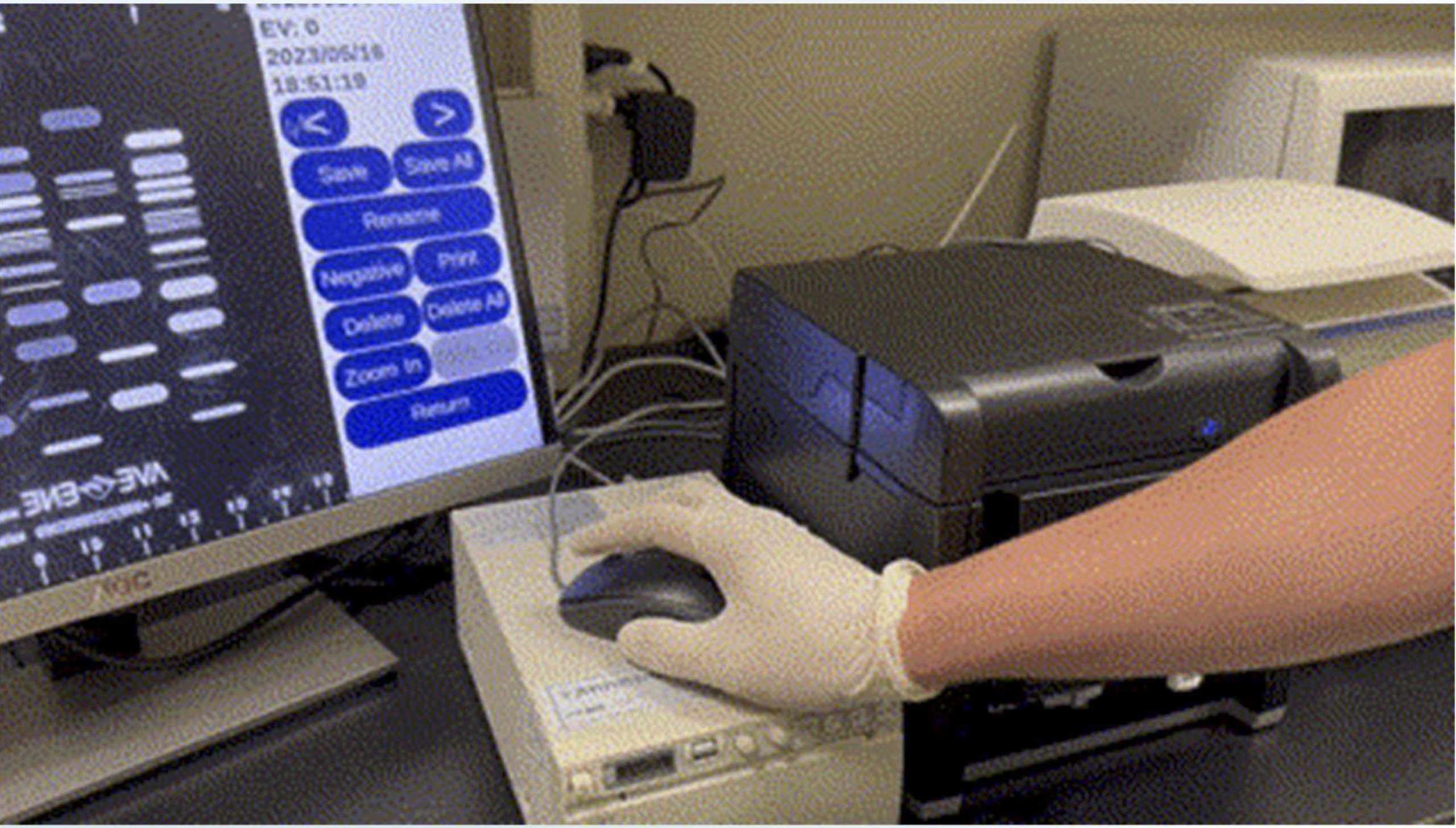

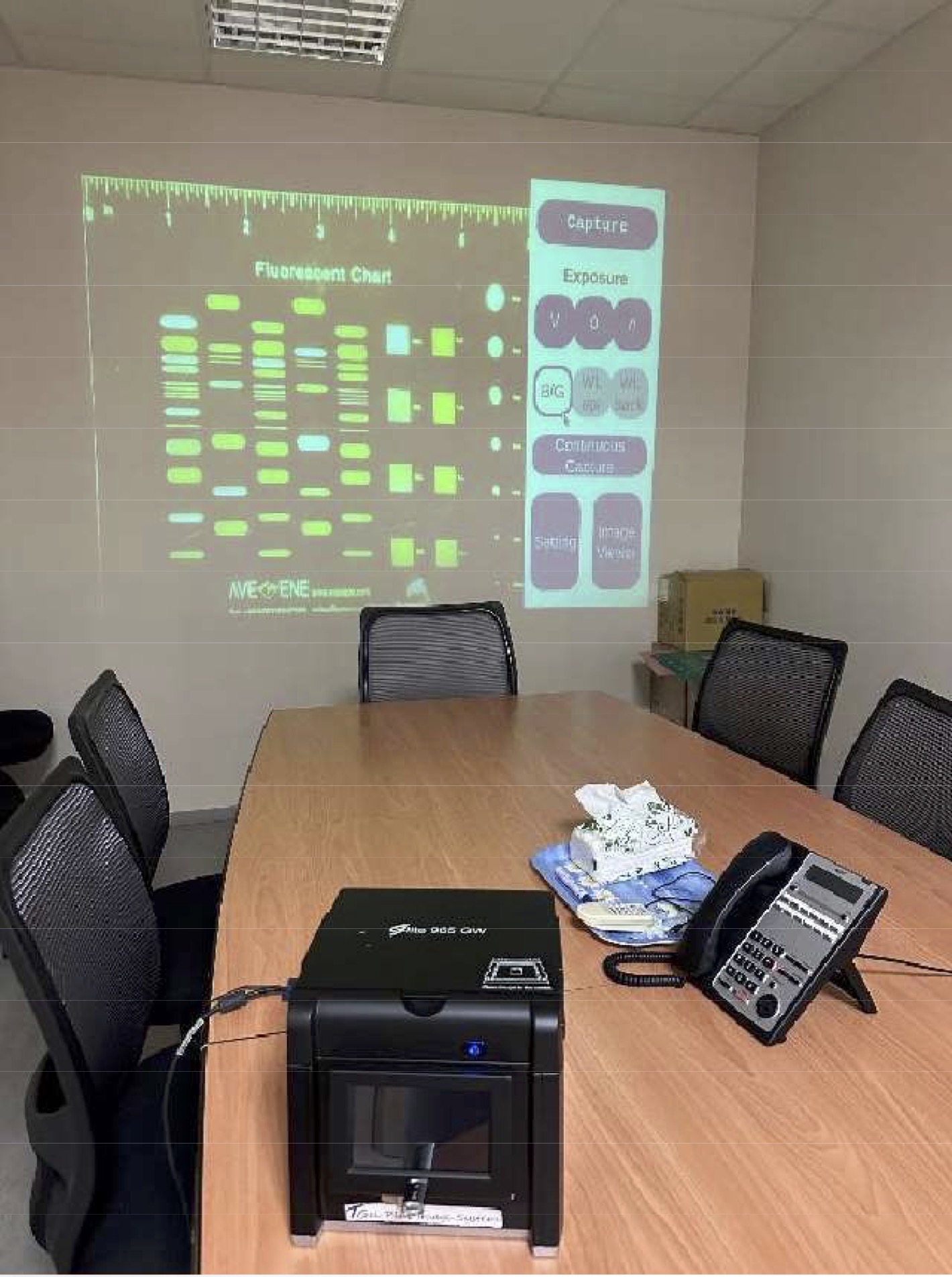

  • HDMI Output to monitor(s)/projector(s)
  • Tools for gel band excision
  • Instant capture at multi exposure mode
  • USB ports for  mouse control and Thermal printer

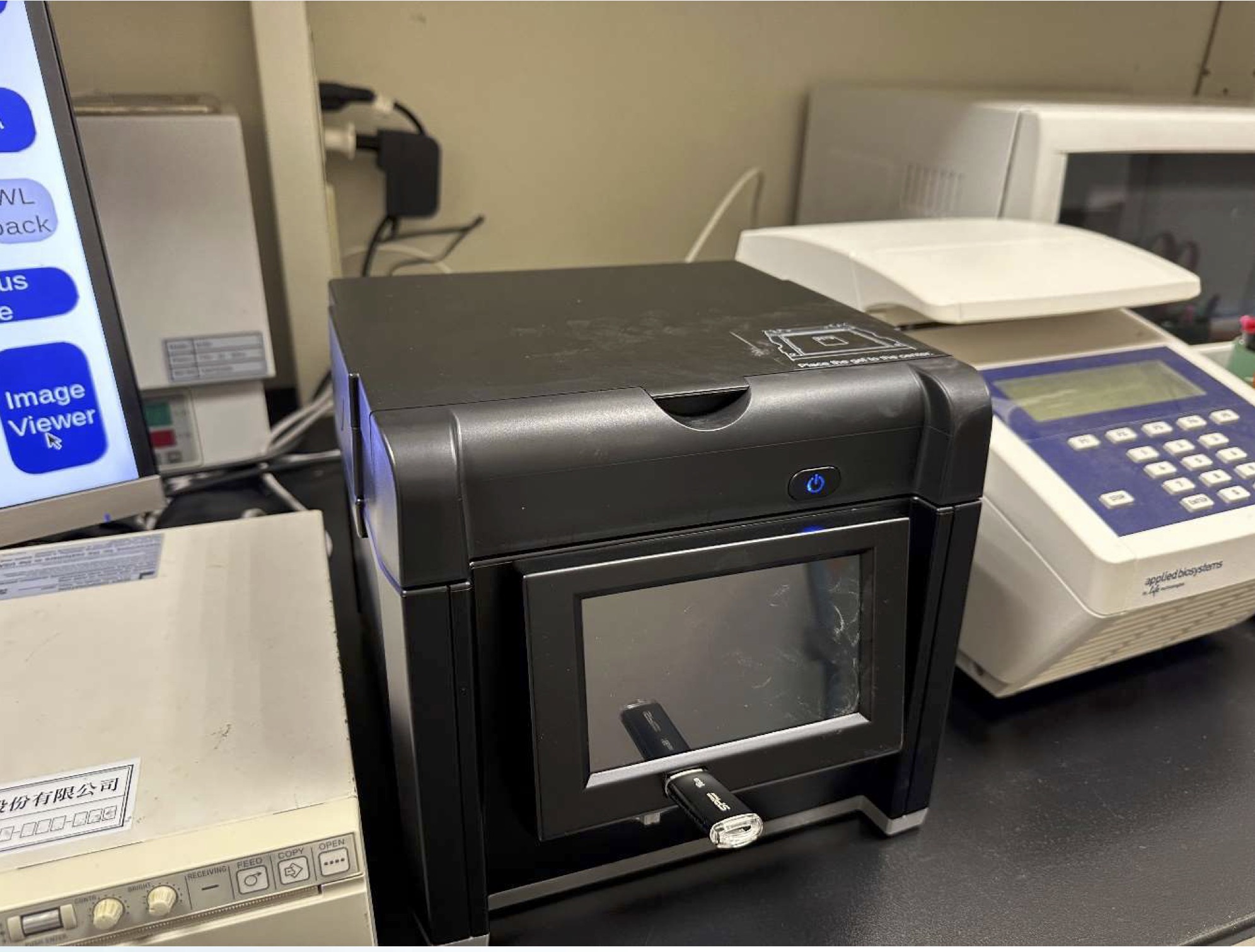

  • Saves image on a USB flash memory

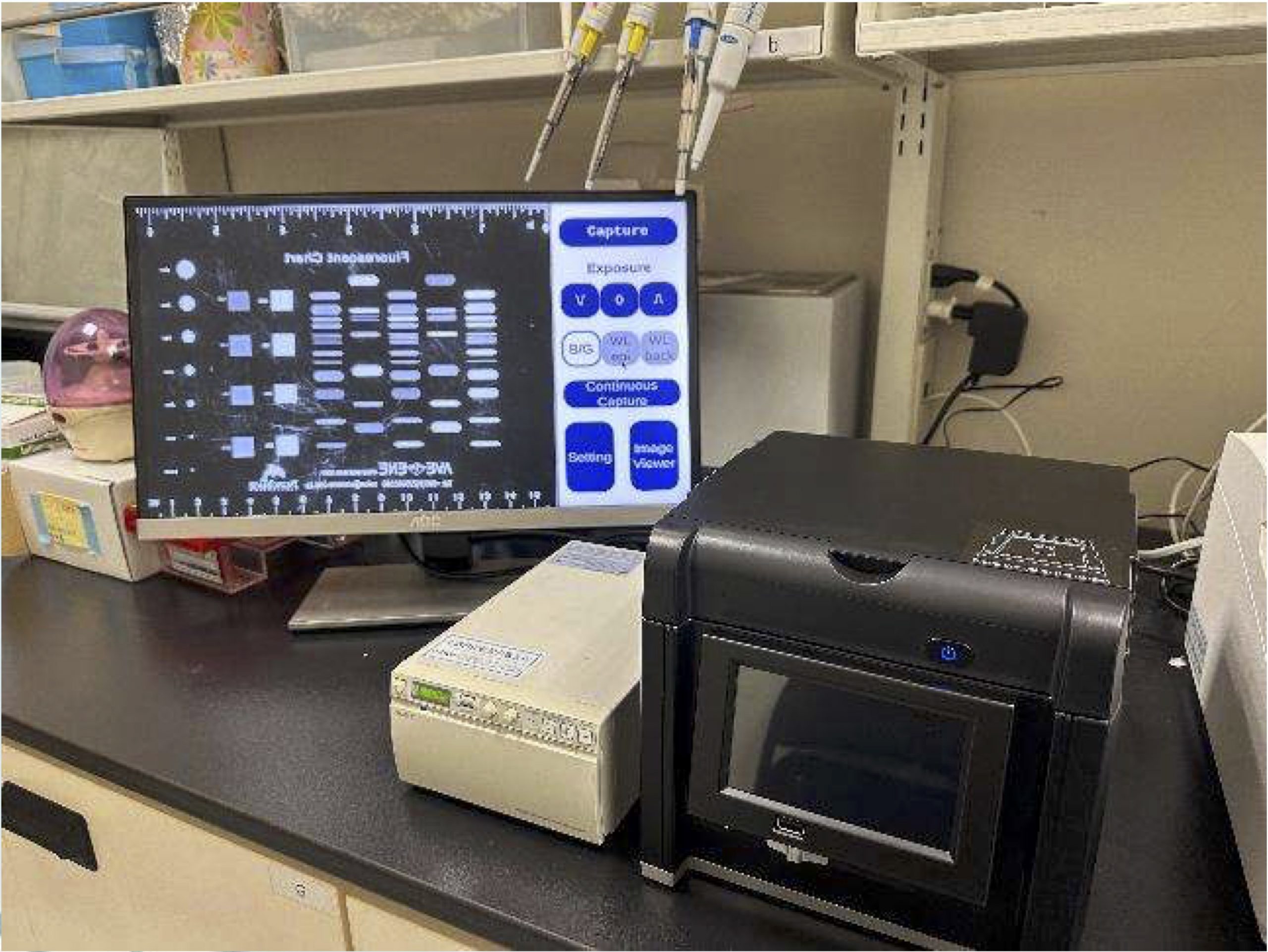

BGS-LiteT8 Series Ultra-light Safe Dyes Gel Documentation System Affordable Tutorial Companion Imager

  • More affordable: Saving 40%-50% of your budgets on gel documentations
  • Ultralight: 3.2kg
  • Multiple illuminations compatible
    • Trans-Cyan: Fluorescent safe dyes.
    • Trans-White: Colorimetric dyes and stained gels.
    • Epi-White: Western blotting HRP/DAB.



Specifications

H/W Specifications

Camera sensor

CMOS

Image Resolution

8 Mega pixels

Exposure settings

21 Levels

Cyan 470nm

Fluorescent Dyes

Epi White

Protein Gels

Trans White

Western Blot (Colorimetric only)

Viewing area

16 x 10.5 cm

Emission Filter

Amber filter

Image Format

TIFF, PNG, JPEG 8/16 bit

UI Language

English

Video Output

HDMI

USB Connectivity

Mouse/Thermal Printer/USB Pen Driver

Dimensions

22.9 x 20.7 x25.4cm (9.02 x 8.14 x 10 inches)

Weight

3.2kgs / 7.05lbs

Safety Certificates

CE & FCC Certified

Power

AC/DC Adapter, 12V/4.6A

US, EU , UK or AU Plugin

Software

S/W Specifications

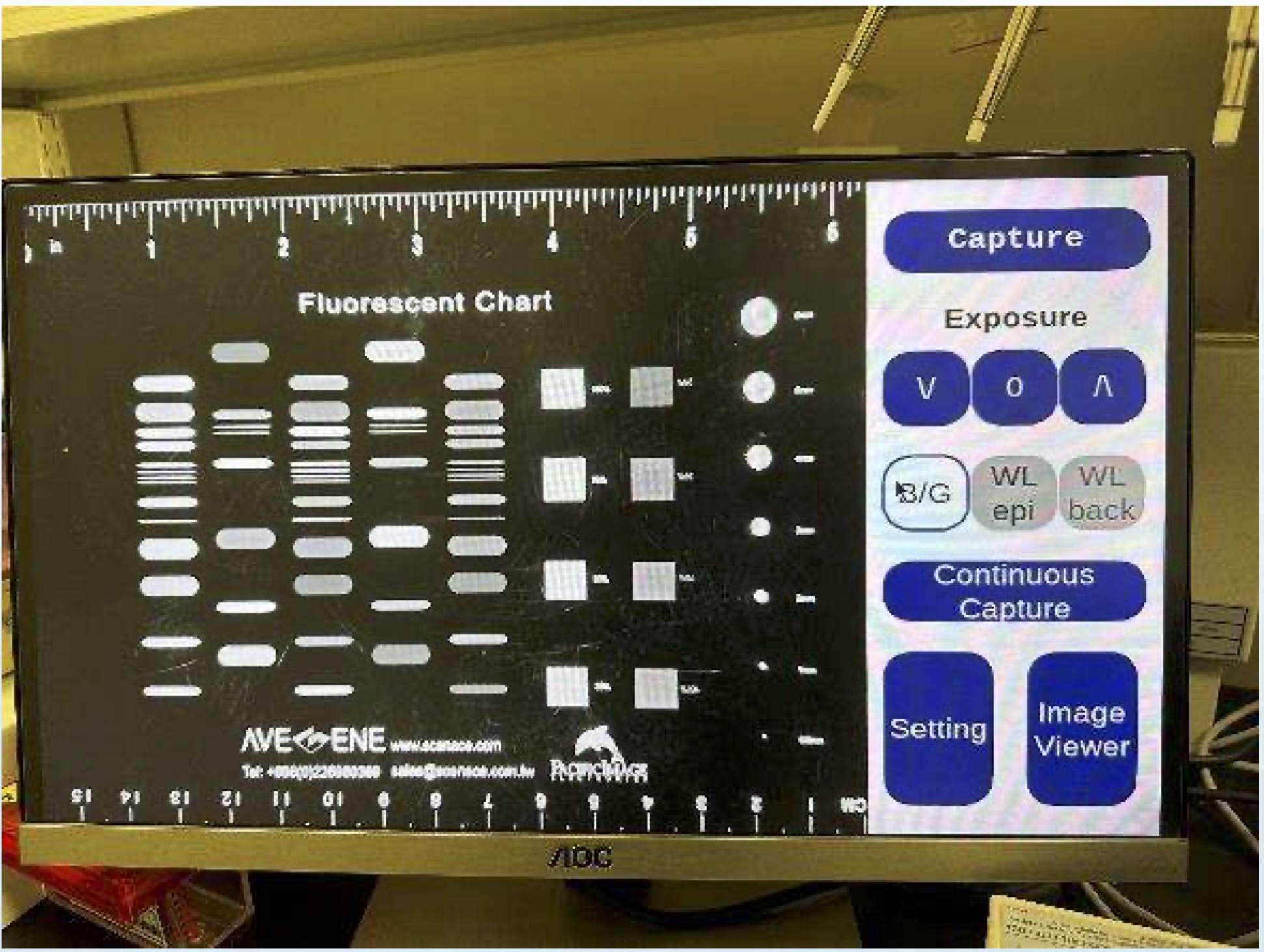

Liveview

LCD Display or HDMI output

Instant Capture

Enable

Continuous Capture

Enable

Exposure setting

-EV10 to +EV10

Image Data

Save/Delete/Rename

Date/Time Settings

Enable

Invertion

Color/Gray

Sleep Mode Settings

1/5/10/20 mins & Never

Language Settings

English/Chinese

S/W update

Enable *Engineering Mode Only

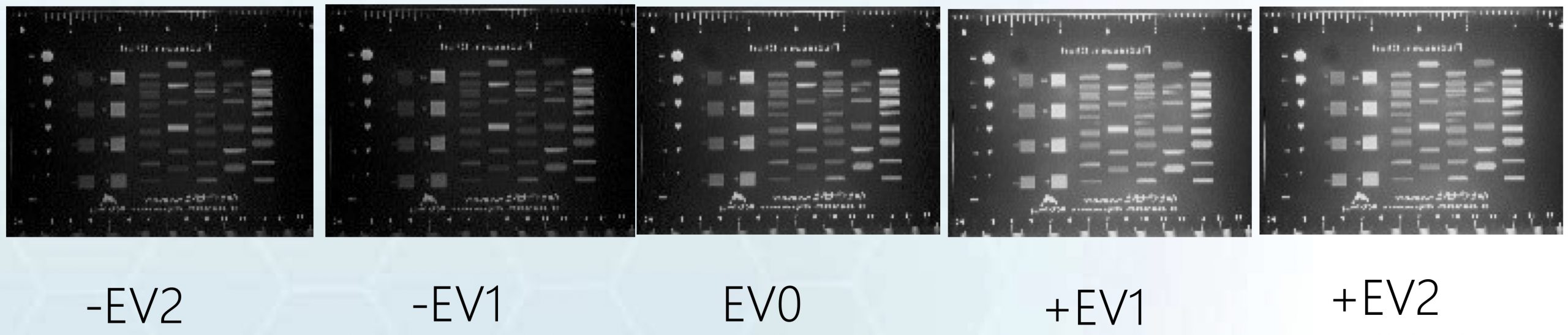

Continuous capturing at different exposures -EV2 to +EV2, combination of 5 images in one high quality 8MP image within 2 minutes:

  • Has a USB port to connect a thermal printer.
  • Supports Sony UP-D897 MD & UP-898MD, Mitsubishi P93D & P95D
  • Saves images on a USB dongle.
