Bio-5000Plus Gel Imaging


Bio-5000 Plus is a two-platform scanner specifically designed for the professionals who focus on scanning and studying of biological electrophoresis gels. It is equipped with an optical CCD whose resolution is up to 4800 dpi and the range, between 0.05 and 3.77D, of the optical density provides you a smarter way to capture differences among each layer of scanned electrophoresis gels.Bio-5000 Plus is the best choice of scanning electrophoresis gels.

Request a Quote

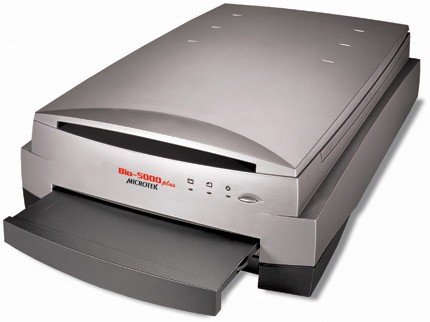

Bio-5000 Plus

Bio-5000 Plus is a two-platform scanner specifically designed for the professionals who focus on scanning and studying of biological electrophoresis gels. It is equipped with an optical CCD whose resolution is up to 4800 dpi and the range, between 0.05 and 3.77D, of the optical density provides you a smarter way to capture differences among each layer of scanned electrophoresis gels. With a built-in Auto-Focus function, Bio-5000 Plus is capable of shifting the focal length to the best position automatically; thus you can get images with top quality. By the design of twin scan-bed, it is quite convenient to put your Bio-5000 Plus in operation and lowers the risks of mutual infection in experimentation. Therefore, Bio-5000 Plus is the best choice of scanning electrophoresis gels.

  •  Dual-scan beds:8″x10″ / Gel & Transparent, 8.5″x14″ / Reflective
  • Auto-Focus Ensures the Best Scanning Quality
  • The Design of Leak-Free Holders for Electrophoresis Gels
  • Adopting Energy-Saving LEDs as the Light Source
  • Convenient MiBio Software for Handling Images of Scanned Electrophoresis Gels

Bio-5000 Plus

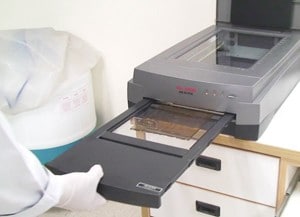

Dual-scan beds:

8″x10″ / Gel & Transparent,

8.5″x14″ / Reflective

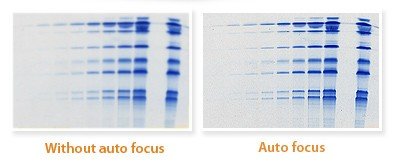

Auto-Focus Ensures the Best Scanning Quality

Auto Focus is able to change relative distances between the scanned gels and the CCD through the adjustment of the CCD, resulting in better and clearer image quality for a chosen area of the scan automatically.

The Design of Leak-Free Holders for Electrophoresis Gels

With the design of two platforms and leak-free holders, it is not only convenient to scan electrophoresis gels but also lowers the possibility of the happenings for mutual infection in labs.

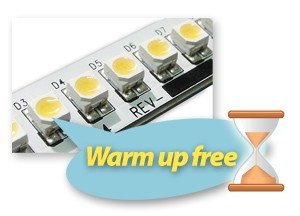

Adopting Energy-Saving LEDs as the Light Source

Adopting energy-Saving LEDs as its light source, Bio-5000 Plus not only meets the trend of energy-saving in the world but also shortens the waiting time for the warm-up of the machine.

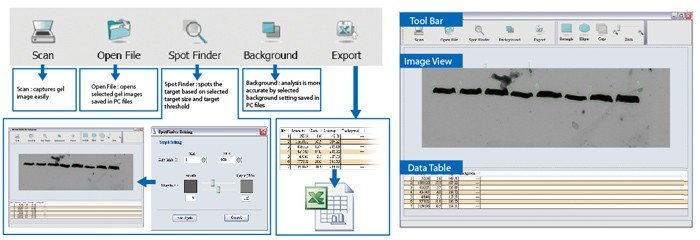

Convenient MiBio Software for Handling Images of Scanned Electrophoresis Gels

Bundled with convenient and easy-to-use software, you can scan, emphasize and table important information for your scanned electrophoresis gels quickly. Thus, you can proceed further analysis and handling for images of scanned electrophoresis gels.

Powerful software features

SKU: Bio-5000Plus Category: Tags: , , , ,
NO.ITEMDETAILS
01Product NameBio-5000 Plus
02Model TypeMRS-4800F2
03Scanner TypeFlatbed Scanner for Gel Images & Films
04Image Sensor TypeCCD
05ResolutionOptical: 4800 dpi (5 um spot size, 94 lp/mm)

Hardware: Up to 4800 x 9600 dpi

Default: 300 dpi

06Light SourceLED
07Scanning AreaFilm Scan Area

Min: 0.5″ x 0.5″(12.7 x 12.7 mm)

Max: 8″ X 10″(216 x 254 mm)



Reflective Scan Area

Min: 0.5″ x 0.5″(12.7 x 12.7 mm)

Max: 8.5″ x 14″ (216 x 356 mm)

08Scanning Speed10.13 sec./ 27.58 sec. (Scanning Time/Total Time Including Calibration) : 8”x10“, 300 dpi
09Dynamic RangeTransparency: 0.05D ~ 3.7D, 3.77Dmax
10Bit DepthInput: 48-bit color, 16-bit grayscale

Output: 24-bit color, 8-bit grayscale

11ConnectivityHi-Speed USB (USB 2.0)
12DriversTWAIN
13Scanable Media TypesTransparent(Wet/ Dry gel, Film), Reflective(Paper)
14Supported File TypesTIF, BMP, JPG, PSD, PDF, GIF
15Supported Film TypesMin: 0.5″ x 0.5″(12.7 x 12.7 mm)

Max: 8″ X 10″(215.9 x 254 mm)

16OS SupportWindows XP/ Vista/ Windows 7/ 8
17Dimensions (L x W x H)22.3″ x 15.1″ x 6.3″ / 567 x 385 x 158 mm
18Weight26.4 lbs (12 kg)
19CertificationsCE, FCC, BSMI, CB, CCC, ETL, VCCI, RoHS
20Power SourceAC 100V ~ 240V, 50 ~ 60 Hz
21Power Consumption95 Watts Max
22System Requirements PCCD-ROM drive (for installing software)

Color display with 24-bit color output capability

128 MB RAM or more (256 MB recommended)

Pentium III PC or higher with USB port

Windows 2000/ XP/ Vista/ Windows 7/ 8

23Inbox ContentsScanner unit

Hi-Speed USB cable (USB 2.0)

Power adaptor

Software CD(s)

User’s manual(s)

Film holders (Two glass holders)

24Software IncludedMicrotek MiBio

Microtek ScanWizard Bio

Adobe Acrobat Reader

Adobe Photoshop Elements

25AccessoriesFilm holders (Two glass holders)

Here are examples of our clients for this scanner, either off the shelf or customized:

  1. United State Department of Agriculture (USDA), Wooster, Ohio, USA
  2. The National Institute of Standards and Technology (NIST), Gaithersburg, Maryland, USA
  3. San Diego Biomedical Research Institute, San Diego, California, USA
  4. Discovery Scientific, Hamburg, New Jersey, USA
  5. Los Alamos National Laboratory, Los Alamos, NM, USA
  6. Institut de recherche Robert-Sauvé en santé et en sécurité du travail (IRSST), Montréal, Québec, Canada
  7. Merck KGaA /  VWR International GmbH Deutschland, Darmstadt, Germany
  8. AKRON BIOTECH, Boca Raton, Florida, USA

Applications

When processing biology or medical researches, it is usually necessary to preserve the after-studied images. When capturing images, the most troublesome task is that the images to be preserved may not be dry during taking. The ongoing samples may come with biological mucus or tissue fluid. It then becomes critical about how to capture images of these wet samples fast and preserve them for the use later.

By the help of Bioimager professional Bio-5000 scanner and the ScanWizard Bio software, users can easily capture and preserve images of these important researches. The Bio-5000 is equipped with Bioimager’s patented Emulsion Direct Imaging Technology (E.D.I.T.) for delivering conveniences on cleaning and use. Also, the come-with Auto Focus function allows the scanner to capture the details in images exquisitely and then to generate distortion-free and clear results.

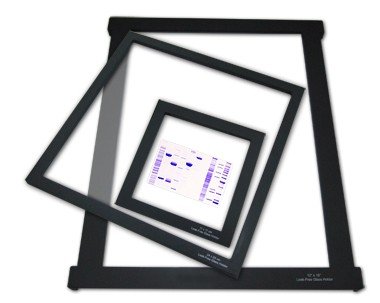

Designed Leak-Free Removable Glass Holder

Bio-6000T is equipped with a specially designed leak-free glass holder that can be easily removed out for cleaning and washing under water tap. The available holders are sizes of 110 x 110 mm, 240 x 240 mm, and 12″ x 16″.

Designed Leak-Free Removable Glass Holder

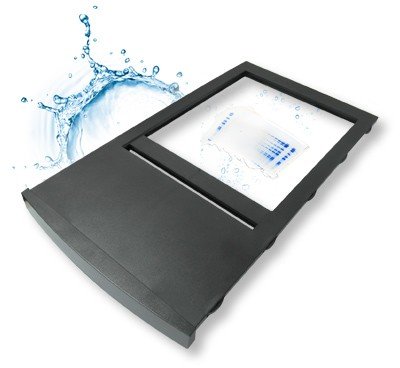

Leak-free large scan bed & shield avoid liquid penetrationLeak-free large scan bed & shield avoid liquid penetration

Bio-6000T is equipped with a specially designed leak-free scan bed and shield that prevent the machine from liquid penetration.

Deliver accurate images no matter the scanned target is dry or wet gel samples
Scientists can capture images directly from gel surface handily no matter the samples are dry or wet. It saves a lot of time, 1-2 days at least, to continue the lab projects without waiting sample being dried.
Deliver accurate images no matter the scanned target is dry or wet gel samples
No warm up time with energy-saving LED light sourceNo warm up time with energy-saving LED light source
5 seconds per gel scanning (10x10cm)5 seconds per gel scanning (10x10cm)
Smart-Touch button quick captures imagesSmart-Touch button quick captures images

Make batch scanning easily
With specially designed film holders, the Bio-6000T accommodates film holders. The film holders lock into place, assuring perfect alignment and precise scans, as well as offering convenient batch scanning.

Powerful software features
Along with MiBio, it implements many biological image analysis features with a user-friendly surface (Windows only). The utility provides added valuable turnkey solution. Bio-6000T is also compatible with all advanced image analysis software packages for 1D and 2D gel electrophoresis.
Powerful software features
Fields of application and application examplesFields of application and application examples
Electrophoresis gels stained with Coomassie blue staining, or autoradiography. i.e. silver-stained SDS PAGE, etc.
