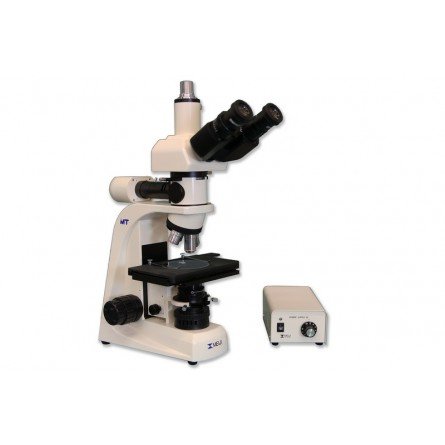

MT8100 Halogen Trino Incident/Transmitted Light BF Metallurgical Microscope

$USD 6,750.00

-7%

Meiji Techno’s new upright incident and transmitted light brightfield metallurgical microscope line is the new and cost-effective MT8000 Series. The MT8000 Series employs all new and improved Plan Episcopic optical system.

Guaranteed Safe Checkout

Meiji Techno’s new upright incident and transmitted light brightfield metallurgical microscope line is the new and cost-effective MT8000 Series. The MT8000 Series employs all new and improved Plan Episcopic optical system.

MT8100 Halogen Trino Incident/Transmitted Light BF Metallurgical Microscope

The MT8000 Series features include:

  • Computer Aided Design
  • Ergonomically positioned controls
  • Comfortable Siedentopf viewing head
  • 30W Vertical Koehler Illuminator with auto voltage sensing power supply
  • 30W Transmitted Koehler Illuminator with auto voltage sensing power supply
  • Brightfield Reflected Light and Brightfield Transmitted Light observation modes
  • Optional Ergonomic binocular viewing head available

Includes:
MT8100: Trinocular Brightfield and Simple Polarization Metallurgical Compound Microscope with Incident (Reflected) and Transmitted light Brightfield  Observation and ∞ Infinity Corrected optical system F-200MM. Vertical Kohler 6V 30W Halogen, Transmitted Kohler 6V 30W illumination with quintuple nosepiece and auto voltage sensing power supply
MA816: Trinocular head –Siedentopf type, Interpupillary adjustment 53mm to 75mm, graduated diopter in left eyetube (30.0mm I.D. eyetube) Inclined at 30 degrees
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece
• MA870: Plan Epi Objective 5X, N.A. 0.10, W.D. 20.0mm, F.N. 24, ∞ Infinity Corrected
• MA871: Plan Epi Objective 10X, N.A. 0.25,W.D. 7.48mm, F.N. 24, ∞ Infinity Corrected
• MA872: Plan Epi Objective 20X, N.A. 0.40,W.D. 5.20mm, F.N. 24, ∞ Infinity Corrected
• MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38mm, F.N. 24, ∞ Infinity Corrected
• MA927: Vertical Koehler Illuminator, 6V 30W Halogen lamp, with clear blue, clear green, ND 25, Neutral Density filter, and polarizing filters in metal mounts 100V-240V
• MA927/05: Transformer for MA927 in separate case (Input 100V-240V, Output 6V 30W)
• MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
• MA476: Green clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
• MA774: N.D. 50 Neutral Density filter, 19.5mm diameter filter in metal mount fits 25mm filter slot
• MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
• MA942: Ceramic coated flat-top stage, 191mm x 126mm, 100mm x 100mm X-Y movement with right hand drop-down coaxial controls and 94.5mm diameter clear glass stage plate
• MA910/05: Substage condenser with iris diaphragm, dovetail mount
• MA326: Bulb 6V 30W Halogen lamp (Incident & Transmitted Halogen models)(Factory Installed)
• MA327: Fuse 3A for transmitted light Halogen illuminator ( Factory Installed)
• MA809/10: Removable AC Electric cord with plug for 115V models
• MA711: Dust Cover for all MT8000 series models
• Manual: MT8000 Meiji Techno Instruction Manual
Warranty: Limited Lifetime Warranty Card

Product Information:
Manufactured: 100% MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
Weight: 33 lbs (9.0 kg)
Box Size: 16 x 14 x 21 inches
Footprint: 263mm (D) x 176mm (W)
Binocular head type: 424.5mm(D) x 471 mm (H) x 210 mm(W) (9.0 kg)( 33.0 lbs)
Trinocular head type: 424.5 mm(D) x 526 mm(H) x 210 mm(W) (9.7 kg)(35.0 lbs)
Binocular Ergonomic head type: 424.5mm (D) x 471 mm (H) x 210 mm (W) (9.0 kg)( 33.0 lbs)
Trinocular Ergonomic head type: 424.5 mm (D) x 550 mm(H) x 210 mm (W) (9.7 kg)(35.0 lbs)

Model Head Illumination Eyepieces Objectives Stage
MT8000 Binocular 30W Vertical Koehler + 30W Transmitted Koehler SWH10x FN22 Plan Epi 5x, 10x, 20x, 50x Ceramic Coated Fixed Flat-top left or right-handed controls
MT8000EH Ergonomic Binocular
MT8100 Trinocular
MT8100EH Ergonomic Trinocular
MT8000L Binocular LED Illumination
MT8000EL Ergonomic Binocular
MT8100L Trinocular
MT8100EL Ergonomic Trinocular

VIEWING HEADS
Model MA815 is the Siedentopf-type binocular head and Model MA816 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. The optional Ergonomic Viewing Head has the inclination adjustable from 10 to 50 degrees to fit any size user.

EYEPIECES
10X Super Widefield High Eyepoint eyepieces F.N.22 are standard, and 15X and 20X eyepieces are available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts 25mm reticules is also available.

OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.

OBJECTIVES
Meiji Techno offers an assortment of Plan Epi Infinity Corrected objectives for Brightfield work.

STAGE
Ceramic coated left or right-handed, flat top stage measures 191mm x 126mm with x-y travel: 100mm(X) x 100mm(Y). Ergonomically positioned coaxial drop down controls.

ILLUMINATION
Powerful 30 watt halogen transmitted and incident reflected illumination systems provides enhanced image quality and brightness for the observation of metallurgical specimens.

PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.

MT8100 Halogen Trino Incident/Transmitted Light BF Metallurgical MicroscopeMT8100 Halogen Trino Incident/Transmitted Light BF Metallurgical MicroscopeMT8100 Halogen Trino Incident/Transmitted Light BF Metallurgical MicroscopeMT8100 Halogen Trino Incident/Transmitted Light BF Metallurgical MicroscopeMT8100 Halogen Trino Incident/Transmitted Light BF Metallurgical Microscope

Included:
• MT8100: Trinocular Brightfield and Simple Polarization Metallurgical Compound Microscope with Incident (Reflected) and Transmitted light Brightfield  Observation and ∞ Infinity Corrected optical system F-200MM. Vertical Kohler 6V 30W Halogen, Transmitted Kohler 6V 30W illumination with quintuple nosepiece and auto voltage sensing power supply
• MA816: Trinocular head –Siedentopf type, Interpupillary adjustment 53mm to 75mm, graduated diopter in left eyetube (30.0mm I.D. eyetube) Inclined at 30 degrees
MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
MA906 (x 2): Eyeshield for MA817 SWH 10X eyepiece
• MA870: Plan Epi Objective 5X, N.A. 0.10, W.D. 20.0mm, F.N. 24, ∞ Infinity Corrected
• MA871: Plan Epi Objective 10X, N.A. 0.25,W.D. 7.48mm, F.N. 24, ∞ Infinity Corrected
• MA872: Plan Epi Objective 20X, N.A. 0.40,W.D. 5.20mm, F.N. 24, ∞ Infinity Corrected
• MA873: Plan Epi Objective 50X, N.A. 0.75, W.D. 0.38mm, F.N. 24, ∞ Infinity Corrected
• MA927: Vertical Koehler Illuminator, 6V 30W Halogen lamp, with clear blue, clear green, ND 25, Neutral Density filter, and polarizing filters in metal mounts 100V-240V
• MA927/05: Transformer for MA927 in separate case (Input 100V-240V, Output 6V 30W)
• MA475/05: Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
• MA476: Green clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
• MA774: N.D. 50 Neutral Density filter, 19.5mm diameter filter in metal mount fits 25mm filter slot
• MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
• MA942: Ceramic coated flat-top stage, 191mm x 126mm, 100mm x 100mm X-Y movement with right hand drop-down coaxial controls and 94.5mm diameter clear glass stage plate
• MA910/05: Substage condenser with iris diaphragm, dovetail mount
• MA326: Bulb 6V 30W Halogen lamp (Incident & Transmitted Halogen models)(Factory Installed)
• MA327: Fuse 3A for transmitted light Halogen illuminator ( Factory Installed)
• MA809/10: Removable AC Electric cord with plug for 115V models
• MA711: Dust Cover for all MT8000 series models
• Manual: MT8000 Meiji Techno Instruction Manual

OPTIONAL COMPONENTS & ACCESSORIES BELOW

Viewing Heads:
MA816: Trinocular head – Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube (30.0 mm I.D. eyetube) Inclined at 30 degrees (Included in MT8100 and MT8100L Models)
MA957: Ergonomic tilting binocular head – Adjustable vertically from 10 to 50 degrees
MA959: Trinocular head – Siedentopf type, erect image with sliding 0/100 beamsplitter, inclined at 30 degrees, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube

Photo/Video Attachment:
MA958:Photo / video attachment with sliding 80/20 beam-splitter. For use with video or digital cameras when MA957 ergonomic head is used

Eyepieces:
MA818: SWH15X Widefield high eyepoint eyepiece, Field No. 16.0, tube O.D. 30.0 mm (each) (MA818 accepts optional 19mm diameter reticle)
MA819: SWH20X Widefield high eyepoint eyepiece, Field No. 12.0, tube O.D. 30.0 mm (each) (MA819 accepts optional 19mm diameter reticle)
MA859: SWH10X-F Focusing eyepiece with reticle mount (without reticle), tube O.D. 30.0 mm (each) (MA859 accepts optional 25mm diameter reticle)

Brightfield Plan Epi Objectives:
• MA874:
Plan Epi Objective 100X, N.A. 0.90, W.D. 0.37mm, F.N. 24

Brightfield LWD (Long Working Distance) Plan Epi Objectives:
MA920: LWD Plan Epi Objective 20X, N.A. 0.40, W.D. 11.0 mm , F.N. 24
MA921: LWD Plan Epi Objective 50X, N.A. 0.55, W.D. 7.5 mm, F.N. 24

Eyepiece Micrometer (25mm diameter for use with MA817 or MA859 eyepieces):
MA523: Eyepiece micrometer, cross-line reticle, 25mm diameter
MA506: Eyepiece micrometer, 10mm line divided into 100 units, 25mm diameter
MA509: Eyepiece micrometer, 5mm line divided into 100 units, 25mm diameter
MA510: Eyepiece micrometer, 10mm square divided into 100 parts, each square 1.0 mm, 25mm diameter
MA542: Eyepiece micrometer, cross-line reticle with 0.1mm graduations, 25mm diameter
MA738: Eyepiece micrometer, for grain sizing in steel, 25mm diameter

Eyepiece Micrometer (19mm diameter for use with MA818 or MA819 eyepieces):
MA279: Eyepiece micrometer, cross-line reticle, 19mm diameter
MA280: Eyepiece micrometer, 10mm line divided into 100 units, 19mm diameter
MA281: Eyepiece micrometer, 5mm line divided into 100 units, 19mm diameter
MA539: Eyepiece micrometer, cross-line reticle with 0.1mm graduations, 19mm diameter

Stage Micrometer:
MA292: Metal stage micrometer, 1mm divided into 100 units, 0.01mm

Bulbs and Fuses:
MA326: Spare bulb 6V 30W halogen lamp (Incident & Transmitted Halogen models)
MA327: Spare Fuse 3A for transmitted light halogen illuminator
