ML5000 Meiji Techno Biological Microscope Series

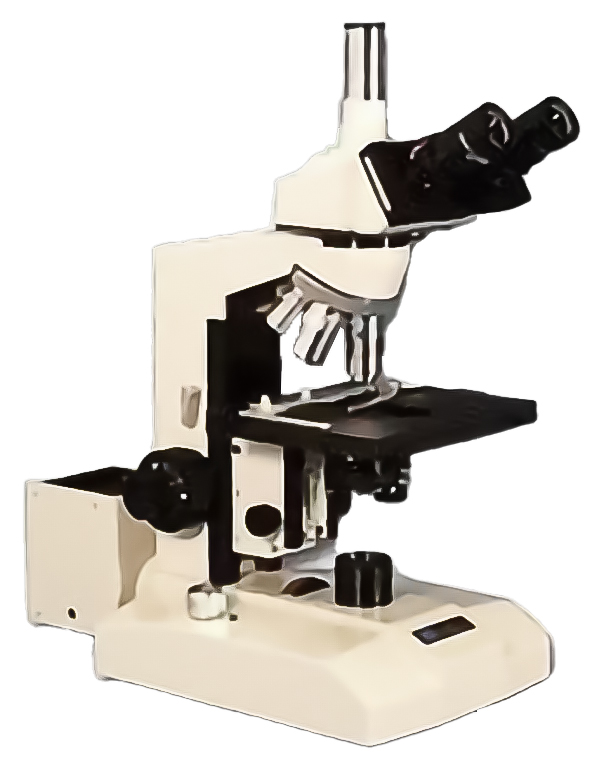

Meiji Techno ML5000 Upright Biological Microscope
Models to Select

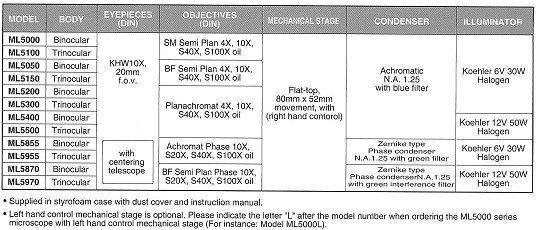

ML5000 Series Ordering Information
| Model | Head | Eyepieces | Objectives | Mech. Stages | Condensers | Illumination |
| ML5000 | Bino. | KHW10X FN 20 | SM Semi Plan Brightfield 4X, 10X, S40X, S100X oil | Flat-top | Achromatic Condenser NA 1.25 with blue filter |
Koehler 6V 30W halogen |
| ML5100 | Trino. | |||||
| ML5050 | Bino. | BF Semi Plan Brightfield 4X, 10X, S40X, S100X oil | ||||
| ML5150 | Trino. | |||||

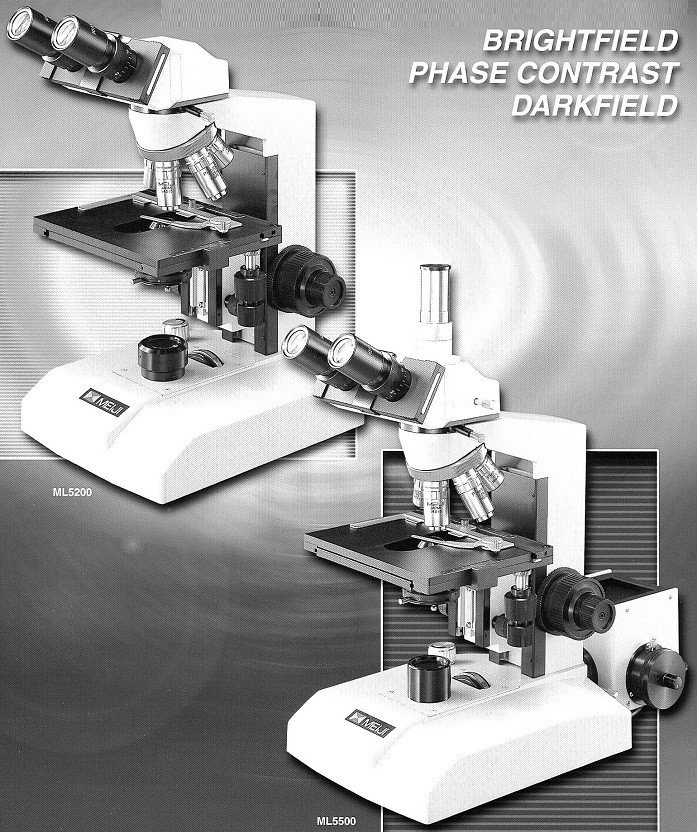

| ML5200 | Bino. | Planachromat Brightfield 4X, 10X, S40X, S100X oil | ||||
| ML5300 | Trino. | |||||
| ML5400 | Bino. | Koehler 12V 50W halogen |
||||
| ML5500 | Trino. | |||||
| ML5855* | Bino. | Achromat Phase Contrast 10X, S20X, S40X, S100X oil | Zernike type phase condenser, NA 1.25 with green filter | Koehler 6V 30W halogen |
||
| ML5955 * | Trino. | |||||

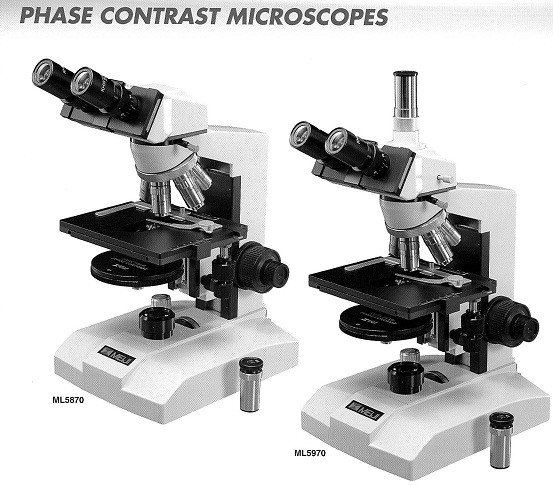

| ML5870* | Bino. | BF Semi Plan Phase Contrast 10X, S20X, S40X, S100X oil | Zernike type phase condenser, NA 1.25 with green interference filter 546nm, 29.8mm Ø | Koehler 12V 50W halogen |
||
| ML5970* | Trino. | |||||
| * Centering telescope is also included | ||||||
Download Product Brochure

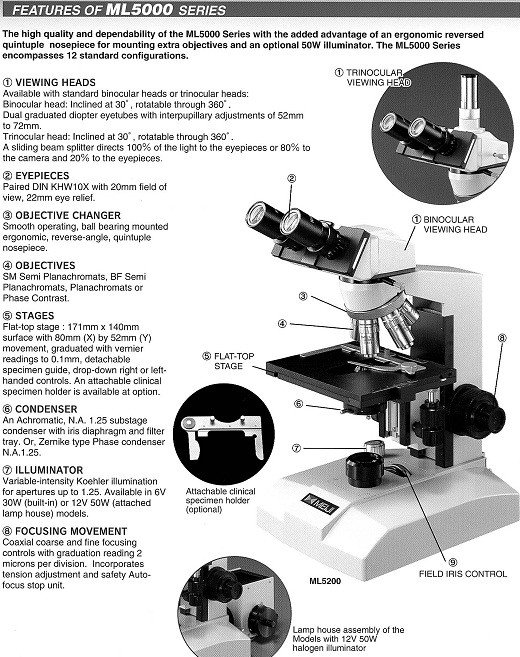

The same high quality, dependability, and options of the ML2000 Series with the added advantage of an ergonomic reversed quintuple nosepiece for mounting extra objectives, and an optional 50W illuminator for those special applications that require more intense illumination.
The high quality and dependability of the ML Series with the added advantage of an ergonomic reversed quintuple nosepiece for mounting extra objectives. An optional 50W illuminator is also available in this series. The ML5000 series encompasses 12 standard configurations listed below.
VIEWING HEADS
Available with standard binocular heads or trinocular heads for photomicrography, 30° inclined eyetubes with adjustable diopter settings and interpupillary distance, 360° rotatable.
| MA602 | Inclined Binocular Head |
| MA603 | Inclined Trinocular Head |
| MA657 | Binocular Head Erect Image |
| MA655 | Trinocular Head Erect Image |
| MA403 | Inclined Monocular Head |
EYEPIECES
Paired DIN KHW10x with 20mm field of view.
| MA406 | DIN HWF10X eyepiece, FN 18 (each) |
| MA407 | DIN KHW10X compensating eyepiece, FN 20 (each) |
| MA408 | DIN HWF15X eyepiece, FN 9 (each) |
| MA409 | DIN HWF20X eyepiece, FN 9 (each) |
OBJECTIVE CHANGER
Smooth-operating, ball bearing mounted, reverse-angle, quintuple nosepiece.
OBJECTIVES
S. Flat Achromats, SM Planachromats, Planachromats, and Phase Contrast.
| SM Semi Planachromat Objectives | |
| MA611 | 4X / NA 0.10 SM Semi Planachromat objective, WD 19.83mm |
| MA612 | 5X / NA 0.12 SM Semi Planachromat objective, WD 19.83mm |
| MA613 | 10X / NA 0.25 SM Semi Planachromat objective, WD 6.23mm |
| MA614 | 20XS / NA 0.40 SM Semi Planachromat objective, spring loaded, WD 3.13mm |
| MA615 | 40XS / NA 0.65 SM Semi Planachromat objective, spring loaded, WD 0.43mm |
| MA616 | 60XS / NA 0.80 SM Semi Planachromat objective, spring loaded, WD 0.23mm |
| MA617 | 100XS / NA 1.25 SM Semi Planachromat objective, spring loaded, oil, WD 0.12mm |
| BF Semi Planachromat Objectives | |
| MA692 | 20X / NA 0.40 BF Semi Planachromat objective, WD 6.1mm |
| MA693 | 40XS / NA 0.65 BF Semi Planachromat objective, spring loaded, WD 0.43mm |
| MA694 | 50XS / NA 0.95 BF Semi Planachromat objective, spring loaded, WD 0.25mm |
| MA696 | 100XS / NA 1.25 BF Semi Planachromat objective, spring loaded, oil, WD 0.15mm |
| MA811 | 50X / NA 0.95 BF Semi Planachromat objective, oil with iris, WD 0.24mm |
| MA813 | 100X / NA 1.25 BF Semi Planachromat objective, oil with iris, WD 0.15mm |
| Planachromat Objectives | |
| MA432 | 2.5X / NA 0.08 Planachromat objective |
| MA622 | 4X / NA 0.10 Planachromat objective |
| MA623 | 10X / NA 0.25 Planachromat objective |
| MA625 | 40XS / NA 0.65 Planachromat objective, spring loaded |
| MA627 | 100X / NA 1.25 Planachromat objective, spring loaded, oil |

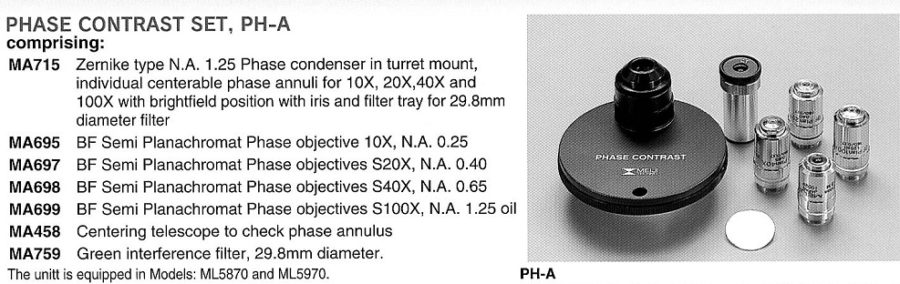

| Zernike BF Semi Plan Phase Objectives and Components (Set PH-A) | |
| MA695 | 10X / NA 0.25 BF Plan Phase objective for use with Zernike-type Condenser |
| MA697 | 20X / NA 0.40 BF Plan Phase objective for use with Zernike-type Condenser |
| MA698 | 40X / NA 0.65 BF Plan Phase objective for use with Zernike-type Condenser |
| MA699 | 100X / NA 1.25 BF Plan Phase objective for use with Zernike-type Condenser |
| MA715 | Zernike Condenser with centerable phase annuli, 10x, 20x, 40x and 100x with iris |
| MA457/1 | Extended centering screws for MA715 (each) |
| MA458 | Phase Centering Telescope |
| MA759 | Green Interference Filter, 546nm, 29.8mm diameter |

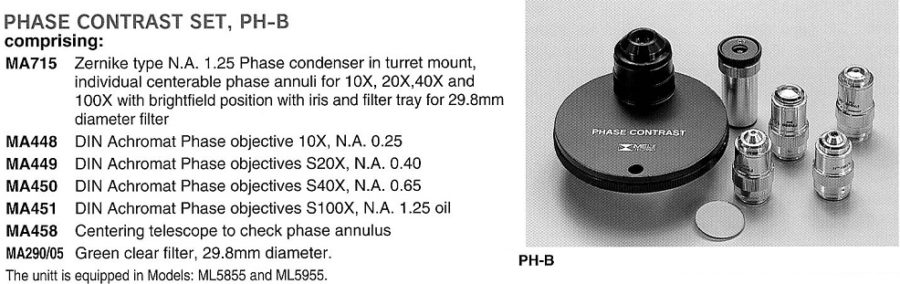

| Zernike Achromat Phase Objectives and Components (Set PH-B) | |
| MA448 | 10X / NA 0.25 Achromat Phase objective for use with Zernike-type Condenser |
| MA449 | 20X / NA 0.40 Achromat Phase objective for use with Zernike-type Condenser |
| MA450 | 40X / NA 0.65 Achromat Phase objective for use with Zernike-type Condenser |
| MA451 | 100X / NA 1.25 Achromat Phase objective for use with Zernike-type Condenser |
| MA715 | Zernike Condenser with centerable phase annuli, 10x, 20x, 40x and 100x with iris |
| MA457/1 | Extended centering screws for MA715 (each) |
| MA458 | Phase Centering Telescope |
| MA290/05 | Green Filter, 29.8mm diameter |

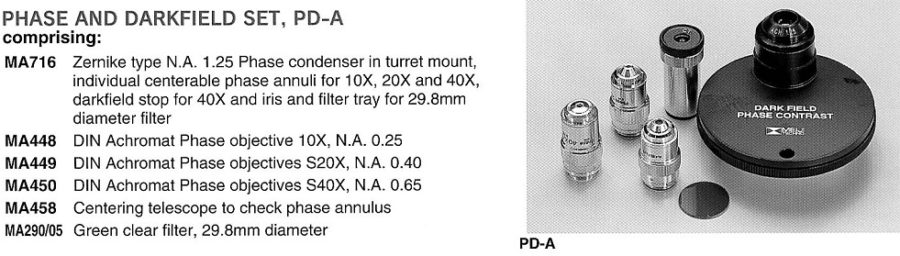

| Zernike Achromat Phase Objectives and Components (Set PD-A) | |
| MA448 | 10X / NA 0.25 Achromat Phase objective for use with Zernike-type Condenser |
| MA449 | 20X / NA 0.40 Achromat Phase objective for use with Zernike-type Condenser |
| MA450 | 40X / NA 0.65 Achromat Phase objective for use with Zernike-type Condenser |
| MA715 | Zernike Condenser with centerable phase annuli, 10x, 20x, 40x and 100x with iris |
| MA457/1 | Extended centering screws for MA715 or MA716 (each) |
| MA458 | Phase Centering Telescope |
| MA290/05 | Green Filter, 29.8mm diameter |

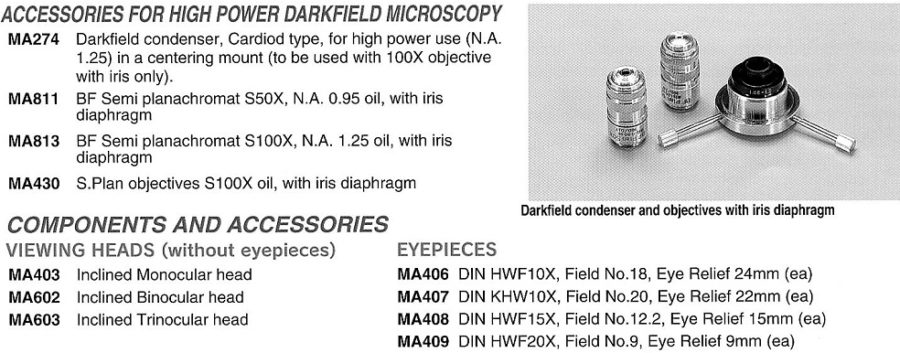

| Darkfield-Oil Immersion Objectives and Condensers | |
| MA811 | BF Semi Planachromat S50X, NA 0.95, oil with iris diaphragm |
| MA813 | 100X, NA 1.25 BF Semi Planachromat objective with iris WD 0.15mm |
| MA430 | DIN S.Plan objective 100X, NA 1.25, oil with iris |
| MA274 | Darkfield condenser, 1.2 -1.33 NA, for use with 50x or 100x with iris ONLY |
| Darkfield Accessories | |
| MA672 | Funnel stop for MA617 SM Plan 100X |
| MA278/05 | Darkfield filter (central stop) for use with filter tray, 29.8mm diameter |
| MA674 | Darkfield stop to fit MA661 Achromatic NA 1.25 condenser |
STAGE
Flat-top stage: 171mm x 140mm surface with 80mm (X) by 52mm (Y) movement, graduated with vernier readings to 0.1 mm, detachable specimen guide, drop-down right of left-handed controls.
| (click here for information on specimen holders) | |
| MA595R | Right Handed Graduated mechanical stage, 30mm X 70mm, drop down controls for ML2000, ML2100, ML2200, ML2300, ML2800 and ML2900 |
| MA595L |
Left Handed Graduated mechanical stage, 30mm X 70mm, drop down controls for ML2000, ML2100, ML2200, ML2300, ML2800 and ML2900
|
| MA596R | Right Handed Flat top stage, 78mm X 52mm, drop down controls for ML2400, ML2500, ML2700, ML2850, ML2950 and ML5000 |
| MA596L | Left Handed Flat top stage, 78mm X 52mm, drop down controls for ML2400, ML2500, ML2700, ML2850, ML2950 and ML5000 |
| MA676 | Attachable Clinical Specimen Holder for MA596R and MA596L (optional) |
| MA598 | Attachable finger assembly for MA596R and MA596L |
CONDENSERS
Standard models have either an Achromatic NA 1.25 condenser with iris diaphragm and filter tray for brightfield work, simple NA 1.25 slider phase condenser, or an NA 1.25 Zernike phase condenser with filter tray and independently centerable annuli for phase contrast. Cardioid-type NA 1.25 darkfield condenser for high power (100x objective only) darkfield work is optional.
| Condensers | |
| MA661 | Achromatic sub-stage condenser 1.25 NA w/ iris and 30mm filter tray |
| MA661/674 | Achromatic sub-stage condenser 1.25 NA w/ dry darkfield stop |
| MA715 | Zernike Condenser with centerable phase annuli, 10x, 20x, 40x and 100x with iris |
| MA716 | Zernike Condenser with centerable phase annuli, 10x, 20x, 40x and 100x with iris and darkfield stop |
| MA457/1 | Extended centering screws for MA715 or MA716 (each) |
| Polarizers | |
| MA608 | Polarizer set for ML2000 (fits over 44mm lamphouse analyzer to fit viewing head) |
| MA608/05 | Polarizer set for ML5400, ML5500, ML5850, ML5950 (50 watt version) (fits over 37mm lamphouse analyzer to fit viewing head) |
| MA608/10 | Polarizer set for ML5000, ML5100, ML5200, ML5300, ML5800, ML5900 (30 watt version) (fits over 44mm lamphouse analyzer to fit viewing head) |
| Filters | |
| MA196 | ND2 neutral density filter, 29.8mm diameter |
| MA197 | ND8 neutral density filter, 29.8mm diameter |
| MA289/05 | Blue filter, clear, 29.8mm diameter |
| MA290/05 | Green filter, clear, 29.8mm diameter |
| MA759 | Green Interference Filter, 546nm, 29.8mm diameter |
| MA291 | Polarizing Filter, 546nm, 29.8mm diameter |
ILLUMINATOR
Variable-intensity Koehler illumination for apertures up to 1.25. Available in 6V 30W (built-in) or 12V 50W (attached lamp house) models.
| Eyepiece Micrometers | |
| MA284 | Cross-line reticle, 21mm diameter |
| MA255 | 10mm divided into 100 units, 21mm diameter |
| MA256 | 5mm divided into 100 units, 21mm diameter |
| MA283/05 | 10mm square divided into 100 parts, 1mm square, 21mm diameter |
| MA540 | Cross-line reticle with 0.1mm graduations, 21mm diameter |
| MA254/05 | Walton & Beckett reticle, 21mm diameter |
| Stage Micrometers | |
| MA285 | 1mm divided into 100 units, 0.01mm |
| MA286 | 0.04″ divided into 40 units, 0.001″ |
| Miscellaneous | |
| MA200 | Eyeshields for MA407 eyepieces (each) |
| MA275/05 | Spare bulb 12V 50W halogen |
| MA326 | Spare bulb 6V 30W halogen |
| MA327 | Fuse 3A |
| MA609/05 | Carrying case for ML2000 and ML5000 series |
| MA700 | Immersion Oil, 15cc vial |
| MA701 | Dust Cover fits ML2000 and ML5000 series |
Item #ML5000
